6‘ MICROCHIP
2016 Microchip Technology Inc. DS00002164B-page 1
Highlights
• Single-Chip Ethernet Physical Layer Transceiver
(PHY)
• Comprehensive flexPWR® Technology
- Flexible Power Management Architecture
- LVCMOS Variable I/O voltage range: +1.6V
to +3.6V
- Integrated 1.2V regulator with disable feature
• HP Auto-MDIX support
• Small footprint 32-pin QFN/SQFN lead-free RoHS
compliant packages (5 x 5mm)
Target Applications
• Set-Top Boxes
• Networked Printers and Servers
• Test Instrumentation
• LAN on Motherboard
• Embedded Telecom Applications
• Video Record/Playback Systems
• Cable Modems/Routers
• DSL Modems/Routers
• Digital Video Recorders
• IP and Video Phones
• Wireless Access Points
• Digital Televisions
• Digital Media Adapters/Servers
• Gaming Consoles
• POE Applications (Refer to Application Note
17.18)
Key Benefits
• High-Performance 10/100 Ethernet Transceiver
- Compliant with IEEE802.3/802.3u (Fast
Ethernet)
- Compliant with ISO 802-3/IEEE 802.3
(10BASE-T)
- Loop-back modes
- Auto-negotiation
- Automatic polarity detection and correction
- Link status change wake-up detection
- Vendor specific register functions
- Supports both MII and the reduced pin count
RMII interfaces
• Power and I/Os
- Various low power modes
- Integrated power-on reset circuit
- Two status LED outputs
- Latch-Up Performance Exceeds 150mA per
EIA/JESD 78, Class II
- May be used with a single 3.3V supply
• Additional Features
- Ability to use a low cost 25Mhz crystal for
reduced BOM
• Packaging
- 32-pin QFN/SQFN (5x5 mm) Lead-Free
RoHS Compliant package with MII and RMII
• Environmental
- Extended commercial temperature range
(0°C to +85°C)
- Industrial temperature range version avail-
able (-40°C to +85°C)
LAN8710A/LAN8710Ai
Small Footprint MII/RMII 10/100 Ethernet Transceiver
with HP Auto-MDIX and flexPWR® Technology
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at docerrors@microchip.com. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
•Microchip’s Worldwide Web site; http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at www.microchip.com to receive the most current information on all of our products.
LAN8710A/LAN8710AI
DS00002164B-page 2 2016 Microchip Technology Inc.
2016 Microchip Technology Inc. DS00002164B-page 3
LAN8710A/LAN8710AI
Table of Contents
1.0 Introduction ..................................................................................................................................................................................... 4
2.0 Pin Description and Configuration .................................................................................................................................................. 6
3.0 Functional Description .................................................................................................................................................................. 16
4.0 Register Descriptions .................................................................................................................................................................... 43
5.0 Operational Characteristics ........................................................................................................................................................... 54
6.0 Package Information ..................................................................................................................................................................... 68
7.0 Application Notes .......................................................................................................................................................................... 73
Appendix A: Data Sheet Revision History ........................................................................................................................................... 75
The Microchip Web Site ...................................................................................................................................................................... 76
Customer Change Notification Service ............................................................................................................................................... 76
Customer Support ............................................................................................................................................................................... 76
Product Identification System ............................................................................................................................................................. 77
LAN8710A/LAN8710AI
DS00002164B-page 4 2016 Microchip Technology Inc.
1.0 INTRODUCTION
1.1 General Terms and Conventions
The following is list of the general terms used throughout this document:
BYTE 8-bits
FIFO First In First Out buffer; often used for elasticity buffer
MAC Media Access Controller
MII Media Independent Interface
RMII™ Reduced Media Independent InterfaceTM
N/A Not Applicable
XIndicates that a logic state is “don’t care” or undefined.
RESERVED Refers to a reserved bit field or address. Unless otherwise
noted, reserved bits must always be zero for write opera-
tions. Unless otherwise noted, values are not guaranteed
when reading reserved bits. Unless otherwise noted, do
not read or write to reserved addresses.
SMI Serial Management Interface
1.2 General Description
The LAN8710A/LAN8710Ai is a low-power 10BASE-T/100BASE-TX physical layer (PHY) transceiver with variable I/O
voltage that is compliant with the IEEE 802.3-2005 standards.
The LAN8710A/LAN8710Ai supports communication with an Ethernet MAC via a standard MII (IEEE 802.3u)/RMII inter-
face. It contains a full-duplex 10-BASE-T/100BASE-TX transceiver and supports 10Mbps (10BASE-T) and 100Mbps
(100BASE-TX) operation. The LAN8710A/LAN8710Ai implements auto-negotiation to automatically determine the best
possible speed and duplex mode of operation. HP Auto-MDIX support allows the use of direct connect or cross-over
LAN cables.
The LAN8710A/LAN8710Ai supports both IEEE 802.3-2005 compliant and vendor-specific register functions. However,
no register access is required for operation. The initial configuration may be selected via the configuration pins as
described in Section 3.7, "Configuration Straps," on page 29. Register-selectable configuration options may be used to
further define the functionality of the transceiver.
Per IEEE 802.3-2005 standards, all digital interface pins are tolerant to 3.6V. The device can be configured to operate
on a single 3.3V supply utilizing an integrated 3.3V to 1.2V linear regulator. The linear regulator may be optionally dis-
abled, allowing usage of a high efficiency external regulator for lower system power dissipation.
The LAN8710A/LAN8710Ai is available in both extended commercial and industrial temperature range versions. A typ-
ical system application is shown in Figure 1-1.

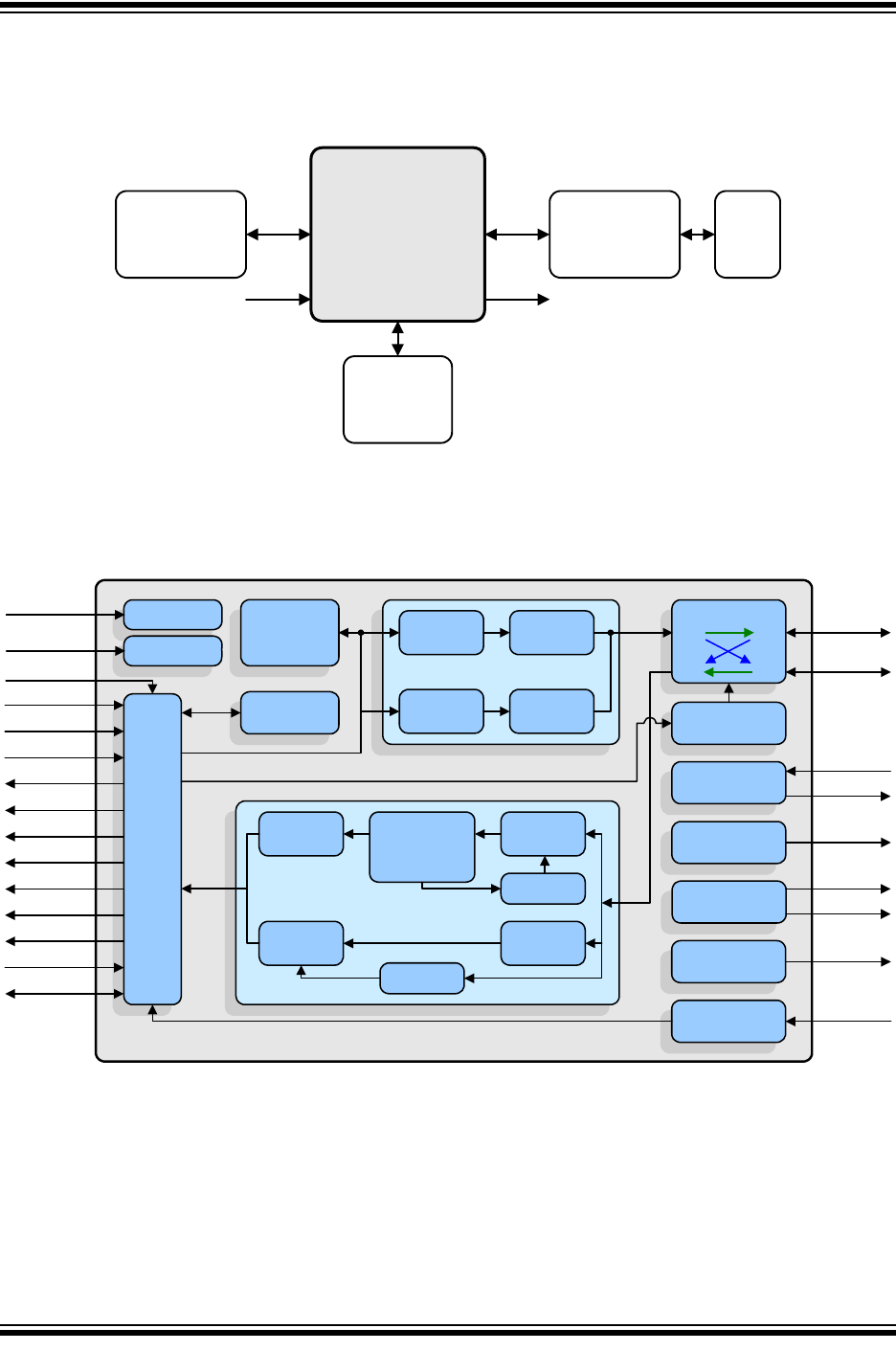

FIGURE 1-1: SYSTEM BLOCK DIAGRAM
LAN8710A/
LAN8710Ai
10/100
Ethernet
MAC
MII/
RMII
Mode LED
Transformer
Crystal or
Clock
Oscillator
MDI RJ45
FIGURE 1-2: ARCHITECTURAL OVERVIEW
RMII/MII Logic
Interrupt
Generator
LEDs
PLL
Receiver
DSP System:
Clock
Data Recovery
Equalizer
Squeltch
& Filters
Analog-to-
Digital
10M RX
Logic
100M RX
Logic
100M PLL
10M PLL
Transmitter
10M
Transmitter
100M
Transmitter
10M TX
Logic
100M TX
Logic
Central Bias
PHY Address
Latches
LAN8710A/LAN8710Ai
RBIAS
LED1
nINT
XTAL2
XTAL1/CLKIN
LED2
Management
Control
Mode Control
Reset Control
MDIX
Control
HP Auto-MDIX
RXP/RXN
TXP/TXN
TXD[0:3]
TXEN
TXER
TXCLK
RXD[0:3]
RXDV
RXER
RXCLK
CRS
COL/CRS_DV
MDC
MDIO
Auto-
Negotiation
RMIISEL
nRST
MODE[0:2]
SMI
PHYAD[0:2]
2016 Microchip Technology Inc. DS00002164B-page 5
LAN8710A/LAN8710AI
MODEZ PHVADO MODEO E1 RMIISEL on: S<>=n3nxm vnxtmmxthzi 33:32.85. 5:: moan; v38? z_x1_o:.._<._.x zmvc.=""><.—x 09c="" $003595="" eve.="" ‘="" 4mm._.z_5~nm._="" «ec="" (an="" n="">
LAN8710A/LAN8710AI
DS00002164B-page 6 2016 Microchip Technology Inc.
2.0 PIN DESCRIPTION AND CONFIGURATION

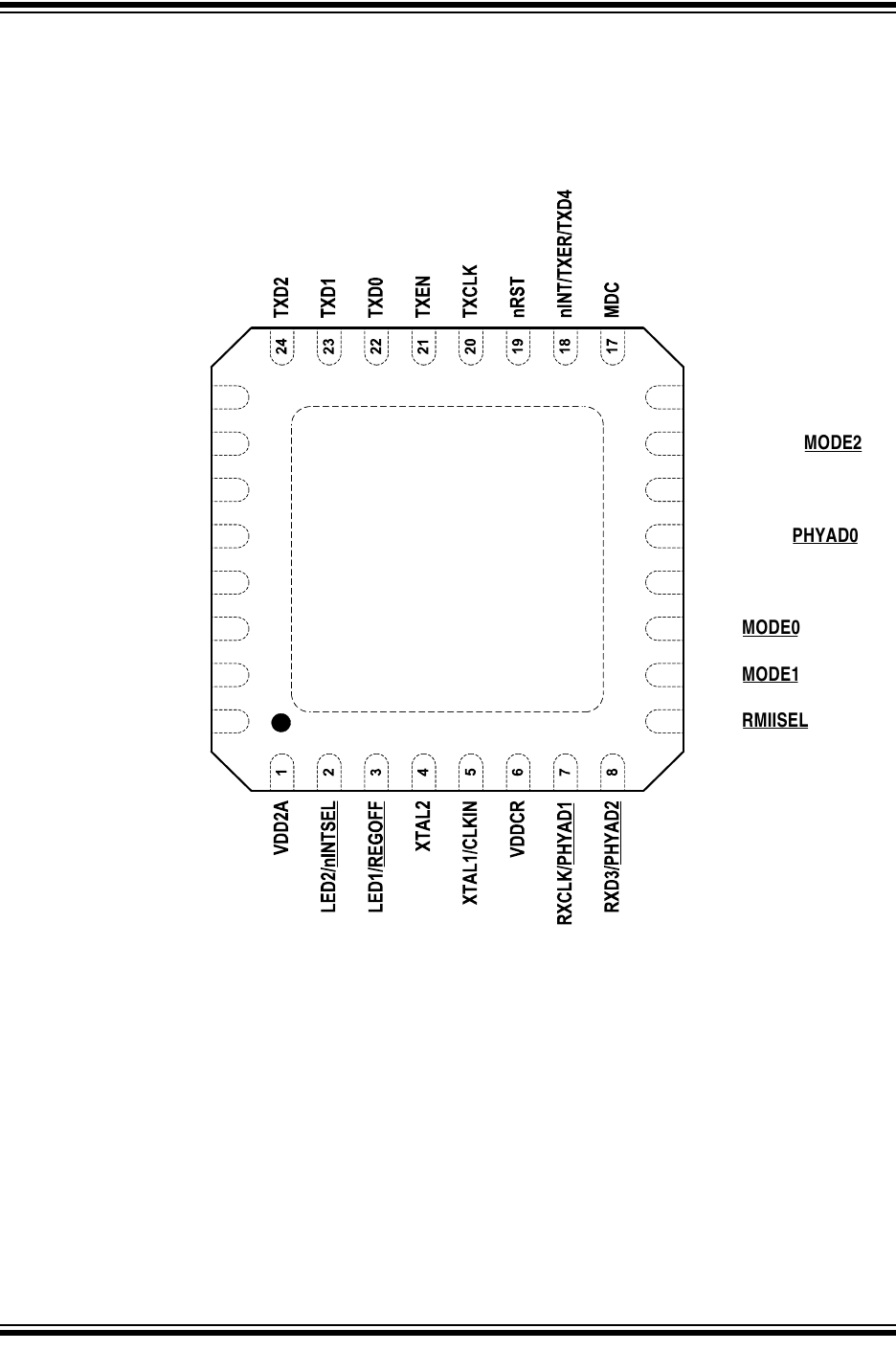

FIGURE 2-1: 32-QFN/SQFN PIN ASSIGNMENTS (TOP VIEW)
VSS
NOTE: Exposed pad (VSS) on bottom of package must be connected to ground
LAN8710A/LAN8710Ai
(TOP VIEW)
MDIO
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
TXD3
RXDV
VDD1A
TXN
TXP
RXN
RXP
RBIAS
COL/CRS_DV/MODE2
CRS
RXER/RXD4/PHYAD0
VDDIO
RXD0/MODE0
RXD1/MODE1
RXD2/RMIISEL
Note 2-1 When a lower case “n” is used at the beginning of the signal name, it indicates that the signal is
active low. For example, nRST indicates that the reset signal is active low.
Note 2-2 The buffer type for each signal is indicated in the BUFFER TYPE column. A description of the buffer
types is provided in Section 2.2.
Ihe HINTSEL
2016 Microchip Technology Inc. DS00002164B-page 7
LAN8710A/LAN8710AI
TABLE 2-1: MII/RMII SIGNALS
Num Pins Name Symbol Buffer
Type Description
1Transmit
Data 0 TXD0 VIS The MAC transmits data to the transceiver using
this signal in all modes.
1Transmit
Data 1 TXD1 VIS The MAC transmits data to the transceiver using
this signal in all modes.
1Transmit
Data 2
(MII Mode)
TXD2 VIS The MAC transmits data to the transceiver using
this signal in MII Mode.
Note: This signal must be grounded in RMII
Mode.
1Transmit
Data 3
(MII Mode)
TXD3 VIS The MAC transmits data to the transceiver using
this signal in MII Mode.
Note: This signal must be grounded in RMII
Mode.
1Interrupt Out-
put nINT VO8 Active low interrupt output. Place an external
resistor pull-up to VDDIO.
Note: Refer to Section 3.6, "Interrupt
Management," on page 27 for additional
details on device interrupts.
Note: Refer to Section 3.8.1.2, "nINTSEL and
LED2 Polarity Selection," on page 33 for
details on how the nINTSEL configuration
strap is used to determine the function of
this pin.
Transmit
Error
(MII Mode)
TXER VIS
(PU) When driven high, the 4B/5B encode process
substitutes the Transmit Error code-group (/H/) for
the encoded data word. This input is ignored in
the 10BASE-T mode of operation.
Transmit
Data 4
(MII Mode)
TXD4 VIS
(PU) In Symbol Interface (5B Decoding) mode, this sig-
nal becomes the MII Transmit Data 4 line (the
MSB of the 5-bit symbol code-group).
Note: This signal is not used in RMII Mode.
1Transmit
Enable TXEN VIS
(PD) Indicates that valid transmission data is present
on TXD[3:0]. In RMII Mode, only TXD[1:0] provide
valid data.
1Transmit
Clock
(MII Mode)
TXCLK VO8 Used to latch data from the MAC into the trans-
ceiver.
• MII (100BASE-TX): 25MHz
• MII (10BASE-T): 2.5MHz
Note: This signal is not used in RMII Mode.
LAN8710A/LAN8710AI
DS00002164B-page 8 2016 Microchip Technology Inc.
1Receive
Data 0 RXD0 VO8 Bit 0 of the 4 (2 in RMII Mode) data bits that are
sent by the transceiver on the receive path.
PHY Operat-
ing Mode 0
Configuration
Strap
MODE0 VIS
(PU) Combined with MODE1 and MODE2, this config-
uration strap sets the default PHY mode.
See Note 2-3 for more information on configura-
tion straps.
Note: Refer to Section 3.7.2, "MODE[2:0]:
Mode Configuration," on page 30 for
additional details.
1Receive
Data 1 RXD1 VO8 Bit 1 of the 4 (2 in RMII Mode) data bits that are
sent by the transceiver on the receive path.
PHY Operat-
ing Mode 1
Configuration
Strap
MODE1 VIS
(PU) Combined with MODE0 and MODE2, this config-
uration strap sets the default PHY mode.
See Note 2-3 for more information on configura-
tion straps.
Note: Refer to Section 3.7.2, "MODE[2:0]:
Mode Configuration," on page 30 for
additional details.
1Receive
Data 2
(MII Mode)
RXD2 VO8 Bit 2 of the 4 (in MII Mode) data bits that are sent
by the transceiver on the receive path.
Note: This signal is not used in RMII Mode.
MII/RMII
Mode Select
Configuration
Strap
RMIISEL VIS
(PD) This configuration strap selects the MII or RMII
mode of operation. When strapped low to VSS,
MII Mode is selected. When strapped high to
VDDIO RMII Mode is selected.
See Note 2-3 for more information on configura-
tion straps.
Note: Refer to Section 3.7.3, "RMIISEL: MII/
RMII Mode Configuration," on page 31 for
additional details.
1Receive
Data 3
(MII Mode)
RXD3 VO8 Bit 3 of the 4 (in MII Mode) data bits that are sent
by the transceiver on the receive path.
Note: This signal is not used in RMII Mode.
PHY Address
2 Configura-
tion Strap
PHYAD2 VIS
(PD) Combined with PHYAD0 and PHYAD1, this con-
figuration strap sets the transceiver’s SMI
address.
See Note 2-3 for more information on configura-
tion straps.
Note: Refer to Section 3.7.1, "PHYAD[2:0]: PHY
Address Configuration," on page 29 for
additional information.
TABLE 2-1: MII/RMII SIGNALS (CONTINUED)
Num Pins Name Symbol Buffer
Type Description
2016 Microchip Technology Inc. DS00002164B-page 9
LAN8710A/LAN8710AI
1Receive Error RXER VO8 This signal is asserted to indicate that an error
was detected somewhere in the frame presently
being transferred from the transceiver.
Note: This signal is optional in RMII Mode.
Receive
Data 4
(MII Mode)
RXD4 VO8 In Symbol Interface (5B Decoding) mode, this sig-
nal is the MII Receive Data 4 signal, the MSB of
the received 5-bit symbol code-group.
Note: Unless configured to the Symbol
Interface mode, this pin functions as
RXER.
PHY Address
0
Configuration
Strap
PHYAD0 VIS
(PD) Combined with PHYAD1 and PHYAD2, this con-
figuration strap sets the transceiver’s SMI
address.
See Note 2-3 for more information on configura-
tion straps.
Note: Refer to Section 3.7.1, "PHYAD[2:0]: PHY
Address Configuration," on page 29 for
additional information.
1Receive
Clock
(MII Mode)
RXCLK VO8 In MII mode, this pin is the receive clock output.
• MII (100BASE-TX): 25MHz
• MII (10BASE-T): 2.5MHz
PHY Address
1 Configura-
tion Strap
PHYAD1 VIS
(PD) Combined with PHYAD0 and PHYAD2, this con-
figuration strap sets the transceiver’s SMI
address.
See Note 2-3 for more information on configura-
tion straps.
Note: Refer to Section 3.7.1, "PHYAD[2:0]: PHY
Address Configuration," on page 29 for
additional information.
1Receive Data
Valid RXDV VO8 Indicates that recovered and decoded data is
available on the RXD pins.
TABLE 2-1: MII/RMII SIGNALS (CONTINUED)
Num Pins Name Symbol Buffer
Type Description
LAN8710A/LAN8710AI
DS00002164B-page 10 2016 Microchip Technology Inc.
Note 2-3 Configuration strap values are latched on power-on reset and system reset. Configuration straps are
identified by an underlined symbol name. Signals that function as configuration straps must be
augmented with an external resistor when connected to a load. Refer to Section 3.7, "Configuration
Straps," on page 29 for additional information.
1Carrier Sense
/ Receive
Data Valid
(RMII Mode)
CRS_DV VO8 This signal is asserted to indicate the receive
medium is non-idle in RMII Mode. When a
10BASE-T packet is received, CRS_DV is
asserted, but RXD[1:0] is held low until the SFD
byte (10101011) is received.
Note: Per the RMII standard, transmitted data is
not looped back onto the receive data
pins in 10BASE-T half-duplex mode.
Collision
Detect
(MII Mode)
COL VO8 This signal is asserted to indicate detection of a
collision condition in MII Mode.
PHY Operat-
ing Mode 2
Configuration
Strap
MODE2 VIS
(PU) Combined with MODE0 and MODE1, this config-
uration strap sets the default PHY mode.
See Note 2-3 for more information on configura-
tion straps.
Note: Refer to Section 3.7.2, "MODE[2:0]:
Mode Configuration," on page 30 for
additional details.
1Carrier Sense
(MII Mode) CRS VO8
(PD) This signal indicates detection of a carrier in MII
Mode.
TABLE 2-1: MII/RMII SIGNALS (CONTINUED)
Num Pins Name Symbol Buffer
Type Description
REGOFF REGOFF REGOFF HINTSEL HINTSEL HINTSEL
TABLE 2-2: LED PINS
NUM PINS NAME SYMBOL BUFFER
TYPE DESCRIPTION
1
LED 1 LED1 O12 Link activity LED Indication. This pin is driven
active when a valid link is detected and blinks
when activity is detected.
Note: Refer to Section 3.8.1, "LEDs," on
page 32 for additional LED information.
Regulator Off
Configuration
Strap
REGOFF IS
(PD) This configuration strap is used to disable the
internal 1.2V regulator. When the regulator is dis-
abled, external 1.2V must be supplied to VDDCR.
• When REGOFF is pulled high to VDD2A with
an external resistor, the internal regulator is
disabled.
• When REGOFF is floating or pulled low, the
internal regulator is enabled (default).
See Note 2-4 for more information on configura-
tion straps.
Note: Refer to Section 3.7.4, "REGOFF:
Internal +1.2V Regulator Configuration,"
on page 32 for additional details.
1
LED 2 LED2 O12 Link Speed LED Indication. This pin is driven
active when the operating speed is 100Mbps. It is
inactive when the operating speed is 10Mbps or
during line isolation.
Note: Refer to Section 3.8.1, "LEDs," on
page 32 for additional LED information.
nINT/TXER/
TXD4
Function
Select
Configuration
Strap
nINTSEL IS
(PU) This configuration strap selects the mode of the
nINT/TXER/TXD4 pin.
• When nINTSEL is floated or pulled to
VDD2A, nINT is selected for operation on the
nINT/TXER/TXD4 pin (default).
• When nINTSEL is pulled low to VSS, TXER/
TXD4 is selected for operation on the nINT/
TXER/TXD4 pin.
See Note 2-4 for more information on configura-
tion straps.
Note: Refer to See Section 3.8.1.2, "nINTSEL
and LED2 Polarity Selection," on page 33
for additional information.
2016 Microchip Technology Inc. DS00002164B-page 11
LAN8710A/LAN8710AI
Note 2-4 Configuration strap values are latched on power-on reset and system reset. Configuration straps are
identified by an underlined symbol name. Signals that function as configuration straps must be
augmented with an external resistor when connected to a load. Refer to Section 3.7, "Configuration
Straps," on page 29 for additional information.
TABLE 2-3: SERIAL MANAGEMENT INTERFACE (SMI) PINS
Num PINs NAME SYMBOL BUFFER
TYPE DESCRIPTION
1SMI Data
Input/Output MDIO VIS/
VOD8 Serial Management Interface data input/output
1SMI Clock MDC VIS Serial Management Interface clock
TABLE 2-4: ETHERNET PINS
Num PINs NAME SYMBOL BUFFER
TYPE DESCRIPTION
1Ethernet TX/
RX Positive
Channel 1
TXP AIO Transmit/Receive Positive Channel 1
1Ethernet TX/
RX Negative
Channel 1
TXN AIO Transmit/Receive Negative Channel 1
1Ethernet TX/
RX Positive
Channel 2
RXP AIO Transmit/Receive Positive Channel 2
1Ethernet TX/
RX Negative
Channel 2
RXN AIO Transmit/Receive Negative Channel 2
TABLE 2-5: MISCELLANEOUS PINS
Num PINs NAME SYMBOL BUFFER
TYPE DESCRIPTION
1External
Crystal
Input
XTAL1 ICLK External crystal input
External
Clock Input CLKIN ICLK Single-ended clock oscillator input.
Note: When using a single ended clock
oscillator, XTAL2 should be left
unconnected.
1External
Crystal Out-
put
XTAL2 OCLK External crystal output
1External
Reset nRST VIS
(PU) System reset. This signal is active low.
LAN8710A/LAN8710AI
DS00002164B-page 12 2016 Microchip Technology Inc.
REGOFF
TABLE 2-6: ANALOG REFERENCE PINS
Num PINs NAME SYMBOL BUFFER
TYPE DESCRIPTION
1External 1%
Bias Resistor
Input
RBIAS AI This pin requires connection of a 12.1k ohm (1%)
resistor to ground.
Refer to the LAN8710A/LAN8710Ai reference
schematic for connection information.
Note: The nominal voltage is 1.2V and the
resistor will dissipate approximately 1mW
of power.
TABLE 2-7: POWER PINS
Num PINs NAME SYMBOL BUFFER
TYPE DESCRIPTION
1+1.6V to
+3.6V Vari-
able I/O
Power
VDDIO P+1.6V to +3.6V variable I/O power
Refer to the LAN8710A/LAN8710Ai reference
schematic for connection information.
1+1.2V Digital
Core Power
Supply
VDDCR PSupplied by the on-chip regulator unless config-
ured for regulator off mode via the REGOFF con-
figuration strap.
Refer to the LAN8710A/LAN8710Ai reference
schematic for connection information.
Note: 1 uF and 470 pF decoupling capacitors in
parallel to ground should be used on this
pin.
1+3.3V Chan-
nel 1 Analog
Port Power
VDD1A P+3.3V Analog Port Power to Channel 1
Refer to the LAN8710A/LAN8710Ai reference
schematic for connection information.
1+3.3V Chan-
nel 2 Analog
Port Power
VDD2A P+3.3V Analog Port Power to Channel 2 and the
internal regulator.
Refer to the LAN8710A/LAN8710Ai reference
schematic for connection information.
1Ground VSS PCommon ground. This exposed pad must be con-
nected to the ground plane with a via array.
2016 Microchip Technology Inc. DS00002164B-page 13
LAN8710A/LAN8710AI
DZ/HINTSEL REGOFF PHYAD1 PHYADZ /RM|ISEL MODE1 MODEO PHVADO
LAN8710A/LAN8710AI
DS00002164B-page 14 2016 Microchip Technology Inc.
2.1 Pin Assignments
TABLE 2-8: 32-QFN PACKAGE PIN ASSIGNMENTS
Pin NUM Pin Name Pin NUM Pin Name
1VDD2A 17 MDC
2LED2/nINTSEL 18 nINT/TXER/TXD4
3LED1/REGOFF 19 nRST
4XTAL2 20 TXCLK
5XTAL1/CLKIN 21 TXEN
6VDDCR 22 TXD0
7RXCLK/PHYAD1 23 TXD1
8RXD3/PHYAD2 24 TXD2
9RXD2/RMIISEL 25 TXD3
10 RXD1/MODE1 26 RXDV
11 RXD0/MODE0 27 VDD1A
12 VDDIO 28 TXN
13 RXER/RXD4/PHYAD0 29 TXP
14 CRS 30 RXN
15 COL/CRS_DV/MODE2 31 RXP
16 MDIO 32 RBIAS
2.2 Buffer Types
TABLE 2-9: BUFFER TYPES
BUFFER TYPE DESCRIPTION
IS Schmitt-triggered input
O12 Output with 12mA sink and 12mA source
VIS Variable voltage Schmitt-triggered input
VO8 Variable voltage output with 8mA sink and 8mA source
VOD8 Variable voltage open-drain output with 8mA sink
PU 50uA (typical) internal pull-up. Unless otherwise noted in the pin description, internal pull-
ups are always enabled.
Note: Internal pull-up resistors prevent unconnected inputs from floating. Do not rely on
internal resistors to drive signals external to the device. When connected to a load
that must be pulled high, an external resistor must be added.
2016 Microchip Technology Inc. DS00002164B-page 15
LAN8710A/LAN8710AI
Note 2-5 The digital signals are not 5V tolerant. Refer to Section 5.1, "Absolute Maximum Ratings*," on
page 54 for additional buffer information.
Note 2-6 Sink and source capabilities are dependent on the VDDIO voltage. Refer to Section 5.1, "Absolute
Maximum Ratings*," on page 54 for additional information.
PD 50uA (typical) internal pull-down. Unless otherwise noted in the pin description, internal pull-
downs are always enabled.
Note: Internal pull-down resistors prevent unconnected inputs from floating. Do not rely
on internal resistors to drive signals external to the device. When connected to a
load that must be pulled low, an external resistor must be added.
AI Analog input
AIO Analog bi-directional
ICLK Crystal oscillator input pin
OCLK Crystal oscillator output pin
PPower pin
TABLE 2-9: BUFFER TYPES (CONTINUED)
BUFFER TYPE DESCRIPTION
LAN8710A/LAN8710AI
DS00002164B-page 16 2016 Microchip Technology Inc.
3.0 FUNCTIONAL DESCRIPTION
This chapter provides functional descriptions of the various device features. These features have been categorized into
the following sections:
•Transceiver
•Auto-negotiation
•HP Auto-MDIX Support
•MAC Interface
•Serial Management Interface (SMI)
•Interrupt Management
•Configuration Straps
•Miscellaneous Functions
•Application Diagrams
3.1 Transceiver
3.1.1 100BASE-TX TRANSMIT

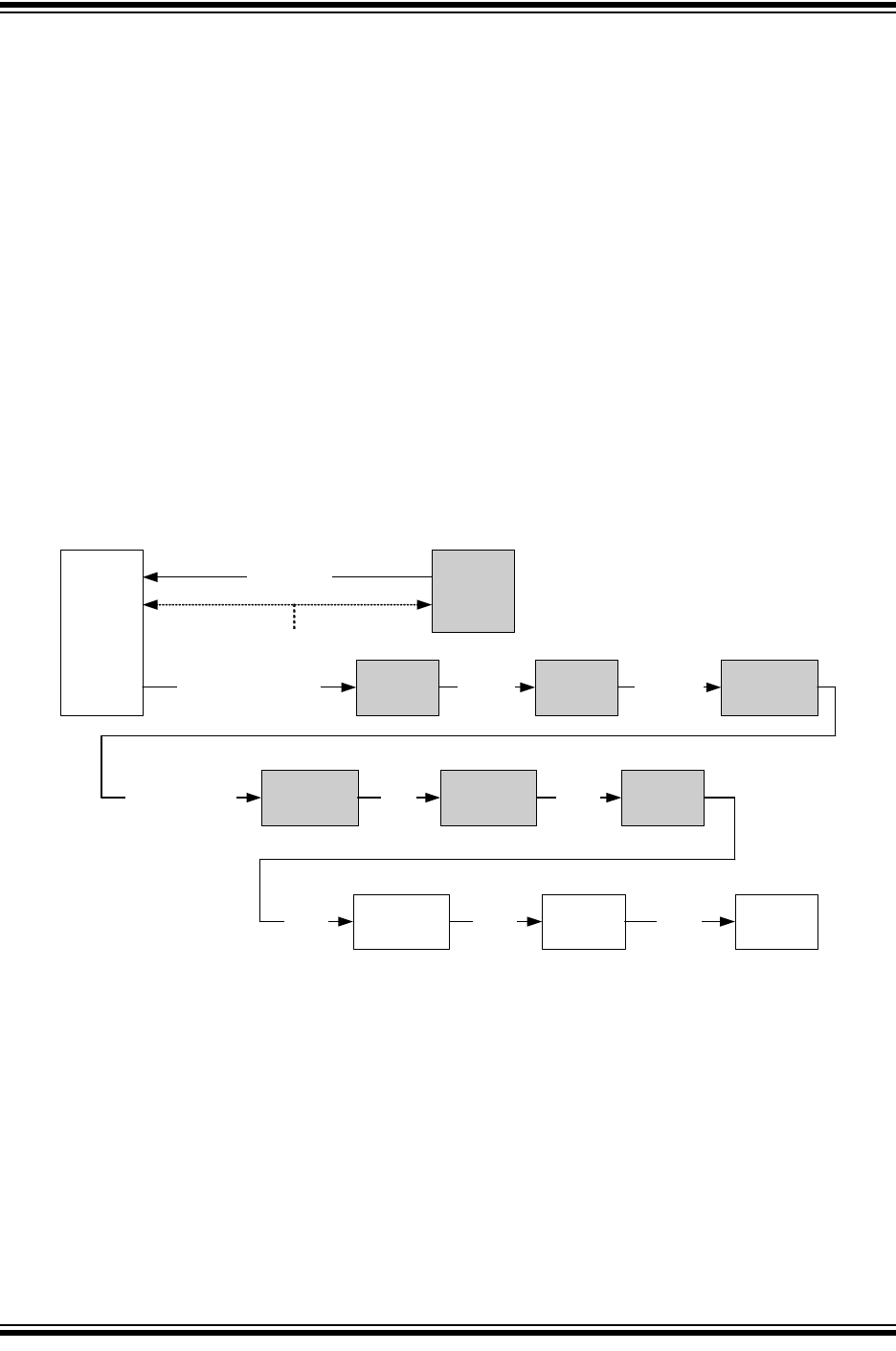

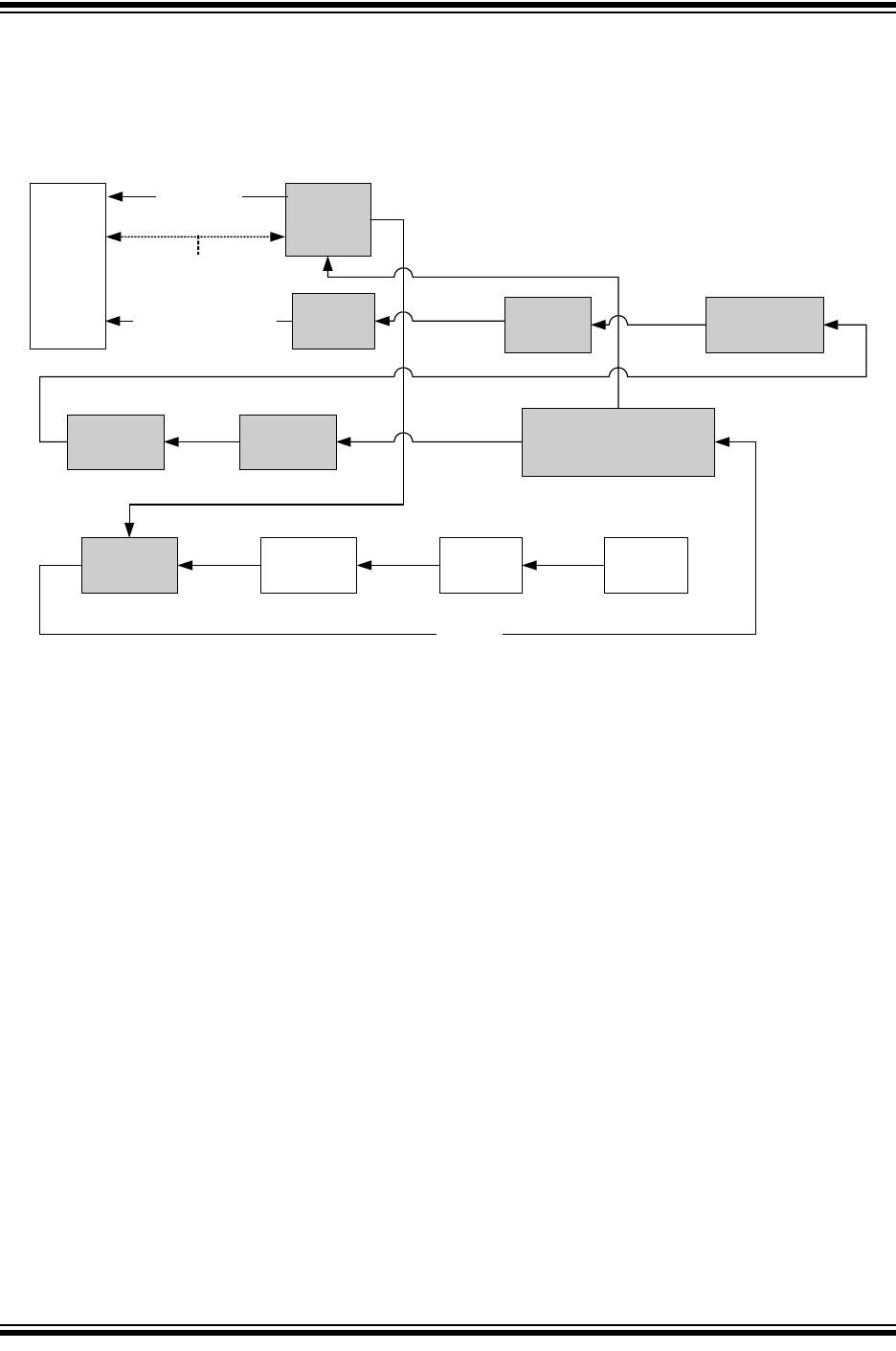

The 100BASE-TX transmit data path is shown in Figure 3-1. Each major block is explained in the following subsections.
FIGURE 3-1: 100BASE-TX TRANSMIT DATA PATH
MAC
Tx
Driver
MLT-3
Converter
NRZI
Converter
4B/5B
Encoder
CAT-5RJ45
25MHz by
5 bits
NRZI
MLT-3MLT-3
MLT-3
Scrambler
and PISO
MII/RMII 25MHz
by 4 bits
Ext Ref_CLK (for RMII only)
PLL
MII 25 Mhz by 4 bits
or
RMII 50Mhz by 2 bits
MLT-3
Magnetics
125 Mbps Serial
TX_CLK
(for MII only)
3.1.1.1 100BASE-TX Transmit Data Across the MII/RMII Interface
For MII, the MAC controller drives the transmit data onto the TXD bus and asserts TXEN to indicate valid data. The data
is latched by the transceiver’s MII block on the rising edge of TXCLK. The data is in the form of 4-bit wide 25MHz data.
For RMII, the MAC controller drives the transmit data onto the TXD bus and asserts TXEN to indicate valid data. The
data is latched by the transceiver’s RMII block on the rising edge of REF_CLK. The data is in the form of 2-bit wide
50MHz data.
3.1.1.2 4B/5B Encoding
The transmit data passes from the MII/RMII block to the 4B/5B encoder. This block encodes the data from 4-bit nibbles
to 5-bit symbols (known as “code-groups”) according to Table 3-1. Each 4-bit data-nibble is mapped to 16 of the 32 pos-
sible code-groups. The remaining 16 code-groups are either used for control information or are not valid.
2016 Microchip Technology Inc. DS00002164B-page 17
LAN8710A/LAN8710AI
The first 16 code-groups are referred to by the hexadecimal values of their corresponding data nibbles, 0 through F. The
remaining code-groups are given letter designations with slashes on either side. For example, an IDLE code-group is /
I/, a transmit error code-group is /H/, etc.
TABLE 3-1: 4B/5B CODE TABLE
CODE
GROUP SYM RECEIVER
INTERPRETATION TRANSMITTER
INTERPRETATION
11110 0 0 0000 DATA 00000 DATA
01001 1 1 0001 — 1 0001 —
10100 2 2 0010 — 2 0010 —
10101 3 3 0011 — 3 0011 —
01010 4 4 0100 — 4 0100 —
01011 5 5 0101 — 5 0101 —
01110 66 0110 — 6 0110 —
01111 77 0111 — 7 0111 —
10010 88 1000 — 8 1000 —
10011 99 1001 — 9 1001 —
10110 AA 1010 — A 1010 —
10111 BB 1011 — B 1011 —
11010 CC 1100 — C 1100 —
11011 DD 1101 — D 1101 —
11100 EE 1110 — E 1110 —
11101 FF 1111 — F 1111 —
11111 IIDLE Sent after /T/R until TXEN
11000 JFirst nibble of SSD, translated to “0101”
following IDLE, else RXER Sent for rising TXEN
10001 KSecond nibble of SSD, translated to
“0101” following J, else RXER Sent for rising TXEN
01101 TFirst nibble of ESD, causes de-assertion
of CRS if followed by /R/, else assertion
of RXER
Sent for falling TXEN
00111 RSecond nibble of ESD, causes deasser-
tion of CRS if following /T/, else assertion
of RXER
Sent for falling TXEN
00100 HTransmit Error Symbol Sent for rising TXER
00110 VINVALID, RXER if during RXDV INVALID
11001 VINVALID, RXER if during RXDV INVALID
00000 VINVALID, RXER if during RXDV INVALID
00001 VINVALID, RXER if during RXDV INVALID
LAN8710A/LAN8710AI
DS00002164B-page 18 2016 Microchip Technology Inc.
3.1.1.3 Scrambling
Repeated data patterns (especially the IDLE code-group) can have power spectral densities with large narrow-band
peaks. Scrambling the data helps eliminate these peaks and spread the signal power more uniformly over the entire
channel bandwidth. This uniform spectral density is required by FCC regulations to prevent excessive EMI from being
radiated by the physical wiring.
The seed for the scrambler is generated from the transceiver address, PHYAD, ensuring that in multiple-transceiver
applications, such as repeaters or switches, each transceiver will have its own scrambler sequence.
The scrambler also performs the Parallel In Serial Out conversion (PISO) of the data.
3.1.1.4 NRZI and MLT-3 Encoding
The scrambler block passes the 5-bit wide parallel data to the NRZI converter where it becomes a serial 125MHz NRZI
data stream. The NRZI is encoded to MLT-3. MLT-3 is a tri-level code where a change in the logic level represents a
code bit “1” and the logic output remaining at the same level represents a code bit “0”.
3.1.1.5 100M Transmit Driver
The MLT3 data is then passed to the analog transmitter, which drives the differential MLT-3 signal, on outputs TXP and
TXN, to the twisted pair media across a 1:1 ratio isolation transformer. The 10BASE-T and 100BASE-TX signals pass
through the same transformer so that common “magnetics” can be used for both. The transmitter drives into the 100
impedance of the CAT-5 cable. Cable termination and impedance matching require external components.
3.1.1.6 100M Phase Lock Loop (PLL)
The 100M PLL locks onto reference clock and generates the 125MHz clock used to drive the 125 MHz logic and the
100BASE-TX transmitter.
00010 VINVALID, RXER if during RXDV INVALID
00011 VINVALID, RXER if during RXDV INVALID
00101 VINVALID, RXER if during RXDV INVALID
01000 VINVALID, RXER if during RXDV INVALID
01100 VINVALID, RXER if during RXDV INVALID
10000 VINVALID, RXER if during RXDV INVALID
TABLE 3-1: 4B/5B CODE TABLE (CONTINUED)
CODE
GROUP SYM RECEIVER
INTERPRETATION TRANSMITTER
INTERPRETATION
2016 Microchip Technology Inc. DS00002164B-page 19
LAN8710A/LAN8710AI
3.1.2 100BASE-TX RECEIVE
The 100BASE-TX receive data path is shown in Figure 3-2. Each major block is explained in the following subsections.
FIGURE 3-2: 100BASE-TX RECEIVE DATA PATH
MAC
A/D
Converter
MLT-3
Converter
NRZI
Converter
4B/5B
Decoder
Magnetics CAT-5RJ45
PLL
MII 25Mhz by 4 bits
or
RMII 50Mhz by 2 bits
RX_CLK
(for MII only)
25MHz by
5 bits
NRZI
MLT-3MLT-3 MLT-3
6 bit Data
Descrambler
and SIPO
125 Mbps Serial
DSP: Timing
recovery, Equalizer
and BLW Correction
MLT-3
MII/RMII
25MHz
by 4 bits
Ext Ref_CLK (for RMII only)
3.1.2.1 100M Receive Input
The MLT-3 from the cable is fed into the transceiver (on inputs RXP and RXN) via a 1:1 ratio transformer. The ADC
samples the incoming differential signal at a rate of 125M samples per second. Using a 64-level quanitizer, it generates
6 digital bits to represent each sample. The DSP adjusts the gain of the ADC according to the observed signal levels
such that the full dynamic range of the ADC can be used.
3.1.2.2 Equalizer, Baseline Wander Correction and Clock and Data Recovery
The 6 bits from the ADC are fed into the DSP block. The equalizer in the DSP section compensates for phase and ampli-
tude distortion caused by the physical channel consisting of magnetics, connectors, and CAT- 5 cable. The equalizer
can restore the signal for any good-quality CAT-5 cable between 1m and 150m.
If the DC content of the signal is such that the low-frequency components fall below the low frequency pole of the iso-
lation transformer, then the droop characteristics of the transformer will become significant and Baseline Wander (BLW)
on the received signal will result. To prevent corruption of the received data, the transceiver corrects for BLW and can
receive the ANSI X3.263-1995 FDDI TP-PMD defined “killer packet” with no bit errors.
The 100M PLL generates multiple phases of the 125MHz clock. A multiplexer, controlled by the timing unit of the DSP,
selects the optimum phase for sampling the data. This is used as the received recovered clock. This clock is used to
extract the serial data from the received signal.
3.1.2.3 NRZI and MLT-3 Decoding
The DSP generates the MLT-3 recovered levels that are fed to the MLT-3 converter. The MLT-3 is then converted to an
NRZI data stream.
3.1.2.4 Descrambling
The descrambler performs an inverse function to the scrambler in the transmitter and also performs the Serial In Parallel
Out (SIPO) conversion of the data.
During reception of IDLE (/I/) symbols. the descrambler synchronizes its descrambler key to the incoming stream. Once
synchronization is achieved, the descrambler locks on this key and is able to descramble incoming data.
XXXXXXXXXXaXXXX _|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_|_| XXXXXXXXXXXX
LAN8710A/LAN8710AI
DS00002164B-page 20 2016 Microchip Technology Inc.
Special logic in the descrambler ensures synchronization with the remote transceiver by searching for IDLE symbols
within a window of 4000 bytes (40us). This window ensures that a maximum packet size of 1514 bytes, allowed by the
IEEE 802.3 standard, can be received with no interference. If no IDLE-symbols are detected within this time-period,
receive operation is aborted and the descrambler re-starts the synchronization process.
3.1.2.5 Alignment
The de-scrambled signal is then aligned into 5-bit code-groups by recognizing the /J/K/ Start-of-Stream Delimiter (SSD)
pair at the start of a packet. Once the code-word alignment is determined, it is stored and utilized until the next start of
frame.
3.1.2.6 5B/4B Decoding
The 5-bit code-groups are translated into 4-bit data nibbles according to the 4B/5B table. The translated data is pre-
sented on the RXD[3:0] signal lines. The SSD, /J/K/, is translated to “0101 0101” as the first 2 nibbles of the MAC pre-
amble. Reception of the SSD causes the transceiver to assert the receive data valid signal, indicating that valid data is
available on the RXD bus. Successive valid code-groups are translated to data nibbles. Reception of either the End of
Stream Delimiter (ESD) consisting of the /T/R/ symbols, or at least two /I/ symbols causes the transceiver to de-assert
the carrier sense and receive data valid signals.
Note: These symbols are not translated into data.
3.1.2.7 Receive Data Valid Signal
The Receive Data Valid signal (RXDV) indicates that recovered and decoded nibbles are being presented on the
RXD[3:0] outputs synchronous to RXCLK. RXDV becomes active after the /J/K/ delimiter has been recognized and RXD
is aligned to nibble boundaries. It remains active until either the /T/R/ delimiter is recognized or link test indicates failure
or SIGDET becomes false.
RXDV is asserted when the first nibble of translated /J/K/ is ready for transfer over the Media Independent Interface (MII
mode).

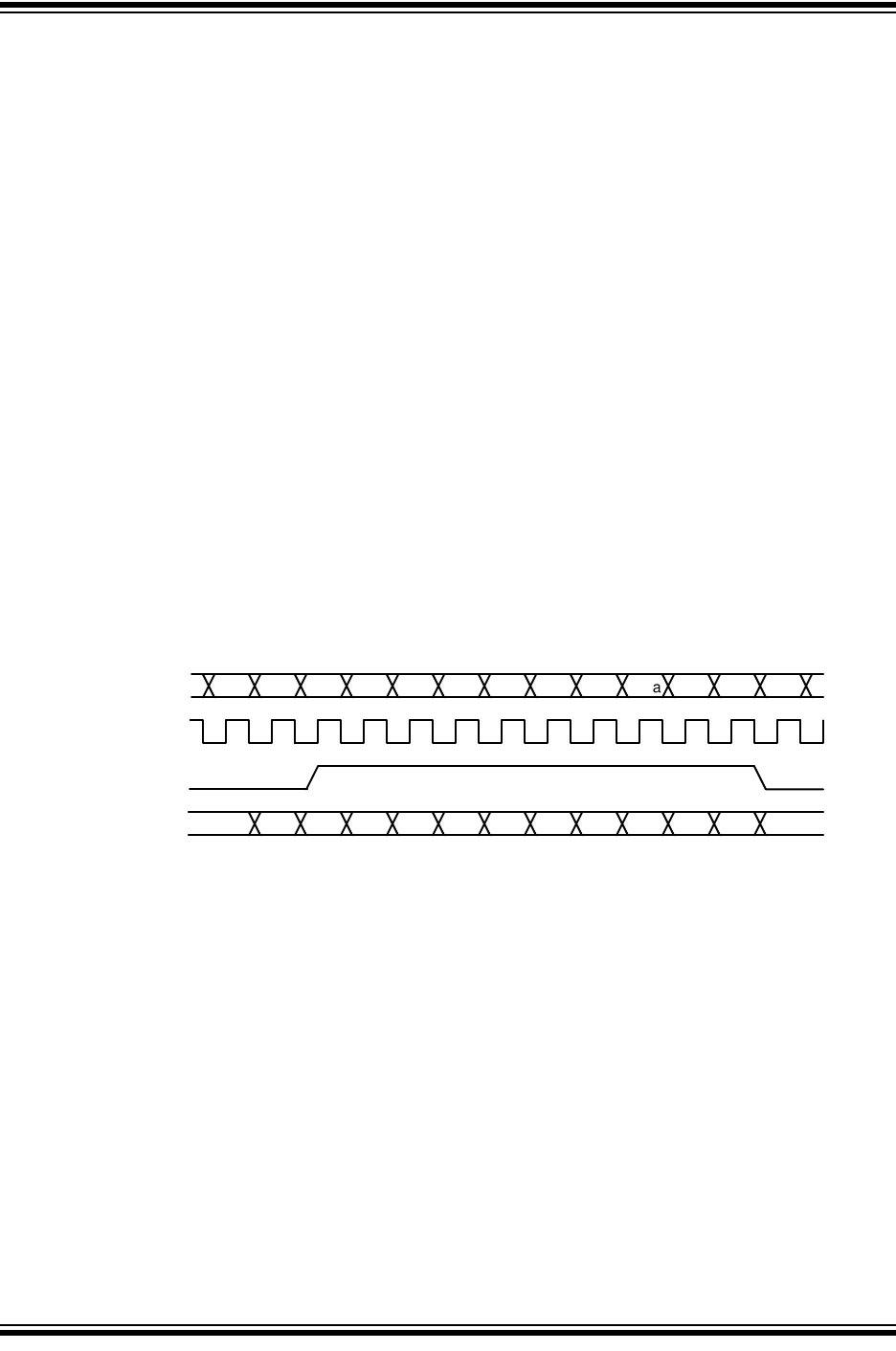

FIGURE 3-3:
5D5 data data data data
RXD
RX_DV
RX_CLK
5D5data data data data
CLEAR-TEXT 5JK
555
TR
Idle
RELATIONSHIP BETWEEN RECEIVED DATA AND SPECIFIC MII SIGNALS
3.1.2.8 Receiver Errors
During a frame, unexpected code-groups are considered receive errors. Expected code groups are the DATA set (0
through F), and the /T/R/ (ESD) symbol pair. When a receive error occurs, the RXER signal is asserted and arbitrary
data is driven onto the RXD[3:0] lines. Should an error be detected during the time that the /J/K/ delimiter is being
decoded (bad SSD error), RXER is asserted true and the value ‘1110’ is driven onto the RXD[3:0] lines. Note that the
Valid Data signal is not yet asserted when the bad SSD error occurs.
3.1.2.9 100M Receive Data Across the MII/RMII Interface
In MII mode, the 4-bit data nibbles are sent to the MII block. These data nibbles are clocked to the controller at a rate
of 25MHz. The controller samples the data on the rising edge of RXCLK. To ensure that the setup and hold requirements
are met, the nibbles are clocked out of the transceiver on the falling edge of RXCLK. RXCLK is the 25MHz output clock
for the MII bus. It is recovered from the received data to clock the RXD bus. If there is no received signal, it is derived
from the system reference clock (XTAL1/CLKIN).
When tracking the received data, RXCLK has a maximum jitter of 0.8ns (provided that the jitter of the input clock, XTAL1/
CLKIN, is below 100ps).
2016 Microchip Technology Inc. DS00002164B-page 21
LAN8710A/LAN8710AI
In RMII mode, the 2-bit data nibbles are sent to the RMII block. These data nibbles are clocked to the controller at a rate
of 50MHz. The controller samples the data on the rising edge of XTAL1/CLKIN (REF_CLK). To ensure that the setup
and hold requirements are met, the nibbles are clocked out of the transceiver on the falling edge of XTAL1/CLKIN
(REF_CLK).
3.1.3 10BASE-T TRANSMIT
Data to be transmitted comes from the MAC layer controller. The 10BASE-T transmitter receives 4-bit nibbles from the
MII at a rate of 2.5MHz and converts them to a 10Mbps serial data stream. The data stream is then Manchester-encoded
and sent to the analog transmitter, which drives a signal onto the twisted pair via the external magnetics.
The 10M transmitter uses the following blocks:
• MII (digital)
• TX 10M (digital)
• 10M Transmitter (analog)
• 10M PLL (analog)
3.1.3.1 10M Transmit Data Across the MII/RMII Interface
The MAC controller drives the transmit data onto the TXD bus. For MII, when the controller has driven TXEN high to
indicate valid data, the data is latched by the MII block on the rising edge of TXCLK. The data is in the form of 4-bit wide
2.5MHz data. For RMII, TXD[1:0] shall transition synchronously with respect to REF_CLK. When TXEN is asserted,
TXD[1:0] are accepted for transmission by the device. TXD[1:0] shall be “00” to indicate idle when TXEN is deasserted.
Values of TXD[1:0] other than “00” when TXEN is deasserted are reserved for out-of-band signaling (to be defined).
Values other than “00” on TXD[1:0] while TXEN is deasserted shall be ignored by the device.TXD[1:0] shall provide valid
data for each REF_CLK period while TXEN is asserted.
In order to comply with legacy 10BASE-T MAC/Controllers, in half-duplex mode the transceiver loops back the trans-
mitted data, on the receive path. This does not confuse the MAC/Controller since the COL signal is not asserted during
this time. The transceiver also supports the SQE (Heartbeat) signal. See Section 3.8.7, "Collision Detect," on page 35,
for more details.
3.1.3.2 Manchester Encoding
The 4-bit wide data is sent to the 10M TX block. The nibbles are converted to a 10Mbps serial NRZI data stream. The
10M PLL locks onto the external clock or internal oscillator and produces a 20MHz clock. This is used to Manchester
encode the NRZ data stream. When no data is being transmitted (TXEN is low), the 10M TX block outputs Normal Link
Pulses (NLPs) to maintain communications with the remote link partner.
3.1.3.3 10M Transmit Drivers
The Manchester encoded data is sent to the analog transmitter where it is shaped and filtered before being driven out
as a differential signal across the TXP and TXN outputs.
3.1.4 10BASE-T RECEIVE
The 10BASE-T receiver gets the Manchester- encoded analog signal from the cable via the magnetics. It recovers the
receive clock from the signal and uses this clock to recover the NRZI data stream. This 10M serial data is converted to
4-bit data nibbles which are passed to the controller via MII at a rate of 2.5MHz.
This 10M receiver uses the following blocks:
• Filter and SQUELCH (analog)
• 10M PLL (analog)
• RX 10M (digital)
• MII (digital)
3.1.4.1 10M Receive Input and Squelch
The Manchester signal from the cable is fed into the transceiver (on inputs RXP and RXN) via 1:1 ratio magnetics. It is
first filtered to reduce any out-of-band noise. It then passes through a SQUELCH circuit. The SQUELCH is a set of
amplitude and timing comparators that normally reject differential voltage levels below 300mV and detect and recognize
differential voltages above 585mV.
LAN8710A/LAN8710AI
DS00002164B-page 22 2016 Microchip Technology Inc.
3.1.4.2 Manchester Decoding
The output of the SQUELCH goes to the 10M RX block where it is validated as Manchester encoded data. The polarity
of the signal is also checked. If the polarity is reversed (local RXP is connected to RXN of the remote partner and vice
versa), the condition is identified and corrected. The reversed condition is indicated by the XPOL bit of the Special Con-
trol/Status Indications Register. The 10M PLL is locked onto the received Manchester signal, from which the 20MHz
cock is generated. Using this clock, the Manchester encoded data is extracted and converted to a 10MHz NRZI data
stream. It is then converted from serial to 4-bit wide parallel data.
The 10M RX block also detects valid 10Base-T IDLE signals - Normal Link Pulses (NLPs) - to maintain the link.
3.1.4.3 10M Receive Data Across the MII/RMII Interface
For MII, the 4-bit data nibbles are sent to the MII block. In MII mode, these data nibbles are valid on the rising edge of
the 2.5 MHz RXCLK.
For RMII, the 2-bit data nibbles are sent to the RMII block. In RMII mode, these data nibbles are valid on the rising edge
of the RMII REF_CLK.
3.1.4.4 Jabber Detection
Jabber is a condition in which a station transmits for a period of time longer than the maximum permissible packet length,
usually due to a fault condition, which results in holding the TXEN input for a long period. Special logic is used to detect
the jabber state and abort the transmission to the line within 45ms. Once TXEN is deasserted, the logic resets the jabber
condition.
As shown in Section 4.2.2, "Basic Status Register," on page 45, the Jabber Detect bit indicates that a jabber condition
was detected.
3.2 Auto-negotiation
The purpose of the auto-negotiation function is to automatically configure the transceiver to the optimum link parameters
based on the capabilities of its link partner. Auto-negotiation is a mechanism for exchanging configuration information
between two link-partners and automatically selecting the highest performance mode of operation supported by both
sides. Auto-negotiation is fully defined in clause 28 of the IEEE 802.3 specification.
Once auto-negotiation has completed, information about the resolved link can be passed back to the controller via the
Serial Management Interface (SMI). The results of the negotiation process are reflected in the Speed Indication bits of
the PHY Special Control/Status Register, as well as in the Auto Negotiation Link Partner Ability Register. The auto-nego-
tiation protocol is a purely physical layer activity and proceeds independently of the MAC controller.
The advertised capabilities of the transceiver are stored in the Auto Negotiation Advertisement Register. The default
advertised by the transceiver is determined by user-defined on-chip signal options.
The following blocks are activated during an Auto-negotiation session:
• Auto-negotiation (digital)
• 100M ADC (analog)
• 100M PLL (analog)
• 100M equalizer/BLW/clock recovery (DSP)
• 10M SQUELCH (analog)
• 10M PLL (analog)
• 10M Transmitter (analog)
When enabled, auto-negotiation is started by the occurrence of one of the following events:
• Hardware reset
• Software reset
• Power-down reset
• Link status down
• Setting the Restart Auto-Negotiate bit of the Basic Control Register
2016 Microchip Technology Inc. DS00002164B-page 23
LAN8710A/LAN8710AI
On detection of one of these events, the transceiver begins auto-negotiation by transmitting bursts of Fast Link Pulses
(FLP), which are bursts of link pulses from the 10M transmitter. They are shaped as Normal Link Pulses and can pass
uncorrupted down CAT-3 or CAT-5 cable. A Fast Link Pulse Burst consists of up to 33 pulses. The 17 odd-numbered
pulses, which are always present, frame the FLP burst. The 16 even-numbered pulses, which may be present or absent,
contain the data word being transmitted. Presence of a data pulse represents a “1”, while absence represents a “0”.
The data transmitted by an FLP burst is known as a “Link Code Word.” These are defined fully in IEEE 802.3 clause 28.
In summary, the transceiver advertises 802.3 compliance in its selector field (the first 5 bits of the Link Code Word). It
advertises its technology ability according to the bits set in the Auto Negotiation Advertisement Register.
There are 4 possible matches of the technology abilities. In the order of priority these are:
• 100M Full Duplex (Highest Priority)
• 100M Half Duplex
• 10M Full Duplex
• 10M Half Duplex (Lowest Priority)
If the full capabilities of the transceiver are advertised (100M, Full Duplex), and if the link partner is capable of 10M and
100M, then auto-negotiation selects 100M as the highest performance mode. If the link partner is capable of half and
full duplex modes, then auto-negotiation selects full duplex as the highest performance operation.
Once a capability match has been determined, the link code words are repeated with the acknowledge bit set. Any dif-
ference in the main content of the link code words at this time will cause auto-negotiation to re-start. Auto-negotiation
will also re-start if not all of the required FLP bursts are received.
The capabilities advertised during auto-negotiation by the transceiver are initially determined by the logic levels latched
on the MODE[2:0] configuration straps after reset completes. These configuration straps can also be used to disable
auto-negotiation on power-up. Refer to Section 3.7.2, "MODE[2:0]: Mode Configuration," on page 30 for additional infor-
mation.
Writing the bits 8 through 5 of the Auto Negotiation Advertisement Register allows software control of the capabilities
advertised by the transceiver. Writing the Auto Negotiation Advertisement Register does not automatically re-start auto-
negotiation. The Restart Auto-Negotiate bit of the Basic Control Register must be set before the new abilities will be
advertised. Auto-negotiation can also be disabled via software by clearing the Auto-Negotiation Enable bit of the Basic
Control Register.
Note: The device does not support “Next Page” capability.
3.2.1 PARALLEL DETECTION
If the LAN8710A/LAN8710Ai is connected to a device lacking the ability to auto-negotiate (for example, no FLPs are
detected), it is able to determine the speed of the link based on either 100M MLT-3 symbols or 10M Normal Link Pulses.
In this case the link is presumed to be half duplex per the IEEE standard. This ability is known as “Parallel Detection.”
This feature ensures interoperability with legacy link partners. If a link is formed via parallel detection, then the Link Part-
ner Auto-Negotiation Able bit of the Auto Negotiation Expansion Register is cleared to indicate that the Link Partner is
not capable of auto-negotiation. The controller has access to this information via the management interface. If a fault
occurs during parallel detection, the Parallel Detection Fault bit of Link Partner Auto-Negotiation Able is set.
Auto Negotiation Link Partner Ability Register is used to store the link partner ability information, which is coded in the
received FLPs. If the link partner is not auto-negotiation capable, then the Auto Negotiation Link Partner Ability Register
is updated after completion of parallel detection to reflect the speed capability of the link partner.
3.2.2 RESTARTING AUTO-NEGOTIATION
Auto-negotiation can be restarted at any time by setting the Restart Auto-Negotiate bit of the Basic Control Register.
Auto-negotiation will also restart if the link is broken at any time. A broken link is caused by signal loss. This may occur
because of a cable break, or because of an interruption in the signal transmitted by the link partner. Auto-negotiation
resumes in an attempt to determine the new link configuration.
If the management entity re-starts auto-negotiation by setting the Restart Auto-Negotiate bit of the Basic Control Reg-
ister, the LAN8710A/LAN8710Ai will respond by stopping all transmission/receiving operations. Once the break_link_-
timer is completed in the Auto-negotiation state-machine (approximately 1200ms), auto-negotiation will re-start. In this
case, the link partner will have also dropped the link due to lack of a received signal, so it too will resume auto-negoti-
ation.
LAN8710A/LAN8710AI
DS00002164B-page 24 2016 Microchip Technology Inc.
3.2.3 DISABLING AUTO-NEGOTIATION
Auto-negotiation can be disabled by setting the Auto-Negotiation Enable bit of the Basic Control Register to zero. The
device will then force its speed of operation to reflect the information in the Basic Control Register (Speed Select bit and
Duplex Mode bit). These bits should be ignored when auto-negotiation is enabled.
3.2.4 HALF VS. FULL DUPLEX
Half duplex operation relies on the CSMA/CD (Carrier Sense Multiple Access / Collision Detect) protocol to handle net-
work traffic and collisions. In this mode, the carrier sense signal, CRS, responds to both transmit and receive activity. If
data is received while the transceiver is transmitting, a collision results.
In full duplex mode, the transceiver is able to transmit and receive data simultaneously. In this mode, CRS responds
only to receive activity. The CSMA/CD protocol does not apply and collision detection is disabled.
3.3 HP Auto-MDIX Support
HP Auto-MDIX facilitates the use of CAT-3 (10BASE-T) or CAT-5 (100BASE-T) media UTP interconnect cable without
consideration of interface wiring scheme. If a user plugs in either a direct connect LAN cable, or a cross-over patch
cable, as shown in Figure 3-4, the device’s Auto-MDIX transceiver is capable of configuring the TXP/TXN and RXP/RXN
pins for correct transceiver operation.
The internal logic of the device detects the TX and RX pins of the connecting device. Since the RX and TX line pairs
are interchangeable, special PCB design considerations are needed to accommodate the symmetrical magnetics and
termination of an Auto-MDIX design.
The Auto-MDIX function can be disabled via the AMDIXCTRL bit in the Special Control/Status Indications Register.
FIGURE 3-4: DIRECT CABLE CONNECTION VS. CROSS-OVER CABLE CONNECTION
3.4 MAC Interface
The MII/RMII block is responsible for communication with the MAC controller. Special sets of hand-shake signals are
used to indicate that valid received/transmitted data is present on the 4 bit receive/transmit bus.
The device must be configured in MII or RMII mode. This is done by specific pin strapping configurations. Refer to Sec-
tion 3.4.2.3, "MII vs. RMII Configuration," on page 26 for information on pin strapping and how the pins are mapped
differently.
2016 Microchip Technology Inc. DS00002164B-page 25
LAN8710A/LAN8710AI
3.4.1 MII
The MII includes 16 interface signals:
• transmit data - TXD[3:0]
• transmit strobe - TXEN
• transmit clock - TXCLK
• transmit error - TXER/TXD4
• receive data - RXD[3:0]
• receive strobe - RXDV
• receive clock - RXCLK
• receive error - RXER/RXD4/PHYAD0
• collision indication - COL
• carrier sense - CRS
In MII mode, on the transmit path, the transceiver drives the transmit clock, TXCLK, to the controller. The controller syn-
chronizes the transmit data to the rising edge of TXCLK. The controller drives TXEN high to indicate valid transmit data.
The controller drives TXER high when a transmit error is detected.
On the receive path, the transceiver drives both the receive data, RXD[3:0], and the RXCLK signal. The controller clocks
in the receive data on the rising edge of RXCLK when the transceiver drives RXDV high. The transceiver drives RXER
high when a receive error is detected.
3.4.2 RMII
The device supports the low pin count Reduced Media Independent Interface (RMII) intended for use between Ethernet
transceivers and switch ASICs. Under IEEE 802.3, an MII comprised of 16 pins for data and control is defined. In devices
incorporating many MACs or transceiver interfaces such as switches, the number of pins can add significant cost as the
port counts increase. RMII reduces this pin count while retaining a management interface (MDIO/MDC) that is identical
to MII.
The RMII interface has the following characteristics:
• It is capable of supporting 10Mbps and 100Mbps data rates
• A single clock reference is used for both transmit and receive
• It provides independent 2-bit (di-bit) wide transmit and receive data paths
• It uses LVCMOS signal levels, compatible with common digital CMOS ASIC processes
The RMII includes the following interface signals (1 optional):
• transmit data - TXD[1:0]
• transmit strobe - TXEN
• receive data - RXD[1:0]
• receive error - RXER (Optional)
• carrier sense - CRS_DV
• Reference Clock - (RMII references usually define this signal as REF_CLK)
3.4.2.1 CRS_DV - Carrier Sense/Receive Data Valid
The CRS_DV is asserted by the device when the receive medium is non-idle. CRS_DV is asserted asynchronously on
detection of carrier due to the criteria relevant to the operating mode. In 10BASE-T mode when squelch is passed, or
in 100BASE-X mode when 2 non-contiguous zeros in 10 bits are detected, the carrier is said to be detected.
Loss of carrier shall result in the deassertion of CRS_DV synchronous to the cycle of REF_CLK which presents the first
di-bit of a nibble onto RXD[1:0] (for example, CRS_DV is deasserted only on nibble boundaries). If the device has addi-
tional bits to be presented on RXD[1:0] following the initial deassertion of CRS_DV, then the device shall assert
CRS_DV on cycles of REF_CLK which present the second di-bit of each nibble and de-assert CRS_DV on cycles of
REF_CLK which present the first di-bit of a nibble. The result is, starting on nibble boundaries, CRS_DV toggles at 25
MHz in 100Mbps mode and 2.5 MHz in 10Mbps mode when CRS ends before RXDV (for example, the FIFO still has
bits to transfer when the carrier event ends). Therefore, the MAC can accurately recover RXDV and CRS.
During a false carrier event, CRS_DV shall remain asserted for the duration of carrier activity. The data on RXD[1:0] is
considered valid once CRS_DV is asserted. However, since the assertion of CRS_DV is asynchronous relative to
REF_CLK, the data on RXD[1:0] shall be “00” until proper receive signal decoding takes place.
RMIISEL RMHSEL
LAN8710A/LAN8710AI
DS00002164B-page 26 2016 Microchip Technology Inc.
3.4.2.2 Reference Clock (REF_CLK)
The RMII REF_CLK is a continuous clock that provides the timing reference for CRS_DV, RXD[1:0], TXEN, TXD[1:0]
and RXER. The device uses REF_CLK as the network clock such that no buffering is required on the transmit data path.
However, on the receive data path, the receiver recovers the clock from the incoming data stream, and the device uses
elasticity buffering to accommodate for differences between the recovered clock and the local REF_CLK.
3.4.2.3 MII vs. RMII Configuration
The device must be configured to support the MII or RMII bus for connectivity to the MAC. This configuration is done
via the RMIISEL configuration strap. MII or RMII mode selection is configured based on the strapping of the RMIISEL
configuration strap as described in Section 3.7.3, "RMIISEL: MII/RMII Mode Configuration," on page 31.
Most of the MII and RMII pins are multiplexed. Table 3-2 describes the relationship of the related device pins to the MII
and RMII mode signal names.
TABLE 3-2: MII/RMII SIGNAL MAPPING
PIN Name MII Mode RMII Mode
TXD0 TXD0 TXD0
TXD1 TXD1 TXD1
TXEN TXEN TXEN
RXER/
RXD4/PHYAD0 RXER RXER
Note 3-2
COL/CRS_DV/MODE2 COL CRS_DV
RXD0/MODE0 RXD0 RXD0
RXD1/MODE1 RXD1 RXD1
TXD2 TXD2 Note 3-1
TXD3 TXD3 Note 3-1
nINT/TXER/TXD4 TXER/
TXD4 —
CRS CRS —
RXDV RXDV —
RXD2/RMIISEL RXD2 —
RXD3/PHYAD2 RXD3 —
TXCLK TXCLK —
RXCLK/PHYAD1 RXCLK —
XTAL1/CLKIN XTAL1/CLKIN REF_CLK
Note 3-1 In RMII mode, this pin needs to tied to VSS.
Note 3-2 The RXER signal is optional on the RMII bus. This signal is required by the transceiver, but it is
optional for the MAC. The MAC can choose to ignore or not use this signal.
2016 Microchip Technology Inc. DS00002164B-page 27
LAN8710A/LAN8710AI
3.5 Serial Management Interface (SMI)
The Serial Management Interface is used to control the device and obtain its status. This interface supports registers 0
through 6 as required by Clause 22 of the 802.3 standard, as well as “vendor-specific” registers 16 to 31 allowed by the
specification. Non-supported registers (such as 7 to 15) will be read as hexadecimal “FFFF”. Device registers are
detailed in Section 4.0, "Register Descriptions," on page 43.
At the system level, SMI provides 2 signals: MDIO and MDC. The MDC signal is an aperiodic clock provided by the
station management controller (SMC). MDIO is a bi-directional data SMI input/output signal that receives serial data
(commands) from the controller SMC and sends serial data (status) to the SMC. The minimum time between edges of
the MDC is 160 ns. There is no maximum time between edges. The minimum cycle time (time between two consecutive
rising or two consecutive falling edges) is 400 ns. These modest timing requirements allow this interface to be easily
driven by the I/O port of a microcontroller.
The data on the MDIO line is latched on the rising edge of the MDC. The frame structure and timing of the data is shown
in Figure 3-5 and Figure 3-6. The timing relationships of the MDIO signals are further described in Section 5.5.6, "SMI
Timing," on page 64.
FIGURE 3-5:
MDC
MDIO
Read Cycle
...
32 1's 0110A4A3A2A1A0R4R3R2R1R0 D1
...
D15 D14 D0
Preamble Start of
Frame OP
Code PHY Address Register Address Turn
Around Data
Data From Phy
Data To Phy
MDIO TIMING AND FRAME STRUCTURE - READ CYCLE
FIGURE 3-6:
MDC
MDIO ...
32 1's 0 1 10 A4A3A2A1A0R4R3R2R1R0
Write Cycle
D15 D14 D1 D0
...
DataPreamble Start of
Frame OP
Code PHY Address Register Address Turn
Around
Data To Phy
MDIO TIMING AND FRAME STRUCTURE - WRITE CYCLE
3.6 Interrupt Management
The device management interface supports an interrupt capability that is not a part of the IEEE 802.3 specification. This
interrupt capability generates an active low asynchronous interrupt signal on the nINT output whenever certain events
are detected as setup by the Interrupt Mask Register.
The device’s interrupt system provides two modes, a Primary Interrupt mode and an Alternative interrupt mode. Both
systems will assert the nINT pin low when the corresponding mask bit is set. These modes differ only in how they de-
assert the nINT interrupt output. These modes are detailed in the following subsections.
Note: The Primary interrupt mode is the default interrupt mode after a power-up or hard reset. The Alternative
interrupt mode requires setup after a power-up or hard reset.
LAN8710A/LAN8710AI
DS00002164B-page 28 2016 Microchip Technology Inc.
3.6.1 PRIMARY INTERRUPT SYSTEM
The Primary interrupt system is the default interrupt mode (ALTINT bit of the Mode Control/Status Register is “0”). The
Primary interrupt system is always selected after power-up or hard reset. In this mode, to set an interrupt, set the cor-
responding mask bit in the Interrupt Mask Register (see Table 3-3). Then when the event to assert nINT is true, the nINT
output will be asserted. When the corresponding event to deassert nINT is true, then the nINT will be de-asserted.
TABLE 3-3: INTERRUPT MANAGEMENT TABLE
Mask Interrupt Source Flag Interrupt Source Event to Assert
nINT Event to
De-Assert nINT
30.7 29.7 ENERGYON 17.1 ENERGYON Rising 17.1
(Note 3-3)Falling 17.1 or
Reading register 29
30.6 29.6 Auto-Negotiation
complete 1.5 Auto-Negotiate
Complete Rising 1.5 Falling 1.5 or
Reading register 29
30.5 29.5 Remote Fault
Detected 1.4 Remote Fault Rising 1.4 Falling 1.4, or
Reading register 1 or
Reading register 29
30.4 29.4 Link Down 1.2 Link Status Falling 1.2 Reading register 1 or
Reading register 29
30.3 29.3 Auto-Negotiation
LP Acknowledge 5.14 Acknowledge Rising 5.14 Falling 5.14 or
Read register 29
30.2 29.2 Parallel Detection
Fault 6.4 Parallel Detec-
tion Fault Rising 6.4 Falling 6.4 or
Reading register 6, or
Reading register 29
or
Re-Auto Negotiate or
Link down
30.1 29.1 Auto-Negotiation
Page Received 6.1 Page Received Rising 6.1 Falling of 6.1 or
Reading register 6, or
Reading register 29
Re-Auto Negotiate, or
Link Down.
Note 3-3 If the mask bit is enabled and nINT has been de-asserted while ENERGYON is still high, nINT will
assert for 256 ms, approximately one second after ENERGYON goes low when the Cable is
unplugged. To prevent an unexpected assertion of nINT, the ENERGYON interrupt mask should
always be cleared as part of the ENERGYON interrupt service routine.
Note: The ENERGYON bit in the Mode Control/Status Register is defaulted to a ‘1’ at the start of the signal acqui-
sition process, therefore the INT7 bit in the Interrupt Mask Register will also read as a ‘1’ at power-up. If no
signal is present, then both ENERGYON and INT7 will clear within a few milliseconds.
3.6.2 ALTERNATE INTERRUPT SYSTEM
The Alternate interrupt system is enabled by setting the ALTINT bit of the Mode Control/Status Register to “1”. In this
mode, to set an interrupt, set the corresponding bit of the in the Mask Register 30, (see Table 3-4). To Clear an interrupt,
either clear the corresponding bit in the Interrupt Mask Register to deassert the nINT output, or clear the interrupt
source, and write a ‘1’ to the corresponding Interrupt Source Flag. Writing a ‘1’ to the Interrupt Source Flag will cause
the state machine to check the Interrupt Source to determine if the Interrupt Source Flag should clear or stay as a ‘1’. If
the Condition to deassert is true, then the Interrupt Source Flag is cleared and nINT is also deasserted. If the Condition
to deassert is false, then the Interrupt Source Flag remains set, and the nINT remains asserted.
REGOFF PHYAD 2:0 9 PHYAD 2.0 HINTSEL
2016 Microchip Technology Inc. DS00002164B-page 29
LAN8710A/LAN8710AI
For example, setting the INT7 bit in the Interrupt Mask Register will enable the ENERGYON interrupt. After a cable is
plugged in, the ENERGYON bit in the Mode Control/Status Register goes active and nINT will be asserted low. To de-
assert the nINT interrupt output, either clear the ENERGYON bit in the Mode Control/Status Register by removing the
cable and then writing a ‘1’ to the INT7 bit in the Interrupt Mask Register, OR clear the INT7 mask (bit 7 of the Interrupt
Mask Register).
TABLE 3-4: ALTERNATIVE INTERRUPT SYSTEM MANAGEMENT TABLE
Mask Interrupt Source Flag Interrupt Source Event to
Assert nINT Condition to
De-Assert
Bit to
Clear
nINT
30.7 29.7 ENERGYON 17.1 ENERGYON Rising 17.1 17.1 low 29.7
30.6 29.6 Auto-Negotiation
complete 1.5 Auto-Negotiate
Complete Rising 1.5 1.5 low 29.6
30.5 29.5 Remote Fault
Detected 1.4 Remote Fault Rising 1.4 1.4 low 29.5
30.4 29.4 Link Down 1.2 Link Status Falling 1.2 1.2 high 29.4
30.3 29.3 Auto-Negotiation
LP Acknowledge 5.14 Acknowledge Rising 5.14 5.14 low 29.3
30.2 29.2 Parallel Detec-
tion Fault 6.4 Parallel Detec-
tion Fault Rising 6.4 6.4 low 29.2
30.1 29.1 Auto-Negotiation
Page Received 6.1 Page Received Rising 6.1 6.1 low 29.1
Note: The ENERGYON bit in the Mode Control/Status Register is defaulted to a ‘1’ at the start of the signal acqui-
sition process, therefore the INT7 bit in the Interrupt Mask Register will also read as a ‘1’ at power-up. If no
signal is present, then both ENERGYON and INT7 will clear within a few milliseconds.
3.7 Configuration Straps
Configuration straps allow various features of the device to be automatically configured to user defined values. Config-
uration straps are latched upon Power-On Reset (POR) and pin reset (nRST). Configuration straps include internal
resistors in order to prevent the signal from floating when unconnected. If a particular configuration strap is connected
to a load, an external pull-up or pull-down resistor should be used to augment the internal resistor to ensure that it
reaches the required voltage level prior to latching. The internal resistor can also be overridden by the addition of an
external resistor.
Note 3-4 The system designer must guarantee that configuration strap pins meet the timing requirements
specified in Section 5.5.3, "Power-On nRST & Configuration Strap Timing," on page 59. If
configuration strap pins are not at the correct voltage level prior to being latched, the device may
capture incorrect strap values.
Note 3-5 When externally pulling configuration straps high, the strap should be tied to VDDIO, except for
REGOFF and nINTSEL which should be tied to VDD2A.
3.7.1 PHYAD[2:0]: PHY ADDRESS CONFIGURATION
The PHYAD[2:0] configuration straps are driven high or low to give each PHY a unique address. This address is latched
into an internal register at the end of a hardware reset (default = 000b). In a multi-transceiver application (such as a
repeater), the controller is able to manage each transceiver via the unique address. Each transceiver checks each man-
agement data frame for a matching address in the relevant bits. When a match is recognized, the transceiver responds
to that particular frame. The PHY address is also used to seed the scrambler. In a multi-transceiver application, this
ensures that the scramblers are out of synchronization and disperses the electromagnetic radiation across the fre-
quency spectrum.
PHYAD 2.0 PHVADO PHYAD1 PHYADZ MODE 2:0 MODE 2.0 MODE 2.0 MODE 2.0
LAN8710A/LAN8710AI
DS00002164B-page 30 2016 Microchip Technology Inc.
The device’s SMI address may be configured using hardware configuration to any value between 0 and 7. The user can
configure the PHY address using Software Configuration if an address greater than 7 is required. The PHY address can
be written (after SMI communication at some address is established) using the PHYAD bits of the Special Modes Reg-
ister. The PHYAD[2:0] configuration straps are multiplexed with other signals as shown in Table 3-5.
TABLE 3-5: PIN NAMES FOR ADDRESS BITS
Address Bit Pin Name
PHYAD[0] RXER/RXD4/PHYAD0
PHYAD[1] RXCLK/PHYAD1
PHYAD[2] RXD3/PHYAD2
3.7.2 MODE[2:0]: MODE CONFIGURATION
The MODE[2:0] configuration straps control the configuration of the 10/100 digital block. When the nRST pin is deas-
serted, the register bit values are loaded according to the MODE[2:0] configuration straps. The 10/100 digital block is
then configured by the register bit values. When a soft reset occurs via the Soft Reset bit of the Basic Control Register,
the configuration of the 10/100 digital block is controlled by the register bit values and the MODE[2:0] configuration
straps have no affect.
The device’s mode may be configured using the hardware configuration straps as summarized in Table 3-6. The user
may configure the transceiver mode by writing the SMI registers.
MODE 2:0 (/3 ,_ w ,_ MODEO MODE1 MODE2 RMIISEL ng of me RML llhe RML e RMHSEL
TABLE 3-6: MODE[2:0] BUS
MODE[2:0] Mode Definitions
Default Register Bit Values
Register 0 Register 4
[13,12,10,8] [8,7,6,5]
000 10Base-T Half Duplex. Auto-negotiation disabled. 0000 N/A
001 10Base-T Full Duplex. Auto-negotiation disabled. 0001 N/A
010 100Base-TX Half Duplex. Auto-negotiation dis-
abled.
CRS is active during Transmit & Receive.
1000 N/A
011 100Base-TX Full Duplex. Auto-negotiation disabled.
CRS is active during Receive. 1001 N/A
100 100Base-TX Half Duplex is advertised. Auto-negoti-
ation enabled.
CRS is active during Transmit & Receive.
1100 0100
101 Repeater mode. Auto-negotiation enabled.
100Base-TX Half Duplex is advertised.
CRS is active during Receive.
1100 0100
110 Power Down mode. In this mode the transceiver will
wake-up in Power-Down mode. The transceiver
cannot be used when the MODE[2:0] bits are set to
this mode. To exit this mode, the MODE bits in Reg-
ister 18.7:5(see Section 4.2.9, "Special Modes Reg-
ister," on page 50) must be configured to some
other value and a soft reset must be issued.
N/A N/A
111 All capable. Auto-negotiation enabled. X10X 1111
2016 Microchip Technology Inc. DS00002164B-page 31
LAN8710A/LAN8710AI
The MODE[2:0] hardware configuration pins are multiplexed with other signals as shown in Table 3-7.
TABLE 3-7: PIN NAMES FOR MODE BITS
MODE Bit Pin Name
MODE[0] RXD0/MODE0
MODE[1] RXD1/MODE1
MODE[2] COL/CRS_DV/MODE2
3.7.3 RMIISEL: MII/RMII MODE CONFIGURATION
MII or RMII mode selection is latched on the rising edge of the internal reset (nRST) based on the strapping of the RMI-
ISEL configuration strap. The default mode is MII (via the internal pull-down resistor). To select RMII mode, pull the RMI-
ISEL configuration strap high with an external resistor to VDDIO.
When the nRST pin is deasserted, the MIIMODE bit of the Special Modes Register is loaded according to the RMIISEL
configuration strap. The mode is reflected in the MIIMODE bit of the Special Modes Register.
Refer to Section 3.4, "MAC Interface," on page 24 for additional information on MII and RMII modes.
REGOFF the REGOFF REGOFF REGOFF REGOFF NINTSEL he HINTSEL n‘NTSEL n‘NTSEL REGOFF lrom the REGOFF REGOFF REGOFF n‘NTSEL z _.
LAN8710A/LAN8710AI
DS00002164B-page 32 2016 Microchip Technology Inc.
3.7.4 REGOFF: INTERNAL +1.2V REGULATOR CONFIGURATION
The incorporation of flexPWR technology provides the ability to disable the internal +1.2V regulator. When the regulator
is disabled, an external +1.2V must be supplied to the VDDCR pin. Disabling the internal +1.2V regulator makes it pos-
sible to reduce total system power, since an external switching regulator with greater efficiency (versus the internal linear
regulator) can be used to provide +1.2V to the transceiver circuitry.
Note: Because the REGOFF configuration strap shares functionality with the LED1 pin, proper consideration must
also be given to the LED polarity. Refer to Section 3.8.1.1, "REGOFF and LED1 Polarity Selection," on
page 33 for additional information on the relation between REGOFF and the LED1 polarity.
3.7.4.1 Disabling the Internal +1.2V Regulator
To disable the +1.2V internal regulator, a pull-up strapping resistor should be connected from the REGOFF configuration
strap to VDD2A. At power-on, after both VDDIO and VDD2A are within specification, the transceiver will sample
REGOFF to determine whether the internal regulator should turn on. If the pin is sampled at a voltage greater than VIH,
then the internal regulator is disabled and the system must supply +1.2V to the VDDCR pin. The VDDIO voltage must
be at least 80% of the operating voltage level (1.44V when operating at 1.8V, 2.0V when operating at 2.5V, 2.64V when
operating at 3.3V) before voltage is applied to VDDCR. As described in Section 3.7.4.2, when REGOFF is left floating
or connected to VSS, the internal regulator is enabled and the system is not required to supply +1.2V to the VDDCR pin.
3.7.4.2 Enabling the Internal +1.2V Regulator
The +1.2V for VDDCR is supplied by the on-chip regulator unless the transceiver is configured for the regulator off mode
using the REGOFF configuration strap as described in Section 3.7.4.1. By default, the internal +1.2V regulator is
enabled when REGOFF is floating (due to the internal pull-down resistor). During power-on, if REGOFF is sampled
below VIL, then the internal +1.2V regulator will turn on and operate with power from the VDD2A pin.
3.7.5 NINTSEL: NINT/TXER/TXD4 CONFIGURATION
The nINT, TXER, and TXD4 functions share a common pin. There are two functional modes for this pin, the TXER/TXD4
mode and nINT (interrupt) mode. The nINTSEL configuration strap is latched at POR and on the rising edge of the nRST.
By default, nINTSEL is configured for nINT mode via the internal pull-up resistor.
Note: Because the nINTSEL configuration strap shares functionality with the LED2 pin, proper consideration must
also be given to the LED polarity. Refer to Section 3.8.1.2, "nINTSEL and LED2 Polarity Selection," on
page 33 for additional information on the relation between nINTSEL and the LED2 polarity.
3.8 Miscellaneous Functions
3.8.1 LEDS
Two LED signals are provided as a convenient means to determine the transceiver's mode of operation. All LED signals
are either active high or active low as described in Section 3.8.1.2, "nINTSEL and LED2 Polarity Selection" and Section
3.8.1.1, "REGOFF and LED1 Polarity Selection," on page 33.
The LED1 output is driven active whenever the device detects a valid link, and blinks when CRS is active (high) indicat-
ing activity.
The LED2 output is driven active when the operating speed is 100Mbps. This LED will go inactive when the operating
speed is 10Mbps or during line isolation.
Note: When pulling the LED1 and LED2 pins high, they must be tied to VDD2A, NOT VDDIO.
REGOFF e REGOFF for REGOFF REGOFF REGOFF REGOFF REGOFF 1/REGOFF REGOFF nINTSEL e nINTSEL n‘NTSEL nINTSEL n‘NTSEL NINTSEL nINTSEL I ‘ , Lo 2/nINTSEL HINTSEL REGOFF nINTSEL 1/HEGOFF o /nINTSEL
2016 Microchip Technology Inc. DS00002164B-page 33
LAN8710A/LAN8710AI
3.8.1.1 REGOFF and LED1 Polarity Selection
The REGOFF configuration strap is shared with the LED1 pin. The LED1 output will automatically change polarity based
on the presence of an external pull-up resistor. If the LED1 pin is pulled high to VDD2A by an external pull-up resistor
to select a logical high for REGOFF, then the LED1 output will be active low. If the LED1 pin is pulled low by the internal
pull-down resistor to select a logical low for REGOFF, the LED1 output will then be an active high output. Figure 3-7
details the LED1 polarity for each REGOFF configuration.
FIGURE 3-7: LED1/REGOFF POLARITY CONFIGURATION
LED1/REGOFF
~270 ohms
REGOFF = 0 (Regulator ON)
LED output = Active High
~270 ohms
VDD2A
REGOFF = 1 (Regulator OFF)
LED output = Active Low
LED1/REGOFF
10K
Note: Refer to Section 3.7.4, "REGOFF: Internal +1.2V Regulator Configuration," on page 32 for additional infor-
mation on the REGOFF configuration strap.
3.8.1.2 nINTSEL and LED2 Polarity Selection
The nINTSEL configuration strap is shared with the LED2 pin. The LED2 output will automatically change polarity based
on the presence of an external pull-down resistor. If the LED2 pin is pulled high to VDD2A to select a logical high for
nINTSEL, then the LED2 output will be active low. If the LED2 pin is pulled low by an external pull-down resistor to select
a logical low for nINTSEL, the LED2 output will then be an active high output. Figure 3-8 details the LED2 polarity for
each nINTSEL configuration.
FIGURE 3-8: LED2/NINTSEL POLARITY CONFIGURATION
~270 ohms
nINTSEL = 0
LED output = Active High
10K
~270 ohms
VDD2A
nINTSEL = 1
LED output = Active Low
LED2/nINTSEL
LED2/nINTSEL
Note: Refer to Section 3.7.5, "nINTSEL: nINT/TXER/TXD4 Configuration," on page 32 for additional information
on the nINTSEL configuration strap.
LAN8710A/LAN8710AI
DS00002164B-page 34 2016 Microchip Technology Inc.
3.8.2 VARIABLE VOLTAGE I/O
The device’s digital I/O pins are variable voltage, allowing them to take advantage of low power savings from shrinking
technologies. These pins can operate from a low I/O voltage of +1.62V up to +3.6V. The applied I/O voltage must main-
tain its value with a tolerance of ± 10%. Varying the voltage up or down after the transceiver has completed power-on
reset can cause errors in the transceiver operation. Refer to Section 5.0, "Operational Characteristics," on page 54 for
additional information.
Note: Input signals must not be driven high before power is applied to the device.
3.8.3 POWER-DOWN MODES
There are two device power-down modes: General Power-Down Mode and Energy Detect Power-Down Mode. These
modes are described in the following subsections.
3.8.3.1 General Power-Down
This power-down mode is controlled via the Power Down bit of the Basic Control Register. In this mode, the entire trans-
ceiver (except the management interface) is powered-down and remains in this mode as long as the Power Down bit is
“1”. When the Power Down bit is cleared, the transceiver powers up and is automatically reset.
3.8.3.2 Energy Detect Power-Down
This power-down mode is activated by setting the EDPWRDOWN bit of the Mode Control/Status Register. In this mode,
when no energy is present on the line the transceiver is powered down (except for the management interface, the
SQUELCH circuit, and the ENERGYON logic). The ENERGYON logic is used to detect the presence of valid energy
from 100BASE-TX, 10BASE-T, or Auto-negotiation signals.
In this mode, when the ENERGYON bit of the Mode Control/Status Register is low, the transceiver is powered-down
and nothing is transmitted. When energy is received via link pulses or packets, the ENERGYON bit goes high and the
transceiver powers-up. The device automatically resets into the state prior to power-down and asserts the nINT interrupt
if the ENERGYON interrupt is enabled in the Interrupt Mask Register. The first and possibly the second packet to acti-
vate ENERGYON may be lost.
When the EDPWRDOWN bit of the Mode Control/Status Register is low, energy detect power-down is disabled.
3.8.4 ISOLATE MODE
The device data paths may be electrically isolated from the MII/RMII interface by setting the Isolate bit of the Basic Con-
trol Register to “1”. In isolation mode, the transceiver does not respond to the TXD, TXEN and TXER inputs, but does
respond to management transactions.
Isolation provides a means for multiple transceivers to be connected to the same MII/RMII interface without contention.
By default, the transceiver is not isolated (on power-up (Isolate=0).
3.8.5 RESETS
The device provides two forms of reset: Hardware and Software. The device registers are reset by both Hardware and
Software resets. Select register bits, indicated as “NASR” in the register definitions, are not cleared by a Software reset.
The registers are not reset by the power-down modes described in Section 3.8.3.
Note: For the first 16us after coming out of reset, the MII/RMII interface will run at 2.5 MHz. After this time, it will
switch to 25 MHz if auto-negotiation is enabled.
3.8.5.1 Hardware Reset
A Hardware reset is asserted by driving the nRST input pin low. When driven, nRST should be held low for the minimum
time detailed in Section 5.5.3, "Power-On nRST & Configuration Strap Timing," on page 59 to ensure a proper trans-
ceiver reset. During a Hardware reset, an external clock must be supplied to the XTAL1/CLKIN signal.
Note: A hardware reset (nRST assertion) is required following power-up. Refer to Section 5.5.3, "Power-On nRST
& Configuration Strap Timing," on page 59 for additional information.
3.8.5.2 Software Reset
A Software reset is activated by setting the Soft Reset bit of the Basic Control Register to “1”. All registers bits, except
those indicated as “NASR” in the register definitions, are cleared by a Software reset. The Soft Reset bit is self-clearing.
Per the IEEE 802.3u standard, clause 22 (22.2.4.1.1) the reset process will be completed within 0.5s from the setting
of this bit.
2016 Microchip Technology Inc. DS00002164B-page 35
LAN8710A/LAN8710AI
3.8.6 CARRIER SENSE
The carrier sense (CRS) is output on the CRS pin in MII mode, and the CRS_DV pin in RMII mode. CRS is a signal
defined by the MII specification in the IEEE 802.3u standard. The device asserts CRS based only on receive activity
whenever the transceiver is either in repeater mode or full-duplex mode. Otherwise the transceiver asserts CRS based
on either transmit or receive activity.
The carrier sense logic uses the encoded, unscrambled data to determine carrier activity status. It activates carrier
sense with the detection of 2 non-contiguous zeros within any 10 bit span. Carrier sense terminates if a span of 10 con-
secutive ones is detected before a /J/K/ Start-of Stream Delimiter pair. If an SSD pair is detected, carrier sense is
asserted until either /T/R/ End–of-Stream Delimiter pair or a pair of IDLE symbols is detected. Carrier is negated after
the /T/ symbol or the first IDLE. If /T/ is not followed by /R/, then carrier is maintained. Carrier is treated similarly for IDLE
followed by some non-IDLE symbol.
3.8.7 COLLISION DETECT
A collision is the occurrence of simultaneous transmit and receive operations. The COL output is asserted to indicate
that a collision has been detected. COL remains active for the duration of the collision. COL is changed asynchronously
to both RXCLK and TXCLK. The COL output becomes inactive during full duplex mode.
The COL may be tested by setting the Collision Test bit of the Basic Control Register to “1”. This enables the collision
test. COL will be asserted within 512 bit times of TXEN rising and will be de-asserted within 4 bit times of TXEN falling.
3.8.8 LINK INTEGRITY TEST
The device performs the link integrity test as outlined in the IEEE 802.3u (Clause 24-15) Link Monitor state diagram.
The link status is multiplexed with the 10Mbps link status to form the Link Status bit in the Basic Status Register and to
drive the LINK LED (LED1).
The DSP indicates a valid MLT-3 waveform present on the RXP and RXN signals as defined by the ANSI X3.263 TP-
PMD standard, to the Link Monitor state-machine, using the internal DATA_VALID signal. When DATA_VALID is
asserted, the control logic moves into a Link-Ready state and waits for an enable from the auto-negotiation block. When
received, the Link-Up state is entered, and the Transmit and Receive logic blocks become active. Should auto-negoti-
ation be disabled, the link integrity logic moves immediately to the Link-Up state when the DATA_VALID is asserted.
To allow the line to stabilize, the link integrity logic will wait a minimum of 330 sec from the time DATA_VALID is
asserted until the Link-Ready state is entered. Should the DATA_VALID input be negated at any time, this logic will
immediately negate the Link signal and enter the Link-Down state.
When the 10/100 digital block is in 10BASE-T mode, the link status is derived from the 10BASE-T receiver logic.
3.8.9 LOOPBACK OPERATION
The device may be configured for near-end loopback and far loopback. These loopback modes are detailed in the fol-
lowing subsections.
3.8.9.1 Near-end Loopback
Near-end loopback mode sends the digital transmit data back out the receive data signals for testing purposes, as indi-
cated by the blue arrows in Figure 3-9. The near-end loopback mode is enabled by setting the Loopback bit of the Basic
Control Register to “1”. A large percentage of the digital circuitry is operational in near-end loopback mode because data
<—>
LAN8710A/LAN8710AI
DS00002164B-page 36 2016 Microchip Technology Inc.
is routed through the PCS and PMA layers into the PMD sublayer before it is looped back. The COL signal will be inac-
tive in this mode, unless Collision Test is enabled in the Basic Control Register. The transmitters are powered down
regardless of the state of TXEN.
FIGURE 3-9: NEAR-END LOOPBACK BLOCK DIAGRAM
SMSC
Ethernet Transceiver
10/100
Ethernet
MAC
CAT-5
XFMR
Digital
RXD
TXD
Analog
RX
TX
X
X
3.8.9.2 Far Loopback
Far loopback is a special test mode for MDI (analog) loopback as indicated by the blue arrows in Figure 3-11. The far
loopback mode is enabled by setting the FARLOOPBACK bit of the Mode Control/Status Register to “1”. In this mode,
data that is received from the link partner on the MDI is looped back out to the link partner. The digital interface signals
on the local MAC interface are isolated.
FIGURE 3-10: FAR LOOPBACK BLOCK DIAGRAM
Far-end system
SMSC
Ethernet Transceiver
10/100
Ethernet
MAC
CAT-5
XFMR
Digital
RXD
TXD
Analog
RX
TX Link
Partner
X
X
Note: This special test mode is only available when operating in RMII mode.
2016 Microchip Technology Inc. DS00002164B-page 37
LAN8710A/LAN8710AI
3.8.9.3 Connector Loopback
The device maintains reliable transmission over very short cables, and can be tested in a connector loopback as shown
in Figure 3-11. An RJ45 loopback cable can be used to route the transmit signals an the output of the transformer back
to the receiver inputs, and this loopback will work at both 10 and 100.
FIGURE 3-11: CONNECTOR LOOPBACK BLOCK DIAGRAM
SMSC
Ethernet Transceiver
10/100
Ethernet
MAC XFMR
Digital
RXD
TXD
Analog
RX
TX 1
2
3
4
5
6
7
8
RJ45 Loopback Cable.
Created by connecting pin 1 to pin 3
and connecting pin 2 to pin 6.
3.9 Application Diagrams
This section provides typical application diagrams for the following:
•Simplified System Level Application Diagram
•Power Supply Diagram (1.2V Supplied by Internal Regulator)
•Power Supply Diagram (1.2V Supplied by External Source)
•Twisted-Pair Interface Diagram (Single Power Supply)
•Twisted-Pair Interface Diagram (Dual Power Supplies)
LAN8710A/LAN8710AI
DS00002164B-page 38 2016 Microchip Technology Inc.
3.9.1 SIMPLIFIED SYSTEM LEVEL APPLICATION DIAGRAM

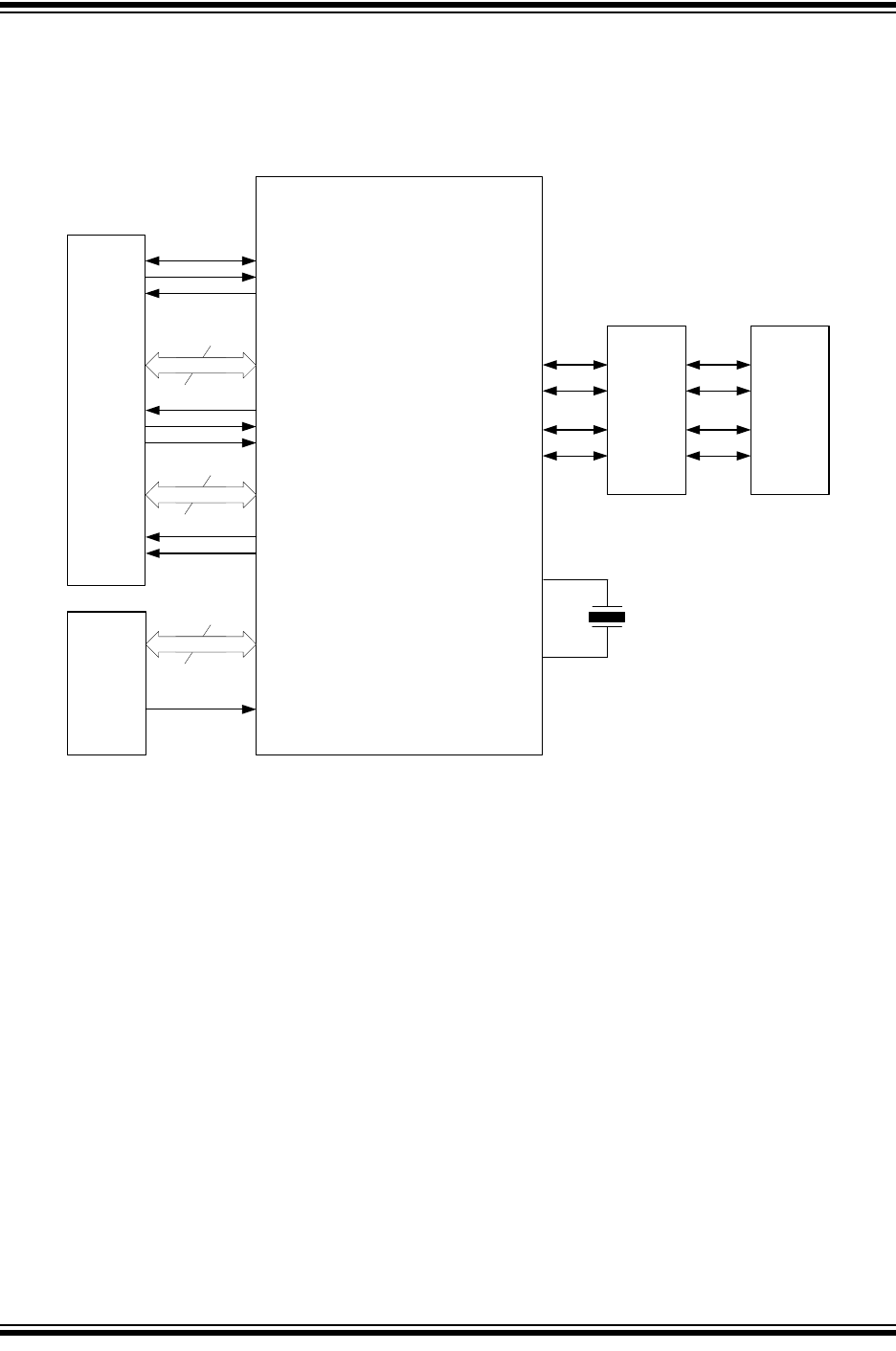

FIGURE 3-12: SIMPLIFIED SYSTEM LEVEL APPLICATION DIAGRAM
LAN8710A/LAN8710Ai
10/100 PHY
32-QFN
MII
TXP
TXN
Mag RJ45
RXP
RXN
25MHz
XTAL1/CLKIN
XTAL2
TXD[3:0]
4
RXD[3:0]
RXCLK
RXDV
4
MII
LED[2:1]
2
Interface
MDIO
MDC
nINT
nRST
TXCLK
TXER
TXEN
Lo We FFFFFF
2016 Microchip Technology Inc. DS00002164B-page 39
LAN8710A/LAN8710AI
3.9.2 POWER SUPPLY DIAGRAM (1.2V SUPPLIED BY INTERNAL REGULATOR)

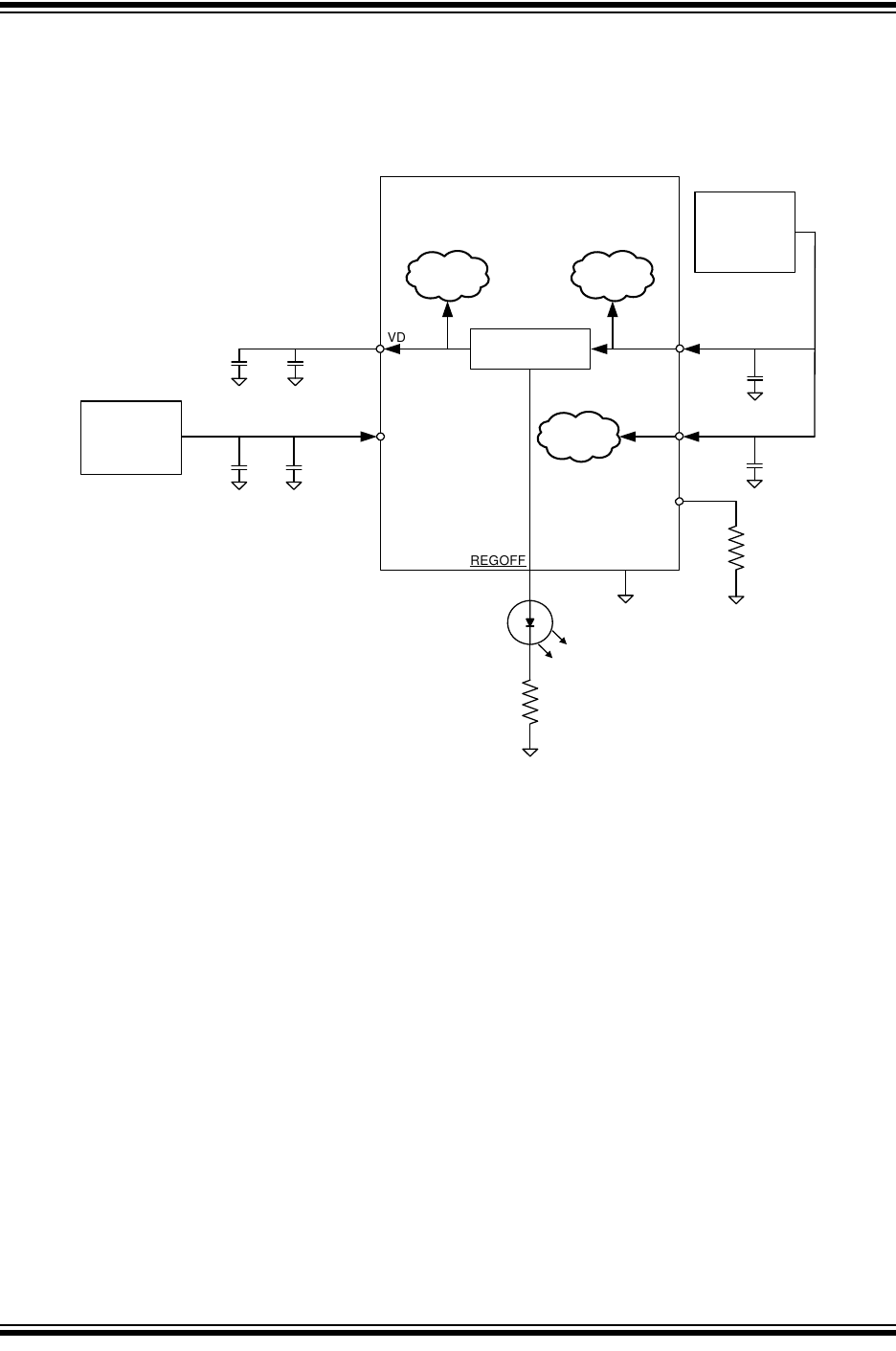

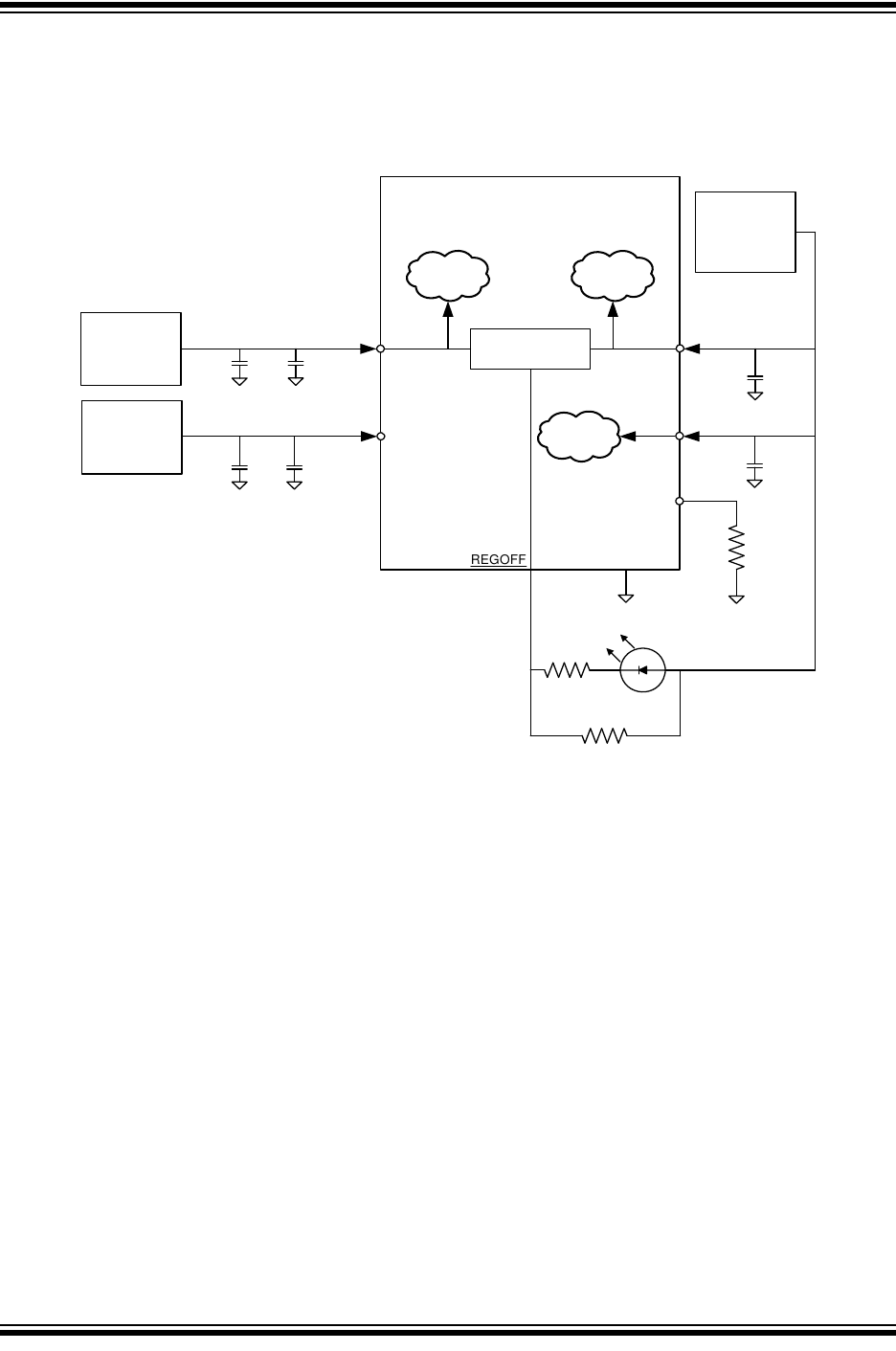

FIGURE 3-13: POWER SUPPLY DIAGRAM (1.2V SUPPLIED BY INTERNAL REGULATOR)
LAN8710A/LAN8710Ai
32-QFN
RBIAS
VSS 12.1k
VDD2A
CBYPASS
CBYPASS
VDD1A
VDDIO
CBYPASS
CF
VDDDIO
Supply
1.8 - 3.3V
Power
Supply
3.3V
VDDCR
LED1/
REGOFF
~270 Ohm
Core Logic
Internal
Regulator
Ch.2 3.3V
Circuitry
INOUT
Ch.1 3.3V
Circuitry
470 pF
1 uF
LAN8710A/LAN8710AI
DS00002164B-page 40 2016 Microchip Technology Inc.
3.9.3 POWER SUPPLY DIAGRAM (1.2V SUPPLIED BY EXTERNAL SOURCE)
FIGURE 3-14: POWER SUPPLY DIAGRAM (1.2V SUPPLIED BY EXTERNAL SOURCE)
LAN8710A/LAN8710Ai
32-QFN
RBIAS
VSS 12.1k
VDD2A
CBYPASS
CBYPASS
VDD1A
VDDIO
CBYPASS
CF
VDDDIO
Supply
1.8 - 3.3V
Power
Supply
3.3V
VDDCR
LED1/
REGOFF
Core Logic
Internal
Regulator
(Disabled)
Ch.2 3.3V
Circuitry
INOUT
Ch.1 3.3V
Circuitry
VDDCR
Supply
1.2V
~270 Ohm
10k
470 pF
1 uF
2016 Microchip Technology Inc. DS00002164B-page 41
LAN8710A/LAN8710AI
3.9.4 TWISTED-PAIR INTERFACE DIAGRAM (SINGLE POWER SUPPLY)
FIGURE 3-15: TWISTED-PAIR INTERFACE DIAGRAM (SINGLE POWER SUPPLY)
Magnetics
LAN8710A/LAN8710Ai
32-QFN
VDD2A
CBYPASS
TXP
TXN
Power
Supply
3.3V
1
2
3
4
5
6
7
8
1000 pF
3 kV
RJ45
75
75
RXP
RXN
CBYPASS
VDD1A
CBYPASS
49.9 Ohm Resistors
Ferrite
bead
LAN8710A/LAN8710AI
DS00002164B-page 42 2016 Microchip Technology Inc.
3.9.5 TWISTED-PAIR INTERFACE DIAGRAM (DUAL POWER SUPPLIES)
FIGURE 3-16: TWISTED-PAIR INTERFACE DIAGRAM (DUAL POWER SUPPLIES)
Magnetics
LAN8710A/LAN8710Ai
32-QFN
VDD2A
CBYPASS
TXP
TXN
Power
Supply
3.3V
1
2
3
4
5
6
7
8
1000 pF
3 kV
RJ45
75
75
RXP
RXN
CBYPASS
VDD1A
CBYPASS
49.9 Ohm Resistors Power
Supply
2.5V - 3.3V
2016 Microchip Technology Inc. DS00002164B-page 43
LAN8710A/LAN8710AI
4.0 REGISTER DESCRIPTIONS
This chapter describes the various control and status registers (CSRs). All registers follow the IEEE 802.3 (clause
22.2.4) management register set. All functionality and bit definitions comply with these standards. The IEEE 802.3 spec-
ified register index (in decimal) is included with each register definition, allowing for addressing of these registers via
the Serial Management Interface (SMI) protocol.
4.1 Register Nomenclature
Table 4-1 describes the register bit attribute notation used throughout this document.
TABLE 4-1: REGISTER BIT TYPES
Register Bit Type
Notation Register Bit Description
RRead: A register or bit with this attribute can be read.
WRead: A register or bit with this attribute can be written.
RO Read only: Read only. Writes have no effect.
WO Write only: If a register or bit is write-only, reads will return unspecified data.
WC Write One to Clear: writing a one clears the value. Writing a zero has no effect
WAC Write Anything to Clear: writing anything clears the value.
RC Read to Clear: Contents is cleared after the read. Writes have no effect.
LL Latch Low: Clear on read of register.
LH Latch High: Clear on read of register.
SC Self-Clearing: Contents are self-cleared after the being set. Writes of zero have no
effect. Contents can be read.
SS Self-Setting: Contents are self-setting after being cleared. Writes of one have no
effect. Contents can be read.
RO/LH Read Only, Latch High: Bits with this attribute will stay high until the bit is read. After it
is read, the bit will either remain high if the high condition remains, or will go low if the
high condition has been removed. If the bit has not been read, the bit will remain high
regardless of a change to the high condition. This mode is used in some Ethernet PHY
registers.
NASR Not Affected by Software Reset. The state of NASR bits do not change on assertion
of a software reset.
RESERVED Reserved Field: Reserved fields must be written with zeros to ensure future compati-
bility. The value of reserved bits is not guaranteed on a read.
Many of these register bit notations can be combined. Some examples of this are shown below:
•R/W: Can be written. Will return current setting on a read.
•R/WAC: Will return current setting on a read. Writing anything clears the bit.
4.2 Control and Status Registers
Table 4-2 provides a list of supported registers. Register details, including bit definitions, are provided in the proceeding
subsections.
TABLE 4-2: SMI REGISTER MAP
Register Index
(Decimal) Register Name Group
0Basic Control Register Basic
1Basic Status Register Basic
2PHY Identifier 1 Extended
3PHY Identifier 2 Extended
4Auto-Negotiation Advertisement Register Extended
5Auto-Negotiation Link Partner Ability Register Extended
6Auto-Negotiation Expansion Register Extended
17 Mode Control/Status Register Vendor-specific
18 Special Modes Vendor-specific
26 Symbol Error Counter Register Vendor-specific
27 Control / Status Indication Register Vendor-specific
29 Interrupt Source Register Vendor-specific
30 Interrupt Mask Register Vendor-specific
31 PHY Special Control/Status Register Vendor-specific
LAN8710A/LAN8710AI
DS00002164B-page 44 2016 Microchip Technology Inc.
4.2.1 BASIC CONTROL REGISTER
Index (In Decimal): 0Size: 16 bits
Bits Description Type Default
15 Soft Reset
1 = software reset. Bit is self-clearing. When setting this bit do not set other
bits in this register. The configuration (as described in Section 3.7.2,
MODE[2:0]: Mode Configuration) is set from the register bit values, and not
from the mode pins.
R/W
SC 0b
14 Loopback
0 = normal operation
1 = loopback mode
R/W 0b
13 Speed Select
0 = 10Mbps
1 = 100Mbps
Ignored if Auto-negotiation is enabled (0.12 = 1).
R/W Note 4-1
12 Auto-Negotiation Enable
0 = disable auto-negotiate process
1 = enable auto-negotiate process (overrides 0.13 and 0.8)
R/W Note 4-1
2016 Microchip Technology Inc. DS00002164B-page 45
LAN8710A/LAN8710AI
Note 4-1 The default value of this bit is determined by the MODE[2:0] configuration straps. Refer to
Section 3.7.2, MODE[2:0]: Mode Configuration for additional information.
4.2.2 BASIC STATUS REGISTER
Index (In Decimal): 1Size: 16 bits
11 Power Down
0 = normal operation
1 = General power down mode
The Auto-Negotiation Enable must be cleared before setting the Power
Down.
R/W 0b
10 Isolate
0 = normal operation
1 = electrical isolation of PHY from the MII/RMII
R/W 0b
9Restart Auto-Negotiate
0 = normal operation
1 = restart auto-negotiate process
Bit is self-clearing.
R/W
SC 0b
8Duplex Mode
0 = half duplex
1 = full duplex
Ignored if Auto-Negotiation is enabled (0.12 = 1).
R/W Note 4-1
7Collision Test
0 = disable COL test
1 = enable COL test
R/W 0b
6:0 RESERVED RO —
Bits Description Type Default
15 100BASE-T4
0 = no T4 ability
1 = T4 able
RO 0b
14 100BASE-TX Full Duplex
0 = no TX full duplex ability
1 = TX with full duplex
RO 1b
13 100BASE-TX Half Duplex
0 = no TX half duplex ability
1 = TX with half duplex
RO 1b
12 10BASE-T Full Duplex
0 = no 10Mbps with full duplex ability
1 = 10Mbps with full duplex
RO 1b
11 10BASE-T Half Duplex
0 = no 10Mbps with half duplex ability
1 = 10Mbps with half duplex
RO 1b
Bits Description Type Default
LAN8710A/LAN8710AI
DS00002164B-page 46 2016 Microchip Technology Inc.
4.2.3 PHY IDENTIFIER 1 REGISTER
Index (In Decimal): 2Size: 16 bits
Bits Description Type Default
15:0 PHY ID Number
Assigned to the 3rd through 18th bits of the Organizationally Unique Identifier
(OUI), respectively.
R/W 0007h
4.2.4 PHY IDENTIFIER 2 REGISTER
Index (In Decimal): 3Size: 16 bits
10 100BASE-T2 Full Duplex
0 = PHY not able to perform full duplex 100BASE-T2
1 = PHY able to perform full duplex 100BASE-T2
RO 0b
9100BASE-T2 Half Duplex
0 = PHY not able to perform half duplex 100BASE-T2
1 = PHY able to perform half duplex 100BASE-T2
RO 0b
8Extended Status
0 = no extended status information in register 15
1 = extended status information in register 15
RO 0b
7:6 RESERVED RO —
5Auto-Negotiate Complete
0 = auto-negotiate process not completed
1 = auto-negotiate process completed
RO 0b
4Remote Fault
1 = remote fault condition detected
0 = no remote fault
RO/LH 0b
3Auto-Negotiate Ability
0 = unable to perform auto-negotiation function
1 = able to perform auto-negotiation function
RO 1b
2Link Status
0 = link is down
1 = link is up
RO/LL 0b
1Jabber Detect
0 = no jabber condition detected
1 = jabber condition detected
RO/LH 0b
0Extended Capabilities
0 = does not support extended capabilities registers
1 = supports extended capabilities registers
RO 1b
Bits Description Type Default
Bits Description Type Default
15:10 PHY ID Number
Assigned to the 19th through 24th bits of the OUI. R/W 110000b
9:4 Model Number
Six-bit manufacturer’s model number. R/W 001111b
3:0 Revision Number
Four-bit manufacturer’s revision number. R/W Note 4-2
2016 Microchip Technology Inc. DS00002164B-page 47
LAN8710A/LAN8710AI
Note 4-2 The default value of this field will vary dependent on the silicon revision number.
4.2.5 AUTO NEGOTIATION ADVERTISEMENT REGISTER
Index (In Decimal): 4Size: 16 bits
Bits Description Type Default
15:14 RESERVED RO —
13 Remote Fault
0 = no remote fault
1 = remote fault detected
R/W 0b
12 RESERVED RO —
11:10 Pause Operation
00 = No PAUSE
01 = Symmetric PAUSE
10 = Asymmetric PAUSE toward link partner
11 = Advertise support for both Symmetric PAUSE and Asymmetric PAUSE
toward local device
Note: When both Symmetric PAUSE and Asymmetric PAUSE are set,
the device will only be configured to, at most, one of the two set-
tings upon auto-negotiation completion.
R/W 00b
9RESERVED RO —
8100BASE-TX Full Duplex
0 = no TX full duplex ability
1 = TX with full duplex
R/W Note 4-3
7100BASE-TX
0 = no TX ability
1 = TX able
R/W 1b
610BASE-T Full Duplex
0 = no 10Mbps with full duplex ability
1 = 10Mbps with full duplex
R/W Note 4-3
510BASE-T
0 = no 10Mbps ability
1 = 10Mbps able
R/W Note 4-3
LAN8710A/LAN8710AI
DS00002164B-page 48 2016 Microchip Technology Inc.
Note 4-3 The default value of this bit is determined by the MODE[2:0] configuration straps. Refer to
Section 3.7.2, MODE[2:0]: Mode Configuration for additional information.
4.2.6 AUTO NEGOTIATION LINK PARTNER ABILITY REGISTER
Index (In Decimal): 5Size: 16 bits
Bits Description Type Default
15 Next Page
0 = no next page ability
1 = next page capable
Note: This device does not support next page ability.
RO 0b
14 Acknowledge
0 = link code word not yet received
1 = link code word received from partner
RO 0b
13 Remote Fault
0 = no remote fault
1 = remote fault detected
RO 0b
12:11 RESERVED RO —
10 Pause Operation
0 = No PAUSE supported by partner station
1 = PAUSE supported by partner station
RO 0b
9100BASE-T4
0 = no T4 ability
1 = T4 able
Note: This device does not support T4 ability.
RO 0b
8100BASE-TX Full Duplex
0 = no TX full duplex ability
1 = TX with full duplex
RO 0b
7100BASE-TX
0 = no TX ability
1 = TX able
RO 0b
610BASE-T Full Duplex
0 = no 10Mbps with full duplex ability
1 = 10Mbps with full duplex
RO 0b
510BASE-T
0 = no 10Mbps ability
1 = 10Mbps able
RO 0b
4:0 Selector Field
00001 = IEEE 802.3 RO 00001b
4:0 Selector Field
00001 = IEEE 802.3 R/W 00001b
Bits Description Type Default
2016 Microchip Technology Inc. DS00002164B-page 49
LAN8710A/LAN8710AI
4.2.7 AUTO NEGOTIATION EXPANSION REGISTER
Index (In Decimal): 6Size: 16 bits
Bits Description Type Default
15:5 RESERVED RO —
4Parallel Detection Fault
0 = no fault detected by parallel detection logic
1 = fault detected by parallel detection logic
RO/LH 0b
3Link Partner Next Page Able
0 = link partner does not have next page ability
1 = link partner has next page ability
RO 0b
2Next Page Able
0 = local device does not have next page ability
1 = local device has next page ability
RO 0b
1Page Received
0 = new page not yet received
1 = new page received
RO/LH 0b
0Link Partner Auto-Negotiation Able
0 = link partner does not have auto-negotiation ability
1 = link partner has auto-negotiation ability
RO 0b
4.2.8 MODE CONTROL/STATUS REGISTER
Index (In Decimal): 17 Size: 16 bits
Bits Description Type Default
15:14 RESERVED RO —
13 EDPWRDOWN
Enable the Energy Detect Power-Down mode:
0 = Energy Detect Power-Down is disabled
1 = Energy Detect Power-Down is enabled
R/W 0b
12:10 RESERVED RO —
9FARLOOPBACK
Enables far loopback mode (for example, all the received packets are sent
back simultaneously (in 100BASE-TX only)). This bit is only active in RMII
mode. This mode works even if the Isolate bit (0.10) is set.
0 = Far loopback mode is disabled
1 = Far loopback mode is enabled
Refer to Section 3.8.9.2, Far Loopback for additional information.
R/W 0b
LAN8710A/LAN8710AI
DS00002164B-page 50 2016 Microchip Technology Inc.
4.2.9 SPECIAL MODES REGISTER
Index (In Decimal): 18 Size: 16 bits
Bits Description Type Default
15 RESERVED RO —
14 MIIMODE
Reflects the mode of the digital interface:
0 = MII Mode
1 = RMII Mode
Note: When writing to this register, the default value of this bit must
always be written back.
R/W
NASR Note 4-4
13:8 RESERVED RO —
7:5 MODE
Transceiver mode of operation. Refer to Section 3.7.2, MODE[2:0]: Mode
Configuration for additional details.
R/W
NASR Note 4-5
4:0 PHYAD
PHY Address. The PHY Address is used for the SMI address and for initial-
ization of the Cipher (Scrambler) key. Refer to Section 3.7.1, PHYAD[2:0]:
PHY Address Configuration for additional details.
R/W
NASR Note 4-6
Note 4-4 The default value of this field is determined by the RMIISEL configuration strap. Refer to
Section 3.7.3, RMIISEL: MII/RMII Mode Configuration for additional information.
Note 4-5 The default value of this field is determined by the MODE[2:0] configuration straps. Refer to
Section 3.7.2, MODE[2:0]: Mode Configuration for additional information.
Note 4-6 The default value of this field is determined by the PHYAD[2:0] configuration straps. Refer to
Section 3.7.1, PHYAD[2:0]: PHY Address Configuration for additional information.
8:7 RESERVED RO —
6ALTINT
Alternate Interrupt Mode:
0 = Primary interrupt system enabled (Default)
1 = Alternate interrupt system enabled
Refer to Section 3.6, Interrupt Management for additional information.
R/W 0b
5:2 RESERVED RO —
1ENERGYON
Indicates whether energy is detected. This bit transitions to “0” if no valid
energy is detected within 256ms. It is reset to “1” by a hardware reset and is
unaffected by a software reset. Refer to Section 3.8.3.2, Energy Detect
Power-Down for additional information.
RO 1b
0RESERVED R/W 0b
Bits Description Type Default
2016 Microchip Technology Inc. DS00002164B-page 51
LAN8710A/LAN8710AI
4.2.10 SYMBOL ERROR COUNTER REGISTER
Index (In Decimal): 26 Size: 16 bits
Bits Description Type Default
15:0 SYM_ERR_CNT
The symbol error counter increments whenever an invalid code symbol is
received (including IDLE symbols) in 100BASE-TX mode. The counter is
incremented only once per packet, even when the received packet contains
more than one symbol error. This counter increments up to 65,536 (216) and
rolls over to 0 after reaching the maximum value.
Note: This register is cleared on reset, but is not cleared by reading the
register. This register does not increment in 10BASE-T mode.
RO 0000h
4.2.11 SPECIAL CONTROL/STATUS INDICATIONS REGISTER
Index (In Decimal): 27 Size: 16 bits
Bits Description Type Default
15 AMDIXCTRL
HP Auto-MDIX control:
0 = Enable Auto-MDIX
1 = Disable Auto-MDIX (use 27.13 to control channel)
R/W 0b
14 RESERVED RO —
13 CH_SELECT
Manual channel select:
0 = MDI (TX transmits, RX receives)
1 = MDIX (TX receives, RX transmits)
R/W 0b
12 RESERVED RO —
11 SQEOFF
Disable the SQE test (Heartbeat):
0 = SQE test is enabled
1 = SQE test is disabled
R/W
NASR 0b
10:5 RESERVED RO —
4XPOL
Polarity state of the 10BASE-T:
0 = Normal polarity
1 = Reversed polarity
RO 0b
3:0 RESERVED RO —
4.2.12 INTERRUPT SOURCE FLAG REGISTER
Index (In Decimal): 29 Size: 16 bits
Bits Description Type Default
15:8 RESERVED RO —
7INT7
0 = not source of interrupt
1 = ENERGYON generated
RO/LH 0b
6INT6
0 = not source of interrupt
1 = Auto-Negotiation complete
RO/LH 0b
5INT5
0 = not source of interrupt
1 = Remote Fault Detected
RO/LH 0b
4INT4
0 = not source of interrupt
1 = Link Down (link status negated)
RO/LH 0b
3INT3
0 = not source of interrupt
1 = Auto-Negotiation LP Acknowledge
RO/LH 0b
2INT2
0 = not source of interrupt
1 = Parallel Detection Fault
RO/LH 0b
1INT1
0 = not source of interrupt
1 = Auto-Negotiation Page Received
RO/LH 0b
0RESERVED RO 0b
LAN8710A/LAN8710AI
DS00002164B-page 52 2016 Microchip Technology Inc.
4.2.13 INTERRUPT MASK REGISTER
Index (In Decimal): 30 Size: 16 bits
Bits Description Type Default
15:8 RESERVED RO —
7:1 Mask Bits
0 = interrupt source is masked
1 = interrupt source is enabled
Note: Refer to Section 4.2.12, Interrupt Source Flag Register for details
on the corresponding interrupt definitions.
R/W 0000000b
0RESERVED RO —
2016 Microchip Technology Inc. DS00002164B-page 53
LAN8710A/LAN8710AI
4.2.14 PHY SPECIAL CONTROL/STATUS REGISTER
Index (In Decimal): 31 Size: 16 bits
Bits Description Type Default
15:13 RESERVED RO —
12 Autodone
Auto-negotiation done indication:
0 = Auto-negotiation is not done or disabled (or not active)
1 = Auto-negotiation is done
RO 0b
11:7 RESERVED R/W —
6Enable 4B5B
0 = bypass encoder/decoder
1 = enable 4B5B encoding/decoding. MAC Interface must be configured in
MII mode.
R/W 1b
5RESERVED RO —
4:2 Speed Indication
HCDSPEED value:
001 = 10BASE-T half-duplex
101 = 10BASE-T full-duplex
010 = 100BASE-TX half-duplex
110 = 100BASE-TX full-duplex
RO XXX
1:0 RESERVED RO —
LAN8710A/LAN8710AI
DS00002164B-page 54 2016 Microchip Technology Inc.
5.0 OPERATIONAL CHARACTERISTICS
5.1 Absolute Maximum Ratings*
Supply Voltage (VDDIO, VDD1A, VDD2A) (Note 5-1) ...............................................................................-0.5V to +3.6V
Digital Core Supply Voltage (VDDCR) (Note 5-1) ......................................................................................-0.5V to +1.5V
Ethernet Magnetics Supply Voltage ...........................................................................................................-0.5V to +3.6V
Positive voltage on signal pins, with respect to ground (Note 5-2)..............................................................................+6V
Negative voltage on signal pins, with respect to ground (Note 5-3)......................................................................... -0.5V
Positive voltage on XTAL1/CLKIN, with respect to ground ......................................................................................+3.6V
Positive voltage on XTAL2, with respect to ground..................................................................................................+2.5V
Ambient Operating Temperature in Still Air (TA)............................................................................................... Note 5-40
Storage Temperature............................................................................................................................. .-55oC to +150oC
Junction to Ambient (JA) ....................................................................................................................................48.3C/W
Junction to Case (JC)...................................................................................................................................... .10.6oC/W
Lead Temperature Range ...........................................................................................Refer to JEDEC Spec. J-STD-020
HBM ESD Performance per JEDEC JESD22-A114............................................................................................Class 3A
IEC61000-4-2 Contact Discharge ESD Performance (Note 5-5) ............................................................................+/-8kV
IEC61000-4-2 Air-Gap Discharge ESD Performance (Note 5-5) ..........................................................................+/-15kV
Latch-up Performance per EIA/JESD 78.......................................................................................................... .+/-150mA
Note 5-1 When powering this device from laboratory or system power supplies, it is important that the absolute
maximum ratings not be exceeded or device failure can result. Some power supplies exhibit voltage
spikes on their outputs when AC power is switched on or off. In addition, voltage transients on the
AC power line may appear on the DC output. If this possibility exists, it is suggested that a clamp
circuit be used.
Note 5-2 This rating does not apply to the following pins: XTAL1/CLKIN, XTAL2, RBIAS.
Note 5-3 This rating does not apply to the following pins: RBIAS.
Note 5-4 0oC to +85oC for extended commercial version, -40oC to +85oC for industrial version.
Note 5-5 Performed by independent 3rd party test facility.
*Stresses exceeding those listed in this section could cause permanent damage to the device. This is a stress rating
only. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Functional
operation of the device at any condition exceeding those indicated in Section 5.2, "Operating Conditions**", Section 5.1,
"Absolute Maximum Ratings*", or any other applicable section of this specification is not implied. Note, device signals
are NOT 5 volt tolerant unless specified otherwise.
5.2 Operating Conditions**
Supply Voltage (VDDIO)..........................................................................................................................+1.62V to +3.6V
Analog Port Supply Voltage (VDD1A, VDD2A) .........................................................................................+3.0V to +3.6V
Digital Core Supply Voltage (VDDCR) .................................................................................................. +1.08V to +1.32V
Ethernet Magnetics Supply Voltage ........................................................................................................+2.25V to +3.6V
Ambient Operating Temperature in Still Air (TA)................................................................................................. Note 5-4
**Proper operation of the device is guaranteed only within the ranges specified in this section. After the device has com-
pleted power-up, VDDIO and the magnetics power supply must maintain their voltage level with +/-10%. Varying the
voltage greater than +/-10% after the device has completed power-up can cause errors in device operation.
Note: Do not drive input signals without power supplied to the device.
2016 Microchip Technology Inc. DS00002164B-page 55
LAN8710A/LAN8710AI
5.3 Power Consumption
This section details the device power measurements taken over various operating conditions. Unless otherwise noted,
all measurements were taken with power supplies at nominal values (VDDIO, VDD1A, VDD2A = 3.3V, VDDCR = 1.2V).
See Section 3.8.3, Power-Down Modes for a description of the power down modes.
TABLE 5-1: DEVICE ONLY CURRENT CONSUMPTION AND POWER DISSIPATION
Power Pin Group VDDA3.3
Power
Pins(mA)
VDDCR
Power
Pin(mA)
VDDIO
Power
Pin(mA)
Total
Current
(mA)
Total
Power
(mW)
100BASE-TX /w traffic
Max 28 21 5.2 54 176
Typical 26 18 4.3 48 158
Min 23 18 2.4 43 101
Note 5-8
10BASE-T /w traffic
Max 10.2 12.9 0.98 24.1 79.5
Typical 9.4 11.4 0.4 21.2 70
Min 9.2 10.9 0.3 20.4 44
Note 5-8
Energy Detect
Power Down
Max 4.5 30.3 7.8 25
Typical 4.3 1.4 0.2 5.9 19.5
Min 3.9 1.3 05.2 15.9
Note 5-8
General Power Down
Max 0.4 2.6 0.3 3.3 10.9
Typical 0.3 1.2 0.2 1.7 5.6
Min 0.3 1.1 01.4 2.4
Note 5-8
Note 5-6 The current at VDDCR is either supplied by the internal regulator from current entering at VDD2A,
or from an external 1.2V supply when the internal regulator is disabled.
Note 5-7 Current measurements do not include power applied to the magnetics or the optional external LEDs.
The Ethernet component current is typically 41mA in 100BASE-TX mode and 100mA in 10BASE-T
mode, independent of the 2.5V or 3.3V supply rail of the transformer.
Note 5-8 Calculated with full flexPWR features activated: VDDIO=1.8V & internal regulator disabled.
LAN8710A/LAN8710AI
DS00002164B-page 56 2016 Microchip Technology Inc.
5.4 DC Specifications
TABLE 5-2: details the non-variable I/O buffer characteristics. These buffer types do not support variable voltage oper-
ation. TABLE 5-3: details the variable voltage I/O buffer characteristics. Typical values are provided for 1.8V, 2.5V, and
3.3V VDDIO cases.
TABLE 5-2: NON-VARIABLE I/O BUFFER CHARACTERISTICS
Parameter Symbol Min Typ Max Units Notes
IS Type Input Buffer
Low Input Level
High Input Level
Negative-Going Threshold
Positive-Going Threshold
Schmitt Trigger Hysteresis
(VIHT - VILT)
Input Leakage
(VIN = VSS or VDDIO)
Input Capacitance
VILI
VIHI
VILT
VIHT
VHYS
IIH
CIN
-0.3
1.01
1.39
336
-10
1.19
1.59
399
3.6
1.39
1.79
459
10
2
V
V
V
V
mV
uA
pF
Schmitt trigger
Schmitt trigger
Note 5-9
O12 Type Buffers
Low Output Level
High Output Level
VOL
VOH VDD2A -
0.4
0.4 V
V
IOL = 12mA
IOH = -12mA
ICLK Type Buffer
(XTAL1 Input)
Low Input Level
High Input Level
VILI
VIHI
-0.3
0.9
0.35
3.6
V
V
Note 5-10
Note 5-9 This specification applies to all inputs and tri-stated bi-directional pins. Internal pull-down and pull-up
resistors add +/- 50uA per-pin (typical).
Note 5-10 XTAL1/CLKIN can optionally be driven from a 25MHz single-ended clock oscillator.
TABLE 5-3: VARIABLE I/O BUFFER CHARACTERISTICS
Parameter Symbol Min 1.8V
Typ 2.5V
Typ3.3V
Typ Max Units Notes
VIS Type Input Buffer
Low Input Level
High Input Level
Neg-Going Threshold
Pos-Going Threshold
Schmitt Trigger Hyster-
esis (VIHT - VILT)
Input Leakage
(VIN = VSS or VDDIO)
Input Capacitance
VILI
VIHI
VILT
VIHT
VHYS
IIH
CIN
-0.3
0.64
0.81
102
-10
0.83
0.99
158
1.15
1.29
136
1.41
1.65
138
3.6
1.76
1.90
288
10
2
V
V
V
V
mV
uA
pF
Schmitt trigger
Schmitt trigger
Note 5-11
VO8 Type Buffers
Low Output Level
High Output Level
VOL
VOH VDDIO -
0.4
0.4 V
V
IOL = 8mA
IOH = -8mA
VOD8 Type Buffer
Low Output Level VOL 0.4 V IOL = 8mA
2016 Microchip Technology Inc. DS00002164B-page 57
LAN8710A/LAN8710AI
Note 5-11 This specification applies to all inputs and tri-stated bi-directional pins. Internal pull-down and pull-up
resistors add +/- 50uA per-pin (typical).
TABLE 5-4: 100BASE-TX TRANSCEIVER CHARACTERISTICS
Parameter Symbol Min Typ Max Units Notes
Peak Differential Output Voltage High VPPH 950 —1050 mVpk Note 5-12
Peak Differential Output Voltage Low VPPL -950 —-1050 mVpk Note 5-12
Signal Amplitude Symmetry VSS 98 —102 %Note 5-12
Signal Rise and Fall Time TRF 3.0 —5.0 nS Note 5-12
Rise and Fall Symmetry TRFS — — 0.5 nS Note 5-12
Duty Cycle Distortion DCD 35 50 65 %Note 5-13
Overshoot and Undershoot VOS — — 5 % —
Jitter — — — 1.4 nS Note 5-14
Note 5-12 Measured at line side of transformer, line replaced by 100 (+/- 1%) resistor.
Note 5-13 Offset from 16nS pulse width at 50% of pulse peak.
/ |
LAN8710A/LAN8710AI
DS00002164B-page 58 2016 Microchip Technology Inc.
Note 5-14 Measured differentially.
TABLE 5-5: 10BASE-T TRANSCEIVER CHARACTERISTICS
Parameter Symbol Min Typ Max Units Notes
Transmitter Peak Differential Output Voltage VOUT 2.2 2.5 2.8 VNote 5-15
Receiver Differential Squelch Threshold VDS 300 420 585 mV —
Note 5-15 Min/max voltages guaranteed as measured with 100 resistive load.
5.5 AC Specifications
This section details the various AC timing specifications of the device.
Note 5-16 The MII/SMI timing adheres to the IEEE 802.3 specification. Refer to the IEEE 802.3 specification for
additional timing information.
Note 5-17 The RMII timing adheres to the RMII Consortium RMII Specification R1.2.
5.5.1 EQUIVALENT TEST LOAD
Output timing specifications assume a 25pF equivalent test load, unless otherwise noted, as illustrated in Figure 5-1
below.
FIGURE 5-1: OUTPUT EQUIVALENT TEST LOAD
25 pF
OUTPUT
2016 Microchip Technology Inc. DS00002164B-page 59
LAN8710A/LAN8710AI
5.5.2 POWER SEQUENCE TIMING
This diagram illustrates the device power sequencing requirements. The VDDIO, VDD1A, VDD2A and magnetics power
supplies can turn on in any order provided they all reach operational levels within the specified time period tpon. Device
power supplies can turn off in any order provided they all reach 0 volts within the specified time period poff.

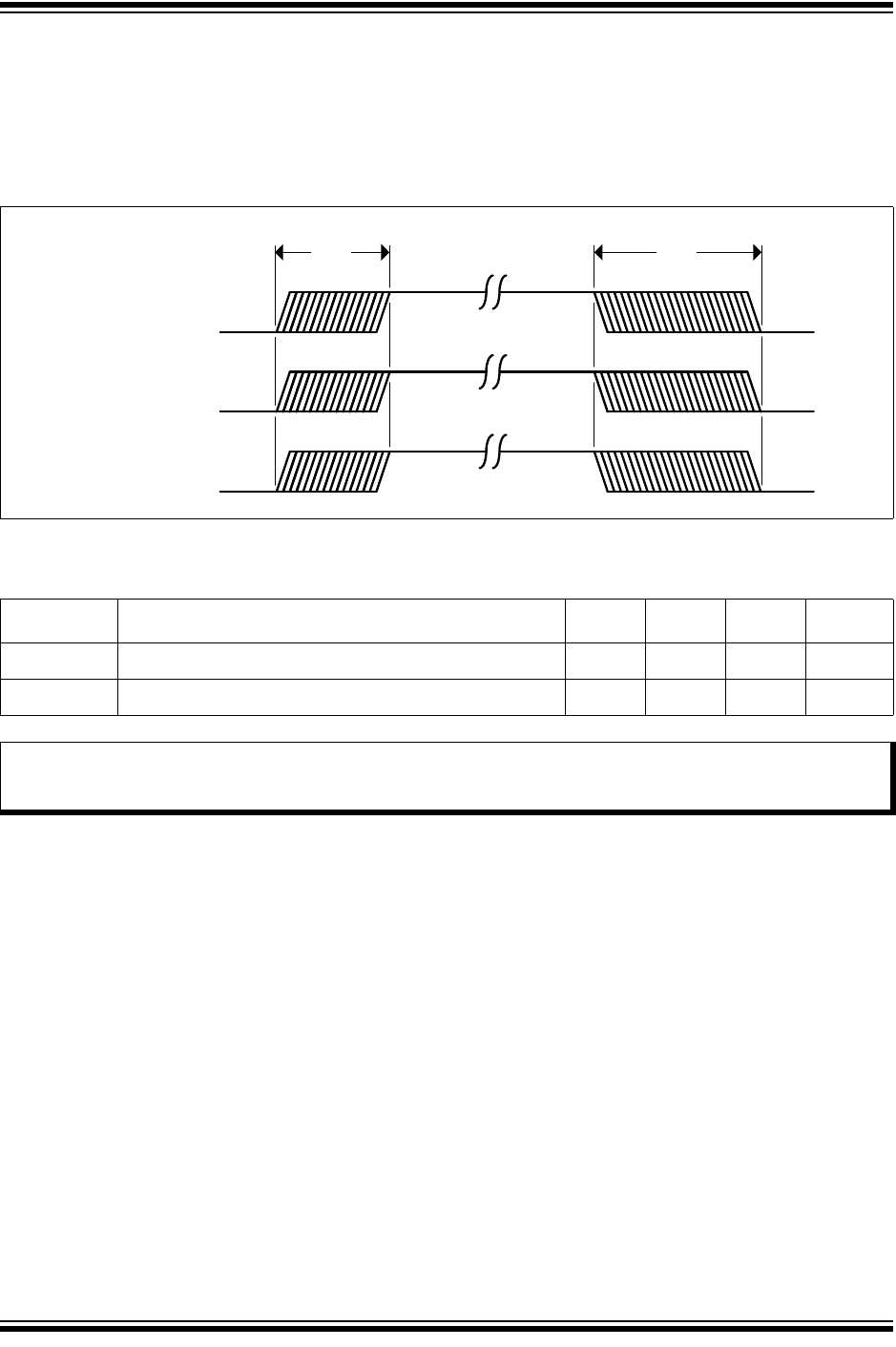

FIGURE 5-2: POWER SEQUENCE TIMING
VDDIO
Magnetics
Power
tpon tpoff
VDD1A,
VDD2A
TABLE 5-6: POWER SEQUENCE TIMING VALUES
Symbol Description Min Typ Max Units
tpon Power supply turn on time — — 50 mS
tpoff Power supply turn off time — — 500 mS
Note: When the internal regulator is disabled, a power-up sequencing relationship exists between VDDCR and
the 3.3V power supply. For additional information refer to Section 3.7.4, REGOFF: Internal +1.2V Regula-
tor Configuration.
5.5.3 POWER-ON NRST & CONFIGURATION STRAP TIMING
This diagram illustrates the nRST reset and configuration strap timing requirements in relation to power-on. A hardware
reset (nRST assertion) is required following power-up. For proper operation, nRST must be asserted for no less than
trstia. The nRST pin can be asserted at any time, but must not be deasserted before tpurstd after all external power sup-
plies have reached 80% of their nominal operating levels. In order for valid configuration strap values to be read at
power-up, the tcss and tcsh timing constraints must be followed. Refer to Section 3.8.5, Resets for additional information.

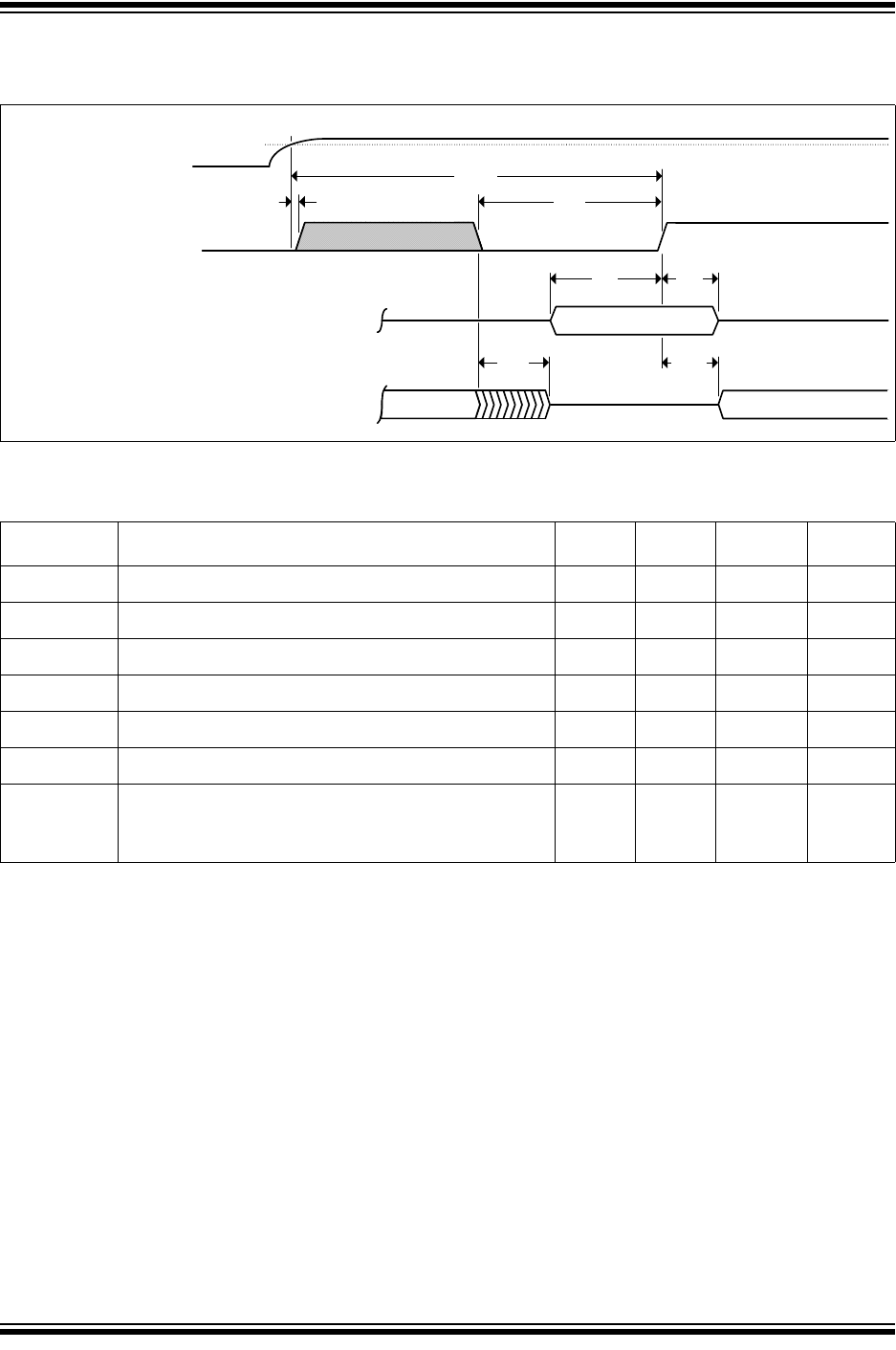

FIGURE 5-3: POWER-ON NRST & CONFIGURATION STRAP TIMING
tcss
nRST
Configuration Strap
Pins Input
trstia
tcsh
Configuration Strap
Pins Output Drive
todad
All External
Power Supplies tpurstd
80%
tpurstv
totaa
TABLE 5-7: POWER-ON NRST & CONFIGURATION STRAP TIMING VALUES
symbol DESCRIPTION min typ max units
tpurstd External power supplies at 80% to nRST deassertion 25 — — mS
tpurstv External power supplies at 80% to nRST valid 0 — — nS
trstia nRST input assertion time 100 — — S
tcss Configuration strap pins setup to nRST deassertion 200 — — nS
tcsh Configuration strap pins hold after nRST deassertion 1 — — nS
totaa Output tri-state after nRST assertion —50 nS
todad Output drive after nRST deassertion 2 — 800
(Note 5-
20)
nS
LAN8710A/LAN8710AI
DS00002164B-page 60 2016 Microchip Technology Inc.
Note 5-18 nRST deassertion must be monotonic.
Note 5-19 Device configuration straps are latched as a result of nRST assertion. Refer to Section 3.7,
Configuration Straps for details. Configuration straps must only be pulled high or low and must not
be driven as inputs.
Note 5-20 20 clock cycles for 25MHz, or 40 clock cycles for 50MHz.
5.5.4 MII INTERFACE TIMING
This section specifies the MII interface transmit and receive timing. Please refer to Section 3.4.1, MII
for additional details.
FIGURE 5-4: MII RECEIVE TIMING
RXCLK
RXD[3:0]
RXDV
tclkh tclkl
tclkp
tval thold
tval
tval
thold
Table 1.1 MII Receive Timing Values
SYMBOL DESCRIPTION MIN MAX UNITS NOTES
tclkp RXCLK period Note 5-21 —ns
tclkh RXCLK high time tclkp*0.4 tclkp*0.6 ns
tclkl RXCLK low time tclkp*0.4 tclkp*0.6 ns
tval RXD[3:0], RXDV output valid from rising edge of
RXCLK 28.0 ns Note 5-22
thold RXD[3:0], RXDV output hold from rising edge of
RXCLK 10.0 —ns Note 5-22
2016 Microchip Technology Inc. DS00002164B-page 61
LAN8710A/LAN8710AI
Note 5-21 40ns for 100BASE-TX operation, 400ns for 10BASE-T operation.
Note 5-22 Timing was designed for system load between 10 pf and 25 pf.

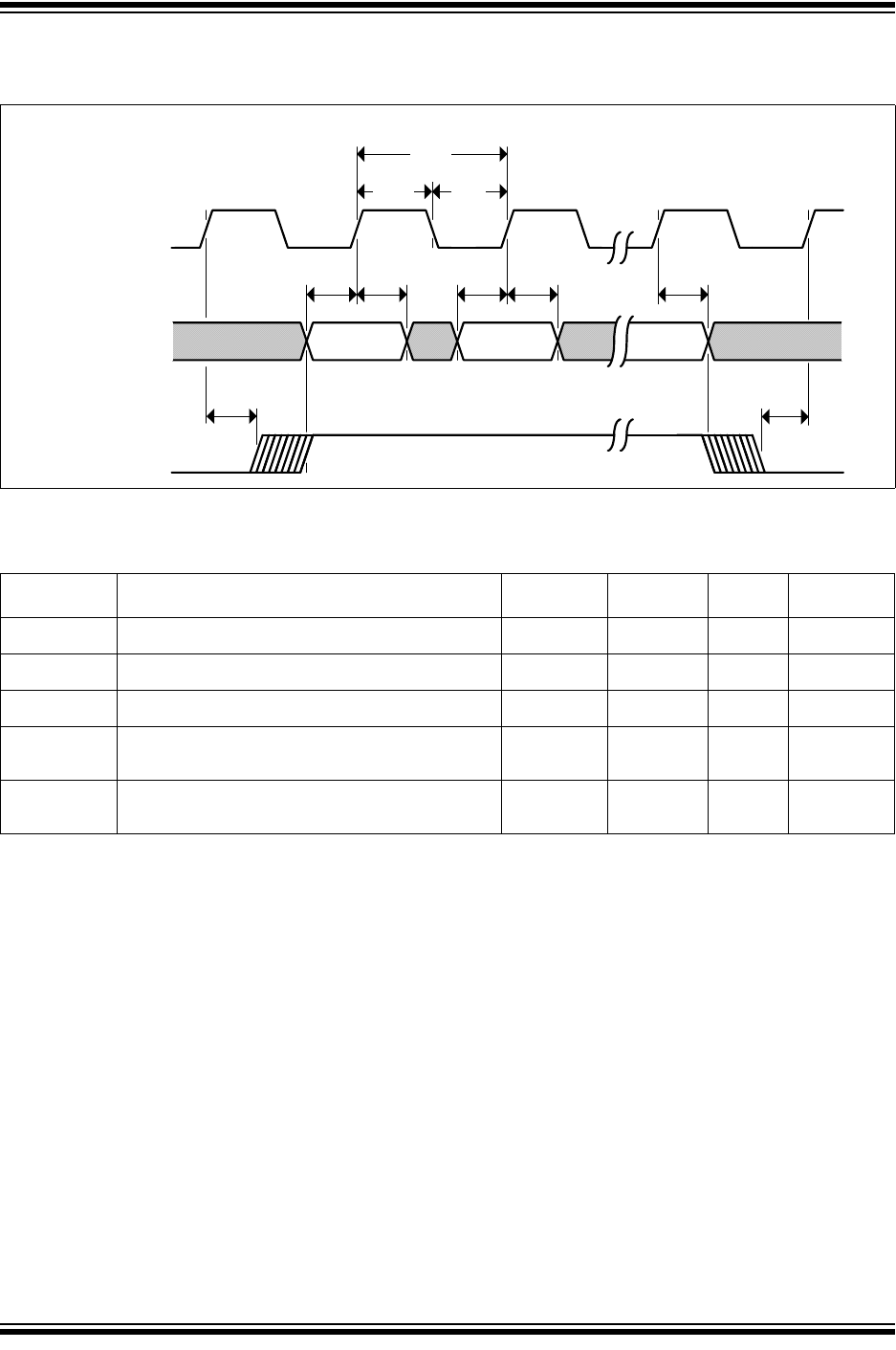

FIGURE 5-5: MII TRANSMIT TIMING
TXCLK
tsu
TXD[3:0]
TXEN
tclkh tclkl
tclkp
thold tsu thold thold
tsu
thold
TABLE 5-8: MII TRANSMIT TIMING VALUES
SYMBOL DESCRIPTION MIN MAX UNITS NOTES
tclkp TXCLK period Note 5-23 —ns —
tclkh TXCLK high time tclkp*0.4 tclkp*0.6 ns —
tclkl TXCLK low time tclkp*0.4 tclkp*0.6 ns —
tsu TXD[3:0], TXEN setup time to rising edge of
TXCLK 12.0 —ns Note 5-24
thold TXD[3:0], TXEN hold time after rising edge of
TXCLK 0 — ns Note 5-24
LAN8710A/LAN8710AI
DS00002164B-page 62 2016 Microchip Technology Inc.
Note 5-23 40ns for 100BASE-TX operation, 400ns for 10BASE-T operation.
Note 5-24 Timing was designed for system load between 10 pf and 25 pf.
JUNE/gym xxxux Wm“ WW
2016 Microchip Technology Inc. DS00002164B-page 63
LAN8710A/LAN8710AI
5.5.5 RMII INTERFACE TIMING

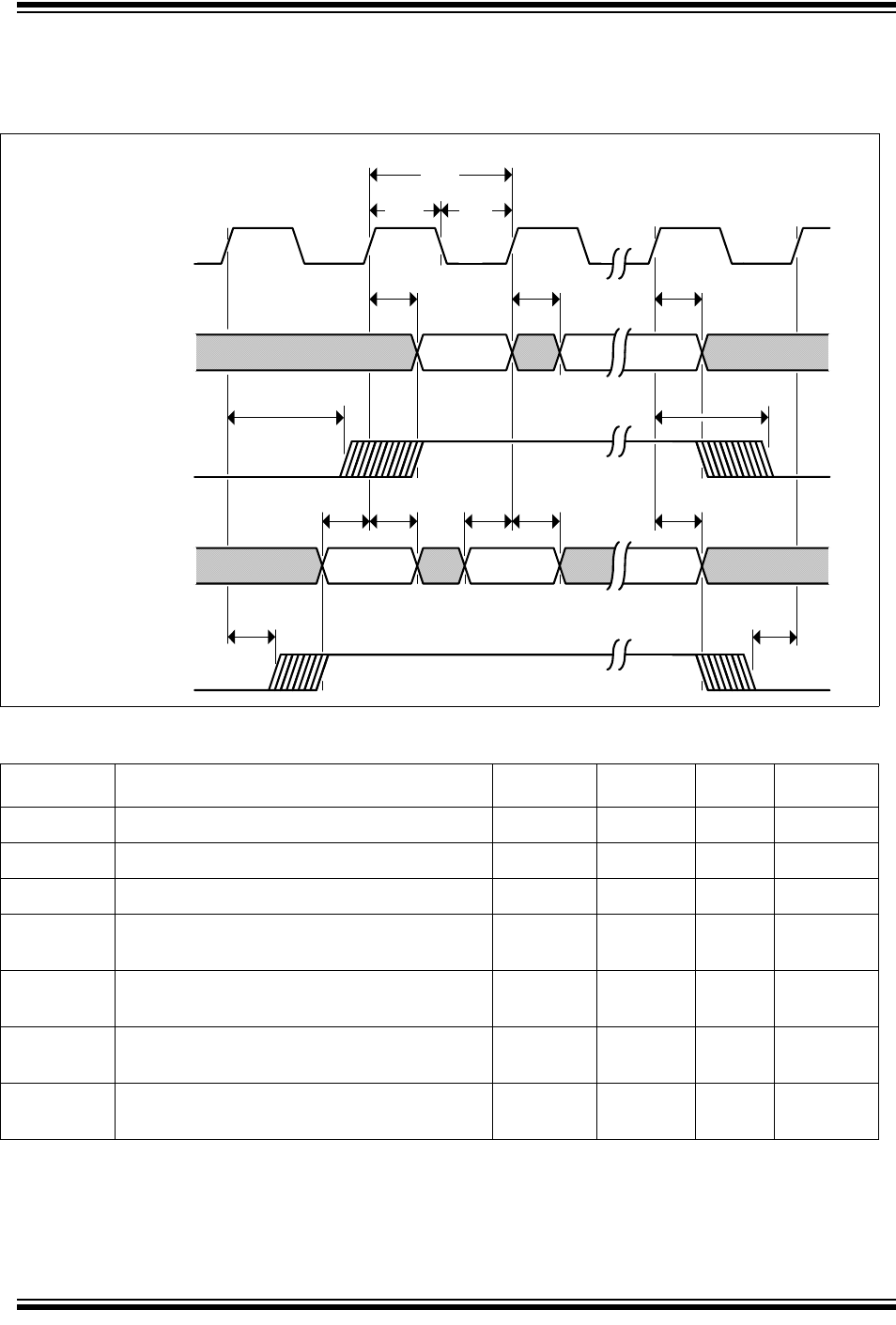

FIGURE 5-6: RMII TIMING
CLKIN
(REF_CLK)
RXD[1:0],
RXER
CRS_DV
tclkh tclkl
tclkp
toval tohold
toval
toval
tohold
tsu
TXD[1:0]
TXEN
tihold tsu tihold tihold
tsu
tihold
TABLE 5-9: RMII TIMING VALUES
Symbol Description Min Max Units Notes
tclkp CLKIN period 20 —ns —
tclkh CLKIN high time tclkp*0.35 tclkp*0.65 ns —
tclkl CLKIN low time tclkp*0.35 tclkp*0.65 ns —
toval RXD[1:0], RXER, CRS_DV output valid from ris-
ing edge of CLKIN —14.0 ns Note 5-25
tohold RXD[1:0], RXER, CRS_DV output hold from ris-
ing edge of CLKIN 3.0 —ns Note 5-25
tsu TXD[1:0], TXEN setup time to rising edge of
CLKIN 4.0 —ns Note 5-25
tihold TXD[1:0], TXEN input hold time after rising edge
of CLKIN 1.5 —ns Note 5-25
Note 5-25 Timing was designed for system load between 10 pf and 25 pf.
‘7 «q/\ /\/— J\/T‘ mm W
LAN8710A/LAN8710AI
DS00002164B-page 64 2016 Microchip Technology Inc.
5.5.5.1 RMII CLKIN Requirements
TABLE 5-10: RMII CLKIN (REF_CLK) TIMING VALUES
Parameter Min Typ Max Units Notes
CLKIN frequency 50 —MHz —
CLKIN Frequency Drift —± 50 ppm —
CLKIN Duty Cycle 40 —60 % —
CLKIN Jitter —150 psec p-p – not RMS
5.5.6 SMI TIMING
This section specifies the SMI timing of the device. Please refer to Section 3.5, Serial Management Interface (SMI) for
additional details.

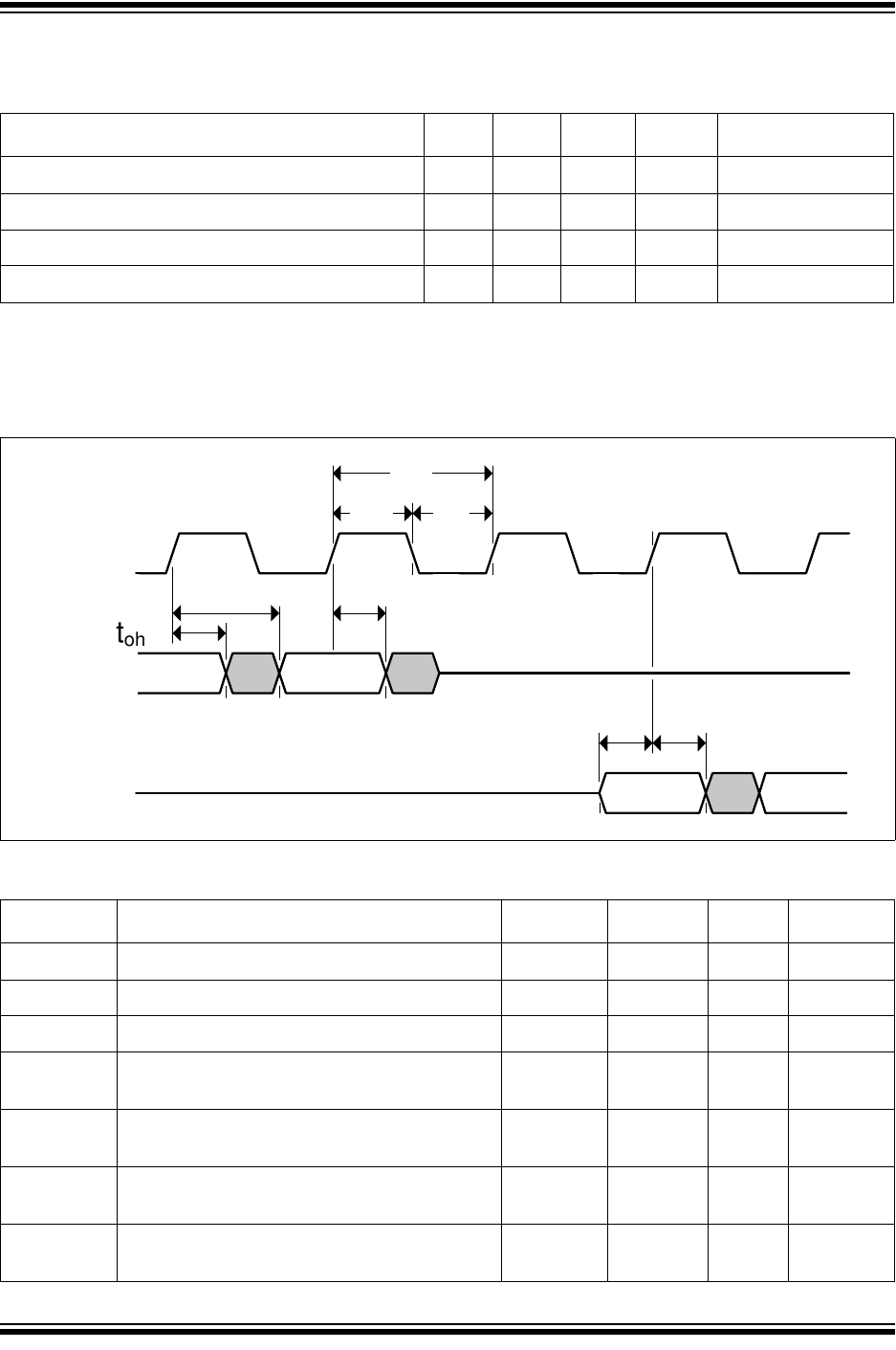

FIGURE 5-7: SMI TIMING
MDC
MDIO
tclkh tclkl
tclkp
tohold
MDIO
tsu tihold
(Data-Out)
(Data-In)
tohold
tval
TABLE 5-11: SMI TIMING VALUES
Symbol Description Min Max Units Notes
tclkp MDC period 400 —ns —
tclkh MDC high time 160 (80%) —ns —
tclkl MDC low time 160 (80%) —ns —
tval MDIO (read from PHY) output valid from rising
edge of MDC —300 ns —
tohold MDIO (read from PHY) output hold from rising
edge of MDC 0 — ns —
tsu MDIO (write to PHY) setup time to rising edge of
MDC 10 —ns —
tihold MDIO (write to PHY) input hold time after rising
edge of MDC 10 —ns —
2016 Microchip Technology Inc. DS00002164B-page 65
LAN8710A/LAN8710AI
5.6 Clock Circuit
The device can accept either a 25MHz crystal (preferred) or a 25MHz single-ended clock oscillator (±50ppm) input. If
the single-ended clock oscillator method is implemented, XTAL2 should be left unconnected and XTAL1/CLKIN should
be driven with a nominal 0-3.3V clock signal.
It is recommended that a crystal utilizing matching parallel load capacitors be used for the crystal input/output signals
(XTAL1/XTAL2). Either a 300uW or 100uW 25MHz crystal may be utilized. The 300uW 25MHz crystal specifications are
detailed in Section 5.6.1, "300uW 25MHz Crystal Specification," on page 65. The 100uW 25MHz crystal specifications
are detailed in Section 5.6.2, "100uW 25MHz Crystal Specification," on page 66.
5.6.1 300UW 25MHZ CRYSTAL SPECIFICATION
When utilizing a 300uW 25MHz crystal, the following circuit design (Figure 5-8) and specifications (Table 5-12) are
required to ensure proper operation.

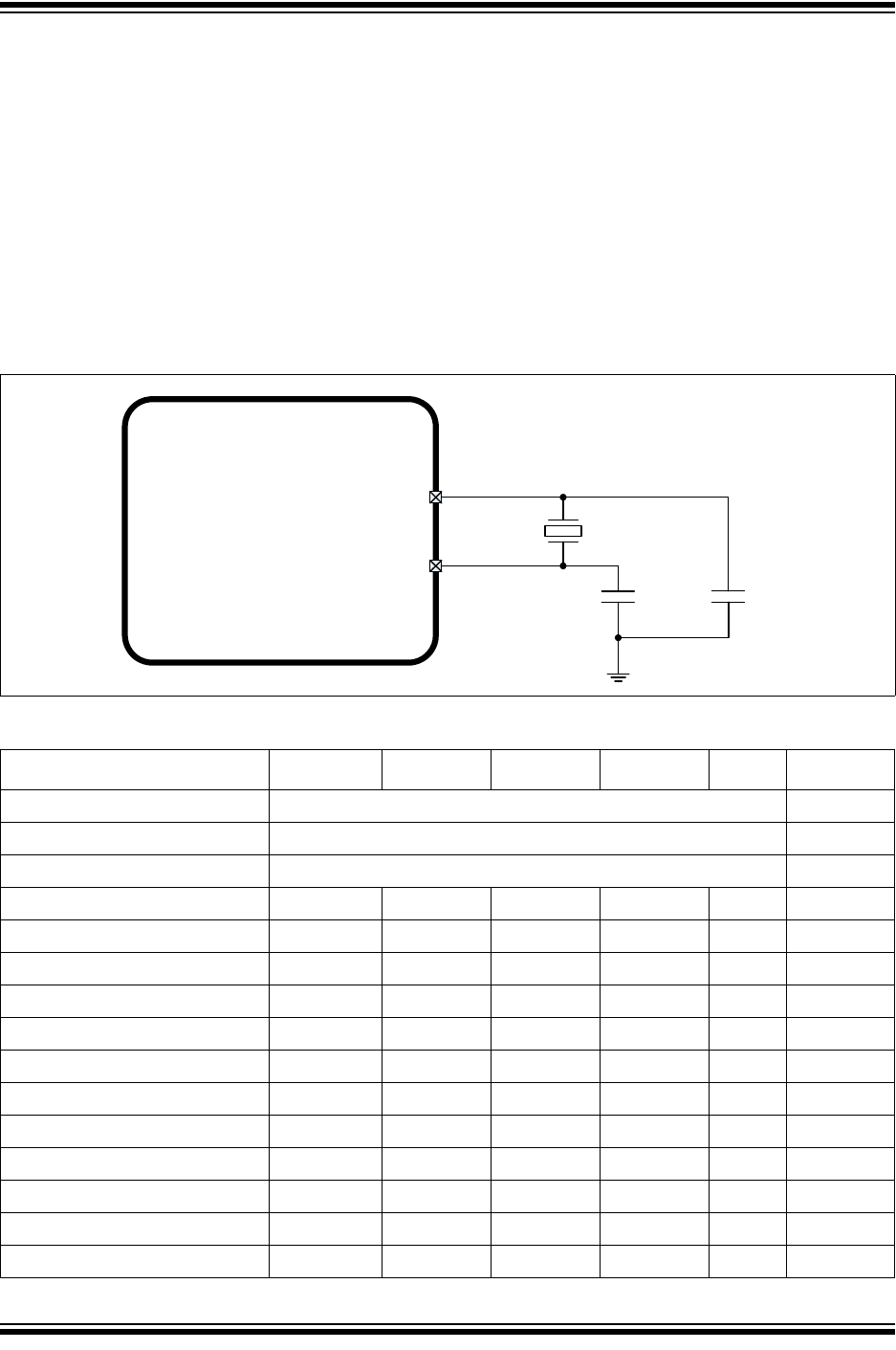

FIGURE 5-8: 300UW 25MHZ CRYSTAL CIRCUIT
LAN8710
XTAL2
XTAL1
Y1
C1C2
TABLE 5-12: 300UW 25MHZ CRYSTAL SPECIFICATIONS
Parameter Symbol Min Nom Max Units Notes
Crystal Cut AT, typ —
Crystal Oscillation Mode Fundamental Mode —
Crystal Calibration Mode Parallel Resonant Mode —
Frequency Ffund —25.000 —MHz —
Frequency Tolerance @ 25oC Ftol — — ±50 PPM Note 5-26
Frequency Stability Over Temp Ftemp — — ±50 PPM Note 5-26
Frequency Deviation Over Time Fage —+/-3 to 5 —PPM Note 5-27
Total Allowable PPM Budget — — — ±50 PPM Note 5-28
Shunt Capacitance CO—7 typ —pF —
Load Capacitance CL—20 typ —pF —
Drive Level PW300 — — uW —
Equivalent Series Resistance R1— — 30 Ohm —
Operating Temperature Range —Note 5-35 —+85 oC —
XTAL1/CLKIN Pin Capacitance — — 3 typ —pF Note 5-30
XTAL2 Pin Capacitance — — 3 typ —pF Note 5-30
LAN8710A/LAN8710AI
DS00002164B-page 66 2016 Microchip Technology Inc.
Note 5-26 The maximum allowable values for Frequency Tolerance and Frequency Stability are application
dependent. Since any particular application must meet the IEEE ±50 PPM Total PPM Budget, the
combination of these two values must be approximately ±45 PPM (allowing for aging).
Note 5-27 Frequency Deviation Over Time is also referred to as Aging.
Note 5-28 The total deviation for the Transmitter Clock Frequency is specified by IEEE 802.3u as
±100 PPM.
Note 5-29 0oC for extended commercial version, -40oC for industrial version.
Note 5-30 This number includes the pad, the bond wire and the lead frame. PCB capacitance is not included
in this value. The XTAL1/CLKIN pin, XTAL2 pin and PCB capacitance values are required to
accurately calculate the value of the two external load capacitors. The total load capacitance must
be equivalent to what the crystal expects to see in the circuit so that the crystal oscillator will operate
at 25.000 MHz.
5.6.2 100UW 25MHZ CRYSTAL SPECIFICATION
When utilizing a 100uW 25MHz crystal, the following circuit design (Figure 5-9) and specifications (Table 5-13) are
required to ensure proper operation.

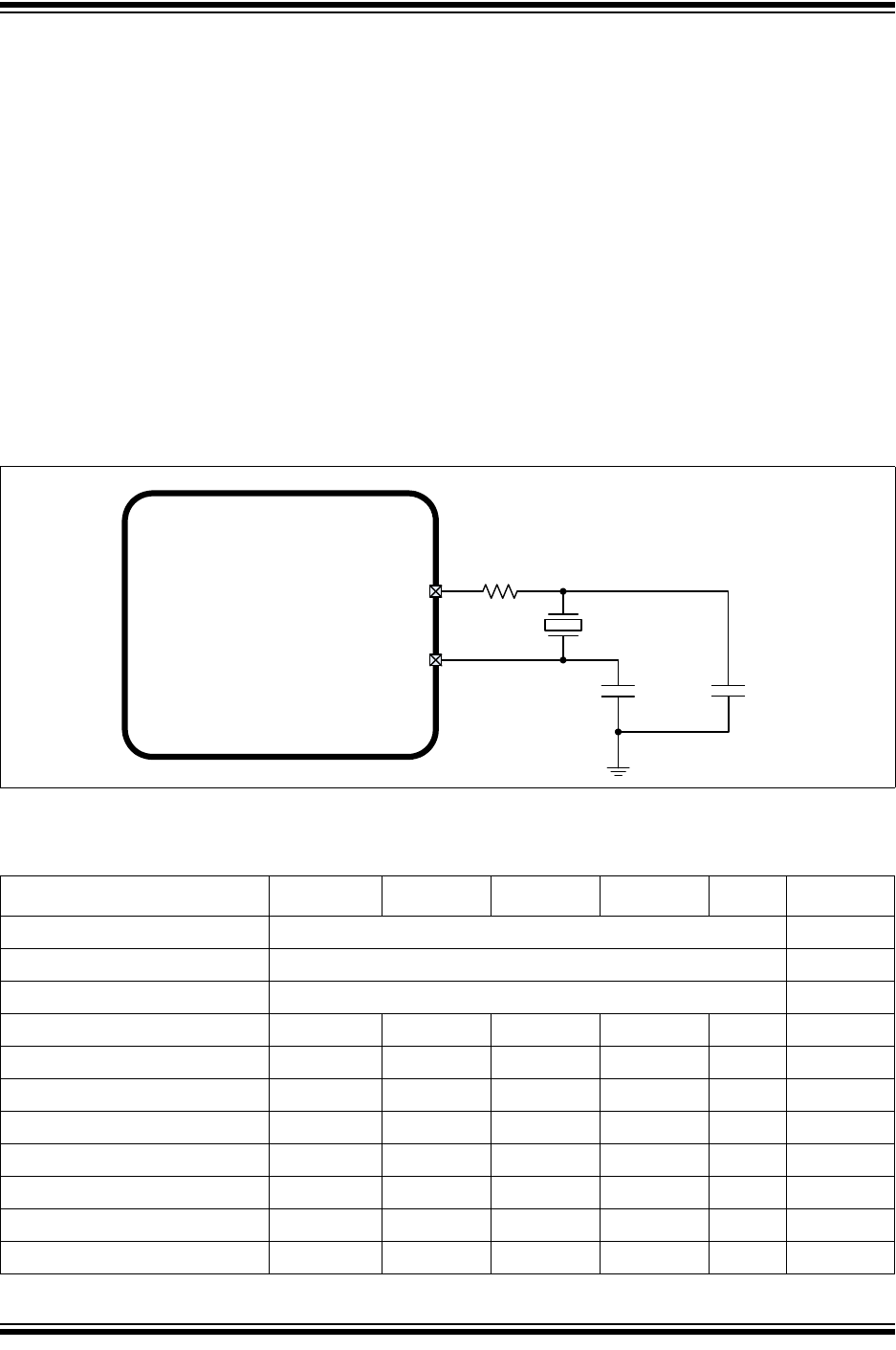

FIGURE 5-9: 100UW 25MHZ CRYSTAL CIRCUIT
LAN8710
XTAL2
XTAL1
RSY1
C1C2
TABLE 5-13: 100UW 25MHZ CRYSTAL SPECIFICATIONS
Parameter Symbol Min Nom Max Units Notes
Crystal Cut AT, typ —
Crystal Oscillation Mode Fundamental Mode —
Crystal Calibration Mode Parallel Resonant Mode —
Frequency Ffund —25.000 —MHz —
Frequency Tolerance @ 25oC Ftol — — ±50 PPM Note 5-31
Frequency Stability Over Temp Ftemp — — ±50 PPM Note 5-31
Frequency Deviation Over Time Fage —±3 to 5 —PPM Note 5-32
Total Allowable PPM Budget — — — ±50 PPM Note 5-33
Shunt Capacitance CO— — 5 pF —
Load Capacitance CL8 — 12 pF —
Drive Level PW—100 —uW Note 5-34
2016 Microchip Technology Inc. DS00002164B-page 67
LAN8710A/LAN8710AI
Note 5-31 The maximum allowable values for Frequency Tolerance and Frequency Stability are application
dependent. Since any particular application must meet the IEEE ±50 PPM Total PPM Budget, the
combination of these two values must be approximately ±45 PPM (allowing for aging).
Note 5-32 Frequency Deviation Over Time is also referred to as Aging.
Note 5-33 The total deviation for the Transmitter Clock Frequency is specified by IEEE 802.3u as
±100 PPM.
Note 5-34 The crystal must support 100uW operation to utilize this circuit.
Note 5-35 0oC for extended commercial version, -40oC for industrial version.
Note 5-36 This number includes the pad, the bond wire and the lead frame. PCB capacitance is not included
in this value. The XTAL1/CLKIN pin, XTAL2 pin and PCB capacitance values are required to
accurately calculate the value of the two external load capacitors. The total load capacitance must
be equivalent to what the crystal expects to see in the circuit so that the crystal oscillator will operate
at 25.000 MHz.
Equivalent Series Resistance R1— — 80 Ohm —
XTAL2 Series Resistor Rs495 500 505 Ohm —
Operating Temperature Range —Note 5-35 —+85 oC —
XTAL1/CLKIN Pin Capacitance — — 3 typ —pF Note 5-36
XTAL2 Pin Capacitance — — 3 typ —pF Note 5-36
TABLE 5-13: 100UW 25MHZ CRYSTAL SPECIFICATIONS (CONTINUED)
Parameter Symbol Min Nom Max Units Notes
A TERMINAL #1 IDENTIFIER AREA (DI/2 x El/2) TOP VIEW A17 SIDE VIEW AX «W 5 MAX IoPTIoNALI DZ TERMINAL m ‘Ie IDENTIFIER 32 AREA 1 I ID/2XEI2) U W WWW / I L/W 2 // “f// 3 KEXPOSED PAD IePAD) 1 [32X L IDATIJM A) & IDATUM BI JLazx b 32Xk4> - QDIO®CAIEI au5®c BOTTOM VIEW IUUUIUUU \‘ A2 ‘I 3-D VIEWS
LAN8710A/LAN8710AI
DS00002164B-page 68 2016 Microchip Technology Inc.
6.0 PACKAGE INFORMATION
6.1 32-QFN (Punch)
FIGURE 6-1: 32-QFN PACKAGE
TABLE 6-1: 32-QFN DIMENSIONS
Min Nominal Max Remarks
A0.70 0.85 1.00 Overall Package Height
A1 00.02 0.05 Standoff
A2 —0.65 0.90 Mold Cap Thickness
D/E 4.90 5.00 5.10 X/Y Body Size
D1/E1 4.55 4.75 4.95 X/Y Mold Cap Size
D2/E2 3.20 3.30 3.40 X/Y Exposed Pad Size
L0.30 0.40 0.50 Terminal Length
b0.18 0.25 0.30 Terminal Width
k0.35 0.45 —Terminal to Exposed Pad Clearance
e0.50 BSC Terminal Pitch
Note 1: All dimensions are in millimeters unless otherwise noted.
2: Dimension “b” applies to plated terminals and is measured between 0.15 and 0.30 mm from the terminal tip.
3: The pin 1 identifier may vary, but is always located within the zone indicated.
GD D2' 0.2- 0.3 4L E E2' F I I IIII‘IIII Kl- SEE NOTE 2 LAND PATI'ERN DIMENSIONS “DIES: 1 THE USER MAY Momrv THE PCB LAND PATTERN swam MIN MOM MAX DES‘GN AND D‘MENSIONS EASEDON THE‘R 5mg 4 W , 4 m EXPERIENCE AND‘OR PROCESS cAPAamrv DT/EZ‘ 3 m , 3 m 2 EXPOSED SOLDERABLE COPPER AREAoE THE DENVER PAD CAN DE EWHER SOLID 0R SEGMENTED x , o 2: u 23 3 MAXWUM THERMAL AND ELECTRICAL PACKAGE V , “9 D75 PERFORMANCE IsAcmEVED WHEN AN ARRAvoE sour) was \s \NCORPORATED N THE CENTER LAND e D 5“ PATTERN
FIGURE 6-2: 32-QFN RECOMMENDED PCB LAND PATTERN
2016 Microchip Technology Inc. DS00002164B-page 69
LAN8710A/LAN8710AI
and: EB: 7 . sin a; x m 2132;. 023 men mm a‘mmxm‘zlcwmm 3:: 25a a ,6“ a: gt: 5 a 7 . , , 95 5:8 mi 27 $5518; m7 m; as” 7 , ‘ a 55 Z 6:; 3:12 303531 ‘ m a , feiszaw SH :3 is 2337 555 “321.5355 2 3577223. U a = E x ESE”; 5:258 25 NM :2 aimxwmfia 962;“ mm :3 a: Kean “2:50 mo§u§ us as. XUMEMQ :, 5;: W@ 25:5$382=§Ee§§. E a: 7 {7.333393 55:50:53 5 V a ; as; N wax mm 2205231222; ; 3:8:ng5342938557725:2 25:37 a m iciziszE oEEEaanigémsmm 3:35:37 25:23:72,519? 11:. 5575125 a $3524 52 E mzofiéén 3 7 . 5:: 18752257 ‘ SE; a v 82555 3% E za ‘ ‘ m: a a x IE7; 7.231% N a: m: 5 a a Eozflézixw ‘ m; 3; m2 7 mum 93 Emogm zx ‘ S m S a a m Ea mum Bow 5 ‘ s m a: 03 ma ““8sz ‘ m: N: a < :6?="" 53;="" 7390="" ‘="" 2.="" :2="" a:="">< im="" 25%="" ”and!="" it;="" n="" 532m="" «:5;="" wmfidmfiazsamigg="" 4="" 5="" 2923.="" e3="" zoeeumwo="" a:="" esq:="" szswz="" 2%="" ‘="" x:="" em="" fl="" 2="" ems="" 72ng="" ems="" an:="" e”="" x="" 23;;="" 2="" 3:57="" 5%sz="" 7357753="" a="" 255.="" m="" 322‘!="" 7“="" 7="" x%="" 7933="" 9:.="" $359="" an="" x="" :9="" $5="" m="" in,="" 3="" 2272:.="" q="">
LAN8710A/LAN8710AI
DS00002164B-page 70 2016 Microchip Technology Inc.
6.2 32-SQFN (Sawn)

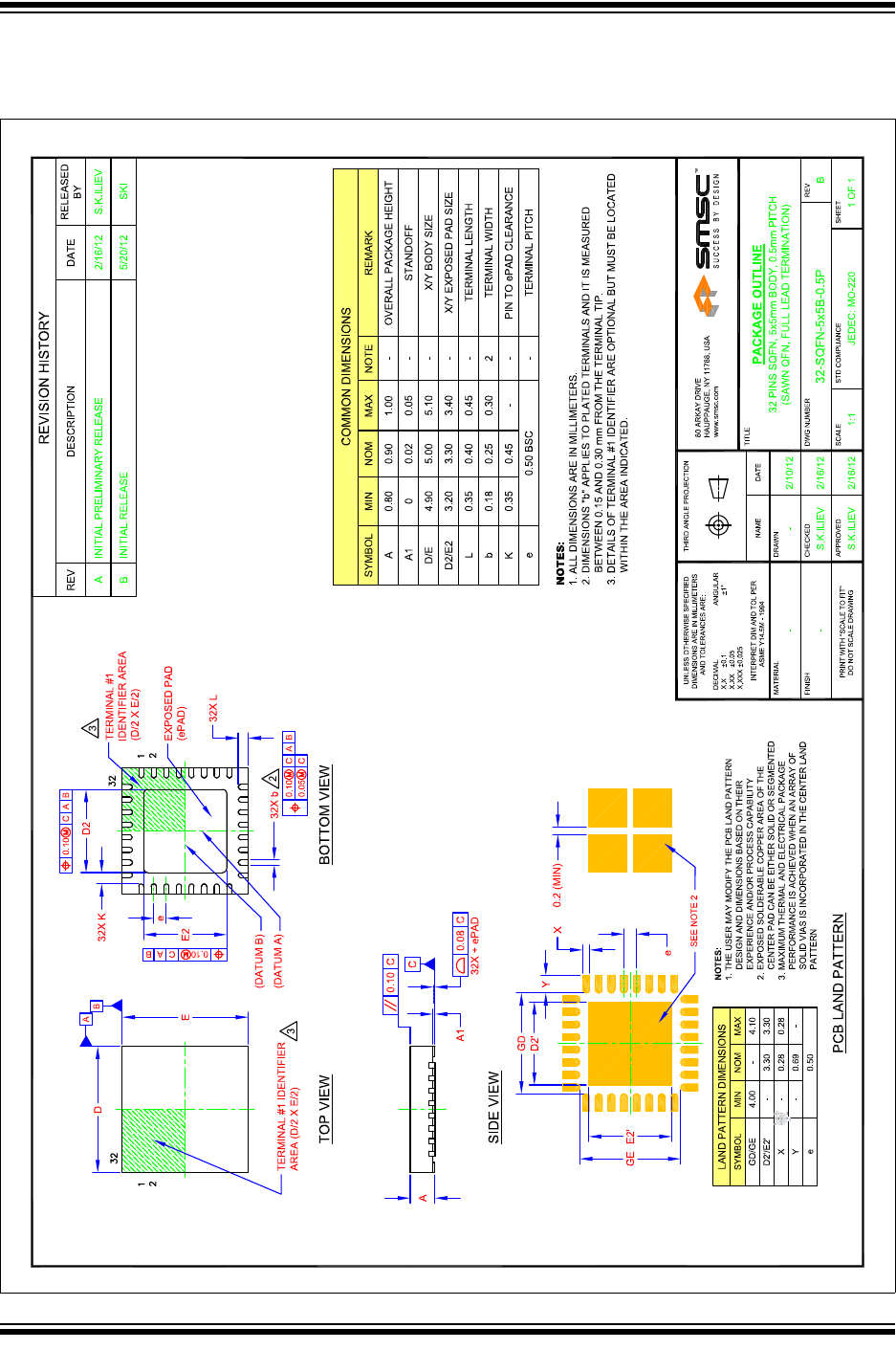

FIGURE 6-3: 32-SQFN PACKAGE
I I I W; 9 2101 5.37562: 91.5 MIN 4; I , , ’ J L \ I" “ 11o -- < 55="" ’="" cover="" tapei'="" section="" aa="" feed="" direction—=""> QFN-5x5mm Body: TAPE DIMENSIONS AND PART ORIENTATION UNIT: MM r7 T C L I v ‘\ V TAPE SECTIONS SECTION SYM SIZE TRAILER T 20 Dockets (MIN) COMPONENT C 5000 compunems LEADER L 50 pockeIs (MIN)
2016 Microchip Technology Inc. DS00002164B-page 71
LAN8710A/LAN8710AI
6.3 Tape & Reel Information
FIGURE 6-4: TAPING DIMENSIONS AND PART ORIENTATION
FIGURE 6-5: TAPE LENGTH AND PART QUANTITY
Note: Standard reel size is 5,000 pieces per reel.
SEE DETAIL "A' D ETAIL rJn/m an: W3 W1 (MEASURED AT HUB) wz IMEASURED AT HUB) REEL DIM for 12mm CARRIER TAPE PART FEATURE va SIZE (mm) DIAMETER D 330 mus/4: no) SPACE bslwaen FIANGES W1 I2 4 (92 am 0) “AN“ OVERALL WITH W2 was (MAX) MIN SPAoEg'Yjvé'EAT FLANGE w: ‘2 3 (MIN) OLITER DIAMETER DI I02 REE HUB KEY erT DIAMETER D2 202 (mm ARBOR HDLE DIAMETER In 13 o (co in“ 2) KEY sLIT wum a mans)

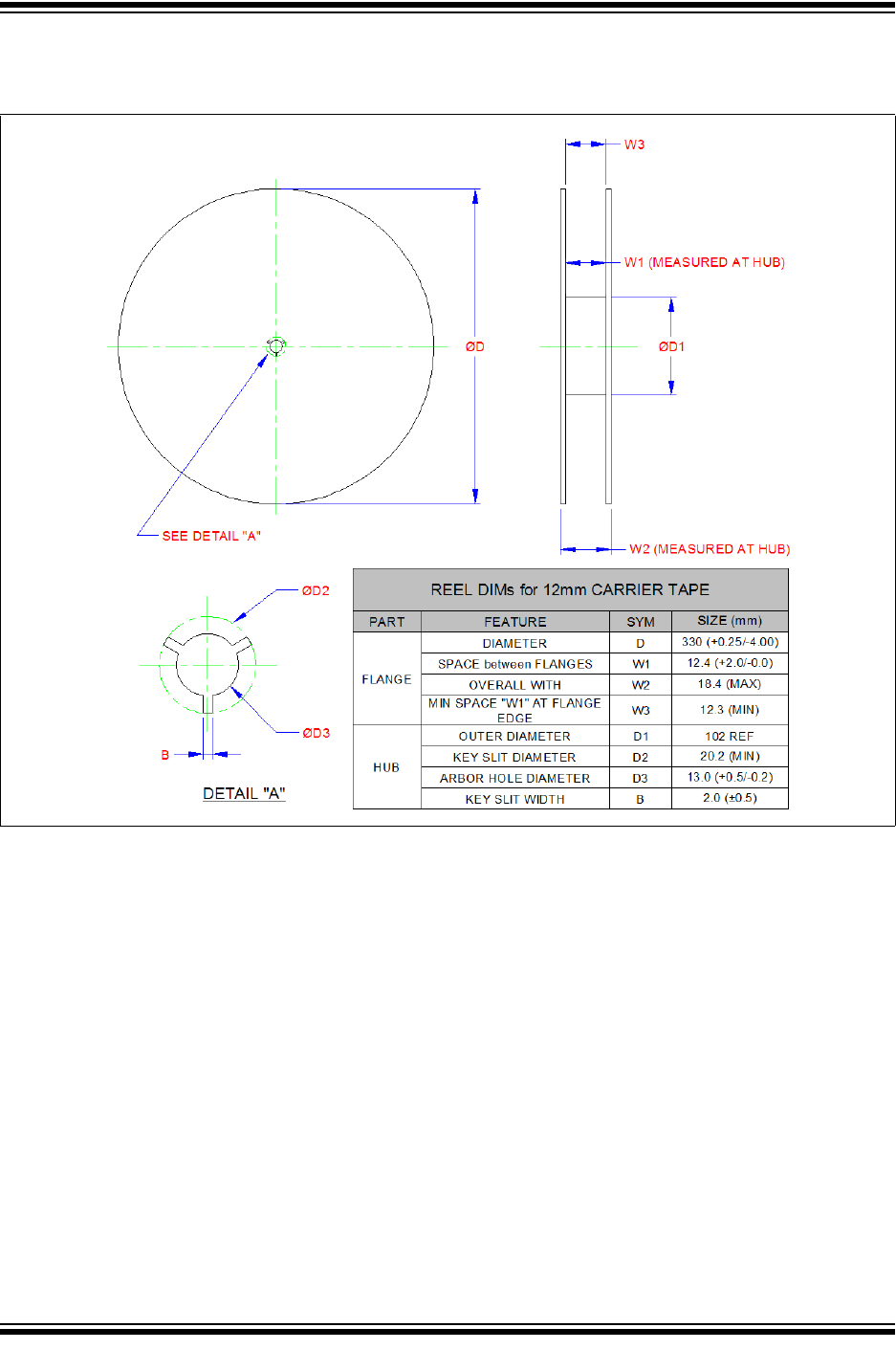

FIGURE 6-6: REEL DIMENSIONS
LAN8710A/LAN8710AI
DS00002164B-page 72 2016 Microchip Technology Inc.
2016 Microchip Technology Inc. DS00002164B-page 73
LAN8710A/LAN8710AI
7.0 APPLICATION NOTES
7.1 Application Diagram
The device requires few external components. The voltage on the magnetics center tap can range from 2.5 - 3.3V.
7.1.1 MII DIAGRAM

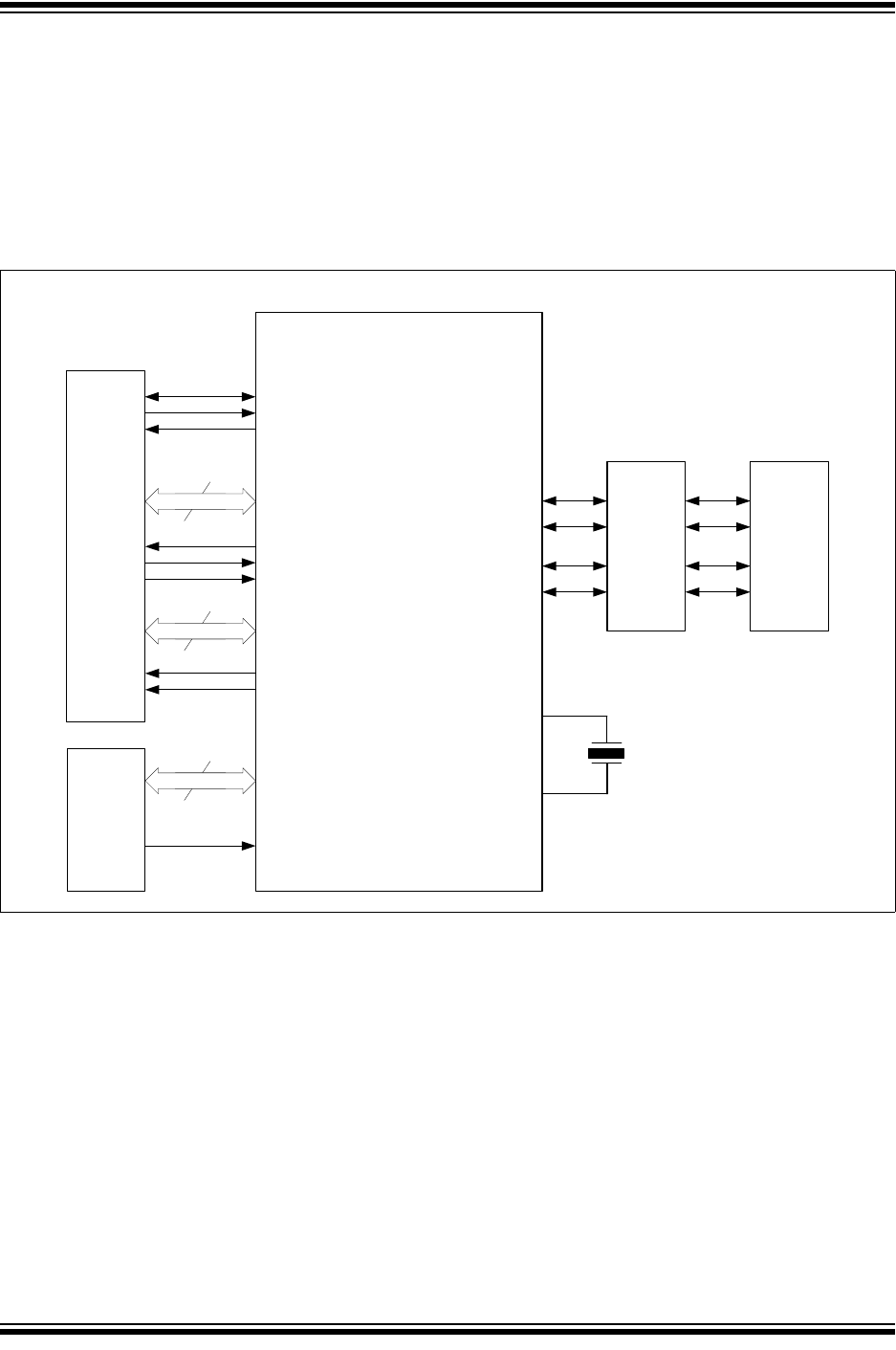

FIGURE 7-1: SIMPLIFIED APPLICATION DIAGRAM
LAN8710
10/100 PHY
32-QFN
MII
TXP
TXN
Mag RJ45
RXP
RXN
25MHz
XTAL1/CLKIN
XTAL2
TXD[3:0]
4
RXD[3:0]
RXCLK
RXDV
4
MII
LED[2:1]
2
Interface
MDIO
MDC
nINT
nRST
TXCLK
TXER
TXEN
7.1.2 POWER SUPPLY DIAGRAM
/77 Ti: 3% 3E

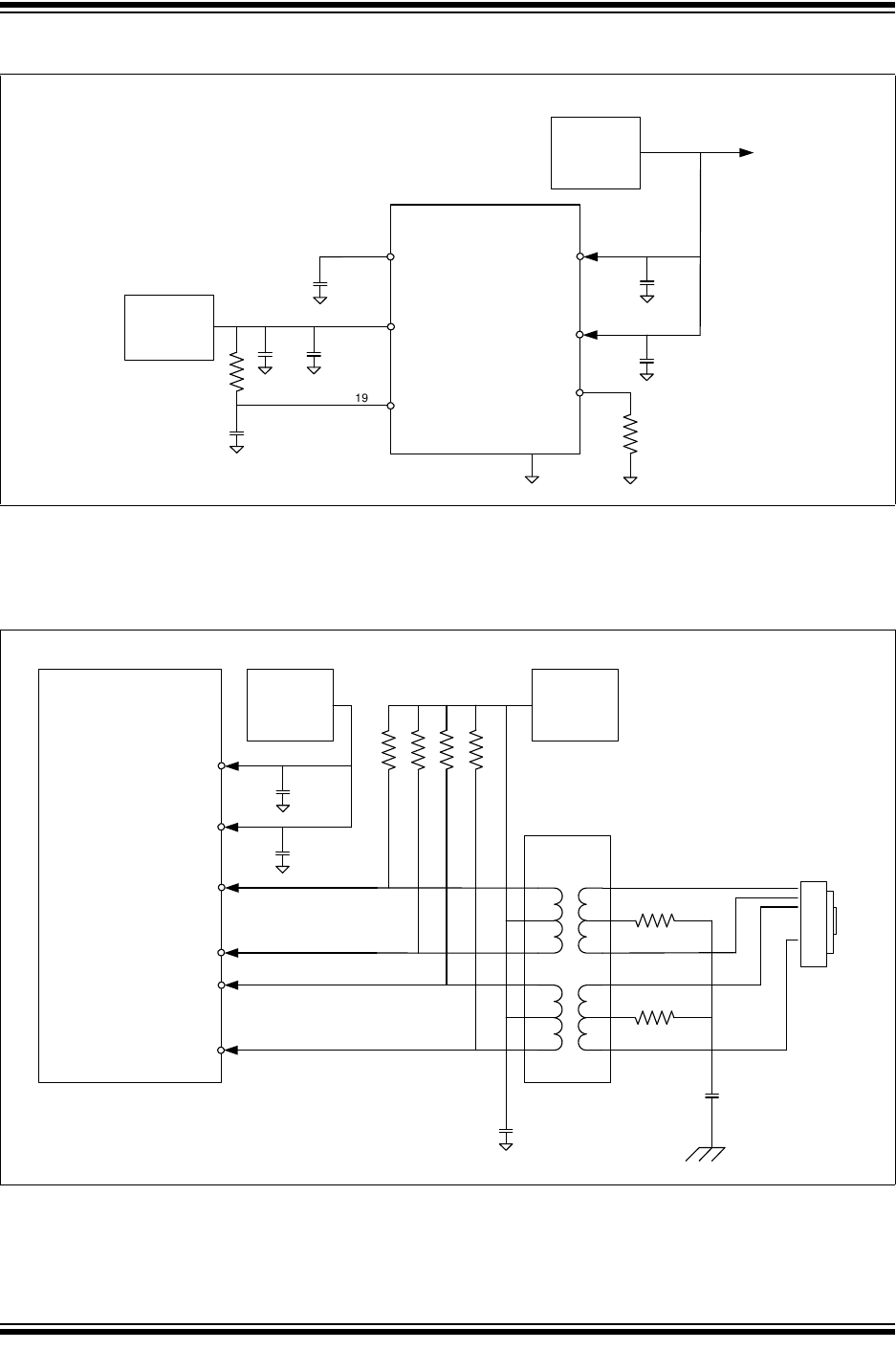

FIGURE 7-2: HIGH-LEVEL SYSTEM DIAGRAM FOR POWER
LAN8710
32-QFN
RBIAS 32
VSS
27
12.1k
VDD1A
nRST
19
CBYPASS
1
CBYPASS
VDD2A
VDDCR
VDDIO
CBYPASS
CF
VDDDIO
Supply
1.8 - 3.3V
Analog
Supply
3.3V
C
12
Power to
magnetics
interface.
R
6
1uF
LAN8710A/LAN8710AI
DS00002164B-page 74 2016 Microchip Technology Inc.
7.1.3 TWISTED-PAIR INTERFACE DIAGRAM
FIGURE 7-4: COPPER INTERFACE DIAGRAM
Magnetics
LAN8710
32-QFN
1
VDD2A
CBYPASS
29
TXP
TXN
Analog
Supply
3.3V
1
2
3
4
5
6
7
8
28
1000 pF
3 kV
RJ45
75
75
31
RXP
RXN 30
CBYPASS
27
VDD1A
CBYPASS
49.9 Ohm Resistors Magnetic
Supply
2.5 - 3.3V
[he RMIISEL
2016 Microchip Technology Inc. DS00002165B-page 75
LAN8710A/LAN8710AI
APPENDIX A: DATA SHEET REVISION HISTORY
TABLE A-1: REVISION HISTORY
Revision Section/Figure/Entry Correction
Rev B. (07-15-16) Section 5.1, "Absolute Maxi-
mum Ratings*," on page 54 Update to Positive voltage on XTAL1/CLKIN, with
respect to ground.
Table 5-2, “Non-Variable I/O
Buffer Characteristics,” on
page 56
Update to min/max values for the last row, ICLK
Type Buffer (XTAL1 Input) - High Input Level.
Rev. A (06-24-16) All Document converted to Microchip look and feel.
Replaces SMSC Rev. 1.4 (08-23-12).
Section 5.2, "Operating Con-
ditions**," on page 54 Increased VDDCR operational limits from “+1.14V
to +1.26V” to “+1.08V to +1.32V”
Section 5.6, "Clock Circuit,"
on page 65 Added new 100uW crystal specifications and circuit
diagram. The section is now split into two subsec-
tions, one for 300uW crystals and the other for
100uW crystals.
Section 6.0, "Package Infor-
mation," on page 68 Added new subsections to include SQFN package
information.
Section , "Product Identifica-
tion System," on page 77 Updated ordering codes with sawn SQFN package
options.
Rev. 1.4
(08-23-12) Section 4.2.2, Basic Status
Register Updated definitions of bits 10:8.
Section 4.2.14, "PHY Spe-
cial Control/Status Regis-
ter," on page 53
Updated bit 6 definition.
Cover Ordering information modified.
Rev. 1.3
(04-20-11) Cover Added copper bond wire ordering codes to
LAN8710 ordering codes
Table 4.2.9, “Special Modes
Register,” on page 50 Updated MIIMODE bit description and added note:
“When writing to this register the default value of
this bit must always be written back.”
Section 3.7.3, "RMIISEL:
MII/RMII Mode Configura-
tion," on page 31
Updated second paragraph to:
“When the nRST pin is deasserted, the MIIMODE
bit of the Special Modes Register is loaded accord-
ing to the RMIISEL configuration strap. The mode
is reflected in the MIIMODE bit of the Special
Modes Register.”
Section 3.8.9.2, "Far Loop-
back," on page 36 Updated section to defeature information about
register control of the MII/RMII mode.
Rev. 1.2 (11-10-10) Section 5.5.5, "RMII Inter-
face Timing," on page 63 Updated diagrams and tables to include RXER.
LAN8710A/LAN8710AI
DS00002164B-page 76 2016 Microchip Technology Inc.
THE MICROCHIP WEB SITE
Microchip provides online support via our WWW site at www.microchip.com. This web site is used as a means to make
files and information easily available to customers. Accessible by using your favorite Internet browser, the web site con-
tains the following information:
•Product Support – Data sheets and errata, application notes and sample programs, design resources, user’s
guides and hardware support documents, latest software releases and archived software
•General Technical Support – Frequently Asked Questions (FAQ), technical support requests, online discussion
groups, Microchip consultant program member listing
•Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of semi-
nars and events, listings of Microchip sales offices, distributors and factory representatives
CUSTOMER CHANGE NOTIFICATION SERVICE
Microchip’s customer notification service helps keep customers current on Microchip products. Subscribers will receive
e-mail notification whenever there are changes, updates, revisions or errata related to a specified product family or
development tool of interest.
To register, access the Microchip web site at www.microchip.com. Under “Support”, click on “Customer Change Notifi-
cation” and follow the registration instructions.
CUSTOMER SUPPORT
Users of Microchip products can receive assistance through several channels:
• Distributor or Representative
• Local Sales Office
• Field Application Engineer (FAE)
• Technical Support
Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales
offices are also available to help customers. A listing of sales offices and locations is included in the back of this docu-
ment.
Technical support is available through the web site at: http://microchip.com/support
PART NO. 961 XXX
2016 Microchip Technology Inc. DS00002164B-page 77
LAN8710A/LAN8710AI
PRODUCT IDENTIFICATION SYSTEM
To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.
Device: LAN8710A
Temperature
Range: -EZC = 0C to +85C (Extended Commercial)
i-EZK = -40C to +85C (Industrial)
Tape and Reel
Option: Blank = Standard packaging (tray)
TR = Tape and Reel(1)
Package: Blank = Punch Package (32-QFN)
ABC = Sawn Package (32-SQFN)
Examples:
a) LAN8710Ai-EZK-TR
Industrial temp., Tape & Reel, 32-QFN (Punch)
b) LAN8710A-EZC-ABC
Ext. commercial temp., Tray, 32-SQFN (Sawn)
Note 1: Tape and Reel identifier only appears in the
catalog part number description. This
identifier is used for ordering purposes and is
not printed on the device package. Check
with your Microchip Sales Office for package
availability with the Tape and Reel option.
PART NO. [X]
Temperature
Range
Device
[X](1)
Tape & Reel
Option
--[XXX]
Package
LAN8710A/LAN8710AI
DS00002164B-page 78 2016 Microchip Technology Inc.
NOTES:
YSTEM
2016 Microchip Technology Inc. DS00002164B-page 79
LAN8710A/LAN8710AI
Information contained in this publication regarding device applications and the like is provided only for your convenience and may be
superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO
REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE,
MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Micro-
chip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold
harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or
otherwise, under any Microchip intellectual property rights unless otherwise stated.
Trademarks
The Microchip name and logo, the Microchip logo, AnyRate, dsPIC, FlashFlex, flexPWR, Heldo, JukeBlox, KeeLoq, KeeLoq logo,
Kleer, LANCheck, LINK MD, MediaLB, MOST, MOST logo, MPLAB, OptoLyzer, PIC, PICSTART, PIC32 logo, RightTouch, SpyNIC,
SST, SST Logo, SuperFlash and UNI/O are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other
countries.
ClockWorks, The Embedded Control Solutions Company, ETHERSYNCH, Hyper Speed Control, HyperLight Load, IntelliMOS,
mTouch, Precision Edge, and QUIET-WIRE are registered trademarks of Microchip Technology Incorporated in the U.S.A.
Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut, BodyCom, chipKIT, chipKIT logo, CodeGuard, dsPICDEM, dsPICDEM.net,
Dynamic Average Matching, DAM, ECAN, EtherGREEN, In-Circuit Serial Programming, ICSP, Inter-Chip Connectivity, JitterBlocker,
KleerNet, KleerNet logo, MiWi, motorBench, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, MultiTRAK, NetDetach,
Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, PureSilicon, RightTouch logo, REAL ICE, Ripple Blocker, Serial
Quad I/O, SQI, SuperSwitcher, SuperSwitcher II, Total Endurance, TSHARC, USBCheck, VariSense, ViewSpan, WiperLock, Wireless
DNA, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.
SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.
Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries.
GestIC is a registered trademarks of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in
other countries.
All other trademarks mentioned herein are property of their respective companies.
© 2016, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved.
ISBN: 978-1-5224-0779-9
Note the following details of the code protection feature on Microchip devices:
• Microchip products meet the specification contained in their particular Microchip Data Sheet.
• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.
• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
• Microchip is willing to work with the customer who is concerned about the integrity of their code.
• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Microchip received ISO/TS-16949:2009 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC® MCUs and dsPIC® DSCs, KEELOQ® code hopping
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.
QUALITYMANAGEMENTS
YSTEM
CERTIFIEDBYDNV
== ISO/TS16949==
6‘ ‘MICRDCHIP
DS00002164B-page 80 2016 Microchip Technology Inc.
AMERICAS
Corporate Office
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 480-792-7200
Fax: 480-792-7277
Technical Support:
http://www.microchip.com/
support
Web Address:
www.microchip.com
Atlanta
Duluth, GA
Tel: 678-957-9614
Fax: 678-957-1455
Austin, TX
Tel: 512-257-3370
Boston
Westborough, MA
Tel: 774-760-0087
Fax: 774-760-0088
Chicago
Itasca, IL
Tel: 630-285-0071
Fax: 630-285-0075
Cleveland
Independence, OH
Tel: 216-447-0464
Fax: 216-447-0643
Dallas
Addison, TX
Tel: 972-818-7423
Fax: 972-818-2924
Detroit
Novi, MI
Tel: 248-848-4000
Houston, TX
Tel: 281-894-5983
Indianapolis
Noblesville, IN
Tel: 317-773-8323
Fax: 317-773-5453
Los Angeles
Mission Viejo, CA
Tel: 949-462-9523
Fax: 949-462-9608
New York, NY
Tel: 631-435-6000
San Jose, CA
Tel: 408-735-9110
Canada - Toronto
Tel: 905-695-1980
Fax: 905-695-2078
ASIA/PACIFIC
Asia Pacific Office
Suites 3707-14, 37th Floor
Tower 6, The Gateway
Harbour City, Kowloon
Hong Kong
Tel: 852-2943-5100
Fax: 852-2401-3431
Australia - Sydney
Tel: 61-2-9868-6733
Fax: 61-2-9868-6755
China - Beijing
Tel: 86-10-8569-7000
Fax: 86-10-8528-2104
China - Chengdu
Tel: 86-28-8665-5511
Fax: 86-28-8665-7889
China - Chongqing
Tel: 86-23-8980-9588
Fax: 86-23-8980-9500
China - Dongguan
Tel: 86-769-8702-9880
China - Guangzhou
Tel: 86-20-8755-8029
China - Hangzhou
Tel: 86-571-8792-8115
Fax: 86-571-8792-8116
China - Hong Kong SAR
Tel: 852-2943-5100
Fax: 852-2401-3431
China - Nanjing
Tel: 86-25-8473-2460
Fax: 86-25-8473-2470
China - Qingdao
Tel: 86-532-8502-7355
Fax: 86-532-8502-7205
China - Shanghai
Tel: 86-21-5407-5533
Fax: 86-21-5407-5066
China - Shenyang
Tel: 86-24-2334-2829
Fax: 86-24-2334-2393
China - Shenzhen
Tel: 86-755-8864-2200
Fax: 86-755-8203-1760
China - Wuhan
Tel: 86-27-5980-5300
Fax: 86-27-5980-5118
China - Xian
Tel: 86-29-8833-7252
Fax: 86-29-8833-7256
ASIA/PACIFIC
China - Xiamen
Tel: 86-592-2388138
Fax: 86-592-2388130
China - Zhuhai
Tel: 86-756-3210040
Fax: 86-756-3210049
India - Bangalore
Tel: 91-80-3090-4444
Fax: 91-80-3090-4123
India - New Delhi
Tel: 91-11-4160-8631
Fax: 91-11-4160-8632
India - Pune
Tel: 91-20-3019-1500
Japan - Osaka
Tel: 81-6-6152-7160
Fax: 81-6-6152-9310
Japan - Tokyo
Tel: 81-3-6880- 3770
Fax: 81-3-6880-3771
Korea - Daegu
Tel: 82-53-744-4301
Fax: 82-53-744-4302
Korea - Seoul
Tel: 82-2-554-7200
Fax: 82-2-558-5932 or
82-2-558-5934
Malaysia - Kuala Lumpur
Tel: 60-3-6201-9857
Fax: 60-3-6201-9859
Malaysia - Penang
Tel: 60-4-227-8870
Fax: 60-4-227-4068
Philippines - Manila
Tel: 63-2-634-9065
Fax: 63-2-634-9069
Singapore
Tel: 65-6334-8870
Fax: 65-6334-8850
Taiwan - Hsin Chu
Tel: 886-3-5778-366
Fax: 886-3-5770-955
Taiwan - Kaohsiung
Tel: 886-7-213-7828
Taiwan - Taipei
Tel: 886-2-2508-8600
Fax: 886-2-2508-0102
Thailand - Bangkok
Tel: 66-2-694-1351
Fax: 66-2-694-1350
EUROPE
Austria - Wels
Tel: 43-7242-2244-39
Fax: 43-7242-2244-393
Denmark - Copenhagen
Tel: 45-4450-2828
Fax: 45-4485-2829
France - Paris
Tel: 33-1-69-53-63-20
Fax: 33-1-69-30-90-79
Germany - Dusseldorf
Tel: 49-2129-3766400
Germany - Karlsruhe
Tel: 49-721-625370
Germany - Munich
Tel: 49-89-627-144-0
Fax: 49-89-627-144-44
Italy - Milan
Tel: 39-0331-742611
Fax: 39-0331-466781
Italy - Venice
Tel: 39-049-7625286
Netherlands - Drunen
Tel: 31-416-690399
Fax: 31-416-690340
Poland - Warsaw
Tel: 48-22-3325737
Spain - Madrid
Tel: 34-91-708-08-90
Fax: 34-91-708-08-91
Sweden - Stockholm
Tel: 46-8-5090-4654
UK - Wokingham
Tel: 44-118-921-5800
Fax: 44-118-921-5820
Worldwide Sales and Service
06/23/16

Products related to this Datasheet

IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32SQFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32SQFN
IC TRANSCEIVER FULL 4/4 32SQFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32QFN
IC TRANSCEIVER FULL 4/4 32SQFN
IC TRANSCEIVER FULL 4/4 32SQFN
IC TRANSCEIVER FULL 4/4 32SQFN
