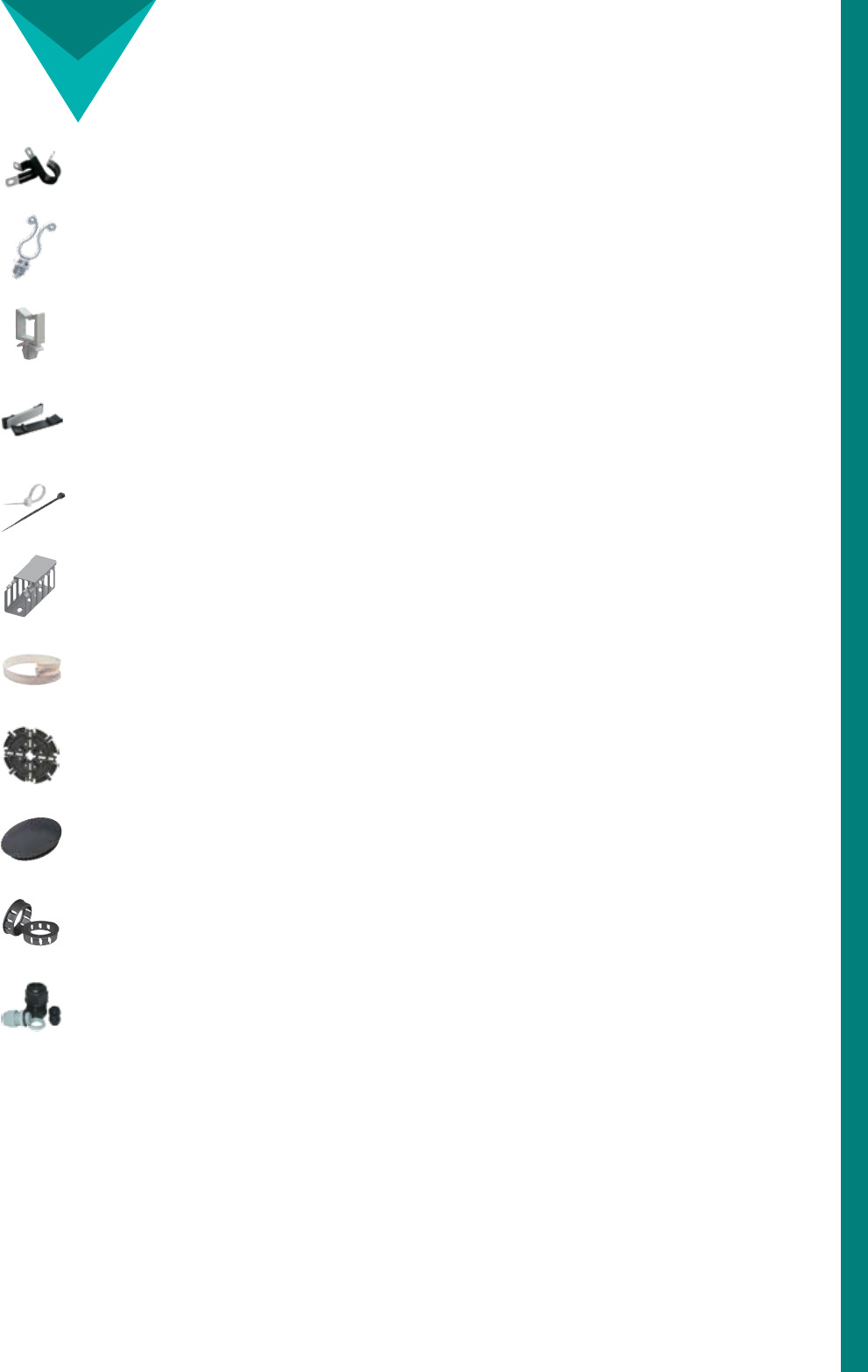

FIBER, WIRE & CABLE
MANAGEMENT
I
n
177
FIBER, WIRE & CABLE
MANAGEMENT
CABLE CLAMPS & CLIPS ...................................... 178 - 199
TWIST TIES .......................................................... 195 - 197
WIRE SADDLES ..................................................200 - 207

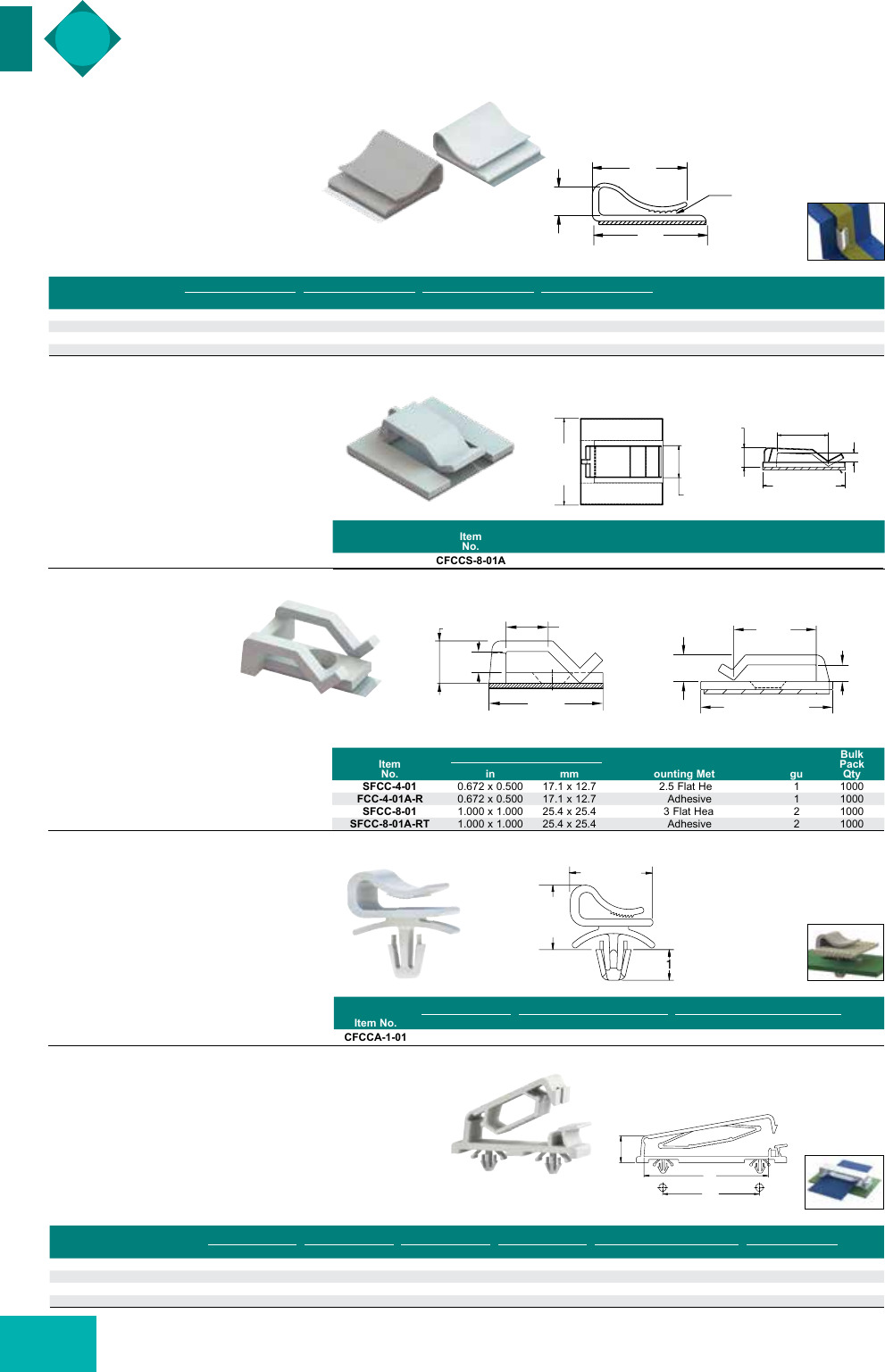

FLAT CABLE CLAMPS & CLIPS...............................207 - 212
CABLE TIES, STRAPS & MOUNTS .......................... 213 - 234
CABLE DUCT, CONDUIT & WRAPS ....................... 235 - 239
WRAPS & SLEEVING ........................................... 240 - 247
FIBER MANAGEMENT ......................................... 248 - 255
CAPS & PLUGS ...................................................256 - 258

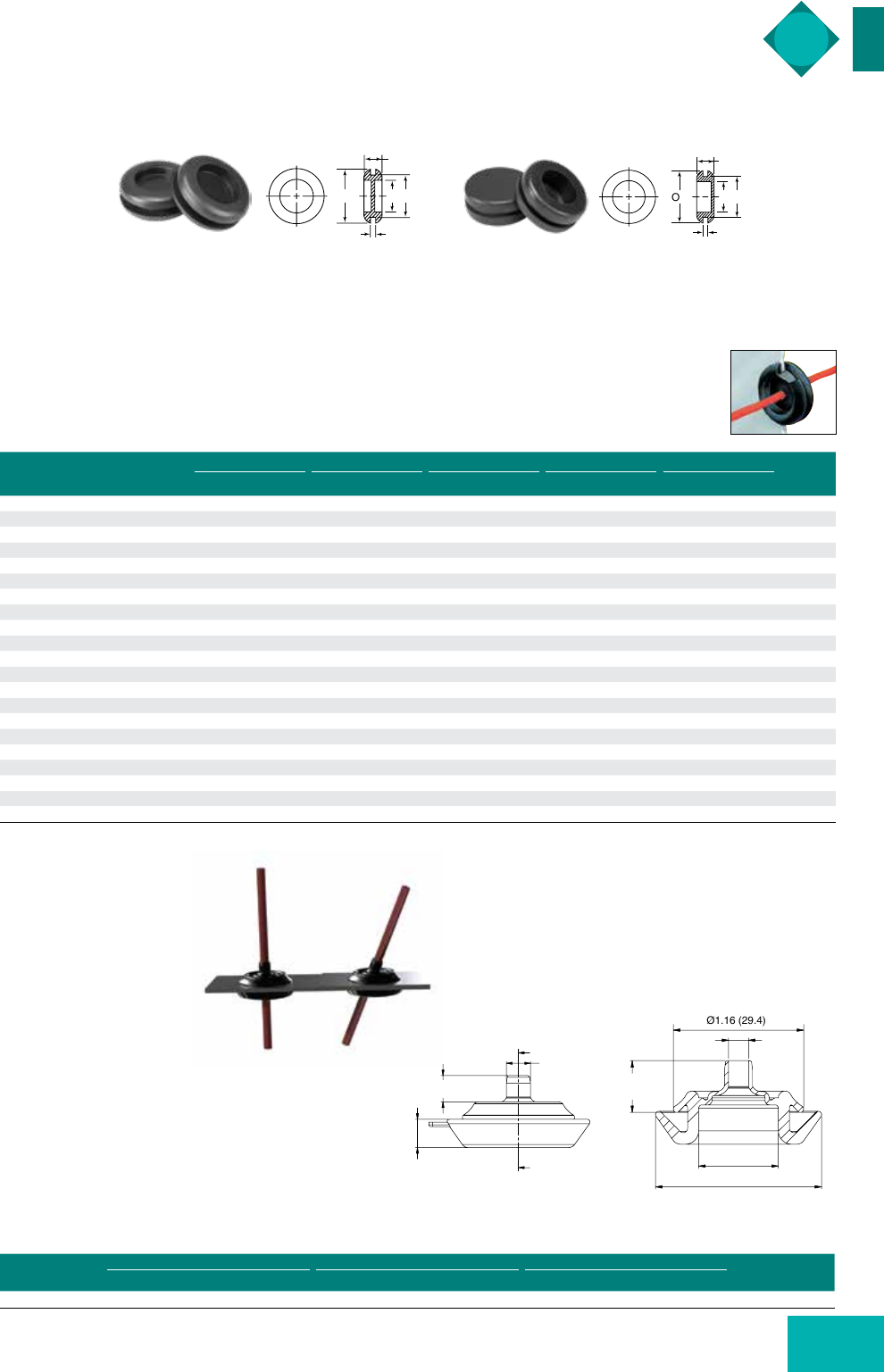

GROMMETS & BUSHINGS .................................... 259 - 279

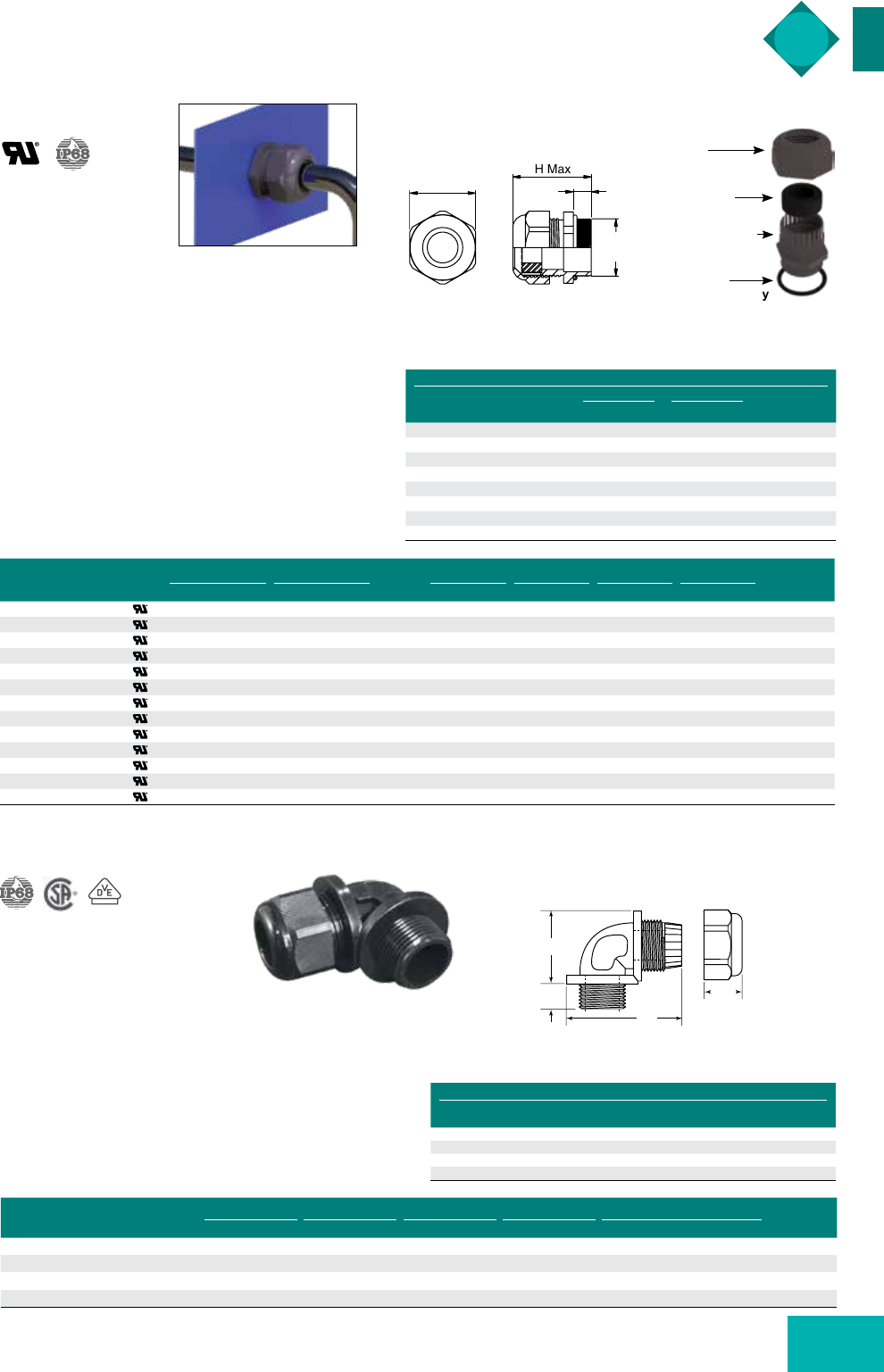

CABLE GLANDS ..................................................270 - 271
5515
“am 7 7 7 7 7 5m
N5 .11 mm 1.. mm mm m mm 1.. mm Qty
NE: 5/15 45 9254 52 5575 95 555 127 1/52 55 1555
"SA 15: 54 9254 52 5575 95 555 155 1152 55 1955
~25 5/15 75 9254 52 5575 95 555 142 1/52 55 1555
1155 5/5 55 9254 52 5375 95 559 155 1152 55 1955
~27 7/15 111 9254 52 5575 95 552 157 1/52 55 1555
1155 1/2 121 5254 52 5375 95 555 155 1152 55 19511
~25 5/15 145 5254 52 5575 95 575 191 1/52 55 1555
14515 5/5 159 5254 52 5375 95 575 195 1152 55 15511
":11 11/15 115 5254 52 55115 127 551 295 1/15 15 559
14512 5/4 191 525.1 52 5595 127 554 21 a 1/15 15 555
1451: 7/5 222 525a 52 55115 127 555 229 1/15 15 559
14515 1 259 525.1 52 5555 127 555 2“ 1/15 15 595
14:15 1.1/5 255 525a 52 5595 127 155 25/ 1/15 15 5115
14:25 1.1/9 515 52114 52 5555 127 111 252 1/15 15 595
15H
f_'__
45
FIBER, WIRE & CABLE MANAGEMENT
178 tel | 800 847 0486 fax | 866 561 6617

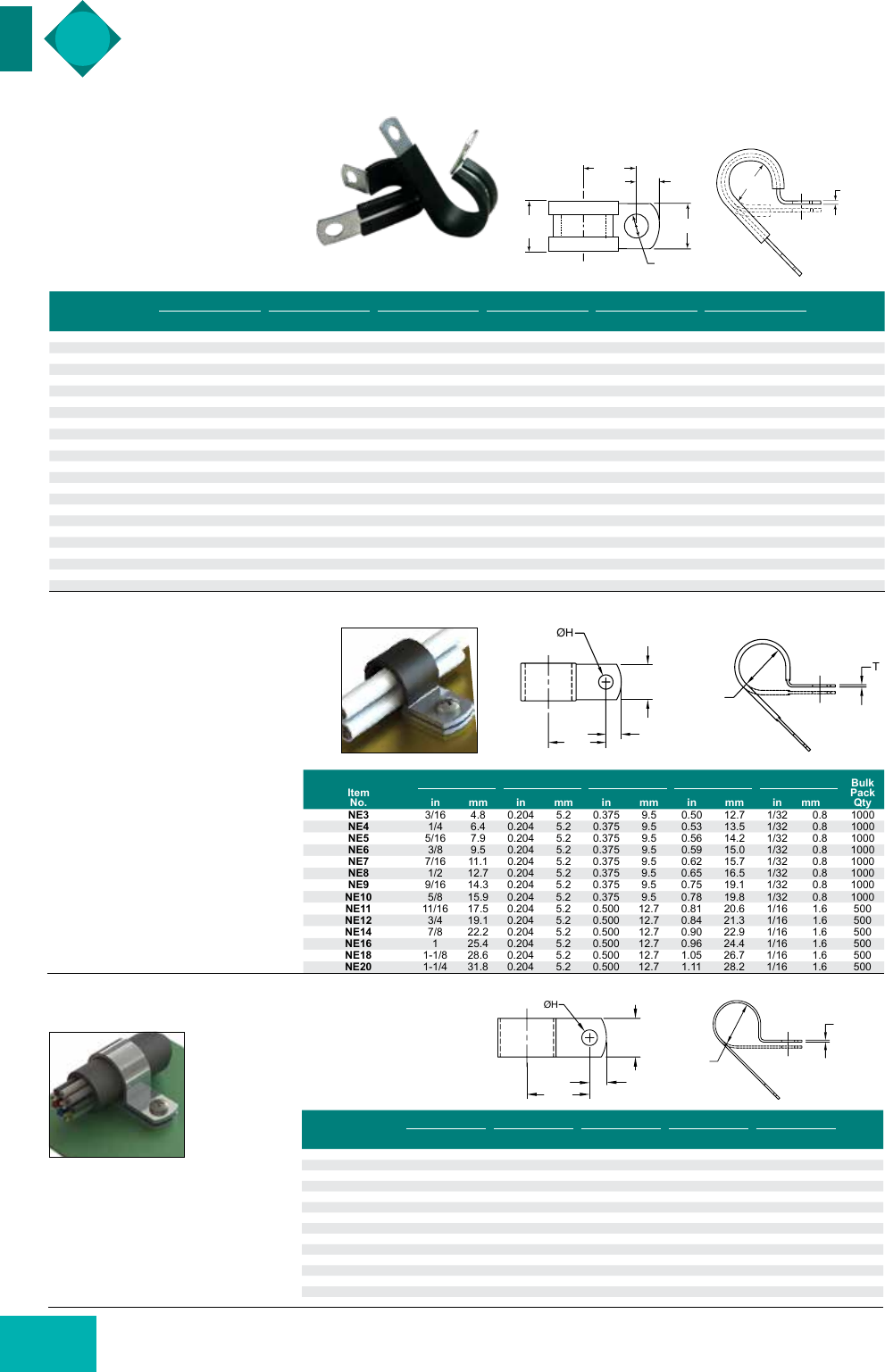

NE Series
Aluminum Clamp with Vinyl Coating
Item
No.
Ø D Holding Ø H Hole WE Ref. T Bulk
Pack
Qtyin mm in mm in mm in mm in mm
NE3 3/16 4.8 0.204 5.2 0.375 9.5 0.50 12.7 1/32 0.8 1000
NE4 1/4 6.4 0.204 5.2 0.375 9.5 0.53 13.5 1/32 0.8 1000
NE5 5/16 7.9 0.204 5.2 0.375 9.5 0.56 14.2 1/32 0.8 1000
NE6 3/8 9.5 0.204 5.2 0.375 9.5 0.59 15.0 1/32 0.8 1000
NE7 7/16 11.1 0.204 5.2 0.375 9.5 0.62 15.7 1/32 0.8 1000
NE8 1/2 12.7 0.204 5.2 0.375 9.5 0.65 16.5 1/32 0.8 1000
NE9 9/16 14.3 0.204 5.2 0.375 9.5 0.75 19.1 1/32 0.8 1000
NE10 5/8 15.9 0.204 5.2 0.375 9.5 0.78 19.8 1/32 0.8 1000
NE11 11/16 17.5 0.204 5.2 0.500 12.7 0.81 20.6 1/16 1.6 500
NE12 3/4 19.1 0.204 5.2 0.500 12.7 0.84 21.3 1/16 1.6 500
NE14 7/8 22.2 0.204 5.2 0.500 12.7 0.90 22.9 1/16 1.6 500
NE16 1 25.4 0.204 5.2 0.500 12.7 0.96 24.4 1/16 1.6 500
NE18 1-1/8 28.6 0.204 5.2 0.500 12.7 1.05 26.7 1/16 1.6 500
NE20 1-1/4 31.8 0.204 5.2 0.500 12.7 1.11 28.2 1/16 1.6 500
AL Series
Aluminum Clamp
Specifications:
• Material: Aluminum Alloy 5052 H-32
• Color: Aluminum
Features:
• Corrosion resistant
• Protects and holds cable, wire,
hoses and loom
SPN/SPNW Series
Steel Clamp with Rubber Cushion
Specifications:
• Material: Cold Rolled Steel, Zinc
Electroplated, Elastomer Cushion
• Color: Steel with Black Cushion
Features:
• Provides electrical insulation and
vibration absorption
• Ideal for long-life applications
Item
No.
Ø D Holding Ø H Hole B A E Ref. CBulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
SPN-3 3/16 4.8 0.266 6.7 0.500 12.7 0.650 16.5 0.500 12.7 0.260 6.6 500
SPN-4 1/4 6.4 0.266 6.7 0.500 12.7 0.650 16.5 0.530 13.5 0.260 6.6 500
SPNW-4 1/4 6.4 0.406 10.3 0.625 15.9 0.750 19.1 0.530 13.5 0.313 7.9 100
SPN-5 5/16 7.9 0.266 6.7 0.500 12.7 0.650 16.5 0.560 14.2 0.260 6.6 500
SPNW-5 5/16 7.9 0.406 10.3 0.625 15.9 0.750 19.1 0.560 14.2 0.313 7.9 100
SPN-6 3/8 9.5 0.266 6.7 0.500 12.7 0.650 16.5 0.590 15 0.260 6.6 500
SPNW-6 3/8 9.5 0.406 10.3 0.625 15.9 0.750 19.1 0.590 15 0.313 7.9 100
SPN-7 7/16 11.1 0.266 6.7 0.500 12.7 0.650 16.5 0.620 15.7 0.260 6.6 500
SPNW-7 7/16 11.1 0.406 10.3 0.625 15.9 0.750 19.1 0.620 15.7 0.313 7.9 100
SPN-8 1/2 12.7 0.266 6.7 0.500 12.7 0.650 16.5 0.650 16.5 0.260 6.6 500
SPNW-8 1/2 12.7 0.406 10.3 0.625 15.9 0.750 19.1 0.650 16.5 0.313 7.9 100
SPN-9 9/16 14.3 0.266 6.7 0.500 12.7 0.650 16.5 0.750 19.1 0.260 6.6 500
SPN-10 5/8 15.9 0.266 6.7 0.500 12.7 0.650 16.5 0.780 19.8 0.260 6.6 500
SPNW-10 5/8 15.9 0.406 10.3 0.625 15.9 0.750 19.1 0.780 19.8 0.313 7.9 100
SPN-11 11/16 17.5 0.266 6.7 0.500 12.7 0.650 16.5 0.810 20.6 0.260 6.6 500
SPNW-11 11/16 17.5 0.406 10.3 0.625 15.9 0.750 19.1 0.810 20.6 0.313 7.9 100
SPN-12 3/4 19.1 0.266 6.7 0.500 12.7 0.650 16.5 0.840 21.3 0.260 6.6 500
SPN-14 7/8 22.2 0.266 6.7 0.500 12.7 0.650 16.5 0.900 22.9 0.260 6.6 100
SPNW-14 7/8 22.2 0.406 10.3 0.625 15.9 0.750 19.1 0.900 22.9 0.313 7.9 100
SPN-16 1 25.4 0.266 6.7 0.500 12.7 0.650 16.5 0.960 24.4 0.260 6.6 100
SPNW-16 1 25.4 0.406 10.3 0.625 15.9 0.750 19.1 0.960 24.4 0.313 7.9 100
SPN-18 1-1/8 28.6 0.266 6.7 0.500 12.7 0.650 16.5 1.050 26.7 0.260 6.6 100
SPN-20 1-1/4 31.8 0.266 6.7 0.500 12.7 0.650 16.5 1.110 28.2 0.260 6.6 100
SPNW-20 1-1/4 31.8 0.406 10.3 0.625 15.9 0.750 19.1 1.110 28.2 0.313 7.9 100
CABLE CLAMPS
Specifications:
• Material: Aluminum Alloy 5052
H-32, TPV Coating
• Color: Aluminum with Black
Coating
Features:
• Vinyl coating allows a more
permanent solution for protecting
cables against vibration
• Screw mount area is bare to
ensure firm tightening
ØD
T
ØH
W
7/32 (5.6)
E
E7/32 (5.6)
W
ØH
ØD
T
D.031 (0.8)
A
E Ref.
C
B
H
Item
No.
Ø D Holding Ø H Hole WE Ref. TBulk
Pack
Qtyin mm in mm in mm in mm in mm
AL2A 1/8 3.2 0.204 5.2 0.375 9.5 0.46 11.7 1/32 0.8 1000
AL3A 3/16 4.8 0.204 5.2 0.375 9.5 0.50 12.7 1/32 0.8 1000
AL4A 1/4 6.4 0.204 5.2 0.375 9.5 0.53 13.5 1/32 0.8 1000
AL5A 5/16 7.9 0.204 5.2 0.375 9.5 0.56 14.2 1/32 0.8 1000
AL6A 3/8 9.5 0.204 5.2 0.375 9.5 0.59 15.0 1/32 0.8 1000
AL7A 7/16 11.1 0.204 5.2 0.375 9.5 0.62 15.7 1/32 0.8 1000
AL8A 1/2 12.7 0.204 5.2 0.375 9.5 0.65 16.5 1/32 0.8 1000
AL9A 9/16 14.3 0.204 5.2 0.375 9.5 0.75 19.1 1/32 0.8 1000
AL10A 5/8 15.9 0.204 5.2 0.375 9.5 0.78 19.8 1/32 0.8 1000
AL11 11/16 17.5 0.204 5.2 0.500 12.7 0.81 20.6 1/32 0.8 500
AL12 3/4 19.1 0.204 5.2 0.500 12.7 0.84 21.3 1/32 0.8 500
AL14 7/8 22.2 0.204 5.2 0.500 12.7 0.90 22.9 1/32 0.8 500
AL16 1 25.4 0.204 5.2 0.500 12.7 0.96 24.4 1/16 1.6 500
AL18 1-1/8 28.6 0.204 5.2 0.500 12.7 1.05 26.7 1/16 1.6 500
AL20 1-1/4 31.8 0.204 5.2 0.500 12.7 1.11 28.2 1/16 1.6 500
77a
179
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

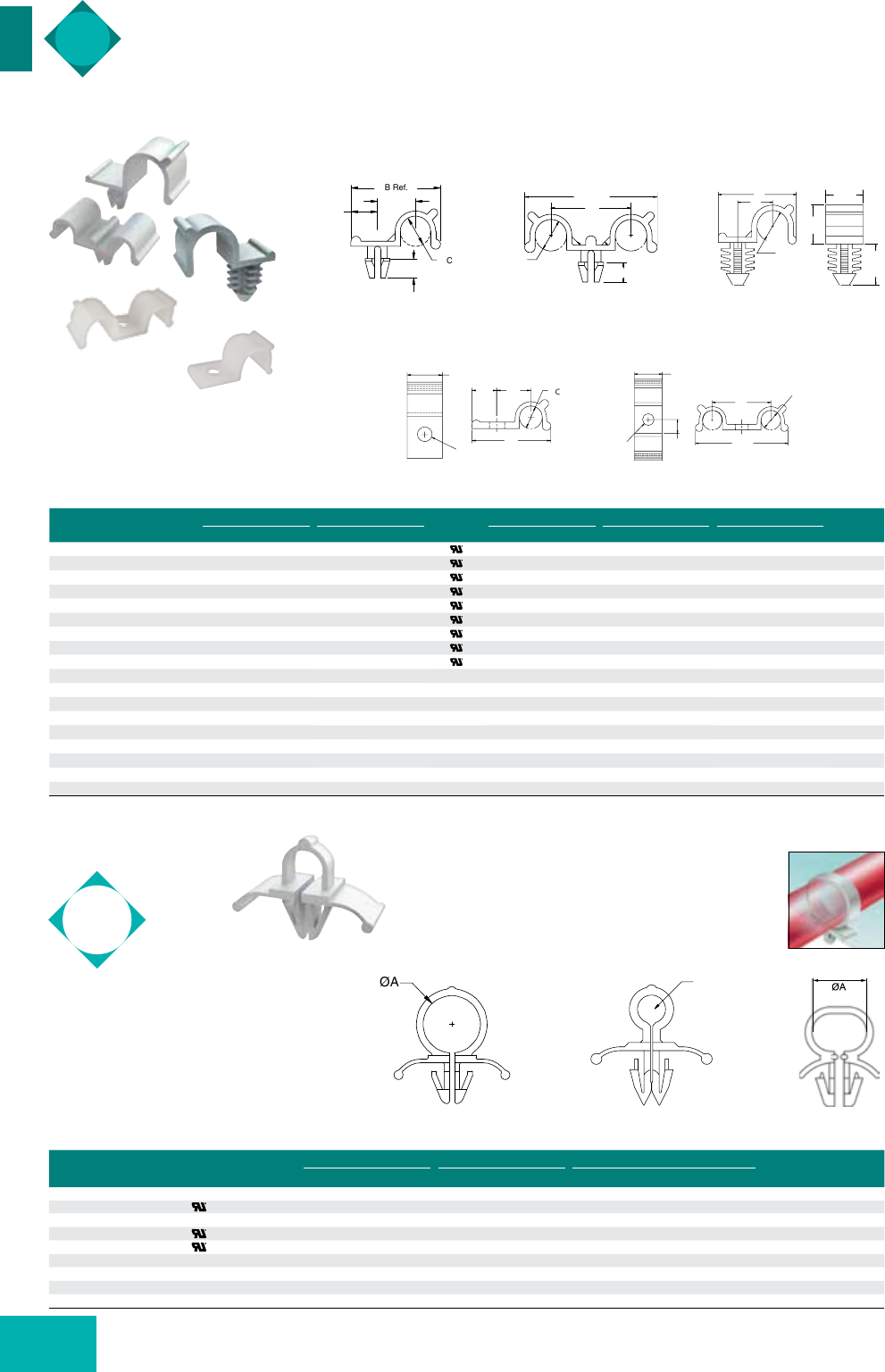

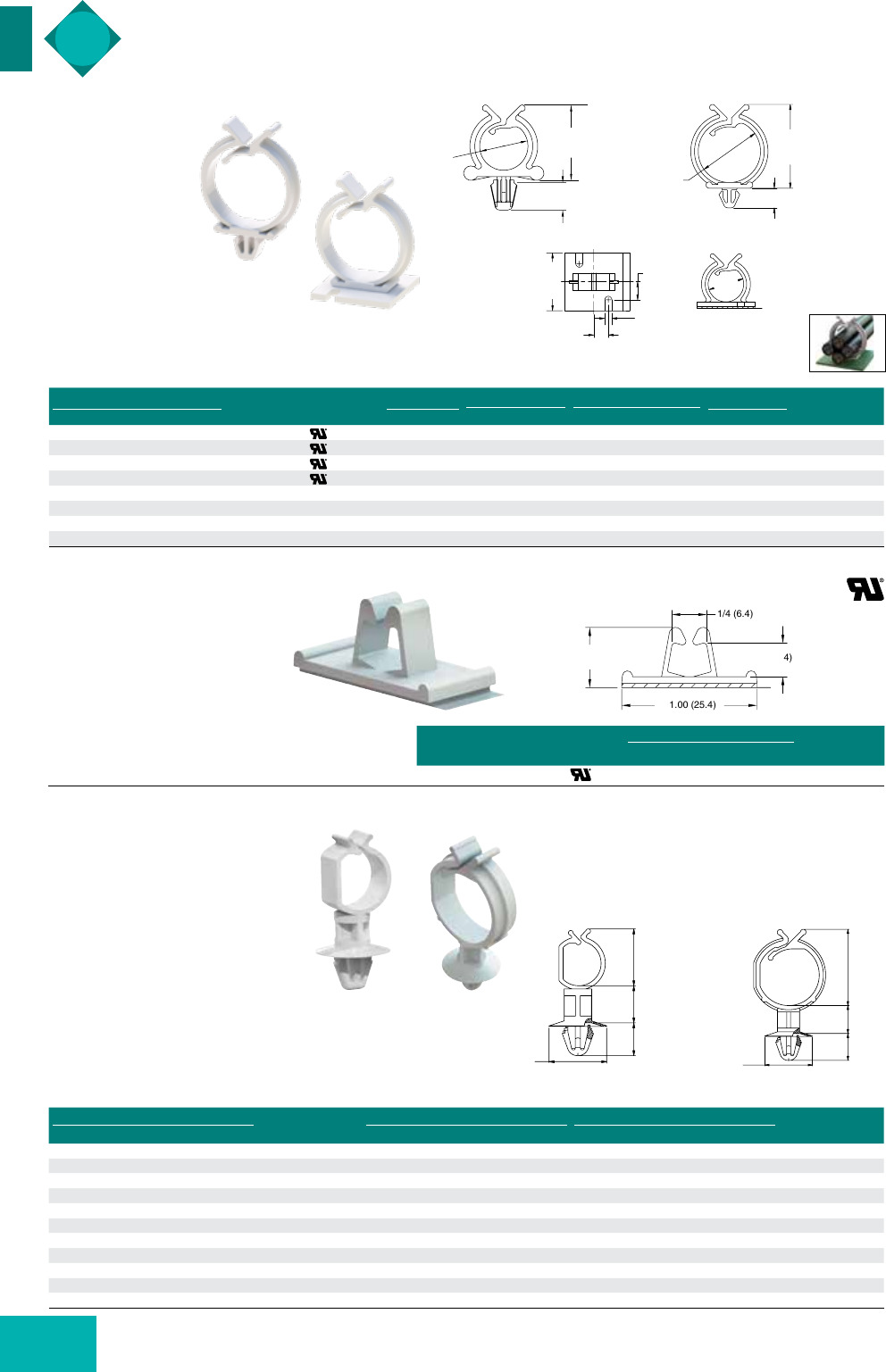

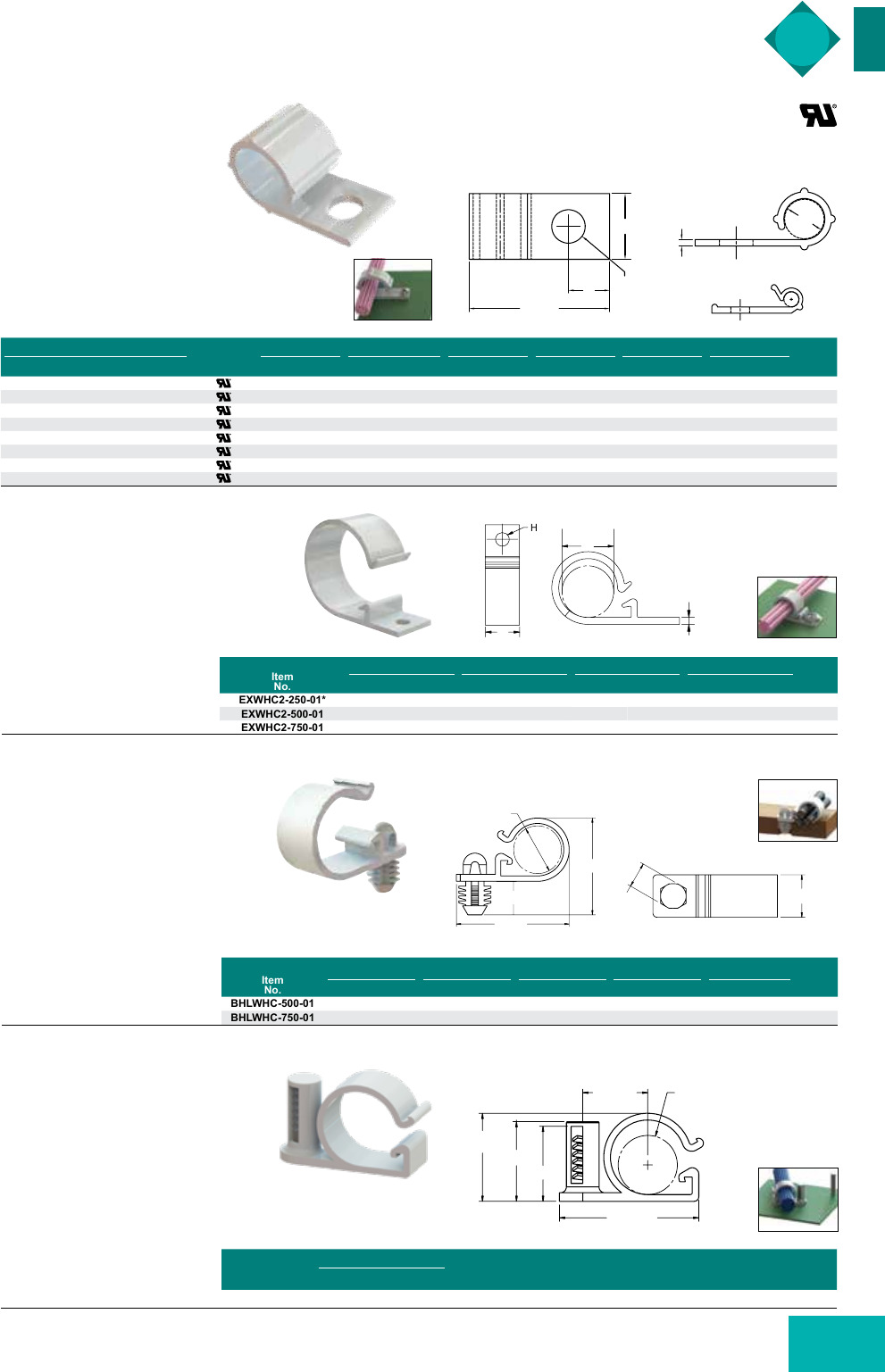

WHC Series
Wire Harness Clamp
EXWHC Series
Wire Harness Clamp
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Can be preinstalled to chassis with
cables inserted at a later time
• Cables can be removed for wiring
changes or replacements
Item No.
Approval
Ø A Holding Ø H Hole C B D E Ref. Bulk
Pack
QtyNatural Black in mm in mm in mm in mm in mm in mm
WHC-125-01 WHC-125-01BK 0.125 3.2 0.156 4.0 0.330 8.4 0.050 1.3 0.23 5.8 0.750 19.1 1000
WHC-250-01 WHC-250-01BK 0.250 6.4 0.204 5.2 0.400 10.2 0.040 1.0 0.25 6.4 0.830 21.1 1000
WHC-375-01 WHC-375-01BK 0.375 9.5 0.204 5.2 0.400 10.2 0.050 1.3 0.19 4.8 0.830 21.1 1000
WHC-500-01 WHC-500-01BK 0.500 12.7 0.204 5.2 0.400 10.2 0.070 1.8 0.25 6.4 1.156 29.4 1000
WHC-625-01 WHC-625-01BK 0.625 15.9 0.204 5.2 0.500 12.7 0.080 2.0 0.19 4.8 1.125 28.6 1000
WHC-750-01 WHC-750-01BK 0.750 19.1 0.204 5.2 0.500 12.7 0.090 2.2 0.19 4.8 1.281 32.5 1000
WHC-1000-01 WHC-1000-01BK 1.000 25.4 0.204 5.2 0.500 12.7 0.090 2.2 0.19 4.8 1.531 38.9 500
WHC-1500-01 WHC-1500-01BK 1.500 38.1 0.204 5.2 0.500 12.7 0.100 2.5 0.19 4.8 2.125 53.9 500
CABLE CLAMPS
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Installed by pushing clamp
onto an exposed screw or stud
• No protrusion under the chassis
• Fits several different threads;
M4, M5, #8, or #10
Item
No.
Ø A Holding
Mounting Method
Bulk
Pack
Qtyin mm
SMWHC-500-01 0.500 12.7 Push onto a #8, #10, M4 or M5 Screw or Stud 500
.74 (18.9)
Ref.
.55 (14)
Ref.
Ø A
1.18 (29.9)
.63 (16.1)
.67 (17.1)
.24 (6)
A/F
.39 (10)
B Ref.
C Ref.
.34 (8.7)
ØA
E Ref.
DØH
C
B
ØA
WHC-250 to WHC-1500
WHC-125
A
H
C
D
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Cables are easily inserted into
clamp and locked in place
• Cables can be removed
for wiring change or
replacements
BHLWHC Series
Blind Hole Mounted Clamp
Item
No.
Ø A Holding Ø H Hole CD Ref. Bulk
Pack
Qtyin mm in mm in mm in mm
EXWHC2-250-01* 0.250 6.4 0.156 4.0 0.039 1.0 0.394 10.0 1000
EXWHC2-500-01 0.500 12.7 0.156 4.0 0.075 1.9 0.394 10.0 1000
EXWHC2-750-01 0.708 18.0 0.156 4.0 0.075 1.9 0.500 12.7 1000
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Easily pushed into mounting
hole using a standard 6mm
hexagonal socket pressed
onto mounting head
• Releasable and reusable
for easy wire bundling
SMWHC Series
Stud Mount Wire Harness Clip
Item
No.
Ø A Holding Ø Mounting Hole B Ref. C Ref. Panel
Thickness Bulk
Pack
Qtyin mm in mm in mm in mm in mm
BHLWHC-500-01 0.500 12.7 0.312 7.9 1.150 29.3 1.000 25.4 0.250 6.4 1000
BHLWHC-750-01 0.750 19.1 0.312 7.9 1.440 36.5 1.340 34.1 0.250 6.4 1000
* No latch feature
I9
fl r
mum W “
Kama/a ;— W fiflsmuo
WEE
R g mm
fix 2, D
20
21 205 (5 2)
g 03% (5 2)
D14 ( 34)
\/ 014 ( 34)
FIBER, WIRE & CABLE MANAGEMENT
180 tel | 800 847 0486 fax | 866 561 6617

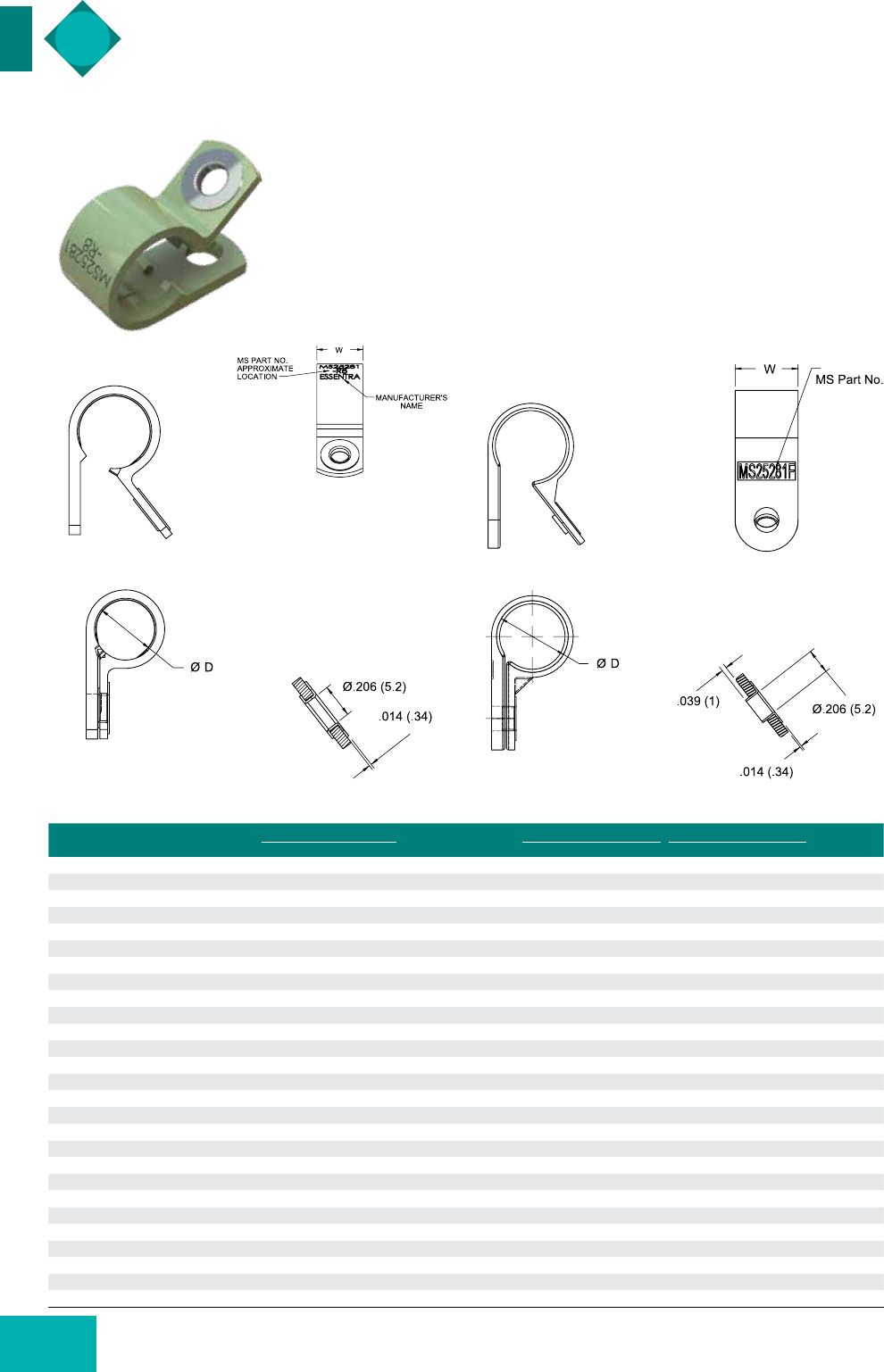

CABLE CLAMPS
Item
No. MS Part
Number
Ø D Holding Recommended
Mounting Screw
W E Bulk
Pack Qtyin mm in mm in mm
NM-3-R3 MS25281-R3 3/16 4.8 #10 or M5 0.503 12.8 0.485 12.3 500
NM-4-R4 MS25281-R4 1/4 6.4 #10 or M5 0.503 12.8 0.510 13.0 500
NM-5-R5 MS25281-R5 5/16 7.9 #10 or M5 0.503 12.8 0.546 13.9 500
NM-6-R6 MS25281-R6 3/8 9.5 #10 or M5 0.503 12.8 0.578 14.7 500
NM-7-R7 MS25281-R7 7/16 11.1 #10 or M5 0.503 12.8 0.608 15.4 500
NM-8-R8 MS25281-R8 1/2 12.7 #10 or M5 0.503 12.8 0.639 16.2 500
NM-9-R9 MS25281-R9 9/16 14.3 #10 or M5 0.503 12.8 0.661 16.8 500
NM-10-R10 MS25281-R10 5/8 15.9 #10 or M5 0.553 14.1 0.706 17.9 500
NM-11-R11 MS25281-R11 11/16 17.5 #10 or M5 0.553 14.1 0.785 19.9 500
NM-12-R12 MS25281-R12 3/4 19.1 #10 or M5 0.553 14.1 0.816 20.7 500
NM-13-R13 MS25281-R13 13/16 20.6 #10 or M5 0.553 14.1 0.827 21.0 500
NM-14-R14 MS25281-R14 7/8 22.2 #10 or M5 0.553 14.1 0.878 22.3 500
NM-16-R16 MS25281-R16 1 25.4 #10 or M5 0.553 14.1 0.941 23.9 500
NM-18-R18 MS25281-R18 1-1/8 28.6 #10 or M5 0.553 14.1 0.983 25.0 500
NM-20-R20 MS25281-R20 1-1/4 31.8 #10 or M5 0.553 14.1 1.006 27.1 100
NM-22-R22 MS25281-R22 1-3/8 34.9 #10 or M5 0.553 14.1 1.110 28.2 100
NM-24-R24 MS25281-R24 1-1/2 38.1 #10 or M5 0.553 14.1 1.170 29.7 100
NM-26-R26 MS25281-R26 1-5/8 41.3 #10 or M5 0.553 14.1 1.250 31.8 100
NM-28-R28 MS25281-R28 1-3/4 44.5 #10 or M5 0.553 14.1 1.300 33.0 100
NM-3-F3 MS25281-F3 3/16 4.8 #10 or M5 0.500 12.7 0.498 12.6 500
NM-4-F4 MS25281-F4 1/4 6.4 #10 or M5 0.500 12.7 0.529 13.4 500
NM-5-F5 MS25281-F5 5/16 7.9 #10 or M5 0.500 12.7 0.560 14.2 500
NM-6-F6 MS25281-F6 3/8 9.5 #10 or M5 0.500 12.7 0.592 15.0 500
NM-7-F7 MS25281-F7 7/16 11.1 #10 or M5 0.500 12.7 0.623 15.8 500
NM-8-F8 MS25281-F8 1/2 12.7 #10 or M5 0.500 12.7 0.654 16.6 500
NM-10-F10 MS25281-F10 5/8 15.9 #10 or M5 0.600 15.2 0.783 19.9 500
NM-13-F13 MS25281-F13 13/16 20.6 #10 or M5 0.600 15.2 0.877 22.3 500

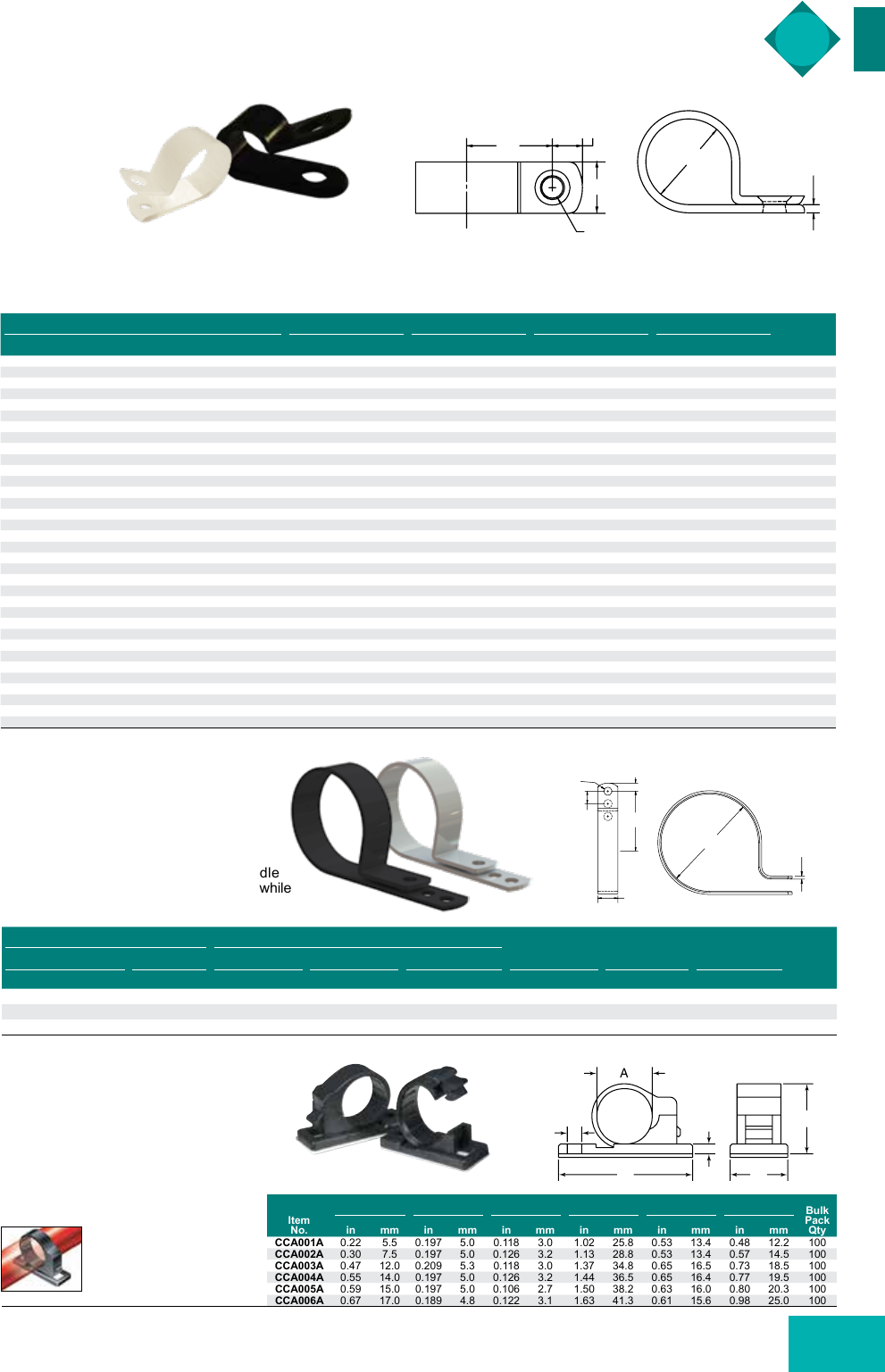

NM-MS25281 Series
Heavy Duty Support Clamp
Specifications:
• Material: UL94 V-2 Heat Stabilized Nylon,
conforms to MIL-M-20693/ASTM D-4066 Eyelet: Aluminum, anodized in
accordance with MIL-A-8625
• Color: Green
Features:
• Qualified to MS25281
• Strong and durable part design built for heavy duty cable applications
• NM-R series has a rib running around the inside of the clamp to grip bundle; NM-F series
has no rib inside clamp
• NM-R eyelet is crimped to the top leg; the NM-F eyelet's legs protrude all the way through
the bottom hole
NM-R NM-F
dle
wh‘le
1 02
canon 75 5a am 32 Hz 233 as: 135 new 145 mn
Conn“ 120 53 am: an 131 an; ass 165 on was we
comm 1m 5a am 32 m ans ass In: an 195 mn
CCADDSA 150 so am 27 150 332 on use can zas ma
comm 170 45 am 31 ms 413 an Isa n93 25a ma
181
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
A
B
L
T2 H
W
CABLE CLAMPS
G
D
1/2 (12.7)
F
.204
(5.2)
E
5/16
(7.95)
Item No. Ø D Holding
E Ref. F G Bulk
Pack
Qty
UL94 V-2
Nylon 6/6 UL94 V-0
Nylon 6/6 Inside Hole Center Hole Outside Hole
Natural Black Natural in mm in mm in mm in mm in mm in mm
N-20B N-20B-BK N-20B-19 1 25.4 1-1/8 28.6 1.2 30.2 0.906 23.0 0.219 5.6 0.063 1.6 500
N-24B N-24B-BK N-24B-19 1-1/4 31.8 1-3/8 34.9 1.47 37.3 1.031 26.2 0.219 5.6 0.063 1.6 500
N-32B N-32B-BK N-32B-19 1-3/4 44.5 1-7/8 47.6 2.0 50.8 1.453 36.9 0.203 5.2 0.065 1.7 500
Item No. Ø D Holding Ø H Hole WE Ref. Bulk
Pack
QtyNatural UL94 V-2 Black UL94 V-2 Natural UL94 V-0 in mm in mm in mm in mm
N-1 N-1-BK N-1-19 0.063 1.6 0.125 3.2 0.375 9.5 0.270 6.9 1000
N-2 N-2-BK N-2-19 0.125 3.2 0.172 4.4 0.375 9.5 0.328 8.3 1000
CCL001A — — 0.125 3.2 0.188 4.8 0.377 9.6 0.374 9.5 100
N-2B N-2B-BK N-2B-19 0.125 3.2 0.204 5.2 0.500 12.7 0.328 8.3 1000
N-3 N-3-BK N-3-19 0.188 4.7 0.172 4.4 0.375 9.5 0.391 9.9 1000
CCL002A — — 0.188 4.7 0.188 4.7 0.377 9.6 0.413 10.5 100
N-3B N-3B-BK N-3B-19 0.188 4.7 0.204 5.2 0.500 12.7 0.391 9.9 1000
N-4 N-4-BK N-4-19 0.250 6.4 0.172 4.4 0.375 9.5 0.422 10.7 1000
CCL003A — — 0.250 6.4 0.181 4.6 0.393 10.0 0.394 10.0 100
N-4B N-4B-BK N-4B-19 0.250 6.4 0.204 5.2 0.500 12.7 0.422 10.7 1000
N-5 N-5-BK N-5-19 0.313 7.9 0.172 4.4 0.375 9.5 0.453 11.5 1000
CCL004A — — 0.313 7.9 0.181 4.6 0.393 10.0 0.472 12.0 100
N-5B N-5B-BK N-5B-19 0.313 7.9 0.204 5.2 0.500 12.7 0.453 11.5 1000
N-6 N-6-BK N-6-19 0.375 9.5 0.172 4.4 0.375 9.5 0.484 12.3 1000
CCL005A — — 0.375 9.5 0.181 4.6 0.472 12.0 0.492 12.5 100
N-6B N-6B-BK N-6B-19 0.375 9.5 0.204 5.2 0.500 12.7 0.484 12.3 1000
N-7 N-7-BK N-7-19 0.438 11.1 0.172 4.4 0.375 9.5 0.531 13.5 1000
N-7B N-7B-BK N-7B-19 0.438 11.1 0.204 5.2 0.500 12.7 0.531 13.5 1000
N-8 N-8-BK N-8-19 0.500 12.7 0.172 4.4 0.375 9.5 0.563 14.3 1000
CCL006A — — 0.500 12.7 0.196 5.0 0.472 12.0 0.598 15.2 100
N-8B N-8B-BK N-8B-19 0.500 12.7 0.204 5.2 0.500 12.7 0.563 14.3 1000
N-9B N-9B-BK N-9B-19 0.563 14.3 0.204 5.2 0.500 12.7 0.594 15.0 1000
CCL007A — — 0.625 15.9 0.181 4.6 0.472 12.0 0.717 18.8 100
N-10B N-10B-BK N-10B-19 0.625 15.9 0.204 5.2 0.500 12.7 0.625 15.9 1000
N-11B N-11B-BK N-11B-19 0.688 17.5 0.204 5.2 0.500 12.7 0.656 16.7 1000
CCL008A — — 0.750 19.1 0.181 4.6 0.463 11.8 0.717 18.8 100
N-12B N-12B-BK N-12B-19 0.750 19.1 0.204 5.2 0.500 12.7 0.766 19.4 1000
N-14B N-14B-BK N-14B-19 0.875 22.2 0.204 5.2 0.500 12.7 0.813 20.6 500
CCL009A — — 1.000 25.4 0.181 4.6 0.472 12.0 0.866 22.0 100
N-16B N-16B-BK N-16B-19 1.000 25.4 0.204 5.2 0.500 12.7 0.906 23.0 500
CCL010A — — 1.062 27.0 0.181 4.6 0.472 12.0 0.945 24.0 100
N-18B N-18B-BK N-18B-19 1.125 28.6 0.204 5.2 0.500 12.7 0.969 24.6 500
CCL011A — — 1.250 31.8 0.181 4.6 0.472 12.0 1.031 26.2 100
CCL012A — — 1.446 36.7 0.181 4.6 0.472 12.0 1.181 30.0 100
NB-3 Series
Adjustable Cable Clamp
Specifications:
• Material: See Table
• Color: See Table
Features:
• Adjustable design allows you to bundle
multiple diameters of wires and cables while
securing in place
N/NB/CCL Series
Cable Clamp
Specifications:
• Material: Nylon 6/6
• Color: See Table
E
7/32 (5.6)
W
ØH
ØD
1/16 (1.6)
CCA Series
Adhesive Mount Cable Clamps
Item
No.
Ø A Holding Ø B Hole T2 L W H Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
CCA001A 0.22 5.5 0.197 5.0 0.118 3.0 1.02 25.8 0.53 13.4 0.48 12.2 100
CCA002A 0.30 7.5 0.197 5.0 0.126 3.2 1.13 28.8 0.53 13.4 0.57 14.5 100
CCA003A 0.47 12.0 0.209 5.3 0.118 3.0 1.37 34.8 0.65 16.5 0.73 18.5 100
CCA004A 0.55 14.0 0.197 5.0 0.126 3.2 1.44 36.5 0.65 16.4 0.77 19.5 100
CCA005A 0.59 15.0 0.197 5.0 0.106 2.7 1.50 38.2 0.63 16.0 0.80 20.3 100
CCA006A 0.67 17.0 0.189 4.8 0.122 3.1 1.63 41.3 0.61 15.6 0.98 25.0 100
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Fixed diameter clamp range
• Can be mounted with adhesive tape
backing or via screw mounting hole
Features:
• Designed to secure wires and cables in place
• Clamp down and screw clamp to chassis to secure
FIBER, WIRE & CABLE MANAGEMENT
182 tel | 800 847 0486 fax | 866 561 6617

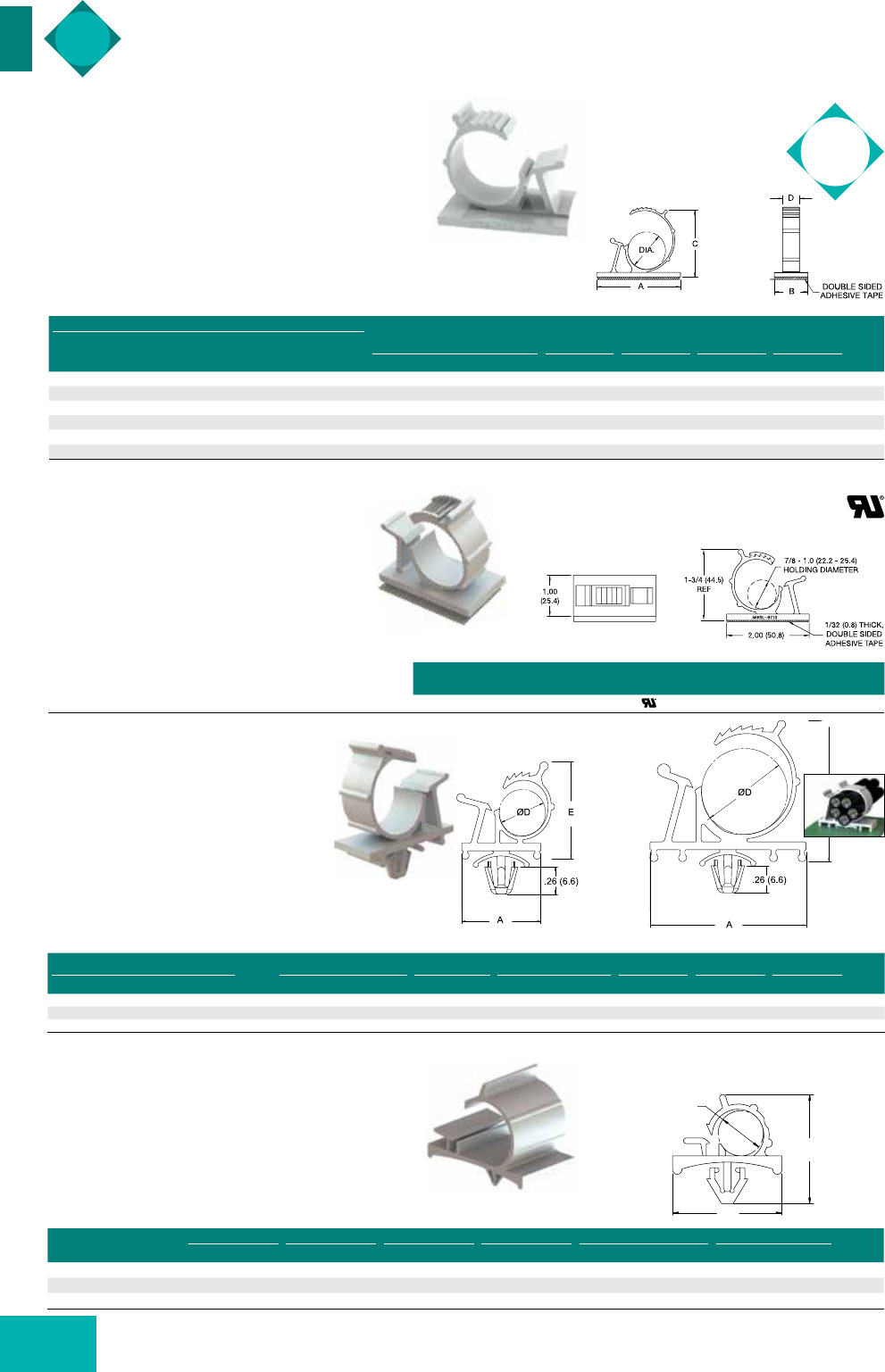

AKKL Series
Adhesive Mount Adjustable Clamp
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Available in High Bond Rubber Adhesive
• Locks securely and easily, reopens for routing changes
• Ratcheting clip holds bundle securely in place
• Good for high vibration applications; once closed the clip
will not open until tab is released
Item No.
Ø E Bundle Range Ref. A B C Ref. DBulk
Pack
Qty
Acrylic Adhesive Acrylic Adhesive High Bond Rubber
Adhesive
UL94 V-2 UL94 V-0 UL94 V-2 in mm in mm in mm in mm in mm
AKKL-2140A-RT AKKL-2140A-19 —0.215 - 0.258 5.5 - 6.5 0.85 21.6 0.65 16.5 0.708 18 0.39 10.0 100
AKKL-3140A-RT AKKL-3140A-19 •AKKL-3140-DHB 0.312 - 0.406 7.9 - 10.3 1.00 25.4 0.75 19.1 0.866 22 0.40 10.2 100
AKKL-4756A-RT AKKL-4756A-19 •AKKL-4756-DHB 0.469 - 0.562 11.9 - 14.3 1.25 31.8 0.75 19.1 1.090 27.7 0.40 10.2 100
AKKL-5775A-RT AKKL-5775A-19 •AKKL-5775-DHB 0.578 - 0.750 14.7 - 19.1 1.50 38.1 0.75 19.1 1.250 31.8 0.50 12.7 100
AKKL-8710A-RT AKKL-8710A-19 —0.875 - 1.000 22.2 - 25.4 2.00 50.8 1.00 25.4 1.750 44.5 0.50 12.7 100
AKKL-10112A-RT AKKL-10112A-19 —1.000- 1.250 25.4 - 31.7 2.50 63.5 1.00 25.4 2.000 50.8 0.50 12.7 100
AKKSL Series
Side Lock Adhesive Mount Adjustable Clamp
Item
No. Approval
Bulk
Pack
Qty
AKKSL-8710A-RT 100
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Side locks on top of clamp prevent clip from
sliding open
• Ratcheting clip holds bundle securely in place
PAKKL Series
Snap In Adjustable Clip
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Gathers and routes cables and wires
• Adjusts to diameter needed to bundle
• Push mount design allows for fast installation
Item No. D Ø Bundle Range Ø Mounting
Hole Panel Thickness AE Ref. Depth Bulk
Pack
QtyUL94 V-2 UL94 V-0 Figure in mm in mm in mm in mm in mm in mm
PAKKL-3140-01 PAKKL-3140-19 10.310 - 0.400 7.9 - 10.2 0.250 6.4 0.030 - 0.060 0.8 - 1.5 0.75 19.1 0.94 23.8 0.350 8.9 100
PAKKL-4756-01 PAKKL-4756-19 10.469 - 0.563 11.9 - 14.3 0.250 6.4 0.030 - 0.060 0.8 - 1.5 1.24 31.5 1.17 29.8 0.620 15.7 100
PAKKL-5775-01 PAKKL-5775-19 20.578 - 0.750 14.7 - 19.1 0.250 6.4 0.030 - 0.060 0.8 - 1.5 1.50 38.1 1.36 34.5 0.750 19.1 100
Figure 2
Figure 1
A
B
ØD
PKKL Series
Plug In Locking Clamp
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Part can be opened and closed multiple times
for adding or removing wires
• Large contoured base assures stable mounting
Item
No.
A B Ø D Holding Ø Mounting Hole Panel Thickness Depth Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
PKKL-3 1.020 25.9 0.921 23.4 0.374 9.5 0.256 6.5 0.031 - 0.062 0.8 - 1.6 0.67 17.0 200
PKKL-3S 0.830 21.1 0.828 21.0 0.307 7.8 0.256 6.5 0.031 - 0.062 0.8 - 1.6 0.75 19.1 200
PKKL-4 1.19 30.3 1.260 32.0 0.532 13.5 0.256 6.5 0.031 - 0.062 0.8 - 1.6 0.76 19.4 100
CABLE CLAMPS
EXPANDED
LINE
183
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CABLE CLAMPS
Item No.
Ø A Bundle Range
Ø Mounting Hole
Panel Thickness
B
C
Bulk
Pack
Qty
Push Mount
Adhesive
in
mm
in
mm
in
mm
in
mm
in
mm
CCP001A CCA007A 0.230 - 0.280 6.0 - 7.0 0.189 4.8 0.070 - 0.110 1.8 - 2.8 0.787 20.0 0.984 25.0 100
CCP002A CCA008A 0.280 - 0.310 7.0 - 8.0 0.189 4.8 0.070 - 0.110 1.8 - 2.8 0.787 20.0 0.984 25.0 100
CCP003A CCA009A 0.350 - 0.390 9.0 - 10.0 0.189 4.8 0.070 - 0.110 1.8 - 2.8 0.965 24.5 1.181 30.0 100
CCP004A CCA010A 0.470 - 0.550 12.0 - 14.0 0.189 4.8 0.070 - 0.110 1.8 - 2.8 0.965 24.5 1.181 30.0 100
CCP005A CCA011A 0.620 - 0.710 16.0 - 18.0 0.189 4.8 0.070 - 0.110 1.8 - 2.8 0.965 24.5 1.181 30.0 100

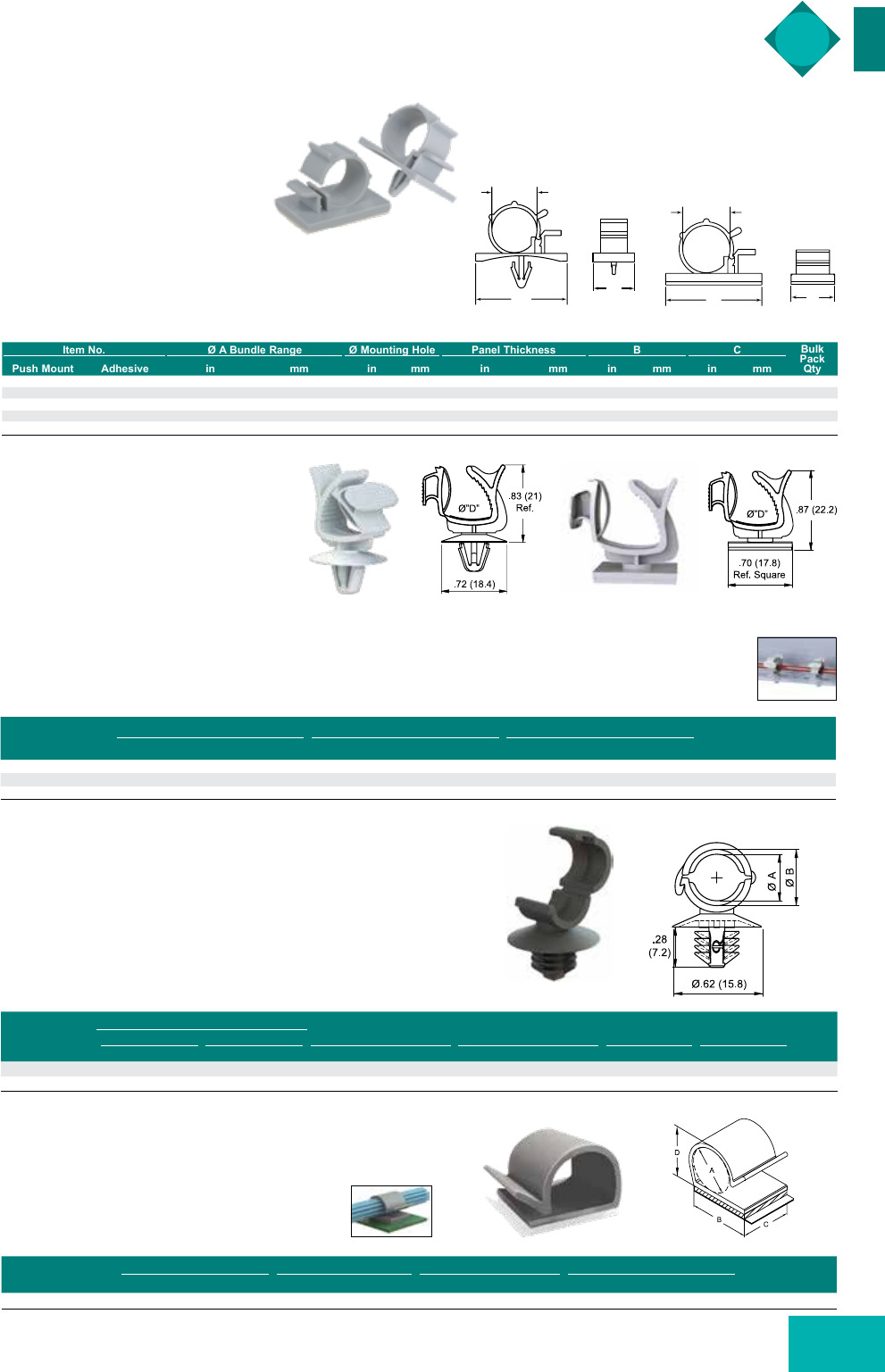

CCP/CCA Series
Push Mount & Adhesive Clamp
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Grey
Features:
• Two-stage lock design to accommodate
different cable sizes in a single clamp
• Easy to reopen with thumb tab release
• Available in two styles: CCP for push mount
into pre-drilled hole and CCA with a self
adhesive backing CCA AdhesiveCCP Push Mount
CB
A
C
A
B
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Locks securely and easily; reopens for
routing changes
• Adjustable, ratcheting clip holds bundle
securely in place
• Spring in the top of the clamp adds
additional tension to grip the bundle
• Finger grip eases installation
• Cupped base adds stability to the mounting
and covers the hole completely
WAC Series
Webbed Adjustable Clip
Item
No.
D Ø Bundle Range Ø Mounting Hole Panel Thickness
Figure
Bulk
Pack
Qtyin mm in mm in mm
WAC1-01 0.12 - 0.34 3.0 - 8.5 0.157 - 0.189 4.0 - 4.8 0.019 - 0.063 0.5 - 1.6 1 1000
WAC2-01 0.12 - 0.34 3.0 - 8.5 0.236 - 0.267 6.0 - 6.8 0.019 - 0.098 0.5 - 2.5 1 1000
WAC3-01A4-RT 0.12 - 0.34 3.0 - 8.5 Adhesive Adhesive Adhesive Adhesive 2 1000
Figure 1
Item
No.
Recommended Corrugated Tube Size
Bulk
Pack
Qty
ID OD Ø Mounting Hole Panel Thickness Ø A Ref. Ø B Ref.
in mm in mm in mm in mm in mm in mm
HLCC-1BK 0.20 5.0 0.28 7.1 0.26 - 0.28 6.5 - 7.0 0.03 - 0.12 .0.8 - 3.0 0.23 5.8 0.28 7.2 1000
HLCC-2BK 0.27 6.9 0.39 9.9 0.26 - 0.28 6.5 - 7.0 0.03 - 0.12 .0.8 - 3.0 0.33 8.3 0.39 10.0 1000
Specifications:
• Material: Heat Stabilized UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Securely holds corrugated/convoluted tubing or other bundles
• An internal rib spanning the diameter of the clamp provides a tight grip
• Releasable latch convenient for maintenance
• Fir-tree mount accommodates a large range of panel thicknesses
HLCC Series
Hinged Locking Clamp
KKR Series
Adhesive Mount Clamp
Item
No.
Ø A Bundle Max Capacity D B C Bulk
Pack
Qtyin mm in mm in mm in mm
KKR-5A1-RT 0.521 13.2 0.680 17.3 0.750 19.1 0.625 15.9 500
Specifications:
• Material: UL94 V-0 PVC
• Color: Grey
Figure 2
‘1
J
55..
11... 55..
155, .. .1. .. .5. .. .1. .. .5. 51.
mm 115 55 5155 151 5155 151 555 55 555
1511,5551 112 121 1555 255 1555 255 555 115 155
11.55.12.151 55 151 1 555 255 1 555 255 5 52 25 5 155
5
55.5
5.5.
5
5
51.15
11... 5555
115 5.. .1. .. .5. .. .. 1511
511555.51 2 5125 52 5 55 12 1 5 555 12 1 5 25 11 555
511555.51 2 5215 55 515 151 5155 151 555 155 155
15155551 1 5255 55 555 12 1 5555 121 555 152 555
11515551 1 5555 121 515 151 5155 151 515 155 155
11.55.1251 1 5 155 151 1 15 255 1 555 255 1 52 255 155
555.1551 1 1555 25 5 155 551 1255 515 155 55 5 155
‘4
.1... 5 .5 1 1.1 51. 5 Egg;
155 .. .. .. .. .. .5. .. .1. 51y
5115.251 115 5 2 5 555 215 1 55 255 115 55 1555
55155.51 5115 5 5 5 515 222 125 51 5 5115 1 5 1555
1515551 115 5 5 5 555 25 5 1 55 551 15152 15 5 1555
5515551 515 15 1215 515 1 15 555 1115 11 1 1555
1515551 515 5 5 1 251 52 5 2 55 55 5 11152 15 5 1555
’— /
A
55..
115.. 55..
115 .. .5. .. .1. .. .. .5. 51.
551515.251 5125 52 5551 11 1 5515 55 5255 55 1555
51mm 5151 55 5525 155 5551 111 5525 55 1555
555155511 5255 55 5555 151 5555 12 1 5555 155 1555
551515551 5512 15 5512 255 5552 155 5555 125 1555
55515555. 5 515 5 5 5 515 22 2 5525 15 5 5 552 15 5 1555
WNW: at
emponen
FIBER, WIRE & CABLE MANAGEMENT
184 tel | 800 847 0486 fax | 866 561 6617

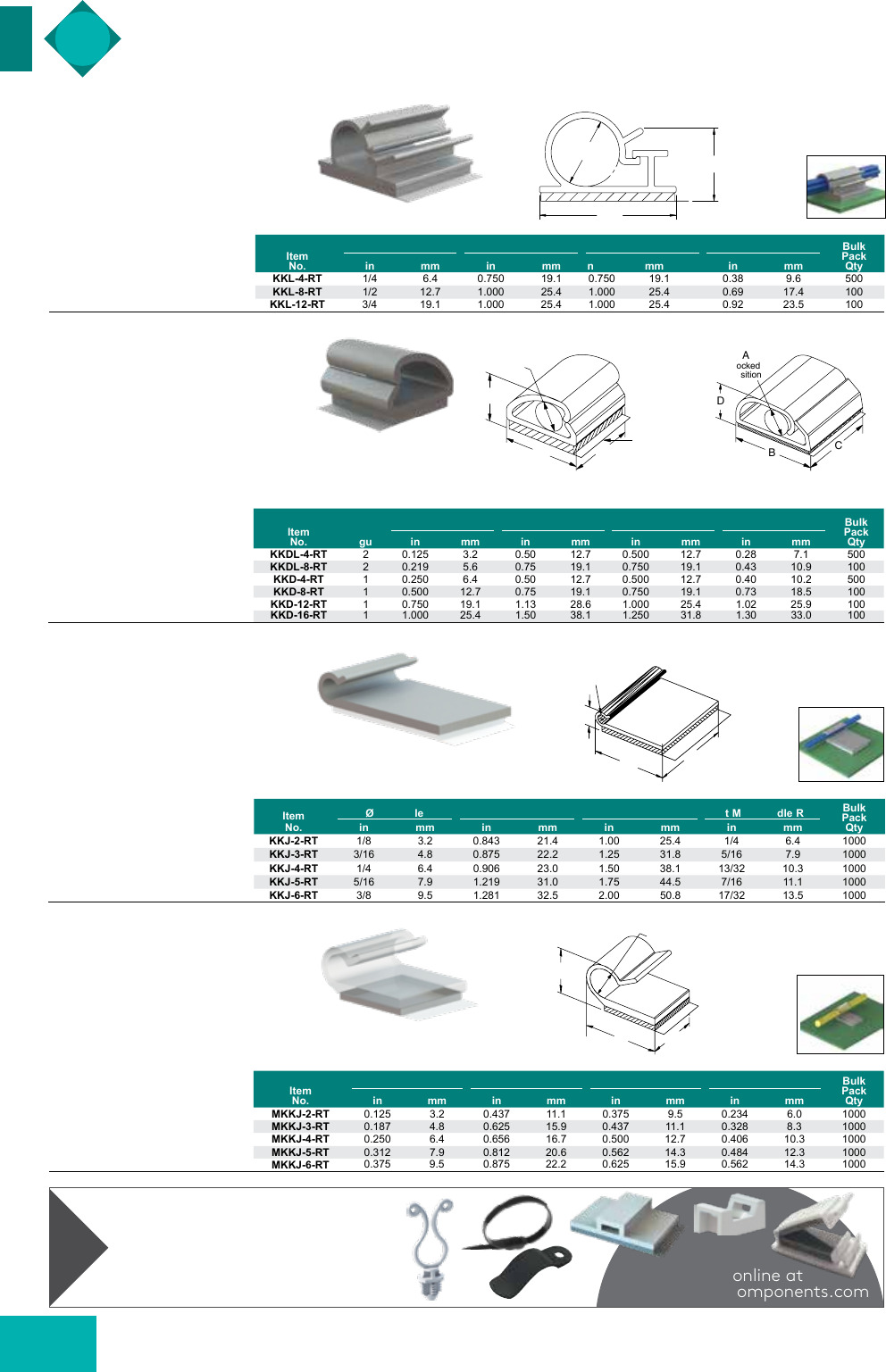

KKL Series
Adhesive Mount Locking Clamp
Item
No.
A Bundle B Depth D at Max Bundle Ref. Bulk
Pack
Qtyin mm in mm in mm in mm
KKL-4-RT 1/4 6.4 0.750 19.1 0.750 19.1 0.38 9.6 500
KKL-8-RT 1/2 12.7 1.000 25.4 1.000 25.4 0.69 17.4 100
KKL-12-RT 3/4 19.1 1.000 25.4 1.000 25.4 0.92 23.5 100
D
B
ØA
Specifications:
• Material: UL94 V-0 PVC
• Color: Grey
Features:
• Gathers, routes, and locks
cables and wires
• Can be opened and closed
multiple times for addition
or removal of cables
CABLE CLAMPS
KKD/KKDL Series
Adhesive Mount Clamp
Item
No.
Ø A Bundle B C D at Max Bundle
Ref. Bulk
Pack
QtyFigure in mm in mm in mm in mm
KKDL-4-RT 2 0.125 3.2 0.50 12.7 0.500 12.7 0.28 7.1 500
KKDL-8-RT 2 0.219 5.6 0.75 19.1 0.750 19.1 0.43 10.9 100
KKD-4-RT 1 0.250 6.4 0.50 12.7 0.500 12.7 0.40 10.2 500
KKD-8-RT 1 0.500 12.7 0.75 19.1 0.750 19.1 0.73 18.5 100
KKD-12-RT 1 0.750 19.1 1.13 28.6 1.000 25.4 1.02 25.9 100
KKD-16-RT 1 1.000 25.4 1.50 38.1 1.250 31.8 1.30 33.0 100
Specifications:
• Material: UL94 V-0 PVC
• Color: Grey
Specifications:
• Material: UL94 V-0 PVC
• Color: Grey
D
A
C
Ty pical
Release Ta b
Location
B
Figure 1
D
A
Locked
Position
BC
Figure 2
ØA
D
BC
Item
No.
Ø A Bundle B C D at Max Bundle Ref. Bulk
Pack
Qtyin mm in mm in mm in mm
KKJ-2-RT 1/8 3.2 0.843 21.4 1.00 25.4 1/4 6.4 1000
KKJ-3-RT 3/16 4.8 0.875 22.2 1.25 31.8 5/16 7.9 1000
KKJ-4-RT 1/4 6.4 0.906 23.0 1.50 38.1 13/32 10.3 1000
KKJ-5-RT 5/16 7.9 1.219 31.0 1.75 44.5 7/16 11.1 1000
KKJ-6-RT 3/8 9.5 1.281 32.5 2.00 50.8 17/32 13.5 1000
Item
No.
Ø A Bundle B C D at Max Bundle Ref Bulk
Pack
Qtyin mm in mm in mm in mm
MKKJ-2-RT 0.125 3.2 0.437 11.1 0.375 9.5 0.234 6.0 1000
MKKJ-3-RT 0.187 4.8 0.625 15.9 0.437 11.1 0.328 8.3 1000
MKKJ-4-RT 0.250 6.4 0.656 16.7 0.500 12.7 0.406 10.3 1000
MKKJ-5-RT 0.312 7.9 0.812 20.6 0.562 14.3 0.484 12.3 1000
MKKJ-6-RT 0.375 9.5 0.875 22.2 0.625 15.9 0.562 14.3 1000
D
BC
ØA
MKKJ Series
Mini Adhesive Mount Clamp
Specifications:
• Material: UL94 V-0 PVC
• Color: Clear
Features:
• Clear color hides clamp
KKJ Series
Adhesive Mount Clamp
FREE SAMPLES
ON THOUSANDS OF FIBER, WIRE &
CABLE MANAGEMENT PRODUCTS order samples online at
www.essentracomponents.com
rmrmr
Eng
umumuu
185
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CABLE CLAMPS

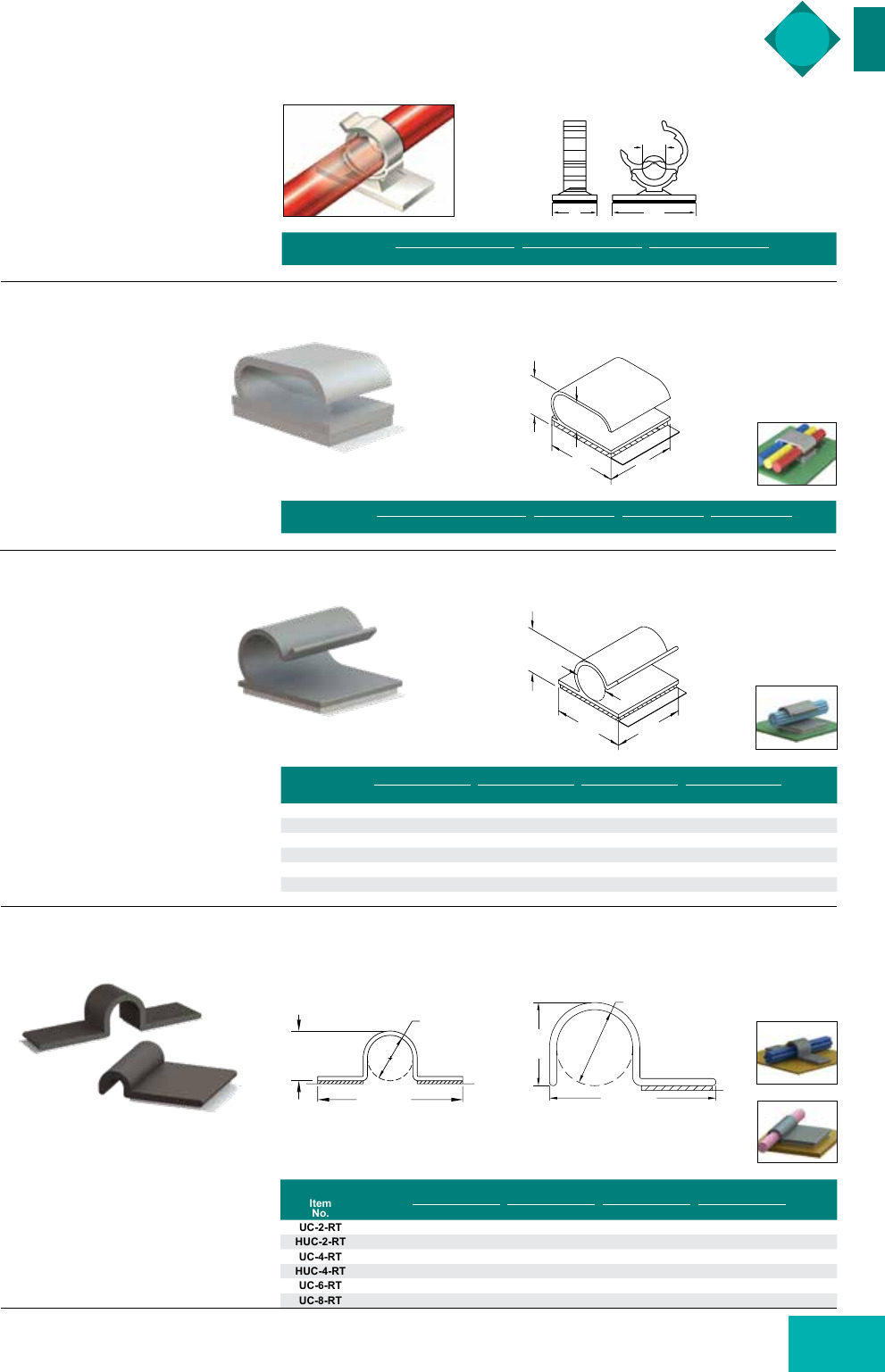

KKF Series
Adhesive Mount Clamp
D
A
BC
D
A
BC
KKC Series
Adhesive Mount Clamp
UC/HUC Series
Adhesive Mount U Clamp
Specifications:
• Material: UL94 V-0 PVC
• Color: Black
ØD
H Ref.
B
Ref.
Figure 1
B Ref.
H
Ref.
ØD
Figure 2
Item
No. Figure
D Holding
Capacity B Ref. H Ref. Depth Bulk
Pack
Qtyin mm in mm in mm in mm
UC-2-RT 1 1/8 3.2 1.219 30.9 0.172 4.4 0.625 15.9 1000
HUC-2-RT 2 1/8 3.2 0.718 18.3 0.172 4.4 0.625 15.9 1000
UC-4-RT 1 1/4 6.4 1.344 34.1 0.297 7.5 0.625 15.9 1000
HUC-4-RT 2 1/4 6.4 1.343 34.1 0.297 7.5 0.625 15.9 1000
UC-6-RT 1 3/8 9.5 1.469 37.3 0.422 10.7 0.625 15.9 1000
UC-8-RT 1 1/2 12.7 1.594 40.4 0.547 13.9 0.625 15.9 1000
Specifications:
• Material: UL94 V-0 PVC
• Color: Grey
Features:
• Can hold three wire leads
(such as air conditioning leads) Item
No.
Holding Capacity A B C Max Capacity D Bulk
Pack
Qtyin mm in mm in mm in mm
KKF-10X4-RT 0.20 x 0.56 5.1 x 14.3 0.750 19.1 0.750 19.1 0.36 9.1 100
Item
No.
Holding Capacity A BCDBulk
Pack
Qtyin mm in mm in mm in mm
KKC-2-RT 1/8 3.2 0.750 19.1 0.750 19.1 0.31 7.9 500
KKC-3-RT 3/16 4.8 0.750 19.1 0.750 19.1 0.33 8.4 500
KKC-4-RT 1/4 6.4 0.750 19.1 0.750 19.1 0.42 10.7 500
KKC-5-RT 5/16 7.9 0.750 19.1 0.750 19.1 0.48 12.2 500
KKC-6-RT 3/8 9.5 0.750 19.1 0.750 19.1 0.60 15.2 500
KKC-8-RT 1/2 12.7 1.000 25.4 1.000 25.4 0.69 17.5 100
KKC-12-RT 3/4 19.1 1.000 25.4 1.000 25.4 0.94 23.9 100
Specifications:
• Material: UL94 V-0 PVC
• Color: Grey
Features:
• For securely clamping cable or tubing
Adhesive Mount Clamp
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: Natural
Features:
• Strong adhesion for quick and easy
installation
• One size fits a range of cable diameters Item
No.
Holding Capacity d W L Bulk
Pack
Qtyin mm in mm in mm
460317 0.441 11.2 0.630 16.0 1.173 29.8 1000
W
L
d
FIBER, WIRE & CABLE MANAGEMENT
186 tel | 800 847 0486 fax | 866 561 6617
ØA
D
BC
KKU Series
Adhesive Mount Clamp
Specifications:
• Material: UL94 V-0 PVC
• Color: Grey
Features:
• To hold wires, cords,
or cables in place
Item
No.
Ø A Bundle B C D Ref. Bulk
Pack
Qtyin mm in mm in mm in mm
KKU-2-RT 1/8 3.2 0.750 19.1 0.750 19.1 0.281 7.1 500
KKU-4-RT 1/4 6.4 0.750 19.1 0.750 19.1 0.468 11.9 500
KKU-6-RT 3/8 9.5 0.750 19.1 0.750 19.1 0.593 15.1 500
KKU-8-RT 1/2 12.7 1.000 25.4 1.000 25.4 0.687 17.5 100
KKU-9-RT 9/16 14.3 1.000 25.4 1.000 25.4 0.750 19.1 100
KKU-12-RT 3/4 19.1 1.000 25.4 1.000 25.4 0.906 23.0 100
CABLE CLIPS & CLAMPS
Item
No.
A C D F Bulk
Pack
QtyFigure Approval in mm in mm in mm in mm
WCK-180-01A-RT 10.63 16.0 0.31 7.9 0.340 8.6 0.16 4.0 1000
WCK-280-01A4-RT 1 — 0.75 19.0 0.39 10.0 0.263 6.7 0.22 5.7 1000
WCK-460-01A-RT 10.99 25.1 0.47 11.9 0.45 11.4 0.28 7.1 1000
MWCK-460-01A4-RT 2 — 0.75 19.0 0.47 11.9 0.45 11.4 0.28 7.1 1000
WCK-720-01A-RT 2 — 1.00 25.4 0.50 12.7 0.72 18.3 0.54 13.6 1000

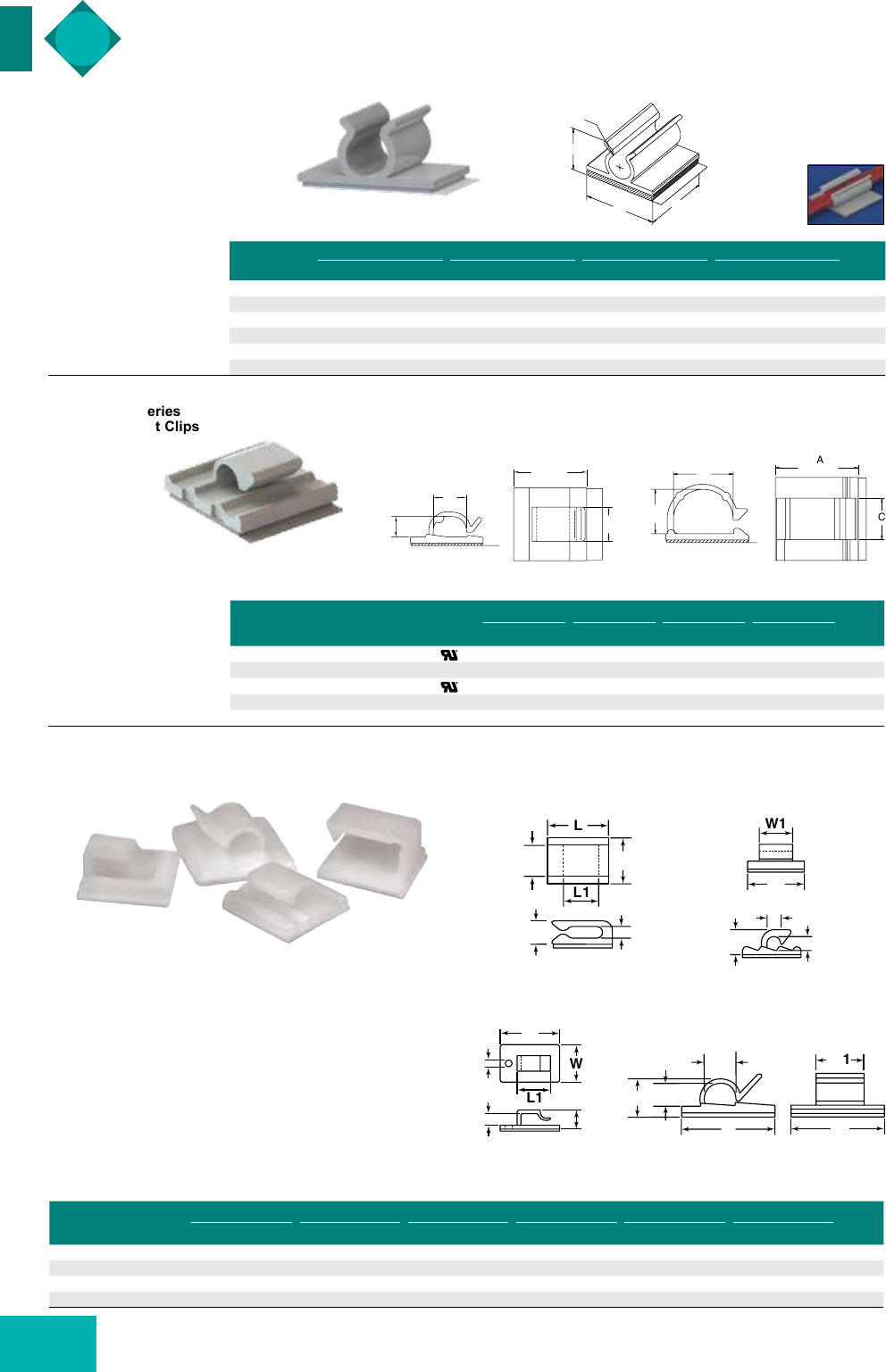

WCK/MWCK Series
Adhesive Mount Clips
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: Natural
Features:
• To hold wires, cords,
or cables in place
A
Square
C
F
D
A
Square
D
FC
Figure 1 Figure 2
WCA Series
Adhesive Mount Clips
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Designed to support lightweight wire bundles when properly
applied on any clean, smooth, grease-free surface
Item
No.
L L1 W W1 H H1 Bulk
Pack
QtyFigure in mm in mm in mm in mm in mm in mm
WCA001A 1 0.51 13.0 0.354 9.0 0.37 9.5 0.26 6.5 0.20 5.2 0.11 2.8 100
WCA002A 2 0.63 16.0 0.190 4.8 0.61 15.5 0.35 9.0 0.27 6.8 0.19 4.8 100
WCA004A 3 1.06 27.0 0.58 14.8 0.67 17.0 0.12 3.1 0.34 8.7 0.22 5.5 100
WCA005A 4 0.75 19.0 0.23 5.9 0.75 19.0 0.39 10.0 0.28 7.2 0.19 4.9 100
L
L1
W
HH1
W1
HH1
L1
L
L1
H
H1
W
W1
W1 W
H
W
H1
L
L1
W1
W
L
H1
H
L1
L
H1
L1
H
W1
W
W1
L
L1
W
HH1
W1
HH1
L1
L
L1
H
H1
W
W1
W1 W
H
W
H1
L
L1
W1
W
L
H1
H
L1
L
H1
L1
H
W1
W
W1
Figure 3
Figure 1 Figure 2
Figure 4
L
é \
VIA-Ell]
187
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CABLE CLIPS & CLAMPS

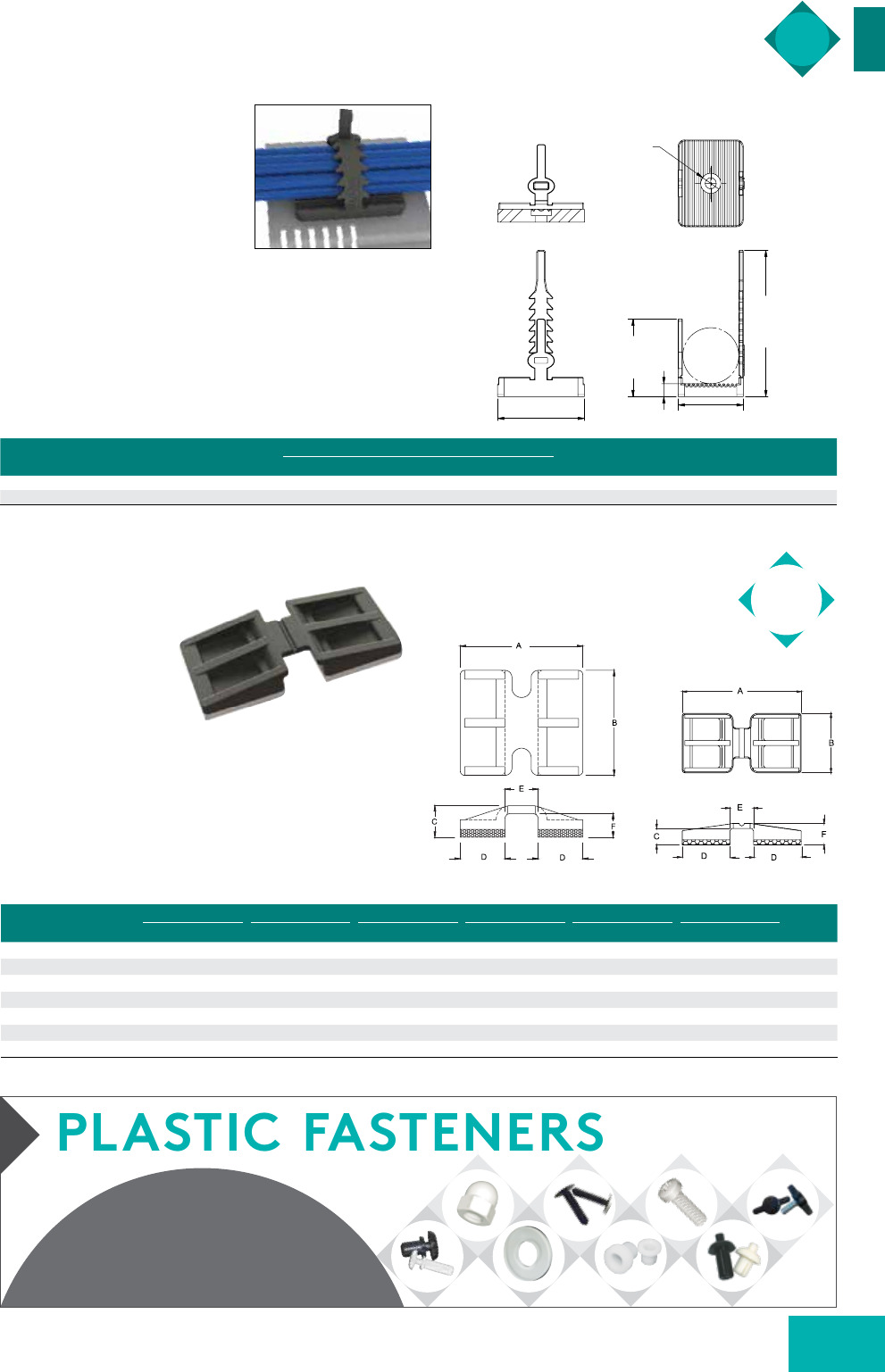

UMB Series
Universal Rubber Clamp
Ø.36
(9.2)
1.57 (40.0) 1.18 (30.0)
.24
(6.0)
1.40
(35.0)
Ref.
2.64
(67.0)
Ref.
ØD
Item
No. Mounting
Method
D Approx. Max Cable Ø Bundle Bulk
Pack
Qtyin mm
UMB-1 #10 or M5 Screw 0.79 20.0 200
UMB-1A-RT Adhesive 0.79 20.0 200
Specifications:
• Material: Neoprene Rubber, 50 Shore A
• Color: Black
Features:
• Flexible, serrated buckle style clamp provides a tight grip to
the bundle
• Large, ribbed base gives the cables extra surface area
which provides some strain relief
• Two mounting styles available: #10 screw or adhesive
WM Series
Adhesive Mount Wire Mounts
Figure 1 Figure 2
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Mounted over wires to hold them in place
• Quck, secure mounting
NEW
PLASTIC FASTENERS
800 847 0486
www.essentracomponents.com
Item
No. Figure
E F A B C D Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
WM-1A 1 0.150 3.8 0.102 2.6 0.551 14.0 0.472 12.0 0.138 3.5 0.201 5.1 1000
WM-2A 1 0.189 4.8 0.102 2.6 0.945 24.0 0.472 12.0 0.142 3.6 0.378 9.6 500
WM-3A 1 0.189 4.8 0.102 2.6 0.787 20.0 0.472 12.0 0.142 3.6 0.299 7.6 500
WM-4A 1 0.205 5.2 0.110 2.8 0.945 24.0 0.472 12.0 0.150 3.8 0.370 9.4 500
WM-5A 2 0.189 4.8 0.102 2.6 0.945 24.0 0.472 12.0 0.142 3.6 0.378 9.6 500
WM-6A 2 0.189 4.8 0.122 3.1 0.945 24.0 0.472 12.0 0.161 4.1 0.378 9.6 500
WM-7A 2 0.205 5.2 0.122 3.1 0.945 24.0 0.472 12.0 0.161 4.1 0.370 9.4 500
FIBER, WIRE & CABLE MANAGEMENT
188 tel | 800 847 0486 fax | 866 561 6617
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
CABLE CLIPS & CLAMPS
Item
No.
Ø C Bundle Ø Mounting Hole
Approval
AB Ref. Panel Thickness Bulk
Pack
QtyFigure in mm in mm in mm in mm in mm
HURC-2-01 1 0.125 3.2 0.125 3.2 0.20 5.1 0.49 12.4 0.062 1.6 1000
HURC-3-01 1 0.187 4.8 0.125 3.2 0.24 6.1 0.56 14.2 0.062 1.6 1000
HURC-4-01 1 0.250 6.4 0.125 3.2 0.27 6.9 0.62 15.7 0.062 1.6 1000
HURC1-2-01 1 0.125 3.2 0.125 3.2 0.20 5.1 0.49 12.4 0.093 2.4 1000
HURC1-3-01 1 0.187 4.8 0.125 3.2 0.24 6.1 0.56 14.2 0.093 2.4 1000
HURC1-4-01 1 0.250 6.4 0.125 3.2 0.27 6.9 0.62 15.7 0.093 2.4 1000
DHURC-2-01 2 0.125 3.2 0.125 3.2 0.41 10.4 0.66 16.8 0.062 1.6 1000
DHURC-3-01 2 0.187 4.8 0.125 3.2 0.48 12.2 0.79 20.1 0.062 1.6 1000
DHURC-4-01 2 0.250 6.4 0.125 3.2 0.55 14.0 0.94 23.9 0.062 1.6 1000
HURCS-2-01 4 0.125 3.2 0.125 3.2 — 0.25 6.2 0.59 15.0 — — 1000
HURCS-3-01 4 0.187 4.8 0.125 3.2 — 0.28 7.1 0.65 15.6 — — 1000
HURCS-4-01 4 0.250 6.4 0.125 3.2 —0.32 8.1 0.72 18.3 — — 1000
DHURCS-2-01 5 0.125 3.2 0.125 3.2 — 0.49 12.4 0.75 19.0 — — 1000
DHURCS-3-01 5 0.187 4.8 0.125 3.2 — 0.56 14.2 0.89 22.6 — — 1000
DHURCS-4-01 5 0.250 6.4 0.125 3.2 —0.64 16.2 1.02 25.9 — — 1000
HURCBH-2-01 3 0.125 3.2 0.250 6.4 — 0.49 12.4 0.17 4.3 0.250 6.4 1000
HURCBH-3-01 3 0.187 4.8 0.250 6.4 — 0.56 14.2 0.24 6.1 0.250 6.4 1000
HURCBH-4-01 3 0.250 6.4 0.250 6.4 — 0.62 15.7 0.30 7.6 0.250 6.4 1000
HURC/DHURC/HURCBH/HURCS/DHURCS Series
U Clamp
B Ref.
.12 (3.0)
ØC
X2
A
Figure 2
.163
(4.1)
A
B Ref.
ØC
.12 (3.0)
Figure 1 Figure 3
D
.30
(7.6)
.33
(8.4)
C
Holding
Diameter
B
A
A
.20
(5.2)
B
.125 (3.2)
.30
(7.6)
ØC
Figure 4
ØC
A
B
.30
(7.6)
.15
(3.8)
.125
(3.2)
Figure 5
SRC Series
Split Routing Clamp
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Split design allows bundles to be loaded
by separating the clip at the base
• Cannot be removed without removing the
clip from the blind side of the application
ØA
Figure 2
ØA
Figure 1
Item
No.
Ø A Bundle Hole Diameter Panel Thickness
Color
Bulk
Pack
QtyApproval Figure In mm In mm In mm
SRC-1-01 — 2 .197 5.0 .246 6.2 0.079 - 0.118 2.0 - 3.0 Natural 1000
SRC-4-01 1.250 6.4 .250 6.4 0.050 - 0.060 1.3 - 1.5 Natural 1000
•101 001 000 202 — 3 .413 10.5 .250 6.4 0.028 - 0.079 0.7 - 2.0 Grey 500
SRC-7-01 1.438 11.1 .250 6.4 0.050 - 0.060 1.3 - 1.5 Natural 1000
SRC-8-01 1.500 12.7 .250 6.4 0.050 - 0.060 1.3 - 1.5 Natural 1000
•101 001 400 202 — 3 .551 14.0 .250 6.4 0.028 - 0.079 0.7 - 2.0 Grey 500
SRC-10-01 — 1 .625 15.9 .250 6.4 0.050 - 0.060 1.3 - 1.5 Natural 1000
•101 002 100 202 — 3 .846 21.5 .250 6.4 0.028 - 0.079 0.7 - 2.0 Grey 250
•101 003 000 202 — 3 1.181 30.0 .250 6.4 0.028 - 0.079 0.7 - 2.0 Grey 250
Figure 3
EXPANDED
LINE
189
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CABLE CLIPS & CLAMPS
D Series
Two-Piece Locking Clamp
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: Natural
Features:
• Mounts with a #8 or M4 flat-head machine screw
• Adjustable holding capacity
• Keeper bar is removable for changes or repairs
E
B
D
Keeper Bar
A
Item
No.
A Ref. B Ref. D Ref. E Ref. Bulk
Pack
Qtyin mm in mm in mm in mm
D-1 0.990 25.1 1.530 38.9 1.25 31.8 0.51 13.0 100
D-1.5 1.457 37.0 2.175 55.3 1.65 41.9 0.66 16.8 100
CH/RSC Series
Snap In Cable Hanger
Specifications:
• Material: See Table
• Color: See Table
Features:
• Gathers and routes cables and wires
• Push mount design allows for fast installation
Item No. Ø Max Bundle Ø Mounting Hole A Ref BBulk
Pack
QtyNatural Black Figure in mm in mm in mm in mm Material
CH-1-01 CH-1-01BK 1 0.375 9.5 0.250 6.4 1.750 44.5 0.297 7.5 UL94 V-2 Nylon 6/6 1000
CH-2-01 CH-2-01BK 1 0.625 15.9 0.250 6.4 2.625 66.7 0.297 7.5 UL94 V-2 Nylon 6/6 1000
CH-1-10 CH-1-10BK 1 0.375 9.5 0.250 6.4 1.750 44.5 0.297 7.5 UL94 HB Polypropylene 1000
CH-2-10 CH-2-10BK 1 0.625 15.9 0.250 6.4 2.625 66.7 0.297 7.5 UL94 HB Polypropylene 1000
— RSC-3-01 2 0.218 5.6 0.189 4.8 1.100 28.0 0.160 4.0 UL94 V-2 Nylon 6/6 1000
— RSC-4-01 2 0.250 6.4 0.189 4.8 1.300 33.0 0.240 6.0 UL94 V-2 Nylon 6/6 1000
— RSC-6-01 2 0.375 9.5 0.189 4.8 1.690 43.0 0.240 6.0 UL94 V-2 Nylon 6/6 1000
—RSC-9-01 2 0.625 15.9 0.189 4.8 2.480 63.0 0.240 6.0 UL94 V-2 Nylon 6/6 1000
A
.04 (1.0) 1.2
(12.7)
B
Ø.44
(11.2)
Figure 1
A
BØ.34 (8.6)
.38 (9.6)
Figure 2

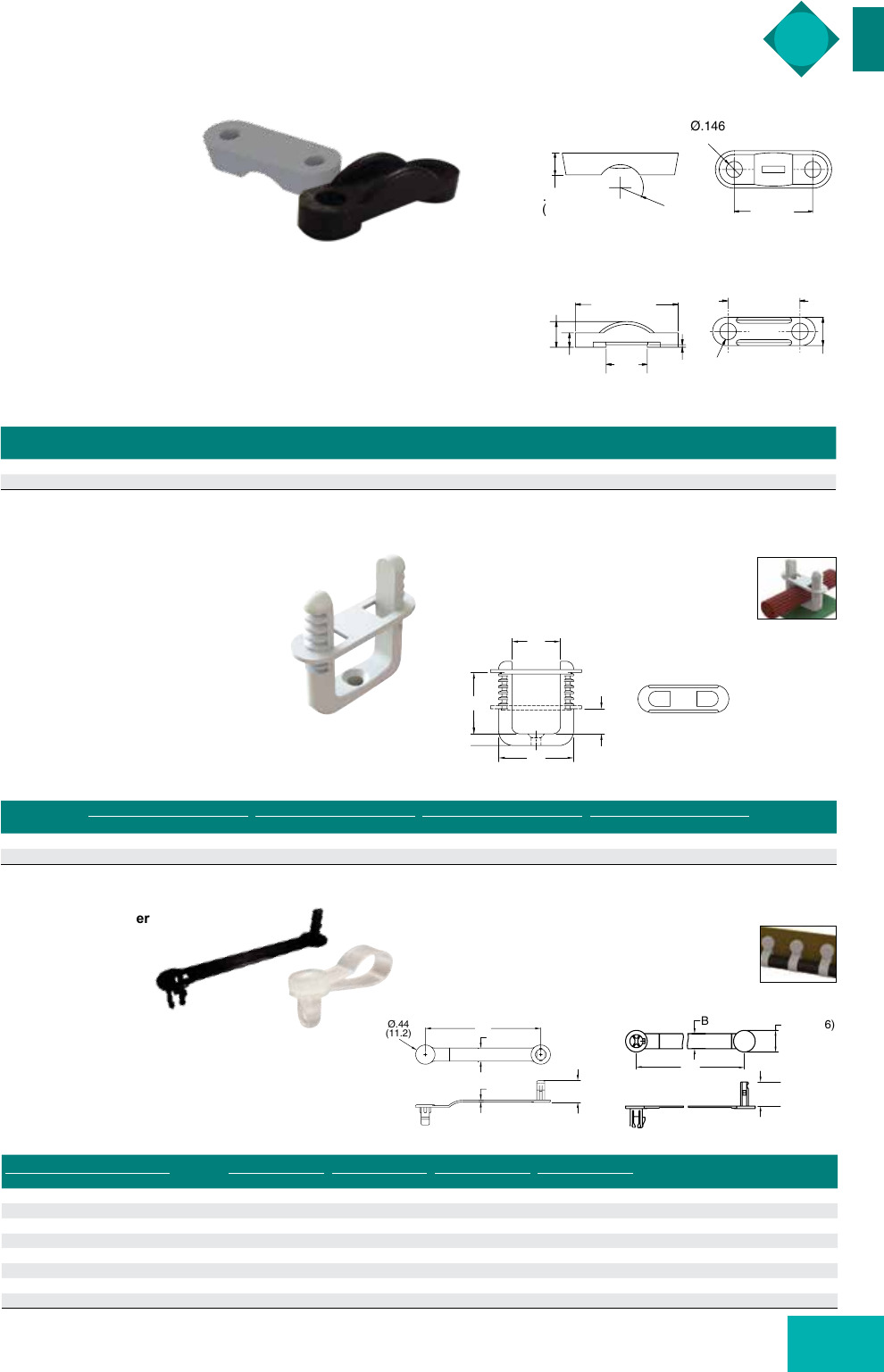

SRCC Series
Strain Relief Clamp
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: See Table
Features:
• Grips cable providing slight strain relief
• Securely installed with two screws
.197
(5.0) R .201
(5.1)
Ø.146
(3.7)
.710
(18.0)
Figure 1
.22
(5.5)
Ø.126 (3.2)
.550 (14.0)
.110
(2.8)
.200
(5.0) .790 (20.0)
.310
(8.0) .020
(0.5)
Figure 2
Item
No. Figure Color Ø Max Cable Mounting Screws
Bulk
Pack
Qty
SRCC-1 1 Grey 0.177 M3 or #6 1000
SRCC-2 2 Black 0.310 M3 or #4 1000
I9
1— T" """" \
W4 LQ J92 IQ
P F% F4
L‘ x L’
”MMQ
LUBE/E]
T
]_
L
4—
°, A
9/ v
FIBER, WIRE & CABLE MANAGEMENT
190 tel | 800 847 0486 fax | 866 561 6617
CABLE CLIPS & CLAMPS
Item
No.
Ø D Holding Ø F Hole Ref. A Ref. C Ref. H Ref. L
Figure
Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
V-1000 0.25 6.4 0.094 2.4 0.30 7.5 0.50 12.7 Single Hole In Center 0.50 12.7 1 1000
V-1001 0.31 7.9 0.094 2.4 0.36 9.1 0.50 12.7 Single Hole In Center 0.50 12.7 1 1000
V-1002 0.38 9.5 0.094 2.4 0.41 10.3 0.50 12.7 Single Hole In Center 0.50 12.7 1 1000
V-1003 0.44 11.1 0.094 2.4 0.45 11.5 0.52 13.1 Single Hole In Center 0.50 12.7 1 1000
V-1004 0.50 12.7 0.094 2.4 0.50 12.7 0.66 16.7 Single Hole In Center 0.50 12.7 1 1000
V-1005 0.56 14.3 0.094 2.4 0.61 15.5 0.72 18.3 Single Hole In Center 0.50 12.7 1 1000
V-1006 0.63 15.9 0.094 2.4 0.63 15.9 0.83 21.0 Single Hole In Center 0.50 12.7 1 1000
V-1007 0.69 17.6 0.156 4.0 0.63 15.9 0.84 21.0 Single Hole In Center 0.50 12.7 1 1000
V-1008 0.75 19.7 0.156 4.0 0.78 19.8 0.89 22.6 Single Hole In Center 0.50 12.7 1 100
V-1009 0.88 22.2 0.156 4.0 0.91 23.0 1.08 27.4 Single Hole In Center 0.50 12.7 1 100
V-1010 1.00 25.4 0.156 4.0 0.98 25.0 1.13 28.6 .75 19.1 1.13 28.5 2 100
V-1011 1.38 34.9 0.156 4.0 1.34 34.1 1.25 31.8 .75 19.1 1.13 28.5 2 100
V-1024 1.50 38.1 0.156 4.0 1.81 46.0 1.42 36.1 .75 19.1 1.75 44.5 3 100
V-1028 1.75 44.5 0.156 4.0 1.92 48.8 1.50 38.1 .75 19.1 1.75 44.5 3 100
V-1030 2.25 - 2.75 57.1 - 69.9 0.156 4.0 2.44 61.9 2.61 66.3 .75 19.1 1.50 38.1 3 100
Specifications:
• Material: UL94 V-0 PVC
• Color: Black
Features:
• Legs prevent shifting and tipping
• Mounts securely with screws or rivets
• Holds parts firmly
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Smooth edges protect components from
wear and abrasion
• Legs prevent shifting and tipping
• Mounts securely with screws or rivets
VM Series
Screw Mount Component Clip
Figure 1 Figure 2 Figure 3
A
L
ØF
ØF ØF
LL
HH
CCC
ØD ØD ØD
AA
A
ØD ØD A
FF
ØC
BE
ØC
B
A
ØD ØD A
FF
ØC
BE
ØC
B
Figure 4Figure 3Figure 2Figure 1
V Series
Screw Mount Component Clip
Item
No.
Ø D Holding C Hole Ø A Ref. B E F Ref.
Figure
Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
VM-1002 3/8 9.5 0.11 2.8 0.44 11.2 0.50 12.7 Single Hole in Center 0.54 13.7 1 100
VM-1004 1/2 12.7 0.11 2.8 0.52 13.2 0.50 12.7 Single Hole in Center 0.75 19.1 1 100
VM-1007 11/16 17.5 0.15 3.8 0.78 19.8 0.50 12.7 Single Hole in Center 0.82 20.8 1 100
VM-1008 3/4 19.1 0.15 3.8 0.97 24.6 0.50 12.7 Single Hole in Center 0.98 24.9 1 100
VM-1010 1 25.4 0.15 3.8 1.03 26.1 1.12 28.4 .750 19.1 1.25 31.8 2 100
VM-1011 1-3/8 34.9 0.15 3.8 1.51 38.4 1.16 29.5 .750 19.1 1.37 34.8 2 100
VM-1024 1-1/2 38.1 0.15 3.8 1.67 42.4 1.70 43.2 .750 19.1 1.50 38.1 3 100
VM-1030 2-1/4 57.2 0.15 3.8 2.50 63.5 1.52 38.6 .750 19.1 3.00 76.2 4 100
num Clamp
‘.v j I—A—1
¢ F A L
k
501k
Hem D “'9 "' Pack
110 00 mm H n my
ASK-l 1 0254 50 044 115 055 155 250
As“ 1 0515 95 002 151 014 155 250
RAK-I 2 0254 50 044 115 057 111 250
mm 2 0 515 9 5 054 15 5 0 10 19 5 250
vccaasss 051 19 090 250 154 550 020 50 0515 an 0150 55 1
vccmsw 051 55 115 500 157 400 012 50 0515 50 0155 55 1
vccwm 050 121 157 400 109 400 000 20 0250 00 0110 50 1
vccus54 052 155 155 420 215 540 019 4a 0515 50 0111 45 1
vccuzu 051 140 101 400 215 540 014 50 0250 00 0125 52 1 1000
vccum 055 159 209 550 252 540 020 50 0515 00 0151 41 1
vccum 001 207 250 550 299 100 010 45 0515 00 0177 45 1
vccwu 090 229 255 120 551 540 010 45 0515 00 0117 45 1
vccusus 140 550 441 1120 490 1250 024 00 0515 00 0177 45 1
191
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Figure 1 Figure 2
CABLE CLIPS & CLAMPS
C Ref.
A
Specifications:
• Material: Aluminum,
Bright Finish
Features:
• Aluminum arms are
flexed around bundle
• Lightweight and durable
• Adhesive mount for
quick installation
Item
No. Figure
Ø Max Bundle AB Base Depth Bulk
Pack
Qtyin mm in mm in mm
ASK-3 1 0.234 6.0 0.44 11.3 0.66 16.8 250
ASK-6 1 0.375 9.5 0.62 15.7 0.74 18.8 250
RAK-1 2 0.234 6.0 0.44 11.3 0.67 17.1 250
RAK-2 2 0.375 9.5 0.64 16.3 0.76 19.3 250

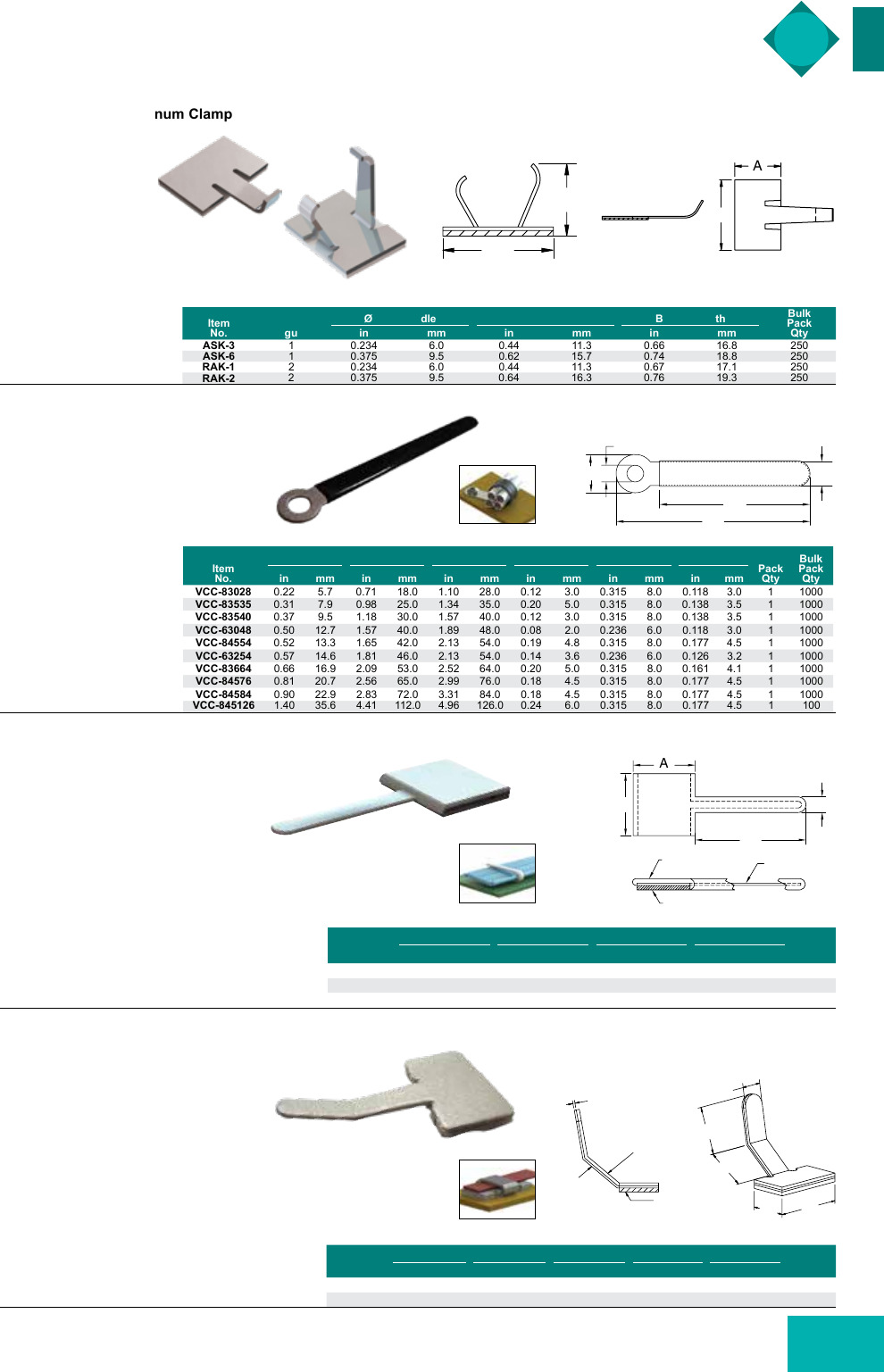

ASK/RAK Series
Adhesive Mount Aluminum Clamp
A
B
W
C
L
A
B
VCC Series
Vinyl Coated Adjustable Steel Clamp
Specifications:
• Material: PVC Coated Soft Steel
• Color: Body - Steel Coating - Black
Item
No.
Ø Bundle C Ref. L Ref. W Ref. AØ B Pack
Qty
Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
VCC-83028 0.22 5.7 0.71 18.0 1.10 28.0 0.12 3.0 0.315 8.0 0.118 3.0 1 1000
VCC-83535 0.31 7.9 0.98 25.0 1.34 35.0 0.20 5.0 0.315 8.0 0.138 3.5 1 1000
VCC-83540 0.37 9.5 1.18 30.0 1.57 40.0 0.12 3.0 0.315 8.0 0.138 3.5 1 1000
VCC-63048 0.50 12.7 1.57 40.0 1.89 48.0 0.08 2.0 0.236 6.0 0.118 3.0 1 1000
VCC-84554 0.52 13.3 1.65 42.0 2.13 54.0 0.19 4.8 0.315 8.0 0.177 4.5 1 1000
VCC-63254 0.57 14.6 1.81 46.0 2.13 54.0 0.14 3.6 0.236 6.0 0.126 3.2 1 1000
VCC-83664 0.66 16.9 2.09 53.0 2.52 64.0 0.20 5.0 0.315 8.0 0.161 4.1 1 1000
VCC-84576 0.81 20.7 2.56 65.0 2.99 76.0 0.18 4.5 0.315 8.0 0.177 4.5 1 1000
VCC-84584 0.90 22.9 2.83 72.0 3.31 84.0 0.18 4.5 0.315 8.0 0.177 4.5 1 1000
VCC-845126 1.40 35.6 4.41 112.0 4.96 126.0 0.24 6.0 0.315 8.0 0.177 4.5 1 100
PFC Series
Adhesive Mount Foam Coated
Adjustable Steel Clamp
PCC Series
Adhesive Mount Vinyl Coated
Adjustable Steel Clamp
Item
No.
A Ref. BC Ref. D Ref. Bulk
Pack
Qtyin mm in mm in mm in mm
PCC-5 0.31 8.0 0.31 8.0 0.59 15.0 0.08 2.1 1000
PCC-9 0.55 14.0 0.55 14.0 0.98 25.0 0.14 3.5 500
PCC-12 0.75 19.0 0.75 19.0 1.58 40.0 0.16 4.0 500
Ta pe
PVC Coating
.04 (1.0) Thick
A
B
C
D
Soft Steel
.02 (0.5) Thic
k
Specifications:
• Material: Soft Steel with PVC Coating
• Color: White
Features:
• Protects and insulates wires or components
• Flexible arm holds flat, round, or oddly
shaped components
• Arm may be opened or closed repeatedly
and reshaped for varying holding diameters
Item
No.
A Ref. B Ref. C Ref. D E Bulk
Pack
Qtyin mm in mm in mm in mm in mm
PFC-25M 0.189 4.8 0.494 12.6 0.437 11.1 0.397 10.1 0.751 19.1 1000
PFC-50M 0.205 5.2 0.573 14.6 0.555 14.1 0.553 14.1 0.982 25.0 1000
B
Protective Foam
.03 (0.8) Thick
.02 (0.5)
Aluminum
.04 (1.0) Thick
Double Adhesive Tape
C
A
DE
Specifications:
• Material: Foam Coated Aluminum
• Color: Grey Coated
Features:
• Made of aluminum with a protective foam
coating on the inside of the clamp that
protects cables and fibers
• Flexible arm holds flat, round or oddly shaped
components
• Arm may be opened or closed repeatedly and
reshaped for varying holding diameters
Features:
• For bundling and
clamping cable or
tubing securely
• Vinyl coating grips
and insulates the cable
• Easily bends and forms
to desired shape for
varying holding
diameters
(€63
ff
FIBER, WIRE & CABLE MANAGEMENT
192 tel | 800 847 0486 fax | 866 561 6617
CABLE CLIPS & CLAMPS
1/4 (6.4)
1/4 (6.4)
1.00 (25.4)
.45
(11.4)
WCB Series
Cord Clip On Adhesive Base
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Routes and fastens cords and cables
• Adhesive mount design for quick and
easy installation
Depth Bulk
Pack
Qty
Item
No. Approval in mm
WCB-250-01A-RT 0.500 12.7 1000
SCCA/SCCB Series
Standoff Cable Clip
Specifications:
• Material: Nylon 6/6
• Color: Natural
• Mounting Hole: .256 - .276 (6.5 - 7.0)
• Panel Thickness: .024 - 0.079 (0.6 - 2.0)
Features:
• Gathers and routes wires
• Standoff design provides spacing between the wires and chassis
A
Ø.67
(17.0)
.66
(16.5)
.37
(9.4)
Figure 1
1.07
(27.0)
.37
(9.4)
A
Ø.67
(17.0)
Figure 2
RWS/RWSB Series
Round Clamp
Specifications:
• Material: Nylon 6/6
• Color: See Table
Features:
• Gathers and routes cables nd wires
• Push mount design allows for fast installation
• Adhesive base makes installation quick and easy
ØD
31/32
(24.6)
11/32 (8.7)
Figure 1
Item No. Mounting
Method Approval Figure
Ø D Holding Mounting Hole Panel Thickness Depth Bulk
Pack
Qtyin mm in mmUL94 V-2 UL94 V-0 in mm In mm Color
RWS-10-01 RWS-10-19 Snap-In 1 0.625 15.9 Ø.250 6.4 0.030 - 0.060 0.8 - 1.5 0.297 17.5 Natural 1000
RWS-10-01BK — Snap-In 1 0.625 15.9 Ø.250 6.4 0.030 - 0.060 0.8 - 1.5 0.297 17.5 Black 1000
RWS-16-01 RWS-16-19 Snap-In 2 1.000 25.4 .250 Square 6.4 0.058 - 0.064 1.5 - 1.6 0.297 17.5 Natural 1000
RWS-16-01BK — Snap-In 2 1.000 25.4 .250 Square 6.4 0.058 - 0.064 1.5 - 1.6 0.297 17.5 Black 1000
RWSB-10-01A-RT — Adhesive — 3 0.625 15.9 — — — — 1.000 25.4 Natural 1000
RWSB-16-01A-RT — Adhesive — 3 1.000 25.4 — — — — 1.000 25.4 Natural 1000
RWSB-10-01 — Screw — 3 0.625 15.9 — — — — 1.000 25.4 Natural 1000
RWSB-16-01 — Screw — 3 1.000 25.4 — — — — 1.000 25.4 Natural 1000
ØD
1-11/32
(34.1)
5/16 (7.9)
Figure 2
1.00
(25.4)
Square
.25
(6.4)
1/8 (3.2)
Slot
ØD
5/16
(7.9)
Figure 3
Item No. Ø Max Bundle ABulk
Pack
QtyUL94 V-2 UL94 V-0 Figure in mm in mm
SCCA-1-01 SCCA-1-19 1 0.87 22.0 0.16 4.0 1000
SCCA-2-01 SCCA-2-19 1 0.87 22.0 0.24 6.0 1000
SCCA-3-01 SCCA-3-19 1 0.87 22.0 0.32 8.0 1000
SCCA-4-01 — 1 0.87 22.0 0.39 10.0 1000
SCCA-5-01 SCCA-5-19 1 0.87 22.0 0.47 12.0 1000
SCCB-1-01 SCCB-1-19 2 0.43 11.0 0.16 4.0 1000
SCCB-2-01 — 2 0.43 11.0 0.24 6.0 1000
SCCB-3-01 SCCB-3-19 2 0.43 11.0 0.32 8.0 1000
SCCB-4-01 — 2 0.43 11.0 0.39 10.0 1000
SCCB-5-01 SCCB-5-19 2 0.43 11.0 0.47 12.0 1000
SCCB-6-01 — 2 0.43 11.0 1.18 30.0 1000
chssmm 1 am 127 nm 111 1000
as
‘31.?
(j ( I Lig; . I
snxssuum _

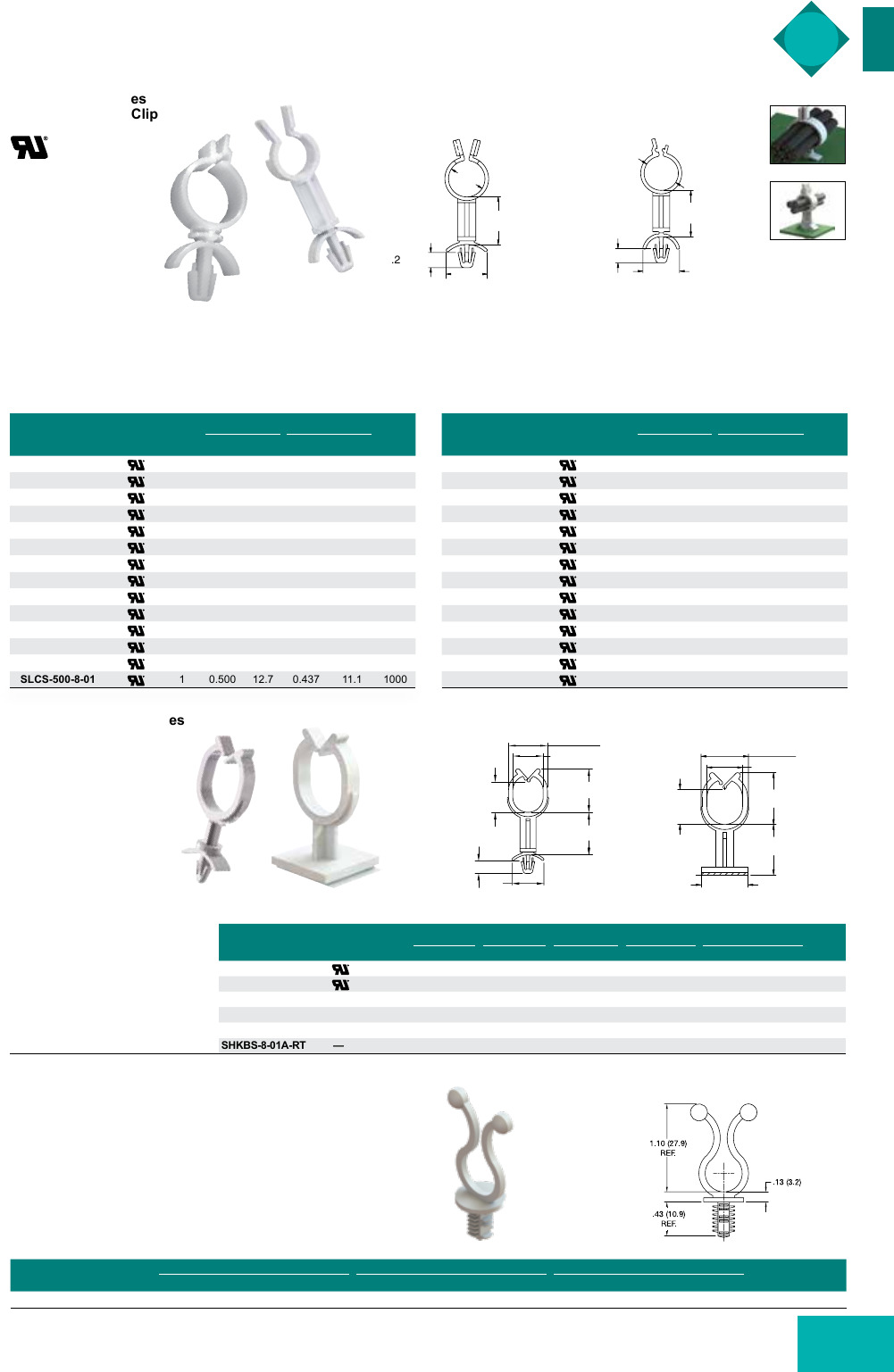

193
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CABLE CLIPS & CLAMPS
A
.56 (14.3)
.22 (5.6)
ØC
Figure 1
ØC
A
.22 (5.6)
.56 (14.3)
Figure 2
SLCS/SLCSE Series
Standoff Locking Clip
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
• Mounting Hole: .187 (4.8)
• SLCS/SLCSE Panel Thickness: 0.031 - 0.078 (0.8 - 2.0)
• SLCSE2 Panel Thickness: 0.078 - 0.160 (2.0 - 4.0)
Item No. Approval Figure
AØ C Max Bundle Bulk
Pack
Qtyin mm in mm
SLCS-250-3-01 1 0.187 4.8 0.187 4.8 1000
SLCS-250-4-01 1 0.250 6.4 0.187 4.8 1000
SLCS-250-6-01 1 0.375 9.5 0.187 4.8 1000
SLCS-250-8-01 1 0.500 12.7 0.187 4.8 1000
SLCS-250-16-01 1 1.000 25.4 0.187 4.8 1000
SLCS-370-3-01 1 0.187 4.8 0.312 7.9 1000
SLCS-370-4-01 1 0.250 6.4 0.312 7.9 1000
SLCS-370-6-01 1 0.375 9.5 0.312 7.9 1000
SLCS-370-8-01 1 0.500 12.7 0.312 7.9 1000
SLCS-370-16-01 1 1.000 25.4 0.312 7.9 1000
SLCS-500-3-01 1 0.187 4.8 0.437 11.1 1000
SLCS-500-4-01 1 0.250 6.4 0.437 11.1 1000
SLCS-500-6-01 1 0.375 9.5 0.437 11.1 1000
SLCS-500-8-01 1 0.500 12.7 0.437 11.1 1000
SHK/SHKE/SHKBS Series
Standoff Cable Clip
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Gathers and routes wire
harnesses
• Standoff design provides
spacing between the wire
harnesses and the chassis
9/16 (14.3)
7/32
(5.6)
A
C
B
.71 (18.0)
.54 (13.6)
Figure 1
.70 (17.8) Square
A
.78 (19.5)
.53
(13.6)
.54 (13.6).71 (18.0)
Figure 2
Item
No. Approval
AB Ref. C Ref. Ø Mounting
Hole Panel Thickness Bulk
Pack
Qty
Figure in mm in mm in mm in mm in mm
SHK-6-01 10.375 9.5 0.540 13.6 0.770 19.5 0.187 4.8 0.031 - 0.78 0.8 - 2.0 1000
SHK-8-01 10.500 12.7 0.540 13.6 0.770 19.5 0.187 4.8 0.031 - 0.78 0.8 - 2.0 1000
SHKE-6-01 —10.375 9.5 0.810 20.6 1.140 29.0 0.187 4.8 0.031 - 0.78 0.8 - 2.0 1000
SHKE-8-01 —10.500 12.7 0.810 20.6 1.140 29.0 0.187 4.8 0.031 - 0.78 0.8 - 2.0 1000
SHKBS-4-01A-RT —20.250 6.4 — — — — — — — — 1000
SHKBS-8-01A-RT —20.500 12.7 — — — — — — — — 1000
Item No. Approval Figure
AØ C Max Bundle Bulk
Pack
Qtyin mm in mm
SLCS-500-16-01 1 1.000 25.4 0.437 11.1 1000
SLCS-750-3-01 1 0.187 4.8 0.687 17.5 1000
SLCS-750-4-01 1 0.250 6.4 0.687 17.5 1000
SLCS-750-6-01 1 0.375 9.5 0.687 17.5 1000
SLCS-750-8-01 1 0.500 12.7 0.687 17.5 1000
SLCS-750-16-01 1 1.000 25.4 0.687 17.5 1000
SLCSE-250-3-01 2 0.187 4.8 0.220 5.6 1000
SLCSE-370-3-01 2 0.187 4.8 0.350 8.9 1000
SLCSE-500-3-01 2 0.187 4.8 0.470 12.0 1000
SLCSE-750-3-01 2 0.187 4.8 0.730 18.4 1000
SLCSE2-250-3-01 2 0.187 4.8 0.220 5.6 1000
SLCSE2-370-3-01 2 0.187 4.8 0.350 8.9 1000
SLCSE2-500-3-01 2 0.187 4.8 0.470 12.0 1000
SLCSE2-750-3-01 2 0.187 4.8 0.730 18.4 1000
Features:
• Gathers and routes wires
• Easy locking design makes it easy to open and close with very little effort
• Standoff design provides spacing between the wires and the chassis
STL-8 Series
Standoff Twist Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Lifts wires off board to isolate from other board components
• Cable and wire bundles load and unload with a fingertip twist
Item
No.
Ø Bundle Hole Ø Min Board Thickness Bulk Pack
Qtyin mm in mm in mm
STL-8-450-2-01 0.400 - 0.500 10.2 - 12.7 0.250 6.4 0.250 7.2 1000
l
Bu‘k
Hem pm
No we .11 mm 1.. mm m mm Qty
madman u e 300- own 7 5-10 2 use 5 4 1 can 251 me
amuse-1M1 u neon-own 7e.1u 17525 159 1mm 25A 1oee
mafia-4111 w em. osee 1u.127 use 54 1125 235 me
Bun-451M411 u Moo-05m 1172.127 0375 95 1125 2139 1oee
mums-um In e mo- 0 am 17 a . 2e 3 use 5 4 1 500 131 me
anxusum w e7m.oaen 17.3.2123 0375 95 1500 3131 1oee
\
\
Bu‘k
Hem pm
No mu m mm 171 mm .1. mm my
KLmso-Anu u ezso 54 awmmoa 75.172 1231 325 1oee
11554511447111 u nsm 127 nsee.eme 7s.1e2 15:11 339 men
xmsasmuu u e750 191 awmmoa 75.172 1731 152 1oee
KLBsasmunA u 1mm 254 nsee.eme 7s.1e2 21131 513 men
FIBER, WIRE & CABLE MANAGEMENT
194 tel | 800 847 0486 fax | 866 561 6617
TWIST TIES
Hole Ø: .187 (4.75)
Panel Thickness:
.031-.078 (0.8-2)
.22
(5.6)
.56
(14.3) Ref.
.58
(15.9) Ref.
.26
(6.6)
STL-1 STL-3 STL-6
Hole Ø: .156 (4)
Panel Thickness:
.031-.078 (0.8-2)
.44
(11.1)
.34
(8.7) Ref.
Hole Ø: .312 (7.9)
Panel Thickness:
.250 (7.9) Minimum
Hole Ø: .236 (6)
Panel Thickness:
.031-.078 (0.8-2)
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Lifts wires off board to isolate from
other board components
• Cable and wire bundles load and
unload with a fingertip twist
• Four mounting styles
STL Basic Style
D
Bundle Ø B
A
See Individual Styles for Mounting Details
Item No.
Approval
Ø D Bundle A Spacer Length B Ref. Bulk
Pack
QtySTL Basic Style STL-1 STL-3 STL-6 in mm in mm in mm
STL-250-3-01 STL-1-250-3-01 STL-3-250-3-01 STL-6-250-3-01 0.200 - 0.300 5.1 - 7.6 0.187 4.8 0.750 19.1 1000
STL-250-8-01 STL-1-250-8-01 STL-3-250-8-01 STL-6-250-8-01 0.200 - 0.300 5.1 - 7.6 0.500 12.7 0.750 19.1 1000
STL-350-3-01 STL-1-350-3-01 STL-3-350-3-01 STL-6-350-3-01 0.300 - 0.400 7.6 - 10.2 0.187 4.8 0.910 23.1 1000
STL-350-8-01 STL-1-350-8-01 STL-3-350-8-01 STL-6-350-8-01 0.300 - 0.400 7.6 - 10.2 0.500 12.7 0.910 23.1 1000
STL-450-3-01 STL-1-450-3-01 STL-3-450-3-01 STL-6-450-3-01 0.400 - 0.500 10.2 - 12.7 0.187 4.8 1.090 27.7 1000
STL-450-8-01 STL-1-450-8-01 STL-3-450-8-01 STL-6-450-8-01 0.400 - 0.500 10.2 - 12.7 0.500 12.7 1.090 27.7 1000
STL-600-3-01 STL-1-600-3-01 STL-3-600-3-01 STL-6-600-3-01 0.500 - 0.600 12.7 - 15.2 0.187 4.8 1.280 32.5 1000
STL-600-8-01 STL-1-600-8-01 STL-3-600-8-01 STL-6-600-8-01 0.500 - 0.600 12.7 - 15.2 0.500 12.7 1.280 32.5 1000
STL-750-3-01 STL-1-750-3-01 STL-3-750-3-01 STL-6-750-3-01 0.700 - 0.800 17.8 - 20.3 0.187 4.8 1.450 36.8 1000
STL-750-8-01 STL-1-750-8-01 STL-3-750-8-01 STL-6-750-8-01 0.700 - 0.800 17.8 - 20.3 0.500 12.7 1.450 36.8 1000
STL Series
Standoff Twist Lock
BHKL Series
Fir-Tree Curly Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
• To press fit in a .312 (7.9) Ø hole in a
.250 (6.4) minimum panel thickness
Features:
• Ends twist into place with very little
effort
• Releasable and reusable for easy
wire bundling
• Rounded edges prevent abrasion
ØB
C
A
11/32 (8.7)
Item
No.
Ø B Bundle AC Ref. Bulk
Pack
QtyApproval in mm in mm in mm
BHKL-350-4-01 0.300 - 0.400 7.6 - 10.2 0.250 6.4 1.000 25.4 1000
BHKL-350-10-01 0.300 - 0.400 7.6 - 10.2 0.625 15.9 1.000 25.4 1000
BHKL-450-4-01 0.400 - 0.500 10.2 - 12.7 0.250 6.4 1.125 28.6 1000
BHKL-450-6-01 0.400 - 0.500 10.2 - 12.7 0.375 9.5 1.125 28.6 1000
BHKL-750-4-01 0.700 - 0.800 17.8 - 20.3 0.250 6.4 1.500 38.1 1000
BHKL-750-6-01 0.700 - 0.800 17.8 - 20.3 0.375 9.5 1.500 38.1 1000
KLBS Series
Adhesive Mount Standoff Curly Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Ends twist into place with very little
effort
• Releasable and reusable for easy
wire bundling
• Rounded edges prevent abrasion
CØB
A
1.00 (25.4)
Square
Item
No.
AØ B Bundle C Ref. Bulk
Pack
QtyApproval in mm in mm in mm
KLBS-350-401A 0.250 6.4 0.300 - 0.400 7.6 - 10.2 1.281 32.5 1000
KLBS-3508-01A 0.500 12.7 0.300 - 0.400 7.6 - 10.2 1.531 38.9 1000
KLBS-35012-01A 0.750 19.1 0.300 - 0.400 7.6 - 10.2 1.781 45.2 1000
KLBS-35016-01A 1.000 25.4 0.300 - 0.400 7.6 - 10.2 2.031 51.6 1000
L——|
5qu
«gm — 7 7 Pack
Nu, m mm m mm m m my
museum I: moo—am “Mo: 1070 272 am an mno
10.54511“?! u nun-um 102-127 1m 312 am 130 mm
museum I: emu—am Iva—ma 15m 401 am an mno
W 4 J
mm.“ mm mu m m mm
SKLASASI)
2 Moo-041a 100-120 112“ 254 men
195
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

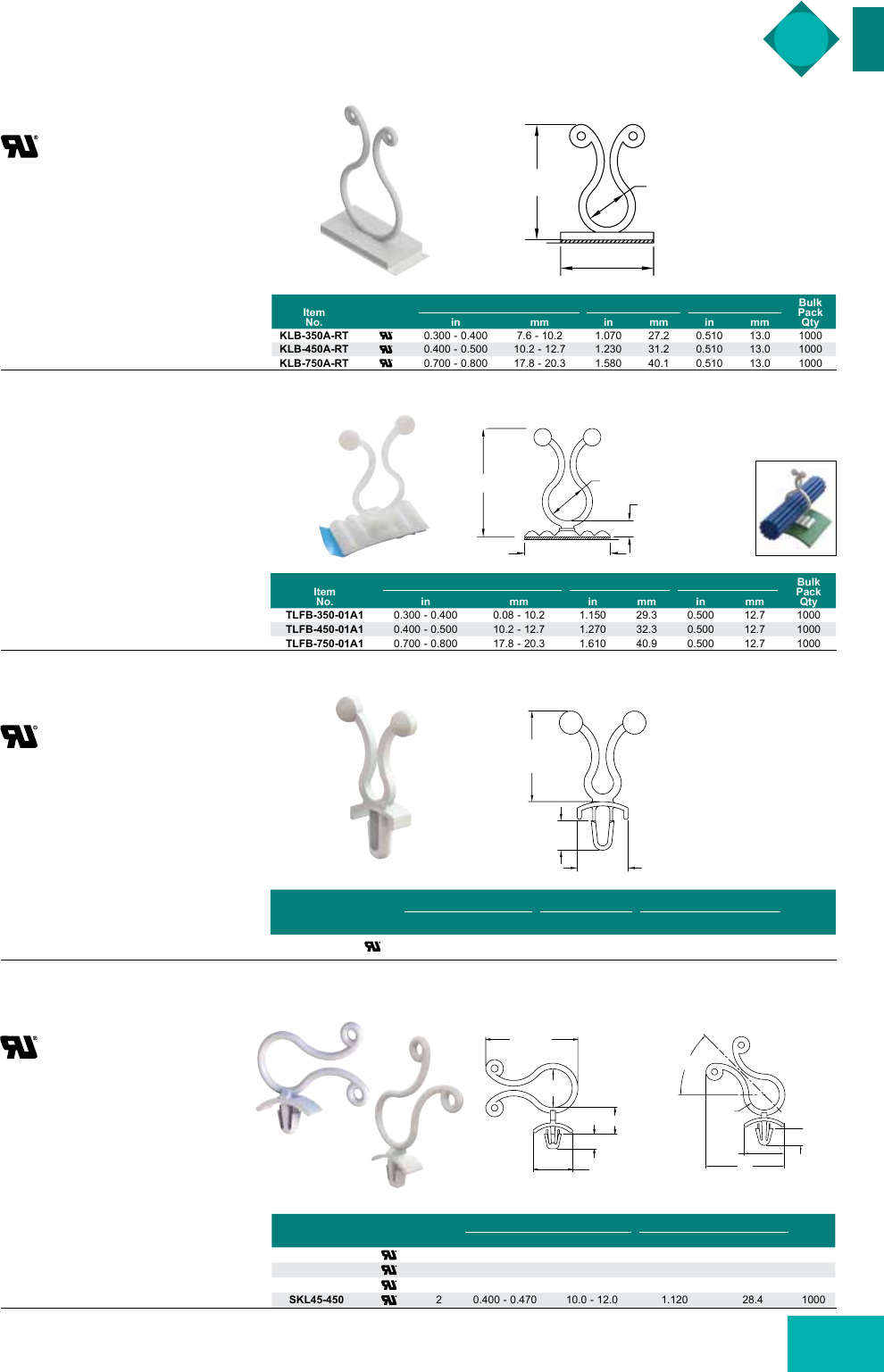

TWIST TIES
Item
No. Approval
Ø B Bundle A Ref. Base Depth Bulk
Pack
Qtyin mm in mm in mm
KLB-350A-RT 0.300 - 0.400 7.6 - 10.2 1.070 27.2 0.510 13.0 1000
KLB-450A-RT 0.400 - 0.500 10.2 - 12.7 1.230 31.2 0.510 13.0 1000
KLB-750A-RT 0.700 - 0.800 17.8 - 20.3 1.580 40.1 0.510 13.0 1000
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Cables are locked in place with a
fingertip twist
• Cables are easily removable with
another fingertip twist
• Quick mounting adhesive base does
not require through-hole
ØB
A
1.00 (25.4)
KLB Series
Adhesive Mount Curly Lock
Item
No.
Ø B Bundle A Ref. Base Depth Bulk
Pack
Qtyin mm in mm in mm
TLFB-350-01A1 0.300 - 0.400 0.08 - 10.2 1.150 29.3 0.500 12.7 1000
TLFB-450-01A1 0.400 - 0.500 10.2 - 12.7 1.270 32.3 0.500 12.7 1000
TLFB-750-01A1 0.700 - 0.800 17.8 - 20.3 1.610 40.9 0.500 12.7 1000
AØB
3/16 (4.8)
1.00 (25.4)
TLFB Series
Twist Lock on Flexible Adhesive Base
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Flexible rubber based adhesive base
can be mounted onto contoured
surfaces
• Cables are locked into place with a
fingertip twist
ØD
.84
(21.5)
.28
(7.0)
.47 (12.0)
Item
No. Approval
D Ø Bundle Ø Mounting Hole Panel Thickness
Bulk
Pack QtyIn mm In mm In mm
TLJ-200-01 0.500-0.600 12.7-15.2 0.187 4.8 0.031 - 0.078 0.8 - 2.0 1000
TLJ Series
Snap In Twist Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Ends twist into place with very little
effort
• Releasable and reusable for easy
wire bundling
SKL/SKLO Series
Side Entry & 45° Curly Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
• Mounting Hole: .187 (4.8)
• Panel Thickness: .031 - .078 (0.8 - 2.0)
Features:
• Gathers and routes wires
• Ends twist into place with very little
effort
• Releasable and reusable for easy
wire bundling
• Eases installation in hard to reach
places
Item
No. Approval Figure
Ø A Bundle B Ref. Bulk
Pack
Qtyin mm in mm
SKLO-550-01 10.500 - 0.600 12.7 - 15.2 See Figure 1 1000
SKL45-250 20.150 - 0.250 3.8 - 6.35 0.980 24.9 1000
SKL45-350 20.300 - 0.400 7.6 - 10.0 1.070 27.2 1000
SKL45-450 20.400 - 0.470 10.0 - 12.0 1.120 28.4 1000
1.31
(33.3)
.38 (9.5)
.22 (5.6)
.56 (14.3)
AØ
Figure 1
45°
ØA
.26 (6.6)
.59
(15.0)
B
Figure 2
“
A
_

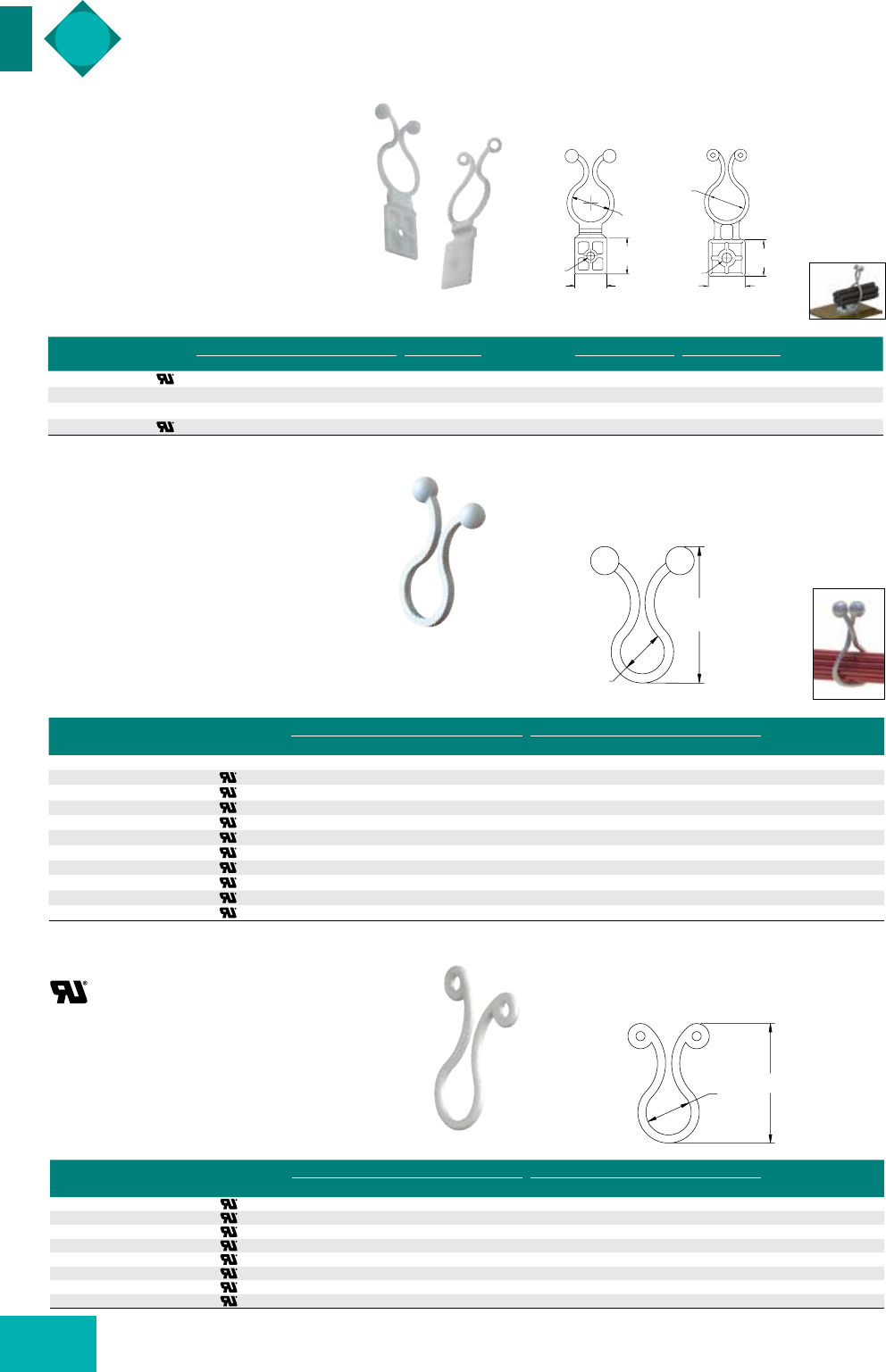

FIBER, WIRE & CABLE MANAGEMENT
196 tel | 800 847 0486 fax | 866 561 6617
TWIST TIES
Item
No. Approval
Ø D Bundle Ø H Hole Recommended
Screw Size
A B
Figure
Bulk
Pack
Qtyin mm in mm in mm in mm
TLH-800-01 0.750 - 0.850 19.0 - 21.6 0.160 4.1 #6 or M3 0.75 19.0 0.67 17.0 11000
TLH-500-01 —0.450 - 0.550 11.4 - 14.0 0.170 4.2 #8 or M4 0.56 14.2 0.55 14.0 11000
TLHE-1-750-01 —0.700 - 0.800 17.8 - 20.3 0.204 5.2 #10 or M5 0.75 19.0 0.67 17.0 11000
KLH-750-01 0.700 - 0.800 17.8 - 20.3 0.204 5.2 #10 or M5 0.75 19.0 0.75 19.0 21000
KLH/TLH/TLHE Series
Screw Mount Hinged Twist Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Ends twist into place with very little effort
• Releasable and reusable for easy wire bundling
• Hinged design makes it easier to adjust your
wire angles as needed for the application
• Screw mount design for easy and fast assembly
ØH
B
A
ØD
ØD
ØH
B
A
Figure 2
Figure 1
Item
No. Approval
Ø B Bundle A Ref.
Bulk Pack Qtyin mm in mm
TT001A —0.150 - 0.190 3.8 - 4.8 0.85 21.6 100
TL-250 0.200 - 0.300 5.1 - 7.6 0.90 22.9 1000
TL-350 0.300 - 0.400 7.6 - 10.2 1.03 26.1 1000
TL-450 0.400 - 0.500 10.2 - 12.7 1.20 30.5 1000
TL-600 0.550 - 0.650 14.0 - 16.5 1.33 33.7 1000
TL-750 0.700 - 0.800 17.8 - 20.3 1.55 39.4 1000
TL-950 Max 1.000 25.4 1.70 43.4 1000
TL-1125 Max 1.187 30.2 2.19 55.6 1000
TL-1375 Max 1.437 36.5 2.68 68.1 1000
TL-1500 Max 1.562 39.7 2.93 74.4 1000
TL-1750 Max 1.812 46.0 3.45 87.6 1000
TL/TT Series
Twist Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Ends twist into place with very little effort
• Releasable and reusable for easy wire bundling
• Smooth ball shaped ends won't cut into wire or cable insulation
KL Series
Curly Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Ends twist into place with very little effort
• Releasable and reusable for easy wire bundling
• Rounded edges prevent abrasion
A
ØB
Item
No. Approval
Ø B Bundle A Ref. Bulk
Pack
Qtyin mm in mm
KL-125 0.125 - 0.150 3.2 - 3.8 0.48 12.2 1000
KL-200 0.160 - 0.240 4.1 - 6.1 0.82 20.7 1000
KL-250 0.200 - 0.300 5.1 - 7.6 0.91 23.0 1000
KL-350 0.300 - 0.400 7.6 - 10.2 1.03 26.2 1000
KL-450 0.400 - 0.500 10.2 - 12.7 1.20 30.5 1000
KL-600 0.550 - 0.650 14.0 -16.5 1.25 31.8 1000
KL-750 0.700 - .0800 17.8 - 20.3 1.52 38.6 1000
KL-950 0.900 - 1.000 22.9 - 25.4 1.75 44.5 1000
A
ØB
Bu‘k
um Pack
No my
sens-2 leer, w/n mm“: (see 1 . 1m
sen-2 w/o Spacer, wlo Hardwave mo
scHs-e-H w/ Spins, wl Clampmg N-mnre 1m
scH-a-H w/a Spam w/ cmmpmg Hardware mo
197
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

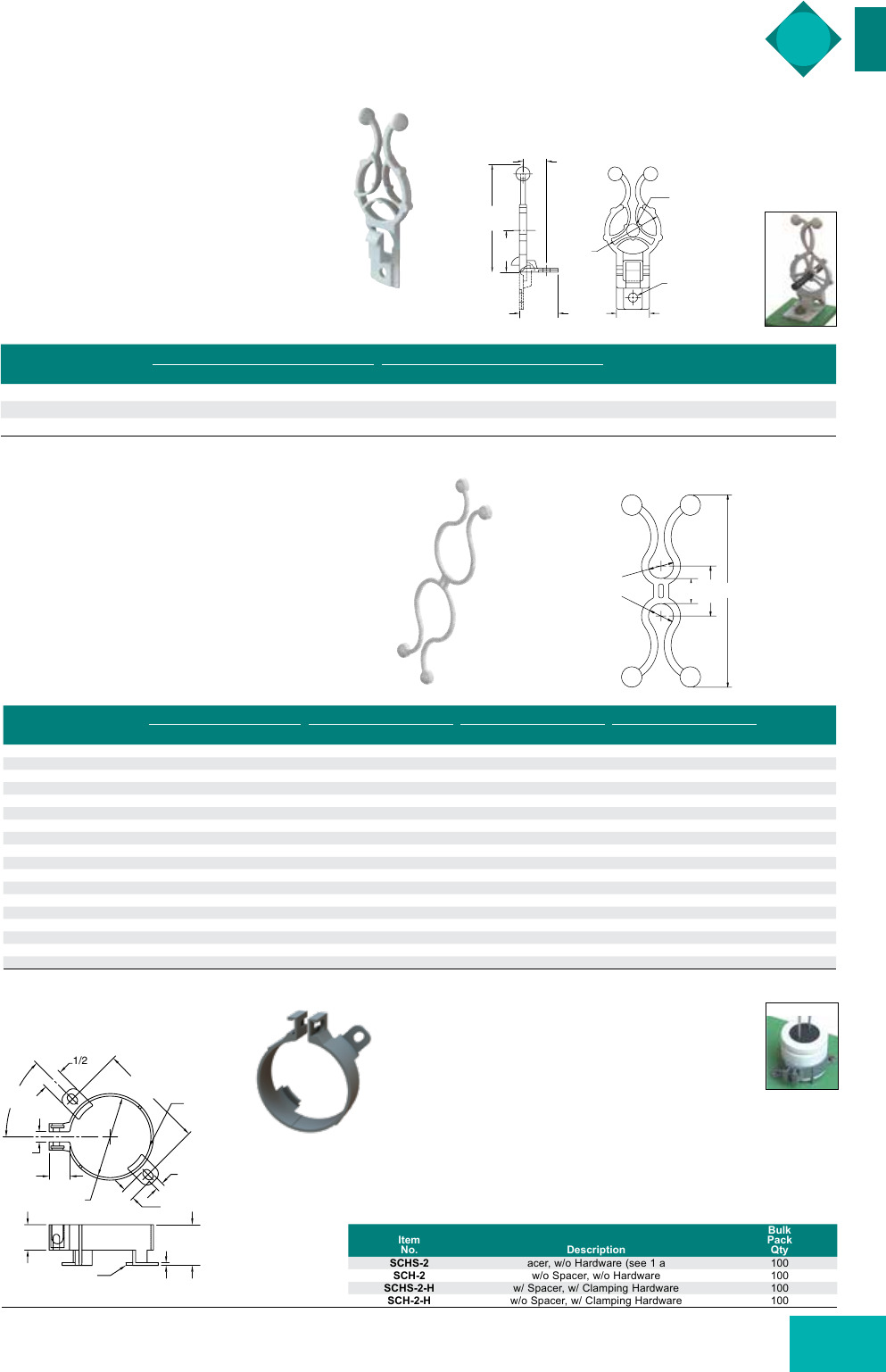

TWIST TIES/CABLE CLIPS & CLAMPS
Item
No.
Ø Bundle D Ø H Hole Recommended
Screw Size
Bulk
Pack
Qtyin mm in mm
WTLH90-300-4-01 0.140 - 0.480 3.6 - 12.2 0.130 3.3 #4 or M3 500
WTLH90-300-6-01 0.140 - 0.480 3.6 - 12.2 0.150 3.8 #6 or M3.5 500
WTLH90300-M4-01 0.140 - 0.480 3.6 - 12.2 0.170 4.3 #8 or M4 500
.65
(16.5)
.39
(10.0)
.55 (14.0)
1.80
(45.0)
.69
(17.5) Ø.94
ØD
Bundle
Range
ØH
WTLH Series
Webbed Hinged Twist Lock
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Once clamp is hinged, it locks into position
• Webbed design provides a positive lock
ØA
CDE
ØB
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Routes and separates two bundles
• Six bundle diameter ranges; from .20” - .80”
• Three spacer lengths; 1/4”, 3/4” and 1-1/4”
• Cables are locked in place with a fingertip twist
Item
No.
Ø A and Ø B Bundle CD Ref. E Ref. Bulk Pack
Qtyin mm in mm in mm in mm
DTL2525-4-01 0.200 - 0.300 5.1 - 7.6 0.250 6.4 0.50 12.7 1.92 48.8 500
DTL2525-12-01 0.200 - 0.300 5.1 - 7.6 0.750 19.1 1.00 25.4 2.42 61.5 500
DTL2525-20-01 0.200 - 0.300 5.1 - 7.6 1.250 31.8 1.50 38.1 2.92 74.2 500
DTL3535-4-01 0.300 - 0.400 7.6 - 10.2 0.250 6.4 0.60 15.2 2.18 55.4 500
DTL3535-12-01 0.300 - 0.400 7.6 - 10.2 0.750 19.1 1.10 27.9 2.68 68.1 500
DTL3535-20-01 0.300 - 0.400 7.6 - 10.2 1.250 31.8 1.60 40.6 3.18 80.8 500
DTL4545-4-01 0.400 - 0.500 10.2 - 12.7 0.250 6.4 0.60 15.2 2.18 55.4 500
DTL4545-12-01 0.400 - 0.500 10.2 - 12.7 0.750 19.1 1.10 27.9 2.68 68.1 500
DTL4545-20-01 0.400 - 0.500 10.2 - 12.7 1.250 31.8 1.60 40.6 3.18 80.8 500
DTL5555-4-01 0.500 - 0.600 12.7 - 15.2 0.250 6.4 0.60 15.2 2.18 55.4 500
DTL5555-12-01 0.500 - 0.600 12.7 - 15.2 0.750 19.1 1.10 27.9 2.68 68.1 500
DTL5555-20-01 0.500 - 0.600 12.7 - 15.2 1.250 31.8 1.60 40.6 3.18 80.8 500
DTL6565-4-01 0.600 - 0.700 15.2 - 17.8 0.250 6.4 0.60 15.2 2.18 55.4 500
DTL6565-12-01 0.600 - 0.700 15.2 - 17.8 0.750 19.1 1.10 27.9 2.68 68.1 500
DTL6565-20-01 0.600 - 0.700 15.2 - 17.8 1.250 31.8 1.60 40.6 3.18 80.8 500
DTL7575-4-01 0.700 - 0.800 17.8 - 20.3 0.250 6.4 1.00 25.4 3.10 78.7 500
DTL7575-12-01 0.700 - 0.800 17.8 - 20.3 0.750 19.1 1.50 38.1 3.60 91.4 500
DTL7575-20-01 0.700 - 0.800 17.8 - 20.3 1.250 31.8 2.00 50.8 4.10 104.1 500
DTL Series
Dual Twist Lock
Specifications:
• Material: UL94 HB Glass Filled Nylon 6/6
• Color: Black
Optional:
1. Clamping hardware; Screw (S6B) Stainless Steel, Zinc Plating;
Quick Nut (QN-6) Spring Steel C1050, Coating: Black Phosphate
2. Spacer to elevate capacitor 3/32 (2.4) from chassis
3. Anti-rotation rib (3 locations)
SCH/SCHS Series
Standoff Capacitor Holder
45°
Ref.
1/2
(12.7)
1/4
(6.4)
1/2
(12.7)
5/8
(15.9)
1/16 (1.6)
1.00
(25.4)
9/32
(7.1)
3/16
(4.8)
2-5/8
(66.7)
SEE NOTE 2
SEE
NOTE
3
2.00 (50.8)
Item
No. Description
Bulk
Pack
Qty
SCHS-2 w/ Spacer, w/o Hardware (see 1 above) 100
SCH-2 w/o Spacer, w/o Hardware 100
SCHS-2-H w/ Spacer, w/ Clamping Hardware 100
SCH-2-H w/o Spacer, w/ Clamping Hardware 100
Hem
Nu.
12m
am
12371
mu
mm
mm
mm)
mm
12a92
mu
1m:
mu
mas
mu
aggg:3mwnm.m=
0299
o 393
0 mo
0 see
0 m
o 759
0 age
1 mm
1 we
1 m
| m
1 see
1 m
1 so:
254
279
zoo
ass
Ann
457
so:
Bulk
Pack
my
mo
mo
mo
mo
mo
mo
mo
mo
so
so
so
so
so

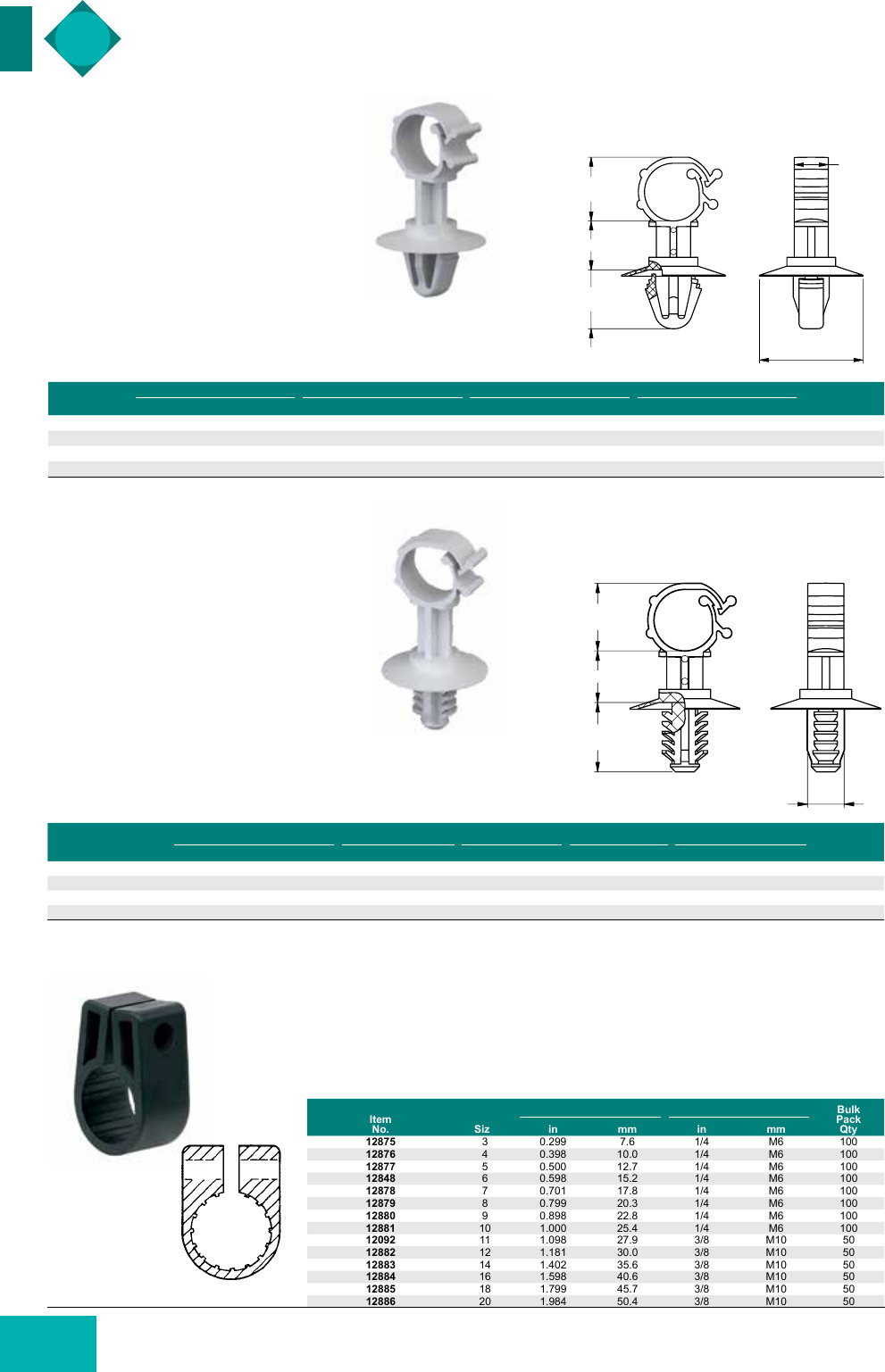

FIBER, WIRE & CABLE MANAGEMENT
198 tel | 800 847 0486 fax | 866 561 6617
CABLE CLIPS & CLEATS
Cable Cleats
Specifications:
• Material: Low-Density Polyethylene
• Color: Black
SCC Series
Standoff Cable Clip Side Entry
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Features:
• Different spacer heights to lift cables away from other components
• Cables securely held in place
Item
No.
AØ Mounting Hole Panel Thickness Range Ø Max Bundle Bulk
Pack
Qtyin mm in mm in mm in mm
SCC-SE-4-19 0.157 4.0 0.256 - 0.276 6.5 - 7.0 0.031 - 0.049 0.8 - 1.25 0.354 9.0 1000
SCC-SE-8-19 0.315 8.0 0.256 - 0.276 6.5 - 7.0 0.031 - 0.049 0.8 - 1.25 0.354 9.0 1000
SCC-SE-10-19 0.394 10.0 0.256 - 0.276 6.5 - 7.0 0.031 - 0.049 0.8 - 1.25 0.354 9.0 1000
SCC-SE-12-19 0.472 12.0 0.256 - 0.276 6.5 - 7.0 0.031 - 0.049 0.8 - 1.25 0.354 9.0 1000
SCCBH Series
Standoff Cable Clip Side Entry
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Features:
• Different spacer heights to lift cables away from other components
• Cables securely held in place
Item
No.
AØ Mounting Hole Min. Panel
Thickness AØ Max Bundle Bulk
Pack
Qtyin mm in mm in mm in mm in mm
SCCBH-SE-4-19 0.157 4.0 0.256 6.5 0.028 0.7 0.157 4.0 0.354 9.0 1000
SCCBH-SE-8-19 0.315 8.0 0.256 6.5 0.028 0.7 0.315 8.0 0.354 9.0 1000
SCCBH-SE-10-10 0.394 10.0 0.256 6.5 0.028 0.7 0.394 10.0 0.354 9.0 1000
SCCBH-SE-12-19 0.472 12.0 0.256 6.5 0.028 0.8 0.472 12.0 0.354 9.0 1000
.413 (10.5)
REF
A
.425 (10.8)
.224
(5.7)
.413 (10.5)
REF
.382 (9.7)
Ø .67 (17)
.220 (5.6)
A
Item
No. Size
Max. Cable Size For Bolt Size Bulk
Pack
Qtyin mm in mm
12875 3 0.299 7.6 1/4 M6 100
12876 4 0.398 10.0 1/4 M6 100
12877 5 0.500 12.7 1/4 M6 100
12848 6 0.598 15.2 1/4 M6 100
12878 7 0.701 17.8 1/4 M6 100
12879 8 0.799 20.3 1/4 M6 100
12880 9 0.898 22.8 1/4 M6 100
12881 10 1.000 25.4 1/4 M6 100
12092 11 1.098 27.9 3/8 M10 50
12882 12 1.181 30.0 3/8 M10 50
12883 14 1.402 35.6 3/8 M10 50
12884 16 1.598 40.6 3/8 M10 50
12885 18 1.799 45.7 3/8 M10 50
12886 20 1.984 50.4 3/8 M10 50
Features:
• Offers a high-strength cable restraint
• Secures cables from various forces
and provides strain relief
• Corrosion resistant
.......
199
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CABLE CLIPS
Features:
• Offers a high-strength cable restraint
• Secures cables from various forces
and provides strain relief
• Corrosion resistant

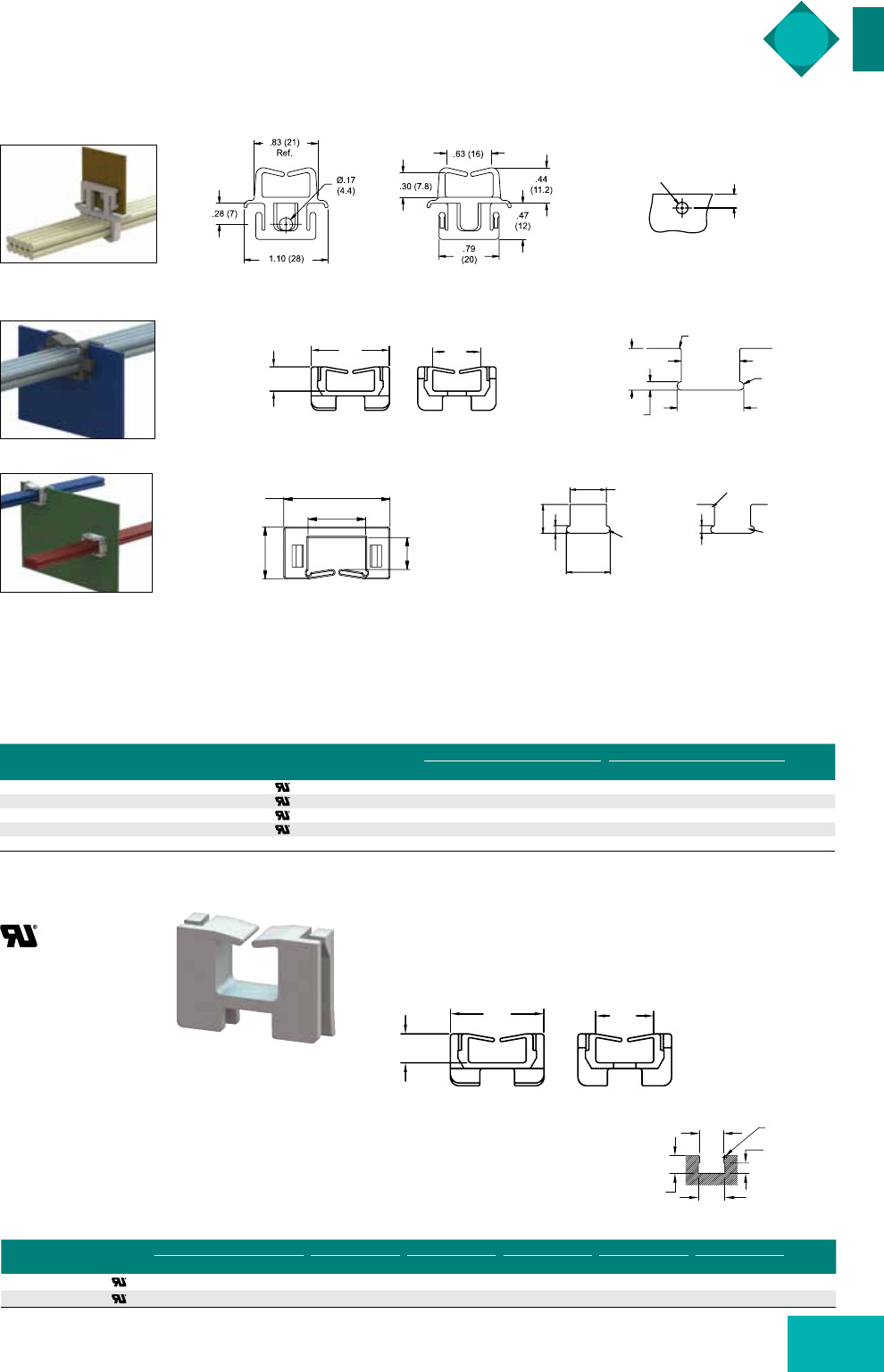

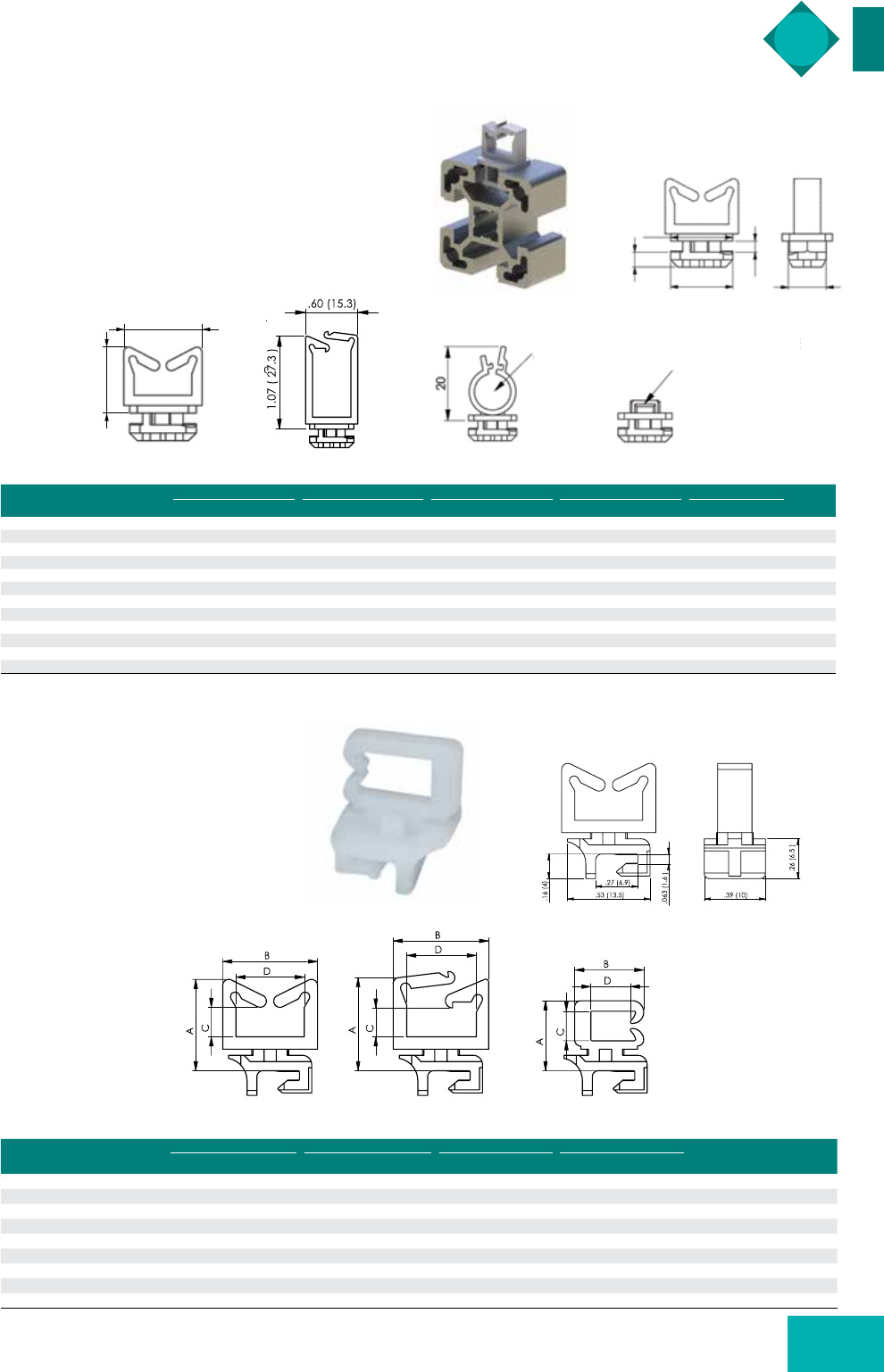

XRC Series
Cable Clips for Extruded Metal Rails
Specifications:
• Material: UL94 V-2 Glass Filled Nylon 6/6
• Color: Natural
Features:
• Several clip styles available
• Available for several different extruded rail sizes
• Two types of mounting; quarter turn or push in
DRC Series
DIN Rail Wire Saddles
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• For use in all common DIn rail profiles
• Can be retrofitted to current installations
Item
No. Type
A B C D
Din Rail Style
Bulk
Pack
Qtyin mm in mm in mm in mm
DRCC-WS01 1 0.583 14.8 0.606 15.4 0.189 4.8 0.437 11.1 C-Profile 1000
DRCC-LWS01 2 0.594 15.1 0.610 15.5 0.142 3.6 0.445 11.3 C-Profile 1000
DRCC-SEC01 3 0.449 11.4 0.441 11.2 0.189 4.8 0.252 6.4 C-Profile 1000
DRCT-WS01 1 0.583 14.8 0.606 15.4 0.189 4.8 0.437 11.1 Top Hat Profile 1000
DRCT-LWS01 2 0.594 15.1 0.610 15.5 0.142 3.6 0.445 11.3 Top Hat Profile 1000
DRCT-SEC01 3 0.449 11.4 0.441 11.2 0.189 4.8 0.252 6.4 Top Hat Profile 1000
DRCG-WS01 1 0.583 14.8 0.606 15.4 0.189 4.8 0.437 11.1 G-Profile 1000
DRCG-LWS01 2 0.594 15.1 0.610 15.5 0.142 3.6 0.445 11.3 G-Profile 1000
DRCG-SEC01 3 0.449 11.4 0.441 11.2 0.189 4.8 0.252 6.4 G-Profile 1000
A
C
BD
.122
(3.1)
Extruded Rail
.51
(12.9)
.602
(15.3)
1.07
(27.3)
.602 (15.3)
.690
(17.5
)
Type 1 Type 2 Type 3 Type 4
Max. Bundle
Ø8.9mm Max. Cable Tie
Width 3.9mm
Type 1 Type 2 Type 3
Item
No. Type
A B C D Extruded Rail Size Bulk
Pack
Qtyin mm in mm in mm in mm mm
XRC2-WS101 1 0.394 10.0 0.063 1.6 0.394 10.0 0.228 5.8 20 x 20 1000
XRC3-WS101 1 0.512 13.0 0.091 2.3 0.512 13.0 0.311 7.9 30 x 30 1000
XRC4-WS101 1 0.630 16.0 0.242 6.2 0.630 16.0 0.386 9.8 40 x 40 1000
XRC2-LWS01 2 0.394 10.0 0.063 1.6 0.394 10.0 0.228 5.8 20 x 20 1000
XRC3-LWS01 2 0.512 13.0 0.091 2.3 0.512 13.0 0.311 7.9 30 x 30 1000
XRC4-LWS01 2 0.630 16.0 0.242 6.2 0.630 16.0 0.386 9.8 40 x 40 1000
XRC2-WSLT01 3 0.394 10.0 0.063 1.6 0.394 10.0 0.228 5.8 20 x 20 1000
XRC3-WSLT01 3 0.512 13.0 0.091 2.3 0.512 13.0 0.311 7.9 30 x 30 1000
XRC4-WSLT01 3 0.630 16.0 0.242 6.2 0.630 16.0 0.386 9.8 40 x 40 1000
XRC2-TH01 4 0.394 10.0 0.063 1.6 0.394 10.0 0.228 5.8 20 x 20 1000
XRC3-TH01 4 0.512 13.0 0.091 2.3 0.512 13.0 0.311 7.9 30 x 30 1000
XRC4-TH01 4 0.630 16.0 0.242 6.15 0.630 16.0 0.386 9.8 40 x 40 1000

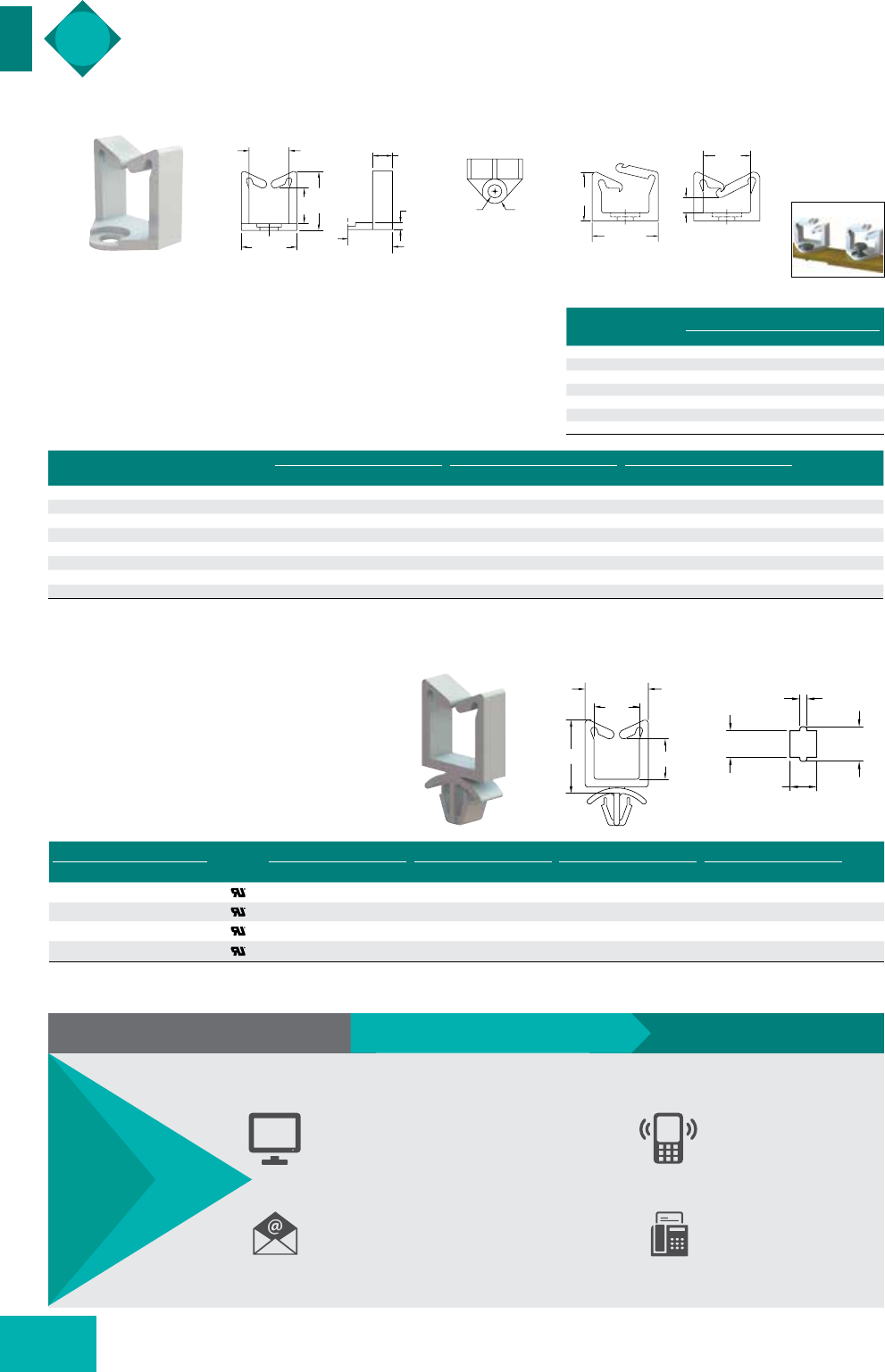

FIBER, WIRE & CABLE MANAGEMENT
200 tel | 800 847 0486 fax | 866 561 6617
WS-SR/LWS-SR Series
Wire Saddle - Snap Rivet Mount
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Designed to mount easily on chassis with plastic SR rivet
(See Table) or a #6 screw
• Allows mounting to a wide range of panel thicknesses; up to 0.219" thick
B
A
.61
(15.5)
7/16
(11.1)
BA
7/16
(11.1)
.61
(15.5)
.49
(12.4)
.075
(1.9)
7/32
(5.6)
Ø.15
(3.8) Ø.27
(6.9)
Figure 1 Figure 2
WIRE SADDLES
AB
7/16
(11.1)
Ref.
.61 (15.4) Ref..067 (1.7)
.280 (7.1).217 (5.5)
.217 (5.5)
Mounting Hole
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Mounts into a square hole to prevent rotation
Item No.
Approval
Panel Thickness A Ref. B Ref. Depth Bulk
Pack
QtyUL94 V-2 UL94 V-0 in mm in mm in mm in mm
WS-SH-1-01 WS-SH-1-19 0.031 - 0.078 0.8 - 2.0 0.51 13.0 0.19 4.8 0.219 5.6 1000
WS-SH-2-01 WS-SH-2-19 0.031 - 0.078 0.8 - 2.0 0.70 17.8 0.39 10.0 0.219 5.6 1000
WS-SH-3-01 WS-SH-3-19 0.031 - 0.078 0.8 - 2.0 1.06 26.9 0.75 19.1 0.219 5.6 1000
WS-SH-4-01 WS-SH-4-19 0.031 - 0.078 0.8 - 2.0 1.37 34.8 1.07 27.2 0.219 5.6 1000
WS-SH Series
Wire Saddle - Square Hole Mount
Item
No.
A B Ø Mounting Hole Bulk
Pack
QtyFigure in mm in mm in mm
WS-SR-1-01 1 0.45 11.4 0.17 4.3 0.142 - 0.146 3.6 - 3.7 1000
LWS-SR-1-01 2 0.45 11.4 0.14 3.6 0.142 - 0.146 3.6 - 3.7 1000
WS-SR-2-01 1 0.64 16.3 0.36 9.1 0.142 - 0.146 3.6 - 3.7 1000
LWS-SR-2-01 2 0.64 16.3 0.34 8.6 0.142 - 0.146 3.6 - 3.7 1000
WS-SR-3-01 1 1.00 25.4 0.73 18.5 0.142 - 0.146 3.6 - 3.7 1000
LWS-SR-3-01 2 1.00 25.4 0.72 18.3 0.142 - 0.146 3.6 - 3.7 1000
WS-SR-4-01 1 1.31 33.3 1.04 26.4 0.142 - 0.146 3.6 - 3.7 1000
LWS-SR-4-01 2 1.31 33.3 1.00 25.4 0.142 - 0.146 3.6 - 3.7 1000
Use Essentra
Rivet Number
Chassis Thickness Range
in mm
SR-3535 0.010 - 0.046 0.3 - 1.2
SR-3545 0.046 - 0.081 1.2 - 2.1
SR-3550 0.069 - 0.105 1.8 - 2.7
SR-3555 0.081 - 0.120 2.1 - 3.7
SR-3560 0.109 - 0.144 2.8 - 3.7
SR-3570 0.140 - 0.180 3.6 - 4.6
SR-3580 0.180 - 0.219 4.6 - 5.6
VISIT OUR WEBSITE
www.essentracomponents.com
SEND US AN EMAIL
sales@essentracomponents.com
GIVE US A CALL
800 847 0486
SEND US A FAX
866 561 6617
ESSENTIAL SOLUTIONS DELIVERED
201
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
WIRE SADDLES

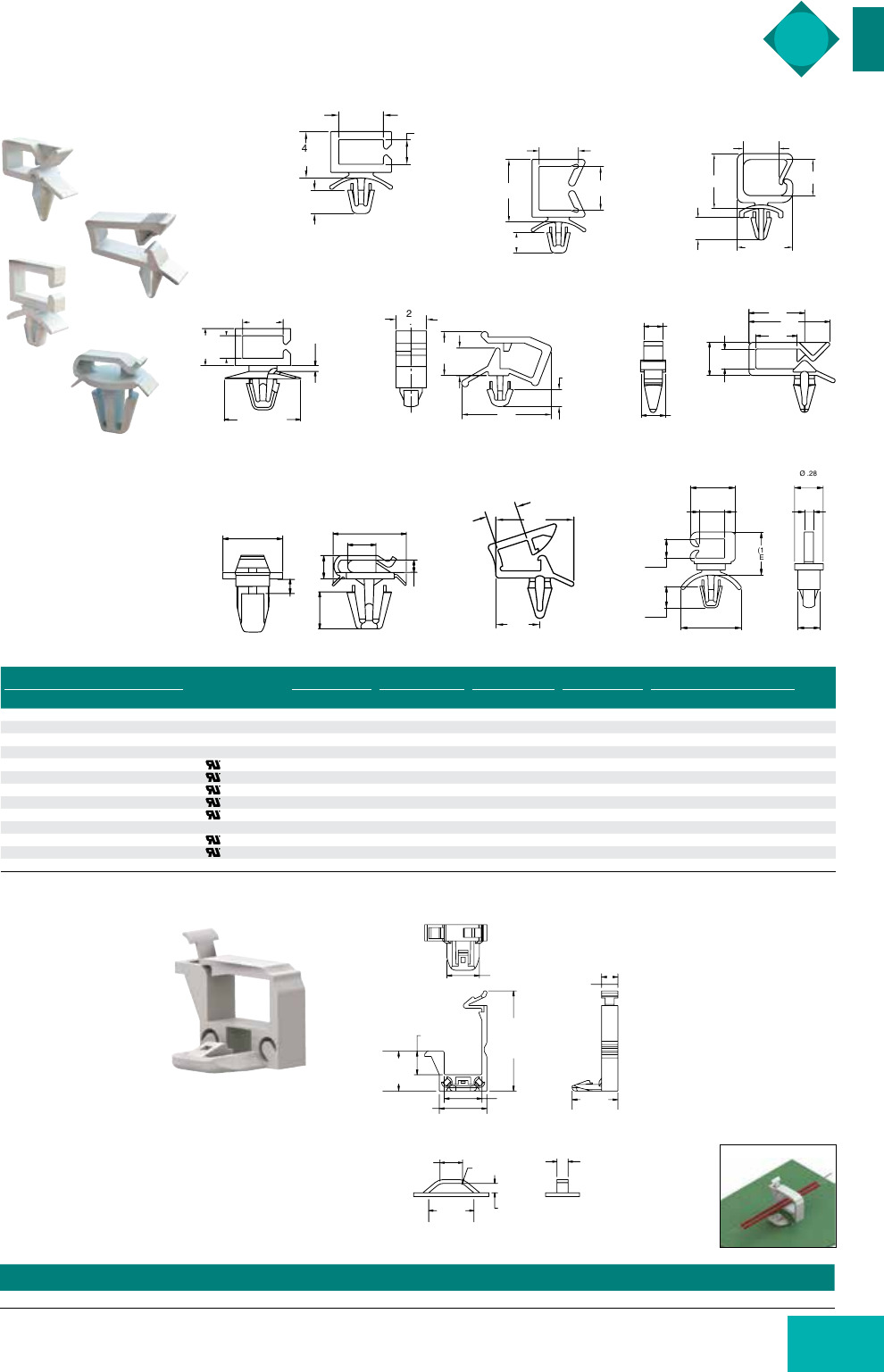

WS-SE Series
Wire Saddle - Side Entry
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Gathers and routes single
or groups of wires and cables
• Side entry provides low
height where clearance is
a problem
.21 (5.3)
.42
(10.7)
.40
(10.2)
.22
(5.6)
Figure 1
.47 (12.0)
.47 (12.0)
.72 (18.4)
.71 (18.1)
.29 (7.4)
Figure 3
.40
(10.2)
.08
(2.1)
Ø.75 (19.0)
.36
(9.3).22
(5.7)
Figure 4
.40
(10.2)
.45 (11.4)
.65 (16.4)
.21 (5.3)
Figure 2
A
.20
(5.0)
B
C
12.3
(3.0)
Figure 5
.31
(8.0)
.19 (4.8)
.24 (6.2)
B
A
C
.19 (4.8)
Figure 6
.22
(5.6)
.35
(8.9)
.27
(6.8)
.71 (18.0)
.551 (14.0)
.126
(3.2)
.12
(3.0)
Figure 7 Figure 8
C
A
B
.39 (10.0)
.46 (11.6)
.57 (14.6)
.28 (7.2)
.48
(12.2)
.20
(5.0)
1.21
(30.7)
Ref.
.55
(14.0)
.236
(6.0)
R.098
(2.5)
.102 (2.6)
.118
(3.0)
.472
(12.0)
Mounting Dimensions
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Features:
• No protrusion through the chassis
• No risk of rotation
• Easy to install
• Removable by depressing locking tab
• Cables are locked in place yet easily removed
SMWSLT Series
Side Mount Wire Saddle
Item
No. Bulk Pack
Qty
SMWSLT-1-19 1000
.42 (10.7)
REF
.37 (9.5)
SQ
.45 (11.4)
REF
Ø .28
(7.1)
.22
(5.5)
.09
(2.3)
.25 (6.4)
REF
.21
(5.4)
.44 (11.2) REF
.19
(4.8
)
.59 (15.0) REF
Figure 9
Item No.
Approval Figure
A Ref. BC Ref. Ø Mounting
Hole Panel Thickness Bulk
Pack
QtyUL94 V-2 UL94 V-0 in mm in mm in mm in mm in mm
WS-SE-A-1-01 WS-SE-A-1-19 — 1 — — — — — — 0.187 4.8 0.031 - 0.078 0.8 - 2.0 1000
WS-SE-A-2-01 WS-SE-A-2-19 — 2 — — — — — — 0.187 4.8 0.031 - 0.078 0.8 - 2.0 1000
WS-SE-A-3-01 WS-SE-A-3-19 — 3 — — — — — — 0.187 4.8 0.024 - 0.071 0.6 - 1.8 1000
WS-SE-A-4-01 WS-SE-A-4-19 — 4 — — — — — — 0.256 6.5 0.031 - 0.078 0.8 - 2.0 1000
WS-SE1-1-01 —50.19 4.8 0.09 2.4 0.50 12.7 0.138 3.5 0.020 - 0.063 0.5 - 1.6 1000
WS-SE1-2-01 —50.26 6.7 0.16 4.2 0.59 15.1 0.138 3.5 0.020 - 0.063 0.5 - 1.6 1000
WS-SE1-3-01 —50.34 8.5 0.23 5.7 0.81 20.3 0.138 3.5 0.020 - 0.063 0.5 - 1.6 1000
WS-SE2-1-01 —60.65 16.6 0.41 10.5 0.28 7.1 0.187 4.8 0.020 - 0.063 0.5 - 1.6 1000
WS-SE2-2-01 —60.77 19.5 0.53 13.4 0.39 10.0 0.187 4.8 0.020 - 0.063 0.5 - 1.6 1000
WS-SE3-1-01 —— 7 — — — — — — 0.314 8.0 0.062 - 0.102 1.6 - 2.6 1000
LWS-SE2-1-01 —80.27 6.9 0.38 9.7 0.67 17.0 0.187 4.8 0.020 - 0.063 0.5 - 1.6 1000
LWS-SE2-2-01 —80.40 10.2 0.53 13.5 0.8 20.8 0.187 4.8 0.020 - 0.063 0.5 - 1.6 1000
WS-SE-C-1-19 — 9 — — — — — — 0.187 4.8 0.031 - 0.078 0.8 - 2.0 1000
k.“ n51»—
E?
7/3
45
51 (15¢)
Ell]
Specifications.
FIBER, WIRE & CABLE MANAGEMENT
202 tel | 800 847 0486 fax | 866 561 6617
WS/WWS/WSBH Series
Wire Saddle
Specifications:
• Material: Nylon 6/6
• Color: Natural
• Depth: 0.22 (5.6)
Features:
• Gathers and routes cables or wires
• WSBH parts are designed to mount in blind holes
A
B
.100
(2.5)
.61 (15.4)
7/16 (11.1)
Figure 1
.61 (15.4)
A
7/32
(5.6)
B
7/16 (11.1)
Figure 2
BA
7/32
(5.6)
.80 (20.3)
.93 (23.6)
Figure 3
A
B
7/16
(11.1)
Figure 4
WS-9/LWS-9 Series
Quarter-Turn Wire Saddle
Item
No. Figure
A Ref. B Ref. Panel Thickness Bulk Pack
Qtyin mm in mm in mm
WS-9-1-01 1 0.51 13.0 0.19 4.8 0.031 - 0.063 0.8 - 1.6 1000
WS-9-2-01 1 0.70 17.8 0.39 10.0 0.031 - 0.063 0.8 - 1.6 1000
WS-9-3-01 1 1.06 26.9 0.75 19.1 0.031 - 0.063 0.8 - 1.6 1000
WS-9-4-01 1 1.37 34.8 1.07 27.2 0.031 - 0.063 0.8 - 1.6 1000
LWS-9-1-01 2 0.51 13.0 0.15 3.8 0.031 - 0.063 0.8 - 1.6 1000
LWS-9-2-01 2 0.70 17.8 0.39 9.8 0.031 - 0.063 0.8 - 1.6 1000
LWS-9-3-01 2 1.06 26.9 0.75 19.1 0.031 - 0.063 0.8 - 1.6 1000
LWS-9-4-01 2 1.37 34.8 1.07 27.2 0.031 - 0.063 0.8 - 1.6 1000
A
B
.040 (1.0)
.600
(15.3)
.440
(11.3)
Figure 1
Ø.071
(1.8)
.283
(7.2)
.106 (2.7)
.287
(7.3)
.157 (4.0)
Mounting Hole
Detail
Ø.07
(1.8)
.16
(4.0)
.29
(7.3)
.11 (2.7)
.28
(7.2)
Mounting Hole
AB
.60 (15.3)
.44
(11.3)
.04
(1.0)
Figure 2
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
• Depth: 0.22 (5.6)
Features:
• Easily inserted and removed by turning 90°
• Low protrusion under board, only 1mm
• Available in locking and non-locking styles
WIRE SADDLES
Item No.
Approval Figure
A Ref. B Ref. Ø Mounting Hole Panel Thickness Bulk
Pack
QtyUL94V-2 UL94 V-0 in mm in mm in mm in mm
WS-1-01 WS-1-19 1 0.52 13.2 0.19 4.8 0.187 4.8 0.062 1.6 1000
WS-A-1-01 WS-A-1-19 2 0.52 13.2 0.19 4.8 0.187 4.8 0.062 1.6 1000
WSBH-1-01 — 4 0.52 13.2 0.19 4.8 0.312 7.9 0.250 6.4 1000
WS-2-01 WS-2-19 1 0.71 18.0 0.38 9.7 0.187 4.8 0.062 1.6 1000
WS-A-2-01 WS-A-2-19 2 0.71 18.0 0.38 9.7 0.187 4.8 0.062 1.6 1000
WS-A-2-1-01 WS-A-2-1-19 2 0.71 18.0 0.38 9.7 0.187 4.8 0.062 1.6 1000
WS-A-2-2-01 WS-A-2-2-19 2 0.71 18.0 0.38 9.7 0.187 4.8 0.125 3.2 1000
WSBH-2-01 — 4 0.71 18.0 0.38 9.7 0.312 7.9 0.250 6.4 1000
WWS-A-2-01 WWS-A-2-19 3 0.77 19.6 0.50 12.7 0.187 4.8 0.047 1.19 1000
WS-3-01 WS-3-19 1 1.07 27.2 0.74 18.8 0.187 4.8 0.062 1.6 1000
WS-A-3-01 WS-A-3-19 2 1.07 27.2 0.74 18.8 0.187 4.8 0.062 1.6 1000
WS-A-2-3-01 WS-A-2-3-19 2 1.07 27.2 0.74 18.8 0.187 4.8 0.125 3.2 1000
WSBH-3-01 — 4 1.07 27.2 0.74 18.8 0.312 7.9 0.250 6.4 1000
WWS-A-3-01 WWS-A-3-19 3 1.12 28.5 0.85 21.6 0.187 4.8 0.047 1.19 1000
WS-4-01 WS-4-19 1 1.38 35.0 1.05 26.7 0.187 4.8 0.062 1.6 1000
WS-A-4-01 WS-A-4-19 2 1.38 35.0 1.05 26.7 0.187 4.8 0.062 1.6 1000
WS-A-2-4-01 WS-A-2-4-19 2 1.38 35.0 1.05 26.7 0.187 4.8 0.125 3.2 1000
WSBH-4-01 — 4 1.38 35.0 1.05 26.7 0.312 7.9 0.250 6.4 1000
203

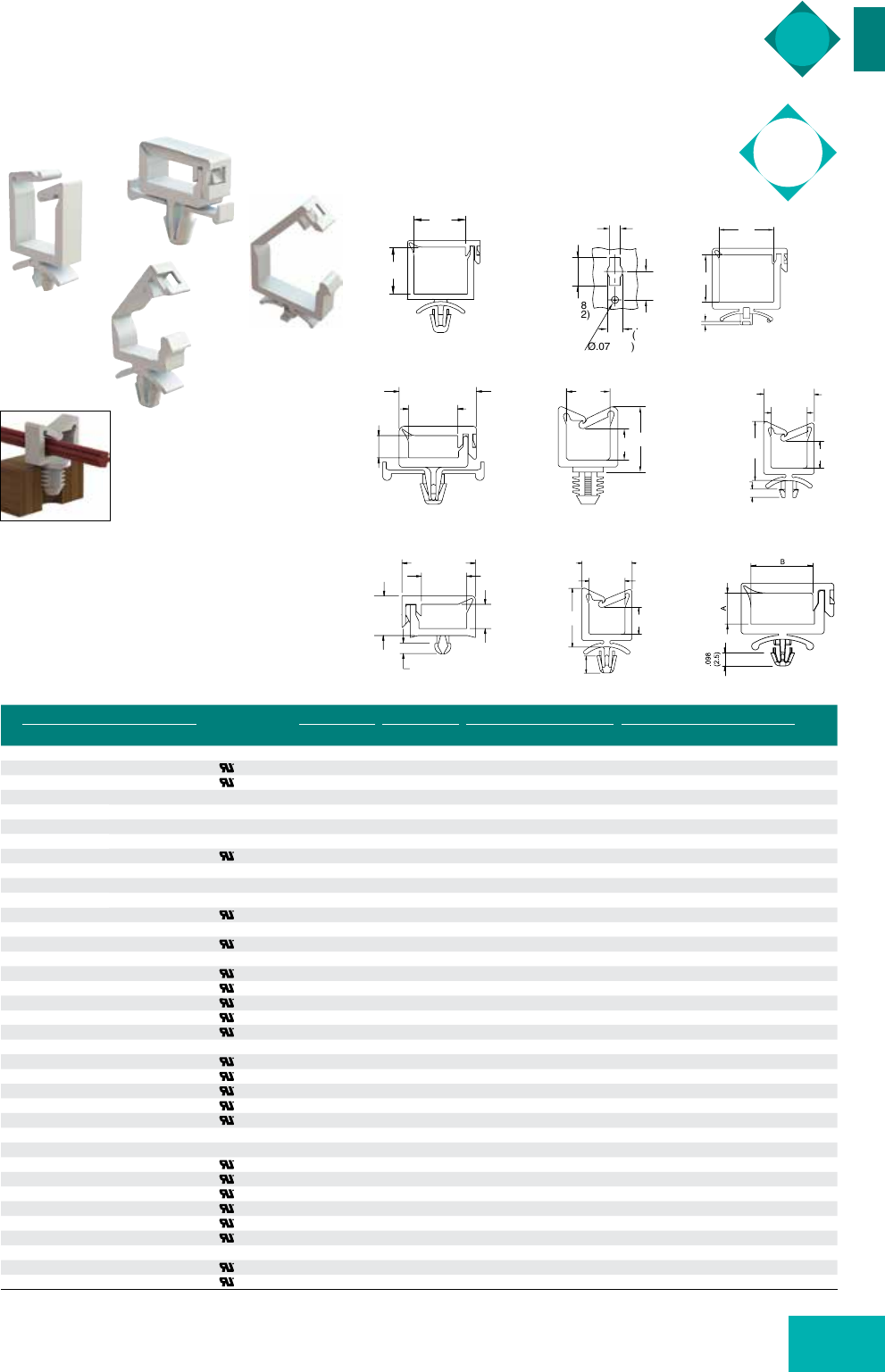

FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
WIRE SADDLES
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Cables are locked in place yet easily removable
• WSLT-9 includes a quarter-turn base
• WSLTRA has a releasable arrow-head for
easy removal
LWS/WSLT Series
Locking Wire/Cable Saddle
.04 (1.0)
Ø.07 (1.8)
.16
(4.0)
.29
(7.3)
.11 (2.7)
.28
(7.2)
A
B
Mounting Hole
Figure 2
.66 (16.8)
.42
(10.7)
.19
(4.8)
Figure 3
BA
7/16
(11.1)
Figure 4
AB
.61 (15.4)
7/16
(11.1)
.10
(2.5)
Figure 5
.35
(9.0)
.09 (2.4)
.41
(10.3)
.22
(5.5)
.66 (10.3)
Figure 7
A
B
Figure 1
A
7/32
(5.6)
.61 (15.4)
7/16
(11.1)
B
Figure 8 Figure 9
Item No.
Approval Figure
A B Ø Mounting Hole Panel Thickness Bulk
Pack
QtyUL94 V-2 UL94 V-0 in mm in mm in mm in mm
•WSLC-1-01 — — 9 0.079 6.0 0.236 6.0 0.138 3.5 0.031 - 0.087 0.8 - 2.2 1000
WSLT-3.5-2-1-01 WSLT-3.5-2-1-19 1 0.140 3.4 0.530 13.5 0.138 3.5 0.031 - 0.078 0.8 - 2.0 1000
WSLT-02-1-01 WSLT-02-1-19 1 0.140 3.4 0.530 13.5 0.187 4.8 0.031 - 0.078 0.8 - 1.98 1000
WSLT-9-02-1-01 — — 2 0.140 3.6 0.530 13.5 See Mounting Hole Detail 0.031 - 0.063 0.8 - 1.6 1000
•WSLC-2-01 — — 9 0.157 4.0 0.236 6.0 0.138 3.5 0.031 - 0.087 0.8 - 2.2 1000
•WSLC-3-01 — — 9 0.157 4.0 0.354 9.0 0.138 3.5 0.031 - 0.087 0.8 - 2.2 1000
•WSLC-5-01 — — 9 0.157 4.0 0.472 12.0 0.138 3.5 0.031 - 0.087 0.8 - 2.2 1000
WSLT-01A-01 WSLT-01A-19 1 0.190 4.8 0.420 10.7 0.187 4.8 0.031 - 0.078 0.8 - 1.98 1000
WSLT-9-01A-01 — — 2 0.190 4.8 0.420 10.7 See Mounting Hole Detail 0.031 - 0.063 0.8 - 1.6 1000
•WSLC-4-01 — — 9 0.236 6.0 0.354 9.00 0.138 3.5 0.031 - 0.087 0.8 - 2.2 1000
•WSLC-6-01 — — 9 0.236 6.0 0.472 12.0 0.138 3.5 0.031 - 0.087 0.8 - 2.2 1000
WSLT-01-2-01 WSLT-01-2-19 1 0.350 8.8 0.420 10.7 0.187 4.8 0.031 - 0.078 0.8 - 1.98 1000
WSLT-9-01-2-01 — — 2 0.360 9.1 0.420 10.7 See Mounting Hole Detail 0.031 - 0.063 0.8 - 1.6 1000
WSLT-02A-01 WSLT-02A-19 1 0.390 10.0 0.640 16.3 0.187 4.8 0.031 - 0.078 0.8 - 1.98 1000
WSLT-9-02A-1-01 — — 2 0.390 10.0 0.640 16.3 See Mounting Hole Detail 0.031 - 0.063 0.8 - 1.6 1000
LWS-1-01 LWS-1-19 4 0.520 13.2 0.140 3.6 0.187 4.8 0.062 1.6 1000
LWSBH-1-01 — 5 0.520 13.2 0.140 3.6 0.312 7.9 0.250 6.4 1000
LWS-A-1-01 LWS-A-1-19 8 0.520 13.2 0.140 3.6 0.187 4.8 0.062 1.6 1000
LWS-A-2-1-01 LWS-A-2-1-19 8 0.520 13.2 0.140 3.6 0.187 4.8 0.125 3.2 1000
WSLT-03-2-01 WSLT-03-2-19 1 0.550 14.1 0.640 16.3 0.187 4.8 0.062 1.6 1000
WSLT-9-03-2-01 — — 2 0.560 14.1 0.640 16.3 See Mounting Hole Detail 0.031 - 0.063 0.8 - 1.6 1000
LWS-2-01 LWS-2-19 4 0.710 18.0 0.330 8.4 0.187 4.8 0.062 1.6 1000
LWSBH-2-01 — 5 0.710 18.0 0.330 8.4 0.312 7.9 0.250 6.4 1000
LWS-A-2-01 LWS-A-2-19 8 0.710 18.0 0.330 8.4 0.187 4.8 0.062 1.6 1000
LWS-A-2-2-01 LWS-A-2-2-19 8 0.710 18.0 0.330 8.4 0.187 4.8 0.125 3.2 1000
WSLT-03-3-01 WSLT-03-3-19 1 0.850 21.7 0.710 18.0 0.187 4.8 0.031 - 0.078 0.8 - 1.98 1000
WSLT-9-03-3-01 — — 2 0.850 21.7 0.710 18.0 See Mounting Hole Detail 0.031 - 0.063 0.8 - 1.6 1000
WSLTRA-1-01 — — 3 See Figure 3 0.187 4.8 0.062 1.6 1000
LWS-3-01 LWS-3-19 4 1.070 27.2 0.690 17.5 0.187 4.8 0.062 1.6 1000
LWSBH-3-01 — 5 1.070 27.2 0.690 17.5 0.312 7.9 0.250 6.4 1000
LWS-A-3-01 LWS-A-3-19 8 1.070 27.2 0.690 17.5 0.187 4.8 0.062 1.6 1000
LWS-A-2-3-01 LWS-A-2-3-19 8 1.070 27.2 0.690 17.5 0.187 4.8 0.125 3.2 1000
LWS-4-01 LWS-4-19 4 1.380 35.0 1.000 25.4 0.187 4.8 0.062 1.6 1000
LWSBH-4-01 — 5 1.380 35.0 1.000 25.4 0.312 7.9 0.250 6.4 1000
WSLT-T-01A-19 — — 7 See Figure 7 0.118 3.0 0.065 1.7 1000
LWS-A-4-01 LWS-A-4-19 8 1.380 35.0 1.000 25.4 0.187 4.8 0.062 1.6 1000
LWS-A-2-4-01 LWS-A-2-4-19 8 1.380 35.0 1.000 25.4 0.187 4.8 0.125 3.2 1000
EXPANDED
LINE
‘4
E
T
1
L1
in
FIBER, WIRE & CABLE MANAGEMENT
204 tel | 800 847 0486 fax | 866 561 6617
WIRE SADDLES
Item No.
Approval Figure
A Ref. B Ref. C Ref. D Ref. E Ref. G Ref. Depth Bulk
Pack
QtyUL94 V-2 UL94 V-0 in mm in mm in mm in mm in mm in mm in mm
MWSEB-1-01A-RT MWSEB-1-19A-RT 10.16 4.0 0.05 1.3 0.28 7.0 0.19 4.8 0.06 1.6 0.37 9.5 See Fig. 1 1000
MWSEB-2-01A-RT MWSEB-2-19A-RT 10.24 6.0 0.13 3.3 0.28 7.0 0.19 4.8 0.06 1.6 0.37 9.5 See Fig. 1 1000
MWSEB-3-01A-RT MWSEB-3-19A-RT 10.29 7.3 0.12 3.0 0.35 9.0 0.26 6.6 0.08 2.0 0.50 12.7 See Fig. 1 1000
MWSEB-4-01A-RT MWSEB-4-19A-RT 10.36 9.2 0.19 4.8 0.43 10.8 0.32 8.0 0.08 2.0 0.50 12.7 See Fig. 1 1000
MWSEB-5-01A-RT MWSEB-5-19A-RT 10.44 11.2 0.23 5.8 0.47 11.9 0.36 9.1 0.08 2.0 0.50 12.7 See Fig. 1 1000
MWSEB-6-01A-RT MWSEB-6-19A-RT 10.51 13.0 0.33 8.4 0.47 12.0 0.36 9.2 0.08 2.0 0.50 12.7 See Fig. 1 1000
MWSB-1-01A-RT MWSB-1-19A-RT 2 ———————————— See Fig. 2 1000
WSB-2-01A-RT — 3 — — — — — — — — — — — — 0.480 12.1 1000
MWSSEB-1-01A-RT MWSSEB-1-19A-RT 4 — — — — — — — — — — — — 0.375 9.5 1000
MWSSEBE-1-01A MWSSEBE-1-19A 4 — — — — — — — — — — — — 0.500 12.7 1000
WS-SE-B-1-01A — 5 0.45 11.4 0.22 5.6 — — — — — — — — 0.375 9.5 1000
WS-SE-B-2-01A — 50.675 17.1 0.450 11.4 — — — — — — — — 0.375 9.5 1000
— WSLTB-03A-19A —6 — — — — — — — — — — — — 0.750 19.0 1000
— WS-SE-C-19A2-RT —7 — — — — — — — — — — — — 0.374 9.5 1000

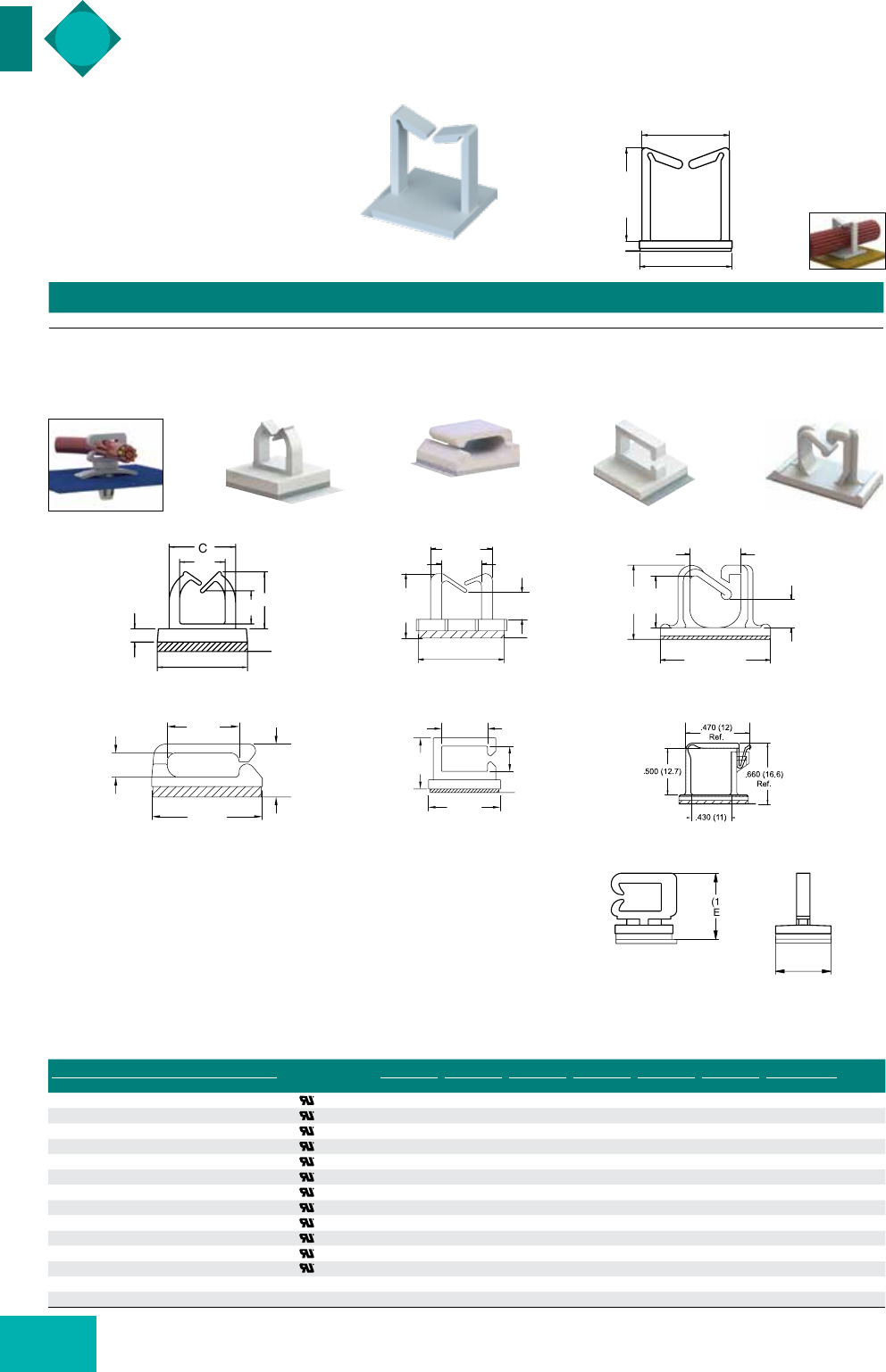

MWSEB/WSB/MWSB/WS-SE-B Series
Wire Saddle on Adhesive Base
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Self adhesive wire saddle is designed to support lightweight wire bundles
• Small profile design is ideal for routing fiber
G Square
B
E
C
D
A
Figure 1
.25 (6.5)
.46 (11.8)
.47
(11.9)
.67
(17.1)
1.00 (25.4)
Figure 3
.27 (6.9)
.12 (3.0)
3/8 (9.5) Square
9/32
(7.2)
.17 (4.4)
Figure 2
B
.40 (10.2)
5/8
(15.9)
A
Figure 5
.25 (6.4)
Max
.50
(12.7)
.10 (2.5)
.32
(8.1)
Figure 4 Figure 6
.93 (23.6)
.99
(25.1)
Ref.
.98 (25.0) Square
Item
No. Bulk Pack
Qty
WWSB-3-148A-RT 500
Specifications:
• Material: UL94 HB Nylon 6/6
• Color: Natural
Features:
• No through-hole required
• Large capacity
WWSB Series
Wire Saddle on Adhesive Base
.42 (10.7)
REF
.37 (9.5)
SQ
.45 (11.4)
REF
Ø .28
(7.1)
.22
(5.5)
.09
(2.3)
.25 (6.4)
REF
.21
(5.4)
.44 (11.2) REF
.19
(4.8)
.59 (15.0) REF
Figure 7
A %’%Wfi
M W
flm W wig;
205
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
WIRE SADDLES
A
.98 (25.0) .75
(19.0)
C
See Figures
B
Figure 1
Ø.187
Figure 6
Figure 2
Ø.312
Figure 3
.307 Square
Figure 4
Ø.250
Figure 5
.374 Square
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• No stress is applied to fiber upon entry
• Smooth, rounded corners
• Six mounting styles
OFNS Series
Optical Fiber Wire Saddle
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Design eliminates stress to fiber upon entry
• Smooth, rounded corners
MOFNSA/MOFNSP/MOFNSB Series
Mini Optical Fiber Wire Saddle
.28
(7.1)
.10
(2.5)
.16 (4.1)
.05 (1.3)
.34
(8.6)
Ref
.
Figure 1
Figure 3
1/2 (12.7)
.10 (2.5)
.34
(8.6)
Ref.
.3/8 (9.5) .05
(1.3)
.28 (7.1)
Item No. Ø Mounting Hole Panel Thickness Depth Bulk Pack
QtyUL94 V-2 UL94 V-0 Figure in mm in mm in mm
MOFNSA-2-01 MOFNSA-2-19 1 0.125 3.2 0.093 2.4 0.125 3.2 1000
MOFNSP-2-01 MOFNSP-2-19 2See Figure 2 0.063 1.6 0.125 3.2 1000
MOFNSB-2-01A-RT MOFNSB-2-19A-RT 3Adhesive Mount 0.375 9.5 1000
.09 (2.3)
Optional
Full R.
.135 (3.4)
.125 (3.2)
.28
(7.1) .05 (1.3)
.34
(8.6)
Ref.
.10
(2.5)
Figure 2
Mounting Hole
.09 (2.3)
Optional
Full R.
.135 (3.4)
.125 (3.2)
.28
(7.1) .05 (1.3)
.34
(8.6)
Ref.
.10
(2.5)
Item No. A Ref. B Ref. C Ref. Ø Mounting Hole Panel Thickness Depth Bulk
Pack
QtyUL94 V-2 UL94 V-0 Figure in mm in mm in mm in mm in mm in mm
OFNS-13-187-01 OFNS-13-187-19 1 1.06 26.8 0.83 21.2 0.75 19.0 0.187 4.8 0.031 - 0.079 0.8 - 2.0 0.27 6.9 1000
OFNS-13-312-01 OFNS-13-312-19 2 1.06 26.8 0.83 21.2 0.75 19.0 0.312 7.9 0.031 - 0063 0.8 - 1.6 0.27 6.9 1000
OFNS-13-250-01 OFNS-13-250-19 4 1.06 26.8 0.83 21.2 0.75 19.0 0.250 6.4 0.031 - 0.079 0.8 - 2.0 0.27 6.9 1000
OFNS13-S9.5M-01 OFNS13-S9.5M-19 5 1.06 26.8 0.83 21.2 0.75 19.0 .374 Square 9.5 Square 0.031 - 0.079 0.8 - 2.0 0.27 6.9 1000
OFNSB-13-01A-RT OFNSB-13-19A-RT 6 1.06 26.8 0.83 21.2 0.75 19.0 Adhesive Adhesive Adhesive Adhesive 0.27 6.9 500
OFNS-16-187-01 OFNS-16-187-19 1 1.35 34.3 1.13 28.7 0.99 25.1 0.187 4.8 0.031 - 0.079 0.8 - 2.0 0.27 6.9 1000
OFNS-16-312-01 OFNS-16-312-19 2 1.35 34.3 1.13 28.7 0.99 25.1 0.312 7.9 0.031 - 0.063 0.8 - 1.6 0.27 6.9 1000
OFNS-16-S307-01 OFNS-16-S307-19 3 1.35 34.3 1.13 28.7 0.99 25.1 .307 Square 7.8 Square 0.031 - 0.079 0.8 - 2.0 0.27 6.9 1000
OFNS16-S9.5M-01 OFNS16-S9.5M-19 4 1.35 34.3 1.13 28.7 0.99 25.1 .374 Square 9.5 Square 0.031 - 0.079 0.8 - 2.0 0.27 6.9 1000
OFNSB-16-01A-RT OFNSB-16-19A-RT 6 1.35 34.3 1.13 28.7 0.99 25.1 Adhesive Adhesive Adhesive Adhesive 0.27 6.9 500
OFNS28-S9.5M-01 OFNS28-S9.5M-19 5 1.35 34.3 1.13 28.7 0.99 25.1 .374 Square 9.5 Square 0.031 - 0.079 0.8 - 2.0 0.27 6.9 500
#96 (91V
R
i
I
ca. :{
1111
1111
11111 1111111 r1911 .11 .11. 11 .11 11.1
11111521111111 mar-14.149 1 111 11 111 11 1111 11 1111
1111111111111 1111111111. .1 1 111 11 111 11 1111 11 1111
11115211111. 11111511111. 1 111 11 111 11 1111 21 1111
1111115111.” 1111111111.” 1 111 11 111 11 1111 11 1111
111M111 511111111 2 1111111112 111 11 1112 11 1111
1111111111 1111111111 2 1111111111 111 11 1111 11 1111
FIBER, WIRE & CABLE MANAGEMENT
206 tel | 800 847 0486 fax | 866 561 6617

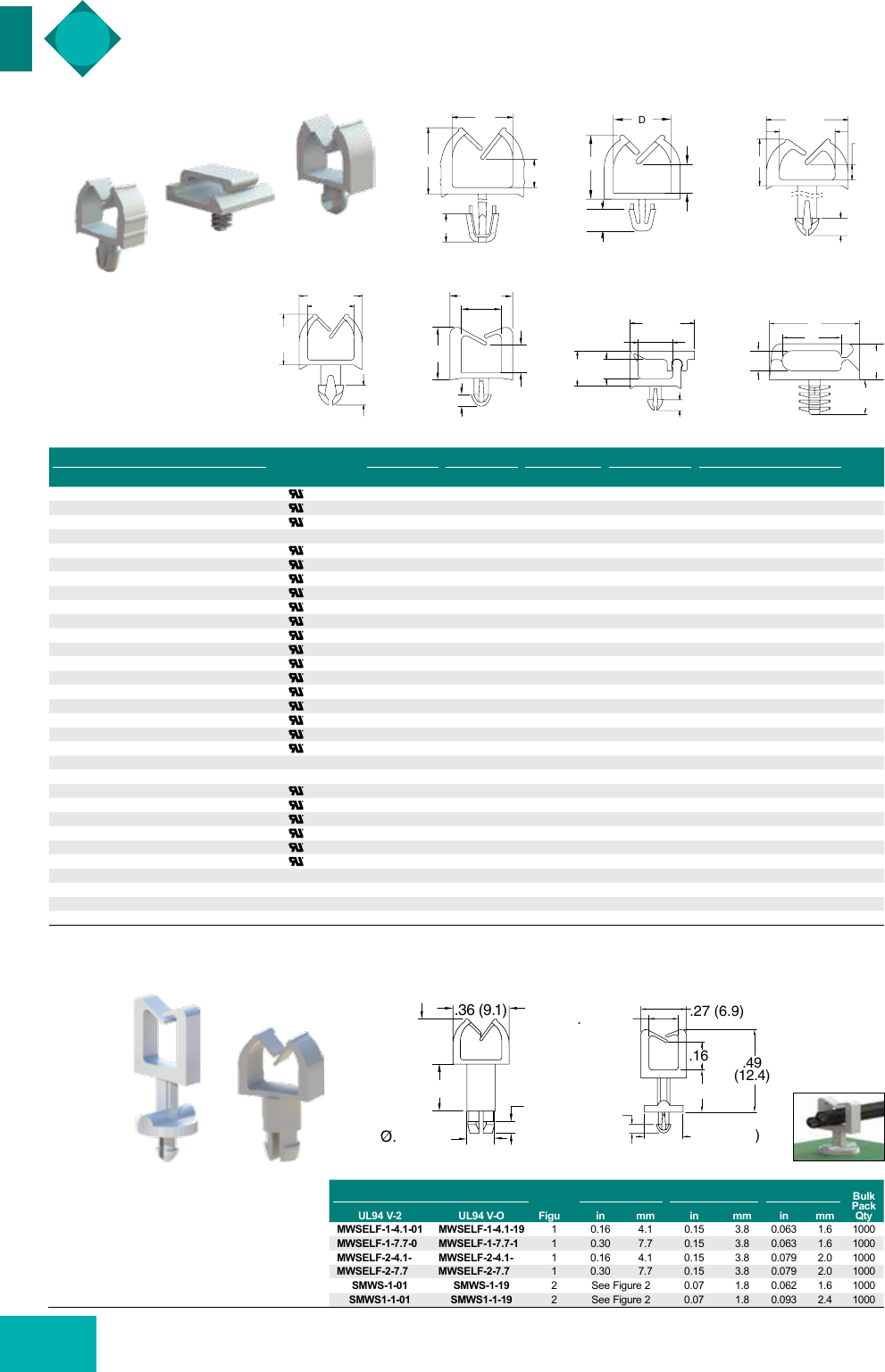

WIRE SADDLES
Item No.
Approval Figure
A Ref. B Ref. DØ Mounting Hole Panel Thickness Bulk
Pack
QtyUL94 V-2 UL94 V-0 in mm in mm in mm in mm in mm
MWSET1-1-01 MWSET1-1-19 3 0.16 4.0 0.04 0.9 0.19 4.8 0.067 1.7 0.063 1.6 1000
MWSET1-1-1-01 MWSET1-1-1-19 3 0.16 4.0 0.04 0.9 0.190 4.8 0.067 1.7 0.093 2.4 1000
MWS-1-01 MWS-1-19 5 0.23 5.8 0.12 3.0 See Figure 5 0.070 1.8 0.062 1.6 1000
MWS1-1-01 MWS1-1-19 — 5 0.23 5.8 0.12 3.0 See Figure 5 0.070 1.8 0.093 2.4 1000
MWSET1-2-01 MWSET1-2-19 3 0.24 6.0 0.11 2.9 0.19 4.8 0.067 1.7 0.063 1.6 1000
MWSET1-2-1-01 MWSET1-2-1-19 3 0.24 6.0 0.11 2.9 0.19 4.8 0.067 1.7 0.093 2.4 1000
MWSEA1-1-01 MWSEA1-1-19 1 0.29 7.3 0.12 3.0 0.26 6.6 0.118 3.0 0.063 1.6 1000
MWSEA2-1-01 MWSEA2-1-19 1 0.29 7.3 0.12 3.0 0.26 6.6 0.138 3.5 0.063 1.6 1000
MWSEA1-1-1-01 MWSEA1-1-1-19 1 0.29 7.3 0.12 3.0 0.26 6.6 0.118 3.0 0.093 2.4 1000
MWSEA2-1-1-01 MWSEA2-1-1-19 1 0.29 7.3 0.12 3.0 0.26 6.6 0.138 3.5 0.093 2.4 1000
MWSEA1-2-01 MWSEA1-2-19 1 0.36 9.1 0.16 3.9 0.32 8.1 0.118 3.0 0.063 1.6 1000
MWSEA2-2-01 MWSEA2-2-19 1 0.36 9.1 0.16 3.9 0.32 8.1 0.138 3.5 0.063 1.6 1000
MWSEA1-1-2-01 MWSEA1-1-2-19 1 0.36 9.1 0.16 3.9 0.32 8.1 0.118 3.0 0.093 2.4 1000
MWSEA2-1-2-01 MWSEA2-1-2-19 1 0.36 9.1 0.16 3.9 0.32 8.1 0.138 3.5 0.093 2.4 1000
MWSEA3-2-01 MWSEA3-2-19 2 0.36 9.1 0.16 3.9 0.32 8.1 0.138 3.5 0.063 1.6 1000
MWSEA1-3-01 MWSEA1-3-19 1 0.44 11.2 0.24 6.0 0.36 9.1 0.118 3.0 0.063 1.6 1000
MWSEA2-3-01 MWSEA2-3-19 1 0.44 11.2 0.24 6.0 0.36 9.1 0.138 3.5 0.063 1.6 1000
MWSEA1-1-3-01 MWSEA1-1-3-19 1 0.44 11.2 0.24 6.0 0.36 9.1 0.118 3.0 0.093 2.4 1000
MWSEA2-1-3-01 MWSEA2-1-3-19 1 0.44 11.2 0.24 6.0 0.36 9.1 0.138 3.5 0.093 2.4 1000
— MWS-2-19 — 5 0.44 11.2 0.33 8.5 See Figure 5 0.070 1.8 0.063 1.6 1000
— MWS-3-19 — 5 0.44 11.2 0.33 8.5 See Figure 5 0.070 1.8 0.087 2.2 1000
MWSEA1-4-01 MWSEA1-4-19 1 0.51 13.0 0.30 7.7 0.36 9.1 0.118 3.0 0.063 1.6 1000
MWSEA2-4-01 MWSEA2-4-19 1 0.51 13.0 0.30 7.7 0.36 9.1 0.138 3.5 0.063 1.6 1000
MWSEA1-1-4-01 MWSEA1-1-4-19 1 0.51 13.0 0.30 7.7 0.36 9.1 0.118 3.0 0.093 2.4 1000
MWSEA2-1-4-01 MWSEA2-1-4-19 1 0.51 13.0 0.30 7.7 0.36 9.1 0.138 3.5 0.093 2.4 1000
MWSET2-1-01 MWSET2-1-19 4See Figure 4 0.118 3.0 0.039 - 0.047 1.0 - 1.2 1000
MWSET2-2-01 MWSET2-2-19 4See Figure 4 0.118 3.0 0.047 - 0.063 1.2 - 1.6 1000
MWSLT-1-01 MWSLT-1-19 — 6 See Figure 6 0.067 1.7 0.063 1.6 1000
MWSLT1-1-01 MWSLT1-1-19 — 6 See Figure 6 0.067 1.7 0.093 2.4 1000
MBHWSSE-1-01 — — 7 0.50 12.7 0.33 0.8 See Figure 7 0.156 4.0 0.040 - 0.160 1.0 - 4.1 1000
MBHWSSE-1-1-01 — — 7 0.67 17.0 0.49 12.5 See Figure 7 0.156 4.0 0.040 - 0.160 1.0 - 4.1 1000
MWS Series
Micro Wire Saddle
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Gathers and routes wires
• Small profile is ideal for
routing fiber
A
B
.06 (1.5)
.28 (7.0)
D
Figure 3
.29
(7.3)
.11 (2.9)
.36 (9.1)
.26 (6.7)
Figure 4
AB
.27 (6.9)
.17 (4.3)
.05 (1.3)
Figure 5
.34 (8.7)
.19 (4.8)
.19
(4.8)
.06 (1.5)
.10
(2.6)
Figure 6
A
B
.11
(2.8)
.20
(5.1)
.20
(5.1)
Figure 7
A
D
B
.12 (3.1)
Figure 2
A
.12 (3.1)
B
D
Figure 1
MWSELF/SMWS Series
Standoff Micro Wire Saddle
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Gathers and routes wires
• Standoff design provides spacing
between the wires and the chassis
Item No.
Figure
AØ Mounting Hole Panel
Thickness Bulk
Pack
QtyUL94 V-2 UL94 V-O in mm in mm in mm
MWSELF-1-4.1-01 MWSELF-1-4.1-19 10.16 4.1 0.15 3.8 0.063 1.6 1000
MWSELF-1-7.7-01 MWSELF-1-7.7-19 10.30 7.7 0.15 3.8 0.063 1.6 1000
MWSELF-2-4.1-01 MWSELF-2-4.1-19 10.16 4.1 0.15 3.8 0.079 2.0 1000
MWSELF-2-7.7-01 MWSELF-2-7.7-19 10.30 7.7 0.15 3.8 0.079 2.0 1000
SMWS-1-01 SMWS-1-19 2See Figure 2 0.07 1.8 0.062 1.6 1000
SMWS1-1-01 SMWS1-1-19 2See Figure 2 0.07 1.8 0.093 2.4 1000
A
Ø.18 (4.6)
.36 (9.1)
.29
(7.3)
.07
(1.9)
Figure 1
.16 (4.1)
.17 (4.3)
Ø.23 (5.8)
.49
(12.4)
.25 (6.4)
.27 (6.9)
.05
(1.3)
Figure 2
L AW
N
\
’JL
3133f
wk
Hem PM
No Mmg M: Figu in mm my
wsuBmMsA mm | n 42 m 7 mm
WSLTBvMA-IQ MuMaSaewarS? 1 n42 M 1m
wsuammsa mm | n so 16 3 mm
Mum-19 MuMaSaewarS? 1 as» 133 mm
MWSL1E-1-1M mm 2 See raw: 2 mm
mus—1.1a am «Masaewarmxx Rm 2 See Figure 2 mm
¥
207

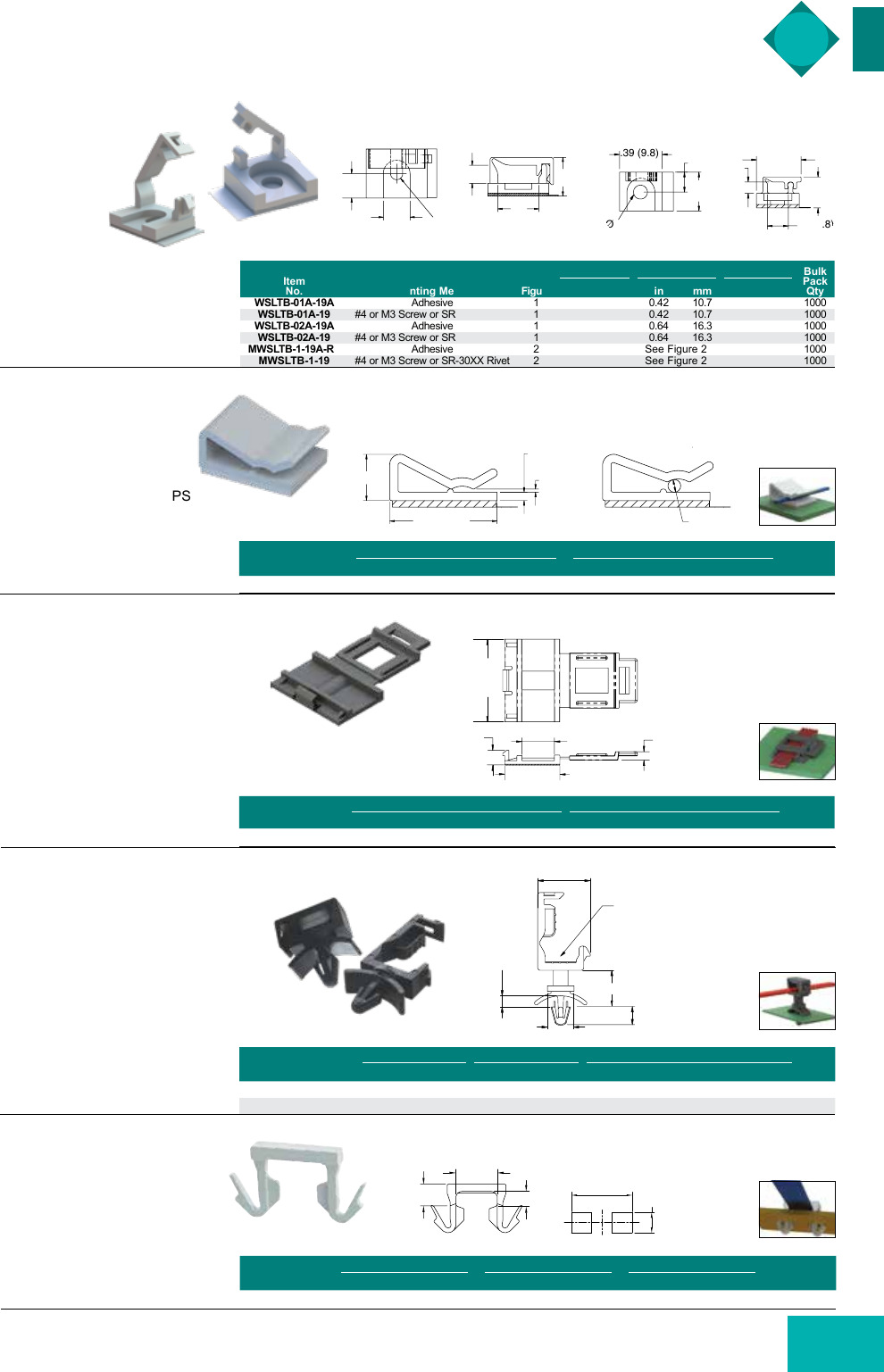

FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Item
No. Mounting Method Figure
A B C Ref. Bulk
Pack
Qtyin mm in mm in mm
WSLTB-01A-19A Adhesive 10.19 4.8 0.42 10.7 0.41 10.4 1000
WSLTB-01A-19 #4 or M3 Screw or SR-30XX Rivet 10.19 4.8 0.42 10.7 0.38 9.6 1000
WSLTB-02A-19A Adhesive 10.39 10.0 0.64 16.3 0.61 15.5 1000
WSLTB-02A-19 #4 or M3 Screw or SR-30XX Rivet 10.39 10.0 0.64 16.3 0.58 14.7 1000
MWSLTB-1-19A-RT Adhesive 2See Figure 2 1000
MWSLTB-1-19 #4 or M3 Screw or SR-30XX Rivet 2See Figure 2 1000
WSLTB/MWSLTB Series
Wire Saddle Locking Top
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Features:
• Gathers, routes and locks
cables and wires
A
B.28
(7.0)
.25
(6.4)
Ø.125
(3.2)
C
Figure 1
.39 (9.8) .18
(4.6)
.35
(8.9)
Ø.125 (3.2) .19 (4.8)
.28
(7.1)
.40 (10.2)
.10
(2.6)
Figure 2
WIRE SADDLES & FLAT CABLE CLAMPS
.22 (5.6)
.51 (13.0)
.04 (1.0)
Ty p.
ØD
.015 (0.4)
Max. Gap
Specifications:
• Material: UL94 V-1 PPE/PS
• Color: White
Features:
• To insert or remove cable,
simply lift the tip of the clamp
Item
No.
Ø D Holding Base Bulk
Pack
Qtyin mm in mm
SWC-0 0.03 - 0.06 0.8 - 1.5 0.51 x 0.38 13.0 x 9.5 1000
SWC Series
Single Wire Clip
MCC Series
Adhesive Mount Micro Cable Clamp
.59
(15.0)
.23 (5.9)
.10
(2.5)
.06
(1.55)
.39 (10.0)
Specifications:
• Material: UL94 V-2 Nylon 6/6,
• Color: Black
Features:
• Low profile and small footprint
take up little real estate
• Center rib gently grips cables
• Convenient latch is releasable
for maintenance
• Easily mounted with adhesive
baseolor: Black Item
No.
Max Cable Thickness Max Cable Width Bulk
Pack
Qtyin mm in mm
MCC-1-01A-BK 0.040 1.0 0.23 5.8 1000
FCWSS Series
Flat Cable Wire Saddle
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Designed to hold down standard
Serial ATA cable
• Flexible tension wing allows a
range of cable thicknesses
• Grips cable firmly
Ø.27
(6.8)
.10 (2.5)
.55 (14.0)
To Hold:
Flat Cable
.32 (8.0) Wide
.07-.10 (1.8-2.5)
Thick
A
.20 (5.0)
Item
No.
APanel Hole Ø Panel Thickness Bulk
Pack
Qtyin mm in mm in mm
FCWSS-1-01BK 0.189 4.8 0.158 4.0 0.032 - 0.064 0.8 - 1.6 1000
FCWSS-2-01BK 0.394 10.0 0.158 4.0 0.032 - 0.064 0.8 - 1.6 1000
FCCE Series
Flat Cable Clamp
Item
No.
Max. Cable Width Panel Thickness Depth Bulk Pack
Qtyin mm in mm in mm
FCCE-9-01 0.250 6.4 0.039 - 0.047 1.0 - 1.2 0.28 7.0 1000
.09 (2.4)
.14 (3.6)
.27 (6.9)
.157 (4.0)
Square
.47 (12.0)
Recommended
Mounting Holes
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Holds down ribbon cable
• Extremely low profile
0V Lg?
EFEcS-l—MA
M
m — pm
Nu m mm mmlm Mel an my
5701:4411 06mm 171x127 mm» 1 man
rec-4411M: wmsm 17,1x121 mm 1 man
sax-H1 Newman 25sz“ 3mm 2 man
smww 1mnx1nm mm“ mm 2 man
I. .\
. 4_
‘l j
cream —01
FIBER, WIRE & CABLE MANAGEMENT
208 tel | 800 847 0486 fax | 866 561 6617
FLAT CABLE CLAMPS
CFCC Series
Side Load Flat Cable Clamp
B
Gap Closed
But Not
Sealed
C
A
Item
No.
AB Ref. C Depth
Material Color
Bulk
Pack
Qtyin mm in mm in mm in mm
CFCC-3-05A-RT 0.563 14.3 0.49 12.5 0.18 4.6 1.00 25.4 UL94 V-1 PPE/PS White 1000
CFCC-4-05A-RT 0.563 14.3 0.42 10.7 0.25 6.4 1.00 25.4 UL94 V-1 PPE/PS White 1000
CFCC-8-05A-RT 1.062 27.0 0.88 22.4 0.25 6.4 1.00 25.4 UL94 V-1 PPE/PS White 1000
CFCC-8-04A-RT 1.062 27.0 0.88 22.4 0.25 6.4 1.00 25.4 UL94 V-0 PVC Grey 1000
Item
No.
Bulk
Pack
Qty
CFCCS-8-01A 1000
CFCCS Series
Split Flat Cable Clamp On Adhesive Base
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Tension arm securely holds down
flat ribbon cable
1.04
(26.4)
.60 (15.4)
.99 (25.1)
.10
(2.7)
.38 (9.7)
.23 (5.8)
Item
No.
Base
Mounting Method Figure
Bulk
Pack
Qtyin mm
SFCC-4-01 0.672 x 0.500 17.1 x 12.7 #4 or M2.5 Flat Head Screw 1 1000
SFCC-4-01A-RT 0.672 x 0.500 17.1 x 12.7 Adhesive 1 1000
SFCC-8-01 1.000 x 1.000 25.4 x 25.4 #6 or M3 Flat Head Screw 2 1000
SFCC-8-01A-RT 1.000 x 1.000 25.4 x 25.4 Adhesive 2 1000
SFCC Series
Split Flat Cable Clamp
5/8
(15.9)
1/8 (3.2)
1.00 (25.4)
.20 (5.1)
Figure 2
1/8 (3.2)
1/4 (6.4) 1/4 (6.4)
43/64
(17.1)
Figure 1
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Two tension arms hold flat ribbon
cable firmly in place
• Easily installed with screw or adhesive
CFCCA Series
Flat Cable Clamp
Item No.
Ø Mounting Hole Panel Thickness Base Bulk
Pack
Qtyin mm in mm in mm
CFCCA-1-01 0.187 4.8 0.310 - 0.078 0.8 - 2.0 0.56 x 0.63 14.3 x 15.9 1000
.56 (14.3)
.21 (5.3)
.44
(11.2)
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Designed for routing flat ribbon cable
• Serrated grip prevents slippage
• Low profile
Item
No. Max # of
Conductors
A C E Ø Mounting Hole Panel Thickness Depth Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
TFCCA-15-01 10 0.57 14.5 0.591 15.0 0.56 14.1 0.156 4.0 0.040 - 0.079 1.0 - 2.0 0.36 9.1 100
TFCCA-25-01 20 0.97 24.7 0.787 20.0 0.50 12.7 0.156 4.0 0.040 - 0.079 1.0 - 2.0 0.52 13.2 100
TFCCA-40-01 40 2.13 54.1 1.575 40.0 0.64 16.3 0.156 4.0 0.040 - 0.079 1.0 - 2.0 0.39 10.0 100
TFCCA-50-01 50 2.51 63.8 1.957 49.7 0.54 13.7 0.156 4.0 0.040 - 0.079 1.0 - 2.0 0.40 10.2 100
E
A
C
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
TFCCA Series
Flat Cable Clamp with Tension
Specifications:
• Material: See Table
• Color: See Table
Features:
• Designed for routing flat ribbon cable
• Serrated grip prevents slippage
• Low profile
Features:
• Provides tension to flat ribbon
cable to ensure stability
• Convenient releasable latch
slve Base
wen—2x 1757 105 270 012 123 3217 use 100 1512171 2017
Tron—25 115 144 335 1112 157 we was 100 20m 21m
wen—25111 22o 241 512 015 «a 255 mu use 150 mm 1017
5qu
Hem Max« 01 Pack
Nu. Canduclars 171 mm m mm .11 mm my
751212411471 31: 125 320 177 450 155 on 135 me
7501240411 417 213 5411 254 no 155 M2 153 mu
7591:5041 so 2 57 55 2 3 m 754 15 5 n 74 1s a 11m
551k
11m Puck
Nu m mm 171 mm 171 mm 1.. mm my
recs—1 1 me 27 a o 55 15 a 013 3 1 a 23 7 a sun
room 155 A25 115 31m 1115 37 025 7a 5110
recs-s 135 A717 135 3517 015 37 025 7a sea
rccsa 224 57 a 1 77 45 a n 15 3 7 n 25 7 a 51m
rccsa 253 72a 235 mm 015 37 025 7a sea
209
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

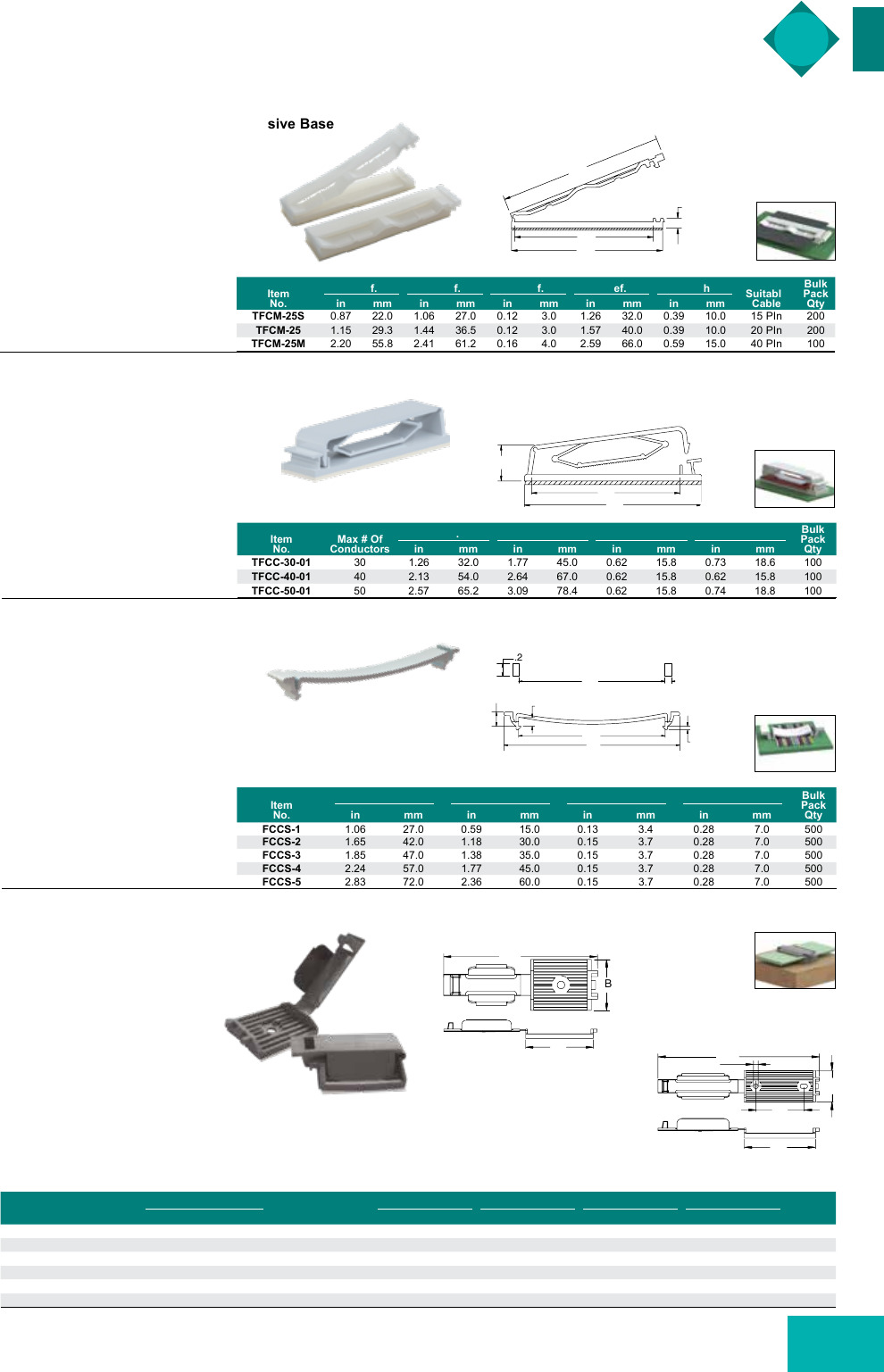

TFCM Series
Flat Cable Clamp with Tension on Adhesive Base
Item
No.
A Ref. B Ref. C Ref. F Ref. Depth Suitable
Cable
Bulk
Pack
Qtyin mm in mm in mm in mm in mm
TFCM-25S 0.87 22.0 1.06 27.0 0.12 3.0 1.26 32.0 0.39 10.0 15 PIn 200
TFCM-25 1.15 29.3 1.44 36.5 0.12 3.0 1.57 40.0 0.39 10.0 20 PIn 200
TFCM-25M 2.20 55.8 2.41 61.2 0.16 4.0 2.59 66.0 0.59 15.0 40 PIn 100
F
C
A
B
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Provides tension to flat ribbon
cable to ensure stability
• Low profile where space is an
issue
• Convenient releasable latch
FLAT CABLE CLAMPS
TFCC Series
Flat Cable Clamp with Tension
on Adhesive Base
Item
No. Max # Of
Conductors
A Ref. B C Depth Bulk
Pack
Qtyin mm in mm in mm in mm
TFCC-30-01 30 1.26 32.0 1.77 45.0 0.62 15.8 0.73 18.6 100
TFCC-40-01 40 2.13 54.0 2.64 67.0 0.62 15.8 0.62 15.8 100
TFCC-50-01 50 2.57 65.2 3.09 78.4 0.62 15.8 0.74 18.8 100
A
B
C
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Provides tension to flat ribbon
cable to ensure stability
• Adhesive base for quick
mounting
FCCS Series
Flat Cable Clamp
Item
No.
A B D Depth Bulk
Pack
Qtyin mm in mm in mm in mm
FCCS-1 1.06 27.0 0.59 15.0 0.13 3.4 0.28 7.0 500
FCCS-2 1.65 42.0 1.18 30.0 0.15 3.7 0.28 7.0 500
FCCS-3 1.85 47.0 1.38 35.0 0.15 3.7 0.28 7.0 500
FCCS-4 2.24 57.0 1.77 45.0 0.15 3.7 0.28 7.0 500
FCCS-5 2.83 72.0 2.36 60.0 0.15 3.7 0.28 7.0 500
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Features:
• Very low profile
• Designed to firmly hold down
flat ribbon cable
• Easily removable from the top
of the panel
RDAFCC Series
Flat Cable Clamp
Item
No. Figure
Max Cable Width Mounting
Method
A Ref. B Ref. D Ref. EBulk
Pack
Qtyin mm in mm in mm in mm in mm
RDAFCC-25 1 1.000 25.4 #6 or M3.5 Screw 2.984 75.8 0.984 25.0 1.169 29.7 — — 100
RDAFCC-25A 1 1.000 25.4 Adhesive 2.984 75.8 0.984 25.0 1.169 29.7 — — 100
RDAFCC-50 2 2.000 50.8 #6 or M3.5 Screw 5.059 128.5 0.954 25.0 2.224 56.5 1.496 38.0 100
RDAFCC-50A 2 2.000 50.8 Adhesive 5.059 128.5 0.984 25.0 2.224 56.5 1.496 38.0 100
RDAFCC-82 2 3.000 76.2 #6 or M3.5 Screw 7.062 179.4 1.000 25.4 3.259 82.8 1.496 38.0 100
RDAFCC-82A 2 3.000 76.2 Adhesive 7.062 179.4 1.000 25.4 3.259 82.8 1.496 38.0 100
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Grey
Features:
• Low profile design
• Releasable latch for adding or removing flat ribbon cable
• Large mounting base for high bonding strength and stability
D
E
A
B
Ø.15 (3.8)
Figure 2
D
A
B
Figure 1
.228 (5.8)
.209 (5.3)
.102
(2.6)
.059
(1.5)
D
B
A
B
Mounting Holes
9» 9m
11991 M 7 7 95:1:
119. m 19 mm m 19 mm 99
999999 9 999 19 9 9999 99 9 99 9 9 9 999 9 9 999
9999.19 9 799 191 9999 99 9 99 9 9 9 999 99 999
999919 1999 99 9 9 919 9 9 9 99 9 9 9 999 9 9 999
999999 1999 919 9 999 9 9 9 99 9 9 9 999 99 999
999991 1 919 99 9 9 999 9 9 9 99 9 9 9 999 9 9 999
999999 1999 991 9997 111 999 99 9999 99 999
999999 1 999 99 9 9 999 19 7 9 99 9 9 9 999 9 9 999
999999 9999 999 9999 199 999 99 9999 99 999
rec—15.2.”
FIBER, WIRE & CABLE MANAGEMENT
210 tel | 800 847 0486 fax | 866 561 6617

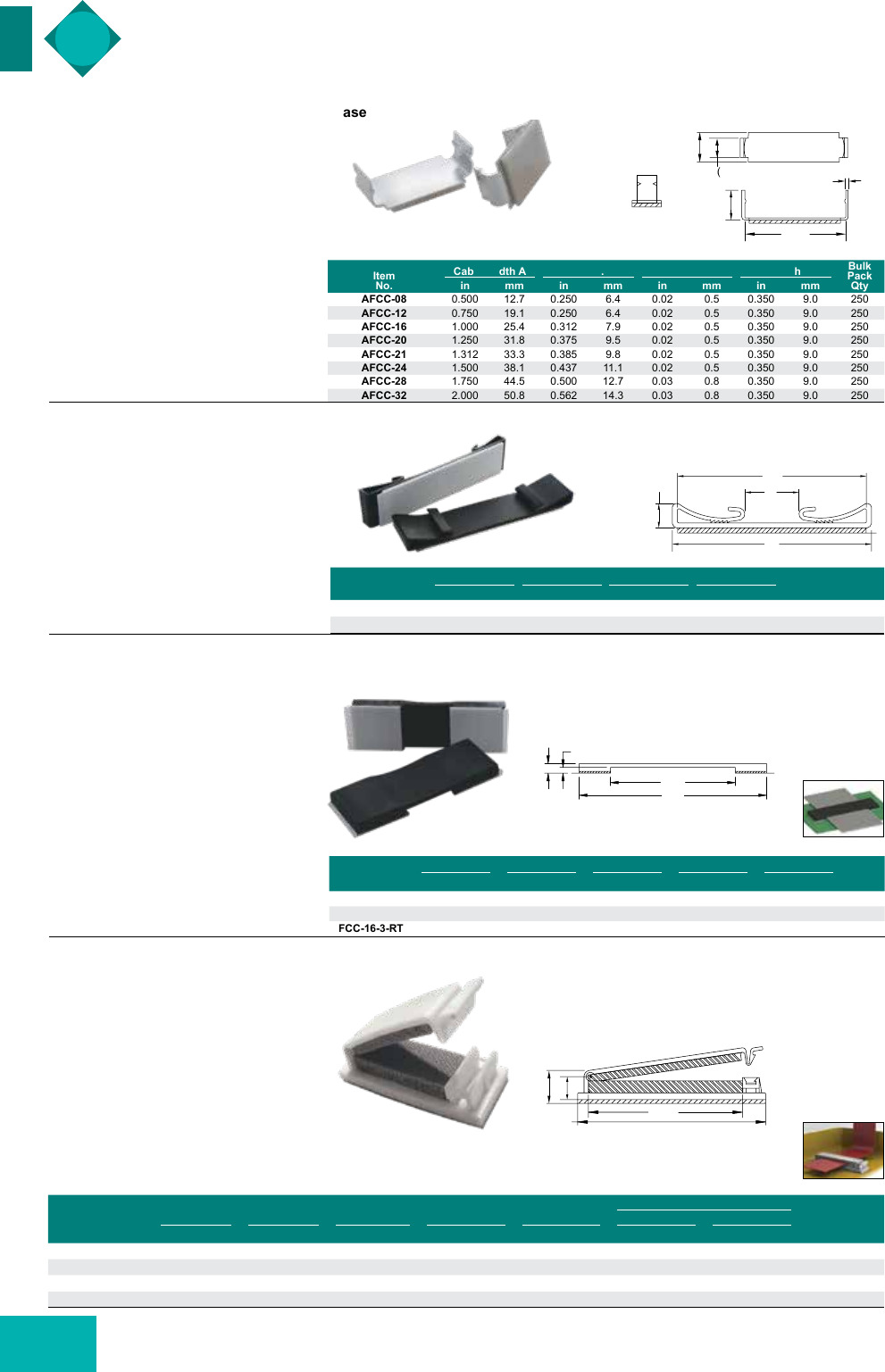

AFCC Series
Aluminum Flat Cable Clamp on Adhesive Base
Item
No.
Cable Width A B Ref. C Depth Bulk
Pack
Qtyin mm in mm in mm in mm
AFCC-08 0.500 12.7 0.250 6.4 0.02 0.5 0.350 9.0 250
AFCC-12 0.750 19.1 0.250 6.4 0.02 0.5 0.350 9.0 250
AFCC-16 1.000 25.4 0.312 7.9 0.02 0.5 0.350 9.0 250
AFCC-20 1.250 31.8 0.375 9.5 0.02 0.5 0.350 9.0 250
AFCC-21 1.312 33.3 0.385 9.8 0.02 0.5 0.350 9.0 250
AFCC-24 1.500 38.1 0.437 11.1 0.02 0.5 0.350 9.0 250
AFCC-28 1.750 44.5 0.500 12.7 0.03 0.8 0.350 9.0 250
AFCC-32 2.000 50.8 0.562 14.3 0.03 0.8 0.350 9.0 250
B
A
C
.354 ± .031
(9.0)
1/4 (6.4)
Specifications:
• Material: Aluminum
• Color: Bright Finish
Features:
• Aluminum arms secure flat ribbon
cable
• Lightweight and durable
• Low profile for limited space
applications
DFCC Series
Dual Flat Cable Clamp on Adhesive Base
Item
No.
AB Ref. C Depth # of
Conductors
Bulk
Pack
Qtyin mm in mm in mm in mm
DFCC-2-RT 2.312 58.7 0.656 16.8 2.437 61.9 0.750 19.1 34-37-40 100
DFCC-3-RT 3.250 82.6 1.609 40.6 3.375 85.7 0.750 19.1 50-60-64 100
C
.30
(7.6) B
A
Specifications:
• Material: UL94 V-0 PVC
• Color: Black
Features:
• Flat ribbon cable is secured
by serrated grips on both sides
• Low profile for limited space
applications
FCC Series
Flat Cable Clamp on Adhesive Base
W
G
TL
Specifications:
• Material: UL94 V-0 PVC
• Color: Black
Features:
• Clamp is secured with adhesive
over flat ribbon cable
• Low profile for limited space
applications
Item
No.
L W T G Depth Bulk
Pack
Qtyin mm in mm in mm in mm in mm
FCC-4-3-RT 1.50 38.1 0.50 12.7 0.156 4.0 0.093 2.4 0.500 12.7 100
FCC-8-3-RT 2.00 50.8 1.00 25.4 0.156 4.0 0.093 2.4 0.500 12.7 100
FCC-16-3-RT 3.00 76.2 2.00 50.6 0.156 4.0 0.093 2.4 0.500 12.7 100
Item
No.
Cushion Thickness
Pack
Qty
Bulk
Pack
Qty
A B C Ref. D Ref. Depth Latch Side Base Side
in mm in mm in mm in mm in mm in mm in mm
FCWSF-29-19 1.24 31.5 1.78 45.1 0.30 7.7 0.44 11.1 0.74 18.9 0.13 3.3 0.13 3.3 1 100
FCWSF-30-19 1.24 31.5 1.79 45.5 0.35 9.0 0.52 13.1 0.75 19.1 0.13 3.3 019 4.8 1 100
FCWSF-40-19 1.55 39.3 2.09 53.0 0.37 9.3 0.53 13.4 0.75 19.1 0.13 3.3 0.19 4.8 1 100
FCWSF-50-19 2.49 63.2 3.04 77.2 0.36 9.1 0.52 13.2 0.75 19.1 0.13 3.3 0.19 4.8 1 100
A
C
D
B
Specifications:
• Material: UL94 V-0 Nylon 6/6 and
Silicone Foam
• Color: Natural
Features:
• UL94 V-0 silicone foam securely
holds and protects fiber and cable
• Adhesive base for fast installation
FCWSF Series
Cable Clamp with Silicone Foam Center
FLAT CABLE CLAMPS
211
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

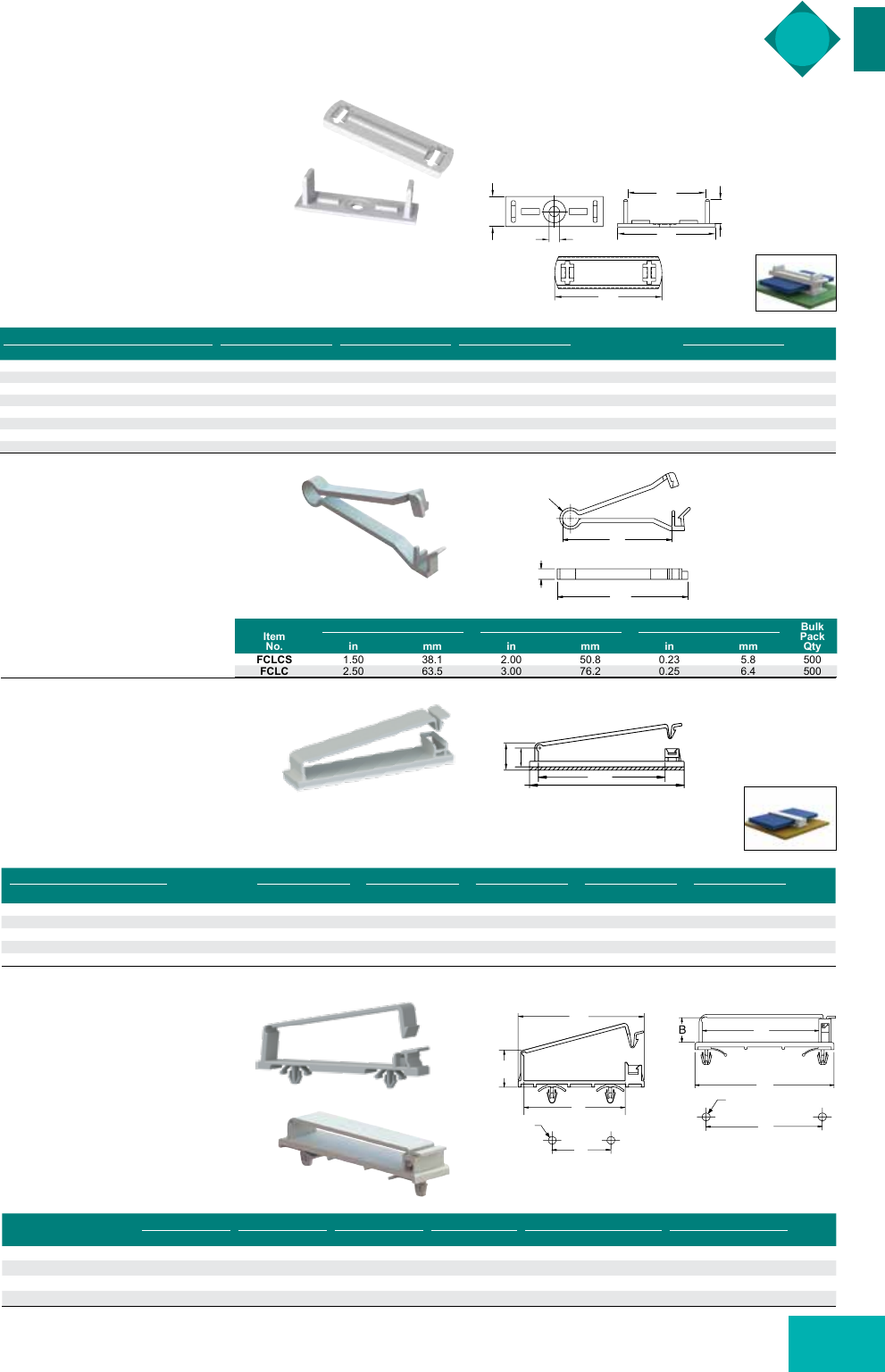

FCRC Series
Flat Cable Routing Clamp
Base Item No. A Ref. B Ref. CUse Cover
Item No.
DBulk
Pack
Qtyw/o Adhesive w/ Adhesive in mm in mm in mm in mm
FCRC-13B-4 FCRC-13B-4A-RT 2.04 51.7 1.62 41.2 0.500 12.7 FCRC-13C 2.24 56.8 100
FCRC-19B-4 FCRC-19B-4A-RT 2.72 69.1 2.31 58.7 0.500 12.7 FCRC-19C 2.92 74.2 100
FCRC-21B-4 FCRC-21B-4A-RT 2.98 75.7 2.55 64.8 0.500 12.7 FCRC-21C 3.17 80.5 100
FCRC-26B-4 FCRC-26B-4A-RT 3.66 93.0 3.24 82.3 0.500 12.7 FCRC-26C 3.86 98.0 100
FCRC-13B-6 FCRC-13B-6A-RT 2.04 51.7 1.62 41.2 0.750 19.1 FCRC-13C 2.24 56.8 100
FCRC-19B-6 FCRC-19B-6A-RT 2.72 69.1 2.31 58.7 0.750 19.1 FCRC-19C 2.92 74.2 100
FCRC-21B-6 FCRC-21B-6A-RT 2.98 75.7 2.55 64.8 0.750 19.1 FCRC-21C 3.17 80.5 100
FCRC-26B-6 FCRC-26B-6A-RT 3.66 93.0 3.24 82.3 0.750 19.1 FCRC-26C 3.86 98.0 100
B
C
A
Ø.218
5.5
5/8
(15.9)
D
Cover
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Two part design: Cable Clamp base and
tension-locking cover (sold separately)
• More than one cover can be mounted on base for strain relief.
Double back cable and secure with a second cover
• Base is secured either with a #10 or #12 screw or adhesive
CABLE CLAMPS & CLIPS
FCW Series
Cable Clamp On Adhesive Base
Item No. Max # of
Conductors
Depth A B C Ref. D Ref. Bulk
Pack
QtyUL94 V-2 UL94 V-0 in mm in mm in mm in mm in mm
FCW-29-01 FCW-29-19 30 0.74 18.9 1.24 31.5 1.78 45.1 0.30 7.7 0.44 11.1 100
FCW-30-01 FCW-30-19 30 0.75 19.1 1.24 31.5 1.79 45.5 0.35 9.0 0.52 13.1 100
FCW-40-01 FCW-40-19 40 0.75 19.1 1.55 39.3 2.09 53.0 0.37 9.3 0.53 13.4 100
FCW-50-01 FCW-50-19 50 0.75 19.1 2.49 63.2 3.04 77.2 0.36 9.1 0.52 13.2 100
FCW-50H-01 FCW-50H-19 50 0.74 18.9 2.54 64.6 3.08 78.2 0.59 15.1 0.75 19.0 100
A
C
D
B
Specifications:
• Material: Nylon 6/6
• Color: Natural
C R.
A
B
1/4 (6.4)
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Allows for quick positive
clamping of flat cable without
the need for securing the clip
to a board
Item
No.
A Max Cable Width B Ref. C Ref. Bulk
Pack
Qtyin mm in mm in mm
FCLCS 1.50 38.1 2.00 50.8 0.23 5.8 500
FCLC 2.50 63.5 3.00 76.2 0.25 6.4 500
FCLC/FCLCS Series
Flat Cable Loop Clip
Item
No. Figure
L A B C Panel Thickness Depth Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
FCCA-30A-01 1 2.56 65.0 2.10 52.0 0.75 19.1 1.18 30.0 0.030 - 0.079 0.8 - 2.0 0.39 10.0 100
FCCA-40A-01 1 2.64 67.0 5.10 53.4 0.64 16.4 1.58 40.0 0.030 - 0.079 0.8 - 2.0 0.39 10.0 100
FCCB-1 2 3.03 77.0 2.54 64.5 0.28 7.2 2.54 64.5 0.031 - 0.078 0.8 - 2.0 0.79 20.0 100
FCCB-2 2 3.03 77.0 2.54 64.5 0.54 13.7 2.54 64.5 0.031 - 0.078 0.8 - 2.0 0.79 20.0 100
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Convenient releasable latch allows
easy addition and removal of cables
• Easily mounted into pre-drilled holes
A
L
C
Ø.157 (4.0) x2
Recommended
Mounting Holes
B
Figure 1
L
A
B
C
Ø.187 (4.75) x2
Recommended
Mounting Holes
Figure 2
FCCA/FCCB Series
Arrowhead Mounted Cable Clamp
Features:
• Allows for quick positive clamping of flat cable up to 50 conductors wide
• Adhesive base for quick installation
• Latch allows cables to be added and removed
am
um — — Fack
Nu H: mm m mm 9“ my
«scum—o1 o m 4 a 047 V a m 12 .2 a 1 mm
HFcc-arum o 312 7 a a 259 min a 4 mm 2 1mm
4
m M Eli
«a, in mm M...“ 5m Mam. cm. my
mm 037 94 as mm“. um “mm mm man
mmax 037 9A as mwas. um Hanna mm mm
Tc-M-1—o1 037 94 as mm“. um mwmm mm man
mmmau 037 9A as mwas. um mmm mm mm
( .
.3—
71—
FIBER, WIRE & CABLE MANAGEMENT
212 tel | 800 847 0486 fax | 866 561 6617
CABLE CLAMPS & CLIPS

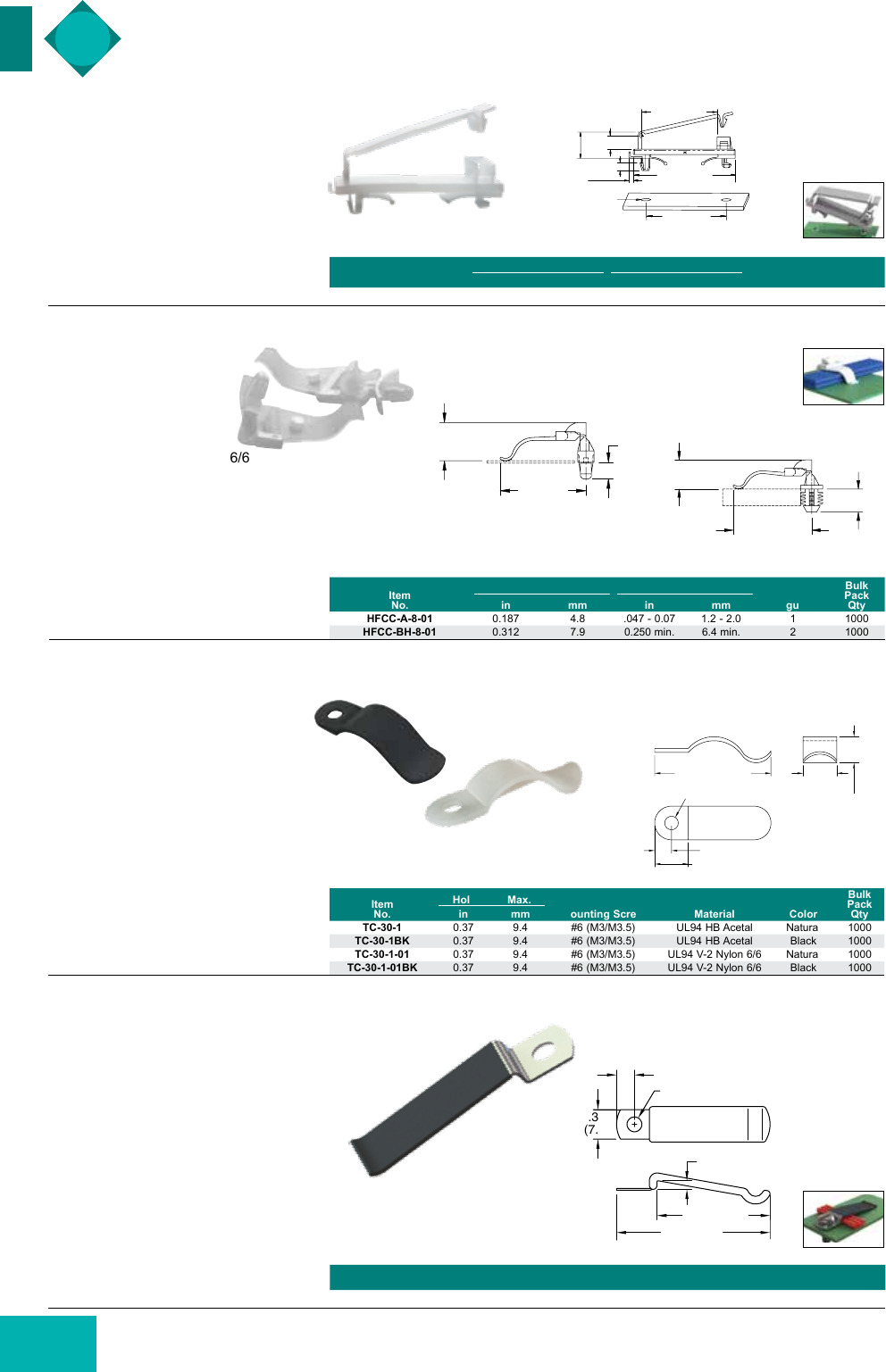

FCSE Series
Slide Entry Cable Clamp
Item
No.
Depth Panel Thickness Max Bulk Pack
Qtyin mm in mm
FCSE-1 0.752 19.0 0.073 1.4 100
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Removable from the top side of
the board
Item
No.
Mounting Holes Panel Thickness
Figure
Bulk
Pack
Qtyin mm in mm
HFCC-A-8-01 0.187 4.8 0.047 - 0.078 1.2 - 2.0 1 1000
HFCC-BH-8-01 0.312 7.9 0.250 min. 6.4 min. 2 1000
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Easy loading of flat cables
• Hinged design allows cables to be
oriented prior to closure
• Once arm is hinged it locks in place
• Arrowhead design for thinner panels
• Fir-tree mount is primarily for particle
board
Specifications:
• Material: See Table
• Color: See Table
Features:
• Holds down round cable, ribbon cable,
and tubing
• Mounts with a #6 screw or rivet
• Flexible enough that the cable can
be removed without removing the clip
• All contact edges are rounded for
product protection
1/2 (12.7)
1-1/8
(28.6)
.21
(5.3)
Figure 1
7/16 (11.1)
11/32 (8.7)
1-11/64
(29.8)
Figure 2
HFCC Series
Hinged Cable Clamp
TC Series
Spring Clip
STCV Series
Vinyl Coated Steel Spring Clip
1-5/16 (33.3)
Ø.150 (3.8)
3/8
(9.5)
.29
(7.4)
3/16 (4.8)
3/8 (9.5)
Item
No.
Holding Ø Max.
Mounting Screw Material Color
Bulk
Pack
Qtyin mm
TC-30-1 0.37 9.4 #6 (M3/M3.5) UL94 HB Acetal Natural 1000
TC-30-1BK 0.37 9.4 #6 (M3/M3.5) UL94 HB Acetal Black 1000
TC-30-1-01 0.37 9.4 #6 (M3/M3.5) UL94 V-2 Nylon 6/6 Natural 1000
TC-30-1-01BK 0.37 9.4 #6 (M3/M3.5) UL94 V-2 Nylon 6/6 Black 1000
Item
No. Mounting Screw Pack
Qty Bulk Pack
Qty
STCV-1 #6 (M3) 1 1000
Ø.156 (4.0)
.19 (4.8)
.09 (2.3)
1.19 (30.2)
1.61 (40.9)
.31
(7.9)
Specifications:
• Material: Stainless Steel SAE30301
Coating: Plastisol Vinyl
• Color: Black
Features:
• Vinyl coating protects and insulates
product
• Holds down round cable, ribbon cable
and tubing
• Mounts with a #6 (M3) screw or rivet
• Flexible enough that the cable can be
removed without removing the clip
1.55 (39.3)
.28 (7.1)
.16 (4.0)
.09 (2.4)
.189 (4.8) x 2
2.09 (53.0)
1.58 (40.0)
.54
(13.8)
Mounting Holes
PLASTIC FASTENERS
Q \xx a, A
213
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Specifications:
• Base Material: High-Density Polyethylene
Insert Material: TPE
• Color: Black
Features:
• Pressure grips accommodate up to 7 cable bundles
• Cable grips are easily removed from the frame to accommodate
larger cable bundles
• Cables are pushed into the product by hand and are easily removed
• Mount to panel using #6 or M3.5 screws
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Mounts with adhesive or a #6 or M4 screw
• Buckle design allows gripping down on cable bundles
• Adjustable to handle multiple bundle sizes
CABLE STRAPS

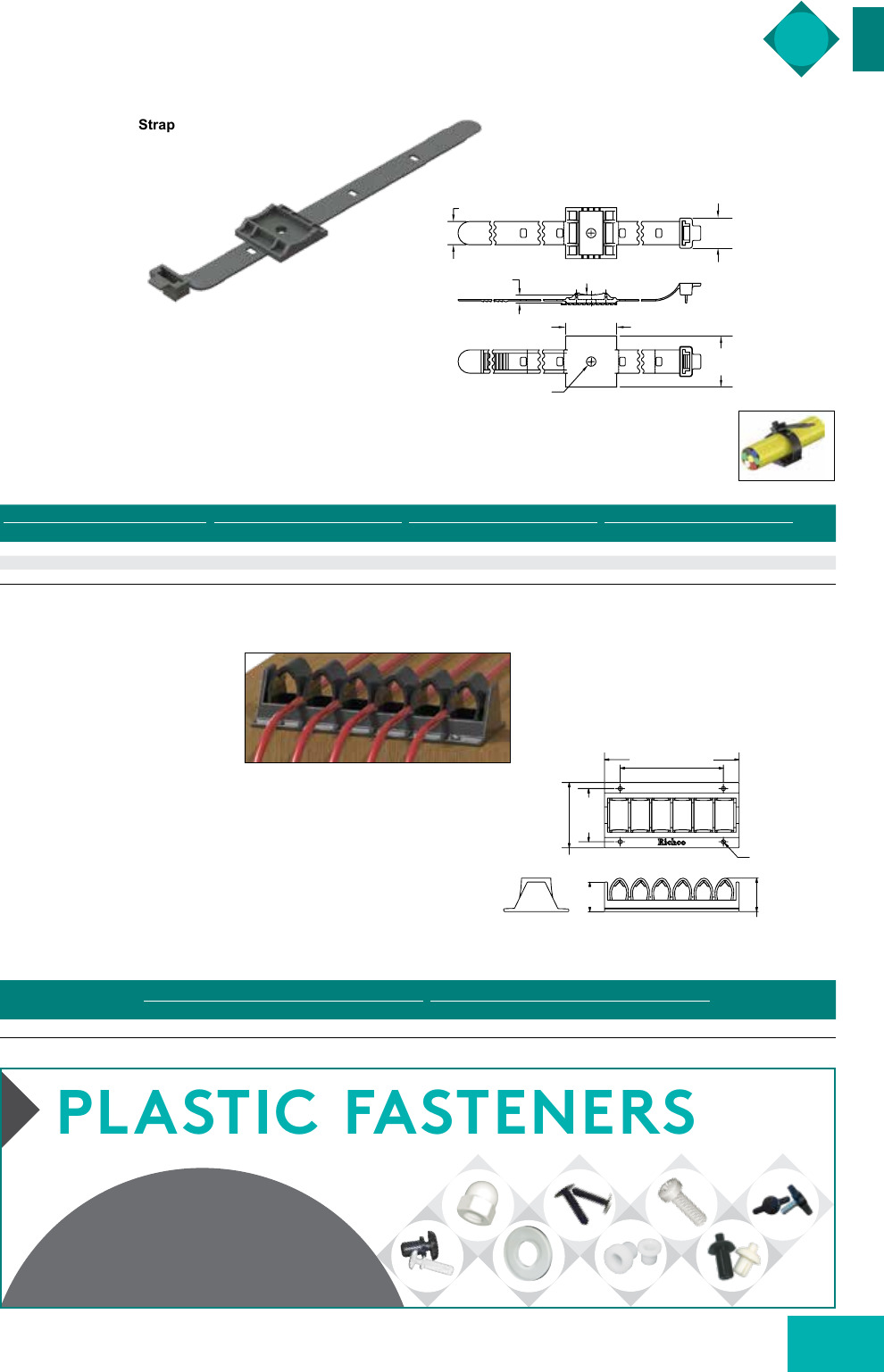

UMS Series
Universal Mounting Strap
UCG Series
Universal Cable Grip
Item No. Min Loop Tensile Strength Ø Max Bundle R Radius Bulk
Pack
Qtyw/ Adhesive w/o Adhesive lbs kg in mm in mm
UMS-16-45A-RT UMS-16-45 50 23 1.000 25.4 0.500 12.7 100
UMS-24-45A-RT UMS-24-45 50 23 1.500 38.1 0.750 19.1 100
UMS-32-45A-RT UMS-32-45 50 23 2.000 50.8 1.000 25.4 100
Item
No.
Max Cable Ø Bundle Ref (7 Positions) Max Cable Ø Bundle Ref (5 Center Positions Only) Bulk
Pack
Qtyin mm in mm
UCG-6BK 0.08 2.0 0.630 16.0 125
Ø.203 (5.1)
1.10 (27.9)
R
.18 (4.6)
1.10
(27.9)
.65
(16.5)
.50 (12.7)
Ø.16
(4.0) x 4
4.11 (104.5) Ref.
5.39 (137.0) Ref.
2.60 (66.0) Ref.
1.18
(30.0)
1.57 (40.0) Ref.
2.11
(53.5)
Ref.
PLASTIC FASTENERS
800 847 0486
www.essentracomponents.com
FIBER, WIRE & CABLE MANAGEMENT
214 tel | 800 847 0486 fax | 866 561 6617

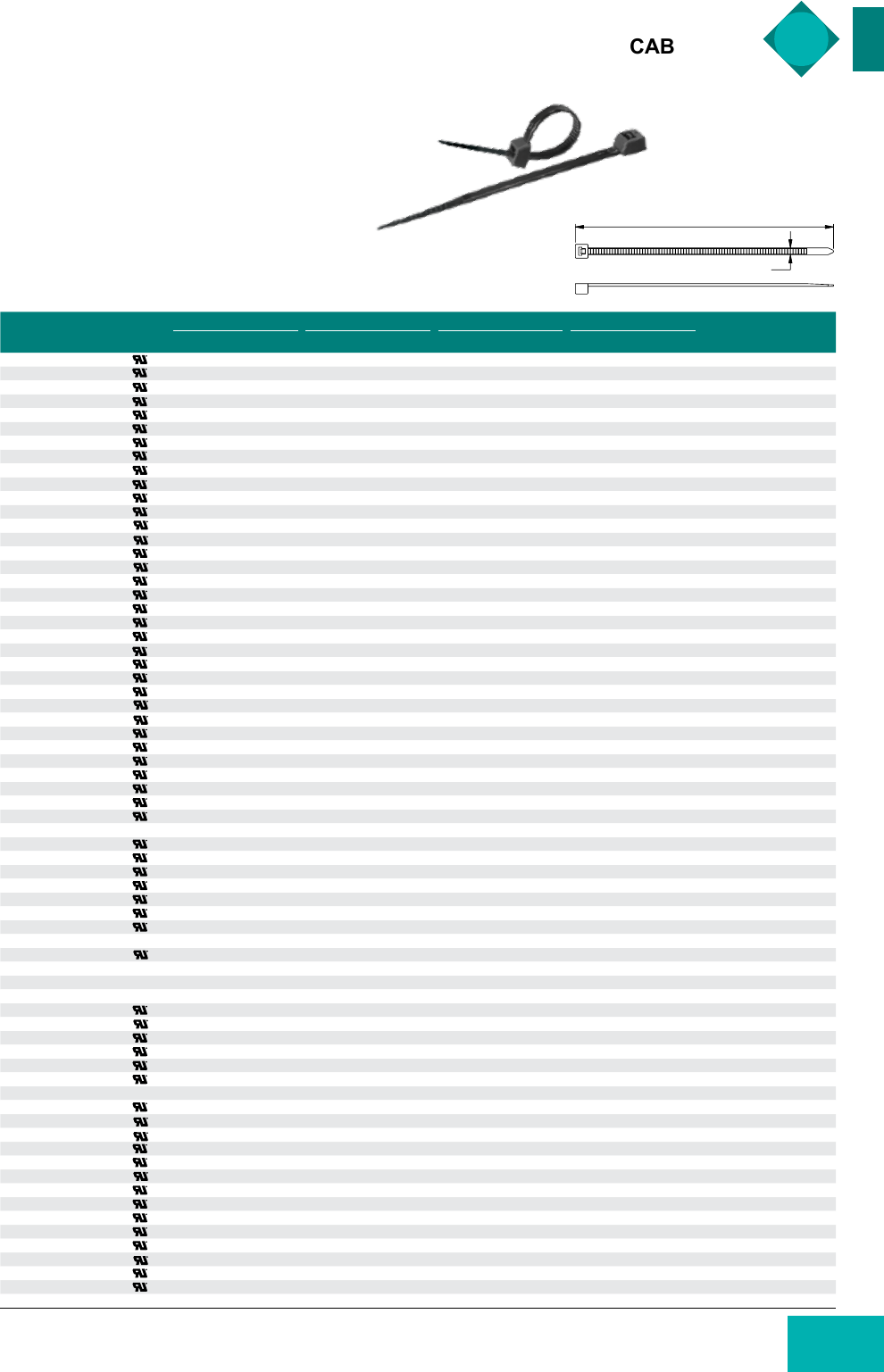

CT/WITA Series
Nylon Locking Cable Tie
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Complies with MS-3367 & MIL-S-23190E
• Service Temperature: -40°F to 185°F (-40°C to 85°C)
• UL 181B-C for Ul non-metallic air ducts and connectors on
CT080A, CT080B, CT082A & CT082B: recommended for use with R-6 & R-8 flex ducts found on page 101
Item No.
Approval
L Ref. W Ref. Ø Max Bundle Tensile Strength
Classification Bulk Pack
QtyNatural Black in mm in mm in mm lbs N
CT001A CT001B 3.000 75.0 0.095 2.4 0.710 18.0 18 80 Miniature 100
CT002A CT002B 3.750 96.0 0.098 2.4 0.910 23.0 18 80 Miniature 100
WITA-18SF-M — 3.850 97.8 0.100 2.5 0.870 22.0 18 80 Miniature 1000
CT003A CT003E 4.000 100.0 0.098 2.4 0.980 25.0 18 80 Miniature 100
WITA-18R-M — 4.720 120.0 0.100 2.5 1.060 26.9 18 80 Miniature 1000
CT004A CT004B 4.750 120.0 0.098 2.5 1.180 30.0 18 80 Miniature 100
CT005A CT005B 5.500 142.0 0.098 2.5 1.380 35.0 18 80 Miniature 100
WITA-18L-M — 5.900 150.0 0.100 2.5 1.460 37.1 18 80 Miniature 1000
CT006A CT006B 6.500 165.0 0.098 2.5 1.730 44.0 18 80 Miniature 100
WITA-18V-M — 7.870 200.0 0.100 2.5 2.130 54.1 18 80 Miniature 1000
CT007A CT007B 8.000 203.0 0.098 2.5 2.170 55.0 18 80 Miniature 100
WITA-18X-M — 15.750 400.0 0.100 2.5 4.560 116.0 18 80 Miniature 1000
CT008A CT008B 4.750 120.0 0.126 3.2 1.180 40.0 40 178 Intermediate 100
CT009A CT009B 5.500 142.0 0.126 3.2 1.380 40.0 40 178 Intermediate 100
WITA-40R-C — 5.910 150.0 0.140 3.6 1.480 37.6 40 178 Intermediate 100
WITA-40R-M — 5.910 150.0 0.140 3.6 1.480 37.6 40 178 Intermediate 1000
CT010A CT010B 6.000 150.0 0.142 3.6 1.540 39.0 40 178 Intermediate 100
CT020A CT020B 7.000 180.0 0.141 3.6 1.930 49.0 40 178 Intermediate 100
WITA-40L-M — 7.870 200.0 0.140 3.6 2.050 52.0 40 178 Intermediate 1000
CT011A CT011B 8.000 203.0 0.126 3.2 2.170 40.0 40 178 Intermediate 100
CT012A CT012C 8.000 203.0 0.142 3.6 2.170 55.0 40 178 Intermediate 100
WITA-40XL-M — 8.070 205.0 0.140 3.6 2.100 53.3 40 178 Intermediate 1000
CT013A CT013B 10.000 250.0 0.142 3.6 2.910 74.0 40 178 Intermediate 100
CT014A CT014B 10.500 265.0 0.142 3.6 3.070 78.0 40 178 Intermediate 100
CT015A CT015B 11.500 292.0 0.142 3.6 3.350 85.0 40 178 Intermediate 100
WITA-40VL-M — 11.810 300.0 0.140 3.6 3.270 83.0 40 178 Intermediate 1000
CT016A CT016B 13.000 330.0 0.142 3.6 3.780 96.0 40 178 Intermediate 100
CT017A CT017B 14.500 368.0 0.142 3.6 4.020 102.0 40 178 Intermediate 100
CT018A CT018B 4.750 120.0 0.189 4.8 1.180 30.0 50 222 Standard 100
WITA-50S-M — 6.300 160.0 0.180 4.6 1.520 38.7 50 222 Standard 1000
CT019A CT019B 6.500 160.0 0.189 4.8 1.650 42.0 50 222 Standard 100
CT021A CT021B 7.500 190.0 0.189 4.8 2.050 52.0 50 222 Standard 100
WITA-50R-M — 7.900 200.7 0.180 4.6 1.950 49.5 50 222 Standard 1000
CT022A CT022B 8.000 203.0 0.181 4.6 2.170 55.0 50 222 Standard 100
CT023A CT023B 10.000 250.0 0.189 4.8 2.910 74.0 50 222 Standard 100
CT024A CT024B 11.000 280.0 0.189 4.8 3.190 81.0 50 222 Standard 100
WITA-50RL-M — 11.020 280.0 0.190 4.8 3.030 77.0 50 222 Standard 1000
CT025A CT025B 11.875 300.0 0.189 4.8 3.350 85.0 50 222 Standard 100
CT026A CT026B 12.250 310.0 0.189 4.8 3.500 89.0 50 222 Standard 100
CT027A CT027B 14.500 368.0 0.189 4.8 4.020 102.0 50 222 Standard 100
CT028A CT028B 15.250 385.0 0.189 4.8 4.570 116.0 50 222 Standard 100
WITA-50L-M — 15.750 400.0 0.180 4.6 4.450 113.0 50 222 Standard 1000
CT029A CT029B 17.000 432.0 0.189 4.8 4.920 125.0 50 222 Standard 100
CT030A CT030B 17.750 450.0 0.189 4.8 5.120 130.0 50 222 Standard 100
CT031A CT031B 19.687 500.0 0.189 4.8 5.910 150.0 50 222 Standard 100
CT033A CT033B — 21.687 550.0 0.189 4.8 6.540 166.0 50 222 Standard 100
WITA-50XL-C — 25.000 635.0 .0.190 4.8 7.480 190.0 50 222 Standard 100
CT063A CT063B — 36.000 914.0 0.189 4.8 10.630 270.0 50 222 Standard 100
CT064A CT064B — 4.750 120.0 0.299 7.6 1.180 30.0 120 534 Heavy Duty 100
CT065A CT065B — 6.000 150.0 0.299 7.6 1.540 39.0 120 534 Heavy Duty 100
CT066A CT066B 8.000 203.0 0.299 7.6 2.170 55.0 120 534 Heavy Duty 100
WITA-120S-D — 8.600 218.0 0.300 7.6 2.010 51.0 120 534 Heavy Duty 500
CT067A CT067B 9.437 240.0 0.299 7.6 2.600 66.0 120 534 Heavy Duty 100
CT068A CT068B 11.000 280.0 0.299 7.6 3.070 78.0 120 534 Heavy Duty 100
CT069A CT069B 11.750 300.0 0.299 7.6 3.460 88.0 120 534 Heavy Duty 100
CT070A CT070B 13.500 340.0 0.299 7.6 3.900 99.0 120 534 Heavy Duty 100
CT071A CT071B — 15.000 380.0 0.252 6.4 4.330 110.0 100 445 Heavy Duty 100
CT072A CT072B 15.000 380.0 0.299 7.6 4.330 110.0 120 534 Heavy Duty 100
WITA-120R-D — 15.750 400.0 0.310 7.8 4.450 113.0 120 534 Heavy Duty 500
CT073A CT073B 17.750 450.0 0.315 8.0 5.240 133.0 120 534 Heavy Duty 100
WITA-120L-D — 21.650 550.0 0.310 7.8 6.380 162.0 120 534 Heavy Duty 500
CT074A CT074B 21.687 550.0 0.315 8.0 6.540 166.0 175 778 Heavy Duty 100
WITA-175R-L — 24.000 610.0 0.350 9.0 7.020 178.0 175 778 Heavy Duty 50
CT075A CT075B 24.000 610.0 0.354 9.0 7.280 185.0 175 778 Heavy Duty 100
CT076A CT076B 27.000 685.0 0.354 9.0 8.270 210.0 175 778 Heavy Duty 100
CT077A CT077B 28.000 710.0 0.354 9.0 8.660 220.0 175 778 Heavy Duty 100
CT078A CT078B 30.000 762.0 0.354 9.0 9.290 236.0 175 778 Heavy Duty 100
CT079A CT079B 32.000 812.0 0.354 9.0 9.690 246.0 175 778 Heavy Duty 100
CT080A CT080B 36.000 914.0 0.354 9.0 10.630 270.0 175 778 Heavy Duty 100
WITA-175L-Q — 36.000 914.0 0.350 9.0 10.910 277.0 175 778 Heavy Duty 25
CT081A CT081B 46.000 1168.0 0.354 9.0 14.170 360.0 175 778 Heavy Duty 100
CT082A CT082B 48.000 1219.0 0.354 9.0 15.000 380.0 175 778 Heavy Duty 100
CT084A CT084B 59.000 1500.0 0.354 9.0 18.270 464.0 175 778 Heavy Duty 100
W
L
CABLE TIES
215
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CABLE TIES
Item
No. Approval
L Ref. W Ref. Ø Max Bundle Tensile Strength
Classification
Bulk
Pack
Qtyin mm in mm in mm lbs N
CTWR002A 3.750 96.0 0.098 2.4 0.910 23.0 18 80 Miniature 100
WITA-18SF-UVB-M 3.850 97.8 0.100 2.5 0.870 22.0 18 80 Miniature 1000
CTWR003A 4.000 100.0 0.098 2.4 0.980 25.0 18 80 Miniature 100
WITA-18R-UVB-M 4.720 120.0 0.100 2.5 1.060 26.9 18 80 Miniature 1000
CTWR004A 4.750 120.0 0.098 2.5 1.180 30.0 18 80 Miniature 100
WITA-18L-UVB-M 5.900 150.0 0.100 2.5 1.460 37.1 18 80 Miniature 1000
CTWR006A 6.500 165.0 0.098 2.5 1.730 44.0 18 80 Miniature 100
WITA-18V-UVB-M 7.870 200.0 0.100 2.5 2.130 54.1 18 80 Miniature 1000
CTWR007A 8.000 203.0 0.098 2.5 2.170 55.0 18 80 Miniature 100
WITA-18X-UVB-M 15.750 400.0 0.100 2.5 4.560 116.0 18 80 Miniature 1000
CTWR008A 4.750 120.0 0.126 3.2 1.180 30.0 40 178 Intermediate 100
CTWR009A 5.500 142.0 0.126 3.2 1.380 35.0 40 178 Intermediate 100
WITA-40R-UVB-C 5.910 150.0 0.140 3.6 1.480 37.6 40 178 Intermediate 100
WITA-40L-UVB-M 7.870 200.0 0.140 3.6 2.050 52.0 40 178 Intermediate 1000
CTWR010A 8.000 203.0 0.126 3.2 2.170 55.0 40 178 Intermediate 100
WITA-40XL-UVB-M 8.070 205.0 0.140 3.6 2.100 53.3 40 178 Intermediate 1000
CTWR011A 6.000 150.0 0.142 3.6 1.540 39.0 40 178 Intermediate 100
CTWR012A 8.000 203.0 0.142 3.6 2.170 55.0 40 178 Intermediate 100
CTWR013A 10.000 250.0 0.142 3.6 2.910 74.0 40 178 Intermediate 100
CTWR014A 10.500 265.0 0.142 3.6 3.070 78.0 40 178 Intermediate 100
CTWR015A 11.500 292.0 0.142 3.6 3.350 85.0 40 178 Intermediate 100
WITA-40VL-UVB-M 11.810 300.0 0.140 3.6 3.270 83.0 40 178 Intermediate 1000
CTWR016A 13.000 330.0 0.142 3.6 3.780 96.0 40 178 Intermediate 100
CTWR017A 14.500 368.0 0.142 3.6 4.020 102.0 40 178 Intermediate 100
CTWR018A 7.000 180.0 0.142 3.6 1.930 49.0 40 178 Intermediate 100
WITA-50S-UVB-M 6.300 160.0 0.180 4.6 1.520 38.7 50 222 Standard 1000
WITA-50R-UVB-M 7.900 200.7 0.180 4.6 1.950 49.5 50 222 Standard 1000
CTWR019A 8.000 203.0 0.181 4.6 2.170 55.0 50 222 Standard 100
CTWR020A 4.750 120.0 0.189 4.8 1.180 30.0 50 222 Standard 100
CTWR021A 6.500 160.0 0.189 4.8 1.650 42.0 50 222 Standard 100
CTWR022A 7.500 190.0 0.189 4.8 2.050 52.0 50 222 Standard 100
CTWR023A 10.000 250.0 0.189 4.8 2.910 74.0 50 222 Standard 100
CTWR024A 11.000 280.0 0.189 4.8 3.190 81.0 50 222 Standard 100
WITA-50RL-UVB-M 11.020 280.0 0.190 4.8 3.030 77.0 50 222 Standard 1000
CTWR025A — 11.875 300.0 0.189 4.8 3.350 85.0 50 222 Standard 100
CTWR026A 12.250 310.0 0.189 4.8 3.500 89.0 50 222 Standard 100
CTWR027A 14.500 368.0 0.189 4.8 4.020 102.0 50 222 Standard 100
CTWR028A 15.187 385.0 0.189 4.8 4.570 116.0 50 222 Standard 100
WITA-50L-UVB-M 15.750 391.2 0.180 4.6 4.520 114.8 50 222 Standard 1000
CTWR029A 17.000 432.0 0.189 4.8 4.920 125.0 50 222 Standard 100
CTWR030A 17.750 450.0 0.189 4.8 5.120 130.0 50 222 Standard 100
CTWR031A 19.687 500.0 0.189 4.8 5.910 150.0 50 222 Standard 100
CTWR033A — 21.687 550.0 0.189 4.8 6.540 166.0 50 222 Standard 100
WITA-50XL-UVB-C 25.000 635.0 0.190 4.8 7.480 190.0 50 222 Standard 100
CTWR063A — 36.000 914.0 0.189 4.8 10.630 270.0 50 222 Standard 100
CTWR064A — 4.750 120.0 0.299 7.6 1.180 30.0 120 534 Heavy Duty 100
CTWR065A — 6.000 150.0 0.299 7.6 1.540 39.0 120 534 Heavy Duty 100
CTWR066A 8.000 203.0 0.299 7.6 2.170 55.0 120 534 Heavy Duty 100
WITA-120S-UVB-D 8.600 218.0 0.300 7.6 2.010 51.0 120 534 Heavy Duty 500
CTWR067A 9.437 240.0 0.299 7.6 2.600 66.0 120 534 Heavy Duty 100
CTWR068A 11.000 280.0 0.299 7.6 3.070 78.0 120 534 Heavy Duty 100
CTWR069A 11.875 300.0 0.299 7.6 3.500 88.0 120 534 Heavy Duty 100
CTWR070A 13.500 340.0 0.299 7.6 3.900 99.0 120 534 Heavy Duty 100
CTWR071A — 15.000 380.0 0.252 6.4 4.330 110.0 100 445 Heavy Duty 100
CTWR072A 15.000 380.0 0.299 7.6 4.330 110.0 120 534 Heavy Duty 100
WITA-120R-UVB-D 15.750 400.0 0.310 7.8 4.450 113.0 120 534 Heavy Duty 500
WITA-120L-UVB-D 21.650 550.0 0.310 7.8 6.380 162.0 120 534 Heavy Duty 500
CTWR073A 17.750 450.0 0.315 8.0 5.250 133.0 175 778 Heavy Duty 100
CTWR074A 21.875 550.0 0.315 8.0 6.500 166.0 175 778 Heavy Duty 100
WITA-175R-UVB-L 24.000 610.0 0.350 9.0 7.020 178.0 175 778 Heavy Duty 50
CTWR075A 24.000 610.0 0.354 9.0 7.280 185.0 175 778 Heavy Duty 100
CTWR076A 27.000 680.0 0.354 9.0 8.270 210.0 175 778 Heavy Duty 100
CTWR077A 28.000 705.0 0.354 9.0 8.660 220.0 175 778 Heavy Duty 100
CTWR079A 32.000 812.0 0.354 9.0 9.690 246.0 175 778 Heavy Duty 100
CTWR080A 36.000 914.0 0.354 9.0 10.630 270.0 175 778 Heavy Duty 100
WITA-175L-UVB-Q 36.000 914.0 0.350 9.0 10.910 277.0 175 778 Heavy Duty 25
CTWR081A 46.000 1168 0.354 9.0 14.170 360.0 175 778 Heavy Duty 100
CTWR082A 48.000 1219 0.354 9.0 15.000 380.0 175 778 Heavy Duty 100
CTWR084A — 59.000 1500 0.354 9.0 18.270 464.0 175 778 Heavy Duty 100
CTWR/WITA Series
Weather Resistant Locking Cable Tie
Specifications:
• Material: UL94 V-2 UV Stabilized Nylon 6/6
• Color: Black
Features:
• Service Temperature: –40°F to 185°F (–40°C to 85°C)
• Designed for outdoor applications
L
W
905
11172
“as
man
2155
2295
2374
M65
«755
230 a
zen 0
sea a
m n
550 a
sen n
m a
mm n
1030 n
0500
175170
0500
175170
0500
175170
0500
uses
nsm
127
127
127
127
127
127
127
127
127
2430
5150
use
551a
5540
saga
wan
msm
12455
5317
we
111717
1400
11555
1750
2255
2570
we
Iue
cram
1:me
cram.
emu.
cram
12711251.
cram.
5.1m
mus
mm
cmas
mus
cums
mass
cums
Anpmm m
594
am
591
934
am
1151
1w:
“as
man
man
1500
2517a
2mm
man
3550
mm
am 25
case 25
17142 as
am as
17151 us
am ‘8
17159 m
um 75
age
217
15;
291
217
as
417
FIBER, WIRE & CABLE MANAGEMENT
216 tel | 800 847 0486 fax | 866 561 6617
Item No. L W Ø Max Bundle Tensile Strength
Classification
Bulk
Pack
QtyNatural Approval Black Approval in mm in mm in mm lbs N
CTHD001A CTHD001B — 9.06 230.0 0.500 12.7 2.480 63.0 250 1113 Extra Heavy Duty 100
CTHD002A CTHD002B — 11.02 280.0 0.500 12.7 3.150 80.0 250 1113 Extra Heavy Duty 100
CTHD003A CTHD003B — 14.96 380.0 0.500 12.7 4.330 110.0 250 1113 Extra Heavy Duty 100
CTHD004A — CTHD004B — 18.90 480.0 0.500 12.7 5.510 140.0 250 1113 Extra Heavy Duty 100
CTHD005A CTHD005B 21.65 550.0 0.500 12.7 6.540 166.0 250 1113 Extra Heavy Duty 100
CTHD006A — CTHD006B — 22.83 580.0 0.500 12.7 6.890 175.0 250 1113 Extra Heavy Duty 100
CTHD007A — CTHD007B — 28.74 730.0 0.500 12.7 8.860 225.0 250 1113 Extra Heavy Duty 100
CTHD008A — CTHD008B — 34.65 880.0 0.500 12.7 10.510 267.0 250 1113 Extra Heavy Duty 100
CTHD009A —CTHD009B — 40.55 1030.0 0.500 12.7 12.480 317.0 250 1113 Extra Heavy Duty 100
Item No. L Ref. W Ref. Ø Max Bundle Tensile Strength
Classification
Bulk
Pack
QtyGreen Red Yellow Blue Silver Approval in mm in mm in mm lbs N
CT003G CT003K CT003Y CT003L CT003S 3.94 100.0 0.098 2.5 0.980 25.0 18 80 Miniature 100
CT007G CT007K CT007Y CT007L CT007S 8.00 203.0 0.098 2.5 2.170 55.0 18 80 Miniature 100
CT010G CT010K CT010Y CT010L CT010S 5.91 150.0 0.142 3.6 1.540 39.0 40 178 Intermediate 100
CT013G CT013K CT013Y CT013L CT013S 9.84 250.0 0.142 3.6 2.910 74.0 40 178 Intermediate 100
CT022G CT022K CT022Y CT022L CT022S 8.00 203.0 0.181 4.6 2.170 55.0 50 222 Standard 100
CT025G CT025K CT025Y CT025L CT025S 11.81 300.0 0.189 4.8 3.350 85.0 50 222 Standard 100
CT027G CT027K CT027Y CT027L CT027S 14.49 368.0 0.189 4.8 4.020 102.0 50 222 Standard 100
CT072G CT072K CT072Y CT072L CT072S 14.96 380.0 0.299 7.6 4.330 110.0 120 534 Heavy Duty 100
CTHD Series
Extra Heavy Duty Cable Tie
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Service Temperature: –40°F to 185°F (–40°C to 85°C)
• High tensile strength for demanding applications
CABLE TIES
CT Series
Colored Locking Cable Tie
Item
No.
L Ref. W Ref. Ø Max Bundle Tensile Strength Bulk
Pack Qtyin mm in mm in mm lbs N
1293369 5.90 150.0 0.14 3.6 1.42 36.1 18 80 100
1293370 8.00 203.0 0.18 4.6 2.05 52.1 22 98 100
1293371 9.84 250.0 0.19 4.8 2.68 68.1 22 98 100
1293372 9.49 240.0 0.29 7.4 2.40 61.0 50 222 100
1293373 11.81 300.0 0.30 7.6 3.15 80.0 50 222 100
1293374 14.96 380.0 0.30 7.6 4.13 104.9 50 222 100
1293375 21.65 550.0 0.31 7.9 6.30 160 50 222 100
Polypropylene Locking Cable Tie
Specifications:
• Material: Polypropylene
• Color: Black
Features:
• Excellent chemical resistance
• Moisture levels are relatively unaffected
by variations in moisture levels
• Buoyant
L
W
WITA-V0 Series
UL94 V-0 Locking Cable Tie
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Item
No.
L Ref. W Ref. Ø Max Bundle Tensile Strength Bulk
Pack
Qtyin mm in mm in mm lbs N
WITA-18R-V0-M 4.72 120.0 0.100 2.5 1.060 26.9 18 80 1000
WITA-50R-V0-M 7.90 200.7 0.180 4.6 1.950 49.5 50 222 1000
W
L
W
L
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
W
L
NEW
217
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

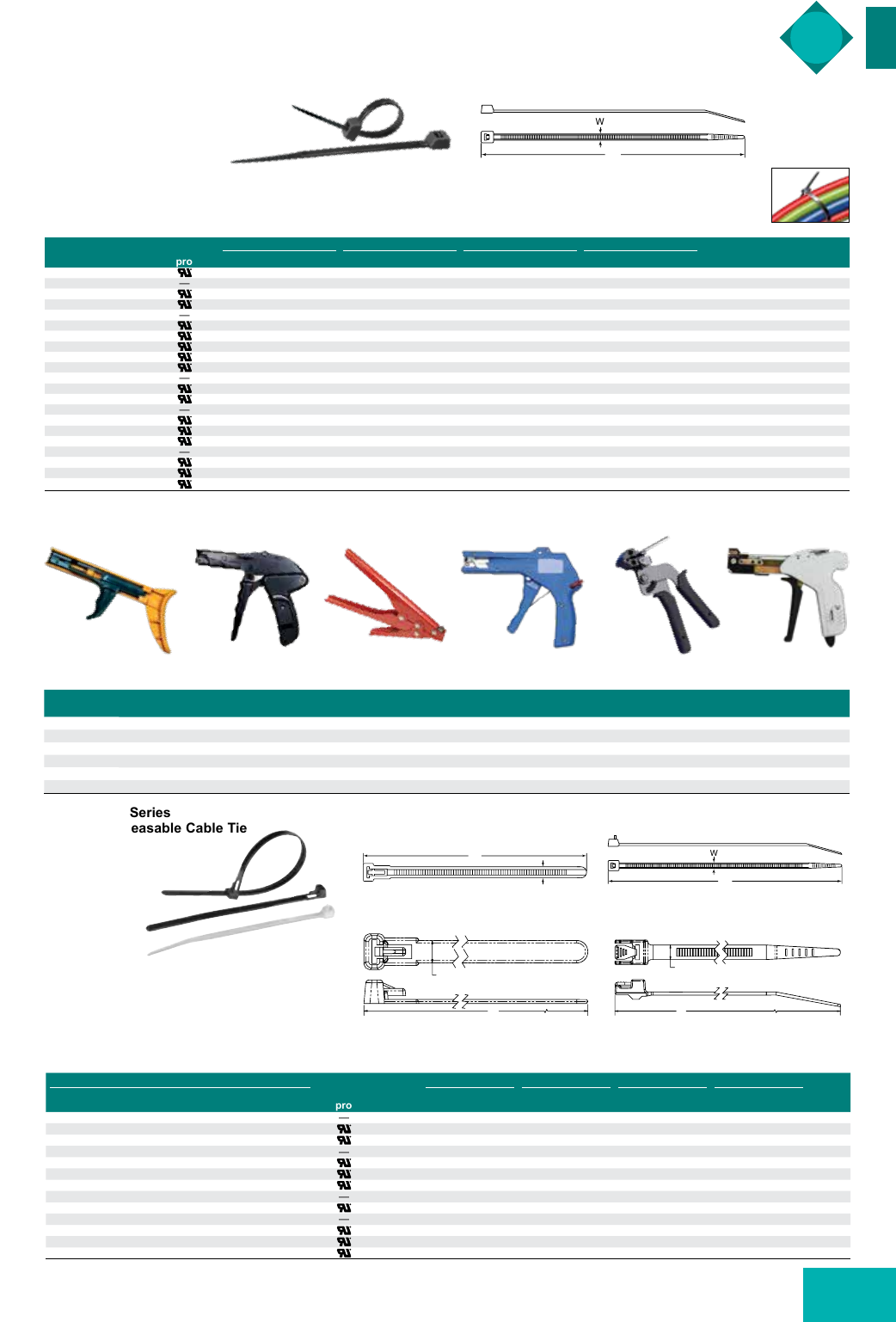

W
L
Item
No. Approval
L Ref. W Ref. Ø Max Bundle Tensile Strength
Classification Bulk Pack
Qtyin mm in mm in mm lbs N
CT003F 3.94 100.0 0.098 2.5 0.980 25.0 18 80 Miniature 100
WITA-18R-HS-M — 4.72 120.0 0.100 2.5 1.060 26.9 18 80 Miniature 1000
CT005C 5.59 142.0 0.098 2.5 1.380 35.0 18 80 Miniature 100
CT007C 8.00 203.0 0.098 2.5 2.170 55.0 18 80 Miniature 100
WITA-40R-HS-M — 5.91 150.0 0.140 3.6 1.480 37.6 40 178 Intermediate 1000
CT012D 8.00 203.0 0.142 3.6 2.170 55.0 40 178 Intermediate 100
CT015C 11.50 292.0 0.142 3.6 3.350 85.0 40 178 Intermediate 100
CT018C 4.72 120.0 0.189 4.8 1.180 30.0 50 222 Standard 100
CT019C 6.30 160.0 0.189 4.8 1.650 42.0 50 222 Standard 100
CT021C 7.48 190.0 0.189 4.8 2.050 52.0 50 222 Standard 100
WITA-50R-HS-M — 7.90 200.7 0.180 4.6 1.950 49.5 50 222 Standard 1000
CT022C 8.00 203.0 0.181 4.6 2.170 55.0 50 222 Standard 100
CT024C 11.02 280.0 0.189 4.8 3.190 81.0 50 222 Standard 100
WITA-50RL-HS-M — 11.02 280.0 0.190 4.8 3.030 77.0 50 222 Standard 1000
CT025C 11.81 300.0 0.189 4.8 3.350 85.0 50 222 Standard 100
CT027F 14.49 368.0 0.189 4.8 4.020 102.0 50 222 Standard 100
CT029F 17.00 432.0 0.189 4.8 4.920 125.0 50 222 Standard 100
CT033C — 21.65 550.0 0.189 4.8 6.540 166.0 50 222 Standard 100
CT067C 9.45 240.0 0.299 7.6 2.600 66.0 120 534 Heavy Duty 100
CT072C 14.96 380.0 0.299 7.6 4.330 110.0 120 534 Heavy Duty 100
CT075C 24.02 610.0 0.354 9.0 7.280 185.0 175 778 Heavy Duty 100
Item No.
Approval Figure
L Ref. W Ref. Ø Max Bundle Tensile Strength Bulk
Pack
QtyNatural Black Black UV Stabilized
Nylon 6/6 in mm in mm in mm lbs N
WIT-RT-1-M — WIT-RT-1-UVB-M — 3 8.093 206.0 0.300 7.6 1.875 48.0 30 133 1000
WIT-RT-0550-M — WITRT-0550-UV-M 4 5.500 139.7 0.210 5.3 1.250 31.8 40 178 1000
WIT-RT-0800-M — WITRT-0800-UV-M 4 8.000 203.2 0.210 5.3 2.000 50.8 40 178 1000
WIT-RT-1050-M — — — 4 10.500 266.7 0.210 5.3 2.500 63.5 40 178 1000
WIT-50SR-M — WIT-50SR-UVB-M 2 6.000 152.4 0.190 4.8 1.500 38.1 50 222 1000
WIT-50RR-M — WIT-50RR-UVB-M 2 8.000 203.2 0.190 4.8 2.000 50.8 50 222 1000
— CTR003A — 1 8.000 200.0 0.299 7.6 2.000 50.0 50 222 100
WIT-50LR-M — WIT-50LR-UVB-M — 2 11.656 295.9 0.190 4.8 3.000 76.2 50 222 1000
— CTR005A — 1 11.875 300.0 0.299 7.6 3.150 80.0 50 222 100
CTR011A — — — 2 14.562 370.0 0.189 4.8 4.020 102.0 50 222 100
WIT-RT-1525-Q — — 4 15.250 387.4 0.520 13.2 4.000 101.6 250 1113 25
WIT-RT-2150-Q — — 4 21.500 546.1 0.520 13.2 6.000 152.4 250 1113 25
WIT-RT-2775-Q — —4 27.750 704.9 0.520 13.2 8.000 203.2 250 1113 25
CTHS/WITA-HS Series
Heat Stabilized Cable Tie
CTG Series
Cable Tie Installation Tools
Item
No. Figure Used with Cable Ties Features: Pack
Qty
WIT-1 118 - 50 lbs Lightweight for job site installations and repairs 1
WIT-2A 218 - 50 lbs Heavy duty construction - cuts tie flush when adjustable preset bundling tension is reached 1
CTG004A 350 - 175 lbs Heavy duty construction 1
WIT-3A 418 - 50 lbs Economy model - glass reinforced Nylon for lightweight durability 1
CTG010A 5Stainless Steel Tightens and cuts locking Stainless Steel ties 1
MTG-1 6Stainless Steel Tightens and cuts locking Stainless Steel ties 1
Figure 1 Figure 2 Figure 3 Figure 4 Figure 6Figure 5
W
L
Figure 3
W
L
Figure 4
CTR/WIT-RT Series
Standard Releasable Cable Tie
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Ties remain locked until intentionally released using release tab
• Great for temporary bundling purposes or future changes
Figure 2
W
L
Figure 1
LW
CABLE TIES & INSTALLATION TOOLS
Specifications:
• Material: UL94 V-2 Heat Stabilized Nylon 6/6
• Color: Black
Features:
• Service Temperature: –40°F to 221°F (–40°C to 105°C)
• Suitable for higher temperature applications
CABLE MANAGEMENT
SS STEEL CABLE TIES/SPECIALTY CABL
’
use wilh I
V
325“}: m 1DOO”F (—2no°c m 538°C| ,0, 5.3m” 5m, 6,
| for mrmsive environments
Steel {or general purpose indenr/mMoer appucanons ’
e rasishnt
HDSB Serlas
Heavy Duty Strap and Buckl-
r.
H
Bu‘k
a um v r. Imvaci Pack
Ion 5/5 H: mm m mm my
L Hosamsu NDSBZJSa—R use 1500 am a mu m a so
7 unsamsu NDSEZ-SSD-L use as an ass 2 9 m m A 25
HDSB1JSa-XL anaz-ssn-XL asa 5mm man 15m 3335 25
25 am 25a 13
FIBER, WIRE & CABLE MANAGEMENT
218 tel | 800 847 0486 fax | 866 561 6617

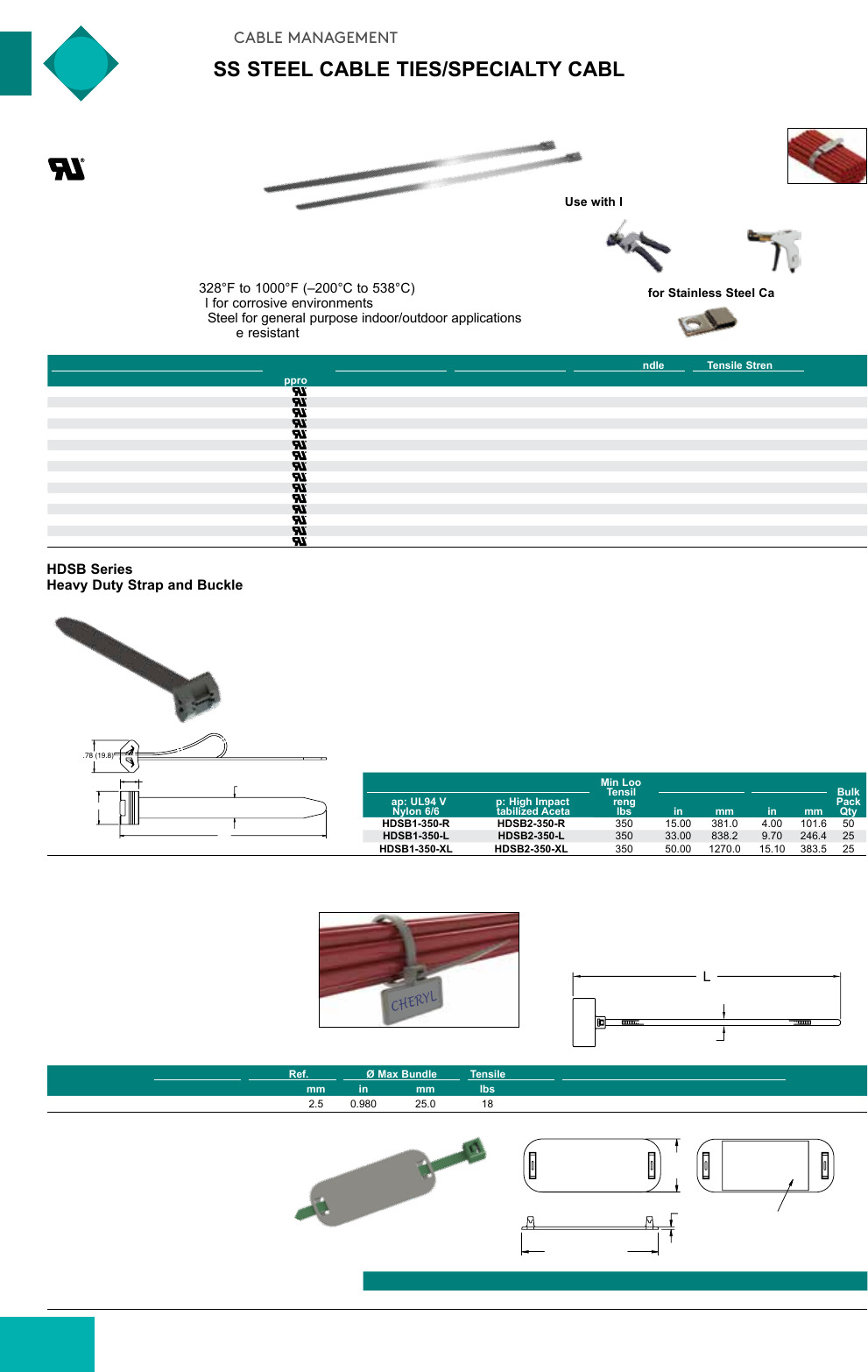

STAINLESS STEEL CABLE TIES/SPECIALTY CABLE TIES
Specifications:
• Material: See Table
Features:
• Temperature Range: –328°F to 1000°F (–200°C to 538°C)
• Use 316 Stainless Steel for corrosive environments
• Use Type 304 Stainless Steel for general purpose indoor/outdoor applications
• Radiation, vibration and flame resistant
MT Series
Stainless Steel Cable Tie
Item No. Length Width Ø Max Bundle Tensile Strength Bulk Pack
Qty304 Stainless Steel 316 Stainless Steel Approval in mm in mm in mm lbs N
MT-1 MT-16 5.00 127.0 0.18 4.6 1.00 25.4 100 445 100
MT-2 MT-17 7.91 201.0 0.18 4.6 2.00 51.0 100 445 100
MT-3 MT-18 10.20 259.0 0.18 4.6 2.75 70.0 100 445 100
MT-4 MT-19 14.25 362.0 0.18 4.6 4.00 102.0 100 445 100
MT-5 MT-20 20.51 521.0 0.18 4.6 6.00 152.0 100 445 100
MT-6 MT-21 26.73 679.0 0.18 4.6 8.00 203.0 100 445 100
MT-7 MT-22 32.99 838.0 0.18 4.6 10.00 254.0 100 445 100
MT-8 MT-23 39.29 998.0 0.18 4.6 12.00 304.0 100 445 50
MT-9 MT-24 49.21 1250.0 0.18 4.6 15.00 380.0 100 445 50
MT-10 MT-25 7.91 201.0 0.31 7.9 2.00 51.0 250 1113 100
MT-11 MT-26 14.25 362.0 0.31 7.9 4.00 102.0 250 1113 100
MT-12 MT-27 20.51 521.0 0.31 7.9 6.00 152.0 250 1113 100
MT-13 MT-28 26.73 679.0 0.31 7.9 8.00 203.0 250 1113 100
MT-14 MT-29 32.99 838.0 0.31 7.9 10.00 254.0 250 1113 50
MT-15 MT-30 39.29 998.0 0.31 7.9 12.00 304.0 250 1113 50
Use with Installation Tools CTG010A or MTG-1
on page 217.
See page 232 for Stainless Steel Cable Tie Holders.
HDSB Series
Heavy Duty Strap and Buckle
Item No. Min Loop
Tensile
Strength
lbs
LØ Max Bundle Bulk
Pack
Qty
Strap: UL94 V-2
Nylon 6/6 Strap: High Impact UV
Stabilized Acetal in mm in mm
HDSB1-350-R HDSB2-350-R 350 15.00 381.0 4.00 101.6 50
HDSB1-350-L HDSB2-350-L 350 33.00 838.2 9.70 246.4 25
HDSB1-350-XL HDSB2-350-XL 350 50.00 1270.0 15.10 383.5 25
.78 (19.8
)
.45 (11.4) .50 (12.7)
.80 (20.3)
L
Specifications:
• Head Material:
High Impact UV Stabilized Acetal
• Strap Material: See Table
• Color: Black
WITA-F Series
Identification Marker Tie
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: Natural
Features:
• Identification label on tie that can
be imprinted or written on with
markers
Item
No.
L Ref. W Ref. Ø Max Bundle Tensile Strength Marker Pad Bulk Pack
Qtyin mm in mm in mm lbs N in mm
WITA-F2-18R-M 4.330 110.0 0.100 2.5 0.980 25.0 18 80 1.00 x 0.31 25.0 x 7.9 1000
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Slide any standard cable tie up to 50 lbs.
through mounting slots (ties sold separately)
• Matte surface to accept ink, pencil or marker Item No. Cable Ties Accepted Bulk Pack Qty
WIT-MK-1 18 lbs. - 50 lbs. 1000
WIT-MK-1
Marker Tag for Cable Ties
.500
(12.7)
025
(0.6) Matte Surface to
Accept Ink or Pencil
1.29 (32.8)
L
W
Features:
• For heavy duty applications; max tensile strength of 350 lbs.
• Steel teeth on buckle grip the strap permanently
• Buckle is preassembled on one end of the strap
• Nylon strap material is high strength, lightweight, and
relatively inexpensive
• Acetal strap material has excellent weatherability, superior
dimension stability, and low-temperature toughness
• Installation tool available, use Item No. WIT-HD-6
219
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

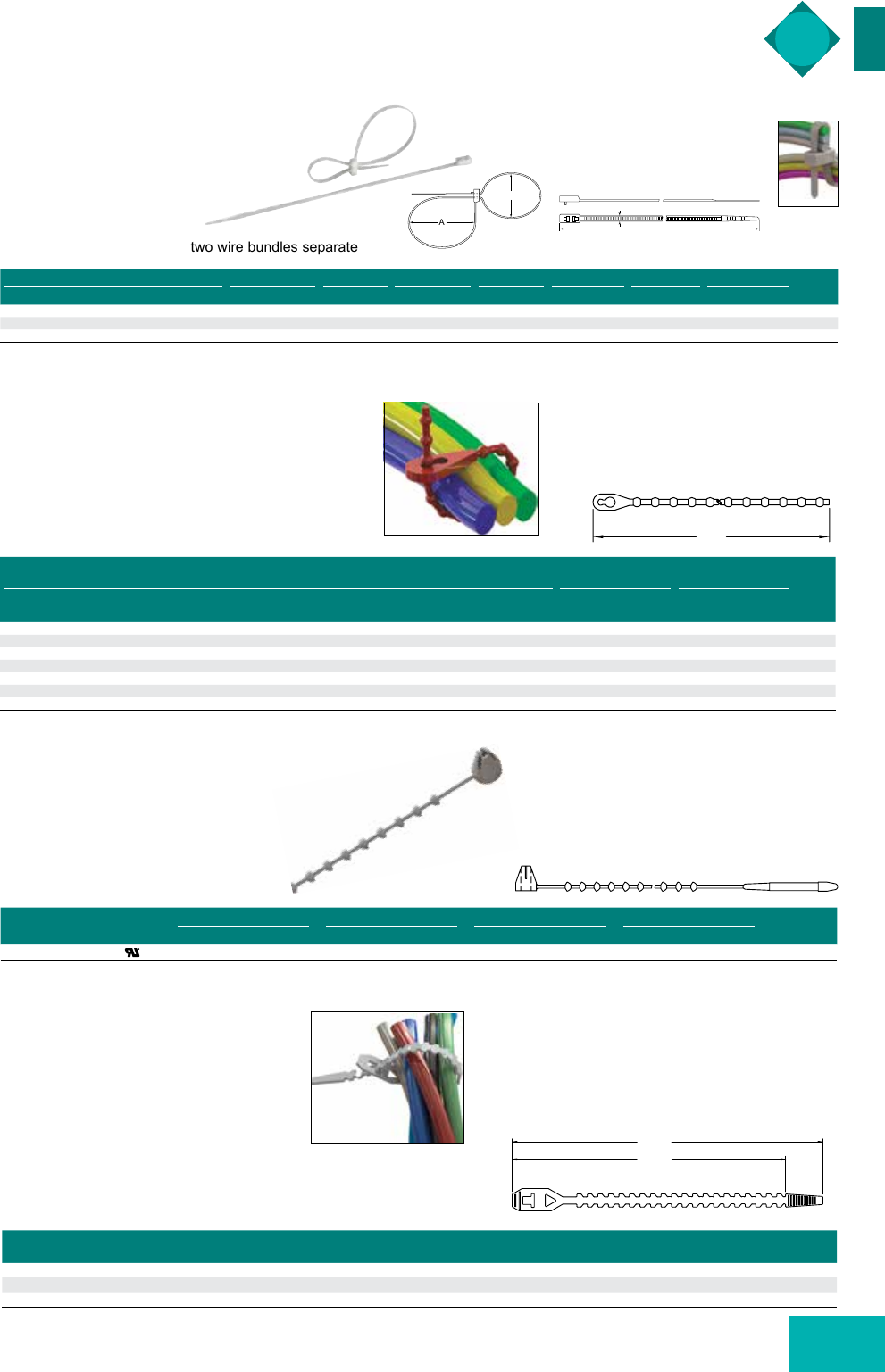

DOUBLE HEADED & BEADED CABLE TIES
CTDH/WITA-DH Series
Double Headed Cable Tie
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: See Table
Features:
• Double head design keeps two wire bundles separate
A
B
W
L
Item No. A Ref. Length
Ø Max Bundle
Requires 3 Bead
Engagement
Bulk
Pack
Qty
Red
UL94 HB
Polypropylene
Yellow
UL94 HB
Polypropylene
Blue
UL94 HB
Polypropylene
Black
UL94 HB
Polypropylene Natural
UL94 V-2 Nylon 6/6 in mm in mm
BT-2-10-RD BT-2-10-YL BT-2-10-BL BT-2-10-BK BT-2-01-NT 2.50 63.5 0.563 14.3 1000
BT-4-10-RD BT-4-10-YL BT-4-10-BL BT-4-10-BK BT-4-01-NT 4.00 101.6 1.000 25.4 1000
BT-5-10-RD BT-5-10-YL BT-5-10-BL BT-5-10-BK BT-5-01-NT 5.00 127.0 1.250 31.8 1000
BT-6-10-RD BT-6-10-YL BT-6-10-BL BT-6-10-BK BT-6-01-NT 6.00 152.4 1.750 44.5 1000
BT-8-10-RD BT-8-10-YL BT-8-10-BL BT-8-10-BK BT-8-01-NT 8.75 222.3 2.375 60.3 1000
BT-10-10-RD BT-10-10-YL BT-10-10-BL BT-10-10-BK BT-10-01-NT 10.75 273.1 3.125 85.7 1000
BT-12-10-RD BT-12-10-YL BT-12-10-BL BT-12-10-BK BT-12-01-NT 12.75 323.9 3.625 92.1 1000
BT Series
Beaded Cable Tie
LBT Series
Locking Beaded Cable Tie
HT Series
Hanking Cable Tie
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: Natural
Features:
• Has a permanent locking feature
Item
No. Approval
Length Width Max Ø Max Bundle Tensile Strength Bulk Pack
Qtyin mm in mm in mm lbs N
LBT-18-01 5.90 150.0 0.080 2.0 1.4 35.6 18 80 1000
Specifications:
• Material: Polyethylene
• Color: Natural
Features:
• Good for wrapping electrical cords for shipping and packaging
• Extremely flexible
Item
No.
B Ref. C Ref. Ø Max Bundle Width of Strap Bulk
Pack
Qtyin mm in mm in mm in mm
HT-3.9 3.19 81.0 3.90 99.0 0.91 23.0 0.250 6.4 1000
HT-4.9 4.21 107.0 4.92 125.0 1.10 28.0 0.250 6.4 1000
HT-5.9 5.20 132.0 5.91 150.0 1.42 36.0 0.250 6.4 1000
A
Item No. L W A Max A Min B Max B Min Tensile Strength Bulk
Pack
QtyNatural Black UV Stabilized In mm In mm In mm In mm In mm In mm Lbs N
WITA-50RLDH-M WITA50RLDH-UV-M 8.875 225.0 0.189 4.8 2.300 59.0 0.098 2.5 2.000 52.0 0.079 2.0 50 222 1000
CTDH002A — 11.875 300.0 0.189 4.8 3.300 83.0 0.098 2.5 3.000 76.0 0.079 2.0 50 222 1000
WITA-50LDH-M WITA-50LDH-UV-M 14.560 370.0 0.189 4.8 4.100 105.0 0.098 2.5 3.900 98.0 0.079 2.0 50 222 1000
Specifications:
• Material: See Table
• Color: See Table
Features:
• Easy to install and release
• Beaded design keeps wires from shifting or slipping
• Polypropylene material is very flexible
C
B
Tll
flvn—
5.002 a) at
' ‘ @7/3215 6|
©l.© u-u-u-o-u. 0:020:03
FIBER, WIRE & CABLE MANAGEMENT
220 tel | 800 847 0486 fax | 866 561 6617

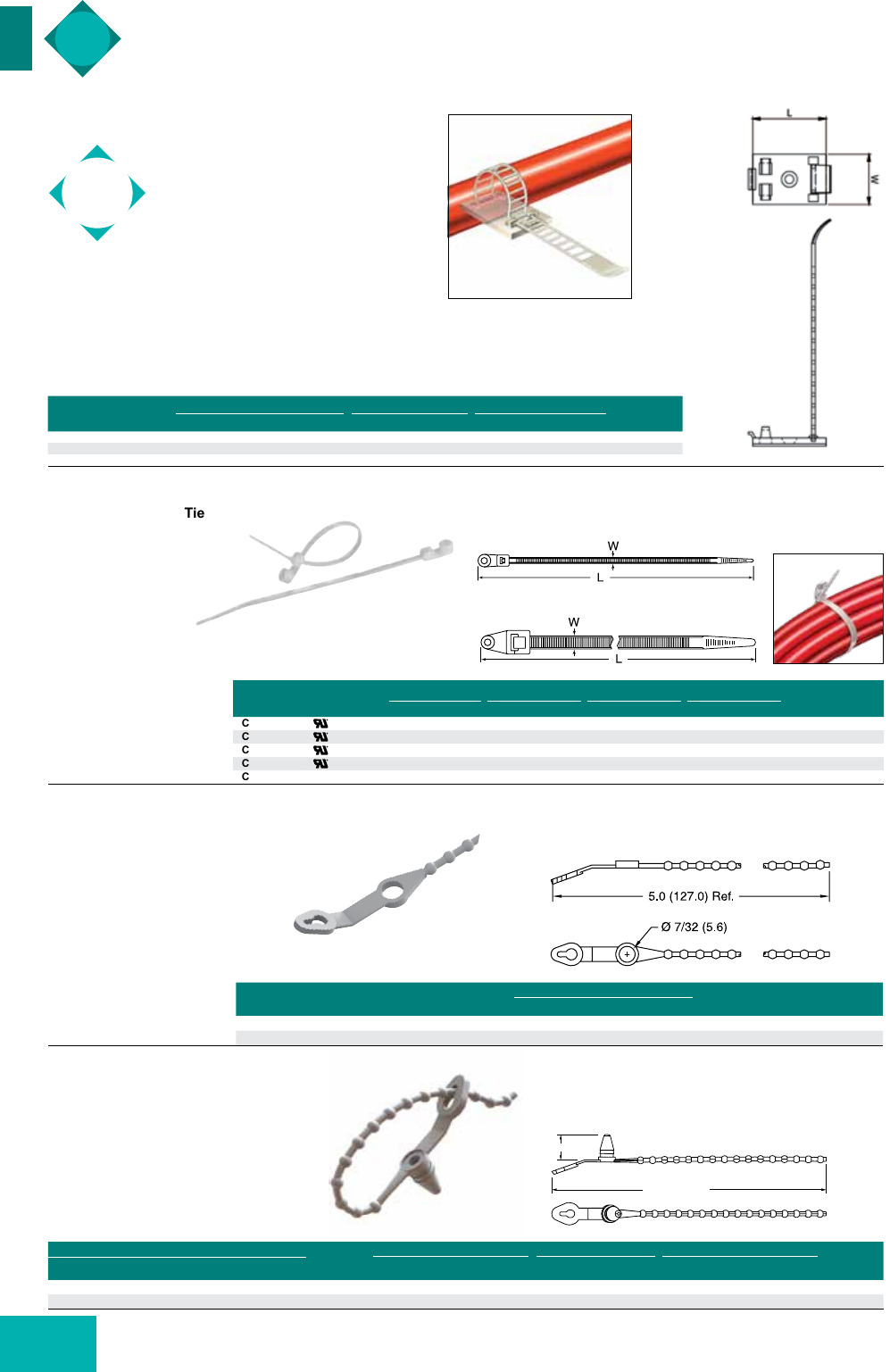

SCREW MOUNT & SPECIALTY CABLE TIES
CTMT Series
Screw Mount Cable Tie
ST Series
Screw Mount Beaded Cable Tie
PT Series
Push In Beaded Cable Tie
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: Natural
Features:
• Mountable with single
screw or bolt
Item
No.
L W Ø Max Bundle Tensile Strength Screw
Size
Bulk
Pack
QtyFigure in mm in mm in mm lbs. N
CTMT001A 1 4.33 110 0.098 2.5 0.984 25 18 80 #4 100
CTMT002A 1 6.75 171.5 0.146 3.7 1.575 40 40 178 #10 100
CTMT003A 1 8.62 219 0.165 4.2 2.047 52 50 222 #10 100
CTMT006A 2 16.14 410 0.311 7.9 4.409 112 120 534 M6 100
CTMT007A — 2 11.81 300 0.307 7.8 3.150 80 120 534 M6 100
Specifications:
• Material: See table
• Color: Natural
Features:
• Tie is easily releasable
• Polypropylene material
is very flexible
• Easily and securely
mounted with a #12
(M5) screw
Item
No. Material
Ø Bundle Range
Screw Size
Bulk
Pack
Qtyin mm
ST-205 UL94 HB Polypropylene 0.250 - 1.250 6.4 - 31.8 #12 1000
ST-305 UL94 V-2 Nylon 6/6 0.250 - 1.250 6.4 - 31.8 #12 1000
Item No.
Color
Ø Bundle Range Ø Mounting Hole Panel Thickness Bulk
Pack
Qty
UL94 Horizontal Burn
Polypropylene UL94 V-2
Nylon 6/6 in mm in mm in mm
PT-203 PT-303 Black 1/4 - 1-1/4 6.4 - 31.8 0.250 6.4 1/32 - 1/8 0.8 - 3.2 1000
PT-205 PT-305 Natural 1/4 - 1-1/4 6.4 - 31.8 0.250 6.4 1/32 - 1/8 0.8 - 3.2 1000
Figure 2
Figure 1
Specifications:
• Material: See table
• Color: See table
Features:
• Easily snaps into mounting hole
• Tie is easily releasable
• Polypropylene material is very flexible
5.00 (127) Ref.
15/32 (11.9)
NEW
SR 1787 Series
Adhesive Based Ladder Ties
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Strap is inserted through the buckle at the adhesive base
• Ladder style allows it to be adjustable
• Strong adhesion for quick and easy assembly
Item
No.
Max Cable Diameter L W Bulk
Pack
Qtyin mm in mm in mm
460297 0.669 17.0 0.984 25.0 0.709 18.0 100
460298 0.866 22.0 1.201 30.5 0.827 21.0 100
460299 1.024 26.0 1.201 30.5 0.827 21.0 100
OI
2 3515411111)
101: 51
“'1va ‘ w»
“ mm #51?
T
U
1350 0190 45 1000 254 50 22
1100 0190 40 1500 301 50 222
2000 0190 4 5 1750 us 50 22
25: 0190 4 a 2000 500 50 222
1300 014 35 1000 25; 30 135
1555 014 an 125 310 an 135
1090 0100 25 0530 210 15 50
1550 0190 40 0910 250 50 222
1350 0190 45 0910 250 50 22
1150 0190 4 a 1420 900 50 222
1750 0190 45 1420 990 50 22
1900 0190 4 a 1090 450 50 222
1950 0190 45 1590 450 50 22
1211 0100 25 0750 191 1a 00
1211 0100 25 0750 191 15 90
1211 0100 25 0750 191 1a 00
m 519.12 5 1 750 44 5 50 25
See 519.»: 5 1 750 m 5 50 22a
Seefigures 1970 50 aa 175
s
able Tla
: Release Tab
6/6
M and listener in a sing‘e pan
hle bundles lo a surface
221
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

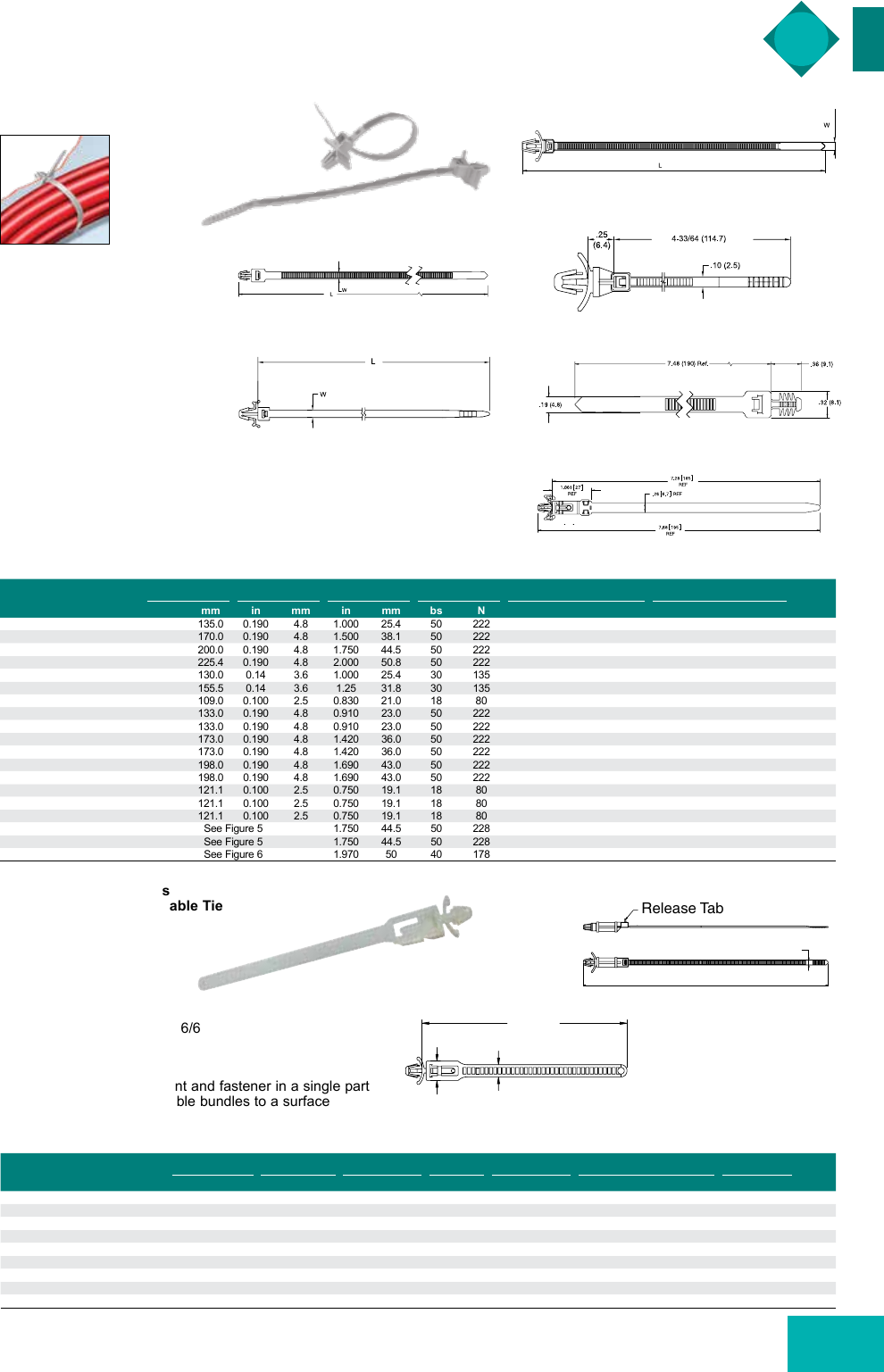

PUSH MOUNT CABLE TIES
WIT-30RRA/TOAH Series
Releasable Arrowhead Cable Tie
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Combines cable tie, mount and fastener in a single part
• Used to attach wire or cable bundles to a surface
• Easily snaps into pre-drilled holes
• WIT-30RRA part has a spacer after the arrowhead
Item
No. Figure
L Ref. W Ref. Ø
Max Bundle Tensile
Strength Ø
Mounting Hole Panel
Thickness Spacer
Length Bulk
Pack
Qtyin mm in mm in mm lbs. N in mm in mm in mm
WIT-30RRA-4-M 16.312 160.3 0.141 3.6 1.250 31.8 30 135 0.187 4.8 0.030 - 0.078 0.8 - 2.0 0.280 7.1 1000
WIT-30RRA-8-M 16.562 166.7 0.141 3.6 1.250 31.8 30 135 0.187 4.8 0.030 - 0.078 0.8 - 2.0 0.530 13.5 1000
WIT-30RRA-12-M 16.812 173.0 0.141 3.6 1.250 31.8 30 135 0.187 4.8 0.030 - 0.078 0.8 - 2.0 0.780 19.8 1000
WIT-30RRA-16-M 17.062 179.4 0.141 3.6 1.250 31.8 30 135 0.187 4.8 0.030 - 0.078 0.8 - 2.0 1.000 25.4 1000
WIT-30RRAA-4-M 16.362 161.6 0.141 3.6 1.250 31.8 30 135 0.250 6.4 0.030 - 0.078 0.8 - 2.0 0.280 7.1 1000
WIT-30RRAA-8-M 16.614 168.0 0.141 3.6 1.250 31.8 30 135 0.250 6.4 0.030 - 0.078 0.8 - 2.0 0.530 13.5 1000
WIT-30RRAA-12-M 16.862 174.3 0.141 3.6 1.250 31.8 30 135 0.250 6.4 0.030 - 0.078 0.8 - 2.0 0.780 19.8 1000
WIT-30RRAA-16-M 17.114 180.7 0.141 3.6 1.250 31.8 30 135 0.250 6.4 0.030 - 0.078 0.8 - 2.0 1.000 25.4 1000
TOAH-18-01 24.670 118.6 0.280 7.1 1.125 28.5 40 178 0.250 6.4 0.062 1.6 — — 1000
WIT-A/WITBH Series
Push Mount Cable Tie
Specifications:
• Material: UL94 V-2 Nylon 6/6
• WITBH-50R-HS Material:
UL94 V-2 Heat Stabilized Nylon
serviceable to 239°F
• Color: Natural
Features:
• Easily snaps into pre-drilled holes
• Can be mounted to installation before final assembly
• Combines a cable tie, mount and fastener in a single part
• Figures 2 and 6 are removable from the top of the board
Item No. Figure
L Ref. W Ref. Ø Max Bundle Tensile Strength Ø Mounting Hole Panel Thickness Bulk
Pack
Qtyin mm in mm in mm lbs. N in mm in mm
WIT-50RLA-1 15.320 135.0 0.190 4.8 1.000 25.4 50 222 0.250 6.4 0.125 3.18 1000
WIT-50RLA-2 16.690 170.0 0.190 4.8 1.500 38.1 50 222 0.250 6.4 0.125 3.18 1000
WIT-50RLA-3 17.870 200.0 0.190 4.8 1.750 44.5 50 222 0.250 6.4 0.125 3.18 1000
WIT-50RLA-M 18.870 225.4 0.190 4.8 2.000 50.8 50 222 0.187 4.7 0.093 2.36 1000
WIT-30RAR1-2 25.125 130.0 0.14 3.6 1.000 25.4 30 135 0.189 4.8 0.079 - 0.094 2.0 - 2.4 100
WIT-30LAR1-2 26.125 155.5 0.14 3.6 1.25 31.8 30 135 0.189 4.8 0.079 - 0.094 2.0 - 2.4 100
WIT-18RA-01 34.290 109.0 0.100 2.5 0.830 21.0 18 80 0.190 4.8 0.060 1.6 1000
WIT-50SA-01 35.240 133.0 0.190 4.8 0.910 23.0 50 222 0.250 6.4 0.060 1.6 1000
WIT-50SA-1-01 35.240 133.0 0.190 4.8 0.910 23.0 50 222 0.250 - 0.270 6.4 - 6.8 0.030 - 0.080 0.8 - 2.0 1000
WIT-50SRA-01 36.810 173.0 0.190 4.8 1.420 36.0 50 222 0.250 6.4 0.060 1.6 1000
WIT-50SRA-1-01 36.810 173.0 0.190 4.8 1.420 36.0 50 222 0.250 - 0.270 6.4 - 6.8 0.030 - 0.080 0.8 - 2.0 1000
WIT-50RA-01 37.800 198.0 0.190 4.8 1.690 43.0 50 222 0.250 6.4 0.060 1.6 500
WIT-50RA-1-01 37.800 198.0 0.190 4.8 1.690 43.0 50 222 0.250 - 0.270 6.4 - 6.8 0.030 - 0.080 0.8 - 2.0 500
WIT-18R1A-4-01 44.760 121.1 0.100 2.5 0.750 19.1 18 80 0.156 4.0 0.031 - 0.078 0.8 - 2.0 1000
WIT-18RA-4-01-M 44.760 121.1 0.100 2.5 0.750 19.1 18 80 0.187 4.8 0.031 - 0.078 0.8 - 2.0 1000
WIT-18R2A-4-01 44.760 121.1 0.100 2.5 0.750 19.1 18 80 0.187 4.8 0.062 - 0.140 1.6 - 3.6 1000
WITBH-50R 5See Figure 5 1.750 44.5 50 228 0.25 6.4 0.250 6.4 100
WITBH-50R-HS 5See Figure 5 1.750 44.5 50 228 0.25 6.4 0.250 6.4 100
WIT-40LAR 6See Figure 6 1.970 50 40 178 0.187 4.8 0.020 - 0.091 0.5 - 2.3 100
Figure 1
Figure 2
Figure 6
Figure 5
Figure 4
Figure 3
Figure 2
Release Ta b
L
W
4.67
(118.6)
.44
(11.2)
.28 (7.1)
Figure 1
Release Ta b
L
W
4.67
(118.6)
.44
(11.2)
.28 (7.1)
n 3| mam
oaoaéaoaoa‘
g.=fi=1
A @149:
v fllé7(4117yp
V ‘—¢5 % o 0 07
JL «%H i
/
L
FIBER, WIRE & CABLE MANAGEMENT
222 tel | 800 847 0486 fax | 866 561 6617

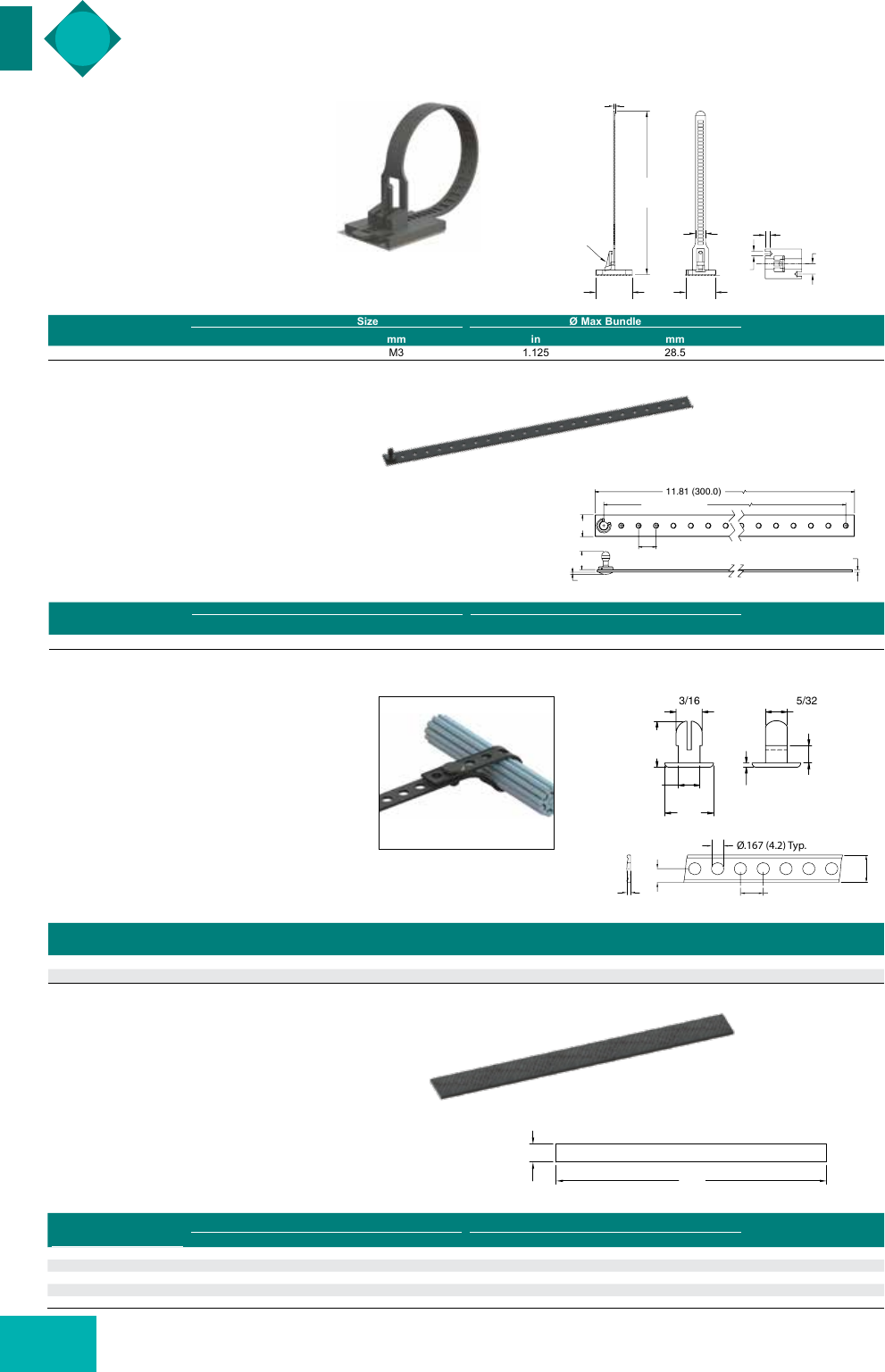

Item
No.
Slots for Screw Size Ø Max Bundle Bulk Pack
Qtyin mm in mm
TOBS-18-01A-RT #4 M3 1.125 28.5 1000
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Mounts with two #4 (M3) screws or adhesive
• Cable tie is releasable
TOBS Series
Adhesive/Screw Mount Tie
CABLE TIES & STRAPS
Item
No.
Ø Max Bundle Max Perimeter Bulk
Pack
Qtyin mm in mm
ES-1 4.33 110.0 13.6 345.0 100
Specifications:
• Material: Strap; Silicone Rubber, 50 Shore A
Latch Pin: UL94 HB Nylon 6/6
• Color: Black
Features:
• Rubber strap can be stretched and wrapped
around bundles up to three times
• Grips the cables preventing movement
• For additional latch pins, order part number CS-113-6
ES Series
Rubber Strap with Locking Button
Specifications:
• Material: Nylon 6/6
• Color: Black
Features:
• 100 foot long strap can be cut to desired length
• Once bundle is wrapped, the strap is secured with mounting button, LB-5
RNS/LB Series
Nylon Strap with Locking Button
RKS Series
Hook and Loop Strap
Item No.
L Length W Width Bulk
Pack
Qty in mm in mm
RKS-8-6-BK 6.0 152.4 .50 12.7 10
RKS-8-8-BK 8.0 203.2 .50 12.7 10
RKS-8-12BK 12.0 304.8 .50 12.7 10
RKS-16-8-BK 8.0 203.2 1.00 25.4 10
RKS-16-12-BK 12.0 304.8 1.00 25.4 10
Specifications:
• Material: Hook: Low Density Polyethylene
Loop: Nylon Knit
• Color: Black
Features:
• Heavy duty hook and loop
• Features VELCRO® brand hook and loop material
• User can cut to desired length
• Excellent in reusable applications
.04 (1.0)
4.61
(117.1)
Ref.
Release
Ta b
1.02
(25.9) .83
(21.1)
.28
(7.1)
.13 (3.4)
Ty p.
.12
(3.0)
Ty p.
.28
(7.2)
Ty p.
11.81 (300.0)
11.34 (288.0)
.47 (12.0) Ty p.
.07 (1.8)
.59 (15.0)
.06 (1.5)
.49 (12.5) Ref
.
3/16
(4.8)
.30
(7.6)
.35
(8.9)
5/32
(4.0)
5/32
(4.0)
1/8
(3.2)
1/32 (.79)
Ø.167 (4.2) Typ.
.187 (4.8)
.312 (7.9) Typ.
.05
(1.3)
.375
(9.5)
L
W
Item
No. Description Material UL Rating
Bulk
Pack
Qty Pack
Qty
RNS-167 Strap UL94 HB 100 ft. 1
LB-5 Locking Button UL94 V-2 100 100
223
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

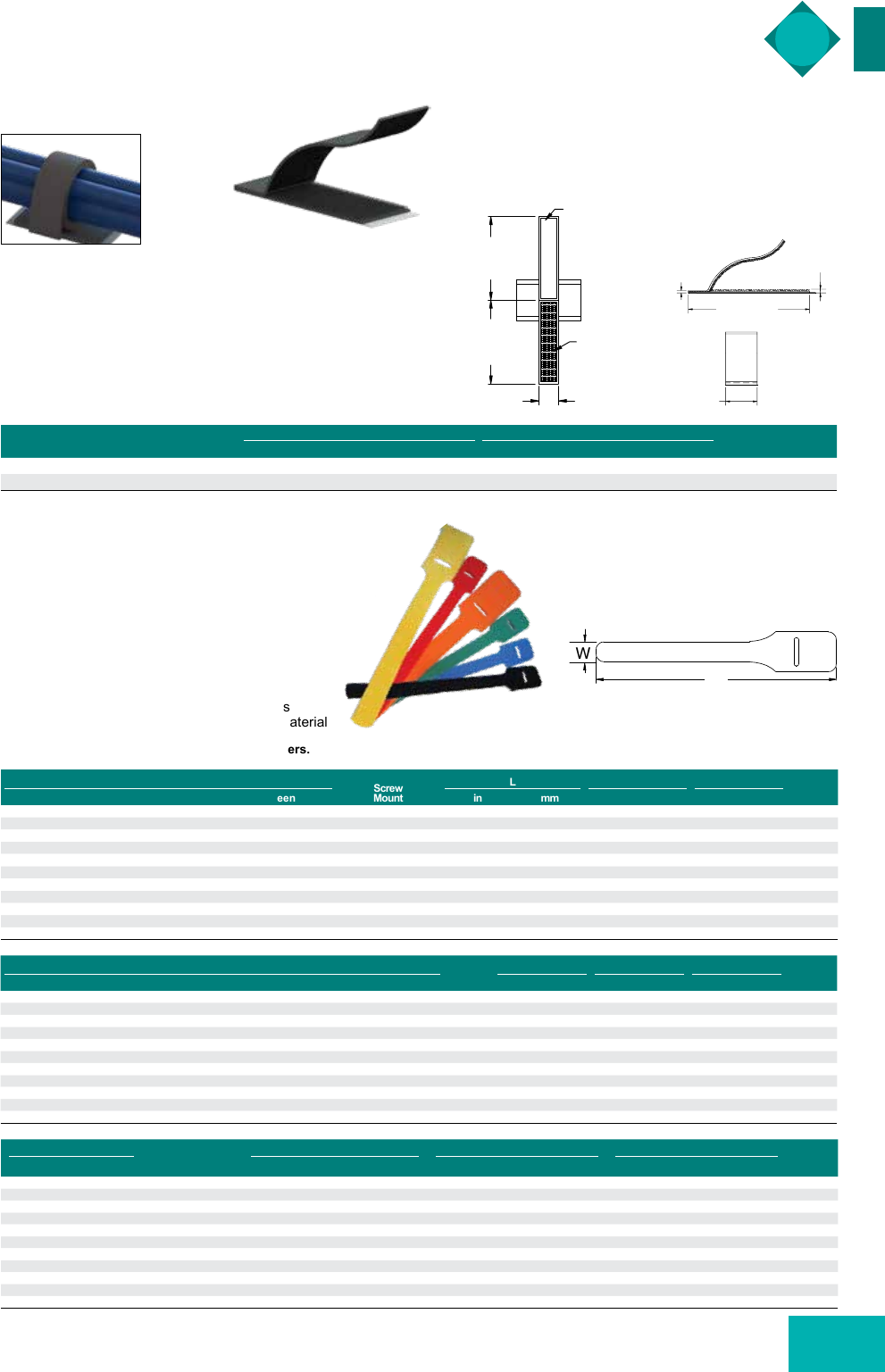

HOOK AND LOOP
Specifications:
• Material: Hook and Loop
• Color: Black
Features:
• Hook and loop design
• RKWB accommodates multiple bundle diameters; up to 1-1/2"
• RKWFA accommodates multiple bundle diameters; up to 0.75"
RKWB/RKWFA Series
Hook and Loop Clamp
Figure 1 Figure 2
Item
No. Figure
Ø Max Bundle Base Bulk
Pack
Qtyin mm in mm
RKWB-1 1 1.5 38.1 2.0 x 1.0 50.8 x 25.4 100
RKWFA-1 2 0.75 19.1 3.00 x 0.78 52.3 x 19.8 100
L
W
RKW Series
Hook and Loop Cable Tie
See page 233 for Hook and Loop Cable Tie Holders.
Specifications:
• Material: Loop - Nylon Knit
Hook - Low-Density Polyethylene
• Color: See Table
Features:
• Easy assembly and removal
• Can be fastened and released several times
• Features: VELCRO® brand hook and loop material
Item No. Screw
Mount
L W Ø Max Bundle Bulk
Pack
QtyBlack Blue Green in mm in mm in mm
RKW-6-6-BK RKW-6-6-BL RKW-6-6-GN No 6.0 152.4 0.38 9.5 1.400 35.6 10
RKW-8-6-BK RKW-8-6-BL RKW-8-6-GN No 6.0 152.4 0.50 12.7 1.400 35.6 10
RKW-8-8-BK RKW-8-8-BL RKW-8-8-GN Ye s 8.0 203.2 0.50 12.7 1.920 48.7 10
RKW-8-9-BK RKW-8-9-BL RKW-8-9-GN Ye s 9.0 228.6 0.50 12.7 2.140 54.4 10
RKW-8-11-BK RKW-8-11-BL RKW-8-11-GN No 11.0 279.4 0.50 12.7 2.618 66.5 10
RKW-8-12-BK RKW-8-12-BL RKW-8-12-GN Yes 12.0 304.8 0.50 12.7 2.856 72.5 10
RKW-8-13-BK RKW-8-13-BL RKW-8-13-GN Yes 13.0 330.2 0.50 12.7 3.396 86.3 10
RKW-12-9-BK RKW-12-9-BL RKW-12-9-GN Yes 9.0 228.6 0.75 19.1 2.140 54.4 10
RKW-12-15-BK RKW-12-15-BL RKW-12-15-GN No 15.0 381.0 0.75 19.1 3.918 99.5 10
RKW-12-18-BK RKW-12-18-BL RKW-12-18-GN No 18.0 457.2 0.75 19.1 4.716 119.8 10
RKW-12-24-BK RKW-12-24-BL RKW-12-24-GN No 24.0 609.6 0.75 19.1 6.288 159.7 10
Item No. Screw
Mount
L W Ø Max Bundle Bulk
Pack
QtyOrange Red White Yellow in mm in mm in mm
RKW-6-6-OR RKW-6-6-RD RKW-6-6-W RKW-6-6-YL No 6.0 152.4 0.38 9.5 1.400 35.6 10
RKW-8-6-OR RKW-8-6-RD RKW-8-6-W RKW-8-6-YL No 6.0 152.4 0.50 12.7 1.400 35.6 10
RKW-8-8-OR RKW-8-8-RD RKW-8-8-W RKW-8-8-YL Yes 8.0 203.2 0.50 12.7 1.920 48.7 10
RKW-8-9-OR RKW-8-9-RD RKW-8-9-W RKW-8-9-YL Yes 9.0 228.6 0.50 12.7 2.140 54.4 10
RKW-8-11-OR RKW-8-11-RD RKW-8-11-W RKW-8-11-YL No 11.0 279.4 0.50 12.7 2.618 66.5 10
RKW-8-12-OR RKW-8-12-RD RKW-8-12-W RKW-8-12-YL Yes 12.0 304.8 0.50 12.7 2.856 72.5 10
RKW-8-13-OR RKW-8-13-RD RKW-8-13-W RKW-8-13-YL Yes 13.0 330.2 0.50 12.7 3.396 86.3 10
RKW-12-9-OR RKW-12-9-RD RKW-12-9-W RKW-12-9-YL Yes 9.0 228.6 0.75 19.1 2.140 54.4 10
RKW-12-15-OR RKW-12-15-RD RKW-12-15-W RKW-12-15-YL No 15.0 381.0 0.75 19.1 3.918 99.5 10
RKW-12-18-OR RKW-12-18-RD RKW-12-18-W RKW-12-18-YL No 18.0 457.2 0.75 19.1 4.716 119.8 10
RKW-12-24-OR RKW-12-24-RD RKW-12-24-W RKW-12-24-YL No 24.0 609.6 0.75 19.1 6.288 159.7 10
Item No. Screw
Mount
L W Ø Max Bundle Bulk
Pack
QtyBlack in mm in mm in mm
RKW-6-6-BK-C No 6.0 152.4 0.38 9.5 1.400 35.56 100
RKW-8-6-BK-C No 6.0 152.4 0.50 12.7 1.400 35.56 100
RKW-8-8-BK-C Yes 8.0 203.2 0.50 12.7 1.920 48.70 100
RKW-8-9-BK-C Yes 9.0 228.6 0.50 12.7 2.140 54.40 100
RKW-8-11-BK-C No 11.0 279.4 0.50 12.7 2.618 66.50 100
RKW-8-12-BK-C Yes 12.0 304.8 0.50 12.7 2.856 72.54 100
RKW-8-13-BK-C Yes 13.0 330.2 0.50 12.7 3.396 86.25 100
RKW-12-9-BK-C Yes 9.0 228.6 0.75 19.1 2.140 54.40 100
RKW-12-15-BK-C No 15.0 381.0 0.75 19.1 3.918 99.52 100
RKW-12-18-BK-C No 18.0 457.2 0.75 19.1 4.716 119.78 100
RKW-12-24-BK-C No 24.0 609.6 0.75 19.1 6.288 159.71 100
Loop
Hook on
Reverse
Side
2.6
(66.0)
2.6
(66.0)
.60
(15.2)
.78
(19.8)
.06
(1.5)
.09
(2.3)
Ref.
3.0 (76.2)
FIBER, WIRE & CABLE MANAGEMENT
224 tel | 800 847 0486 fax | 866 561 6617

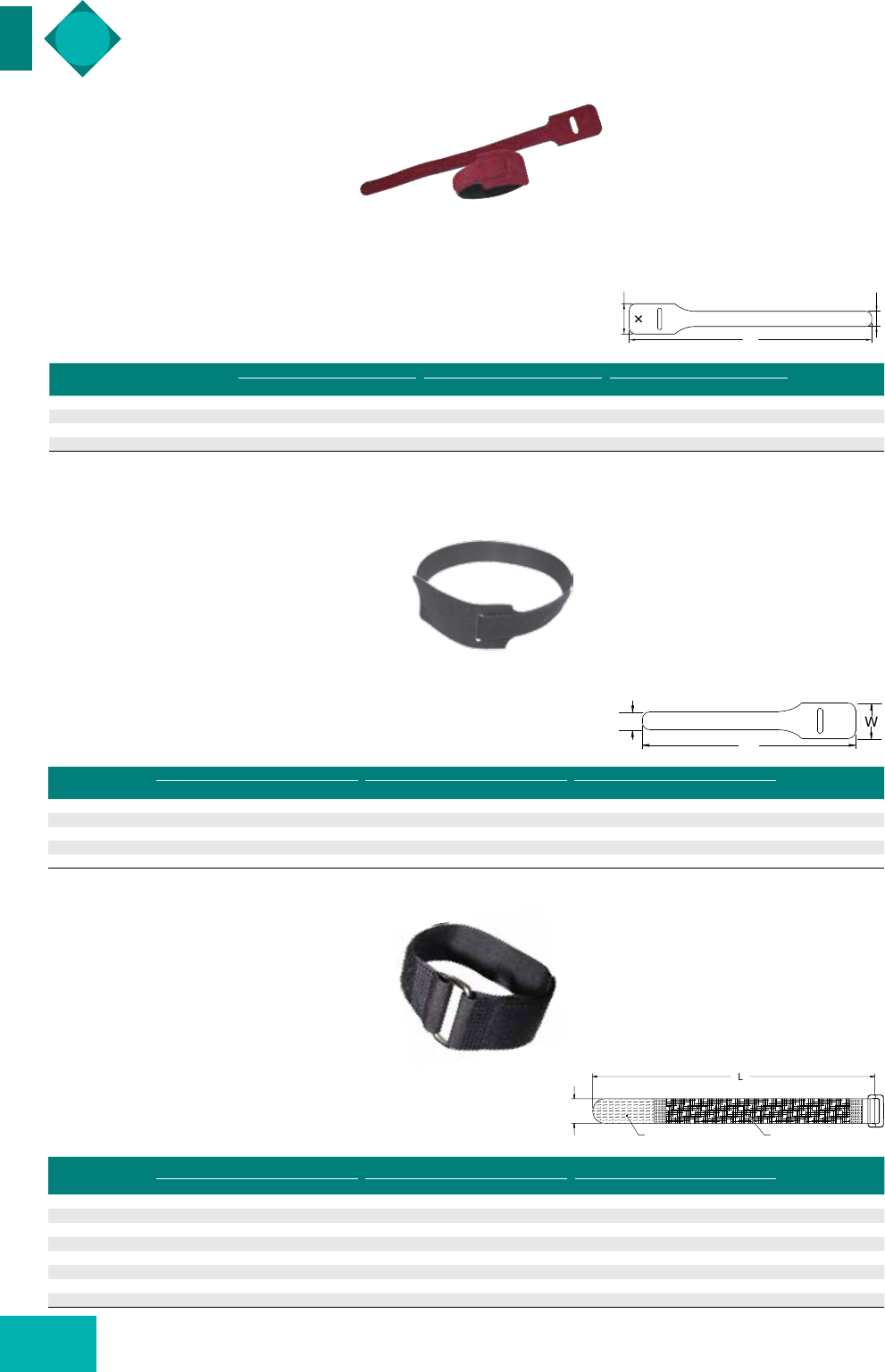

Item
No. Screw
Mount
L W A Bulk
Pack
Qtyin mm in mm in mm
RKWPR-6-6 No 6.0 152.4 1.00 25.4 0.50 12.7 10
RKWPR-8-8 Yes 8.0 203.2 1.00 25.4 0.50 12.7 10
RKWPR-8-12 Yes 12.0 304.8 1.00 25.4 0.50 12.7 10
RKWPR-12-13 Yes 13.0 330.2 1.50 38.1 0.75 19.1 10
RKWPR Series
Plenum Rated Hook and Loop Cable Tie
Specifications:
• Material/Color
Hook: Black UL94 V-2 Polypropylene
Loop: Maroon UL94 V-2 Nylon
Features:
• Meets UL94 V-2 requirements, UL #E143339
• Accepted as wire positioning device (16SA) in air handling
spaces in accordance with section 300-22 paragraph (C)
and (D) of the National Electrical Code
• VELCRO® brand hook and loop material
W
L
A
HOOK AND LOOP CABLE TIES & CINCH STRAPS
Specifications:
• Material: Nylon Woven Hook and Loop
Buckle: Metal
• Color: Black
Features:
• Metal buckle for heavy duty industrial applications
Item
No.
L Length WØ Approximate Bundle
w/ Hook Fully Engaged Bulk
Pack
Qtyin mm in mm in mm
RKWDM-16-15-BK 15.0 381.0 1.00 25.4 3.750 95.0 10
RKWDM-16-20-BK 20.0 508.0 1.00 25.4 5.500 140.0 10
RKWDM-16-22-BK 22.0 559.0 1.00 25.4 5.938 151.0 10
RKWDM-16-24-BK 24.0 610.0 1.00 25.4 6.625 168.0 10
RKWDM-32-15-BK 15.0 381.0 2.00 51.0 3.750 95.0 10
RKWDM-32-20-BK 20.0 508.0 2.00 51.0 5.500 140.0 10
RKWDM-32-22-BK 22.0 559.0 2.00 51.0 6.000 152.0 10
RKWDM-32-24-BK 24.0 610.0 2.00 51.0 6.625 168.0 10
RKWDM Series
Hook and Loop Cinch Strap with Metal Buckle
RKWE Series
Economy Hook and Loop Cable Tie
Specifications:
• Material: Hook: Low-Density Polyethylene
Loop: Nylon Knit
• Color: Black
Features:
• VELCRO® brand hook and loop material
• Similar in function and purpose to the RKW Series, these
economy ties are made from a lower-profile, economical material
Item
No.
L W A Bulk
Pack
Qtyin mm in mm in mm
RKWE-6-6-BK 6.0 152.4 0.75 19.1 0.38 9.5 10
RKWE-8-6-BK 6.0 152.4 1.00 25.4 0.50 12.7 10
RKWE-8-8-BK 8.0 203.2 1.00 25.4 0.50 12.7 10
RKWE-8-11-BK 11.0 279.4 1.00 25.4 0.50 12.7 10
RKWE-12-15-BK 12.0 304.8 1.50 38.1 0.75 19.1 10
L
AW
W
Hook Loop
L
225
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Specifications:
• Material: Nylon Woven Hook and Loop
Buckle: Nylon
• Color: See Table
Features:
• Heavy duty hook and loop
• Buckle on the tie acts as a pulley providing leverage to pull the strap as
tightly as needed
• The strap section goes through the buckle, the remainder of the material gets pulled
around the buckle and can then be attached to the same side of the material
• The non-metallic buckle is safe to use around electrical and magnetic applications
Item No. L Length
WØ Approximate Bundle
w/ Hook Fully Engaged Bulk
Pack
QtyBlack Orange in mm in mm in mm
RKWD-12-12-BK — 12.0 305 0.75 19.1 2.875 73 10
RKWD-12-18-BK — 18.0 457 0.75 19.1 4.750 121 10
RKWD-16-9-BK RKWD-16-9-OR 9.0 229 1.00 25.4 1.875 48 10
RKWD-16-12-BK RKWD-16-12-OR 12.0 305 1.00 25.4 2.875 73 10
RKWD-16-15-BK RKWD-16-15-OR 15.0 381 1.00 25.4 3.750 95 10
RKWD-16-20-BK RKWD-16-20-OR 20.0 508 1.00 25.4 5.500 140 10
RKWD-16-24-BK RKWD-16-24-OR 24.0 609 1.00 25.4 6.625 168 10

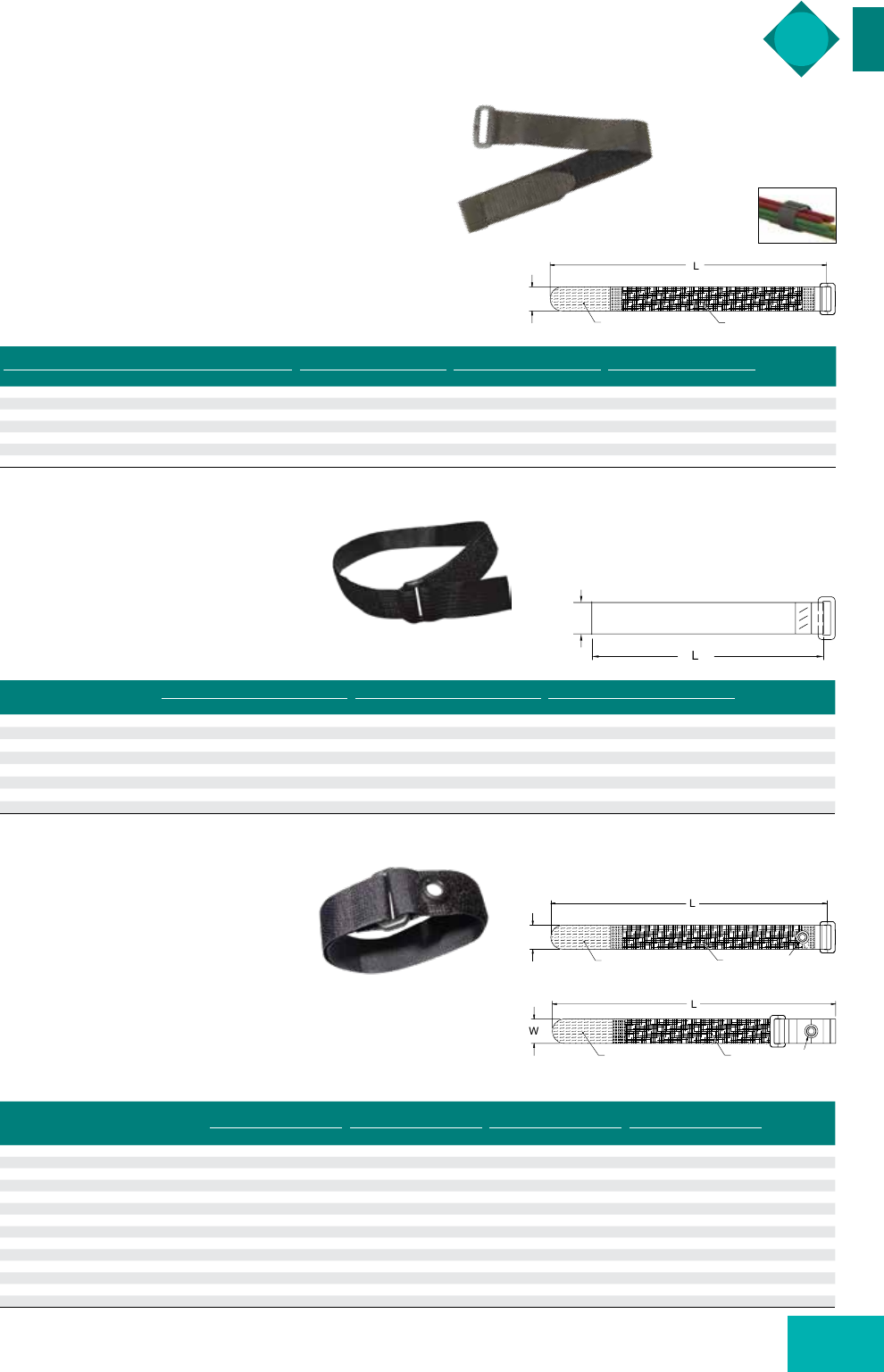

HOOK AND LOOP CINCH STRAPS
RKWD Series
Hook and Loop Cinch Strap
RKWDA Series
Extra Long/Cut to Length Cinch Strap
RKWDG/RKWDE Series
Hook and Loop Cinch Strap with Grommet
Specifications:
• Material: Hook and Loop: Nylon Woven
Buckle: Nylon
• Color: Black
Features:
• Unique cut-to-length design eliminates the
need to predetermine exact strap length
• Adheres to itself along its entire length
W
L
Hook & Loop
Item
No.
L W Ø Bundle w/ Hook Fully Engaged Bulk
Pack
Qtyin mm in mm in mm
RKWDA-16-20-BK 20.0 508 1.00 25.4 5.500 140 10
RKWDA-16-24-BK 24.0 609 1.00 25.4 6.325 168 10
RKWDA-16-36-BK 36.0 914 1.00 25.4 10.500 267 10
RKWDA-16-48-BK 48.0 1219 1.00 25.4 14.375 365 10
RKWDA-32-20-BK 20.0 508 2.00 50.8 5.500 140 10
RKWDA-32-24-BK 24.0 610 2.00 50.8 6.628 169 10
RKWDA-32-36-BK 36.0 914 2.00 50.8 10.500 267 10
RKWDA-32-48-BK 48.0 1219 2.00 50.8 14.375 365 10
W
Hook Loop
L
Item
No. Figure
L Length WØ Approximate Bundle
w/ Hook Fully Engaged Grommet Ø Ref. Bulk Pack
Qtyin mm in mm in mm in mm
RKWDG-16-9-BK 1 9.0 229 1.00 25.4 1.875 48 0.250 6.4 10
RKWDE-16-9-BK 2 9.0 229 1.00 25.4 1.875 48 0.250 6.4 10
RKWDG-12-12-BK 1 12.0 305 0.75 19.1 2.875 73 0.250 6.4 10
RKWDE-12-12-BK 2 10.5 267 0.75 19.1 2.375 60 0.250 6.4 10
RKWDG-16-12-BK 1 12.0 305 1.00 25.4 2.875 73 0.250 6.4 10
RKWDE-16-12-BK 2 12.0 305 1.00 25.4 2.875 73 0.250 6.4 10
RKWDG-16-15-BK 1 15.0 381 1.00 25.4 3.750 95 0.250 6.4 10
RKWDE-16-15-BK 2 15.0 381 1.00 25.4 3.750 95 0.250 6.4 10
RKWDG-12-18-BK 1 18.0 457 0.75 19.1 4.750 121 0.250 6.4 10
RKWDE-12-18-BK 2 16.5 419 0.75 19.1 4.250 108 0.250 6.4 10
RKWDG-16-20-BK 1 20.0 508 1.00 25.4 5.500 140 0.250 6.4 10
RKWDE-16-20-BK 2 20.0 508 1.00 25.4 5.500 140 0.250 6.4 10
RKWDG-16-24-BK 1 24.0 609 1.00 25.4 6.625 168 0.250 6.4 10
RKWDE-16-24-BK 2 24.0 609 1.00 25.4 6.625 168 0.250 6.4 10
Figure 1
Figure 2
W
Hook
L
Loop Grommet
L
W
Hook Loop Grommet
Specifications:
• Material: Nylon Woven Hook and Loop
Buckle: Nylon
Grommet: Brass
• Color: Black
Features:
• Grommet for mounting to walls, racks and mobile
carts to organize and neatly route cables
• RKWDG centers bundle over mounting point
• RKWDE offsets bundle from mounting point
• Takes the stress off horizontal cable runs
FIBER, WIRE & CABLE MANAGEMENT
226 tel | 800 847 0486 fax | 866 561 6617

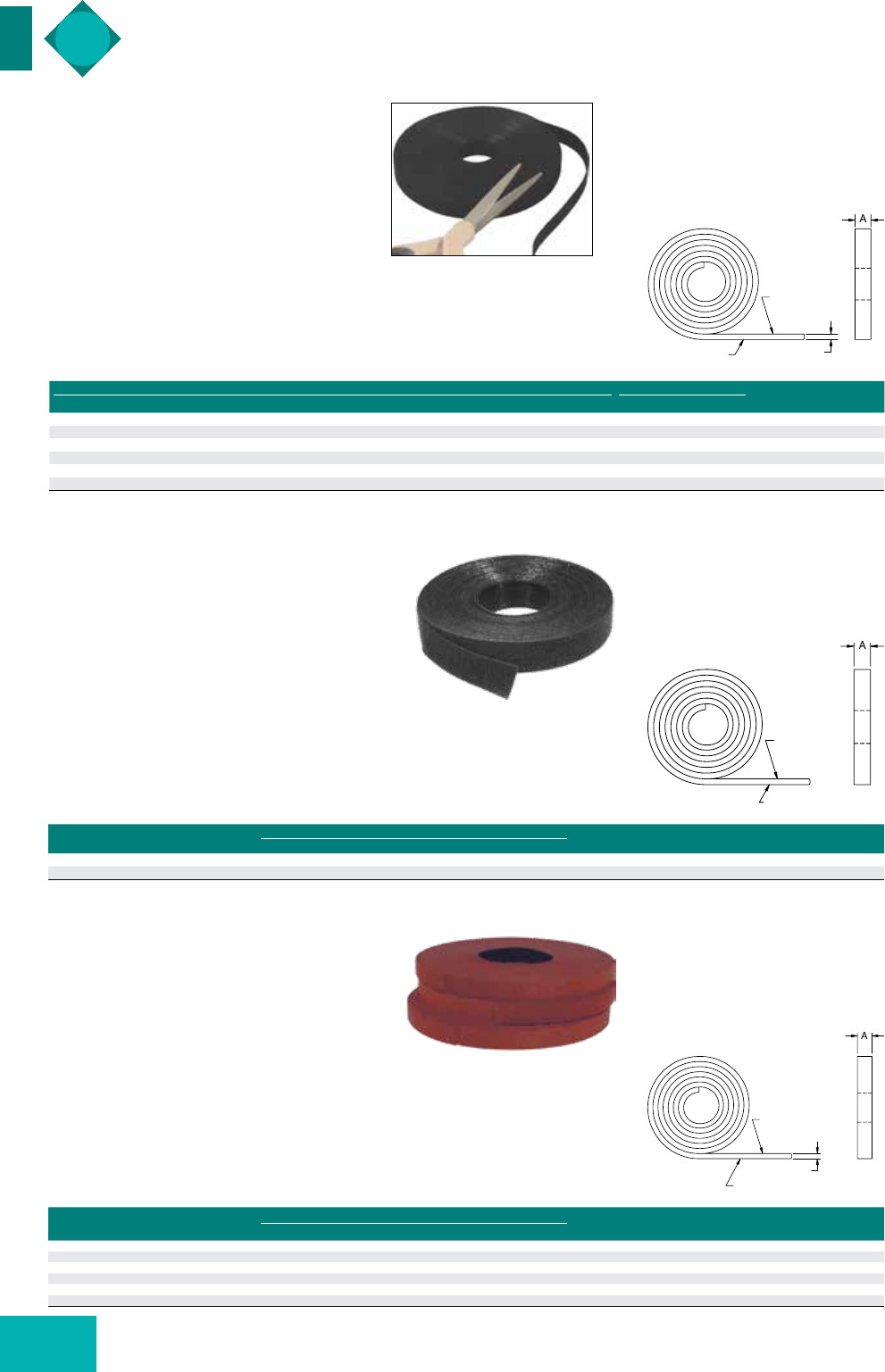

HOOK AND LOOP ROLLS
Specifications:
• Material: Hook: Low-Density Polyethylene
Loop: Nylon Knit
• Color: See Table
Features:
• This product features VELCRO® brand Hook and Loop material
• User can cut to desired length
• Available in two lengths; 5 yards and 25 yards
RKWR Series
Hook and Loop Roll
RKWRE Series
Economy Hook and Loop Roll
RKWRPR Series
Plenum Rated Hook and Loop Roll
A
Hook Side
Loop Side .085 (2.2) Ref.
Item No. ARoll
Length Pack
QtyBlack Blue Grey Red in mm
RKWR-3-BK RKWR-3-BL RKWR-3-GY RKWR-3-RD 0.50 12.7 5 Yards 1
RKWR-1-BK RKWR-1-BL RKWR-1-GY RKWR-1-RD 0.75 19.1 5 Yards 1
RKWR-2-BK RKWR-2-BL RKWR-2-GY RKWR-2-RD 1.00 25.4 5 Yards 1
RKWR-3L-BK RKWR-3L-BL RKWR-3L-GY RKWR-3L-RD 0.50 12.7 25 Yards 1
RKWR-1L-BK RKWR-1L-BL RKWR-1L-GY RKWR-1L-RD 0.75 19.1 25 Yards 1
RKWR-2L-BK RKWR-2L-BL RKWR-2L-GY RKWR-2L-RD 1.00 25.4 25 Yards 1
Specifications:
• Material: Hook: Low-Density Polyethylene
Loop: Nylon Knit
• Color: Black
Features:
• This product features VELCRO® brand hook and loop material
• Similar in function and purpose to the RKWR series of rolls,
these economy rolls are made from a lower-profile, economical material
• User can cut to desired length
Item
No.
ARoll
Length Pack
Qtyin mm
RKWRE-3L 0.50 12.7 25 Yards 1
RKWRE-1L 0.75 19.1 25 Yards 1
A
Hook Side
Loop Side
Item
No.
ARoll
Length Pack
Qtyin mm
RKWRPR-3 0.50 12.7 5 Yards 1
RKWRPR-1 0.75 19.1 5 Yards 1
RKWRPR-2 1.00 25.4 5 Yards 1
RKWRPR-3L 0.50 12.7 25 Yards 1
RKWRPR-1L 0.75 19.1 25 Yards 1
RKWRPR-2L 1.00 25.4 25 Yards 1
Specifications:
• Material: Hook: UL94 V-2 Black Polypropylene
Loop: UL94 V-2 Maroon Nylon
• Color: Maroon
Features:
• This product features VELCRO® brand hook and loop material
• Meets UL94 V-2 requirements. UL E143339
• Accepted as a wire positioning device (16SA) in air handling spaces in accordance
with section 300-22 paragraph (C) and (D) of the National Electrical Code
• User can cut to desired length
A
Hook Side
Loop Side
.085 (2.2) Ref.
V‘W
O r
o 0’
, 2
L
A T
Afifi
227
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

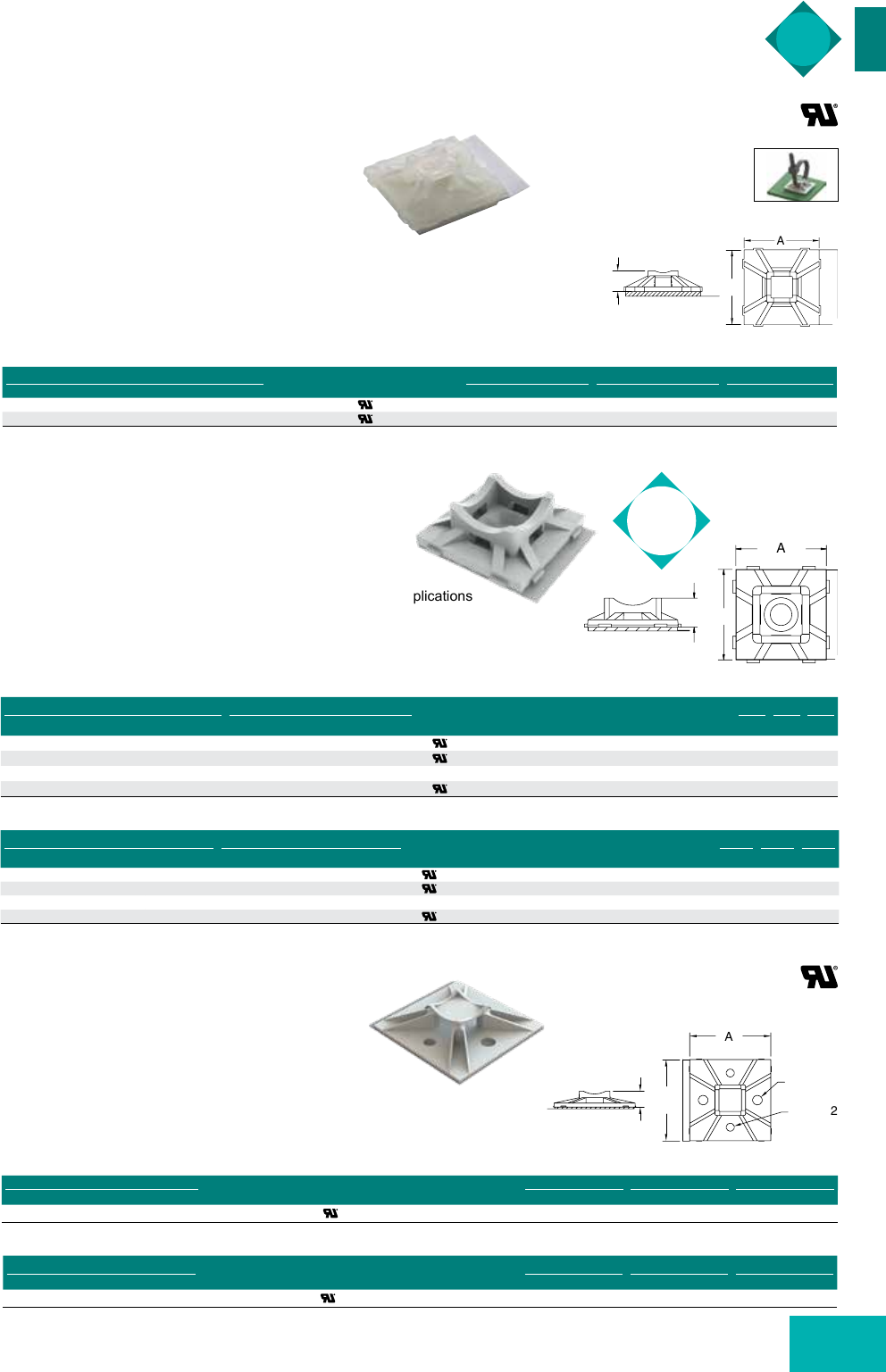

CABLE TIE MOUNTS
FTH-5/FTH-7 Series
Four Way Cable Tie Mount
Specifications:
• Material: UL94 V-2 Nylon 6/6
(Black is UV Stabilized)
• Color: See Table
Features:
• Now available in high bond acrylic adhesive for demanding applications
• Cable ties can be inserted from all four sides
• May be secured with screws or adhesive
• Rubber adhesive develops its strength extremely fast
• Acrylic adhesive is a general purpose adhesive and gains strength with dwell time
A
B
C
Item No. Natural Item No. Black
Approval Used w/
Cable Ties Adhesive Recommended
Mounting Screw
A B C
1000/Bag 100/Bag 10/Bag 1000/Bag 100/Bag in in in
FTH-5A-RT-M FTH-5A-RT-C —FTH-5A-RT-UVB-M FTH-5A-RT-UVB-C 18 & 40 lbs. Acrylic #6 and M3.5 Flat Head 0.750 0.750 0.24
FTH-5A1-RT-M FTH-5A1-RT-C — — — 18 & 40 lbs. Rubber #6 and M3.5 Flat Head 0.750 0.750 0.24
— — • FTH-5-DHB — — — 18 & 40 lbs. High Bond Acrylic #6 and M3.5 Flat Head 0.750 0.750 0.24
FTH-5-01-M FTH-5-01-C —FTH-5-UVB-M FTH-5-UVB-C 18 & 40 lbs. Screw Mount #6 and M3.5 Flat Head 0.750 0.750 0.24
Item No. Natural Item No. Black
Approval Used w/
Cable Ties Adhesive Recommended
Mounting Screw
A B C
1000/Bag 100/Bag 10/Bag 1000/Bag 100/Bag in in in
FTH-7A-RT-M FTH-7A-RT-C —FTH-7A-RT-UVB-M FTH-7A-RT-UVB-C 50 lbs. Acrylic #8 and M4 Flat Head 1.000 1.000 0.28
FTH-7A1-RT-M FTH-7A1-RT-C — — — 50 lbs. Rubber #8 and M4 Flat Head 1.000 1.000 0.28
— — • FTH-7-DHB — — — 50 lbs. High Bond Acrylic #8 and M4 Flat Head 1.000 1.000 0.28
FTH-7-01-M FTH-7-01-C —FTH-7-UVB-M FTH-7-UVB-C 50 lbs. Screw Mount #8 and M4 Flat Head 1.000 1.000 0.28
3/4" x 3/4"
1" x 1"
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Cable ties can be inserted from all four sides
• Acrylic adhesive is a general purpose adhesive
and gains strength with dwell time
• Rubber adhesive develops its strength extremely fast
B
C
A
MFTH Series
Mini Cable Tie Mount with Adhesive Base
Item No. Used w/
Cable Ties Approval Adhesive
A B C
1000/Bag 100/Bag in mm in mm in mm
MFTH-2-01A-RT-M MFTH-2-01A-RT-C 18 lbs. Acrylic 0.500 12.7 0.500 12.7 0.14 3.5
MFTH-2-01A1-M MFTH-2-01A1-C 18 lbs. Rubber 0.500 12.7 0.500 12.7 0.14 3.5
FTH-8/FTH-10 Series
Four Way Cable Tie Mount
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Cable ties can be inserted from all four sides
• May be secured with screws or adhesive
• Acrylic adhesive is a general purpose adhesive
and gains strength with dwell time
• Low profile for tight spaces
A
B
C
Ø.18 x 2
Ø.15 x 2
Item No. Used with
Cable Ties Approval Adhesive Recommended
Mounting Screw
A B C
1000/Bag 100/Bag in mm in mm in mm
FTH-8A-RT-M FTH-8A-RT-C 50 & 120 lbs. Acrylic 2 x #6, #8 or M4 1.500 38.1 1.500 38.1 0.30 7.6
Item No. Used with
Cable Ties Approval Adhesive Recommended
Mounting Screw
A B C
1000/Bag 100/Bag in mm in mm in mm
FTH-10A-RT-M FTH-10A-RT-C 50 & 120 lbs. Acrylic 2 x #6, #8 or M4 2.000 50.8 2.00 50.8 0.30 7.6
1-1/2" x 1-1/2"
2" x 2"
1/2" x 1/2"
EXPANDED
LINE
FIBER, WIRE & CABLE MANAGEMENT
228 tel | 800 847 0486 fax | 866 561 6617
CABLE TIE MOUNTS
FTH-2 Series
Cable Tie Mount on Adhesive Base
Specifications:
• Material: UL94 V-1 PPE/PS
• Color: White
Features:
• Easily applied
11/16
(17.5)
1-1/32 (26.2)
1/16 (1.6)
Part Number Used w/ Cable Ties Approval
Bulk
Pack
Qty
FTH-2A-RT-C 18 & 50 lbs. 100
FTH-2A-RT-M 18 & 50 lbs. 1000
Specifications:
• Material: UL94 HB ABS
• Color: White
Features:
• Cable ties can be inserted from all four sides
• Acrylic adhesive is a general purpose adhesive
and gains strength with dwell time
• Rubber adhesive develops its strength extremely fast
• Low profile for tight spaces
FTH-40 Series
Low Profile Cable Tie Mount with Adhesive
Item No. Used w/ Cable Ties Adhesive
Bulk
Pack
Qty
FTH-40 18 & 40 lbs. None 1000
FTH-40A-RT 18 & 40 lbs. Acrylic 1000
FTH-40A1-RT 18 & 40 lbs. Rubber 1000
3/4" x 3/4"
.75 (19.1)
Square
.17 (4.3)
.14
(3.5)
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Unique swivel head allows 360°
rotation of the mounted bundle
Part Number Used w/ Cable Ties Approval Recommended Mounting
Screw
Bulk
Pack
Qty
FTH-4A-RT-M 18 & 40 lbs. #8 or M4 1000
FTH-4 Series
Cable Tie Mount with Swivel
Swivel
3/16 (4.8)
1.00 (25.4)
Ø3/16
(4.8) x
2
3/16
(4.8)
1.00
(25.4)
3/8 (9.5)
5/16 (7.9
)
PLASTIC FASTENERS
800 847 0486
www.essentracomponents.com
n
W J me
Hum
a
‘r
4
H
L 4
229
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

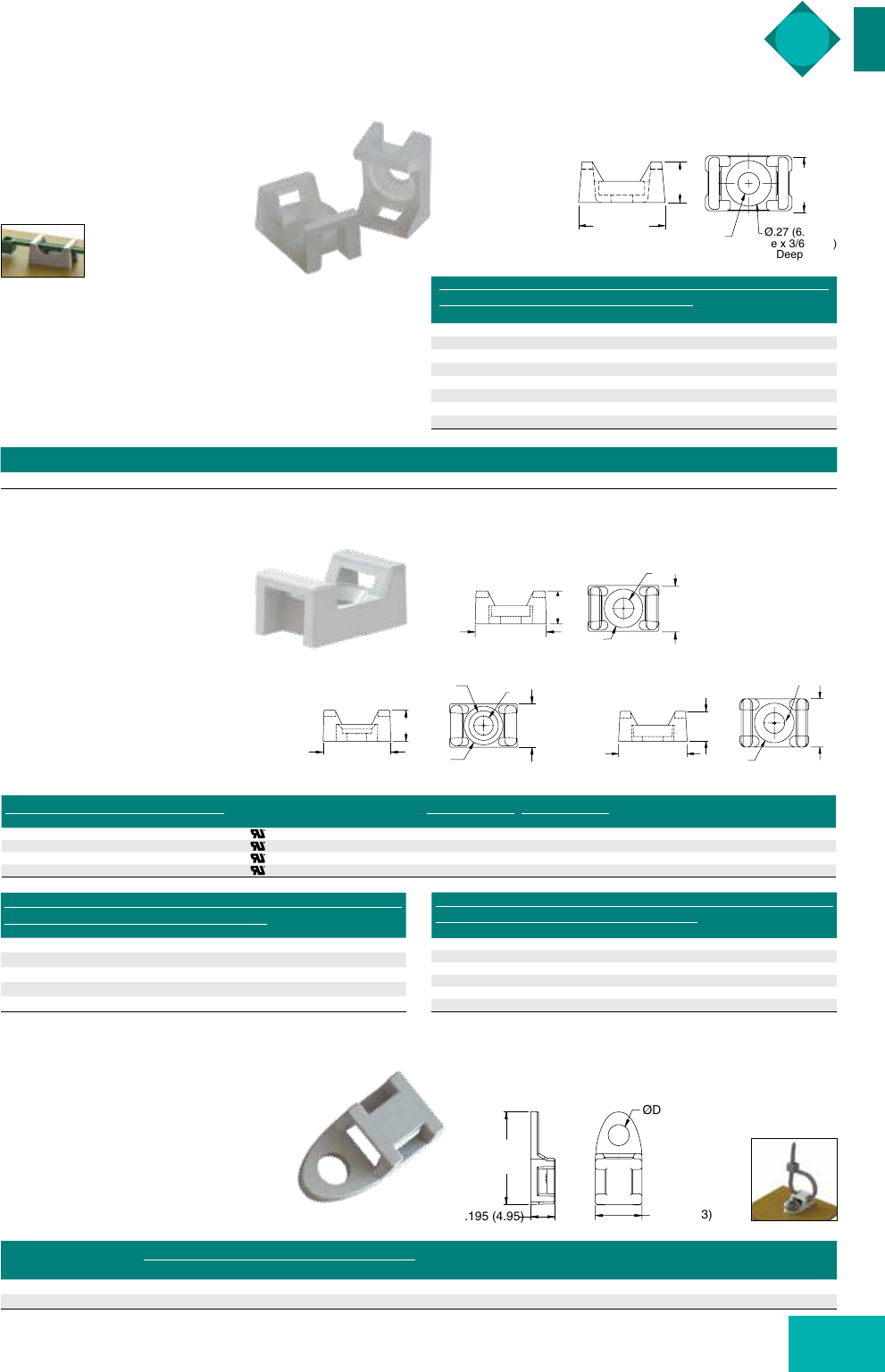

CABLE TIE MOUNTS
FTH-28RS Series
Rivet/Screw Mount Cable Tie Mount
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Mounts with a screw or snap rivet (see rivet table)
• Cradle design provides stability for the bundle
.51 (13.0)
.24
(6.1)
Ø.13
(3.3) Ø.27 (6.9)
C Bore x 3/64 (5.2)
Deep
.33
(8.3)
Mounting Rivets for FTH-28RS
Panel Thickness Use Rivet
Item No.In mm
Up to 0.034 Up to 0.9 SR-3035
0.034 - 0.073 Up to 0.9 SR-3045
0.073 - 0.113 1.9 - 2.9 SR-3055
0.113 - 0.152 2.9 - 3.9 SR-3065
0.152 - 0.191 3.9 - 4.9 SR-3075
0.172 - 0.211 4.4 - 5.4 SR-3080
0.211 - 0.250 5.4 - 6.4 SR-3090
0.250 - 0.290 6.4 - 7.4 SR-3100
Item
No. Used w/ Cable Ties Recommended Mounting Screw Pack
Qty
FTH-28RS-01 18 & 40 lbs. #4, M3 Screw, SR-3XXX (See Table) 1000
Item No. Used w/
Cable Ties
A B
Mounting Method
Bulk
Pack
Qty1000/Bag 100/Bag Approval Figure in mm in mm
FTH-13R-01-M FTH-13R-01-C 118 - 50 lbs. 0.17 4.3 0.32 8.1 #8 or M4 screw or rivet 1000
FTH-13S-01-M FTH-13S-01-C 218 - 50 lbs. 0.17 4.3 0.32 8.1 #6 or M3/#8 or M4 screw 1000
FTH-14R-01-M FTH-14R-01-C 318 - 120 lbs. 0.21 5.2 0.38 9.5 #10 or M5 screw or rivet 1000
FTH-14S-01-M FTH-14S-01-C 318 - 120 lbs. 0.26 6.6 0.49 12.5 1/4 or M6 screw 1000
FTH-13/FTH-14 Series
Rivet/Screw Mount Cable Tie Mount
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Mounts with screw or snap rivet
(see rivet table)
• Cradle design provides stability
for the bundle
• Rivets found on page 120
Mounting Rivets for Figure 1
Panel Thickness
Use Rivet Part Numberin mm
0.018 - 0.058 0.5 - 1.5 SR-4050
0.058 - 0.097 1.5 - 2.5 SR-4060
0.097 - 0.137 2.5 - 3.5 SR-4070
0.137 - 0.176 3.5 - 4.5 SR-4080
0.215 - 0.255 5.5 - 6.5 SR-4100
Mounting Rivets for Figure 3
Panel Thickness
Use Rivet Part Numberin mm
0.020 - 0.048 0.5 - 1.2 SR-5055
0.048 - 0.087 1.2 - 2.2 SR-5065
0.087 - 0.127 2.2 - 3.2 SR-5075
0.127 - 0.166 3.2 - 4.2 SR-5085
0.166 - 0.205 4.2 - 5.2 SR-5095
0.205 - 0.245 5.2 - 6.2 SR-5105
A
.38
(9.7)
B
.28
(7.1)
.60 (15.2)
Figure 1
Ø.26
(6.6) A
B
.38
(9.7)
.29 (7.1)
.60 (15.2)
Figure 2
.88 (22.2)
.39
(9.8)
B
A
.62
(15.7)
Figure 3
FTH-34/FTH-35 Series
Screw Mount Cable Tie Mount
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Cable ties can be inserted from
all four sides
• Small size allows for use where
space is limited
ØD
.375 (9.53)
.195 (4.95)
.748
(19.0)
Item
No.
Ø Hole D
Used with Cable Ties Accepts Screw Size Bulk Pack Qtyin mm
FTH-34-01 0.170 4.3 18 - 50 lbs. #8 or M4 1000
FTH-35-01 0.200 5.1 18 - 50 lbs. #10 or M5 1000
m1
T
1/
Is,
FIBER, WIRE & CABLE MANAGEMENT
230 tel | 800 847 0486 fax | 866 561 6617

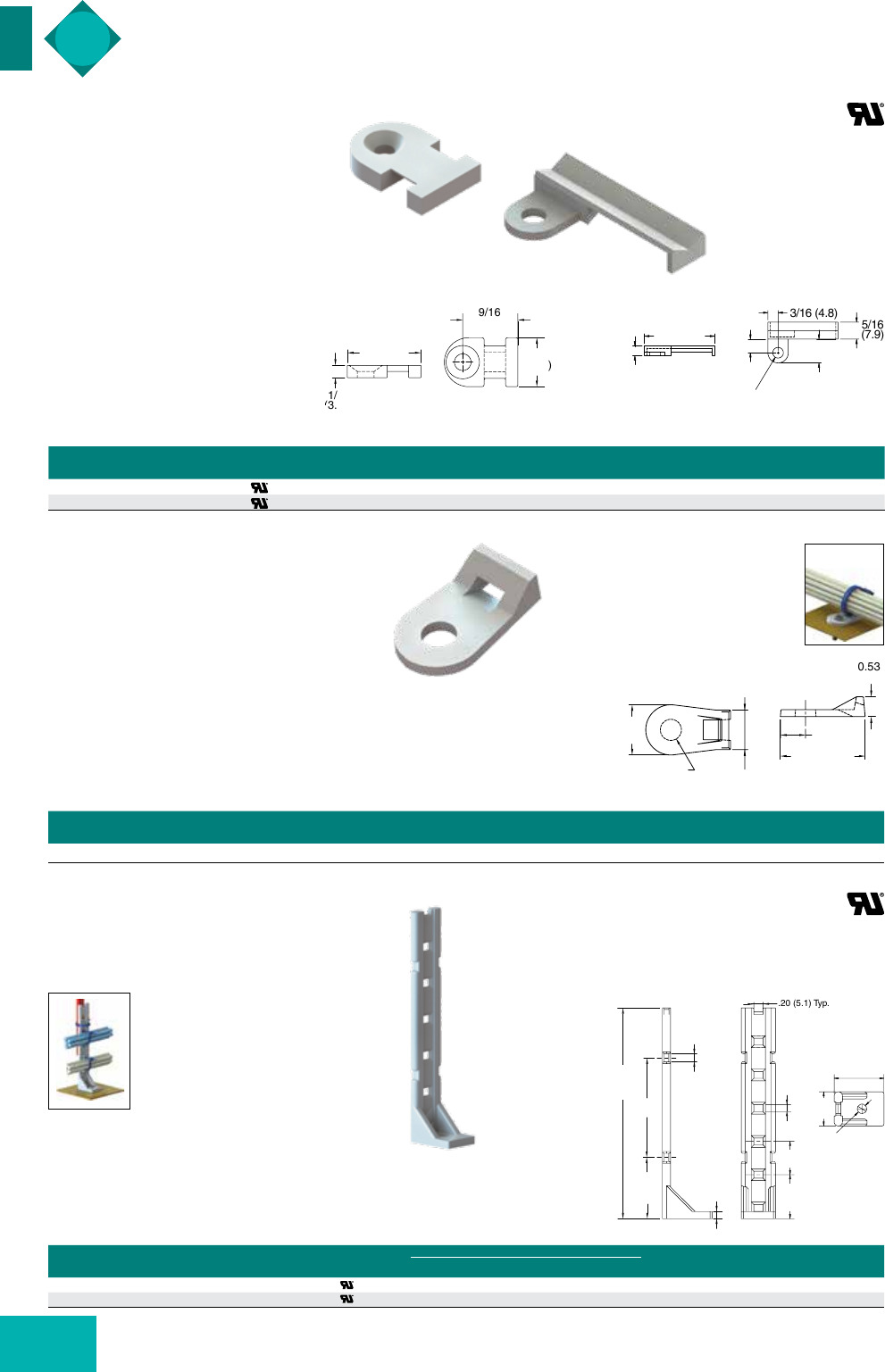

CABLE TIE MOUNTS
Item
No. Approval Figure Used w/ Cable Ties Accepts Screw Size
Bulk
Pack
Qty
FTH-1-01-M 118 - 50 lbs. #8 or M4 1000
FTH-11-8-01 218 - 50 lbs. #8 or M4 100
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Mounts with a #8 or M4 screw
• Low profile for limited space
• FTH-11-8-01 secures bundle
length with multiple cable ties
1/8
(3.2)
3/4 (19.1)
9/16
(14.3)
1/2
(12.7)
Figure 1
.18
(4.5)
1.29 (32.8)
Ø.17
(4.3)
7/16 (11.1)
1/4 (6.4)
3/16 (4.8)
5/16
(7.9)
Figure 2
FTH-1/FTH-11 Series
Low Profile Screw Mount Cable Tie Mount
FTH-17 Series
Heavy Duty Screw Mount Cable Tie Mount
1.34
(34.1)
0.53
(13.5)
.67
(17.1)
2.27 (57.6)
1.06
(26.9)
Ø.53 (13.5)
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Can be used with ties up to 250 lbs.
• Low profile for tight spaces
Item
No. Accepts Screw Size Used w/ Cable Ties
Bulk
Pack
Qty
FTH-17-8-01 1/2 or M12 All Ties 100
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Allows tying up multiple bundles of cables
• Supports cable bundles above the surface
Item
No. Mounting Method Approval
Ø D Used w/
Cable Ties
Bulk
Pack
Qtyin mm
FTH-24-01 #10 or M5 Screw 0.21 5.2 18 - 50 lbs. 100
FTH-24-1-01 1/4 or M6 Screw 0.25 6.4 18 - 50 lbs. 100
FTH-24 Series
Screw Mount Wire Harness
Cable Tie Mount
2-3/16
(55.6)
4.6
(116.4)
.200 (5.1)
x 4 Ty p.
.15
(3.8)
Ty p1.09 (27.7)
.74
(18.7)
ØD
.73
(18.5)
63/64
(25.0)
.20 (5.1) Ty p.
5/32
(4.0)
1-11/32
(34.1)
I7,
LES
H 25::
H<>231
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Figure 1 Figure 3
Figure 7 Figure 8 Figure 9
Figure 4 Figure 5 Figure 6
Figure 2
CABLE TIE MOUNTS
Item No.
Approval Figure
Ø Mounting Hole Panel Thickness Used w/
Cable Ties
Bulk
Pack
QtyNatural Black in mm in mm
FTH-6-01-M — 1 0.250 6.4 0.047 - 0.109 1.2 - 2.8 18 - 50 lbs. 1000
FTH-6-01-C — 1 0.250 6.4 0.047 - 0.109 1.2 - 2.8 18 - 50 lbs. 100
FTH-3-01-M — 2 0.187 4.8 0.031 - 0.078 0.8 - 2.0 18 - 50 lbs. 1000
FTH-3-01-C — 2 0.187 4.8 0.031 - 0.078 0.8 - 2.0 18 - 50 lbs. 100
FTH-39-1-01 — — 3 0.126 3.2 0.039 - 0.177 1.0 - 4.5 18 lbs. 1000
FTH-29-01 — — 4 0.250 6.4 0.062 1.6 18 - 50 lbs. 1000
FTH-33-01 — — 5 0.250 6.4 0.062 1.6 40 - 50 lbs. 1000
FTH-41-01 — — 6 0.187 4.8 0.020 - 0.090 0.5 - 2.3 18 - 50 lbs. 1000
FTH-15-01-M — 7 0.312 7.8 0.250 6.4 18 - 40 lbs. 1000
FTH-15-01-C — 7 0.312 7.8 0.250 6.4 18 - 40 lbs. 100
— FTH-36-01BK — 8 0.260 - 0.280 6.5 - 7.0 0.030 - 0.120 0.8 - 3.0 40 - 50 lbs. 1000
— FTH-37-01BK — 9 0.260 - 0.280 6.5 - 7.0 0.030 - 0.120 0.8 - 3.0 40 - 50 lbs. 1000
FTH Series
Snap In Cable Tie Mounts
5/8
(15.9)
Ref.
3/8
(9.5)
11/16
(17.5)
17/64
(6.8)
Ø9/32
(7.1)
19/64 (7.6)
7/32
(5.6)
.56 (14.3) Ref.
.24 (6.0)
.13
(3.2)
.51
(12.9)
.20 (5.0)
Ø.75 (19.0) Ref.
.27 (6.8)
.65
(16.6)
.37 (9.4)
.31
(7.8)
Ø.75 (19.0)
.31
(7.8)
.26 (6.6)
.62
(15.8)
.31 (7.8)
.18 (4.5)
.67 (17.0) Ref.
.65
(16.5)
Ref.
7/16 (11.1)
11/64 (4.4)
11/32
(8.7)
Ø.62 (15.8)
.35 (9.0)
.54 (13.8)
.28
(7.2)
.28
(7.2)
.53
(13.4)
Ø.62 (15.8)
.52 (13.3)
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Yellow
Features:
• Rivet designed into part expands to
lock the tie holder in place
• Low profile design for where space is limited
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Requires no adhesive or
other mounting hardware
• Can be used in
applications where back
of panel is not accessible
• Figures 5,6,8, and 9 have
pressure-hold feature that
holds cable tie inside the
tie holder
• Figures 4,5,8, and 9 have
a cupped base that provides
stability and also cover
the mounting hole
Item
No.
Ø Mounting Hole Panel Thickness Used with Cable
Ties Bulk Pack
Qtyin mm in mm
FTH-22-01 0.196 5.0 0.030 - 0.125 0.8 - 3.2 18 - 50 lbs. 1000
FTH-22 Series
Rivet Mount Cable Tie Mount
.12 (3.0)
.20 (5.1)
.43
(10.9)
3/4 (19.1)
.50
(12.7)
FIBER, WIRE & CABLE MANAGEMENT
232 tel | 800 847 0486 fax | 866 561 6617
CABLE TIE MOUNTS
FTH-9 Series
Reverse Mount Cable Tie Mount
FTH-30 Series
Cable Tie Mount with Cable Tie Head
27/64
(10.7) 5/64 (2.0
)
21/64 (8.3)
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Snap locks into place from outside of the chassis
• Low profile on the inside of the chassis
• Both sides of the panel must be accessible
Item
No. Approval
Ø Mounting Hole Panel Thickness Accepts Cable Ties
with Tensile lbs.
Bulk
Pack
Qtyin mm in mm
FTH-9-01-M 0.250 6.4 0.125 3.2 18 - 50 1000
FTH-9-01-C 0.250 6.4 0.125 3.2 18 - 50 100
Item
No.
Ø Mounting Hole Panel Thickness Accepts Cable Ties
with Tensile Lbs. Bulk Pack
QtyIn mm In mm
FTH-30-01 0.187 4.8 0.031 - 0.078 0.8 - 2.0 18 1000
FTH-30-1-01 0.187 4.8 0.031 - 0.078 0.8 - 2.0 50 1000
FTH-30-01 FTH-30-1-01
.54 (13.8)
.61
(15.5)
.21
(5.3)
7/32 (5.6)
.56 (14.3)
.25 (6.3)
.11 (2.8)
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Cable tie head contained in the tie holder
• Good for application in which a bundle is already wrapped
• Simply insert the end of the cable tie for secure hold
ØC .95 (24.1)
.40
(10.2)
.20
(5.1)
.17
(4.4)
.49
(12.3)
.39
(9.9) .10
(2.5) .20
(5.1)
MTH1 Series
Stainless Steel Tie Holder
See page 218 for Stainless Steel Cable Ties.
Specifications:
• Material: 304 Stainless Steel
Features:
• Low profile design
• Mounts with a screw or rivet
Item
No.
C Hole Recommended
Mounting Screw
Bulk
Pack
Qtyin mm
MTH1-1 0.177 4.5 #8 or M4 100
MTH1-2 0.213 5.4 #10 or M5 100
MTH1-3 0.266 6.8 1/4 or M6 100
» HASSLE-FREE SERVICE
233
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

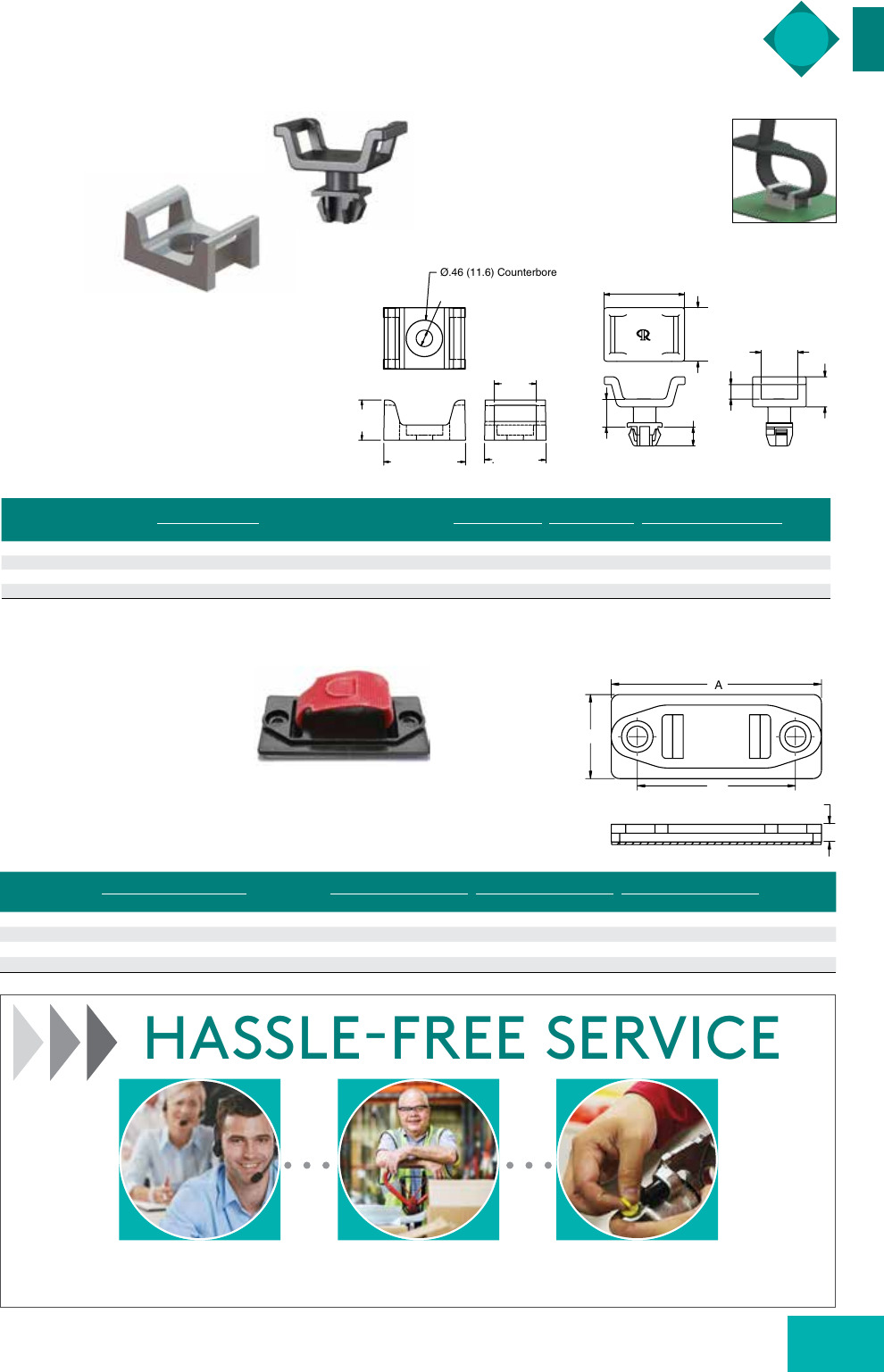

CABLE TIE MOUNTS
FTH-27 Series
Hook and Loop Cable Tie Mount
FTH-RKW Series
Hook and Loop Cable Tie Mount
See page 223 for Hook and Loop Cable Ties.
See page 223 for Hook and Loop Cable Ties.
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Mounts 1/2” RKW Hook and Loop Ties
Specifications:
• Material: Polyethylene
• Color: Black
Features:
• Mounts with adhesive or screws
Item
No. Color
Accepts Hook and
Loop Up To Width
Figure Mounting Method
D A Panel Thickness Bulk
Pack
Qtyin mm in mm in mm in mm
FTH-27-RS-01 Natural 0.510 13 1 #10, M5 or #12 Screw 0.205 5.2 — — — — 1000
FTH-27-12-01 Natural 0.510 13 1 #10, M5 or #12 Screw 0.230 5.8 — — — — 1000
FTH-27-1-01BK Black 0.510 13 2 0.370 (9.5) Square Hole — — 0.120 3.0 0.030 - 0.080 0.8 - 2.0 500
FTH-27-2-01BK Black 0.510 13 2 0.370 (9.5) Square Hole — — 0.390 10.0 0.030 - 0.080 0.8 - 2.0 500
Item
No.
Accepts Hook and Loop Up
To Width Mounting
Method
A B C Bulk
Pack
Qtyin mm in mm in mm in mm
FTH-RKW-1 0.500 12.7 1/4" Screw 2.500 63.5 1.000 25.4 1.880 47.8 100
FTH-RKW-1A 0.500 12.7 Adhesive 2.500 63.5 1.000 25.4 1.880 47.8 100
FTH-RKW-2 1.000 25.4 1/4" Screw 3.250 82.6 1.500 38.1 2.620 66.5 100
FTH-RKW-2A 1.000 25.4 Adhesive 3.250 82.6 1.500 38.1 2.620 66.5 100
Figure 1 Figure 2
Ø.46 (11.6) Counterbore
x 1/8 (3.2) Deep
.50
(12.7)
1.02 (25.9)
.77 (19.5)
.53
(13.3)
Ref.
ØD
1.10 (28.0) Ref.
.75
(19.0)
Ref.
A
.26
(6.7)
.20
(5.2)
.51
(13.0)
.42
(10.7)
C
.21 (5.3) Ref.
A
B
HASSLE-FREE SERVICE
Our teams of knowledgeable, dedicated employees are commited to providing a
hassle-free experience from sampling and quoting through delivery. Call us today!
» /\\\
.N
R-
L’. ’
Typei
Yypefl
ALA Bulk
um um Fack
No CableT Yyp: H: mm H mm m mm my
55am UpmsaLbs _ < 0023-0118="" 07-30="" am="" no="" nsm="" 15a="" 0622=""><53 ma="" 550m="" upmsam="" _="" a="" ooze-om:="" 07.30="" nsu="" m="" 0591="" 150="" 0514=""><59 ma="" .43="" (may="" 57="" (14.5)="">FIBER, WIRE & CABLE MANAGEMENT
234 tel | 800 847 0486 fax | 866 561 6617

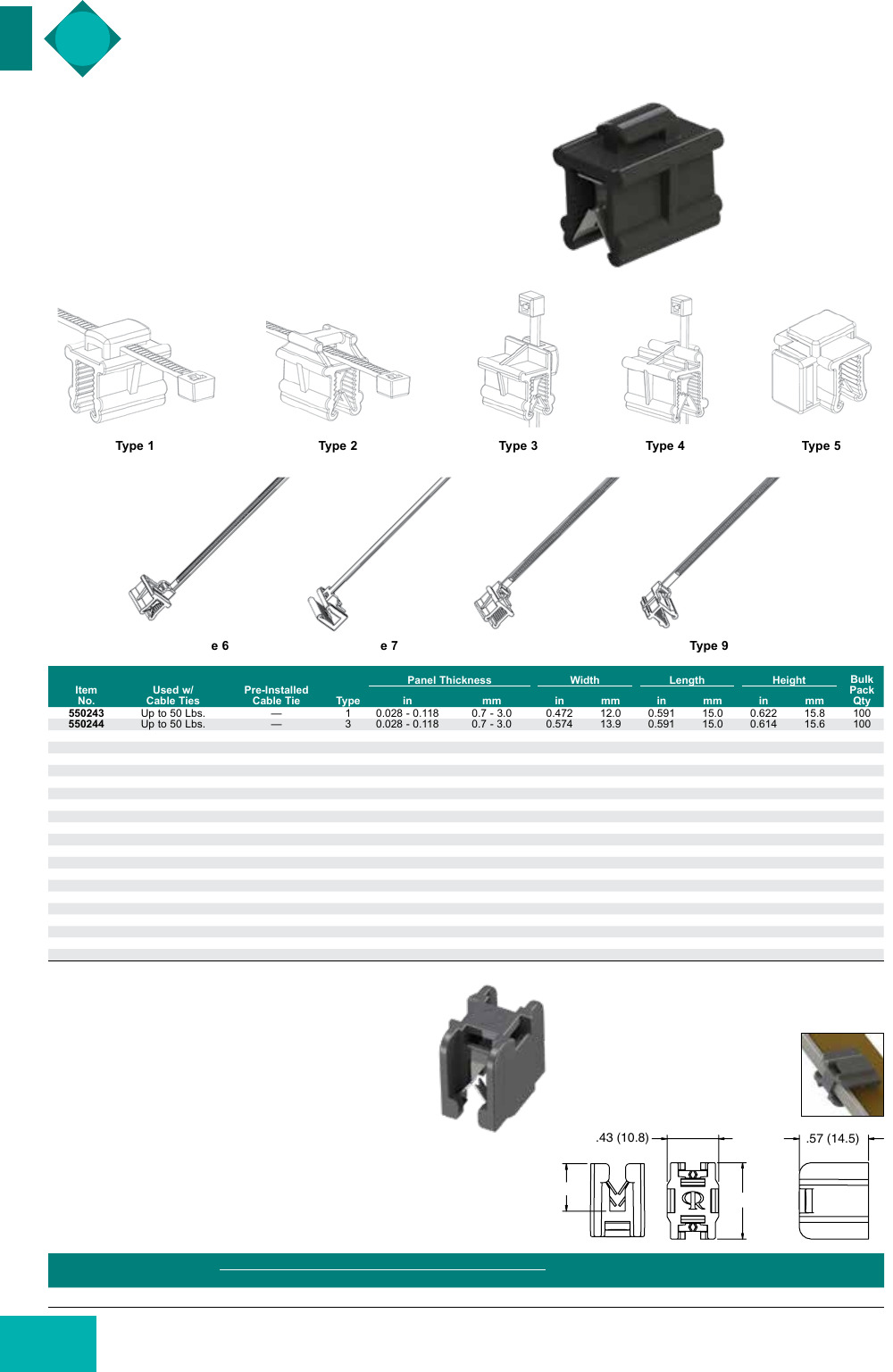

Edge Mount Cable Tie Mount
Specifications:
• Material: UL94 V-2 Nylon 6/6 and 302 Stainless Steel
• Color: Black
Features:
• Push the tie holder onto the edge of panel to
accept a cable tie and mount a cable bundle
• Retention of 450 lbs. based on a 0.078 panel thickness
• Available with or without a pre-installed cable tie
• Types 1 through 5 do not come with cable tie pre-installed
Item
No.
Used w/
Cable Ties
Pre-Installed
Cable Tie Type
Panel Thickness Width Length Height Bulk
Pack
Qtyin mm in mm in mm in mm
550243 Up to 50 Lbs. — 1 0.028 - 0.118 0.7 - 3.0 0.472 12.0 0.591 15.0 0.622 15.8 100
550244 Up to 50 Lbs. — 3 0.028 - 0.118 0.7 - 3.0 0.574 13.9 0.591 15.0 0.614 15.6 100
550245 Up to 50 Lbs. — 2 0.028 - 0.118 0.7 - 3.0 0.472 12.0 0.591 15.0 0.614 15.6 100
550246 Up to 50 Lbs. — 2 0.118 - 0.236 3.0 - 6.0 0.594 15.1 0.787 20.0 0.740 18.8 100
550247 Up to 50 Lbs. — 3 0.028 - 0.118 0.7 - 3.0 0.547 13.9 0.591 15.0 0.614 15.6 100
550248 Up to 50 Lbs. — 1 0.118 - 0.236 3.0 - 6.0 0.594 15.1 0.787 20.0 0.756 19.2 100
550249 Up to 50 Lbs. — 4 0.118 - 0.236 3.0 - 6.0 0.673 17.1 0.787 20.0 0.748 19.0 100
550250 Up to 50 Lbs. — 3 0.118 - 0.236 3.0 - 6.0 0.673 17.1 0.787 20.0 0.740 18.8 100
550251 Up to 50 Lbs. — 5 0.028 - 0.118 0.7 - 3.0 0.594 15.1 0.591 15.0 0.594 15.1 100
550252 —7.87 (200), 50 Lbs. 10.028 - 0.118 0.7 - 3.0 0.472 12.0 0.591 15.0 0.622 15.8 100
550253 —7.87 (200), 50 Lbs. 30.028 - 0.118 0.7 - 3.0 0.574 13.9 0.591 15.0 0.614 15.6 100
550254 —7.87 (200), 50 Lbs. 20.028 - 0.118 0.7 - 3.0 0.472 12.0 0.591 15.0 0.614 15.6 100
550255 —7.87 (200), 50 Lbs. 20.118 - 0.236 3.0 - 6.0 0.594 15.1 0.787 20.0 0.740 18.8 100
550256 —7.87 (200), 50 Lbs. 30.028 - 0.118 0.7 - 3.0 0.574 13.9 0.591 15.0 0.614 15.6 100
550257 —7.87 (200), 50 Lbs. 10.118 - 0.236 3.0 - 6.0 0.594 15.1 0.787 20.0 0.756 19.2 100
550258 —7.87 (200), 50 Lbs. 40.118 - 0.236 3.0 - 6.0 0.673 17.1 0.787 20.0 0.748 19.0 100
550259 —7.87 (200), 50 Lbs. 30.118 - 0.236 3.0 - 6.0 0.673 17.1 0.787 20.0 0.740 18.8 100
550260 —7.87 (200), 50 Lbs. 50.028 - 0.118 0.7 - 3.0 0.594 15.1 0.591 15.0 0.594 15.1 100
550277 —5.51 (140), 40 Lbs. 60.028 - 0.118 0.7 - 3.0 0.591 15.0 0.787 20.0 6.575 167.0 100
550278 —5.51 (140), 40 Lbs. 70.028 - 0.118 0.7 - 3.0 0.591 15.0 0.787 20.0 6.614 168.0 500
550279 —5.51 (140), 40 Lbs. 80.028 - 0.118 0.7 - 3.0 0.591 15.0 0.787 20.0 6.575 167.0 100
550280 —5.51 (140), 40 Lbs. 90.028 - 0.118 0.7 - 3.0 0.591 15.0 0.787 20.0 6.575 167.0 100
CABLE TIE MOUNTS
FTH-31 Series
Edge Mount Cable Tie Mount
Specifications:
• Material: UL94 V-2 Nylon 6/6
and 304 Stainless Steel
• Color: Black
Features:
• Push the tie holder onto the edge of panel to
accept a cable tie and mount a cable bundle
• Tie can be inserted from all four sides
• Retention Force:
Steel Panel .03 (0.8) thick: 5 Lbs.
Steel Panel .12 (3) thick: 10 Lbs.
Plastic Panel .09-.12 (2.4-3) thick: 33 Lbs.
.37 (9.0)
.63 (16.0)
.43 (10.8) .57 (14.5)
Item
No.
Panel Thickness Accepts Cable Ties
w/ Tensile lbs.
Bulk
Pack
Qtyin mm
FTH-31-01 0.03 - 0.12 0.8 - 3.0 40 - 50 lbs. 1000
Type 1 Type 4Type 2 Type 5Type 3
Type 6 Type 9Type 7 Type 8
235
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

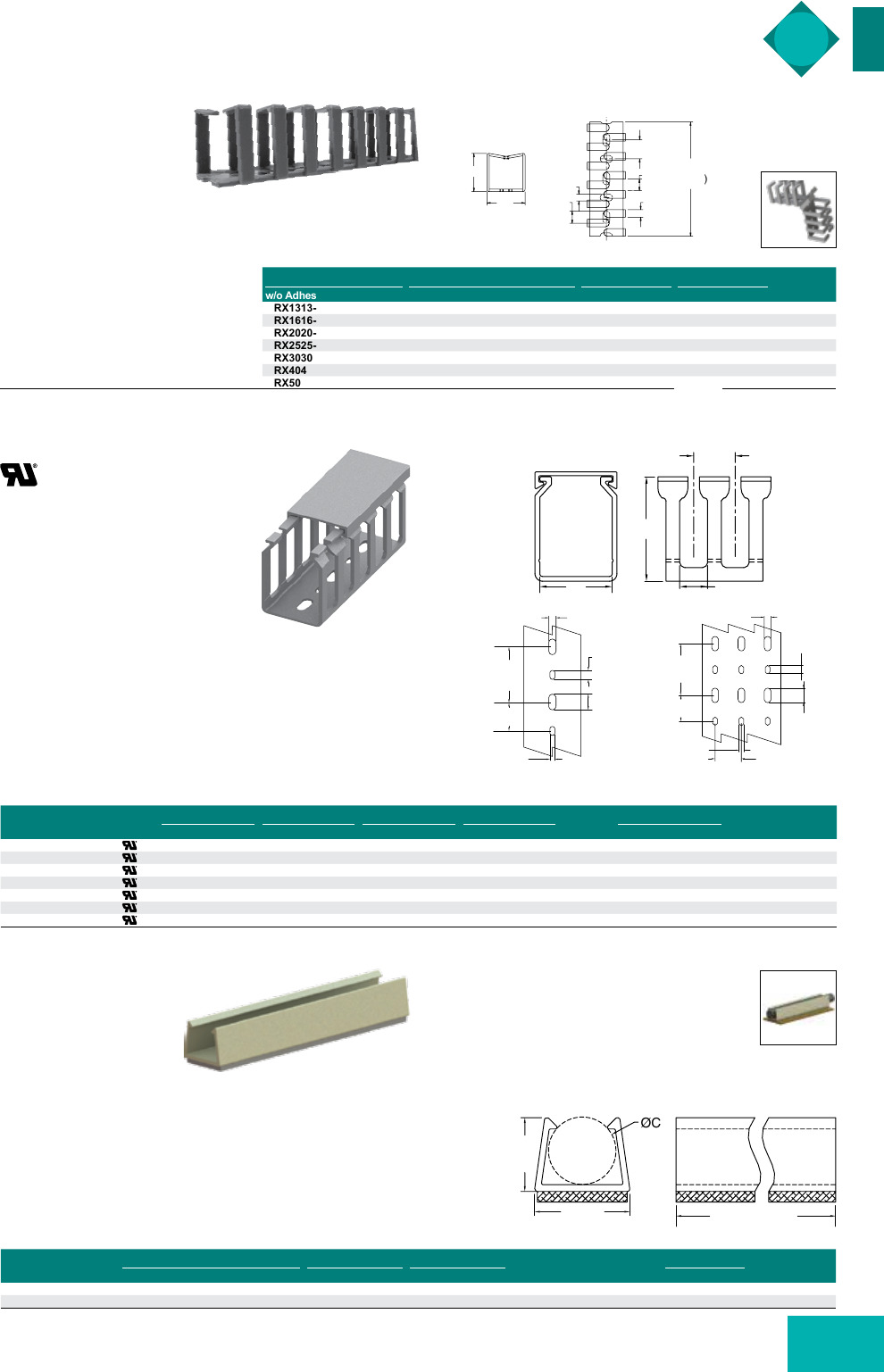

RX Series
Flexible Duct
SRWD Series
Slotted Wire Duct
SCD Series
Single Cable Duct
A.180
(4.5)
.310
(8.0)
.490 (12.5)
19.7
(500.0)
.300
(7.5)
.200
(5.0)
A
Item No. External A x A Internal A x A Length Bulk Pack
Qtyw/o Adhesive w/ Adhesive in mm in mm in mm
RX1313-0 RX1313-4 0.49 x 0.49 12.5 x 12.5 0.171 110.0 19.7 500.0 112
RX1616-0 RX1616-4 0.63 x 0.63 16.0 x 16.0 0.287 185.0 19.7 500.0 84
RX2020-0 RX2020-4 0.79 x 0.79 20.0 x 20.0 0.496 320.0 19.7 500.0 112
RX2525-0 RX2525-4 0.98 x 0.98 25.0 x 25.0 0.775 500.0 19.7 500.0 70
RX3030-0 RX3030-4 1.18 x 1.18 30.0 x 30.0 1.116 720.0 19.7 500.0 50
RX4040-0 RX4040-4 1.57 x 1.5759 40.0 x 40.0 2.046 1320.0 19.7 500.0 50
RX5050-0 RX5050-4 1.97 x 1.99 50.0 x 50.0 3.162 2040.0 19.7 500.0 32
Item
No. Approval
A B C D Mounting
Style
Length
In Pack Pack
Qtyin mm in mm in mm in mm ft m
SRWD-1015 1.000 25.4 1.500 38.1 0.79 20.0 0.31 8.0 1 6.5 2.0 78 ft 1
SRWD-1515 1.500 38.1 1.500 38.1 0.79 20.0 0.31 8.0 1 6.5 2.0 78 ft 1
SRWD-1520 1.500 38.1 2.000 50.8 0.79 20.0 0.31 8.0 1 6.5 2.0 52 ft 1
SRWDN1-1530 1.500 38.1 3.000 76.2 0.39 10.0 0.16 4.0 1 6.5 2.0 78 ft 1
SRWD-2020 2.000 50.8 2.000 50.8 0.79 20.0 0.31 8.0 1 6.5 2.0 52 ft 1
SRWDN1-2030 2.000 50.8 3.000 76.2 0.39 10.0 0.16 4.0 1 6.5 2.0 78 ft 1
SRWD-4020 4.000 101.6 2.000 50.8 0.79 20.0 0.31 8.0 2 6.5 2.0 26 ft 1
Item
No.
C Holding Ø A B Ref.
Cable Recommendations
Length
In Pack Pack
Qtyin mm in mm in mm ft m
SCD-1521 0.156 - 0.218 4.0 - 5.5 0.30 7.6 0.25 6.4 RG58 6 1.8 60 ft 1
SCD-2228 0.218 - 0.280 5.5 - 7.1 0.36 9.1 0.29 6.6 RG59, RG62, RG6, 9 Line 6 1.8 60 ft 1
Specifications:
• Material: UL94 V-2 Polypropylene
• Color: Grey
Features:
• Flexible ribs allow the cables to be
easily pushed and pulled into and
out of channel
• Flexible base makes routing cables
from the back and sides of control
panels to components mounted on
panel doors easy
Specifications:
• Material: PVC
• Color: Grey
Features:
• Lid is supplied with the base
• Fingers are scored for easy break off
• Used for general purpose control panel wiring and to
route and protect wiring in communication closets
• Holds breakout wires while providing flexibility for
adding or removing wires
• Sold in 6-1/2 foot lengths
Specifications:
• Material: UL94 V-0 PVC
• Color: Tan
Features:
• Designed to route single coax or computer cable
• Supplied in 6 foot lengths
• Adhesive base for easy mounting
CABLE DUCT
C Ref.
D
B
A
Mounting Style 1 Mounting Style 2
.26 (6.5)
.32
(8.0)
.55
(14.0)
.98
(25.0)
1.97
(50.0)
.98
(25.0)
1.97
(50.0)
.18 (4.5)
.26 (6.5)
.18 (4.5) .98 (25.0)
.55
(14.0)
.32
(8.0)
ØC
6 feet (1.8m)
A
B
Ref
.
FIBER, WIRE & CABLE MANAGEMENT
236 tel | 800 847 0486 fax | 866 561 6617

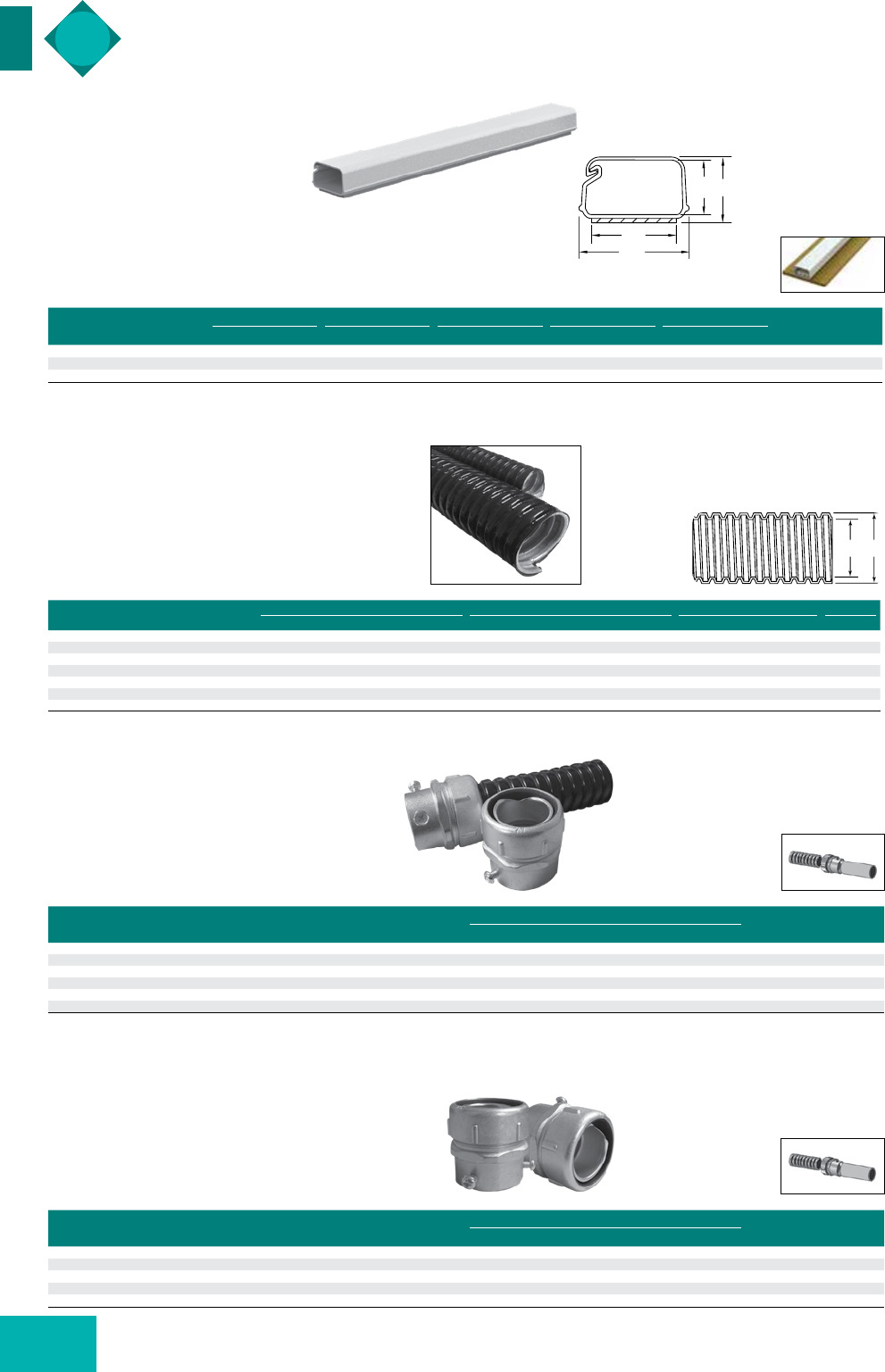

SRL Series
Locking Duct on Adhesive Base
CF Series
PVC Coated Metal Conduit
MCF Series
PVC Coated Metal Conduit
MCF Series
Fittings for PVC Pipe to Metal Conduit
Item
No.
A B W C Ref. Length
In Pack Pack
Qtyin mm in mm in mm in mm ft m
SRL1-3-WH6A 0.625 15.9 0.40 10.2 0.81 20.7 0.49 12.3 6 1.8 72 ft 1
SRL1-5-WH6A 0.750 19.1 0.58 14.7 0.99 25.1 0.67 8.5 6 1.8 72 ft 1
SRL1-10-WH6A 1.125 28.6 0.82 20.8 1.52 38.3 0.95 24.1 6 1.8 72 ft 1
Specifications:
• Material: UL94 V-0 PVC
• Color: White
Features:
• Adhesive base for fast, easy installation
• When lid is shut the cables are locked into place
• Lightweight and aesthetically pleasing
CABLE DUCT, FLEXIBLE CONDUIT & FITTINGS
B
A
W
C
Item
No.
A ID Min B OD Min Roll Length w
Sizes in mm in mm ft m Pack Qty
CF3020A 3/8 0.393 10.00 0.570 14.50 164 50 1
CF3060A 1/2 0.496 12.60 0.637 16.20 164 50 1
CF3090A 3/4 0.826 21.00 0.960 24.40 164 50 1
CF3140A 1 1.035 26.30 1.204 30.60 164 50 1
CF3160A 1-1/4 1.377 35.00 1.598 40.60 98 30 1
CF3180A 1-1/2 1.586 40.30 1.811 46.00 82 25 1
CF3200A 2 2.031 51.60 2.299 58.40 65 20 1
Specifications:
• Material: PVC Coated Steel in Coil
• Color: Black
Features:
• Designed to be liquid-tight and has high
tensile strength
• Good resistance to corrosion and high heat
AB
Item
No.
EMT Pipe Sizes Used With
Metal Conduit
Mounting Hole Bulk
Pack
Qtyin mm
MCF04A 1/2 CF3060A 0.767 19.50 50
MCF06A 3/4 CF3090A 1.027 26.10 50
MCF08A 1CF3140A 1.267 32.20 30
MCF10A 1-1/4 CF3160A 1.523 38.70 20
MCF12A 1-1/2 CF3180A 2.035 51.70 10
MCF14A 2CF3200A 2.515 63.90 5
Specifications:
• Material: Zinc Alloy
• Connection Type: Set Screw EMT Pipe
Features:
• Connects convoluted metal conduit to EMT
pipe in order to protect wires or cables
Item
No.
PVC Pipe Sizes Used With
Metal Conduit
Mounting Hole Bulk
Pack
Qtyin mm
MCF106A 3/4 CF3090A 1.091 27.70 50
MCF108A 1CF3140A 1.350 34.30 30
MCF110A 1-1/4 CF3160A 1.724 43.80 20
MCF112A 1-1/2 CF3180A 2.035 51.70 10
MCF114A 2CF3200A 2.516 63.90 5
Specifications:
• Material: Zinc Alloy
• Connection Type: Set Screw EMT Pipe
Features:
• Connects convoluted metal conduit to PVC
pipe in order to protect wires or cables
0335 2122 ”42.0354
1m 23% 1055-10“
0132 men m2.am
mam 2m nuns-M14
ms 22 50 ms .am
am 225a fleas-0597
1m 2mm 1mm 120
1m 2334: 1110-1120
us: :7 an use-147a
0630 mm nus-as“
om 2a on 0737-0799
om 2am 0757-0799
0954 25am ”34.1mm
09M 2500 0934-1000
0954 25am ”34.1mm
1250 3200 12524275
1260 32 an «25g.127
. .
T
to 105°C) i
/<.m condull="" io="" con=""><» cancun="" (a="" pvc="" essentrucomponentscom="" web="" |="" www.essentr="">237
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

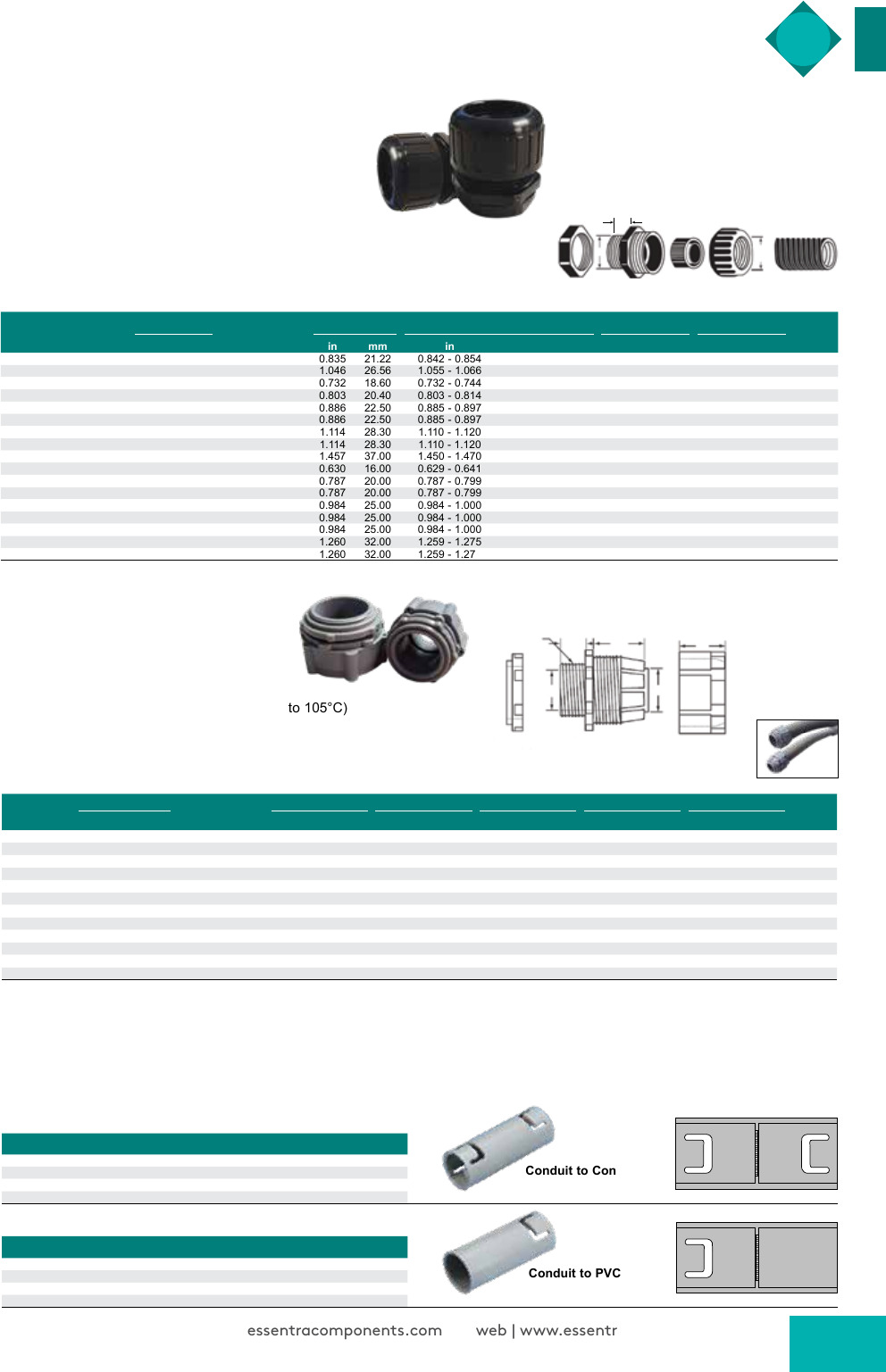

FLEXIBLE CONDUIT & FITTINGS
Item
No.
Thread
Max Joint F1 Used w/
Metal Conduit
Thread OD C1 Ø Mounting Hole Thread Length
C2 Body Min ID Bulk
Pack
Qtyin mm in mm in mm in mm in mm
MCF202A NPT 1/2 0.720 18.30 CF3020A 0.835 21.22 0.842 - 0.854 21.40 - 21.70 0.512 13.00 0.425 10.80 50
MCF204A NPT 3/4 0.866 22.00 CF3090A 1.046 26.56 1.055 - 1.066 26.80 - 27.10 0.591 15.00 0.563 14.30 50
MCF250A PG11 0.720 18.30 CF3020A 0.732 18.60 0.732 - 0.744 18.60 - 18.90 0.394 10.00 0.425 10.80 50
MCF252A PG13.5 0.720 18.30 CF3020A 0.803 20.40 0.803 - 0.814 20.40 - 20.70 0.394 10.00 0.425 10.80 50
MCF254A PG16 0.720 18.30 CF3020A 0.886 22.50 0.885 - 0.897 22.50 - 22.80 0.433 11.00 0.425 10.80 50
MCF256A PG16 0.866 22.00 CF3060A 0.886 22.50 0.885 - 0.897 22.50 - 22.80 0.394 10.00 0.563 14.30 50
MCF258A PG21 0.866 22.00 CF3060A 1.114 28.30 1.110 - 1.120 28.30 - 28.70 0.492 12.50 0.563 14.30 50
MCF260A PG21 1.043 26.50 CF3090A 1.114 28.30 1.110 - 1.120 28.30 - 28.70 0.472 12.00 0.709 18.00 50
MCF262A PG29 1.358 34.50 CF3140A 1.457 37.00 1.450 - 1.470 37.00 - 37.40 0.472 12.00 0.933 23.70 10
MCF300A M16X1.5 0.720 18.30 CF3020A 0.630 16.00 0.629 - 0.641 16.00 - 16.30 0.394 10.00 0.425 10.80 50
MCF304A M20X1.5 0.720 18.30 CF3020A 0.787 20.00 0.787 - 0.799 20.00 - 20.30 0.394 10.00 0.425 10.80 50
MCF306A M20X1.5 0.866 22.00 CF3060A 0.787 20.00 0.787 - 0.799 20.00 - 20.30 0.394 10.00 0.563 14.30 50
MCF310A M25X1.5 0.720 18.30 CF3020A 0.984 25.00 0.984 - 1.000 25.00 - 25.40 0.472 12.00 0.425 10.80 50
MCF312A M25X1.5 0.866 22.00 CF3060A 0.984 25.00 0.984 - 1.000 25.00 - 25.40 0.394 10.00 0.563 14.30 50
MCF314A M25X1.5 1.043 26.50 CF3090A 0.984 25.00 0.984 - 1.000 25.00 - 25.40 0.394 10.00 0.709 18.00 50
MCF316A M32X1.5 0.866 22.00 CF3060A 1.260 32.00 1.259 - 1.275 32.00 - 32.40 0.472 12.00 0.563 14.30 10
MCF318A M32X1.5 1.358 34.50 CF3140A 1.260 32.00 1.259 - 1.275 32.00 - 32.40 0.394 10.00 0.933 23.70 10
NPT, PG & Metric Threads
Metal Conduit Fittings
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
• Temperature Range: -40°F to 221°F (-40°C to 105°C)
Features:
• Provides strong pull out strength and anti-vibration properties
• Eliminates chance of cutting into conduit and creating leak paths
• Reusable Lock Nut Body
C1
C2
F1
Ferrule Clamping Nut Convoluted
Conduit
Item No. Used w/ Plastic Conduit Bulk Pack Qty
FCA02A CF004A 20
FCA04A CF006A 20
FCA06A CF008A 20
FCA08A CF010A 20
FCA Series
Flexible Conduit Adapters
Specifications:
• Material: UL94 HB ABS
• Color: Grey
Conduit to Conduit
Conduit to PVC Pipe
Conduit to Conduit Connector
Item No. Used w/ Plastic Conduit Bulk Pack Qty
FCA102A CF004A 20
FCA104A CF006A 20
FCA106A CF008A 20
FCA108A CF010A 20
Conduit to PVC Pipe
Features:
• FCA02A to FCA08A can be used to connect plastic convoluted conduit
• FCA102A to FCA108A can be used to connect plastic convoluted conduit to PVC pipe
D1
D2
L1 L2
D3
L3
Lock
Nut
NutBody
Claw
Item
No.
Ø Mounting Hole Used w/
Plastic Conduit
D2 D3 L1 L2 L3 Bulk
Pack
Qtyin mm in mm in mm in mm in mm in mm
FCA200A 0.567 14.4 CF001A 0.248 6.3 0.295 7.5 0.382 9.7 0.728 18.5 0.626 15.9 50
FCA202A 0.626 15.9 CF003A 0.433 11 0.425 10.8 0.394 10 0.705 17.9 0.618 15.7 50
FCA204A 0.630 16 CF004A 0.437 11.1 0.524 13.3 0.382 9.7 0.732 18.6 0.626 15.9 50
FCA206A 0.756 19.2 CF005A 0.591 15 0.579 14.7 0.394 10 0.697 17.7 0.630 16 50
FCA208A 0.787 20 CF006A 0.606 15.4 0.677 17.2 0.386 9.8 0.693 17.6 0.642 16.3 50
FCA210A 0.984 25 CF008A 0.744 18.9 0.780 19.8 0.449 11.4 0.929 23.6 0.811 20.6 50
FCA212A 1.228 31.2 CF009A 1.024 26 0.957 24.3 0.472 12 0.898 22.8 0.811 20.6 25
FCA214A 1.260 32 CF010A 1.055 26.8 1.126 28.6 0.445 11.3 0.917 23.3 0.815 20.7 25
FCA216A 1.476 37.5 CF011A 1.240 31.5 1.244 31.6 0.445 11.3 0.929 23.6 0.815 20.7 25
FCA218A 1.575 40 CF012A 1.287 32.7 1.370 34.8 0.453 11.5 0.917 23.3 0.819 20.8 25
FCA220A 1.732 44 CF013A 1.476 37.5 1.594 40.5 0.496 12.6 0.878 22.3 0.815 20.7 10
FCA222A 1.732 44 CF014A 1.476 37.5 1.555 39.5 0.496 12.6 0.850 21.6 0.815 20.7 10
FCA200 Series
Flexible Conduit Fittings
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Grey
• Temperature Range: -40°F to 221°F (-40°C to 105°C)
Features:
• Connects plastic convoluted conduit to control
panels, machinery, and other equipment
FIBER, WIRE & CABLE MANAGEMENT
238 tel | 800 847 0486 fax | 866 561 6617

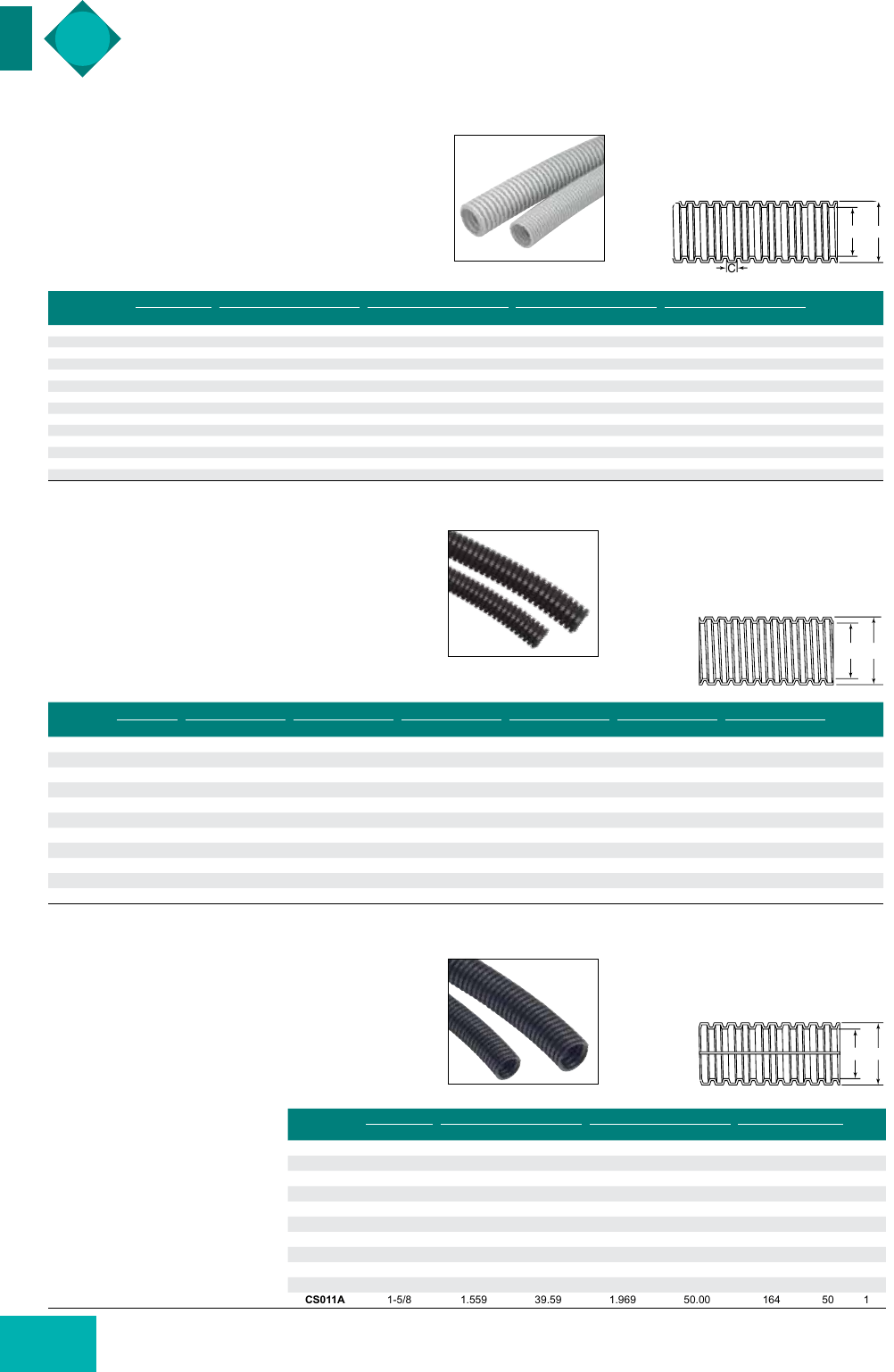

CF Series
Unsplit Nylon Conduit
CS Series
Split Polypropylene Conduit
Specifications:
• Material: UL-94 HB Nylon
• Color: Black with Grey Stripe
• Temperature Range: –40°F to 300°F (–40°C to 149°C)
Features:
• Wire and cable protection for electrical harnesses
• Can also be used to protect hydraulic hoses
• Flexible body allows for easy corner/elbow wiring
Specifications:
• Material: Polypropylene
• Color: Black
• Temperature Range: –40°F to 225°F (–40°C to 107°C)
Features:
• Split design for easy installation
and removal of wiring
• Wire and cable protection for
electrical harnesses
• Flexible body allows for
corner/elbow wiring
• Can be used to protect
hydraulic hoses
Item
No.
Ø Nominal A Min A Max B Min B Max Wall Thickness Roll Length Pack
Qtyin in mm in mm in mm in mm in mm ft m
CF1010A 1/4 0.237 6.02 0.266 6.76 0.375 9.53 0.400 10.16 0.040 1.02 2500 762 1
CF1020A 3/8 0.341 8.66 0.380 9.65 0.497 12.62 0.526 13.36 0.040 1.02 1500 457.2 1
CF1040A 7/16 0.399 10.13 0.437 11.10 0.573 14.55 0.597 15.16 0.050 1.27 1500 457.2 1
CF1060A 1/2 0.473 12.01 0.516 13.11 0.664 16.87 0.700 17.78 0.050 1.27 1000 304.8 1
CF1080A 5/8 0.603 15.32 0.639 16.23 0.805 20.45 0.837 21.26 0.050 1.27 700 213.4 1
CF1090A 3/4 0.707 17.96 0.759 19.28 0.950 24.13 0.989 25.12 0.050 1.27 450 137.2 1
900081 7/8 0.848 21.54 0.898 22.81 1.107 28.12 1.151 29.24 0.050 1.27 400 121.9 1
CF1140A 1 1.020 25.91 1.069 27.16 1.251 31.78 1.304 33.13 0.060 1.52 250 76.2 1
CF1140B* 1 1.020 25.91 1.069 27.16 1.251 31.78 1.304 33.13 0.060 1.52 250 76.2 1
CF1150A 1-1/8 1.122 28.50 1.176 29.86 1.356 34.58 1.413 35.88 0.060 1.52 200 60.9 1
900082 1-1/4 1.199 30.45 1.257 31.93 1.446 36.73 1.500 38.10 0.060 1.52 200 60.9 1
AB
FLEXIBLE CONDUIT & FITTINGS
AB
* No grey stripe
CF Series
Unsplit Polyethylene Conduit
Item
No.
Ø Nominal A B C Roll Length Pack
Qtyin in mm in mm in mm ft m
CF001A 1/4 0.291 7.390 0.402 10.21 0.104 2.64 984 300 1
CF002A 3/8 0.421 10.69 0.555 14.10 0.080 2.04 328 100 1
CF003A 3/8 0.421 10.69 0.630 16.00 0.130 3.30 328 100 1
CF004A 1/2 0.543 13.79 0.787 19.99 0.124 3.14 328 100 1
CF005A 5/8 0.555 14.10 0.866 22.00 0.144 3.66 328 100 1
CF006A 11/16 0.677 17.20 0.866 22.00 0.124 3.14 328 100 1
CF007A 3/4 0.720 18.29 0.984 24.99 0.162 4.12 328 100 1
CF008A 7/8 0.835 21.21 1.016 25.81 0.124 3.14 328 100 1
CF009A 1 0.957 24.31 1.260 32.00 0.142 3.61 164 50 1
CF010A 1-1/8 1.130 28.70 1.339 34.01 0.124 3.14 164 50 1
CF011A 1-1/4 1.228 31.19 1.575 40.01 0.162 4.12 164 50 1
CF012A 1-3/8 1.374 34.90 1.654 42.01 0.124 3.14 164 50 1
CF013A 1-1/2 1.575 40.00 1.890 48.01 0.124 3.14 164 50 1
CF014A 1-5/8 1.559 39.60 1.969 50.01 0.191 4.85 164 50 1
AB
C
Specifications:
• Material: High-Density Polyethylene
• Color: Grey
• Temperature Range: –40°F to 200°F (–40°C to 93°C)
Features:
• Wire and cable protection for electrical harnesses
• Can also be used to protect hydraulic hoses
• Flexible body allows for easy corner/elbow wiring
Item
No.
Ø Nominal A B Roll Length Pack
Qtyin in mm in mm ft m
CS001A 1/4 0.291 7.39 0.402 10.21 984 300 1
CS002A 7/16 0.421 10.69 0.630 16.00 656 200 1
CS003A 1/2 0.543 13.79 0.689 17.50 656 200 1
CS004A 5/8 0.591 15.01 0.768 19.51 328 100 1
CS005A 3/4 0.760 19.30 0.937 23.80 328 100 1
CS006A 7/8 0.835 21.21 1.016 25.81 328 100 1
CS007A 1 0.957 24.31 1.260 32.00 164 50 1
CS008A 1 0.984 24.99 1.181 30.00 164 50 1
CS009A 1-1/8 1.102 27.99 1.339 34.01 164 50 1
CS010A 1-1/4 1.228 31.19 1.575 40.01 164 50 1
CS011A 1-5/8 1.559 39.59 1.969 50.00 164 50 1
J l
E
239
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

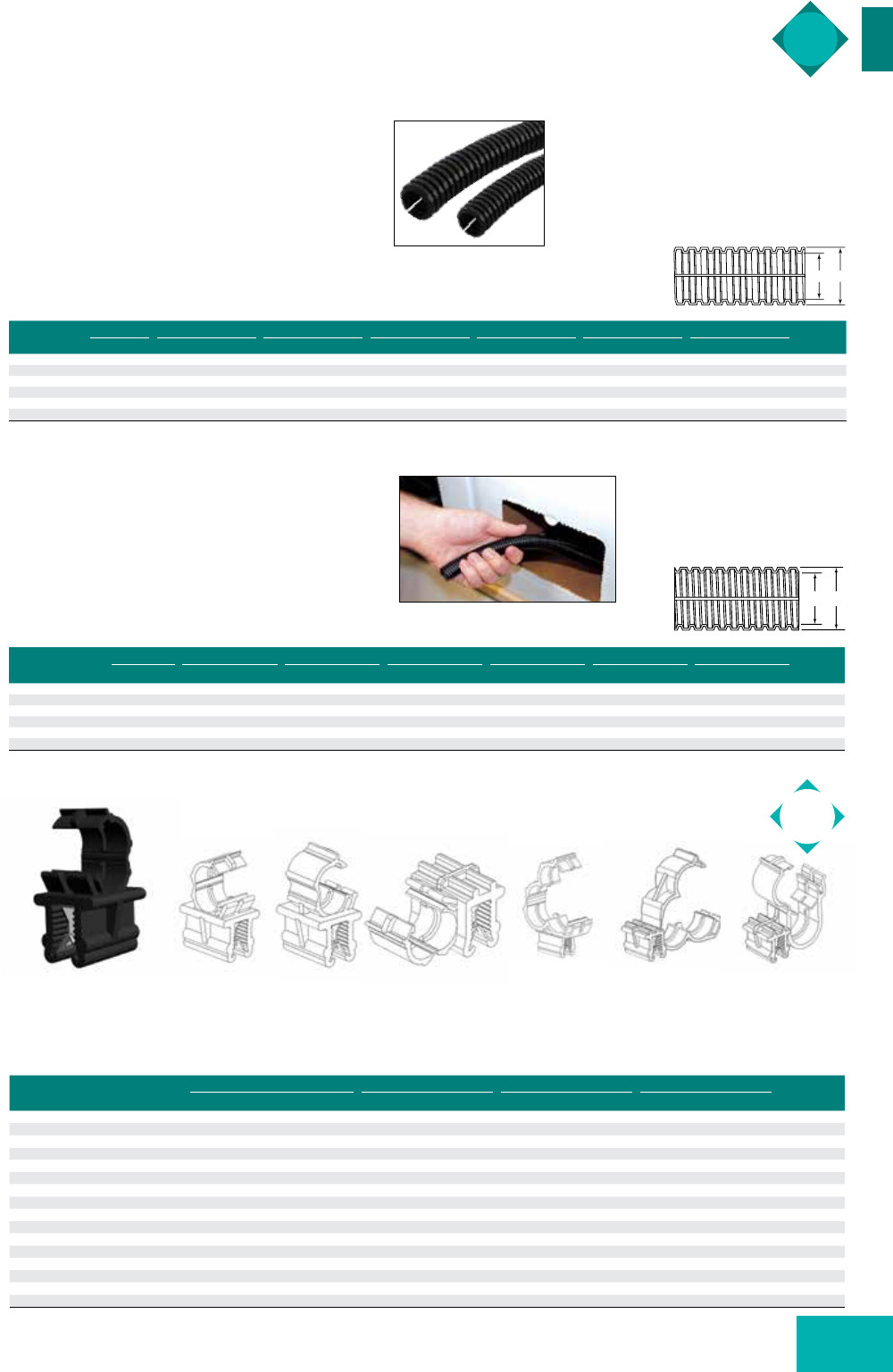

CS (Nylon) Series
Split Nylon Conduit
Item
No.
Ø Nominal A Min A Max B Min B Max Wall Thickness Roll Length Pack
Qtyin in mm in mm in mm in mm in mm ft m
CS1020A 3/8 0.341 8.66 0.380 9.65 0.497 12.62 0.526 13.36 0.040 1.02 1900 579.1 1
CS1040A 7/16 0.399 10.13 0.437 11.10 0.573 14.55 0.597 15.16 0.050 1.27 1500 457.2 1
CS1060A 1/2 0.473 12.01 0.516 13.11 0.664 16.87 0.700 17.78 0.050 1.27 1100 335.3 1
CS1080A 5/8 0.603 15.32 0.639 16.23 0.805 20.45 0.837 21.26 0.050 1.27 800 243.8 1
CS1090A 3/4 0.707 17.96 0.759 19.28 0.950 24.13 0.989 25.12 0.050 1.27 550 164.6 1
CS1140A 1 1.020 25.91 1.069 27.16 1.251 31.78 1.304 33.13 0.006 1.52 300 91.4 1
Specifications:
• Material: UL94 HB Nylon
• Color: Black with Gray Stripe
• Temperature Range: –40°F to 300°F (–40°C to 149°C)
Features:
• Split design for easy installation and removal of wiring
• Cable protection for electrical wiring harnesses
• Flexible body allows for corner/elbow wiring
• Can be used to protect hydraulic hoses
• Split design for easy installation
AB
Item
No.
Ø Nominal A Min A Max B Min B Max Wall Thickness Roll Length Pack
Qtyin in mm in mm in mm in mm in mm Ft m
CSEZ1010A 1/4 0.256 6.50 0.276 7.01 0.373 9.47 0.398 10.11 0.040 1.02 100 30.48 1
CSEZ1030A 3/8 0.368 9.35 0.398 10.11 0.494 12.56 0.525 13.32 0.050 1.27 100 30.48 1
CSEZ1060A 1/2 0.473 12.01 0.516 13.11 0.664 16.87 0.700 17.78 0.050 1.27 100 30.48 1
CSEZ1080A 5/8 0.603 15.32 0.639 16.23 0.805 20.45 0.837 21.26 0.050 1.27 100 30.48 1
CSEZ1090A 3/4 0.707 17.96 0.759 19.28 0.950 24.13 0.989 25.12 0.050 1.27 100 30.48 1
CSEZ1140A 1 1.020 25.91 1.069 27.16 1.251 31.78 1.304 33.13 0.060 1.52 50 15.24 1
CSEZ Series
EZ Dispenser Split Nylon Conduit
Specifications:
• Material: UL94 HB Nylon
• Color: Black with Gray Stripe
• Temperature Range: –40°F to 300°F (–40°C to 149°C)
Features:
• Supplied in easy pull dispenser box
• Tangle free dispenses on interior reel
• Split design for easy installation and removal
A B
FLEXIBLE CONDUIT, FITTINGS & WRAPS
Edge Mount Conduit Holder
Item
No. Type Tube
Size mm
Panel Thickness Width Length Height to Center Bulk
Pack
Qtyin mm in mm in mm in mm
550261 1 4.5 0.028 - 0.118 0.7 - 3 0.591 15 0.591 15 0.610 15.5 100
550262 2 4.5 0.028 - 0.118 0.7 - 3 0.591 15 0.591 15 0.610 15.5 100
550263 3 4.5 0.028 - 0.118 0.7 - 3 0.787 20 0.591 15 0.256 6.5 100
550264 3 4.5 0.118 - 0.236 3 - 6 0.787 20 0.787 20 0.303 7.7 100
550265 4 4.5 0.118 - 0.236 3 - 6 0.787 20 0.787 20 0.728 18.5 100
550266 4 7.5 0.118 - 0.236 3 - 6 0.591 15 0.591 15 0.689 17.5 100
550267 1 10 0.118 - 0.236 3 - 6 0.472 12 0.866 22 0.728 18.5 100
550268 3 10 0.028 - 0.118 0.7 - 3 0.866 22 0.591 15 0.343 8.7 100
550269 3 10 0.118 - 0.236 3 - 6 0.866 22 0.787 20 0.350 8.9 100
550270 42 x 10 0.028 - 0.118 0.7 - 3 0.472 12 1.339 34 0.764 19.4 100
550271 52 x 10 0.028 - 0.118 0.7 - 3 0.591 15 1.614 41 0.535 13.6 100
550272 62 x 10 0.028 - 0.118 0.7 - 3 1.181 30 0.591 15 0.335 / 0.728 — 100
550273 3 13 0.028 - 0.118 0.7 - 3 0.591 15 0.591 15 0.413 10.5 100
550274 2 13 0.118 - 0.236 3 - 6 0.906 23 0.787 20 0.917 23.3 100
550275 1 13 0.118 - 0.236 3 - 6 0.512 13 0.906 23 0.787 20 100
550276 2 17 0.028 - 0.118 0.7 - 3 1.181 30 0.591 15 0.894 22.7 100
Specifications:
• Material: Heat Stabilized Nylon 6/6 and
302 Stainless Steel
• Color: Black
Features:
• Holds a variety of sizes of corrugated tubing in place
• Easy to install by pushing onto plastic or metal sheet edge
• Ideal for applciations where holes or adhesive is not suitable
NEW
Type 1 Type 2 Type 3 Type 4 Type 5 Type 6
Hem
Na.
Amswa
cum—pp
mus—pp
mm.»
“1.25.”
emu—pp
am
am
am
am
am
122a
.4.‘.—9
FIBER, WIRE & CABLE MANAGEMENT
240 tel | 800 847 0486 fax | 866 561 6617

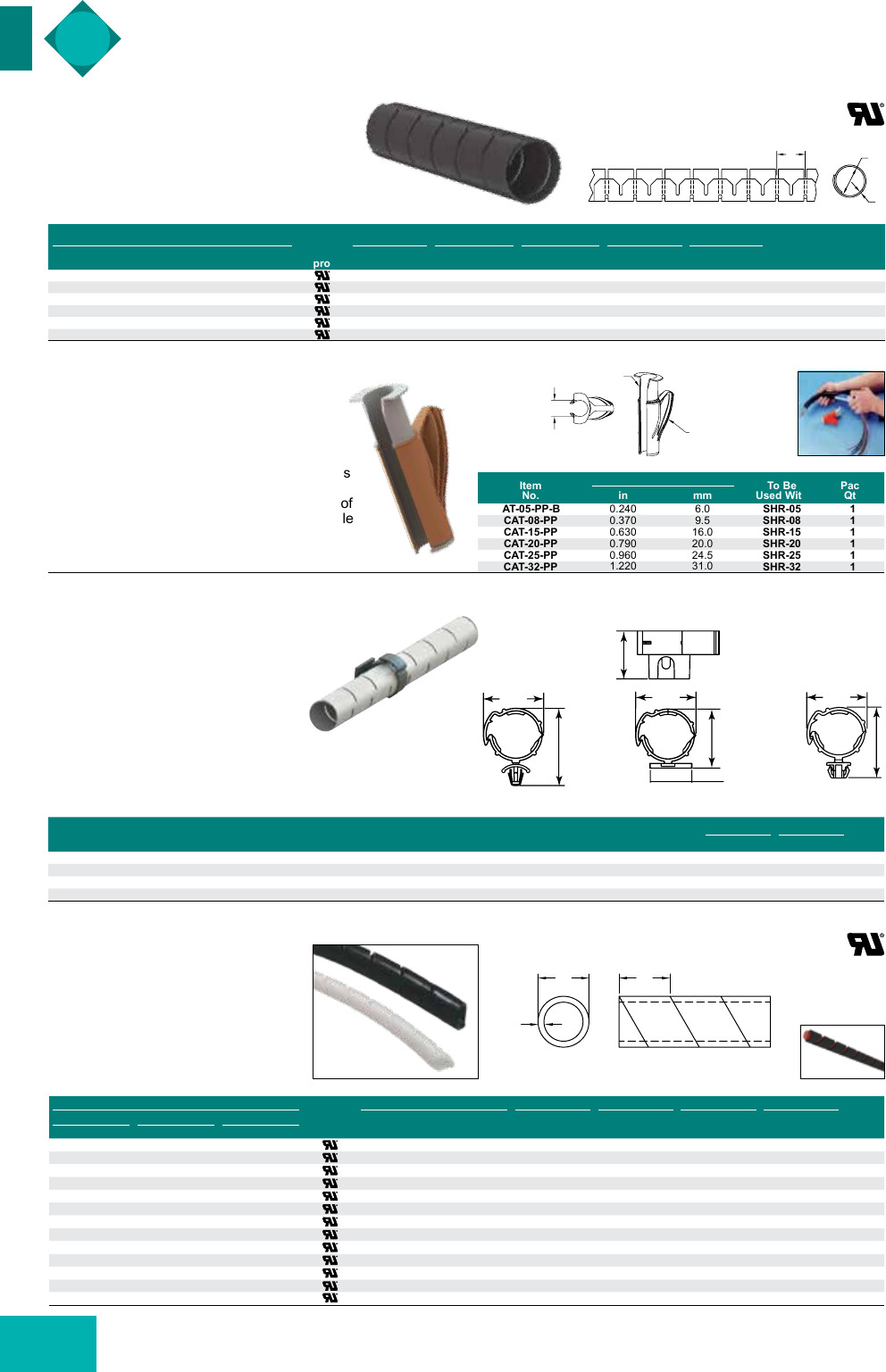

Item
No. Ø Holding Mounting
Method Figure
A Ref B Ref Bulk
Pack
Qtyin mm in mm
SHR-C1 To hold SHR-20 & SHR-25 1Snaps into a 0.252 in. (6.4 mm) Hole in a 0.031-0.079 in. (0.8-2.0 mm) Panel 1.140 29.0 1.670 42.5 500
SHR-C2 To hold SHR-20 & SHR-25 2#8 or M4 Screw 1.180 30.0 1.280 32.5 500
SHR-C3 To hold SHR-20 & SHR-25 2 Adhesive 1.180 30.0 1.280 32.5 500
SHR-C4 To hold SHR-20 & SHR-25 3Snaps into a 0.370 in. (9.5 mm) Square Hole in a 0.031-0.079 in. (0.8-2.0 mm) Panel 1.180 30.0 1.630 40.5 500
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Adjustable clips to hold both the SHR-20 and SHR-25
slit harness wrap (see above)
• Internal ribs grip the wrap securely
Item No. Bundle Range A Ref. BC Ref. Roll Length
Pack
Qty
UL94 HB Nylon Polyethylene LDPE
Natural Black Approval in mm in mm in mm in mm ft m
HR2N-1/8 — — 0.062 - 0.500 1.6 - 12.7 0.125 3.2 0.020 0.5 0.170 4.3 100 30.48 1
HR3N-3/16 — — 0.125 - 1.000 3.2 - 25.4 0.187 4.8 0.020 0.5 0.250 6.4 100 30.48 1
HR4N-1/4 — — 0.187 - 1.500 4.8 - 38.7 0.250 6.4 0.025 0.6 0.300 7.6 100 30.48 1
HR6N-3/8 — — 0.312 - 2.000 7.9 - 50.8 0.375 9.5 0.035 0.9 0.380 9.5 100 30.48 1
HR8N-1/2 — — 0.750 - 3.000 19.1 - 76.2 0.500 12.7 0.040 1.0 0.500 12.7 100 30.48 1
— HR2P-1/8 — 0.062 - 0.375 1.6 - 9.5 0.125 3.2 0.020 0.5 0.170 4.3 100 30.48 1
— HR3P-3/16 — 0.125 - 1.000 3.2 - 25.4 0.187 4.8 0.030 0.8 0.250 6.4 100 30.48 1
— HR4P-1/4 — 0.187 - 1.000 4.8 - 25.4 0.250 6.4 0.050 1.3 0.300 7.6 100 30.48 1
— HR6P-3/8 — 0.312 - 2.000 7.9 - 50.8 0.375 9.5 0.050 1.3 0.380 9.5 100 30.48 1
— HR8P-1/2 — 0.750 - 3.000 19.1 - 76.2 0.500 12.7 0.060 1.5 0.500 12.7 100 30.48 1
— — HR4U-1/4 0.187 - 0.750 4.8 - 19.1 0.250 6.4 0.050 1.3 0.300 7.6 100 30.48 1
— — HR6U-3/8 0.312 - 2.000 7.9 - 50.8 0.375 9.5 0.050 1.3 0.380 9.5 100 30.48 1
— — HR8U-1/2 0.750 - 3.500 19.1 - 88.9 0.500 12.7 0.060 1.5 0.500 12.7 100 30.48 1
HR Series
Spiral Wrap
Specifications:
• Material: See Table
• Color: See Table
A
B
C
SHR Series
Slit Harness Wrap
CAT Series
Installation Tool for SHR
Cable Holder
Guide Body
AKA Horn
ØB
Specifications:
• Material: See Table
• Color: Black
Features:
• The easiest and quickest way to wrap cables
• Insert cables into the CAT installation tool
• Feed the slit end of the wrap over the horn of
the tool and "zip" the wires into a neat bundle
• Allows for breakout of the cables
• Provides abrasion protection
Item No.
Approval
Max Bundle
Range A B C Roll Length
Installation Tool
Part Number Pack
Qty
UL94 V-0
Nylon 6 Nylon 6 LDPE In mm In mm In mm In mm Ft m
SHR-05-6V0B SHR-05-6NB SHR-05-PPB 0.240 6.0 0.200 5.0 0.032 0.8 0.390 10.0 328 100 CAT-05-PP-BL 1
SHR-08-6V0B SHR-08-6NB SHR-08-PPB 0.390 10.0 0.310 8.0 0.032 0.8 0.390 10.0 328 100 CAT-08-PP 1
SHR-15-6V0B SHR-15-6NB SHR-15-PPB 0.630 16.0 0.590 15.0 0.032 0.8 0.550 14.0 164 50 CAT-15-PP 1
SHR-20-6V0B SHR-20-6NB SHR-20-PPB 0.900 23.0 0.790 20.0 0.035 0.9 0.670 17.0 98 30 CAT-20-PP 1
SHR-25-6V0B SHR-25-6NB SHR-25-PPB 0.980 25.0 0.980 25.0 0.039 1.0 0.790 20.0 66 20 CAT-25-PP 1
SHR-32-6V0B SHR-32-6NB SHR-32-PPB 1.250 32.0 1.250 32.0 0.050 1.3 0.980 24.9 49 15 CAT-32-PP 1
Item
No.
Ø Max Bundle B To Be
Used With Pack
Qty in mm
CAT-05-PP-BL 0.240 6.0 SHR-05 1
CAT-08-PP 0.370 9.5 SHR-08 1
CAT-15-PP 0.630 16.0 SHR-15 1
CAT-20-PP 0.790 20.0 SHR-20 1
CAT-25-PP 0.960 24.5 SHR-25 1
CAT-32-PP 1.220 31.0 SHR-32 1
CØA
B
Features:
• Protects wires from wear
• Easy to install
SHR-C Series
SHR Clip
Figure 1 Figure 2 Figure 3
1.0
(25.4)
A
BBB
A
.866 (22.0)
A
WRAPS
241
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com

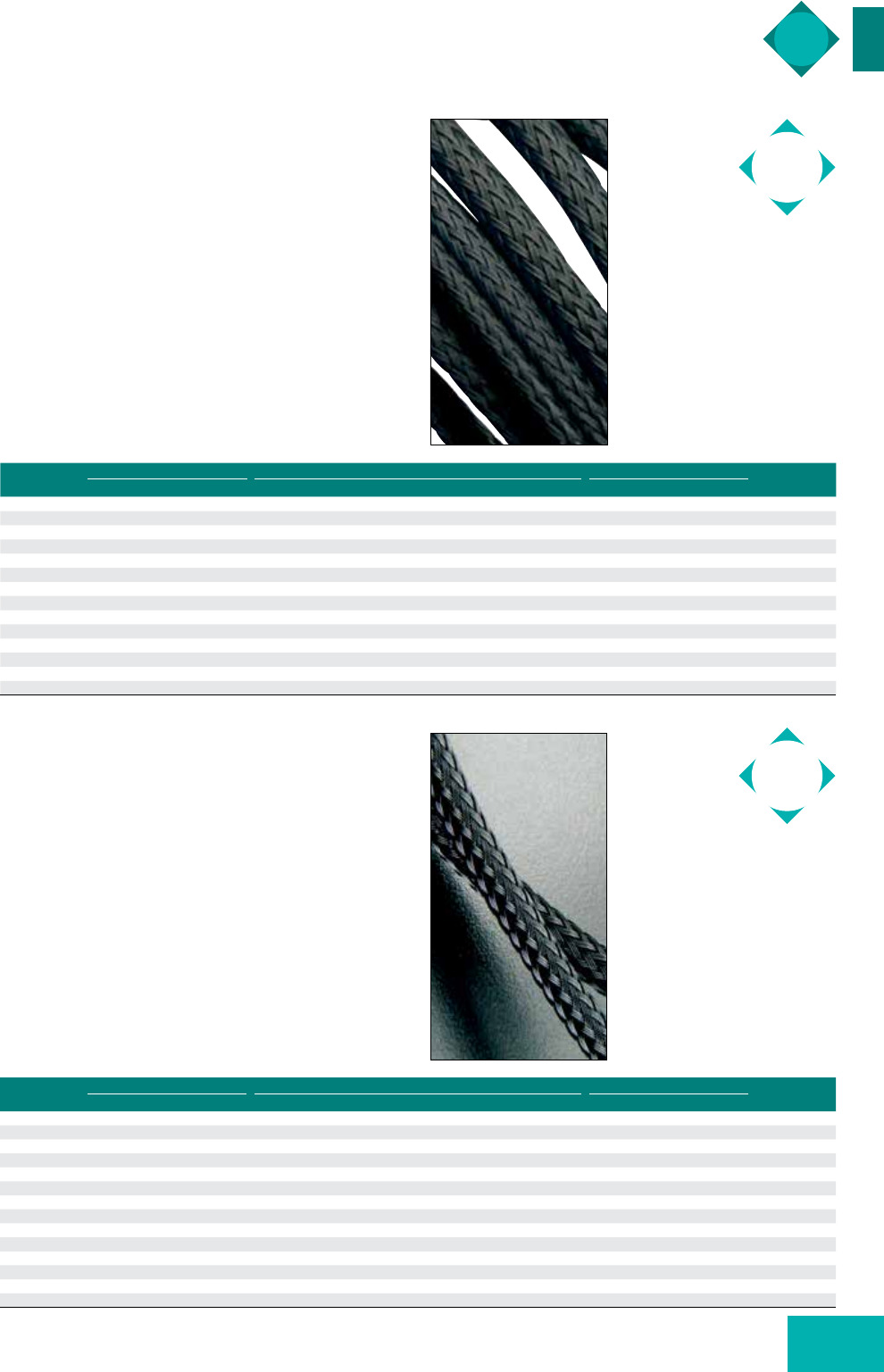

BRAIDED SLEEVING
Nylon Expandable Sleeving
Specifications:
• Material: Nylon 6/6 Monofilament
• Flammability: UL94 V-2
• Color: Black
Features:
• Offers excellent abrasion resistance while maintaining a
high degree of flexibility and durability
• Provides a smotth and slick surface that resists snags
when dragged over a rough surface
• Cuts cleanly with a hot knife
Item
No.
Nominal Flat Width Expanded Range Roll Length Pack
Qtyin mm Min (in) Max (in) Min (mm) Max (mm) ft m
900426 1/8 3 0.039 0.236 1 6 200 60.9 1
900427 1/4 6 0.118 0.354 3 9 200 60.9 1
900428 5/16 8 0.197 0.630 5 16 100 30.5 1
900429 3/8 10 0.276 0.748 7 19 100 30.5 1
900430 1/2 12 0.315 0.945 8 24 100 30.5 1
900431 5/8 16 0.394 1.063 10 27 100 30.5 1
900432 3/4 19 0.551 1.181 14 30 50 15.2 1
900433 1 25 0.709 1.378 18 35 50 15.2 1
900434 1-1/4 32 0.787 1.969 20 50 50 15.2 1
900435 1-1/2 38 1.181 2.362 30 60 50 15.2 1
900436 1-3/4 45 1.378 2.953 35 75 50 15.2 1
900483 2 50 1.575 3.150 40 80 50 15.2 1
900484 2-1/2 64 1.772 4.134 45 105 50 15.2 1
900485 3 76 2.520 4.724 64 120 50 15.2 1
Polyester Expandable
Braided Sleeving
Specifications:
• Material: Polyester
• Flammability: VW-1
• Color: Black
Features:
• The open weave construction allows for easy installation
reducing assembly cost
• Cut and abrasion resistant with high thermal properties
• Used on wire harnessing applications where durability and
low cost are essential
• Cuts cleanly with a hot knife
Item
No.
Nominal Size Expansion Range Roll Length Pack
Qtyin mm Min (in) Max (in) Min (mm) Max (mm) ft m
900303 1/8 3 0.039 0.236 1 6 200 60.9 1
900304 1/4 6 0.118 0.354 3 9 200 60.9 1
900305 5/16 8 0.197 0.630 5 16 100 30.5 1
900306 3/8 10 0.276 0.748 7 19 100 30.5 1
900307 1/2 12 0.315 0.945 8 24 100 30.5 1
900308 5/8 15 0.394 1.063 10 27 100 30.5 1
900309 3/4 20 0.551 1.181 14 30 50 15.2 1
900310 1 25 0.709 1.378 18 35 50 15.2 1
900311 1-1/4 30 0.787 1.969 20 50 50 15.2 1
900312 1-1/2 40 1.181 2.362 30 60 50 15.2 1
900313 1-3/4 45 1.378 2.953 35 75 50 15.2 1
900314 2 50 1.575 3.150 40 80 50 15.2 1
900315 2-1/2 64 1.772 4.134 45 105 50 15.2 1
900302 3 76 2.520 3.150 64 80 50 15.2 1
NEW
NEW
mm
snmn
mm
mun
snow
annuz
mm
mm
mus
mm
mm
genus
mm
9mm
2520
4 72»
ea
12n
152
9mm
9mm
9mm
mm
9mm
9mm
9mm
9mm
900297
9mm
900299
9mm
9mm
mm
m
2 520
m
3150
so
so
1524
1

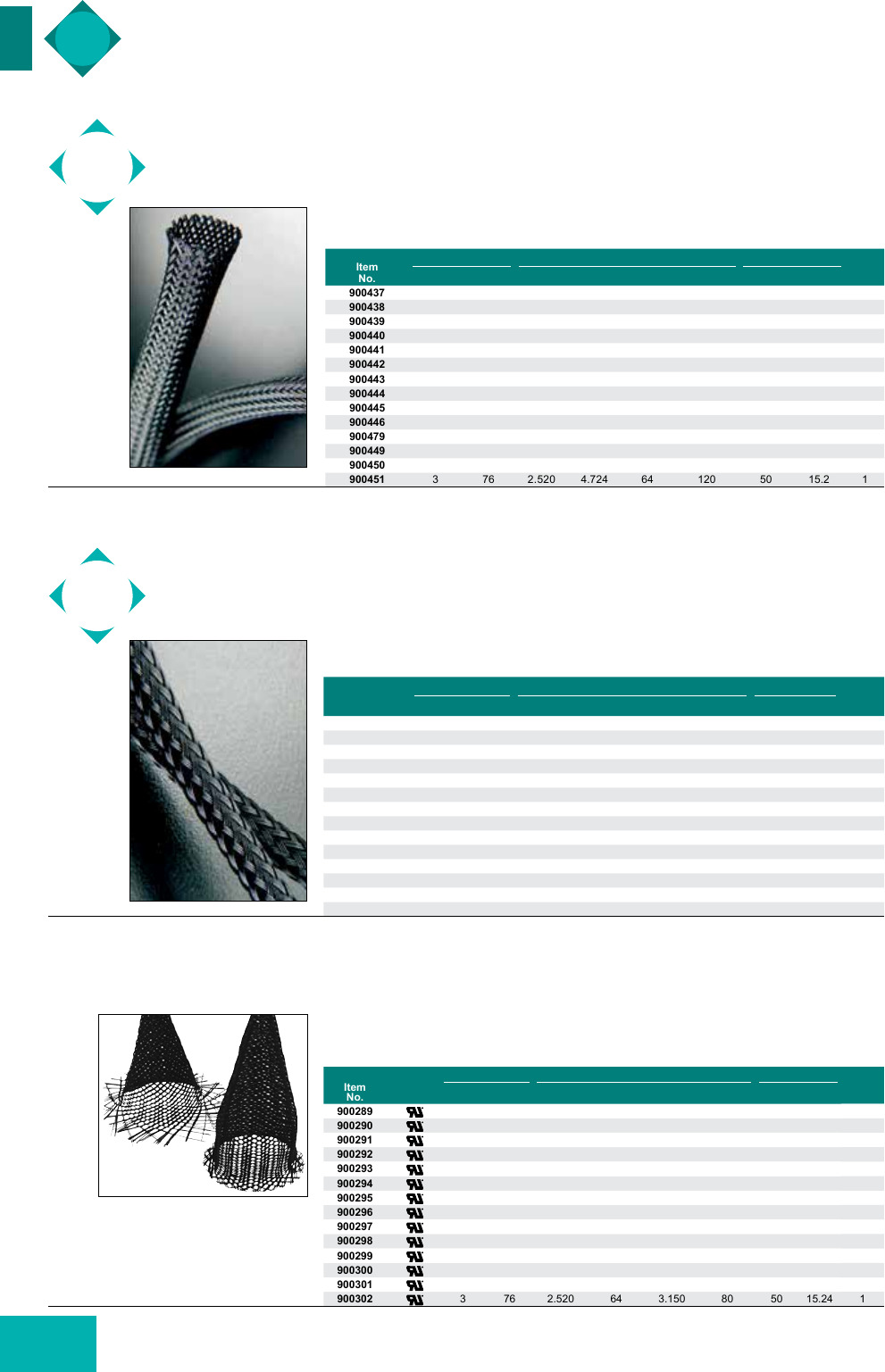

FIBER, WIRE & CABLE MANAGEMENT
242 tel | 800 847 0486 fax | 866 561 6617
Scissor Cut Sleeve
Specifications:
• Material: Polyester
• Flammability: VW-1
• Color: Black
Item
No. Approval
Nominal Size Expansion Range Roll Length Pack
Qtyin mm Min in Min mm Max in Max mm ft m
900289 1/8 3 0.039 1 0.197 5 200 60.98 1
900290 1/4 6 0.118 3 0.315 8 200 60.98 1
900291 5/16 8 0.197 5 0.394 10 100 30.49 1
900292 3/8 10 0.276 7 0.472 12 100 30.49 1
900293 1/2 12 0.315 8 0.551 14 100 30.49 1
900294 5/8 15 0.394 10 0.709 18 100 30.49 1
900295 3/4 20 0.551 14 0.906 23 50 15.24 1
900296 1 25 0.709 18 1.102 28 50 15.24 1
900297 1-1/4 30 0.787 20 1.378 35 50 15.24 1
900298 1-1/2 40 1.181 30 1.654 42 50 15.24 1
900299 1-3/4 45 1.378 35 1.890 48 50 15.24 1
900300 2 50 1.575 40 2.126 54 50 15.24 1
900301 2-1/2 64 1.772 45 2.756 70 50 15.24 1
900302 3 76 2.520 64 3.150 80 50 15.24 1
PPS UL94 V-0 Expandable Sleeve
Item
No.
Nominal Flat Width Expanded Range Roll Length Pack
Qtyin mm Min (in) Max (in) Min (mm) Max (mm) ft m
900437 1/8 3 0.039 0.236 1 6 200 60.9 1
900438 1/4 6 0.118 0.354 3 9 200 60.9 1
900439 5/16 8 0.197 0.630 5 16 100 30.5 1
900440 3/8 10 0.276 0.748 7 19 100 30.5 1
900441 1/2 12 0.315 0.945 8 24 100 30.5 1
900442 5/8 16 0.394 1.063 10 27 100 30.5 1
900443 3/4 19 0.551 1.181 14 30 50 15.2 1
900444 1 25 0.709 1.378 18 35 50 15.2 1
900445 1-1/4 32 0.787 1.969 20 50 50 15.2 1
900446 1-1/2 38 1.181 2.362 30 60 50 15.2 1
900479 1-3/4 45 1.378 2.953 35 75 50 15.2 1
900449 2 50 1.575 3 .150 40 80 50 15.2 1
900450 2-1/2 64 1.772 4.13 4 45 105 50 15.2 1
900451 3 76 2.520 4.724 64 120 50 15.2 1
Specifications:
• Material: Polyphenylene
Sulfide
• Flammability: UL94 V-0
• Color: Black
Item No.
Nominal Flat Width Expanded Range Roll Length Pack
Qtyin mm Min (in) Max (in) Min (mm) Max (mm) ft m
900461 1/8 3 0.039 0.236 1 6 200 60.9 1
900462 1/4 6 0.118 0.354 3 9 200 60.9 1
900463 5/16 8 0.197 0.630 5 16 100 30.5 1
900464 3/8 10 0.276 0.748 7 19 100 30.5 1
900465 1/2 12 0.315 0.945 8 24 100 30.5 1
900466 5/8 16 0.394 1.063 10 27 100 30.5 1
900467 3/4 19 0.551 1.181 14 30 50 15.2 1
900468 1 25 0.709 1.378 18 35 50 15.2 1
900469 1-1/4 32 0.787 1.969 20 50 50 15.2 1
900470 1-1/2 38 1.181 2.362 30 60 50 15.2 1
900471 1-3/4 45 1.378 2.953 35 75 50 15.2 1
900472 2 50 1.575 3.150 40 80 50 15.2 1
900473 2-1/2 64 1.772 4.134 45 105 50 15.2 1
900474 3 76 2.520 4.724 64 120 50 15.2 1
PET Anti-Abrasion Sleeve
Specifications:
• Material: Polyethylene Terephthalate
• Flammability: VW-1
• Color: Black
BRAIDED SLEEVING
NEW
Features:
• Used on flame retadant and high temperature cable
assemblies and wire harness appliocations
• Lightweight sleeve that has chemical resistance, low
wear, dimensional stability, and low moisture stability
• Cuts cleanly with a hot knife
Features:
• Has 300% more abrasion resistance than
the standard polyester expandable sleeve
• Exceptional mechanical properties
• Cuts cleanly with a hot knife
Features:
• Can be cut with scissors and maintain a frayless end
• Perfect when used in the field where a hot knife is
not available
• Excellent abrasion resistance
NEW
“am
No
mus
mm
mm
mm
mm
95mm
90mm
mm
mm
mm
Mucus
0113
am
a :11
use:
0412
11591
a m
am
1 181
1574
1 969
0039
n 191a
0236
nzvs
0314
0393
0551
am
0737
1 131
1 574
n 151
0314
9393
0511
nszg
am
1 D23
1 299
1 535
2m
2559
mo
mo
mo
mo
mo
mo
mo
mo
mo
mo
mo
was
3043
was
3043
was
3043
was
3043
was
3043
was
Pac
n1
243
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Thermal Protection Sleeve
Specifications:
• Material: Nomex™ Fiber
• Flammabilitly: UL94 V-0
• Color: Natural
Features:
• Provides thermal protection and high abrasion resistance
• Soft feel and smooth appearance makes installation easy
• Cuts easily with standard scissors
• Operating Range: -320°F to 662°F (-196°C to 350°C)
Self Closing Braided Wrap
Specifications:
• Material: Polyester
• Flammability: UL94 V-2
• Color: Black
Features:
• The self closing 25% overlap design allows easy access to the bundle inside
• Can be assembled over components after they have already been installed
• Lightweight and abrasion resistant
• Installation tool to zip cables in available in most sizes
• Cuts cleanly with a hot knife
Self Closing Wrap
Specifications:
• Material: Polyester Monofilament
• Flammability: DIN5510, VW-1
• Color: Black
Features:
• The self closing 25% overlap design allows easy access to thebundle inside
• Can be assembled over components after they have already been installed
• Excellent flame resistance, heat dispersion, and durable protection
• Installation tool to zip cables in avaialble in most sizes
• Cuts cleanly with a hot knife
Item
No.
Nominal Size Expansion Range Roll Length Pack
Qtyin mm in mm ft m
900365 0.118 3 0.039 0.157 100 30.48 1
900366 0.236 6 0.196 0.314 100 30.48 1
900367 0.314 8 0.236 0.393 100 30.48 1
900368 0.393 10 0.275 0.511 100 30.48 1
900369 0.472 12 0.314 0.629 100 30.48 1
900370 0.591 15 0.393 0.787 100 30.48 1
900371 0.787 20 0.551 1.023 100 30.48 1
900372 0.984 25 0.708 1.299 100 30.48 1
900373 1.181 30 0.787 1.535 100 30.48 1
900374 1.574 40 1.181 2.047 100 30.48 1
900375 1.968 50 1.574 2.559 100 30.48 1
BRAIDED SLEEVING
NEW
NEW
Item
No.
ID Ø Max Bundle Installation Tool
Part Number
Roll Length Pack
Qtyin mm in mm ft m
900412 0.196 5 0.236 6 900475 100 30.5 1
900413 0.314 8 0.354 9 900475 100 30.5 1
900414 0.511 13 0.551 14 900476 100 30.5 1
900415 0.748 19 0.787 20 900478 100 30.5 1
900416 0.984 25 1.023 26 900478 100 30.5 1
900417 1.496 38 1.574 40 —100 30.5 1
Item
No.
ID Ø Max Bundle Installation Tool
Part Number
Roll Length Pack
Qtyin mm in mm ft m
900452 0.236 6 0.275 7 900475 100 30.5 1
900453 0.354 9 0.393 10 900476 100 30.5 1
900454 0.511 13 0.551 14 900476 100 30.5 1
900455 0.629 16 0.669 17 900477 100 30.5 1
900456 0.748 19 0.787 20 900478 100 30.5 1
900457 0.984 25 1.023 26 900478 100 30.5 1
900458 1.259 32 1.299 33 —50 15.2 1
900459 1.496 38 1.574 40 —50 15.2 1
900460 1.968 50 2.047 52 —50 15.2 1
m m 11
sumo o 512 13 o 315 s o as; 1o 15¢ so 1
9mm o m 19 o 412 12 o 39; 1o 15; so 1
mm 1 zen 32 o m 2o o m 2o 15¢ so 1
soon: 2 one s1 1 zen 32 o m 2o 15; so 1
900354 2 szn s4 1 575 to o m 2o 15¢ so 1
(
A
>
V
=
emu
244 tel | 800 847 0486 fax |
FIBER, WIRE & CABLE MANAGEMENT
244 tel | 800 847 0486 fax | 866 561 6617
Hook and Loop Braided Cable or Hose Wrap
Specifications:
• Material: Polyester and Nylon
• Flammabiity: VW-1
• Color: Black
Features:
• Easily opened and closed
• Can be easily installed over connectors, fittings, splices, cables and hoses
• Breakouts can be made by bringing cables out through hook and loop
• Open weave design easily conforms to many irregular shapes
Item
No.
Nominal Size Max Bundle Dia. Hook& Loop Width Roll Length Pack
Qtyin mm in mm in mm ft m
900360 0.512 13 0.315 8 0.394 10 164 50 1
900361 0.748 19 0.472 12 0.394 10 164 50 1
900362 1.260 32 0.787 20 0.787 20 164 50 1
900363 2.008 51 1.260 32 0.787 20 164 50 1
900364 2.520 64 1.575 40 0.787 20 164 50 1
Quick Assemble Hook and Loop
Cable or Hose Sleeve
Specifications:
• Material: Polyester with Hook and Loop
• Flammabiity: VW-1
• Color: Black
Features:
• Non-expanbable sleeve is easily opened and closed
• Lighweight, high strength, excellent flame and abrasion resistance
• Can be easily installed over connectors, fittings, splices, cables and hoses
• Breakouts can be made by bringing cables out through hook and loop
Item
No.
ID Spread Width Roll Length Pack
Qtyin mm in mm ft m
900328 0.787 20 3.149 80 82 25 1
900329 0.984 25 3.740 95 82 25 1
900330 1.181 30 4.527 115 82 25 1
900331 1.377 35 5.118 130 82 25 1
900332 1.574 40 5.748 146 82 25 1
900333 1.771 45 6.377 162 82 25 1
900334 1.968 50 7.007 178 82 25 1
Hose & Cable Protection Sleeve
Item
No.
Flattened Width Round ID Roll Length Pack
Qtyin mm in mm ft m
900359 0.787 20 0.472 12 100 30.5 1
900344 0.984 25 0.591 15 100 30.5 1
900345 1.181 30 0.748 19 100 30.5 1
900346 1.378 35 0.866 22 100 30.5 1
900347 1.575 40 0.984 25 100 30.5 1
900348 1.772 45 1.102 28 100 30.5 1
900349 1.969 50 1.220 31 100 30.5 1
900350 2.362 60 1.496 38 100 30.5 1
900351 2.756 70 1.732 44 100 30.5 1
900352 3.150 80 1.969 50 100 30.5 1
900353 3.543 90 2.244 57 100 30.5 1
900354 3.937 100 2.362 60 100 30.5 1
900355 4.528 115 2.756 70 50 15.2 1
900356 5.709 145 3.543 90 50 15.2 1
900357 6.929 176 4.331 110 50 15.2 1
900358 7.874 200 4.921 125 50 15.2 1
Specifications:
• Material: Polyester
• Color: Black
Features:
• Most economical MSHA approved sleeve protection option
• Lightweight but high strength and abrasion resistant
• Protects people, environmentand machinery against hydraulic
hose ruptures
HOSE OR CABLE WRAP SLEEVES
NEW
NEW
MINE SAFETY
APPROVED
alions:
al: THC Series - UL94V-2 Nylon 6
245
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Heatshrink Braided Sleeve
Specifications:
• Material: Polyester and Polyelefin
• Color: Black
• Shrink Ratio: 2:1
• Minimum Shrink Temperature: 176° F (80° C)
• Minimum Full Recovery Temperature: 248° F (120° C)
Features:
• Braided sleeving will shrink when exposed to a heat source
• Unique woven construction is extremely flexible and easy to
install on hoses with irregular shapes
• Provides excellent abrasion resistance and noise reduction
Item
No.
Nominal Size As Supplied ID After Recovery ID Roll Length Pack
Qtyin mm in mm in mm ft m
900317 3/8 10 0.393 10 0.196 5.0 100 30.5 1
900318 1/2 12 0.472 12 0.236 6.0 100 30.5 1
900319 3/4 20 0.787 20 0.393 10.0 100 30.5 1
900320 1 25 0.984 25 0.492 12.5 100 30.5 1
900321 1-1/4 30 1.181 30 0.59 15.0 100 30.5 1
900322 1-3/8 34 1.338 34 0.669 17.0 100 30.5 1
900323 1-1/2 40 1.574 40 0.787 20.0 100 30.5 1
900324 2 50 1.968 50 0.984 25.0 100 30.5 1
900325 2-3/8 60 2.362 60 1.181 30.0 100 30.5 1
900326 2-3/4 70 2.755 70 1.377 35.0 100 30.5 1
900327 3-1/8 80 3.149 80 1.574 40.0 100 30.5 1
HOSE OR CABLE WRAP SLEEVES
NEW
THC & SHC Series
Quick Assemble Hose Clamps
Specifications:
• Material: THC Series - UL94V-2 Nylon 6/6
SHC Series - UL94 HB Nylon 6/6
• Color: THC Series: Black
SHC Series: White
W
Item
No. Bundle Range W
In mm In mm
THC1A 0.260 - 0.315 6.6 - 8.0 0.197 5.0
THC2A 0.315 - 0.362 8.0 - 9.2 0.197 5.0
SHC-23 0.359 - 0.390 9.1 - 9.9 0.220 5.6
THC3A 0.362 - 0.413 9.2 - 10.5 0.197 5.0
SHC-26 0.390 - 0.468 9.9 - 11.9 0.220 5.6
THC4A 0.413 - 0.472 10.5 - 12.0 0.236 6.0
SHC-30 0.468 - 0.531 11.9 - 13.5 0.220 5.6
THC6A 0.504 - 0.591 12.8 - 15.0 0.276 7.0
SHC-32 0.531 - 0.593 13.5 - 15.1 0.220 5.6
THC7A 0.591 - 0.677 15.0 - 17.2 0.276 7.0
SHC-38 0.593 - 0.674 15.1 - 16.7 0.220 5.6
THC8A 0.670 - 0.728 17.0 - 18.5 0.276 7.0
SHC-44 0.687 - 0.812 17.5 - 20.6 0.220 5.6
THC9A 0.717 - 0.807 18.2 - 20.5 0.276 7.0
SHC-50 0.750 - 0.875 19.1 - 22.2 0.220 5.6
THC10A 0.807 - 0.906 20.5 - 23.0 0.276 7.0
THC11A 0.866 - 0.984 22.0 - 25.0 0.276 7.0
SHC-56 0.875 - 1.000 22.2 - 25.4 0.220 5.6
SHC-62 0.953 - 1.093 24.2 - 27.8 0.310 7.9
THC12A 0.984 - 1.102 25.0 - 28.0 0.276 7.0
Item
No. Bundle Range W
In mm In mm
THC13A 1.063 - 1.181 27.0 - 30.0 0.295 7.5
SHC-68 1.093 - 1.187 26.2 - 30.2 0.310 7.9
THC14A 1.161 - 1.280 29.5 - 32.5 0.295 7.5
THC15A 1.280 - 1.398 32.5 - 35.5 0.315 8.00
SHC-80 1.250 - 1.437 31.8 - 36.5 0.310 7.9
THC16A 1.378 - 1.516 35.0 - 38.5 0.315 8.0
SHC-92 1.406 - 1.625 35.7 - 41.3 0.360 9.1
THC17A 1.496 - 1.634 38.0 - 41.5 0.315 8.0
THC18A 1.614 - 1.752 41.0 - 44.5 0.315 8.0
THC19A 1.732 - 1.870 44.0 - 47.5 0.315 8.0
THC20A 1.850 - 1.988 47.0 - 50.5 0.315 8.0
THC21A 1.969 - 2.106 50.0 - 53.5 0.315 8.0
THC22A 2.087 - 2.244 53.0 - 57.0 0.315 8.0
SHC-134 2.125 - 2.375 54.0 - 60.3 0.400 10.2
THC23A 2.224 - 2.382 56.5 - 60.5 0.315 8.0
THC24A 2.362 - 2.559 60.0 - 65.0 0.315 8.0
THC25A 2.598 - 2.756 66.0 - 70.0 0.315 8.0
THC26A 2.756 - 2.953 70.0 - 75.0 0.315 8.0
THC27A 2.992 - 3.150 76.0 - 80.0 0.315 8.0
THC28A 3.150 - 3.346 80.0 - 85.0 0.315 8.0
Features:
• Quick and easy assembly or removal
• Adjustable locking range to fit various diameters
• Excellent for securing the ends of textile covers to the hose
assembly
FIBER, WIRE & CABLE MANAGEMENT
246 tel | 800 847 0486 fax | 866 561 6617
HST Series
2:1 Heat Shrink Tubing
Specifications:
• Material: Crosslinked Polyolefin
• Color: See Table
• Operating Temperature: -67°F to 257°F
(-55°C to 125°C)
• Minimum Shrink Temperature: 158°F (70°C)
• Minimum Full Recovery Temperature: 212°F (100°C)
• Shrink Ratio: 2:1
Features:
• UL Approval: 125°C VW-1 600V File No. E204071
• RoHS Compliant
• Widely used in the communication, electronics and automotive fields
• Excellent electrical and physical properties
• Provided in standard roll lengths
• Flame retardant
• Highly flexible
• Comes in a variety of colors to color code wires, cables, terminals and components
• Provided in mini or standard roll lengths
HEAT SHRINK TUBING
Item
No. Size (in)
As Supplied After Recovery
Roll Length Pack
Qty
ID Min ID Max Wall Thickness Min
in mm in mm in mm ft m
495883 3/64 0.047 1.20 0.024 0.60 0.013 0.33 492 150 1
495884 1/16 0.063 1.60 0.031 0.80 0.014 0.36 492 150 1
495885 3/32 0.094 2.40 0.047 1.20 0.017 0.44 492 150 1
495886 1/8 0.126 3.20 0.063 1.60 0.017 0.44 492 150 1
495887 3/16 0.189 4.80 0.094 2.40 0.022 0.56 246 75 1
495888 1/4 0.252 6.40 0.126 3.20 0.022 0.56 246 75 1
495889 3/8 0.374 9.50 0.189 4.80 0.022 0.56 246 75 1
495890 1/2 0.500 12.7 0.252 6.40 0.026 0.65 164 50 1
495891 5/8 0.630 16.0 0.315 8.00 0.027 0.69 164 50 1
495892 3/4 0.748 19.0 0.374 9.50 0.031 0.80 98.4 30 1
495893 1 1.000 25.4 0.500 12.7 0.035 0.90 98.4 30 1
495894 1-1/4 1.260 32.0 0.630 16.0 0.039 1.00 98.4 30 1
495895 1-1/2 1.500 38.1 0.748 19.0 0.039 1.00 98.4 30 1
HST CLEAR Series
2:1 Clear Heat Shrink Tubing
Specifications:
• Material: Crosslinked Polyolefin
• Color: Clear (100% Transparent)
• Operating Temperature: -67° F to 221° F (-55° C to 105° C)
• Minimum Shrink Temperature: 158°F (70°C)
• Minimum Full Recovery Temperature: 203°F (95°C)
• Shrink Ratio: 2:1
Features:
• RoHS Compliant
• Used in the appliance, automotive and on consumer
goods applications
• Commercial grade for general applications where
flame-retardancy is not required
• Excellent electrical and physical properties
• Provided in standard roll lengths
Item No.
Size (in)
As Supplied After Recovery Roll
Length Pack
Qty
ID Min ID Max Wall Thickness Min
Black Red Blue White in mm in mm in mm ft m
495686 495709 495755 495824 3/64 0.047 1.20 0.024 0.60 0.013 0.33 492 150 1
495687 — 495756 — 1/16 0.063 1.60 0.031 0.80 0.014 0.36 492 150 1
495688 — 495757 495826 3/32 0.094 2.40 0.047 1.20 0.017 0.44 492 150 1
495689 495712 495758 495827 1/8 0.126 3.20 0.063 1.60 0.017 0.44 492 150 1
495690 495713 495759 495828 3/16 0.189 4.80 0.094 2.40 0.020 0.51 246 75 1
495691 495714 495760 495829 1/4 0.252 6.40 0.126 3.20 0.022 0.56 246 75 1
495692 495715 495761 495830 3/8 0.374 9.50 0.189 4.80 0.022 0.56 246 75 1
495693 495716 495762 495831 1/2 0.500 12.70 0.252 6.40 0.026 0.65 164 50 1
495694 495717 — 495832 5/8 0.630 16.00 0.315 8.00 0.027 0.69 164 50 1
495695 495718 495764 495833 3/4 0.748 19.00 0.374 9.50 0.031 0.80 98.4 30 1
HST022A ———15/16 0.913 23.20 0.433 11.00 0.030 0.80 164 50 1
495696 495719 495765 495834 1 1.000 25.40 0.500 12.70 0.035 0.90 98.4 30 1
495697 495720 495766 495835 1-1/4 1.260 32.00 0.630 16.00 0.040 1.02 98.4 30 1
495698 495721 495767 — 1-1/2 1.500 38.10 0.748 19.00 0.040 1.02 98.4 30 1
HST028A — — — 2-3/32 2.087 53.00 0.984 25.00 0.039 1.00 164 50 1
W.
247
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
HEAT SHRINK TUBING
HST YG Series
2:1 Yellow & Green Striped Heat Shrink Tubing
Specifications:
• Material: Crosslinked Polyolefin
• Color: Yellow and Green Striped
• Operating Temperature:
-67° F to 275° F (-55° C to 135° C)
• Minimum Shrink Temperature:
158° F (70° C)
• Minimum Full Recovery Temperature:
212° F (100° C)
Size
As Supplied After Recovery
Roll Length Pack
Qty1
Item No. ID Min ID Max Wall Thickness Min
Black Red Blue White in in mm in mm in mm ft m
495906 ———1/16 0.059 1.50 0.020 0.50 0.018 0.45 492 150 1
495907 495916 495934 495961 1/8 0.118 3.00 0.039 1.00 0.022 0.55 492 150 1
495908 495917 495935 —3/16 0.177 4.50 0.059 1.50 0.024 0.60 246 75 1
495909 495918 495936 495963 1/4 0.236 6.00 0.079 2.00 0.026 0.65 246 75 1
495910 495919 495937 495964 3/8 0.354 9.00 0.118 3.00 0.030 0.75 246 75 1
495911 495920 495938 495965 1/2 0.472 12.0 0.157 4.00 0.031 0.80 164 50 1
495912 —495939 495966 3/4 0.709 18.0 0.236 6.00 0.035 0.90 98.4 30 1
495913 495922 495940 —10.945 24.0 0.315 8.00 0.043 1.10 98.4 30 1
495914 495923 495941 —1-1/2 1.535 39.0 0.512 13.0 0.049 1.25 98.4 30 1
HST 3:1 Series
3:1 Heat Shrink Tubing
Specifications:
• Material: Crosslinked Polyolefin
• Color: See Table
• Operating Temperature:
-67° F to 257° F (-55° C to 125° C)
• Minimum Shrink Temperature:
158° F (70° C)
• Minimum Full Recovery Temperature:
212° F (100° C)
Item No. Size
As Supplied After Recovery
Roll Length Pack
Qty
ID Min ID Max Wall Thickness Min
Black Clear Red Blue White in in mm in mm in mm ft m
495987 496011 496003 — 496083 1/8 0.118 3.00 0.039 1.00 0.039 1.00 492 150 1
495988 — 496004 496036 496084 3/16 0.189 4.80 0.059 1.50 0.039 1.00 246 75 1
495989 496013 496005 496037 496085 1/4 0.236 6.00 0.079 2.00 0.039 1.00 246 75 1
495990 496014 496006 496038 496086 3/8 0.354 9.00 0.118 3.00 0.055 1.40 164 50 1
495991 496015 496007 496039 496087 1/2 0.472 12.00 0.157 4.00 0.063 1.60 98.4 30 1
495992 496016 496008 — 496088 3/4 0.748 19.00 0.236 6.00 0.085 2.15 98.4 30 1
495993 496017 496009 — 496089 1 0.945 24.00 0.315 8.00 0.094 2.40 98.4 30 1
495994 496018 496010 — — 1-1/2 1.575 40.00 0.512 13.0 0.094 2.40 98.4 30 1
HST ADHESIVE Series
3:1 Adhesive Lined Heat Shrink Tubing
Specifications:
• Material: Crosslinked Adhesive Lined Polyolefin
• Color: See Table
• Operating Temperature: -67° F to 257° F (-55° C to 125° C)
• Minimum Shrink Temperature: 176° F (80° C)
• Minimum Full Recovery Temperature: 230° F (110° C)
• Shrink Ratio: 3:1
Features:
• UL Approval: 125°C VW-1 600V File No. E204071
• RoHS Compliant
• UV Resistant and flame retardant (with the exception of clear)
• Provides insulation and sealing on applications like wire splices and harnesses
• Comes in a variety of colors to code wires, cables, terminals and components
• Provided in standard roll lengths and pre-cut length in packs
Features:
• UL Approval: 125°C VW-1 600V
• File No. E204071
• RoHS Compliant
• Widely used for electrical insulation
• Flame retardant and highly flexible
• Protects in line components, disconnect terminals and splices
• Variety of colors to code wires, cables, terminals and components
Item
No. Size (in)
As Supplied After Recovery
Roll Length Pack
Qty
ID Min ID Max Wall Thickness Min
in mm in mm in mm ft m
495896 1/16 0.063 1.60 0.031 0.80 0.020 0.51 492 150 1
495898 1/8 0.126 3.20 0.063 1.60 0.022 0.55 492 150 1
495900 1/4 0.252 6.40 0.126 3.20 0.026 0.65 246 75 1
495901 3/8 0.374 9.50 0.189 4.80 0.030 0.75 246 75 1
495902 1/2 0.500 12.7 0.252 6.40 0.030 0.75 164 50 1
495903 3/4 0.748 19.0 0.374 9.50 0.033 0.85 98.4 30 1
495904 1 1.000 25.4 0.500 12.7 0.039 1.00 98.4 30 1
495905 1-1/2 1.500 38.1 0.748 19.0 0.045 1.15 98.4 30 1
Features:
• UL Approval: 125°C VW-1 600V
File No. E204071
• RoHS Compliant
• Outstanding physical, chemical and
electrical properties
• Easy to install and makes identifying
ground conductors easier
• Highly flame retardant and UV resistant
Item
No
EFAIM-ZS-am 5 m x a 223 1
FIBER, WIRE & CABLE MANAGEMENT
248 tel | 800 847 0486 fax | 866 561 6617
OFST Series
Fiber Splice Tray System
EFA04-25-001 Series
Splice Tray
FIBER SPLICE ACCESSORIES
Specifications:
• Color: See Table
Features:
• Lid, trays, and hinges are sold separately
or in a kit: OFST-A-P-1
• Stackable to any number of trays
• Inter-tray fiber routing possible through slots along one
of the long sides of the tray
• Color coded hinges indicate side of tray to open from.
Part numbers are OFSTH-1-RED and OFSTH-1-GRN.
• Can be used with OFSH splice holders, OFSP splice
protectors and OFBLT bend limiting tubing
• Three mounting holes go through the lid and trays
Specifications:
• Material: UL94 V-0 Nylon 6
• Color: Black
Features:
• Molded-in features maintain bend radius
at 30mm
• Accepts Fiber Clips EFA04-61, 63 and 64-001
• Accepts 16-way Fiber Clip EFA04-06 and 08-001 broken
into a 4-way segment for holding splicing components
Item
No.
L x W Thickness Bulk
Pack
Qtyin mm in mm
EFA04-25-001 5.197 x 3.228 132.0 x 82.0 0.260 6.6 50
Item
No. Color Description
Bulk
Pack
Qty
OFST-1-L Black Splice Tray Lid 10
OFST-1-M Black Splice Tray Managed with Radius Control & Dark Fiber Storage 10
OFST-1-P Black Splice Tray Plain with Basic Storage Facility 10
OFST-A-P-1 Black 1 x OFST-1-L, 1 x OFST-1-P, 2 x OFSTH-1-RED, 2 x OFSTH-1-GRN 10
OFSTH-1-GRN Green OF Splice Tray Hinge 20
OFSTH-1-RED Red OF Splice Tray Hinge 20
OFST-1-L Splice Tray Lid
170mm
103.5mm
Ø3.5mm x2
Ø5mm
All Periphery Holes: Ø2.8mm
Center Hole
Ø6 mm
OFST-1-M
Splice Tray with Radius Control
and Fiber Storage Elements
OFST-1-P
Splice Tray with Basic Storage
Facility
H
$ ggj :93
«H» W
(1 H Al
»—+
mm mm
Bu‘k
um — — pm
No, nu mm mm my
wasp-141549 1 we a 4 n 095 2 a ma
onesmasm 2 0,197 5 a n 071 1,4; 100
249
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
OFBLT Series
Optical Fiber Bend Limiting Tubing
OFBLT-C Series
OFBLT Tubing Clip
TPCE Series
Tube Clip
OFTGSP Series
OFBLT Tubing Saddle
FIBER BEND LIMITING TUBING
d
D
Specifications:
• Material: See Table
• Color: See Table
Specifications:
• Material: See Table
• Color: Natural
Features:
• Holds the 5mm OFBLT tube
(see above) or up to a 4.3mm rod
• Clamp is releasable for repairs
Specifications:
• Material: See Table
• Color: Natural
Features:
• Holds a 5mm diameter tube or pipe
• Excellent for above board routing
requirements
• Cupped base provides stability and
covers the entire hole
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Features:
• Holds the 5mm OFBLT (see above)
• The saddle is placed over the tubing
and closed down to engage on the
external grooves of the tube
• Secure attachment is completed by
pressing the retaining feet through
the location holes
• OFTGSP-2 has two sets of
mounting prongs requiring two holes
Item No.
Style
D d Bulk
Pack
Qty
Pack
QtyWhite Polypropylene Black UL94 V-0 PBT in mm in mm
OFBLT-3.1-05-PP OFBLT-31-05V0 Standard 0.195 4.95 0.122 3.1 100 Meters 1
OFBLT-42-635PP OFBLT-42-635V0 Standard 0.250 6.35 0.165 4.1 100 Meters 1
OFBLTP-42-635PP OFBLTP-42-635V0 Pull-Cord 0.250 6.35 0.165 4.1 100 Meters 1
Item No. AØ D Max Bundle Ø Mounting Hole Panel Thickness Bulk
Pack
QtyUL94 V-2 Nylon 6/6 UL94 V-0 Nylon 6/6 in mm in mm in mm in mm
TPCE5-51-4M-01 TPCE5-51-4M-19 0.157 4.0 0.200 5.1 0.256 6.5 0.031 - 0.063 0.8 - 1.6 1000
TPCE5-51-6M-01 TPCE5-51-6M-19 0.236 6.0 0.200 5.1 0.256 6.5 0.031 - 0.063 0.8 - 1.6 1000
TPCE5-51-8M-01 TPCE5-51-8M-19 0.315 8.0 0.200 5.1 0.256 6.5 0.031 - 0.063 0.8 - 1.6 1000
TPCE5-51-10M-01 TPCE5-51-10M-19 0.394 10.0 0.200 5.1 0.256 6.5 0.031 - 0.063 0.8 - 1.6 1000
Item No. Ø Max Bundle Ø Mounting Hole Panel Thickness Bulk
Pack
QtyUL94 V-2 Nylon 6/6 UL94 V-0 Nylon 6/6 in mm in mm in mm
OFBLT-C1-5-01 OFBLT-C1-5-19 0.17 4.3 0.25 6.4 0.031 - 0.078 0.8 - 2.0 1000
Features:
• Optical Fiber Bend-Limiting Tubing offers the ultimate protection to fibers, eliminating problems such
as crushing, kinking, and micro-bending, while supplying a self-managing solution for routing of fiber
• Provides superior crush protection against micro fiber bends over conventional corrugated tubing
• Limits the bend in a fiber by controlling radius to a minimum of 30mm
• Has a smooth inner bore for ease of use and elimination of micro-bending
• Suitable for blown fiber applications over short distance and for curbside FTTH/FTTB applications
.26 (6.6)
.58 (14.8)
Ref.
ØD
Ø.75 (19.0)
A
.26
(6.6)
.42 (10.6)
.09 (2.2)
.23 (5.9)
.24 (6.1)
.276 (7.0)
.39 (10.0)
.07 (1.8)
.40 (10.1).25 (6.3)
Figure 1
Recommended
Mounting Hole
Item
No.
Ø Mounting Hole Panel Thickness Bulk
Pack
QtyFigure in mm in mm
OFTGSP-1-05-19 1 0.250 6.4 0.095 2.4 100
OFTGSP-2-05-19 2 0.197 5.0 0.071 1.8 100
Recommended
Mounting Holes
Figure 2
.42 (10.6)
.09 (2.2)
.23 (5.9)
.24 (6.1)
.276 (7.0)
.39 (10.0)
.07 (1.8)
.40 (10.1).25 (6.3)
’ k flj m EEEEEEEEEE»:
@fi 3 =4
*-
FIBER, WIRE & CABLE MANAGEMENT
250 tel | 800 847 0486 fax | 866 561 6617
FIBER BEND LIMITING TUBING & SPLICE HOLDERS
Specifications:
• Material: UL94 V-0 Glass-Filled Nylon
• Color: Black
Features:
• For use with 5mm OFBLT Tubing
• Mounts with #10 (M5) screws
• Optical Fiber Slotted Multi-Brackets are for use at distribu-
tion points where orderly fiber management, protection and
strain relief is required
• An additional security feature allows fitting of a cable tie
around OFSMBs which prevents removal of any retained tubes
• OFBLT retention: >70N
• Holds a maximum of 12 tubes
Specifications:
• Material: See Table
• Color: Black
Features:
• OFSH-T-6 holds up to 6 x 3mm fiber or components
• OFSH-T-12 holds up to 12 crimp splice protectors
• Splice Holders can be used with OFST Series Splice Trays
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Black
Features:
• Holds up to 24 components/splice protectors
• Flexible wings grip components up to .06 (1.6) in diameter
• Low profile to save space
• Two styles: one for mounting with an adhesive pad and one
for mounting with a #4 or M3 screw
• Each slot holds up to two components
Specifications:
• Material: See Table
• Color: Natural
Features:
• Holds 12 2.7mm splices or four 4.2mm splices
• Fastens with either an adhesive pad provided, or
with a #4 screw or rivet
• Stackable
OFSMB - OFBLT Series
Slotted Multi Bracket
OFSH-T Series
Splice Holder
OFSH2 Series
Splice Holder
OFSH-4 Series
Splice Holder
1.57 (40.0)
.79
(20.2)
.19
(5.0)
Ø.20
(5.0)
Ty p.
Ø.33
(8.5)
Ty p.
.98
(25.0)
.39 (10.0)
Ty p.
Figure 1 Figure 2
1.024 (26.0) 1.024 (26.0)
Ø.262 (6.7)
1.457
(37.0) 1.403
(35.6)
Ø.256
(6.5)
Figure 1 Figure 2
2.87 (73.0) Ref. 3.21 (81.5)
3.39 (86.0) Ref.
.20 (5.0)
.35
(9.0)
.08 (2.0)
Ø.13
(3.2)
1.02
(26.0)
Ref.
1.26
(32.0)
Square
.48
(12.2)
Ø.12 (3.0)
Countersunk
Hole
Item
No. Bulk Pack
Qty
OFSMB-4-05GFBK 10
Item
No. Mounting Method
Ø Component
Figure
Bulk
Pack
QtyIn mm
OFSH2-24-1 Adhesive Up to 0.060 Up to 1.6 1 50
OFSH2-24-2 No Adhesive Up to 0.060 Up to 1.6 1 50
OFSH2-24-3 #4 or M3 Screws Up to 0.060 Up to 1.6 2 50
Item No. Ø Component No. of
Positions
Bulk
Pack
QtyUL94 V-2 Nylon 6/6 UL94 V-0 Nylon 6/6 mm
OFSH-4-1-01LA OFSH-4-1-19LA 2.7 12 50
OFSH-4-1-01LA OFSH-4-1-19LA 4.2 4 50
Item
No. Figure Material
Ø Component No. of
Slots Bulk Pack
Qtyin mm
OFSH-T-6-GFBLK 1Glass-Filled Nylon 6/6 0.118 3.0 6 100
OFSH-T-12-01BLK 2Nylon 6/6 0.039 - 0.047 1.0 - 1.2 6 100
OFSH-T-12-19BLK 2Nylon 6/6 0.039 - 0.047 1.0 - 1.2 12 100
am
Ham 7 u. u o 7 Fuck
No, 9.. H: mm m m m mm my
arena—1a 1 n 113 an a s a 3m vs mm
OWEN-19AM 2 n ma so A 4 a 375 a 5 mm
emu—mane : o m 2 o 2 4 a 375 9 5 mm
1g1fiiii" :iiii: MEL}?
- _J I J
- (> [H
m, 6mm
Fa
251
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
OFEB/OFHB Series
Fiber Holder
OFB-BH/OFB3P Series
Fiber Holder
EFA04-6X Series
Fiber Clip
EFA04-02 Series
Fiber Clip
Male Mating
End
Female Mating
End
.20
(5.1)
.23 (5.9)
.87 (22.0)
.12
(3.0) .25 (6.4)
.30
(7.6)
.81 (20.6) Ref.
.30
(7.6)
.33
(8.4)
.50 (12.7)
.10 (2.5)
Figure 1 Figure 2 Figure 3
Item
No. Figure
Ø Hole Panel Thickness Ø Cable No. of
Slots No. of
Cables
Depth Bulk
Pack
Qtyin mm in mm in mm in mm
OFB-BH-6-19 1 0.312 7.9 0.250 6.4 0.079 2.0 3 6 0.197 5.0 1000
OFB-BH-9-19 2 0.312 7.9 0.250 6.4 8 x 0.086, 1 x 0.158 8 x 2.2, 1 x 4.0 5 9 0.236 6.0 1000
OFB3P-4-19 3 0.187 4.7 0.064 1.6 0.118 3.0 4 8 0.200 5.1 1000
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Features:
• Quickly mounted with adhesive
base
• OFEB has side brackets that
connect with each other to
provide for additional cables
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Features:
• Holds multiple cable fibers
Specifications:
• Material: UL94 V-0 Nylon 6
• Color: See Table
Features:
• Holds two components parallel
• Available to hold three different diameters; 4.5mm, 5.5mm, 6mm
• Designed for use in the Splice Tray EFA04-25-001
• Can be mounted by screw, rivet, or with adhesive pad
• EFA04-61-001 has anti-rotation pins to securely mount with screw or rivet
Specifications:
• Material: UL94 V-0 Nylon 6
• Color: Black
Features:
• Holds three 3mm diameter components
• Adhesive pad for easy application
FIBER CLIPS
.24
(6.0)
.44 (14.0) Ref
.99 (25.2) Ref.
.28
(7.0)
.94 (23.9)
.30
(7.6)
.375 (9.5)
Ø.062
(1.6)
Pin
Ø.125
(3.2)
Ø.187 (4.7)
Figure 1 Figure 3
Recommended Mounting Holes
Figure 2
A
17.5
mm
26.5 mm
ØH
Item No.
Color
Ø Cable No. of
Slots
AØ H Recommended
Mounting Screw Bulk Pack
QtyClip Only Clip & Adhesive Pad in mm in mm in mm
EFA04-61-001 EFA04-61-ASS Red 0.236 6.0 2 0.315 8.0 0.126 3.2 #4, #5 or M3 100
EFA04-63-001 EFA04-63-ASS Green 0.216 5.5 2 0.289 7.33 0.106 2.7 #3 or M2.5 100
EFA04-64-001 EFA04-64-ASS Yellow 0.177 4.5 2 0.289 7.33 0.106 2.7 #3 or M2.5 100
4.8
mm
26.5 mm
14.75
mm
Item
No. Figure
Cable Ø No. of
Slots No. of
Cables
Depth Bulk
Pack
Qtyin mm in mm
OFEB-3-19 1 0.118 3.0 3 6 0.300 7.6 1000
OFHB3-4-19A-RT 2 0.118 3.0 4 4 0.375 9.5 1000
OFHB2-4A1-RT-19 3 0.079 2.0 2 4 0.375 9.5 1000
Item
No.
Ø Cable
No. of Slots Contents Bulk Pack
Qtyin mm
EFA04-02-ASS 0.118 3.0 3 Clip with Adhesive Pad 100
WM! Adh
Hp o pants»
on nun.
_ aun—
_ ans
Emu—1mm nu
Emu—mm _
Emu—114m: EFAIMJI-PM
Igu
1
2
z
4
5
Cular
Black
am
Black
Black
Black
Black
one
nun
«am
am
am
n15»:
Bu‘k
pm
mm olS my.
an «a mo
20 13 me
an a mo
29 a me
an a ma
:9 4 1w
‘1‘
FIBER, WIRE & CABLE MANAGEMENT
252 tel | 800 847 0486 fax | 866 561 6617
EFA04 Series
Fiber Clip
OFRB Series
Fiber Rack Bracket
OFSB Series
Fiber Support Base
FIBER CLIPS & GUIDES
Item No.
Mounting Method Bulk Pack
Qty.UL94 V-2 Nylon 6/6 UL94 V-0 Nylon 6/6
OFSB-4-85-01A OFSB-4-85-19A Adhesive 100
OFSB-4-85-01 OFSB-4-85-19 #8 Screw of SR-5XXX Rivet 100
Item
No.
Square Mounting Hole Panel Thickness Bulk
Pack
Qty.in mm in mm
OFRB-1BK 0.465 x 0.465 11.8 x 11.8 0.063 - 0.079 1.6 - 2.0 100
OFRB-2BK 0.374 x 0.374 9.5 x 9.5 0.063 - 0.079 1.6 - 2.0 100
Specifications:
• Material: UL94 V-0 Nylon 6
• Color: See Table
Features:
• EFA04-06, EFA04-08, and
EFA04-18 can be broken
apart to form individual clips
• Various mounting options
are available
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Black
Features:
• Mounts into a standard 19” rack with a quarter turn
• Removable with a quarter turn
• No stress is applied to the fiber upon entry
Specifications:
• Material: See Table
• Color: Natural
Features:
• Constructs a path for spooling fiber optic cables
• Designed for use in fiber optic patch panel applications
• Center hole is for mounting the base with a #8 screw or
SR-5XXX rivet found on page 121
• Any Essentra wire routing device that is designed to snap into a 0.187
hole and a 0.062” panel can be mounted to this base; popular options
are OFNS, STL, WS and LWS series
Figure 1
Optional Adhesive Pads
A
72.66
35.6
35.6
17.55 17.55
Figure 2
Ø3.9
mm Ø3.9
mm
89 mm
27
mm
Ø2.9
mm Ø2.9
mm
Ø2.9
mm
Ø3.4
mm Ø3.4
mm
Ø3.4
mm
Figure 3 Figure 4 Figure 5
32.6 mm
Ø2.9
mm Ø2.9
mm
Ø2.9
mm
27
mm
32.6 mm
27
mm
Ø3.4
mm Ø3.4
mm
Ø3.4
mm
21.4mm
27
mm
Ø3.9
mm Ø3.9
mm
.236 (6.0)
1.97
(50.1)
1.19
(30.2)
2.224
(56.5)
.193 (4.9) .88
(22.3)
1.68 (42.7)
Ø.187 (4.75) x 4
4.04
(102.6)
Ø.19 (4.8)
1.70
(43.2) R.
.35 (9.0)
.30 (7.6)
Ø1.02 (26.0)
Item No.
Figure Color
Ø Cable
No. of Slots
Bulk
Pack
Qty.Clip Only Clip with Adhesive
Pad(s) in mm
EFA04-06-001 EFA04-06-ASS 1 Black 0.118 3.0 16 100
— EFA04-08-ASS 1 Blue 0.079 2.0 16 100
— EFA04-18-ASS 2 Black .154, .134, .114 3.9, 3.4, 2.9 4, 6, 6 = 16 100
EFA04-71-001 EFA04-71-P01 3 Black 0.114 2.9 6 100
EFA04-71-002 — 4 Black 0.134 3.4 6 100
EFA04-71-003 EFA04-71-P03 5 Black 0.154 3.9 4 100
rec—mu:
ores-1s
ErAalél-ASS
:muuss
253
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
OFCC/OFCG Series
Fiber Coiling Clip
EFA04 Series
Fiber Guide
EFA04-53/EFA04-27 Series
Fiber Reel Stacking
Pillar and Standoff
Specifications:
• Material: UL94 V-0 PVC
• Color: Black
Features:
• OFCG snaps onto OFCC to form a clip with a smooth,
curved surface to accommodate fiber optic bundles
• OFCC and OFCG sold separately
• Limits the bend radius of the fiber
Specifications:
• Material: UL94 V-0 Nylon 6
• Color: Black
Features:
• Provide fiber storage as well as bend control
• Various mounting options are available
• The fiber reel screw mount holes are Ø2.8mm with a 90°
countersink of Ø4.6mm (holes are spaced evenly on a 30mm diameter)
• Reel can be stacked or mounted above board using accessories below
Figure 1
1.00
(25.4)
1.20 (30.5)
Ref.
1.00 (25.4)
Ty p.
5/8 (15.9)
x 2
1/8 (3.2) Ref.
2.00 (50.8)
.98
(24.9)
Max
Figure 1 Figure 2
Figure 1 Figure 2
FIBER CLIPS & GUIDES
Item No.
Figure Guide Radius
Height
No. of
Mounting
Holes Max Fiber Storage
Bulk
Pack
Qty.Guide Only Guide with
Adhesive Pad(s)
Guide with
SRHR-3555
Rivets In mm
EFA04-60-001 EFA04-60-P01 EFA04-60-R01 1 Straight 0.197 5.0 2 — 100
EFA04-34-001 EFA04-34-P01 EFA04-34-R01 230 mm Radius Corner Guide 0.197 5.0 2 — 100
EFA04-34-010 EFA04-34-P10 EFA04-34-R10 230 mm Radius Corner Guide 0.315 8.0 2 — 100
EFA04-34-004 EFA04-34-P04 EFA04-34-R04 230 mm Radius Corner Guide 0.472 12.0 2 — 100
EFA04-34-002 EFA04-34-P02 EFA04-34-R02 235 mm Radius Corner Guide 0.189 4.8 2 — 100
EFA04-34-005 EFA04-34-P05 EFA04-34-R05 235 mm Radius Corner Guide 0.472 12.0 2 — 100
EFA04-34-003 EFA04-34-P03 EFA04-34-R03 240 mm Radius Corner Guide 0.189 4.8 2 — 100
EFA04-34-006 EFA04-34-P06 — 2 40 mm Radius Corner Guide 0.472 12.0 2 — 100
EFA04-34-007 EFA04-34-P07 EFA04-34-R07 230-37 mm Radius Ribbon Fiber Corner Guide 0.216 5.5 2 — 100
EFA04-04-001 EFA04-04-ASS — 325 mm Radius Fiber Reel 0.157 4.0 8 2.5 m of 900 Micron Fiber 100
EFA04-21-001 EFA04-21-ASS — 325 mm Radius Fiber Reel 0.250 6.4 8 4.5 m of 900 Micron Fiber 100
EFA04-10-001 EFA04-10-ASS — 330 mm Radius Fiber Reel 0.153 3.9 8 3.0 m of 900 Micron Fiber 100
EFA04-14-001 EFA04-14-ASS — 330 mm Radius Fiber Reel 0.488 12.4 8 9.0 m of 900 Micron Fiber 100
EFA04-76-001 ——335 mm Radius Fiber Reel 0.315 8.0 8 15.0 m of 900 Micron Fiber 100
EFA04-23-001 ——340 mm Radius Fiber Reel 0.250 6.4 4 7.0 m of 900 Micron Fiber 100
Figure 1
40mm
4.5
mm
Ø3.6mm
28mm
7.7
mm
5.2
mm
3.0
mm
Figure 2
A
11.48
mm
Ø3.6
mm
232mm Ø3.7mm
Ø16mm 1.6mm
10mm
14mm
Figure 2
Figure 3
C
Number
of Mounting
Holes
Item
No. Description Bulk Pack
Qty.Figure
EFA04-53-ASS 1Fiber Reel Stacking Pillar 100
EFA04-27-ASS 2Fiber Reel Standoff 100
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Black
Features:
• EFA04-53-ASS is used to stack multiple EFA04 fiber reels,
and retained with an included spring clip
• EFA04-27-ASS is used to space the EFA04 fiber reel off the
PC Board (top of the standoff snaps into holes in the fiber reel)
• Mounted from the bottom of the board with included rivet
Item
No. Figure Bulk Pack
Qty.
OFCC-16A-RT 1 100
OFCG-16 2 100
: D I I I ClI E.
JL
421% gm
FIBER, WIRE & CABLE MANAGEMENT
254 tel | 800 847 0486 fax | 866 561 6617
Recommended Mounting Holes
OFS Series
90°Fiber Segment, 30mm Radius
OFFG/OFFGSP Series
Flexible Fiber Guide System
FIBER GUIDES & STORAGE
Item
No. Bulk Pack
Qty.
OFS90-30R 100
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Natural
Specifications:
• Material: UL94 V-0 Nylon 6/6
• Color: Black
Features:
• Fully modular, flexible system giving complete fiber management and protection
• Unique spine allows the guide to be oriented in all planes
• For use with 250 and 900 micron fiber
• Fiber can enter and exit at any point, without risk of fiber snagging or kinking
• Angled and straight lugs located along the guide prevent the fiber from springing out
• 25mm maximum bend radius when flexed
• Guide can be cut to various lengths at flexible link sections
• Two types of support posts; OFFGSP-F for mounting flush to the panel, and
OFFGSP-R that raises the guide 5mm
• Guide snaps easily into the support posts
Figure 1
Item
No. Figure Description
Ø Mounting Hole Panel Thickness ABulk
Pack
Qty.in mm in mm in mm
OFFG-165M-19-BK 1Fiber Guide ——————100
OFFGSP-F-19-BK 2Flat Fiber Guide Support 0.098 2.5 0.063 1.6 — — 100
OFFGSP-R-05-BK 3Fiber Guide Spacer 0.098 2.5 0.063 1.6 0.200 5.0 100
1.90 (48.0) Ref.
.125 (3.2) Ty p. .276 (7.0)
1.47
(37.0)
Ref. Anti-Rotation
Pin
1.36
(34.0)
Ø.125
(3.2)
90° Ø.10 (2.5)
.335 (8.5)
Ty p.
.207 (5.3)
Ty p.
.205 (5.2)
.474
(12.0)
Hole for a #4 (M3) Screw
of SRVO-3XXX Rivet
.23
(5.8)
.20 (5.1) Ty p.
.08 (2.0) Ty p.
Ø.08 (2.0) .20 (5.0)
Ty p.
.24
(6.0)
.35
(9.0)
.16 (4.0)
Ty p.
.52 (13.1) Ty p.
6.61 (168.0) Ref.
Features:
• Provides a 90° bend control radius
• Assemble two pieces for bend control around a 180° turn
• Assemble four pieces for excess fiber spooling at 30mm radius
• In a four-piece assembled mode, stores approximately 60m of 900 micron fiber
• Mounts with a #4 (M3) screw or SRVO-30XX snap rivet
Figure 2
.23 (5.9)
R .04
(1.1)
R .05 (1.2)
.31
(8.0)
.35 (9.0)
.08 (2.0)
.17
(4.3)
Figure 3
.31
(8.0)
R .05
(1.2)
A
.08
(2.0)
R. 04
(1.1)
.18 (4.5)
.17 (4.3)
.23 (5.9)
.35 (9.0)
255
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Specifications:
• Material: TPE
• Color: Black
Features:
• Provides added protection to 900 micron fiber while routing
through a hole
• Limits the angle of the fiber preventing signal loss
Specifications:
• Material: TPE
• Color: Black
Features:
• Transitions a 3mm jacketed fiber to a 900 micron fiber
• Limits the bend of the fiber, preventing signal loss
Item
No.
Hole Ø Panel Thickness Bulk Pack
Qty.In mm In mm
EFA70-07-001 0.157 4.0 0.063 1.6 500
Item
No.
Ø Jacketed Fiber ABulk
Pack
Qty.in mm in mm
EFA52-02-ASS 0.118 3.0 0.138 3.5 250
EFA52-05-ASS 0.079 2.0 0.098 2.5 250
Item
No. Contents
L ID Bulk
Pack
Qty.in mm in mm
EFA02-43-001 SMA Connector Adapter Dust Cap 0.500 12.7 0.120 3.0 500
EFA02-43-002 ST Connector Adapter Dust Cap 0.500 12.7 0.280 7.1 500
EFA02-43-003 FC Connector Adapter Dust Cap 0.310 8.0 0.280 7.1 500
Item No. Bulk Pack Qty.
EFA70-01-001 500
FIBER MANAGEMENT & DUST CAPS
EFA70-07 Series
900 Micron Strain Relief Boot
EFA52 Series
Quick Panel Mount Strain Relief Gland Kit
EFA02-43 Series
Connector Adapter Dust Cap
EFA70-01 Series
900 Micron Transition Boot
Specifications:
• Material: UL94 V-0 Nylon 6
• Color: Black
Features:
• Acts as a cable gland for jacketed fiber, preventing the cable
from being pulled out of the device
• The plastic body mounts directly on the panel, and the jacketed cable is
passed through the center hole
• On the inside of the panel, the cable’s Kevlar strands are clamped to the
plastic body using one of two clamping sleeves (whichever is appropriate)
• Secured in the panel with a mounting bolt
• On the outside of the panel, a flexible boot is attached to the plastic
body, providing control over the bend-radius of the cable exiting the
strain-relief assembly
Specifications:
• Material: PVC
• Color: Black
Features:
• Provides environmental protection for SMA, ST and FC connector adapters
• Made of flexible PVC to provide snug fit
ID
L
ØA
Thru
35mm
Ø7.3mm
M9 x .75 Nut
(Provided)
Plastic Body
Strain
Relief
Boot
Kevlar Clamping
Sleeves
(1) Tight
(1) Loose
19.9mm
Ø0.9mm
4.6
mm
Ø6.5
mm
22.2mm
13mm
Ø1.1
mm
Ø3.3
mm 7.7mm
Ø1.3mm
Ø3.5
mm
Ø6.15
mm
FIBER, WIRE & CABLE MANAGEMENT
256 tel | 800 847 0486 fax | 866 561 6617
DUST CAPS
Item
No.
Material Bulk
Pack
Qty.
Figure 1
Stainless Steel Cap & Chain Figure 2
Black TPE Plug & Optional Stainless Steel Chain
EFA02-04-ASS SMA Adapter Dust Cap & Chain — 100
EFA02-07-ASS DIN Adapter Dust Cap & Chain — 100
EFA02-09-ASS FC Adapter Dust Cap & Chain — 100
EFA02-10-ASS ST Adapter Dust Cap & Chain — 100
EFA02-14-001 —SC Adapter Dust Plug 250
EFA02-14-ASS — EFA02-14-001 Dust Plug with Chain 250
Item
No. Color Bulk Pack
Qty.
EFA02-03-001 Natural 500
EFA02-03-002 Black 500
EFA02-03-003 Green 500
EFA02-03-004 White 500
EFA02-03-005 Red 500
Item
No. Bulk Pack
Qty.
EFA02-35-001 250
EFA02-03 Series
FC Connector Port Dust Cap
EFA02 Series
Connector Port Dust Cap and Lanyard
EFA02-35 Series
ST Connector Port Dust Cap and Lanyard
EFA02 Series
Connector Dust Caps and Plugs
Specifications:
• Material: See Table
• Color: See Table
Features:
• The EFA02-14-001 plugs an SC connects and does not require a dust chain (other
dust caps in this series require the retaining chain and cannot be sold separately)
• The steel caps are threaded onto the connector adapters
• Provides mechanical and environmental protection to adaptors when unmated
• Stainless Steel construction suitable for harsh environments
• 2.5” long chain
Specifications:
• Material: High-Density Polyethylene
• Color: See Table
Features:
• Dust caps are threaded onto the FC connector
adapter providing protection from outside elements
Specifications:
• Material: PVC
• Color: Black
Features:
• Provides environmental protection to various connectors
• Molded-on lanyard is attached to the connector to prevent loss of cover
Specifications:
• Material: TPE
• Color: Black
Features:
• Provides environmental protection of ST connector ports
• Molded-on lanyard prevents the loss of the cap
Ø.39
(10.0)
Ø.47
(12.0)
M8 x 0.75mm .26 (6.5)
.05 (1.2)
.35 (9.0)
.28 (7.0)
.37 (9.5)
Ty p.
.53
(13.5)
Sq. 2.2 (55.0)
Ø.28 (7.0) .40
(10.0)
.61 (15.5)
.69
(17.5)
Ø.35
(8.9)
Ø.09 (2.4) x 4
Item
No. Contents
A B C D Bulk
Pack
Qty.in mm in mm in mm in mm
EFA02-11-ASS ST Connector Dust Cap 0.730 18.5 0.670 17.0 0.470 12.0 0.340 8.7 250
EFA02-13-ASS FC Connector Dust Cap 0.730 18.5 0.670 17.0 0.600 15.3 0.470 12.0 250
A
B
ØD
ØC .79 (20.0)
3.5 (90.0)
.16
(4.0)
.12
(3.0)
Figure 1 Figure 2
257
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
A
.41
(10.5)
.10 (2.5)
.33
(8.5)
.26
(6.5)
.52
(13.2)
.48 (12.3)
.24
(6.0)
.49 (12.5)
.19
(4.9)
.20
(5.1)
.26
(6.7)
.55 (14.1)
.46 (11.8)
.49 (12.4)
.09 (2.3)
.24
(6.0)
CP Series
Connector Plugs
CONNECTOR PLUGS
Item
No. Color
Mounting
Hole
Figure
L1 L2 A B C D E Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm in mm
BPE-SC-1-01 Black 1 0.512 13.0 0.374 9.5 0.850 21.5 0.500 12.8 0.470 12.0 0.370 9.3 0.059 1.5 1000
BPE-SC-2-01 Black 1 0.512 13.0 0.374 9.5 0.630 16.0 0.500 12.8 0.470 12.0 0.370 9.3 0.059 1.5 1000
BPE-SC-3-01 Black 1 1.024 26.0 0.374 9.5 1.370 34.8 1.020 25.8 0.470 12.0 0.370 9.3 0.059 1.5 1000
BPE-RJ45-01 Grey 1 0.760 - 0.790 19.3 - 20.0 0.590 15.0 0.870 22.0 0.580 14.7 0.700 17.7 0.750 19.1 0.059 1.5 1000
BPE-LC-D-01BK Black 1 0.532 13.5 0.532 13.5 0.590 15.0 0.520 13.2 0.590 15.0 0.520 13.2 0.078 2.0 1000
BPE-ST-1-01 Black 2 0.370 19.4 0.311 7.9 Ø.470 Ø12 Ø.360 Ø9.2 Ø.470 Ø12 0.300 7.7 0.059 1.5 1000
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Aesthetically pleasing, blanking off redundant connector parts
• Quick and easy installation; simply press fit in the designated hole
• ST Series covers Double-D, D or round holes
Figure 1 Figure 3
Specifications:
• Material: Silicone Rubber
• Color: Black
Item
No. Figure Connector
Port
ABulk
Pack
Qty.in mm
CP-RJ11 1 RJ11 0.410 10.5 1000
CP-RJ45 1 RJ45 0.490 12.5 1000
CP-USB-A 2 USB-A — — 1000
CP-USB-B 3 USB-B — — 1000
Item
No.
A B C D E F G H Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm in mm in mm
USB0A 0.504 12.8 0.185 4.7 0.484 12.3 0.043 1.1 0.256 6.5 0.299 7.6 0.575 14.6 0.610 15.5 100
USB-A Series
USB Connector Caps
Specifications:
• Material: Polyethylene
• Color: Natural
Features:
• Protective dust cover for USB-A connectors
A
B
E
C
D
F
GH
BPE Series
Connector Port Plugs
Figure 2
A
B
C
D
E
.350 (9.0)
Figure 1
Figure 2
Recommended Mounting Holes
L2
L2
L1
L1
L2
L2
L1
L1
Features:
• No stress applied to the adapter’s internal components upon entry
• Silicone material for high temperature applications up to 302°F (150°C)
nesses
!
91,
am
“am 7 — 7 Pack
Nu 01 mm 01 mm 01 mm my
50.10230 0390 100 0032.0019 00.20 010 103 1000
312.102: 0572 120 0032-0019 00.20 003 210 1000
50.102: 0551 100 0032.0019 00.20 001 230 1000
312.102: 0030 100 0032-0019 00.20 000 250 1000
0.1023 0700 100 0032.0019 00.20 100 270 1000
p.102 0000 220 0032-0019 00.20 123 312 1000
an 0330 220 0003.0110 10.30 110 200 1000
an 1043 205 0003.0110 10.30 120 325 1000
50.10230 1101 300 0032.0019 00.20 155 304 1000
FIBER, WIRE & CABLE MANAGEMENT
258 tel | 800 847 0486 fax | 866 561 6617
Item
No.
Mounting Hole Max Panel Thickness OD A Overall Height B Bulk
Pack
Qty.in mm in mm in mm in mm
PGM-1 0.250 6.4 0.062 1.6 0.312 7.9 0.312 7.9 1000
PGM-6 0.252 6.4 0.067 1.7 0.299 7.6 0.221 5.6 1000
PGM-7 0.278 7.1 0.063 1.6 0.433 11.0 0.276 7.0 1000
PGM-8 0.307 7.8 0.063 1.6 0.375 9.5 0.236 6.0 1000
PGM-2 0.312 7.9 0.062 1.6 0.375 9.5 0.312 7.9 1000
PGM-33 0.375 9.5 0.125 3.2 0.468 11.9 0.406 6.4 1000
PGM-9 0.376 9.6 0.047 1.2 0.511 13.0 0.256 6.5 1000
PGM-10 0.386 9.8 0.055 1.4 0.511 13.0 0.236 6.0 1000
PGM-34 0.437 11.1 0.125 3.2 0.531 13.5 0.406 10.3 1000
PGM-3 0.468 11.9 0.062 1.6 0.531 13.5 0.250 6.4 1000
PGM-24 0.500 12.7 0.125 3.2 0.578 14.7 0.406 10.3 1000
PGM-5 0.500 12.7 0.062 1.6 0.562 14.3 0.250 6.4 1000
PGM-13 0.506 12.8 0.083 2.1 0.669 17.0 0.315 8.0 1000
PGM-11 0.531 13.5 0.062 1.6 0.593 15.1 0.250 6.4 500
PGM-26 0.562 14.3 0.125 3.2 0.656 16.7 0.406 10.3 200
PGM-27 0.625 15.9 0.125 3.2 0.718 18.2 0.406 10.3 200
PGM-12 0.625 15.9 0.062 1.6 0.718 18.2 0.250 6.4 500
PGM-16 0.628 16.0 0.079 2.0 0.787 20.0 0.315 8.0 500
PGM-28 0.687 17.5 0.125 3.2 0.781 19.8 0.406 10.3 200
PGM-19 0.746 19.0 0.125 3.2 0.925 23.5 0.413 10.5 500
PGM-14 0.750 19.1 0.062 1.6 0.843 21.4 0.250 6.4 500
PGM-15 0.781 19.8 0.062 1.6 0.890 22.6 0.250 6.4 500
PGM-22 0.864 22 0.118 3.0 1.024 26.0 0.378 9.6 500
PGM-17 0.875 22.2 0.062 1.6 0.968 24.6 0.250 6.5 500
PGM-29 0.875 22.2 0.125 3.2 1.125 28.6 0.453 11.5 200
PGM-25 1.004 25.5 0.125 3.2 1.102 28.0 0.500 12.7 200
PGM-32 1.097 27.9 0.125 3.2 1.218 30.9 0.465 11.8 200
PGM-30 1.203 30.6 0.125 3.2 1.339 34.0 0.512 13.0 200
PGM-18 1.250 31.8 0.125 3.2 1.375 34.9 0.465 11.8 200
PGM-20 1.375 35.0 0.125 3.2 1.500 38.1 0.465 11.8 200
PGM-31 1.500 38.1 0.125 3.2 1.671 42.4 0.465 11.8 200
PGM-21 1.750 44.5 0.125 3.2 1.906 48.4 0.465 11.8 100
PGM-23 2.000 50.8 0.125 3.2 2.170 55.1 0.470 11.9 100
PLH023A 2.500 63.5 0.250 6.4 2.775 70.5 0.750 19.1 500
B
A
Specifications:
• Material: UL94V-2 Nylon 6/6
• Color: Black
Features:
• Each part fits multiple common sheet metal thicknesses
• Closes access sheet metal panel holes
CONNECTOR CAPS & PLUGS/SHEET METAL PLUGS
PGM/PLH Series
Standard Locking Hole Plug
BP Series
Flexible Hole Plug
LTP Series
IP67 Liquid Tight Plug
h
d
Specifications:
• Material: TPE
• Color: Black
Features:
• Each size covers a range of panel
thicknesses
• Designed to fit standard metric holes
• Very resistant to oils, acids and
alkalies
Specifications:
• Material: UL94 V-0 Silicone
• Color: Black
Features:
• Offers protection up to IP67
• Temperature Range: -40°F to 302°F (-40°C - 150°C)
ØA
CB
Item
No.
Ø Mounting Hole Ø Head A Overall Height B Head Height C Max Panel Thickness Bulk
Pack
Qty.in mm in mm in mm in mm in mm
LTP-4 0.500 12.7 0.92 23.4 0.449 11.4 0.287 7.3 0.125 3.2 1000
LTP-7 0.625 15.9 1.09 27.7 0.455 11.6 0.319 8.1 0.125 3.2 500
LTP-5 0.750 19.1 1.15 29.2 0.512 13.0 0.350 8.9 0.125 3.2 500
LTP-1 0.875 22.2 1.26 32.0 0.500 12.7 0.374 9.5 0.125 3.2 1000
LTP-6 1.000 25.4 1.41 35.8 0.559 14.2 0.398 10.1 0.125 3.2 200
LTP-2 1.093 27.8 1.54 39.2 0.539 13.7 0.413 10.5 0.125 3.2 500
LTP-3 1.375 34.9 1.82 46.2 0.579 14.7 0.433 11.0 0.125 3.2 200
Item
No.
Panel Hole d Panel Thickness h OD Bulk
Pack
Qtyin mm in mm in mm
BP-16230 0.394 10.0 0.032 - 0.079 0.8 - 2.0 0.76 19.3 1000
BP-16231 0.472 12.0 0.032 - 0.079 0.8 - 2.0 0.83 21.0 1000
BP-16232 0.551 14.0 0.032 - 0.079 0.8 - 2.0 0.91 23.0 1000
BP-16233 0.630 16.0 0.032 - 0.079 0.8 - 2.0 0.98 25.0 1000
BP-16234 0.709 18.0 0.032 - 0.079 0.8 - 2.0 1.06 27.0 1000
BP-16236 0.866 22.0 0.032 - 0.079 0.8 - 2.0 1.23 31.2 1000
BP-3 0.866 22.0 0.063 - 0.118 1.6 - 3.0 1.10 28.0 1000
BP-4 1.043 26.5 0.063 - 0.118 1.6 - 3.0 1.28 32.5 1000
BP-16238 1.181 30.0 0.032 - 0.079 0.8 - 2.0 1.55 39.4 1000
259
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
GROMMETS
AHG Series
Angular Hole Grommet
Specifications:
• Materials: EPDM, 60 Shore A
• Color: Black
Features:
• Allows cables to pass through a panel at a maximum 45° angle
Item
No.
Ø Cable Size Panel Thickness D Mounting Hole Ø Bulk
Pack
Qty.in mm in mm in mm
AHG-1 0.197 - 0.276 5.0 - 7.0 0.079 - 0.098 2.0 - 2.5 0.945 24.0 500
.29
(7.4)
.27 (6.9)
Ø.25 (6.3
)
Ø1.48 (37.5)
Ø.71 (18)
Ø1.16 (29.4)
.46
11.7
Ø.18
(4.5)
GRD/DG/DGB Series
Diaphragm Grommet
Item
No. Style
Ø Mounting Hole A Panel Thickness C Ref. OD E Bulk
Pack
Qty.in mm in mm in mm in mm in mm
DGB-2.5 2 0.25 6.4 0.03 0.8 0.16 4.1 0.37 9.4 0.14 3.6 1000
DGB-4 2 0.39 9.9 0.06 1.5 0.25 6.4 0.50 12.7 0.26 6.6 1000
DGB-6 2 0.43 11.0 0.06 1.5 0.31 8.0 0.69 17.5 0.31 8.0 1000
DGB-5 2 0.49 12.5 0.06 1.5 0.37 9.5 0.62 15.7 0.25 6.4 1000
DG-19426 1 0.63 16.0 0.06 1.5 0.43 11.0 0.75 19.0 0.23 5.8 1000
DGB-7 2 0.63 16.0 0.06 1.5 0.43 11.0 0.75 19.0 0.31 8.0 1000
GRD1062091PA 1 0.63 16.0 0.09 2.4 0.49 12.5 0.87 22.0 0.32 8.0 5000
GRD2075061PA 2 0.75 19.0 0.06 1.5 0.63 16.0 1.00 25.4 0.28 7.0 4000
DGB-11 2 0.75 19.0 0.06 1.5 0.63 16.0 1.00 25.4 0.28 7.0 1000
DG-15512 1 0.75 19.0 0.08 2.0 0.63 15.9 1.00 25.5 0.31 7.9 1000
DG-10134 1 0.75 19.0 0.09 2.4 0.61 15.5 1.00 25.5 0.35 8..8 1000
GRD1075121PA 1 0.75 19.0 0.12 3.0 0.61 15.5 1.00 25.5 0.37 9.5 2500
DG-10187 1 0.79 20.0 0.06 1.5 0.61 15.5 1.00 25.5 0.32 8.0 1000
DGB-10 2 0.87 22.0 0.06 1.5 0.72 18.4 1.00 25.5 0.31 8.0 1000
GRD2087061PA 2 0.87 22.0 0.06 1.5 0.74 18.8 1.00 25.5 0.31 8.0 4000
DGB-13 2 1.00 25.4 0.06 1.5 0.81 20.5 1.18 30.0 0.31 8.0 1000
GRD2100061PA 2 1.00 25.4 0.06 1.5 0.81 20.5 1.18 30.0 0.31 8.0 2000
GRD1100091PA 1 1.00 25.5 0.09 2.4 0.75 19.0 1.44 36.5 0.33 8.4 2000
GRD1125091PA 1 1.26 32.0 0.09 2.4 0.98 25.0 1.54 39.0 0.32 8.0 1000
GRD1125151PA 1 1.26 32.0 0.16 4.0 1.00 25.5 1.54 39.0 0.38 9.5 1000
GRD21625375PA 2 1.63 42.0 0.09 2.4 1.22 31.0 1.93 49.0 0.40 10.1 1000
Specifications:
• Material: GRD/DG: Flexible PVC
DGB: UL94 HB TPE
• Color: Black
Features:
• Use as a blanking plugs to conceal access holes until wire are installed
• To install wires, pierce the central membrane film and insert wire
• Design allows for multiple ranges of wires to pass thru
• PVC material is non-staining; resistant to ozone, acids, and sunlight; with excellent aging qualities
Style 2
C A
OD
E
B
Style 1
OD CA
B
E
FIBER, WIRE & CABLE MANAGEMENT
260 tel | 800 847 0486 fax | 866 561 6617
GROMMETS & GROMMET SLEEVES
Item
No. Style
Ø Hole B Panel Thickness D A Ø C Ø E1 F Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
GRS1030151A 1 0.300 7.6 0.156 4.0 0.560 14.2 0.240 6.1 0.311 7.9 1.250 31.8 5000
RGS1-60466 1 0.343 8.7 0.062 1.6 0.560 14.2 0.200 5.1 0.280 7.1 1.650 42.0 4000
GRS1037091A 1 0.374 9.5 0.094 2.4 0.560 14.2 0.250 6.4 0.311 7.9 0.562 14.3 10000
RGS2-12462 2 0.500 12.7 0.125 3.2 0.595 15.1 0.375 9.5 0.468 11.9 1.398 35.5 1000
GRS2050121A 2 0.500 12.7 0.125 3.2 0.595 15.1 0.375 9.5 0.468 11.9 1.398 35.5 2000
RGS2-51409 2 0.500 12.7 0.031 0.8 0.750 19.1 0.381 9.7 0.480 12.2 1.055 26.8 1000
GRS2050031A 2 0.500 12.7 0.031 0.8 0.750 19.1 0.381 9.7 0.480 12.2 1.055 26.8 4000
GRS/RGS Series
Grommet Sleeve
Specifications:
• Material: Flexible PVC
• Color: Black
Features:
• Sleeve design provides additional support and
protection for cables/wires passing through panel
• PVC is non-staining; resistant to ozone, acids,
and sunlight; with excellent aging qualities
E1
CBA
D
F
Style 2
CA
BF
D
E1
Style 1
GRC Series
Stepped Grommet
Specifications:
• Material: Flexible PVC
• Color: Black
Features:
• Protects wires, cables, tubing, hoses
• Accommodates a range of cable sizes
• Can be used as a blanking plug until cut
A
B
L
Item
No.
Panel Hole Size A Panel Thickness B
Length
LCable Range Bulk
Pack
Qty.in mm in mm in mm in mm
1251347 0.500 12.7 0.120 3.0 1.270 32.5 0.200 - 0.350 5.0 - 9.0 1000
1251348 0.830 21.0 0.120 3.0 1.080 27.5 0.200 - 0.670 5.0 - 17.0 1000
1251349 1.020 26.0 0.120 3.0 1.160 29.5 0.390 - 0.870 10.0 - 22.0 1000
HG Series
TPE Flexible Hole Grommet
Specifications:
• Material: UL94 HB TPE
• Color: Black
• Temperature Range: -58°F to 203°F (-50°C - 95°C)
Features:
• Suitable for outdoor use in accordance with UL 746C
OD
H
ID
T
P
Item
No.
Mounting Hole H Panel Thickness P ID OD Thickness T Bulk
Pack
Qty.in mm in mm in mm in mm in mm
HG-2 0.190 4.8 0.063 1.6 0.125 3.2 0.313 8.0 0.252 6.4 1000
HG-2.5 0.252 6.4 0.063 1.6 0.156 4.0 0.375 9.5 0.248 6.3 1000
HG-3 0.305 7.7 0.032 0.8 0.188 4.8 0.430 10.9 0.188 4.8 1000
HG-3.5 0.315 8.0 0.063 1.6 0.219 5.5 0.430 10.9 0.217 5.5 1000
HG-4 0.375 9.5 0.094 2.4 0.250 6.4 0.559 14.2 0.276 7.0 1000
HG-5 0.430 10.9 0.063 1.6 0.313 8.0 0.562 14.3 0.188 4.8 1000
HG-17 0.433 11.0 0.079 2.0 0.313 8.0 0.630 16.0 0.276 7.0 1000
HG-6 0.492 12.5 0.063 1.6 0.375 9.5 0.669 17.0 0.276 7.0 1000
HG-8 0.660 16.8 0.063 1.6 0.495 12.6 0.846 21.5 0.250 6.4 1000
HG-9 0.675 17.1 0.063 1.6 0.558 14.2 0.875 22.2 0.188 4.8 1000
HG-11 0.735 18.7 0.063 1.6 0.672 17.1 0.933 23.7 0.188 4.8 1000
HG-10 0.742 18.8 0.063 1.6 0.610 15.5 0.875 22.2 0.219 5.6 1000
HG-18 0.748 19.0 0.094 2.4 0.500 12.7 0.954 24.0 0.280 7.1 1000
HG-12 0.976 24.8 0.063 1.6 0.734 18.6 1.234 31.3 0.313 8.0 1000
HG-14 0.990 25.1 0.063 1.6 0.860 21.8 1.188 30.2 0.313 8.0 1000
HG-16 1.240 31.5 0.063 1.6 0.970 24.6 1.500 38.1 0.313 8.0 1000
261
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
GRO Series
Flexible Hole
Grommet
Item No. Panel Hole Size A Panel Thickness
BID C OD D Overall Height E PVC Shore
A Rating
Bulk
Pack
Qty.PVC TPR in mm in mm in mm in mm in mm
GRO018031A •15057 0.188 4.8 0.031 0.8 0.109 2.8 0.315 8.0 0.188 4.8 55 10000
GRO018061A •15058 0.188 4.8 0.063 1.6 0.125 3.2 0.315 8.0 0.250 6.4 55 10000
GRO023041A — 0.234 6.0 0.047 1.2 0.125 3.2 0.346 8.8 0.156 4.0 55 10000
GRO025031A •15060 0.252 6.4 0.031 0.8 0.156 4.0 0.375 9.5 0.156 4.0 43 10000
GRO025061A •15059 0.252 6.4 0.063 1.6 0.156 4.0 0.375 9.5 0.248 6.3 55 10000
—•15061 0.252 6.4 0.063 1.6 0.188 4.8 0.375 9.5 0.276 7.0 — 10000
GRO025062A — 0.252 6.4 0.063 1.6 0.188 4.8 0.375 9.5 0.281 7.1 55 10000
GRO025121A •15062 0.252 6.4 0.118 3.0 0.156 4.0 0.375 9.5 0.315 8.0 43 10000
GRO028091A — 0.281 7.1 0.094 2.4 0.188 4.8 0.438 11.1 0.281 7.1 55 10000
GRO031121A — 0.313 7.9 0.063 1.6 0.118 3.0 0.433 11.0 0.315 8.0 55 10000
—•15064 0.315 8.0 0.031 0.8 0.188 4.8 0.433 11.0 0.188 4.8 55 10000
GRO031061A — 0.315 8.0 0.031 0.8 0.216 5.5 0.433 11.0 0.216 5.5 43 10000
—•15065 0.315 8.0 0.063 1.6 0.216 5.5 0.433 11.0 0.216 5.5 — 10000
GRO031031A — 0.315 8.0 0.031 0.8 0.188 4.8 0.433 11.0 0.188 4.8 55 10000
—•15072 0.375 9.5 0.014 1.2 0.276 7.0 0.543 13.8 0.156 4.0 — 10000
—•15067 0.375 9.5 0.063 1.6 0.188 4.8 0.492 12.5 0.268 6.8 — 10000
GRO037061A •15069 0.375 9.5 0.063 1.6 0.250 6.4 0.559 14.2 0.250 6.4 55 10000
GRO037091A — 0.375 9.5 0.063 1.6 0.250 6.4 0.559 14.2 0.276 7.0 55 10000
—•15073 0.375 9.5 0.063 1.6 0.315 8.0 0.559 14.2 0.188 4.8 — 10000
—•15074 0.375 9.5 0.063 1.6 0.315 8.0 0.559 14.2 0.315 8.0 — 10000
GRO031041A — 0.375 9.5 0.047 1.2 0.219 5.6 0.438 11.1 0.156 4.0 55 10000
—•15068 0.375 9.5 0.095 2.4 0.250 6.4 0.559 14.2 0.276 7.0 — 10000
GRO037041A — 0.375 9.5 0.047 1.2 0.281 7.1 0.563 14.3 0.188 4.8 55 10000
—15071 0.402 10.2 0.047 1.2 0.276 7.0 0.543 13.8 0.177 4.5 — 10000
GRO040061A — 0.406 10.3 0.063 1.6 0.283 7.2 0.563 14.3 0.156 4.0 55 10000
GRO043061A •15075 0.433 11.0 0.063 1.6 0.315 8.0 0.559 14.2 0.188 4.8 55 10000
—•15076 0.433 11.0 0.063 1.6 0.315 8.0 0.559 14.2 0.315 8.0 — 10000
—•15078 0.433 11.0 0.063 1.6 0.315 8.0 0.630 16.0 0.250 6.4 — 10000
GRO046071A — 0.469 11.9 0.078 2.0 0.378 9.6 0.688 17.5 0.266 6.8 55 10000
—•15079 0.492 12.5 0.063 1.6 0.250 6.4 0.630 16.0 0.315 8.0 — 10000
—•15080 0.492 12.5 0.063 1.6 0.315 8.0 0.630 16.0 0.250 6.4 — 10000
GRO050061A •15084 0.492 12.5 0.063 1.6 0.375 9.5 0.669 17.0 0.276 7.0 55 10000
—•15086 0.492 12.5 0.063 1.6 0.433 11.0 0.478 19.0 0.250 6.4 — 10000
GRO050121A •15081 0.492 12.5 0.118 3.0 0.315 8.0 0.630 16.0 0.315 8.0 55 10000
GRO050122A •15083 0.492 12.5 0.118 3.0 0.375 9.5 0.669 17.0 0.346 8.8 55 10000
GRO056061A •15087 0.559 14.2 0.063 1.6 0.433 11.0 0.748 19.0 0.250 6.4 55 10000
GRO062031A — 0.625 15.9 0.031 0.8 0.438 11.1 0.748 19.0 0.375 9.5 55 10000
GRO062041A •15089 0.629 16.0 0.047 1.2 0.493 12.5 0.807 20.5 0.276 7.0 55 10000
GRO068031A — 0.688 17.5 0.031 0.8 0.563 14.3 0.875 22.2 0.281 7.1 55 10000
GRO068061A •15090 0.688 17.5 0.063 1.6 0.493 12.5 0.866 22.0 0.250 6.4 55 8000
GRO068062A — 0.688 17.5 0.063 1.6 0.559 14.2 0.866 22.0 0.188 4.8 55 10000
GRO068121A — 0.688 17.5 0.125 3.2 0.500 12.7 0.875 22.2 0.313 7.9 55 8000
—•15096 0.748 19.0 0.063 1.6 0.492 12.5 1.004 25.5 0.250 6.4 — 2500
GRO075061A — 0.748 19.0 0.063 1.6 0.629 16.0 0.866 22.0 0.216 5.5 55 10000
—•15093 0.748 19.0 0.063 1.6 0.629 16.0 0.945 24.0 0.236 6.0 — 7000
GRO075062A — 0.748 19.0 0.063 1.6 0.689 17.5 0.945 24.0 0.188 4.8 55 10000
—•15095 0.787 20.0 0.063 1.6 0.630 16.0 0.945 24.0 0.256 6.5 — 7000
GRO081041A — 0.807 20.5 0.047 1.2 0.630 16.0 1.063 27.0 0.315 8.0 55 4000
-•15098 0.807 20.5 0.047 1.2 0.630 16.0 1.063 27.0 0.315 8.0 — 10000
GRO087121A — 0.875 22.3 0.125 3.2 0.625 15.9 1.063 27.0 0.375 9.5 55 4000
GRO100041A — 1.000 25.4 0.047 1.2 0.728 18.5 1.236 31.4 0.297 7.5 55 2000
GRO100061A •15099 1.000 25.4 0.063 1.6 0.728 18.5 1.236 31.4 0.315 8.0 55 4000
GRO100062A — 1.000 25.2 0.063 1.6 0.866 22.0 1.181 30.0 0.315 8.0 55 4000
—•15101 1.000 25.5 0.063 1.6 0.866 22.0 1.181 30.0 0.315 8.0 — 10000
GRO100121A - 1.000 25.4 0.125 3.2 0.750 19.1 1.250 31.8 0.375 9.5 55 2000
GRO125061A •15102 1.220 31.0 0.063 1.6 1.000 25.4 1.496 38.0 0.307 7.8 55 2000
GRO125031A — 1.260 32.0 0.031 0.8 1.000 25.4 1.750 44.5 0.250 6.4 55 2000
GRO125121A — 1.250 31.8 0.125 3.2 1.000 25.4 1.500 38.1 0.359 9.1 55 2000
GRO150061A •15105 1.457 37.0 0.063 1.6 1.228 31.2 1.791 45.5 0.375 9.5 55 1000
GRO150121A •15104 1.500 38.0 0.118 3.0 1.250 32.0 1.813 46.0 0.438 11.0 55 1000
GRO175061A — 1.750 44.5 0.063 1.6 1.500 38.1 2.000 50.8 0.375 9.5 55 1000
GRO175121A — 1.750 44.5 0.125 3.2 1.500 38.1 2.000 50.8 0.375 9.5 55 1000
GRO200061A •15106 2.000 50.0 0.063 1.6 1.750 45.0 2.375 60.0 0.406 10.0 55 500
GRO200121A —2.000 50.8 0.125 3.2 1.750 44.5 2.375 60.3 0.469 11.9 55 500
Specifications:
• Material: See Table
• Color: Black
Features:
• Standard PVC material is non-staining;
resistant to ozone, acids, and sunlight;
with excellent aging qualities
C A
D
E
B
GROMMETS
EXPANDED
LINE
Hem
Na
5533314
34333414
5533534
34333314
5533414
34334314
5531434
34331354
5531354
34331344
5531334
34333234
5533354
34334334
5533324
34331344
5531214
34333344
5533214
313331 34
5533534
34333514
5533334
34333354
5533114
34333354
5533354
34331234
5533134
34331534
53311“
34331334
5531314
313331 34
5531324
34331344
53311“
34333334
5531554
34331334
5531354
3331143
5531314
34333424
5533334
34331534
5531334
3331153
5533534
34333154
5533314
34331514
5531314
3331133
5533433
31331533
55313331
313335531
513313331
333nm
53311“
313333241
513341331
313331241
513313131
313313531
GRJIIQA
34333344
5531334
34333324
5533314
34333314
5533334
34333334
5531134
34333134
5534354
34331334
5531414
34331214
5533554
34333314
5533354
34333534
5533344
34331454
5533134
34334344
5534354
34334334
3 253
3 253
3 231
3 313
3 313
3 313
3 313
3 313
3 315
3 315
3 315
3 375
3 315
3 433
3 433
3 433
3 433
3 455
3 435
3 533
3 533
3 533
3 533
3 533
3 531
3 553
3 533
3 553
3 325
3 325
3 325
3 325
3 333
3 153
3 313
3 313
3 313
3 315
3 315
3 315
3 315
3 315
3 315
3 355
1 333
1 333
1 333
1 333
1 333
1 333
1 333
1 353
1 333
1 353
1 133
1 253
1 253
1 253
1 253
1 253
1 253
1253
1 253
1 315
1 315
1 315
1 315
1 533
1 533
1 533
1 325
1 325
1 325
1 133
1 153
1 153
1 153
1 153
1 153
1 153
2 333
2 333
2 333
2 533
2 533
2 533
2 533
2 533
313
55353333222:2333233333535322
335
333.533.5135. 5
13335313335533.2335
121
121
143
143
155
1533
143
155
155
143
115
115
115
115
115
222
121
151
151
151
151
222
151
222
222
222
151
222
254
151
254
254
254
254
233
332
313
222
345
313
331
331
413
331
331
331
331
331
413
445
543
533
512
512
512
3344
3315
3433
3433
3433
3533
3433
3433
3533
3533
3533
3325
3533
3325
3325
3325
3325
3135
3325
3325
3325
3325
3153
3325
3153
3313
3313
3153
3315
3315
3315
3313
3533
3533
1 333
1 333
1 333
1 125
1 125
1 333
1 125
1 125
1 333
1 313
1 313
1 313
1 313
1 313
1 253
1 315
1 315
1 315
1 315
1 315
1 315
1 325
1 325
1 532
1 325
1 325
1 325
1 533
1 533
1 153
1 153
1 153
1 153
1 315
1 153
2333
1 153
2333
1 315
1 315
2354
2125
2133
2125
2125
2125
2125
2315
2253
2 533
2 315
3 333
3 333
3 333
3 333
31
55
111
111
111
121
111
111
143
121
121
155
143
155
155
155
155
154
155
155
155
155
151
155
151
235
233
151
222
222
222
235
233
233
213
213
213
235
2353
213
233
235
213
333
333
333
333
333
313
345
345
345
345
345
345
413
413
351
413
413
413
331
331
445
445
445
445
415
445
533
533
413
415
532
543
533
543
543
543
543
333
512
535
133
132
152
132
152
3133
3133
3215
3133
3133
3215
3253
3315
3253
3253
3231
3315
3533
3315
3133
3313
3313
3254
3533
3433
3313
3433
3533
3525
3315
3313
3315
3153
3313
3315
3533
3525
3433
3433
3433
3433
3533
3313
3315
3433
3433
3533
3325
3525
3315
3433
3533
3533
3325
3533
3315
3433
3533
3533
3433
3313
3533
3153
3533
3433
3325
3533
3333
3433
3533
3533
3325
3315
3435
3513
3533
3433
3435
3533
3152
3433
3233
3533
3533
3525
3153
3315
3153
3531
3533
3433
3533
3525
3115
3153
43
43
53
43
43
53
34
55
34
34
12
55
121
55
43
15
15
15
121
133
15
111
121
155
55
15
55
151
15
55
121
155
111
133
111
111
121
15
553
111
111
121
155
155
55
111
121
143
155
121
55
111
121
143
133
121
31.13
pm
my
15333
12333
3333
13333
15333
5333
13333
5333
3333
5333
5333
3333
3333
3333
5333
4333
2533
5333
5333
1333
1333
3533
4333
5533
5333
4333
5333
2333
5333
4333
2133
2333
3333
3333
2333
1333
1533
2533
2433
2533
2333
1533
1533
1333
1533
1533
1533
1233
1333
1133
1333
1433
1333
1233
1333
1333
353
553
153
1333
333
1333
333
133
133
533
533
133
333
533
533
153
133
433
533
533
533
533
433
333
453
333
333
333
233
115
115
115
FIBER, WIRE & CABLE MANAGEMENT
262 tel | 800 847 0486 fax | 866 561 6617
Item
No.
Panel Hole GD Panel Thickness
GW ID OD Overall Thickness
THK Bulk
Pack
Qty.in mm in mm in mm in mm in mm
GR3001A 0.250 6.4 0.063 1.6 0.125 3.2 0.344 8.7 0.188 4.8 15000
GR3041A 0.250 6.4 0.063 1.6 0.156 4.0 0.375 9.5 0.188 4.8 12000
GR3053A 0.281 7.2 0.094 2.4 0.188 4.8 0.438 11.1 0.219 5.6 8000
GR3081A 0.313 7.9 0.063 1.6 0.188 4.8 0.438 11.1 0.188 4.8 10000
GR3047A 0.313 7.9 0.063 1.6 0.219 5.6 0.438 11.1 0.188 4.8 15000
GR3401A 0.313 7.9 0.094 2.4 0.109 2.8 0.500 12.7 0.219 5.6 5000
GR3146A 0.313 7.9 0.125 3.2 0.188 4.8 0.438 11.1 0.250 6.4 10000
GR3105A 0.313 7.9 0.250 6.4 0.188 4.8 0.438 11.1 0.375 9.5 5000
GR3165A 0.375 9.5 0.063 1.6 0.250 6.4 0.563 14.3 0.250 6.4 6000
GR3164A 0.375 9.5 0.094 2.4 0.250 6.4 0.500 12.7 0.250 6.4 5000
GR3166A 0.375 9.5 0.125 3.2 0.250 6.4 0.500 12.7 0.281 7.2 5000
GR3028A 0.375 9.5 0.188 4.8 0.188 4.8 0.625 15.9 0.375 9.5 3300
GR3009A 0.375 9.5 0.375 9.5 0.313 7.9 0.563 14.3 0.500 12.7 3000
GR3400A 0.406 10.3 0.125 3.2 0.266 6.8 0.625 15.9 0.375 9.5 6000
GR3002A 0.438 11.1 0.063 1.6 0.250 6.4 0.625 15.9 0.188 4.8 5000
GR3104A 0.438 11.1 0.094 2.4 0.313 7.9 0.625 15.9 0.313 7.9 4000
GR3127A 0.438 11.1 0.188 4.8 0.250 6.4 0.625 15.9 0.313 7.9 2500
GR3384A 0.465 11.8 0.095 2.4 0.250 6.4 0.765 19.4 0.294 7.5 5000
GR3027A 0.469 11.9 0.250 6.4 0.250 6.4 0.625 15.9 0.500 12.7 5000
GR3016A 0.500 12.7 0.125 3.2 0.375 9.5 0.625 15.9 0.406 10.3 7000
GR3250A 0.500 12.7 0.125 3.2 0.375 9.5 0.625 15.9 0.313 7.9 7000
GR3091A 0.500 12.7 0.188 4.8 0.250 6.4 0.625 15.9 0.438 11.1 3500
GR3033A 0.500 12.7 0.250 6.4 0.375 9.5 0.750 19.1 0.500 12.7 4800
GR3209A 0.500 12.7 0.375 9.5 0.375 9.5 0.625 15.9 0.625 15.9 5500
GR3017A 0.531 13.5 0.125 3.2 0.375 9.5 0.750 19.1 0.375 9.5 5000
GR3065A 0.563 14.3 0.063 1.6 0.313 7.9 0.813 20.6 0.313 7.9 4000
GR3035A 0.563 14.3 0.188 4.8 0.375 9.5 0.813 20.6 0.375 9.5 5000
GR3123A 0.563 14.3 0.375 9.5 0.375 9.5 0.750 19.1 0.750 19.1 2000
GR3076A 0.625 15.9 0.063 1.6 0.375 9.5 0.875 22.2 0.313 7.9 5000
GR3150A 0.625 15.9 0.125 3.2 0.375 9.5 0.875 22.2 0.375 9.5 4000
GR3110A 0.625 15.9 0.250 6.4 0.375 9.5 0.875 22.2 0.500 12.7 2700
GR3183A 0.625 15.9 0.375 9.5 0.406 10.3 0.813 20.6 0.625 15.9 2000
GR3131A 0.688 17.5 0.188 4.8 0.438 11.1 0.938 23.8 0.438 11.1 3000
GR3218A 0.750 19.1 0.156 4.0 0.500 12.7 0.938 23.8 0.406 10.3 3000
GR3132A 0.813 20.6 0.188 4.8 0.500 12.7 1.063 27.0 0.438 11.1 2000
GR3134A 0.813 20.6 0.188 4.8 0.563 14.3 1.063 27.0 0.438 11.1 1600
GR3113A 0.813 20.6 0.250 6.4 0.563 14.3 1.063 27.0 0.500 12.7 1500
GR3080A 0.875 22.2 0.063 1.6 0.625 15.9 1.125 28.6 0.313 7.9 2500
GR3155A 0.875 22.2 0.125 3.2 0.625 15.88 1.125 28.58 0.375 9.53 2400
GR3100A 0.875 22.2 0.188 4.8 0.563 14.3 1.063 27.0 0.438 11.1 2500
GR3135A 0.875 22.2 0.188 4.8 0.625 15.9 1.125 28.6 0.438 11.1 2000
GR3114A 0.875 22.2 0.250 6.4 0.625 15.9 1.125 28.6 0.500 12.7 1500
GR3101A 0.875 22.2 0.375 9.5 0.563 14.3 1.063 27.0 0.625 15.9 1500
GR3342A 0.969 24.6 0.375 9.5 0.688 17.5 1.313 33.3 0.625 15.9 1000
GR3068A 1.000 25.4 0.063 1.6 0.688 17.5 1.313 33.3 0.375 9.5 1500
GR3156A 1.000 25.4 0.125 3.2 0.688 17.5 1.313 33.3 0.438 11.1 1500
GR3136A 1.000 25.4 0.188 4.8 0.688 17.5 1.313 33.3 0.500 12.7 1500
GR3115A 1.000 25.4 0.250 6.4 0.688 17.5 1.313 33.3 0.563 14.3 1200
GR3390A 1.000 25.4 0.250 6.4 0.875 22.2 1.250 31.8 0.625 15.9 1000
GR3219A 1.000 25.4 0.266 6.8 0.500 12.7 1.375 34.9 0.500 12.7 1100
GR3031A 1.063 27.0 0.063 1.6 0.750 19.1 1.375 34.9 0.375 9.5 1000
GR3157A 1.063 27.0 0.125 3.2 0.750 19.1 1.375 34.9 0.438 11.1 1400
GR3137A 1.063 27.0 0.188 4.8 0.750 19.1 1.375 34.9 0.500 12.7 1000
GR3116A 1.063 27.0 0.250 6.4 0.750 19.1 1.375 34.9 0.563 14.3 1200
GR3246A 1.188 30.2 0.141 3.6 0.875 22.2 1.375 34.9 0.406 10.3 1800
GR3158A 1.250 31.8 0.125 3.2 0.750 19.1 1.625 41.3 0.313 7.9 1300
GR3160A 1.250 31.8 0.125 3.2 0.875 22.2 1.625 41.3 0.500 12.7 850
GR3259A 1.250 31.8 0.125 3.2 0.875 22.2 1.562 39.7 0.750 19.1 550
GR3138A 1.250 31.8 0.188 4.8 0.875 22.2 1.625 41.3 0.563 14.3 750
GR3117A 1.250 31.8 0.250 6.4 0.750 19.1 1.625 41.3 0.438 11.1 1000
GR3118A 1.250 31.8 0.250 6.4 0.875 22.2 1.625 41.3 0.625 15.9 800
GR3062A 1.250 31.8 0.250 6.4 1.000 25.4 1.500 38.1 0.500 12.7 1000
GR3410A 1.250 31.8 0.470 11.9 0.750 19.1 1.500 38.1 0.660 16.8 600
GR3072A 1.375 34.9 0.063 1.6 1.000 25.4 1.750 44.5 0.438 11.1 700
GR3161A 1.375 34.9 0.125 3.2 1.000 25.4 1.750 44.5 0.500 12.7 700
GR3139A 1.375 34.9 0.188 4.8 1.000 25.4 1.750 44.5 0.563 14.3 500
GR3119A 1.375 34.9 0.250 6.4 1.000 25.4 1.750 44.5 0.625 15.9 500
GR3064A 1.500 38.1 0.063 1.6 1.125 28.6 1.875 47.6 0.375 9.5 700
GR3180A 1.500 38.1 0.156 4.0 1.188 30.2 1.750 44.5 0.406 10.3 800
GR3262A 1.500 38.1 0.250 6.4 1.250 31.8 2.000 50.8 0.516 13.1 500
GR3267A 1.500 38.1 0.250 6.4 1.250 31.8 1.750 44.5 0.500 12.7 600
GR3087A 1.625 41.3 0.063 1.6 0.875 22.2 2.000 50.8 0.438 11.1 600
GR3383A 1.625 41.3 0.125 3.2 1.375 34.9 1.875 47.6 0.406 10.3 750
GR3266A 1.625 41.3 0.188 4.8 1.250 31.8 1.875 47.6 0.500 12.7 700
GR3173A 1.703 43.3 0.516 13.1 1.500 38.1 2.094 53.2 0.752 19.1 400
GR3073A 1.750 44.5 0.063 1.6 1.500 38.1 2.125 54.0 0.438 11.1 500
GR3409A 1.750 44.5 0.075 1.9 1.625 41.3 2.100 53.3 0.260 6.6 900
GR3163A 1.750 44.5 0.125 3.2 1.500 38.1 2.125 54.0 0.500 12.7 600
GR3141A 1.750 44.5 0.188 4.8 1.500 38.1 2.125 54.0 0.563 14.3 500
GR3121A 1.750 44.5 0.250 6.4 1.500 38.1 2.125 54.0 0.625 15.9 400
GR3295A 1.750 44.5 0.375 9.5 1.500 38.1 2.125 54.0 0.750 19.1 300
GR3301A 2.000 50.8 0.094 2.4 1.500 38.1 2.375 60.3 0.375 9.5 450
GR3239A 2.000 50.8 0.188 4.8 1.625 41.3 2.250 57.2 0.750 19.1 600
GR3296A 2.000 50.8 0.250 6.4 1.750 44.5 2.500 63.5 0.531 13.5 300
GR3334A 2.000 50.8 0.250 6.4 1.750 44.5 2.500 63.5 0.560 14.2 300
GR3145A 2.500 63.5 0.063 1.6 2.125 54.0 2.875 73.0 0.438 11.1 300
GR3318A 2.500 63.5 0.250 6.4 2.000 50.8 3.000 76.2 0.563 14.3 200
GR3404A 2.500 63.5 0.250 6.4 2.250 57.2 3.000 76.2 0.625 15.9 175
GR3405A 2.500 63.5 0.328 8.3 2.250 57.2 3.000 76.2 0.719 18.3 175
GR3406A 2.500 63.5 0.375 9.5 2.250 57.2 3.000 76.2 0.750 19.1 175
Specifications:
• Material: SBR (Styrene
Butadiene) 60 Durometer
• Color: Black
• Tensile Range: 30 - 100psi
• Temperature Range: 225°F
to -50°F (107°C to -46°C)
Features:
• Protects wires, cables,
tubing, and hoses
• Installs instantly by simply
snapping into hole
• Excellent adhesion, designed
to fit standard sheet metal
holes
GR Series
Rubber Hole Grommets
GROMMETS
TH
K
OD
GD
GW
ID
OD
ID
GD
GW
THK
T‘Jwgi
Tm; ,
W
«(Fill
263
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
GROMMETS
Specifications:
• Material: See Table
• Color: Black
Features:
• Protects wires, cables, tubing, and hoses
• Installs instantly by simply snapping into
hole
• Excellent adhesion, designed to fit
standard sheet metal holes
• EPDM is a heat resistant material for use
in extreme temperature environments:
-40° - 257°F
Metric Hole Grommet
Item No. Mounting
Hole d2 Panel Hole
Thickness h
d1 D H
Bulk
Pack
Qty.PVC EPDM mm mm
498021 498062 5.0 1.0 2.0 8.0 4.0 1000
498022 498063 5.0 1.5 2.0 8.0 4.5 1000
498023 498064 5.0 2.0 2.0 8.0 5.0 1000
498024 498065 5.0 1.0 3.0 8.0 4.0 1000
498025 498066 5.0 1.5 3.0 8.0 4.5 1000
498026 498067 5.0 2.0 3.0 8.0 5.0 1000
498027 498068 7.0 1.5 3.0 10.0 6.0 500
498028 498070 8.0 1.0 4.0 11.0 8.0 500
498029 498071 8.0 2.0 4.0 11.0 6.0 500
498030 498072 8.0 3.0 4.0 11.0 7.0 500
498031 498073 8.0 1.0 6.0 11.0 5.0 500
498032 498074 8.0 2.0 6.0 11.0 6.0 500
— 498075 9.0 1.0 6.0 12.0 5.0 500
— 498076 9.0 1.5 6.0 12.0 5.5 500
— 498077 9.0 2.0 6.0 12.0 6.0 500
— 498078 9.0 3.0 6.0 12.0 7.0 500
— 498079 9.0 4.0 6.0 12.0 8.0 500
498033 498080 10.0 1.0 6.0 14.0 6.0 500
498034 498081 10.0 1.5 6.0 14.0 6.5 500
498035 498082 10.0 2.0 6.0 14.0 7.0 500
498036 498083 10.0 3.0 6.0 14.0 8.0 500
498037 498084 10.0 1.0 8.0 14.0 6.0 500
498038 498085 10.0 1.5 8.0 14.0 6.5 500
498039 498086 10.0 2.0 8.0 14.0 7.0 500
498040 498087 10.0 3.0 8.0 14.0 8.0 500
— 498088 11.0 1.0 8.0 16.0 6.0 250
— 498089 11.0 2.0 8.0 16.0 7.0 250
— 498090 11.0 3.0 8.0 16.0 8.0 250
— 498091 11.0 4.0 8.0 16.0 9.0 250
498041 498092 12.0 1.0 8.0 16.0 6.0 250
498042 498093 12.0 2.0 8.0 16.0 7.0 250
498043 498094 12.0 3.0 8.0 16.0 8.0 250
498044 498095 12.0 4.0 8.0 16.0 9.0 250
498045 498096 12.0 1.0 10.0 16.0 6.0 250
498046 498097 12.0 1.5 10.0 16.0 6.5 250
498047 498098 12.0 2.0 10.0 16.0 7.0 250
498048 498099 12.0 3.0 10.0 16.0 8.0 250
— 498100 14.0 1.0 11.0 18.0 6.0 250
— 498101 14.0 2.0 11.0 18.0 7.0 250
— 498102 14.0 3.0 11.0 18.0 8.0 250
498049 498103 15.0 1.0 11.0 20.0 6.0 250
498050 498104 15.0 2.0 11.0 20.0 7.0 250
498051 498105 15.0 3.0 11.0 20.0 8.0 250
498052 498106 15.0 4.0 11.0 20.0 9.0 250
498053 498107 18.0 1.0 12.0 22.0 6.0 250
498054 498108 18.0 2.0 12.0 22.0 7.0 250
498055 498109 18.0 3.0 12.0 22.0 8.0 250
498056 498110 18.0 4.0 12.0 22.0 9.0 250
498057 498111 22.0 1.0 16.0 27.0 7.0 100
498058 498112 22.0 1.5 16.0 27.0 7.5 100
498059 498113 22.0 2.0 16.0 27.0 8.0 100
498060 498114 22.0 3.0 16.0 27.0 9.0 100
498061 498115 22.0 4.0 16.0 27.0 10.0 100
— 198116 27.0 1.0 21.0 34.0 9.0 50
— 498117 27.0 2.0 21.0 34.0 10.0 50
— 498118 27.0 3.0 21.0 34.0 11.0 50
— 498119 27.0 4.0 21.0 34.0 12.0 50
— 498120 40.0 1.0 31.0 48.0 12.0 25
— 498121 40.0 2.0 31.0 48.0 13.0 25
— 498122 40.0 3.0 31.0 48.0 14.0 25
— 498123 40.0 4.0 31.0 48.0 15.0 25
— 498124 52.0 1.0 41.0 60.0 13.0 10
— 498125 52.0 2.0 41.0 60.0 14.0 10
— 498126 52.0 3.0 41.0 60.0 15.0 10
— 498127 52.0 4.0 41.0 60.0 16.0 10
FIBER, WIRE & CABLE MANAGEMENT
264 tel | 800 847 0486 fax | 866 561 6617
GROMMETS & BUSHINGS
GRQ/QFG Series
Quick Fit Flexible Grommet
Specifications:
• Material: Elastomer
• Color: Black
Features:
• Protects wires, cables, tubing and hoses
• Quickly snaps into hole
A
C
Item
No. Approval
Ø Mounting Hole Panel Thickness OD A ID B Overall Height C Head Height D Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
PGSB-0305 0.189 4.8 0.063 - 0.067 1.6 - 1.7 0.260 6.5 0.125 3.2 0.240 6.0 0.051 1.4 1000
PGSB-1 0.250 6.4 0.062 1.6 0.312 7.9 0.125 3.2 0.312 7.9 0.063 1.6 1000
PGSB-2 0.312 7.9 0.062 1.6 0.375 9.5 0.187 4.7 0.312 7.9 0.063 1.6 1000
PGSB-3 0.312 7.9 0.062 1.6 0.375 9.5 0.240 6.1 0.237 6.0 0.050 1.3 1000
PGSB-4 0.375 9.5 0.031 - 0.125 0.8 - 3.2 0.468 11.9 0.187 4.7 0.406 10.3 0.055 1.4 1000
PGSB-5 0.375 9.5 0.031 - 0.125 0.8 - 3.2 0.468 11.9 0.250 6.4 0.406 10.3 0.055 1.4 1000
PGSB-0710 0.394 10.0 0.031 - 0.125 0.8 - 1.6 0.472 12.0 0.284 7.2 0.260 6.6 0.051 1.3 1000
PGSB-6 0.437 11.1 0.031 - 0.125 0.8 - 3.2 0.531 13.5 0.270 6.9 0.406 10.3 0.055 1.4 500
PGSB-7 0.437 11.1 0.031 - 0.125 0.8 - 3.2 0.531 13.5 0.312 7.9 0.406 10.3 0.055 1.4 500
PGSB-8 0.437 11.1 0.031 - 0.125 0.8 - 3.2 0.531 13.5 0.243 6.4 0.406 10.3 0.055 1.4 500
PGSB-9 0.468 11.9 0.062 1.6 0.531 13.5 0.343 8.7 0.250 6.4 0.050 1.3 500
PGSB-10 0.500 12.7 0.031 - 0.125 0.8 - 3.2 0.578 14.7 0.250 6.4 0.406 10.3 0.063 1.6 500
PGSB-11 0.500 12.7 0.031 - 0.125 0.8 - 3.2 0.578 14.7 0.312 7.9 0.406 10.3 0.063 1.6 500
PGSB-12 0.500 12.7 0.062 1.6 0.562 14.3 0.375 9.5 0.250 6.4 0.063 1.6 500
PGSB-1013 0.512 13.0 0.031 - 0.118 0.8 0.591 15.0 0.402 10.2 0.354 9.0 0.051 1.3 500
PGSB-13 0.531 13.5 0.062 1.6 0.593 15.1 0.406 10.3 0.250 6.4 0.063 1.6 500
PGSB-14 0.562 14.3 0.031 - 0.125 0.8 - 3.2 0.656 16.7 0.312 7.9 0.406 10.3 0.063 1.6 500
PGSB-15 0.562 14.3 0.031 - 0.125 0.8 - 3.2 0.656 16.7 0.391 9.9 0.406 10.3 0.063 1.6 500
PGSB-16 0.562 14.3 0.031 - 0.125 0.8 - 3.2 0.656 16.7 0.437 11.1 0.406 10.3 0.063 1.6 500
PGSB-17 0.625 15.9 0.031 - 0.125 0.8 - 3.2 0.718 18.2 0.250 6.4 0.406 10.3 0.063 1.6 500
PGSB-18 0.625 15.9 0.031 - 0.125 0.8 - 3.2 0.718 18.2 0.437 11.1 0.406 10.3 0.063 1.6 500
PGSB-19 0.625 15.9 0.062 1.6 0.703 17.9 0.500 12.7 0.250 6.4 0.063 1.6 500
PGSB-1316 0.630 16.0 0.055 - 0.139 1.4 - 3.5 0.709 18.0 0.504 12.8 0.413 10.5 0.059 1.5 500
PGSB-20 0.687 17.5 0.031 - 0.125 0.8 - 3.2 0.781 19.8 0.500 12.7 0.406 10.3 0.063 1.6 200
PGSB-21 0.687 17.5 0.031 - 0.125 0.8 - 3.2 0.781 19.8 0.562 14.3 0.406 10.3 0.063 1.6 200
PGSB-1519 0.748 19.0 0.039 - 0.130 1.3 0.854 21.7 0.602 15.3 0.433 11.0 0.059 1.5 200
PGSB-22 0.750 19.1 0.031 - 0.125 0.8 - 3.2 0.843 21.4 0.500 12.7 0.406 10.3 0.063 1.6 200
PGSB-23 0.750 19.1 0.031 - 0.125 0.8 - 3.2 0.843 21.4 0.562 14.3 0.406 10.3 0.063 1.6 200
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Easy to snap into common panel thicknesses
• Protects wires, cables and tubing from sharp edges of sheet metal holes
B
D
A
A
C
PGSB/BSI Series
Closed Insulation Bushing
(Continued on next page)
Item No. Mounting Hole ØA C ID Ref. Bulk
Pack
Qty.
Panel Thickness
0.059 (1.5) Panel Thickness
0.079 (2.0) Panel Thickness
0.118 (3.0) Panel Thickness
0.138 (3.5) in mm in mm
16200 16210 16220 — 0.394 10.0 0.236 6.0 5000
QFG-16200 — QFG-16220 — 0.394 10.0 0.236 6.0 1000
16201 16211 16221 — 0.433 11.0 0.276 7.0 10000
QFG-16201 — — — 0.433 11.0 0.276 7.0 1000
16202 16212 16222 — 0.472 12.0 0.315 8.0 10000
— — QFG-16222 — 0.472 12.0 0.315 8.0 1000
16203 16213 16223 — 0.551 14.0 0.394 10.0 10000
QFG-16203 — QFG-16223 — 0.551 14.0 0.394 10.0 1000
16204 16214 16224 — 0.630 16.0 0.472 12.0 10000
QFG-16204 — QFG-16224 — 0.630 16.0 0.472 12.0 1000
16205 16215 16225 — 0.709 18.0 0.551 14.0 10000
QFG-16205 — — — 0.709 18.0 0.551 14.0 1000
— — — QFG-1 0.728-0.787 18.5-20.0 0.512 13.0 1000
16206 16216 16226 — 0.787 20.0 0.630 16.0 4000
16207 16217 16227 — 0.866 22.0 0.709 18.0 4000
QFG-16207 — — — 0.866 22.0 0.709 18.0 1000
— — — QFG-2 0.984-1.024 25.0-26.0 0.709 18.0 1000
16208 16218 16228 — 1.024 26.0 0.866 22.0 4000
— — QFG-16228 — 1.024 26.0 0.866 22.0 1000
16209 16219 16229 — 1.102 28.0 0.945 24.0 2000
QFG-16209 — QFG-16229 — 1.102 28.0 0.945 24.0 1000
@
%
265
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
BUSHINGS
B
D
A
A
C
Item
No. Approval
Ø Mounting Hole Panel Thickness OD A ID B Overall Height C Head Height D Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
PGSB-24 0.750 19.1 0.062 1.6 0.828 21.0 0.625 15.9 0.250 6.4 0.063 1.6 200
PGSB-25 0.781 19.8 0.062 1.6 0.859 21.8 0.625 15.9 0.250 6.4 0.063 1.6 200
PGSB-1822 0.866 22.0 0.035 - 0.091 0.9 - 2.3 0.976 24.8 0.717 18.2 0.453 11.5 0.059 1.5 500
PGSB-26 0.875 22.2 0.031 - 0.125 0.8 - 3.2 0.953 24.2 0.500 12.7 0.453 11.5 0.063 1.6 200
PGSB-27 0.875 22.2 0.031 - 0.125 0.8 - 3.2 0.953 24.2 0.562 14.3 0.453 11.5 0.063 1.6 200
PGSB-28 0.875 22.2 0.031 - 0.125 0.8 - 3.2 0.953 24.2 0.625 15.9 0.453 11.5 0.063 1.6 200
PGSB-29 0.875 22.2 0.031 - 0.125 0.8 - 3.2 0.953 24.2 0.687 17.5 0.453 11.5 0.063 1.6 200
PGSB-30 0.875 22.2 0.062 1.6 0.937 23.8 0.750 19.1 0.250 6.4 0.063 1.6 200
PGSB-31 1.000 25.4 0.031 - 0.125 0.8 - 3.2 1.125 28.6 0.766 19.5 0.453 11.5 0.063 1.6 200
PGSB-32 1.097 27.9 0.031 - 0.125 0.8 - 3.2 1.218 31.0 0.812 20.6 0.453 11.5 0.063 1.6 100
PGSB-33 1.097 27.9 0.031 - 0.125 0.8 - 3.2 1.218 31.0 0.875 22.2 0.453 11.5 0.063 1.6 100
PGSB-34 1.097 27.9 0.031 - 0.125 0.8 - 3.2 1.218 31.0 0.937 23.8 0.453 11.5 0.063 1.6 100
PGSB-2428 1.102 28.0 0.039 - 0.130 13.3 1.240 31.5 0.945 24.0 0.441 11.2 0.059 1.5 200
PGSB-2530 1.181 30.0 0.039 - 0.122 13.1 1.319 33.5 0.984 25.0 0.453 11.5 0.071 1.8 100
PGSB-35 1.250 31.8 0.031 - 0.125 0.8 - 3.2 1.312 33.3 0.937 23.8 0.453 11.5 0.063 1.6 100
PGSB-2634 1.347 34.2 0.039 - 0.126 13.2 1.496 38.0 1.031 26.2 0.453 11.5 0.059 1.5 100
PGSB-36 1.375 34.9 0.031 - 0.125 0.8 - 3.2 1.468 37.3 1.000 25.4 0.453 11.5 0.063 1.6 100
PGSB-37 1.500 38.1 0.031 - 0.125 0.8 - 3.2 1.609 40.9 1.062 27.0 0.453 11.5 0.063 1.6 100
PGSB-38 1.500 38.1 0.031 - 0.125 0.8 - 3.2 1.609 40.9 1.125 28.6 0.453 11.5 0.063 1.6 100
PGSB-39 1.500 38.1 0.031 - 0.125 0.8 - 3.2 1.609 40.9 1.312 33.3 0.453 11.5 0.063 1.6 100
PGSB-40 1.750 44.5 0.031 - 0.125 0.8 - 3.2 1.875 47.6 1.375 34.9 0.453 11.5 0.063 1.6 100
PGSB-41 2.000 50.8 0.031 - 0.125 0.8 - 3.2 2.125 54.0 1.640 41.7 0.453 11.5 0.063 1.6 100
PGSB-42 2.000 50.8 0.031 - 0.125 0.8 - 3.2 2.125 54.0 1.750 44.5 0.453 11.5 0.063 1.6 100
PGSB-43 2.250 57.2 0.250 6.4 2.480 63.0 1.850 47.0 0.720 18.2 0.063 1.6 100
BSI047A 3.000 76.2 0.250 6.4 3.160 80.3 2.470 62.7 .720 18.2 — — 350
PGSB/BSI Series (continued)
Closed Insulation Bushing
Item
No. Approval
Mounting Hole Ø Panel Thickness Range OD A Ref. ID B Overall Height C Bulk
Pack
Qty.in mm in mm in mm in mm in mm
PGSA-0407A 0.276 7.0 0.016 - 0.039 0.4 - 1.0 0.410 10.4 0.190 4.8 0.200 5.0 1000
PGSA-1013A 0.512 13.0 0.039 - 0.059 1.0 - 1.5 0.640 16.2 0.360 9.2 0.210 5.3 500
PGSA-1316A 0.630 16.0 0.039 - 0.055 1.0 - 1.4 0.760 19.4 0.480 12.2 0.210 5.4 500
PGSA-1519A 0.748 19.0 0.039 - 0.059 1.0 - 1.5 0.890 22.7 0.560 14.3 0.220 5.7 500
PGSA-1822A 0.866 22.0 0.031 - 0.063 0.8 - 1.6 1.000 25.5 0.690 17.6 0.220 5.6 500
PGSA-2024A1 0.945 24.0 0.031 - 0.047 0.8 - 1.2 1.060 27.0 0.770 19.5 0.210 5.3 500
PGSA-2024A 0.945 24.0 0.039 - 0.063 1.0 - 1.6 1.060 27.0 0.770 19.5 0.210 5.3 500
PGSA-2327A 1.067 27.1 0.016 - 0.039 0.4 - 1.0 1.380 35.1 0.900 22.9 0.240 6.0 200
PGSA-2529A 1.142 29.0 0.016 - 0.043 0.4 - 1.1 1.380 35.1 0.970 24.5 0.280 7.0 200
PGSA Series
Shallow Open Insulation Bushing
ØB
A
C
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Molded with shallow overall height for applications with limited space
• Open design allows bushing to be assembled into holes that already contain a bundle
• Protects wires, cables, and tubing from sharp edges of sheet metal holes
FIBER, WIRE & CABLE MANAGEMENT
266 tel | 800 847 0486 fax | 866 561 6617
Item
No. Approval
Mounting Hole Panel Thickness Range OD A Ref. ID B Overall Height C Head Height D Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
PGSB-0609A 0.375 9.5 0.028 - 0.067 0.7 - 1.7 0.450 11.4 0.260 6.6 0.260 6.5 0.051 1.3 1000
PGSB-1A 0.375 9.5 0.031 - 0.125 0.8 - 3.2 0.420 10.7 0.265 6.7 0.390 9.9 0.051 1.3 1000
PGSB-2A 0.437 11.1 0.031 - 0.125 0.8 - 3.2 0.50 12.7 0.312 7.9 0.406 10.3 0.063 1.6 1000
PGSB-1013A 0.512 13.0 0.031 - 0.138 0.8 - 3.5 0.590 14.9 0.350 9.0 0.410 10.5 0.059 1.5 500
PGSB-3A 0.562 14.3 0.031 - 0.125 0.8 - 3.2 0.640 16.3 0.390 9.9 0.406 10.3 0.063 1.6 500
PGSB-1216A 0.650 16.5 0.028 - 0.130 0.7 - 3.3 0.730 18.6 0.480 12.3 0.390 10.0 0.039 1.0 500
PGSB-1316A 0.630 16.0 0.047 - 0.138 1.2 - 3.5 0.710 18.0 0.410 10.5 0.410 10.5 0.063 1.6 500
PGSB-1519A 0.748 19.0 0.047 - 0.130 1.2 - 3.3 0.810 20.6 0.570 14.5 0.430 11.0 0.051 1.3 200
PGSB-1822A 0.866 22.0 0.039 - 0.138 1.0 - 3.5 0.980 24.8 0.680 17.3 0.450 11.5 0.063 1.6 200
PGSB-9A 0.984 25.0 0.031 - 0.118 0.8 - 3.0 1.039 26.4 0.803 20.4 0.406 10.3 0.063 1.6 200
PGSB-4A 1.000 25.4 0.031 - 0.125 0.8 - 3.2 1.047 26.6 0.812 20.6 0.406 10.3 0.063 1.6 200
PGSB-5A 1.093 27.8 0.031 - 0.125 0.8 - 3.2 1.156 29.4 0.875 22.2 0.406 10.3 0.063 1.6 200
PGSB-6A 1.250 31.8 0.031 - 0.125 0.8 - 3.2 1.343 34.1 1.046 26.6 0.406 10.3 0.063 1.6 200
PGSB-7A 1.375 34.9 0.031 - 0.125 0.8 - 3.2 1.468 37.3 1.171 29.7 0.406 10.3 0.063 1.6 200
PGSB-8A 1.500 38.1 0.031 - 0.125 0.8 - 3.2 1.578 40.1 1.250 31.7 0.421 10.7 0.063 1.6 200
PGSB-A Series
Standard Open Insulation Bushing
ØB C
ØA D
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Easy to push in design locks into place at common panel thicknesses
• Split design allows bushing to be assembled into holes that already contained a bundle
• Protects wires, cables, and tubing from sharp edges of sheet metal holes
BUSHINGS
Item
No. Approvals Size
A B C D Cable
Size
Trade Size Bulk
Pack
Qty.in mm in mm ni mm in mm in
ASB0A 0 0.560 14.22 0.671 17.04 0.380 9.650 0.312 7.92 14/2, 14/3, 12/2 5/16 30000
ASB1A 1 0.650 16.51 0.671 17.04 0.450 11.43 0.312 7.92 14/4, 12/3, 6/1, 4/1 3/8 20000
ASB2A 2 0.610 15.49 0.859 21.82 0.580 14.73 0.125 3.18 12/4, 10/2, 10/3, 2/1 7/16 15000
ASB3A 3 0.670 17.02 1.046 26.57 0.790 20.07 0.109 2.77 10/4, 8/2, 8/3, 1/1 1/2 7500
ASB4A 4 0.830 21.08 1.266 32.15 1.000 25.40 0.156 3.96 8/4, 6/4, 6/3, 6/2, 4/3, 4/2 3/4 4000
ASB Series
Armor Bushing
Specifications:
• Material: Polypropylene
• Color: Red
Features:
• Fits armored cable and flexible metal conduit sizes
• Features high dielectric strength and assures insulation on all sharp edges
D
B
C
A
PGSD Series
Universal Bushing
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
Features:
• Absorbs vibration and cushions and insulates bundles
ØA D
C
Item
No. Approval
Mounting Hole Max Panel
Thickness OD A Max ID Overall Height C Head Height D Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
PGSD-1 0.500 12.7 0.062 1.8 0.600 15.2 0.312 7.9 0.250 6.4 0.063 1.6 500
PGSD-5 0.500 12.7 0.125 3.2 0.600 15.2 0.312 7.9 0.385 9.8 0.041 1.0 500
PGSD-2 0.625 15.9 0.062 1.8 0.729 18.5 0.437 11.1 0.250 6.4 0.063 1.6 500
PGSD-6 0.625 15.9 0.125 3.2 0.729 18.5 0.437 11.1 0.406 10.3 0.063 1.6 500
PGSD-3 0.750 19.1 0.062 1.8 0.844 21.4 0.500 12.7 0.250 6.4 0.063 1.6 200
PGSD-7 0.750 19.1 0.125 3.2 0.844 21.4 0.500 12.7 0.390 9.9 0.047 1.2 200
PGSD-4 0.875 22.2 0.062 1.8 0.937 23.8 0.560 14.2 0.250 6.4 0.063 1.6 200
PGSD-8 0.875 22.2 0.125 3.2 0.937 23.8 0.560 14.2 0.453 11.5 0.063 1.6 200
PGSD-9 1.000 25.4 0.125 3.2 1.063 27.0 0.750 19.1 0.453 11.5 0.063 1.6 200
PGSD-10 1.375 34.9 0.125 3.2 1.490 37.8 1.000 25.4 0.453 11.5 0.063 1.6 100
PGSD-11 1.500 38.1 0.125 3.2 1.609 40.9 1.062 27.0 0.450 11.4 0.059 1.5 100
\\\§\+ ‘
Egg
\\\
fi
N@:@%4
267
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Item
No. NAS Part No.
Ø Mounting
Hole
Max
Recommended
Panel
Thickness
NAS1368
Panel Thickness
Range TA Ref. BC Ref. DBulk
Pack
Qty.in mm in mm in mm in mm in mm in mm in mm in mm
GFA-N4A NAS1368-N4A 0.375 9.5 0.030 0.8 0.025 - 0.080 0.6 - 2.0 0.235 6.0 0.567 14.4 0.367 9.3 0.251 6.4 0.058 1.5 100
GFA-N4B NAS1368-N4B 0.375 9.5 0.100 2.5 0.081 - 0.140 2.1 - 3.6 0.295 7.5 0.567 14.4 0.367 9.3 0.251 6.4 0.058 1.5 100
GFA-N6A NAS1368-N6A 0.500 12.7 0.030 0.8 0.025 - 0.080 0.6 - 2.0 0.235 6.0 0.692 17.6 0.492 12.5 0.376 9.6 0.058 1.5 100
GFA-N6B NAS1368-N6B 0.500 12.7 0.090 2.3 0.081 - 0.140 2.1 - 3.6 0.295 7.5 0.692 17.6 0.492 12.5 0.376 9.6 0.058 1.5 100
GFA-N6C NAS1368-N6C 0.500 12.7 0.160 4.1 0.141 - 0.200 3.6 - 5.1 0.360 9.1 0.692 17.6 0.492 12.5 0.376 9.6 0.058 1.5 100
GFA-N8A NAS1368-N8A 0.625 15.9 0.030 0.8 0.025 - 0.080 0.6 - 2.0 0.235 6.0 0.815 20.7 0.615 15.6 0.499 12.7 0.058 1.5 100
GFA-N8B NAS1368-N8B 0.625 15.9 0.090 2.3 0.081 - 0.140 2.1 - 3.6 0.295 7.5 0.815 20.7 0.615 15.6 0.499 12.7 0.058 1.5 100
GFA-N10A NAS1368-N10A 0.781 19.8 0.030 0.8 0.025 - 0.080 0.6 - 2.0 0.235 6.0 0.971 24.7 0.771 19.6 0.605 15.4 0.083 2.1 100
GFA-N10B NAS1368-N10B 0.781 19.8 0.080 2.0 0.081 - 0.140 2.1 - 3.6 0.295 7.5 0.971 24.7 0.771 19.6 0.605 15.4 0.083 2.1 100
GFA-N10D NAS1368-N10D 0.781 19.8 0.210 5.3 0.201 - 0.250 5.1 - 6.4 0.420 10.7 0.971 24.7 0.771 19.6 0.605 15.4 0.083 2.1 100
GFA-N12A NAS1368-N12A 0.906 23.0 0.020 0.5 0.025 - 0.080 0.6 - 2.0 0.235 6.0 1.096 27.8 0.896 22.8 0.730 18.5 0.083 2.1 100
GFA-N12B NAS1368-N12B 0.906 23.0 0.070 1.8 0.081 - 0.140 2.1 - 3.6 0.295 7.5 1.096 27.8 0.896 22.8 0.730 18.5 0.083 2.1 100
GFA-N14A NAS1368-N14A 1.031 26.2 0.020 0.5 0.025 - 0.080 0.6 - 2.0 0.235 6.0 1.221 31.0 1.021 25.9 0.855 21.7 0.083 2.1 100
GFA-N14B NAS1368-N14B 1.031 26.2 0.070 1.8 0.081-0.140 2.1-3.6 0.295 7.5 1.221 31.0 1.021 25.9 0.855 21.7 0.083 2.1 100
PGSC Series
Open Universal Bushing
GFA Series
NAS1368 Flip Grommet
Specifications:
• Material: UL94V-2 Nylon 6/6
• Color: Black
Features:
• Easy to push in design locks into place at common panel thicknesses
• Open design allows bushing to be assembled into holes that already contain a bundle
• Adjust to accept various diameters and shapes
A
D
C
Item
No. Approval
Mounting Hole Max Panel Thickness OD A Max ID Overall Height C Head Height D Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
PGSC-1319A 0.748 - 0.752 19.0 - 19.1 0.031 - 0.118 0.8 - 3.0 0.858 21.8 0.500 12.7 0.390 9.9 0.039 1.0 500
PGSC-1422A 0.874 - 0.882 22.2 - 22.4 0.031 - 0.118 0.8 - 3.0 0.937 23.8 0.563 14.3 0.453 11.5 0.039 1.0 200
PGSC-1926A 1.000 - 1.004 25.4 - 25.5 0.031 - 0.118 0.8 - 3.0 1.063 27.0 0.748 19.0 0.453 11.5 0.039 1.0 200
PGSC-2128A 1.095 - 1.102 27.8 - 28.0 0.031 - 0.118 0.8 - 3.0 1.161 29.5 0.815 20.7 0.453 11.5 0.039 1.0 200
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Light Green
Features:
• Installed by inserting the “un-flipped” grommet into the
hole (forming dies - not supplied by Essentra - on each
side of the hole are pressed together until the grommet
“flips” over itself, creating a flange on both sides of the
hole)
• The dies can be attached to a toggle type clamp, a
pneumatic tool, or a bolt and nut through the center
• Meets NAS 1368 Standard
• Protects wires, cable, and tubing passing through holes
ØA Ref.
ØB
ØC Ref.
T
.125 (3.2)
D
.105 (2.7) Max.
BUSHINGS & GROMMETS
SB Series
Snub Bushing
Specifications:
• Material: UL94V-2 Nylon 6/6
• Color: Black
Features:
• Bushing opens to accept cable then
closes firmly when installed into hole
• Provides insulation and slight strain relief
Part
Number
Panel Hole Max Panel Thickness ID Ø A Overall OD B Bulk Pack
Qty.in mm in mm in mm in mm in mm
SB-1 0.375 9.5 0.125 3.2 0.150 3.8 0.360 9.1 0.450 11.4 500
SB-2 0.437 11.1 0.125 3.2 0.220 5.6 0.430 10.9 0.550 14.0 500
SB-3 0.500 12.7 0.125 3.2 0.280 7.1 0.490 12.4 0.630 16.0 500
.080
(1.9)
.400
(10.2) .250
(6.4)
ØB
A
FIBER, WIRE & CABLE MANAGEMENT
268 tel | 800 847 0486 fax | 866 561 6617
PLV Series
Vented Locking Plug
Item
No. Approvals
Ø Hole Max
Panel Thickness Ø Head B Thickness C Bulk
Pack
Qty.in mm in mm in mm in mm
62MP0750V 0.750 19.1 0.125 3.2 0.906 23.0 0.406 10.3 1000
62MP0875V 0.875 22.2 0.125 3.2 1.016 25.8 0.453 11.5 1000
62MP1000V 1.000 25.4 0.125 3.2 1.203 30.6 0.453 11.5 500
Specifications:
• Material: UL94 V-2 Heat-Stabilized Nylon
• Color: Black
Features:
• Each part is designed to lock into multiple
standard sheet metal thicknesses (1/64 to 1/8)
• Provides a clean and easy way to close
optional wiring or production access holes
• Vents allow heat and emissions to escape C
3/32
(2.4)
1/8
(3.2)
1/32
(0.8)
1/16
(1.6)
1/16
(1.6)
B
GR67/LTG Series
IP67 Liquid Tight Grommet
Specifications:
• Material: EPDM
• Color: Grey (Black for LTG-199017)
Features:
• Confirms to IP67 standard for watertight seal
• Acts as a blanking plug until cable is installed
• Designed to withstand vibration
Item
No.
Panel Hole Panel Thickness Cable Size Bulk
Pack
Qty.Fits in mm in mm in mm
LTG-199017 PG-7 0.492 12.5 0.020 - 0.079 0.5 - 2.0 0.138 - 0.197 3.5 - 5.0 1000
GR67464121A PG-7 0.492 12.5 0.020 - 0.079 0.5 - 2.0 0.138 - 0.197 3.5 - 5.0 1000
GR6739897A PG-9 0.630 16.0 0.039 - 0.157 1.0 - 4.0 0.197 - 0.276 5.0 - 7.0 1000
GR6734715A PG-11 0.748 19.0 0.039 - 0.157 1.0 - 4.0 0.276 - 0.394 7.0 - 10.0 1000
GR6734716A PG-16 0.906 23.0 0.039 - 0.157 1.0 - 4.0 0.394 - 0.551 10.0 - 14.0 1000
GR6743021A PG-21 1.142 29.0 0.039 - 0.157 1.0 - 4.0 0.551 - 0.787 14.0 - 20.0 1000
GR67464122A PG-29 1.496 38.0 0.039 - 0.157 1.0 - 4.0 0.787 - 1.024 20.0 - 26.0 250
GR67464123A PG-36 1.890 48.0 0.039 - 0.157 1.0 - 4.0 1.024 - 1.378 26.0 - 35.0 250
GR67M16A M16 0.650 16.5 0.039 - 0.157 1.0 - 4.0 0.197 - 0.354 5.0 - 9.0 1000
GR67M20A M20 0.807 20.5 0.039 - 0.157 1.0 - 4.0 0.276 - 0.512 7.0 - 13.0 1000
GR67M25A M25 1.004 25.5 0.059 - 0.157 1.5 - 4.0 0.394 - 0.670 10.0 - 17.0 1000
GR67M32A M32 1.280 32.5 0.039 - 0.157 1.0 - 4.0 0.551 - 0.787 14.0 - 20.0 500
GR67M40A M40 1.594 40.5 0.059 - 0.157 1.5 - 4.0 0.750 - 1.024 19.0 - 26.0 250
GR67M50A M50 1.988 50.5 0.039 - 0.157 1.0 - 4.0 1.024 - 1.338 26.0 - 34.0 250
GROMMETS & BUSHINGS
Push In Flexible Grommet
Specifications:
• Material:Polyethylene and TPE
• Color: Grey
Features:
• Dust tight
• Quick and easy mounting
• For enclosures with more than .079 (2.0) thickness
Item
No.
Ø d Hole D OD Ø Cable Range Bulk
Pack
Qty.
in mm in mm in mm
494632 0.630 16.0 0.835 21.2 0.039 - 0.354 1.0 - 9.0 100
494633 0.787 20.0 0.992 25.2 0.039 - 0.512 1.0 - 13.0 100
494634 0.984 25.0 1.189 30.2 0.039 - 0.709 1.0 - 18.0 100
494635 1.260 32.0 1.465 37.2 0.039 - 0.984 1.0 - 25.0 50
.37 (9.5)
d
D
.43
(11.0)
505050 53505050505050505 05050 5.5050505055505050
wuuuuuuuuuuwuuuuuuuuuuuuuuuuuuuuuuuuuuwuuuuuuuuuuuuwuwuuuuuuuuuuuuuu
269
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Item No. Approvals Cross
Section Cable
Type Gauge
(AWG)
Cable Size Strap
Type
Ø A Flats B Max Panel Length D Width C Ref. Bulk
Pack
Qty.in in mm in mm in mm in mm in mm
SRB-F-1 — Flat SPT-1 18/2 0.120 - 0.220 Y 0.375 9.5 0.343 8.7 0.062 1.6 0.406 10.3 0.425 10.8 1000
SRB-F-3 — Flat SPT-1 18/2 0.120 - 0.220 Y 0.433 11.1 0.390 9.9 0.062 1.6 0.406 10.3 0.476 12.1 1000
23MP04N40
Flat SPT-1 18/3 0.120 - 0.300 Y 0.500 12.7 0.465 11.8 0.100 2.5 0.406 10.3 0.578 14.7 1000
Flat SPT-2 18/2 0.120 - 0.300 Y 0.500 12.7 0.465 11.8 0.100 2.5 0.406 10.3 0.578 14.7 1000
Flat HPN 18/2 0.120 - 0.300 Y 0.500 12.7 0.465 11.8 0.100 2.5 0.406 10.3 0.578 14.7 1000
23MP04K40
Flat SPT-1 18/3 0.120 - 0.300 Y 0.500 12.7 0.465 11.8 0.156 4.0 0.406 10.3 0.578 14.7 1000
Flat SPT-2 18/2 0.120 - 0.300 Y 0.500 12.7 0.465 11.8 0.156 4.0 0.406 10.3 0.578 14.7 1000
Flat HPN 18/3 0.120 - 0.300 Y 0.500 12.7 0.465 11.8 0.156 4.0 0.406 10.3 0.578 14.7 1000
SRB-F-6
— Flat SPT-1 18/2 0.120 - 0.220 Y 0.500 12.7 0.390 9.9 0.100 2.5 0.406 10.3 0.492 12.5 1000
— Flat SPT-1 18/2 0.120 - 0.220 Y 0.500 13.1 0.390 9.9 0.100 2.5 0.406 10.3 0.492 12.5 1000
— Flat SPT-1 18/2 0.120 - 0.220 Y 0.516 12.7 0.390 9.9 0.100 2.5 0.406 10.3 0.492 12.5 1000
— Flat SPT-1 18/2 0.120 - 0.220 Y 0.516 13.1 0.390 9.9 0.100 2.5 0.406 10.3 0.492 12.5 1000
SRB-F-8 — Flat SPT-2 — 0.146 - 0.299 Y 0.500 12.7 0.465 11.8 0.062 1.6 0.406 10.3 0.547 13.9 1000
— Flat SPT-2 — 0.150 - 0.299 Y 0.516 13.1 0.465 11.8 0.062 1.6 0.406 10.3 0.547 13.9 1000
SRB-F-9 — Flat SPT-2 — 0.146 - 0.299 Y 0.500 12.7 0.465 11.8 0.100 2.5 0.406 10.3 0.547 13.9 1000
— Flat SPT-2 — 0.150 - 0.299 Y 0.516 13.1 0.465 11.8 0.100 2.5 0.406 10.3 0.547 13.9 1000
23MP04K10
Flat SPT-2 18/3 0.150 - 0.400 Y 0.500 12.7 0.460 11.7 0.095 2.4 0.495 12.6 0.565 14.4 1000
Flat HPN 16/2 0.150 - 0.400 Y 0.500 12.7 0.460 11.7 0.095 2.4 0.495 12.6 0.565 14.4 1000
Flat SPT-2 16/2 0.160 - 0.300 Y 0.500 12.7 0.460 11.7 0.095 2.4 0.495 12.6 0.565 14.4 1000
Flat HPN 18/2 0.150 - 0.280 Y 0.500 12.7 0.460 11.7 0.095 2.4 0.495 12.6 0.565 14.4 1000
Flat SPT-2 18/2 0.150 - 0.280 Y 0.500 12.7 0.460 11.7 0.095 2.4 0.495 12.6 0.565 14.4 1000
23MP05N40
Round SV 18/2 0.250 Y 0.500 12.7 0.450 11.4 0.062 1.6 0.438 11.1 0.578 14.7 1000
Round SV 18/2 0.250 Y 0.500-0.515 12.7-13.1 0.450 11.4 0.062 1.6 0.438 11.1 0.578 14.7 1000
Round SV 18/3 0.255 Y 0.500 12.7 0.450 11.4 0.062 1.6 0.438 11.1 0.578 14.7 1000
Round SV 18/3 0.255 Y 0.500-0.515 12.7-13.1 0.450 11.4 0.062 1.6 0.438 11.1 0.578 14.7 1000
Round HPD 18/2 0.290 Y 0.500 12.7 0.450 11.4 0.062 1.6 0.438 11.1 0.578 14.7 1000
Round HPD 18/2 0.290 Y 0.500-0.515 12.7-13.1 0.450 11.4 0.062 1.6 0.438 11.1 0.578 14.7 1000
23MP05P40
Round SV 18/2 0.250 Y 0.500 12.7 0.450 11.4 0.100 2.5 0.438 11.1 0.578 14.7 1000
Round SV 18/2 0.250 Y 0.500-0.515 12.7-13.1 0.450 11.4 0.100 2.5 0.438 11.1 0.578 14.7 1000
Round SV 18/3 0.255 Y 0.500 12.7 0.450 11.4 0.100 2.5 0.438 11.1 0.578 14.7 1000
Round SV 18/3 0.255 Y 0.500-0.515 12.7-13.1 0.450 11.4 0.100 2.5 0.438 11.1 0.578 14.7 1000
Round HPD 16/2 0.290 Y 0.500 12.7 0.450 11.4 0.100 2.5 0.438 11.1 0.578 14.7 1000
Round HPD 16/2 0.290 Y 0.500-0.515 12.7-13.1 0.450 11.4 0.100 2.5 0.438 11.1 0.578 14.7 1000
SRB-R-1 — Round SVI — 0.252 Y 0.500 12.7 0.453 11.5 0.062 1.6 0.437 11.1 0.559 14.2 1000
— Round SVT — 0.291 Y 0.516 13.1 0.453 11.5 0.062 1.6 0.437 11.1 0.559 14.2 1000
SRB-R-2 — Round SVI — 0.252 Y 0.500 12.7 0.453 11.5 0.100 2.5 0.437 11.1 0.559 14.2 1000
— Round SVT — 0.291 Y 0.516 13.1 0.453 11.5 0.100 2.5 0.437 11.1 0.559 14.2 1000
SRB-R-3 — Round SJT 18/3 0.299 Y 0.626 15.9 0.551 14.0 0.062 1.6 0.580 14.7 0.701 17.8 500
SRB-R-4 — Round SJT 18/3 0.299 Y 0.626 15.9 0.551 14.0 0.126 3.2 0.580 14.7 0.693 17.6 500
23MP06N40 Round SJT 18/2 0.300 Y 0.625 15.88 0.550 14.0 0.062 1.6 0.580 14.7 0.703 17.9 1000
Round SJO 18/2 0.300 Y 0.625 15.88 0.550 14.0 0.062 1.6 0.580 14.7 0.703 17.9 1000
23MP06W10
Round SJ 18/2 0.300 Y 0.500 12.7 0.456 11.6 0.090 2.3 0.437 11.1 0.563 14.3 1000
Round SJT 18/2 0.300 Y 0.500 12.7 0.456 11.6 0.090 2.3 0.437 11.1 0.563 14.3 1000
Round SJO 18/2 0.300 Y 0.500 12.7 0.456 11.6 0.090 2.3 0.437 11.1 0.563 14.3 1000
SRB-R-7 — Round SJT 16/3 0.323 - 0.362 Y 0.626 15.9 0.551 14.0 0.062 1.6 0.580 14.7 0.701 17.8 500
SRB-R-8 — Round SJT 16/3 0.323 - 0.362 Y 0.626 15.9 0.551 14.0 0.126 3.2 0.580 14.7 0.681 17.3 500
23MP06P34
Round SJ 18/3 0.325 - 0.360 Y 0.650 16.5 0.550 14.0 0.125 3.2 0.580 14.7 0.703 17.9 500
Round SJT 16/3 0.325 - 0.360 Y 0.650 16.5 0.550 14.0 0.125 3.2 0.580 14.7 0.703 17.9 500
Round SJT 18/3 0.325 - 0.360 Y 0.650 16.5 0.550 14.0 0.125 3.2 0.580 14.7 0.703 17.9 500
Round SJO 18/3 0.325 - 0.360 Y 0.650 16.5 0.550 14.0 0.125 3.2 0.580 14.7 0.703 17.9 500
23MP06L10
Round SJ 16/2 0.325 - 0.429 Z 0.625 15.9 0.550 14.0 0.125 3.2 0.666 16.9 0.725 18.4 500
Round SJ 16/3 0.325 - 0.429 Z 0.625 15.9 0.550 14.0 0.125 3.2 0.666 16.9 0.725 18.4 500
Round SJT 16/2 0.325 - 0.429 Z 0.625 15.9 0.550 14.0 0.125 3.2 0.666 16.9 0.725 18.4 500
Round SJT 16/3 0.325 - 0.429 Z 0.625 15.9 0.550 14.0 0.125 3.2 0.666 16.9 0.725 18.4 500
Round SJO 16/2 0.325 - 0.429 Z 0.625 15.9 0.550 14.0 0.125 3.2 0.666 16.9 0.725 18.4 500
Round SJO 16/3 0.325 - 0.429 Z 0.625 15.9 0.550 14.0 0.125 3.2 0.666 16.9 0.725 18.4 500
23MP07K30
Round SJ 18/3 0.325 - 0.359 Z 0.875 22.2 0.770 19.6 0.125 3.2 0.750 19.1 0.922 23.4 250
Round SJ 16/2 0.325 - 0.359 Z 0.875 22.2 0.770 19.6 0.125 3.2 0.750 19.1 0.922 23.4 250
Round SJT 16/2 0.325 - 0.359 Z 0.875 22.2 0.770 19.6 0.125 3.2 0.750 19.1 0.922 23.4 250
Round SJO 18/3 0.325 - 0.359 Z 0.875 22.2 0.770 19.6 0.125 3.2 0.750 19.1 0.922 23.4 250
Round SJO 16/2 0.325 - 0.359 Z 0.875 22.2 0.770 19.6 0.125 3.2 0.750 19.1 0.922 23.4 250
23MP06N34
Round SJ 18/3 0.355 Y 0.625 15.9 0.550 14.0 0.062 1.6 0.580 14.7 0.703 17.9 1000
Round SJT 18/3 0.405 Y 0.625 15.9 0.550 14.0 0.062 1.6 0.580 14.7 0.703 17.9 1000
Round SJT 18/3 0.430 Y 0.625 15.9 0.550 14.0 0.062 1.6 0.580 14.7 0.703 17.9 1000
SRB-R-9 — Round SJT 14/3 0.362 - 0.413 Y 0.748 19.0 0.650 16.5 0.062 1.6 0.750 19.1 0.847 21.5 100
— Round SJT 14/3 0.433 Y 0.780 19.8 0.650 16.5 0.062 1.6 0.750 19.1 0.847 21.5 100
SRB-R-10 — Round SJT 14/3 0.362 - 0.413 Y 0.748 19.0 0.650 16.5 0.126 3.2 0.764 19.4 0.854 21.7 100
— Round SJT 14/3 0.434 Y 0.780 19.8 0.650 16.5 0.126 3.2 0.764 19.4 0.854 21.7 100
SRB/BSR Series
Strain Relief Bushing
STRAIN RELIEF BUSHINGS
Specifications:
• Material: UL94 V-2 Nylon
• Color: Black
Features:
• Protects electronic products by absorbing the forces of pull, push and twist
that may be exerted on a flexible power cord
• Securely protects cable at entry point
• To install: Position bushing on cable, press ends of bushing together with
installation tool (SRPL-2) and push into hole
• Can be mounted in either a round hole or anti-rotation hole
C
A
A
B
D
Mounting Holes
Strap Type Z
Strap Type Y
E
W?
2
.—
B
-----
FIBER, WIRE & CABLE MANAGEMENT
270 tel | 800 847 0486 fax | 866 561 6617
CABLE GLANDS
CG-NPT Series
NPT Cable Gland
SW-1
H Max
Thread
Size
L
Specifications:
• Material: Body and Nut: UL94 V-2
Nylon 6
Sealing Gland: CR/NBR
O-Ring: NBR
• Color: Black
• Material: Optional CGLN Locking Nut:
UL94 V-2 Glass-Filled Nylon 6
• Color: Black
Features:
• Protection Class: IP68 - 5 Bar
• Designed for superior sealing; no
O-Ring is needed for smaller sizes to
meet IP68 rating
• Operating temperature: -4°F - 212°F
(-20°C -100°C)
Nut
Sealing
Gland
Gland Body
O-Ring
(Included only
with NPT-1 Thread)
Item
No. Approval
Cable Ø Range
Min Cable Ø Range
Max
Thread
Size
Mounting Hole L SW-1 H Max Ref. Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
CG-NPT-1/4-1-BK — 0.157 4.0 0.315 8.0 NPT-1/4 0.524 13.3 0.354 9.0 0.748 19.0 1.378 35.0 100
CG-NPT-3/8-1-BK 0.118 3.0 0.276 7.0 NPT-3/8 0.670 17.0 0.571 14.5 0.866 22.0 1.750 44.5 100
CG-NPT-3/8-2-BK 0.197 5.0 0.394 10.0 NPT-3/8 0.670 17.0 0.571 14.5 0.866 22.0 1.750 44.5 100
CG-NPT-1/2-1-BK 0.197 5.0 0.236 9.0 NPT-1/2 0.875 22.2 0.571 14.5 0.945 24.0 1.770 45.0 100
CG-NPT-1/2-2-BK 0.276 7.0 0.472 12.0 NPT-1/2 0.875 22.2 0.591 15.0 1.063 27.0 1.870 47.5 100
CG-NPT-1/2-3-BK 0.394 10.0 0.551 14.0 NPT-1/2 0.875 22.2 0.591 15.0 1.063 27.0 1.870 47.5 100
CG-NPT-3/4-1-BK 0.354 9.0 0.630 16.0 NPT-3/4 1.068 27.1 0.591 15.0 1.299 33.0 2.050 52.0 50
CG-NPT-3/4-2-BK 0.551 14.0 0.709 18.0 NPT-3/4 1.068 27.1 0.591 15.0 1.299 33.0 2.050 52.0 50
CG-NPT-1-1-BK 0.472 12.0 0.787 20.0 NPT-1 1.350 34.3 0.709 18.0 1.654 42.0 2.380 60.5 25
CG-NPT-1-2-BK 0.748 19.0 0.984 25.0 NPT-1 1.350 34.3 0.709 18.0 1.654 42.0 2.380 60.5 25
Optional Locknuts
Locking Nuts
Item
No. Thread
Size
Across Flats Thickness Bulk
Pack
Qty.in mm in mm
CGNPT050B NPT-1/4 0.748 19.0 0.216 5.5 100
CGLN-NPT-3/8-BK NPT-3/8 0.866 22.0 0.197 5.0 100
CGLN-NPT-1/2-BK NPT-1/2 1.063 27.0 0.236 6.0 100
CGLN-NPT-3/4-BK NPT-3/4 1.417 36.0 0.276 7.0 100
CGLN-NPT-1-BK NPT-1 1.654 42.0 0.276 7.0 100
CG-M Series
Cable Gland – Metric Thread
Nut
Inner Sealing
Gland
Gland Body
Sealing
Washer
(Included only with
M32 and M40 Thread)
Outer
Sealing Gland
Item
No. Approval
Ø Cable Range
Min Ø Cable Range
Max
Thread
Size
Mounting Hole L SW-1 H Max Ref. Pack
Qty.
Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
CG-M12-1-BK 0.079 2.0 0.197 5.0 M12 0.480 12.2 0.315 8.0 0.591 15.0 1.220 31.0 1 100
CG-M16-1-BK 0.118 3.0 0.394 10.0 M16 0.638 16.2 0.315 8.0 0.787 20.0 1.398 35.5 1 100
CG-M20-1-BK 0.197 5.0 0.512 13.0 M20 0.795 20.2 0.315 8.0 0.945 24.0 1.417 36.0 1 100
CG-M25-1-BK 0.315 8.0 0.669 17.0 M25 0.992 25.2 0.315 8.0 1.142 29.0 1.623 43.0 1 50
CG-M32-1-BK 0.472 12 0.827 21.0 M32 1.268 32.2 0.394 10.0 1.417 36.0 1.968 50.0 1 25
CG-M40-1-BK 0.630 16 1.102 28.0 M40 1.583 40.2 0.394 10.0 1.811 46.0 2.008 51.0 1 10
Optional Locknuts
Locking Nuts
Item
No. Thread
Size
Across Flats Thickness Pack
Qty. Bulk Pack
Qty.in mm in mm
CGLN-M12-BK M12 0.339 17.0 0.197 5.0 1 100
CGLN-M16-BK M16 0.866 22.0 0.197 5.0 1 100
CGLN-M20-BK M20 1.063 27.0 0.236 6.0 1 100
CGLN-M25-BK M25 1.260 32.0 0.236 6.0 1 100
CGLN-M32-BK M32 1.614 41.0 0.276 7.0 1 100
CGLN-M40-BK M40 1.969 50.0 0.276 7.0 1 50
Specifications:
• Material: Body and Nut: UL94 V-2 Nylon 6
Sealing Gland: CR/NBR
O-Ring: NBR
• Color: Black
• Material: Optional CGLN Locking Nut: UL94 V-2 Glass-Filled Nylon 6
• Color: Black
Features:
• Protection Class: IP68 - 5 Bar
• Designed for superior sealing; no Sealing Washer is needed for
smaller sizes to meet IP68 rating
• Two Sealing Glands are included with all but the M12 thread.
Remove the inner sealing gland for larger cable diameters
.
a
<>
9
y
.
fl
H
:
NE
271
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CG-PG Series
PG Cable Gland
Specifications:
• Material: Body and Nut: UL94 V-2 Nylon 6
Sealing Gland: CR/NBR
O-Ring: NBR
• Color: Black
• Material: Optional CGLN Locking Nut:
UL94 V-2 Glass-Filled Nylon 6
• Color: Black
• Temperature Range: -4°F - 212°F (-20°C -100°C)
Features:
• Protection Class: IP68 - 5 Bar
• Designed for superior sealing; no O-Ring
needed for smaller sizes to meet IP68 rating
Nut
Sealing
Gland
Gland Body
O-Ring
(Included only
with PG29 and
PG36 Thread)
Item
No. Approval
Ø Cable Range Min Ø Cable Range
Max
Thread
Size
Mounting Hole L SW-1 H Max Ref. Pack
Qty.
Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
CG-PG7-1-BK 0.079 2.0 0.197 5.0 PG7 0.500 12.7 0.315 8.0 0.591 15.0 1.201 30.5 1 100
CG-PG7-2-BK 0.118 3.0 0.256 6.5 PG7 0.500 12.7 0.315 8.0 0.591 15.0 1.201 30.5 1 100
CG-PG9-1-BK 0.079 2.0 0.236 6.0 PG9 0.606 15.4 0.315 8.0 0.748 19.0 1.339 34.0 1 100
CG-PG9-2-BK 0.157 4.0 0.315 8.0 PG9 0.606 15.4 0.315 8.0 0.748 19.0 1.339 34.0 1 100
CG-PG11-1-BK 0.118 3.0 0.276 7.0 PG11 0.740 18.8 0.315 8.0 0.866 22.0 1.457 37.0 1 100
CG-PG11-2-BK 0.197 5.0 0.394 10.0 PG11 0.740 18.8 0.315 8.0 0.866 22.0 1.457 37.0 1 100
CG-PG13.5-1-BK 0.236 6.0 0.472 12.0 PG13.5 0.815 20.7 0.354 9.0 0.945 24.0 1.535 39.0 1 100
CG-PG16-1-BK 0.394 10.0 0.551 14.0 PG16 0.898 22.8 0.394 10.0 1.063 27.0 1.673 42.5 1 50
CG-PG21-1-BK 0.236 9.0 0.630 16.0 PG21 1.126 28.6 0.433 11.0 1.299 33.0 1.870 47.5 1 50
CG-PG21-2-BK 0.512 13.0 0.709 18.0 PG21 1.126 28.6 0.433 11.0 1.299 33.0 1.870 47.5 1 50
CG-PG29-1-BK 0.472 12.0 0.787 20.0 PG29 1.472 37.4 0.433 11.0 1.654 42.0 2.087 53.0 1 25
CG-PG36-1-BK 0.787 20.0 1.024 26.0 PG36 1.870 47.5 0.512 13.0 2.087 53.0 2.402 61.0 1 10
CG-PG36-2-BK 0.866 22.0 1.260 32.0 PG36 1.870 47.5 0.512 13.0 2.087 53.0 2.402 61.0 1 10
Optional Locknuts
Locking Nuts
Item
No. Thread
Size
Across Flats Thickness Pack
Qty.
Bulk
Pack
Qty.In mm In mm
CGLN-PG7-BK PG7 0.748 19.0 0.197 5.0 1 100
CGLN-PG9-BK PG9 0.866 22.0 0.197 5.0 1 100
CGLN-PG11-BK PG11 0.945 24.0 0.197 5.0 1 100
CGLN-PG13.5-BK PG13.5 1.063 27.0 0.236 6.0 1 100
CGLN-PG16-BK PG16 1.181 30.0 0.236 6.0 1 100
CGLN-PG21-BK PG21 1.417 36.0 0.276 7.0 1 100
CGLN-PG29-BK PG29 1.811 46.0 0.276 7.0 1 100
CGLN-PG36-BK PG36 2.362 60.0 0.315 8.0 1 50
SW-1
Thread
Size
L
H Max
CABLE GLANDS
CGRA Series
90° NPT Cable Glands
Optional Parts
Item
No. NPT
Thread Mounting
Hole
Overall Length L Mounting Thread
L1 Nut Length L2 Overall Height H Variable Clamping Range
(Min/Max) Pack
Qty.
Bulk
Pack
Qty.in mm in mm in mm in mm in mm
CGRA011A 3/8 0.687 1.909 48.5 0.461 11.7 0.657 16.7 1.181 30.0 0.197 - 0.354 5.0 - 8.0 1 20
CGRA015A 1/2 0.875 2.031 51.6 0.579 14.7 0.724 18.4 1.228 31.2 0.393 - 0.512 10.0 - 13.0 1 20
CGRA018A 3/4 1.0625 2.539 64.5 0.583 14.8 0.878 22.3 1.638 41.6 0.512 - 0.630 13.0 - 16.0 1 20
CGRA020A 1-1/4 1.687 3.346 85.0 0.740 18.8 1.220 31.0 2.087 53.0 0.866 - 1.412 22.0 - 29.0 1 10
L2
Sealing Nut
H
L1
L
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Black
• Temperature Range: Working –40°F to 221°F
(–40°C to 105°C)
Intermittent up to 300°F (149°C)
Features:
• IP 68 rated protection: 5 bar
• Provides dust and water-tight performance and strain relief
• EPDM gasket and lock nut are sold separately
LNPT - NPT Locknuts
Locknut Item
No. NPT Thread Pack Qty. Bulk Pack
Qty.
LNPT100B 3/8" 1 50
LNPT200B 1/2" 1 50
LNPT300B 3/4" 1 50
LNPT005B 1-1/4" 1 10
FIBER, WIRE & CABLE MANAGEMENT
272 tel | 800 847 0486 fax | 866 561 6617
PANEL HOLE PLUGS & CABLE GROMMETS
Metric & PG Threaded Rubber Plug
Specifications:
• Material: Silicone Rubber
• Color: Black
Features:
• Can be pushed into place using a blunt tipped tool
• Used to give water tight protection to spare holes that need to be closed off
• Pull tab for easy removal
• Fits standard Metric and PG sizes
Item
No.
Cable
Gland
Sizes
Ø Hole Panel Thickness Range d D h Bulk
Pack
Qty.in mm in mm in mm in mm in mm
551846 PG7/M12 0.480 - 0.492 12.2 - 12.5 0.039 - 0.079 1.0 - 2.0 0.571 14.5 0.968 24.6 0.189 4.8 1000
551847 PG9/M16 0.606 - 0.638 15.4 - 16.2 0.039 - 0.079 1.0 - 2.0 0.689 17.5 1.087 27.6 0.197 5.0 500
551848 PG11/PG13.5/M20 0.740 - 0.815 18.8 - 20.7 0.039 - 0.079 1.0 - 2.0 0.905 23.0 1.346 34.2 0.236 6.0 500
551849 PG16 0.898 22.8 0.039 - 0.079 1.0 - 2.0 1.024 26.0 1.520 38.6 0.256 6.5 200
551850 PG21/M25 0.992 - 1.126 25.2 - 28.6 0.039 - 0.079 1.0 - 2.0 1.220 31.0 1.732 44.0 0.295 7.5 100
551851 M32 1.268 - 1.394 32.2 - 35.4 0.039 - 0.079 1.0 - 2.0 1.575 40.0 2.205 56.0 0.354 9.0 100
CGA Series
Cable Grommet
Specifications:
• Material: Silicone Rubber, 70 Shore A
• Color: Black
Features:
• Routes cables and protects wires from sharp edges
• "Wings" are flexible so it can accept various diameters and
shapes
• Continuous working temperature of 300°F
Item
No.
Ø Maximum Bundle Panel Thickness Bulk
Pack
Qty.in mm in mm
1258288 0.591 15.0 0.039 1.0 1000
CGB Series
Cable Grommet
Specifications:
• Material: Silicone Rubber, 65 Shore A
• Color: Black
Features:
• Routes cables and protects wires from sharp edges
• "Wings" are flexible so it can accept various diameters and
shapes
• Continuous working temperature of 350°F Item
No.
Bundle Area Max Panel Thickness Bulk
Pack
Qtyin mm in mm
CGB-1 0.394 x 0.236 10.0 x 6.0 0.110 2.8 1000
CGC Series
Cable Grommet
Specifications:
• Material: Nylon 6/6
• Color: Natural
Features:
• Routes cables and protects wires from sharp
edges
• "Wings" are flexible so it can accept
various diameters and shapes
• Cables may be inserted and removed
Recommended Panel
Cut-Out
Recommended Panel
Cut-Out
Item
No.
Bundle Area Max Panel Thickness Bulk
Pack
Qtyin mm in mm
CGC-1-01 0.844 x 0.787 21.4 x 20.0 0.047 1.2 250
Recommended Panel
Cut-Out
TV
273
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Item
No.
Cable
Gland
Sizes
Ø Hole Panel Thickness Range d D h Bulk
Pack
Qty.in mm in mm in mm in mm in mm
551846 PG7/M12 0.480 - 0.492 12.2 - 12.5 0.039 - 0.079 1.0 - 2.0 0.571 14.5 0.968 24.6 0.189 4.8 1000
551847 PG9/M16 0.606 - 0.638 15.4 - 16.2 0.039 - 0.079 1.0 - 2.0 0.689 17.5 1.087 27.6 0.197 5.0 500
551848 PG11/PG13.5/M20 0.740 - 0.815 18.8 - 20.7 0.039 - 0.079 1.0 - 2.0 0.905 23.0 1.346 34.2 0.236 6.0 500
551849 PG16 0.898 22.8 0.039 - 0.079 1.0 - 2.0 1.024 26.0 1.520 38.6 0.256 6.5 200
551850 PG21/M25 0.992 - 1.126 25.2 - 28.6 0.039 - 0.079 1.0 - 2.0 1.220 31.0 1.732 44.0 0.295 7.5 100
551851 M32 1.268 - 1.394 32.2 - 35.4 0.039 - 0.079 1.0 - 2.0 1.575 40.0 2.205 56.0 0.354 9.0 100
Item
No.
Ø Maximum Bundle Panel Thickness Bulk
Pack
Qty.in mm in mm
1258288 0.591 15.0 0.039 1.0 1000
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: See Table
Features:
• Mounts vertically or horizontally
• Routes cables and protects wires from sharp edges
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Snaps into cutout on the board
• Routes cables and protects wires from sharp edges
Item
No. Approval
Panel Thickness A B C D Depth Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm
EWSE-12.8-01 0.031 - 0.063 0.8 - 1.6 0.200 5.0 0.440 11.3 0.320 8.1 0.360 9.1 0.140 3.6 1000
EWSE-8.1-01 0.031 - 0.063 0.8 - 1.6 0.390 10.0 0.640 16.2 0.500 12.8 0.540 13.8 0.140 3.6 1000
EDGE WIRE SADDLES
EHWSE/EWSE/EWSJS Series
Edge Wire Saddle
EWSE Series
Edge Wire Saddle
Item
No. Figure Approval Color
Panel Thickness Depth Bulk
Pack
Qty.in mm in mm
EHWSE-1-01 1Natural 0.039 - 0.079 1.0 - 2.0 0.240 6.2 1000
EWSE-1-01 2 Black 0.032 - 0.078 0.8 - 1.2 0.190 4.8 1000
EWSE-2-01 2 Natural 0.047 - 0.063 1.2 - 1.6 0.190 4.8 1000
EWSE-3-01 2 Grey 0.063 - 0.079 1.6 - 2.0 0.190 4.8 1000
EWSJS-1-01 3 — Natural 0.032 - 0.078 0.8 - 2.0 0.260 6.6 1000
Recommended Mounting HoleFigure 1
Ø.197 (5.0)
.236 (6.0)
Figure 2
BA
.20 (5.0)
Recommended Panel Cut-Out
R. .020 (0.5) Ty p.
.551 (14.0)
R. .039
(1.0)
.630 (16.0)
.394
(10.0)
.079 (2.0)
Figure 3
.850
(21.6) .461 (11.7)
.256 (6.5)
Ref.
.416
(10.6)
Thru Hole Panel
Cut-Out
Edge Hole Panel
Cut-Out
.551
(14.0)
.394
(10.0)
.630
(16.0)
.079 (2.0)
R. .039
(1.0) .079 (2.0)
R. .020 (0.5) Ty p.
R. .039
(1.0)
BA
.20 (5.0)
Recommended Panel Cut-Out
C
.14 (3.6)
R. .020 (0.5)
Ty p.
D
.24
(6.1)
name 1
MCCG-I u
races—2n
Macs—an
Mccsdu
Macs—m
a
222::
$9???;
UN_‘_;
93“-
o 190
msn
0 [ED
nun
om
mm». mm
Pack
a my
mo
ma
mo
ma
mo
Ono-ibis
mmmmmi
FIBER, WIRE & CABLE MANAGEMENT
274 tel | 800 847 0486 fax | 866 561 6617
EDGE WIRE SADDLES & GROMMET EDGING
HEWSE Series
Hinged Edge Wire Saddle
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Routes cables and protects them
from sharp edges
• Installed in a mounting slot; edge
or through-hole
• Hinged latch allows retrofitting into
pre-existing applications
Specifications:
• Material: UL94 V-2
Nylon 6/6
• Color: Natural
Item
No.
Panel Thickness A Depth Bulk
Pack
Qty.Figure in mm in mm in mm
HEWSE-22-01 10.020 - 0.063 0.5 - 1.6 0.980 25.0 0.260 6.6 1000
HEWSE-25-01 20.031 - 0.063 0.8 - 1.6 0.980 25.0 0.260 6.6 1000
HEWSE-25-01 2 0.079 2.0 1.020 26.0 0.260 6.6 1000
Figure 1 Figure 2
.77 (19.6)
.75
(19.0)
1.22 (31.0)
.77 (19.6)
1.20 (30.4)
.33
(8.5)
.48 (12.1)
Thru Hole Panel
Cut-Out
Edge Hole Panel
Cut-Out
Thru Hole
Panel Cut-Out
Edge Hole Panel
Cut-Out
.71
(18.0)
.87 (22.0)
.87 (22.0)
.20 (5.0)
.71
(18.0)
AA
.20
(5.0)
A
A
.161
(4.1)
.858 (21.8)
.858 (21.8)
.161
(4.1)
.421 (10.7)
.421 (10.7)
LEWSE Series
Edge Wire Saddle
Item
No. Panel
Thickness
A Ref. B Ref. C Ref. D E F I G R. J R. K Bulk
Pack
Qty.in in in in in in in in in in
LEWSE-14-01 0.031 - 0.063 0.780 0.460 0.290 0.640 0.160 0.551 0.484 0.106 0.079 0.039 1000
LEWSE-19-01 0.031 - 0.063 1.060 0.660 0.590 0.980 0.150 0.756 0.831 0.100 0.079 0.039 1000
LEWSE-21-01 0.031 - 0.063 1.130 0.660 0.580 0.980 0.150 0.827 0.827 0.100 0.079 0.060 1000
LEWSE-27-01 0.031 - 0.063 1.370 0.900 0.910 1.310 0.120 10.630 1.140 0.106 0.079 0.060 1000
E
C
Ref. D
B Ref.
A Ref.
.18
(4.6)
Recommended Panel Cut-Out
F
I
R. K Ø.106 (2.7)
G
R. J
MCCG Series
Metal Cushioned Grommet
Specifications:
• Material: 304 Stainless Steel,
Coated with Black Nylon 1
Cushion: UL94 V-0 TPE (60 Shore D)
• Temperature Range: -40°F - 285°F (-40°C - 140°C)
Features:
• Dielectric Strength: 1500 volts @ 60Hz
• Flexible polymer cushion gives additional
abrasion protection
• Sold in 100 foot reels that can be cut to
length using metal shears
• The MCCGF is the more flexible of
the two due to the design
Item No.
Approval
Fits Panel Thickness Width W Roll
Length Pack
Qty.Figure 1 Figure 2 in mm in mm ft
MCCG-1N MCCGF-1N 0.029 - 0.045 0.7 - 1.1 0.190 4.8 100 1
MCCG-2N MCCGF-2N 0.044 - 0.056 1.1 - 1.4 0.190 4.8 100 1
MCCG-3N MCCGF-3N 0.055 - 0.069 1.4 - 1.7 0.190 4.8 100 1
MCCG-4N — 0.069 - 0.090 1.7 - 2.3 0.230 5.8 100 1
MCCG-6N — 0.113 - 0.130 2.9 - 3.3 0.230 5.8 100 1
Figure 2
Figure 1
Features:
• Locking pin in mounting base provides firm grip to the board
• Protects wires from sharp edges
• Available in four different sizes
m $6M
$5 "1“
w M
J
”a“ T w L
fimz’wwa
mm 1
QED"
-.-T v WWW
n“ T my"
‘ Tm
T% FT 5. “WM
@
275
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
GROMMET EDGING
MCG/MCGF Series
Metal Grommet
Specifications:
• Material: 304 Stainless Steel, Coated with Black Nylon 11
and a cushion of TPE 60 Shore D UL94V-0 rating
• Color: See Table
• Temperature Range: -40°F - 285°F (-40°C - 140°C)
Features:
• Dielectric Strength: 1000 Volts @ 60Hz
• Locks onto panel with finger pressure
• Sold in 100 foot reels that can be cut to length using metal shears
• The MCGF is the more flexible of the two due to the design
Item No.
Approval
Fits Panel Thickness Width W Color
Coded
Roll Length Pack
Qty.Figure 1 Figure 2 in mm in mm ft
MCG-1N —0.029 - 0.045 0.7 - 1.1 0.140 3.6 — 100 1
MCG-2N —0.044 - 0.056 1.1 - 1.4 0.140 3.6 — 100 1
MCG-3N —0.055 - 0.069 1.4 - 1.7 0.140 3.6 — 100 1
MCG-4N —0.069 - 0.090 1.7 - 2.3 0.180 4.6 — 100 1
MCG-6N —0.113 - 0.130 2.9 - 3.3 0.180 4.6 — 100 1
— MCGF-1N 0.029 - 0.045 0.7 - 1.1 0.130 3.3 White 100 1
— MCGF-2N 0.044 - 0.056 1.1 - 1.4 0.130 3.3 Pink 100 1
— MCGF-3N 0.055 - 0.069 1.4 - 1.7 0.130 3.3 Yellow 100 1
.02
(0.5)
W
.18 (4.6)
.15 (3.8)
Part Number
Identified
Figure 1
Figure 2
Specifications:
• Material Options:
UL94 HB Nylon Temperature Range: -40°F - 248°F (-40°C - 120°C)
Polyethylene: Temperature Range: -40°F - 149°F (-40°C - 65°C)
• Color: See Table
Features:
• Adhesive provides self-retaining grip eliminating the need for epoxy
• Sizes 6, 7, and 8 are extra flexible
• Solid version is for straight edges
• Serrated version for round, square, and rectangular holes
• Polyethylene material is very flexible
Solid Profile Item No. Serrated Profile Item No.
Material
Panel Thickness Range A Ref. B Ref. C Ref. Roll
Length Pack
Qty.Natural Black Natural Black in mm in mm in mm in mm ft
NGSG-2 — SNGSG-2 SNGSG-2B UL94 HB Nylon 0.037 - 0.071 0.9 -1.8 0.172 4.4 0.031 0.8 0.109 2.8 100 1
NGSG-2.5 — SNGSG-2.5 — UL94 HB Nylon 0.072 - 0.105 1.8 - 2.7 0.172 4.4 0.031 0.8 0.109 2.8 100 1
NGSG-3 — SNGSG-3 — UL94 HB Nylon 0.106 - 0.164 2.7 - 4.2 0.188 4.8 0.047 1.2 0.156 4.0 100 1
PGSG-2 PGSG-2B SPGSG-2 SPGSG-2B Polyethylene 0.037 - 0.071 0.9 -1.8 0.172 4.4 0.031 0.8 0.109 2.8 100 1
PGSG-6 PGSG-6B SPGSG-6 — Polyethylene 0.037 - 0.071 0.9 -1.8 0.160 4.1 0.025 0.6 0.060 1.5 100 1
PGSG-2.5 PGSG-2.5B SPGSG-2.5 SPGSG-2.5B Polyethylene 0.072 - 0.105 1.8 - 2.7 0.172 4.4 0.031 0.8 0.109 2.8 100 1
— — SPGSG-7 — Polyethylene 0.072 - 0.105 1.8 - 2.7 0.188 4.8 0.035 0.9 0.100 2.5 100 1
PGSG-3 PGSG-3B SPGSG-3 SPGSG-3B Polyethylene 0.106 - 0.164 2.7 - 4.2 0.188 4.8 0.047 1.2 0.156 4.0 100 1
— — SPGSG-8 — Polyethylene 0.106 - 0.164 2.7 - 4.2 0.188 4.8 0.035 0.9 0.156 4.0 100 1
NGSG/SNGSG/PGSG/SPGSG Series
Continuous Grommet Edging with Adhesive
NGS/PGS/SNGS/SPGS Series
Continuous Grommet Edging
Specifications:
• Material: See Table
• Color: See Table
Features:
• Solid version is for straight edges
• Serrated version for round, square, and rectangular holes
• Polyethylene material is very flexible
Solid Profile Item No Serrated Profile Item No.
Material
Panel Thickness Range A Ref. B Ref. C Ref. Roll
Length Pack
Qty.
Natural Black Natural Black in mm in mm in mm in mm ft
NGS-1 — SNGS-1 SNGS-1B UL94 HB Nylon 0.026-0.036 0.7 - 0.9 0.125 3.2 0.031 0.8 0.031 0.8 100 1
NGS-2 — SNGS-2 SNGS-2B UL94 HB Nylon 0.037-0.071 0.9 -1.8 0.172 4.4 0.031 0.8 0.109 2.8 100 1
— — SNGS-2.5 SNGS-2.5B UL94 HB Nylon 0.072-0.105 1.8 - 2.7 0.172 4.4 0.031 0.8 0.109 2.8 100 1
— — SNGS-3 SNGS-3B UL94 HB Nylon 0.106-0.164 2.7 -4.2 0.188 4.8 0.047 1.2 0.156 4.0 100 1
— — SNGS-4 SNGS-4B UL94 HB Nylon 0.164-0.187 4.2 - 4.7 0.188 4.8 0.047 1.2 0.188 4.8 100 1
— — SNGS-5 — UL94 HB Nylon 0.188-0.250 4.8 - 6.4 0.188 4.8 0.047 1.2 0.250 6.4 100 1
PGS-1 PGS-1B SPGS-1 — Polyethylene 0.026-0.036 0.7 - 0.9 0.125 3.2 0.031 0.8 0.031 0.8 100 1
PGS-2 — SPGS-2 — Polyethylene 0.037-0.071 0.9 -1.8 0.172 4.4 0.031 0.8 0.109 2.8 100 1
PGS-2.5 PGS-2.5B SPGS-2.5 SPGS-2.5B Polyethylene 0.072-0.105 1.8 - 2.7 0.172 4.4 0.031 0.8 0.109 2.8 100 1
PGS-3 — SPGS-3 — Polyethylene 0.106-0.164 2.7 -4.2 0.188 4.8 0.047 1.2 0.156 4.0 100 1
I . GROMMET EDGING
s
rammet smp
» roan w
.2 mm 750
m m: a» 4]
mm ‘ ‘ JED“
mm» L‘
‘1/
gm n Law)
FIBER, WIRE & CABLE MANAGEMENT
276 tel | 800 847 0486 fax | 866 561 6617
GROMMET EDGING
Item
No. Militart Part
Number Panel Thickness A B C D Bulk Pack
Qty.
MGS-1-01 MS21266-1N 0.015 - 0.052 0.150 0.056 0.055 0.100 100
MGS-2-01 MS21266-2N 0.052 - 0.085 0.175 0.090 0.055 0.100 100
MGS-3-01 MS21266-3N 0.085 - 0.128 0.220 0.131 0.055 0.100 100
MGS-4-01 MS21266-4N 0.128 - 0.192 0.325 0.195 0.070 0.160 100
MGS-5-01 MS21266-5N 0.192 - 0.255 0.385 0.260 0.070 0.170 100
MGS-6-01 MS21266-6N 0.255 - 0.318 0.445 0.320 0.075 0.180 100
MGS-8-01 MS21266-8N 0.380 - 0.510 0.640 0.515 0.075 0.180 50
MGS Series
MS21266 Grommet Strip
Specifications:
• Material: UL94 V-2 Nylon 6/6
• Color: Natural
Features:
• Ideally suited to cover normal
and irregular shaped holes in
sheet metal
• Complies with NASM21266
• Minimum hole diameter is 1"
RG Series
Rubber Grommet Edging
Specifications:
• Material: TPE
• Color: Black
Features:
• Supplied in rolls that can be cut to required length
• Prevents wires and cables from chafing against sharp edges
Item
No.
Fits Panel Thickness A Ref B Max Roll Length Pack
Qty.in mm in mm in mm ft m
RG-1 0.063 1.6 0.264 6.7 0.030 0.8 100 30 1
RG-2 0.093 2.4 0.293 7.4 0.060 1.5 100 30 1
RG-3 0.125 3.2 0.324 8.2 0.090 2.3 100 30 1
Item
No.
Panel Thickness A Panel Thickness B Overall Width C Roll Length Pack
Qty.
in mm in mm in mm ft m
GRE32343A 0.031 0.78 0.047 1.19 0.276 7.01 164 50 1
GRE34074A 0.039 0.99 0.079 2.00 0.315 8.00 164 50 1
GRE34075A 0.059 1.49 0.110 2.79 0.374 9.50 164 50 1
GRE34076A 0.106 2.69 0.149 3.78 0.413 10.49 164 50 1
GRE34077A 0.146 3.70 0.204 5.18 0.433 11.00 164 50 1
GRE34078A 0.209 5.30 0.267 6.78 0.512 13.00 164 50 1
GRE Series
PVC Grommet Edging
Specifications:
• Material: Soft PVC
• Color: Black
Features:
• Protects sharp or delicate edges
• Fits irregular shapes and a range of panel thicknesses
• PVC material is non-staining; resistant to ozone, acids,
and sunlight; with excellent aging qualities
B
C
A
174
,4
MM
277
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
CHANNELS & INSULATORS
Item
No.
Fits Panel Thickness A Ref B Ref C Min.
Figure
Length Bulk
Pack
Qty.
Pack
Qty.
in mm in mm in mm in mm ft m
CH200X250-48 0.250 6.4 0.200 5.1 0.375 9.5 0.25 6.4 1 4 1.22 100 ft 1
CH15X50-48 0.050 1.3 0.015 0.4 0.437 11.1 0.05 1.3 1 4 1.22 100 ft 1
CH20X141-48 0.140 3.6 0.020 0.5 0.562 14.3 0.14 3.6 2 4 1.22 100 ft 1
Item
No. Approval Terminal
Type
Ø Wire A B C D E F G H R.J KBulk
Pack
Qty.in mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in mm
OS-187 Straight Type 187
Series 9/64 3.6 0.346 8.8 0.240 6.1 0.106 2.7 0.102 2.6 0.268 6.8 0.039 1.0 0.154 3.9 0.594 15.1 0.071 1.8 0.295 7.5 500
OS-250 Straight Type 187
Series 5/32 3.8 0.386 9.8 0.311 7.9 0.164 3.4 0.110 2.8 0.315 8.0 0.039 1.0 0.185 4.7 0.728 18.5 0.081 2.1 0.358 9.1 500
Specifications:
• Material: ULB94 HB
Polystyrene
• Color: White
Features:
• Protects from sharp edges
• Binds and frames
• Sold in 4 foot lengths that can be cut to desired length
Specifications:
• Material: UL94 V-2 Nylon 6
• Color: Natural
Features:
• Insulating sleeve for straight type receptacles
• Installs easily by hand; slip the sleeve onto
receptacle and snap shut with fingers
• For pre-assembled wire and receptacle
CH Series
Polystyrene Channel
OS Series
Straight Terminal Insulator
Item
No.
A Fits Panel Thickness BC Ref Wall Thickness Length Bulk Pack
Qty. Pack
Qty.in mm in mm in mm in mm ft m
DSC-.5-48 0.062 1.6 0.300 7.6 0.031 0.8 0.031 0.8 4 1.22 100 Ft 1
DSC-1-48 0.125 3.2 0.375 9.5 0.020 0.5 0.047 1.2 4 1.22 100 Ft 1
DSC-2-48 0.188 4.8 0.500 12.7 0.031 0.8 0.047 1.2 4 1.22 100 Ft 1
DSC-3-48 0.250 6.4 0.625 15.9 0.045 1.1 0.063 1.6 4 1.22 100 Ft 1
DSC Series
Nylon Grommet Edging
A
B
C4’ (1.22m)
Specifications:
• Material: UL94 HB
MDS Filled Nylon
• Color: Gray
Features:
• Used as wear strips, non-abrasive edging, noise-reducing conveyor
strips, framing, binding, or to protect from sharp edges
• Built-in lubricant for reduced friction and longer part life
• Resistant to ordinary solvents, mild acids and alkalis or fungus growth
• Comes in 4 foot lengths that can be cut to desired length
A
B
K
D
E
F
G
H
.039
(1.0)
C
R. J
A
B
C
A
C
B
_[
4L
_‘_
Eu:
L23:
i4
Hblr
am
«I
FIBER, WIRE & CABLE MANAGEMENT
278 tel | 800 847 0486 fax | 866 561 6617
INSULATORS
Item
No. Approval Terminal Type
Wire Ø Bulk
Pack
Qty.in mm
OF-250 Flag Type 250 Series 0.150 3.9 500
Specifications:
• Material: UL94 V-2 Nylon 6
• Color: Natural
Features:
• Insulating sleeve for flag type receptacles
• Installs easily by hand; slip the sleeve onto
receptacle and snap shut with fingers
• For pre-assembled wire and receptacle
Specifications:
• Material: UL94 V-0 Soft PVC
• Color: Transparent Blue
• UL Temperature Range: 221°F (105°C)
• UL Voltage: 600V
Features:
• Replaces heat shrink tubing
• Made from a specially formulated soft
PVC for fast, flexible installation
• Transparent for visual inspection
• No corrosion when exposed to copper
Specifications:
• Material: UL94 V-0 Soft PVC
• Color: Transparent Blue
• UL Temperature Range: 221°F (105°C)
• UL Voltage: 600V
Features:
• Replaces heat shrink tubing
• Made from a specially formulated soft
PVC for fast, flexible installation
• Transparent for visual inspection
• No corrosion when exposed to copper
OF Series
Flag Terminal Insulator
Quick Fit Straight Terminal Insulator
Quick Fit Flag Terminal Insulator
.04 (1.0
)
ØD2
L1 L
T.20
(5.0)
.10 (2.5)
ØD2
ØD1
.20 (5.0)
ØD1
.10
(2.5)
.23
(5.8) .32
(8.0)
ØD2 ØD2
ØD1 ØD1
L1 L1
L2 L2
L
L
TT
.09
(2.2) .14
(3.5)
L1
L
Figure 1
Figure 3
Figure 2
Figure 4
.35 (8.8)
.63
(16.0)
.12
(3.0)
R. 08 (2.0)
.04
(1.0)
.53
(13.5)
.04 (1.0)
.20 (5.1)
.41 (10.3)
Ty p. Ref. .31
(8.0)
.41 (10.3)
.15 (3.9)
.70
(17.8)
Ref.
Item
No. Figure
Wire OD Range Wire
Gauge
Ø D1 Ø D2 L1 L2 L T Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm in mm
224225 1 0.580-0.091 1.5-2.3 22-18 0.100 2.5 0.160 4.1 0.240 6.1 — — 0.510 13.0 — — 1000
224230 1 0.068-0.113 1.7-2.9 20-18 0.120 3.0 0.160 4.1 0.240 6.1 — — 0.510 13.0 — — 1000
215025 2 0.580-0.091 1.5-2.3 22-18 0.100 2.5 0.160 4.1 0.240 6.1 — — 1.300 33.0 .04 1.0 1000
215032 2 0.071-0.126 1.8-3.2 18-16 0.130 3.3 0.180 4.6 0.280 7.1 — — 1.340 34.0 .04 1.0 1000
235830 3 0.580-0.091 1.5-2.3 20-18 0.120 3.0 0.160 4.0 0.200 5.0 0.100 2.5 0.910 23.0 .03 .08 1000
235835 3 0.071-0.140 1.8-3.6 18-14 0.140 3.5 0.180 4.5 0.200 5.0 0.120 3.0 0.910 23.0 .03 .08 1000
238032 4 0.071-0.126 1.8-3.2 18-16 0.130 3.3 0.190 4.8 0.200 5.1 0.100 2.5 0.950 24.1 .04 1.0 1000
238035 4 0.071-0.140 1.8-3.6 18-14 0.140 3.6 0.180 4.6 0.200 5.1 0.120 3.0 0.950 24.1 .04 1.0 1000
238040 4 0.091-0.140 2.3-3.6 16-14 0.160 4.1 0.200 5.1 0.200 5.1 0.120 3.0 0.970 24.6 .04 1.0 1000
238048 4 0.113-0.190 2.9-4.8 14-12 0.190 4.8 0.250 6.3 0.200 5.1 0.100 2.5 0.980 24.6 .04 1.0 1000
Item
No.
Wire OD Range Wire
Gauge
Ø D1 Ø D2 L1 L2 W1 W2 T Bulk
Pack
Qty.in mm in mm in mm in mm in mm in mm in mm in mm
248532 0.071 - 0.126 1.8 - 3.2 18 - 16 0.130 3.2 0.170 4.2 0.530 13.5 0.690 17.5 0.340 8.5 0.180 4.5 0.040 1.0 1000
248548 0.133 - 0.190 2.9 - 4.8 14 - 12 0.190 4.8 0.230 5.8 0.530 13.5 0.690 17.5 0.340 8.5 0.180 4.5 0.040 1.0 1000
T
x x
E
1
T
L
LNEQZV Lr T 1
V‘
?
Mi
279
FIBER, WIRE & CABLE MANAGEMENT
email | sales@essentracomponents.com web | www.essentracomponents.com
Specifications:
• Material: ABS or PS
• Color: Black
• Surface Finish: Textured or Polished
Features:
• Used extensively on office furniture and computer desks to eliminate the clutter of wires and cables
• Several shapes and styles; most can be coordinated to match the color of your desk surface
• Layer packed for your convenience and to protect the surface during shipping
WMRG Series
Round Desk Grommets
Specifications:
• Material: K-Resin
• Color: Clear
Features:
• Umbrella grommets are used on patio and casual
furniture to protect tables from umbrella damage
• The plug finishes the table when the umbrella is not present
WMUG Series
Round Umbrella Table Grommets
Item
No.
Ø To Fit Hole
Type Pack
Qty.
Bulk
Pack
Qty.in
WMUG100C 2.000 Bushing/Ring 1 900
WMUG110D fits into WMUG100C Cover/Lid 1 900
Specifications:
• Material: See Table
• Color: Black
• Surface Finish: Textured
Features:
• Wire management grommets are used extensively on office furniture
and computer desks to eliminate the clutter of wires and cables
WMTG Series
Rectangular Table Grommets
Item
No. Type Style
A B C Ø To Fit Hole
Material Surface Finish
Bulk
Pack
Qty.in in in in
WMTG100A B 3-Piece 3.500 2.125 0.700 3.250 x 1.875 ABS Textured 525
WMTG110A B 3-Piece 3.500 2.125 1.250 3.230 x 1.865 ABS Textured 315
WMTG120A A 2-Piece 3.475 2.102 1.250 3.250 x 1.865 ABS Textured 189
WMTG150A B 2-Piece 3.500 2.134 1.287 3.250 x 1.865 ABS Textured 320
WMTG170A C 2-Piece 3.365 2.245 1.750 3.125 x 2.000 ABS Textured 204
WMTG180A D 2-Piece 4.020 2.010 0.775 3.770 x 1.750 Polypropylene Textured 288
BB
AA AA A
BBB
Type A Type EType DType CType B
B
C
A
B
A
C
A
B
C
B
C
A
Type AType BType
CT
ype D
DESK GROMMETS
Item
No. Type Style
A B Ø To Fit Hole
Material Surface Finish
Bulk
Pack
Qty.in in in
WMRG100A A 3-PIECE 1.500 0.469 1.250 ABS Textured 1000
WMRG110B D 3-PIECE 2.250 1.000 2.000 ABS Polished 400
WMRG130A D 3-PIECE 2.250 1.000 2.000 ABS Textured 600
WMRG140A B 2-PIECE 3.000 0.540 2.500 ABS Textured 750
WMRG160A C 3-PIECE 3.000 1.050 2.750 ABS Textured 400
WMRG170C A 3-PIECE 3.000 1.050 2.750 ABS Polished 300
WMRG180B E 2-PIECE 3.625 1.100 3.250 PS Textured 240
WMRG190B D 3-PIECE 2.250 1.000 2.000 ABS Textured 400
Products related to this Datasheet
CONN DUST CAP FOR RJ45 CONNECTOR
CBL TIE LOCKING NAT 50LBS 11.02"
CBL CLAMP FLAT NATURAL PUSH IN
CBL CLIP TWIST LOCK NATURAL
CBL TIE LOCKING NAT 18LBS 3.93"
CBL CLIP TWIST LOCK NATURAL
CBL CLIP C-TYPE NATURAL ADHESIVE
CBL CLIP P-TYPE NATURAL FASTENER
CBL CLIP WIRE SADDLE NATURAL ADH
CBL CLIP C-TYPE GRAY ADHESIVE
CBL TIE LOCKING BLK 18LBS 3.93"
CBL TIE LOCKING NAT 18LBS 7.87"
CONN DUST COVER FOR USB A
CBL CLIP C-TYPE NATURAL ADHESIVE
CBL CLIP WIRE SADDLE NATURAL ADH
GROMMET 0.126" ELASTOMER BLACK
CBL CLAMP HOSE WHITE
CBL TIE LOCKING NAT 40LBS 5.91"
CABLE TIE HLDR QUAD ADH WHT
CBL CLIP WIRE SADDLE NAT PUSH IN
CABLE TIE HLDR QUAD ADH NAT
CABLE TIE HLDR SGL PUSH WING MNT
CBL CLIP WIRE SADDLE NAT ARROW
CBL CLIP P-TYPE NATURAL FASTENER
CBL CLIP BENDABLE BLACK FASTENER
CBL CLIP U-TYPE GRAY ADHESIVE
CBL CLIP WIRE SADDLE NAT ARROW
HANKING TIE NATURAL 5.91"
CBL CLIP P-TYPE NATURAL FASTENER
CABLE TIE HLDR DUAL BUTTON MNT
