Processor Extension Pak (PEP)
and Debug Header
Specification
YSTEM
DS50001292W-page 2 2006-2015 Microchip Technology Inc.
Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights unless otherwise stated.
Note the following details of the code protection feature on Microchip devices:
• Microchip products meet the specification contained in their particular Microchip Data Sheet.
• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.
• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
• Microchip is willing to work with the customer who is concerned about the integrity of their code.
• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Microchip received ISO/TS-16949:2009 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC® MCUs and dsPIC® DSCs, KEELOQ® code hopping
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.
QUALITY MANAGEMENT S
YSTEM
CERTIFIED BY DNV
== ISO/TS 16949 ==
Trademarks
The Microchip name and logo, the Microchip logo, dsPIC,
FlashFlex, flexPWR, JukeBlox, KEELOQ, KEELOQ logo, Kleer,
LANCheck, MediaLB, MOST, MOST logo, MPLAB,
OptoLyzer, PIC, PICSTART, PIC32 logo, RightTouch, SpyNIC,
SST, SST Logo, SuperFlash and UNI/O are registered
trademarks of Microchip Technology Incorporated in the
U.S.A. and other countries.
The Embedded Control Solutions Company and mTouch are
registered trademarks of Microchip Technology Incorporated
in the U.S.A.
Analog-for-the-Digital Age, BodyCom, chipKIT, chipKIT logo,
CodeGuard, dsPICDEM, dsPICDEM.net, ECAN, In-Circuit
Serial Programming, ICSP, Inter-Chip Connectivity, KleerNet,
KleerNet logo, MiWi, motorBench, MPASM, MPF, MPLAB
Certified logo, MPLIB, MPLINK, MultiTRAK, NetDetach,
Omniscient Code Generation, PICDEM, PICDEM.net, PICkit,
PICtail, RightTouch logo, REAL ICE, SQI, Serial Quad I/O,
Total Endurance, TSHARC, USBCheck, VariSense,
ViewSpan, WiperLock, Wireless DNA, and ZENA are
trademarks of Microchip Technology Incorporated in the
U.S.A. and other countries.
SQTP is a service mark of Microchip Technology Incorporated
in the U.S.A.
Silicon Storage Technology is a registered trademark of
Microchip Technology Inc. in other countries.
GestIC is a registered trademark of Microchip Technology
Germany II GmbH & Co. KG, a subsidiary of Microchip
Technology Inc., in other countries.
All other trademarks mentioned herein are property of their
respective companies.
© 2006-2015, Microchip Technology Incorporated, Printed in
the U.S.A., All Rights Reserved.
ISBN: 978-1-63277-994-6
Q MICRDCHIP
2006-2015 Microchip Technology Inc. DS50001292W-page 3
PEP AND DEBUG HEADER
SPECIFICATION
Table of Contents
Chapter 1. PEP and Debug Header Overview
1.1 What is a Processor Extension Pak (PEP)? ................................................... 5
1.2 What is a Debug Header? .............................................................................. 5
1.3 Why Do I Need a Header to Debug? .............................................................. 6
1.4 Debug Details ................................................................................................. 7
1.5 Compare Debug Header and Device Features .............................................. 9
1.6 Support Information ...................................................................................... 10
1.7 Debug Header Hardware Setup ................................................................... 11
1.8 Debug Header Setup for MPLAB X IDE ....................................................... 13
1.9 Additional Information ................................................................................... 14
Chapter 2. Required Debug Headers
Introduction.......................................................................................................... 15
AC162050, AC162058 ........................................................................................ 16
AC162052, AC162055, AC162056, AC162057 .................................................. 18
AC162053, AC162054 ........................................................................................ 20
AC162059, AC162070, AC162096 ..................................................................... 22
AC162060 ........................................................................................................... 24
AC162061 ........................................................................................................... 26
AC162066 ........................................................................................................... 28
AC162083 ........................................................................................................... 30
AC244023, AC244024 ........................................................................................ 32
AC244028 ........................................................................................................... 34
AC244045 ........................................................................................................... 36
AC244051, AC244052, AC244061 ..................................................................... 38
AC244062 ........................................................................................................... 40
Chapter 3. Optional Debug Headers
Introduction.......................................................................................................... 43
AC162062, AC162079, AC162087, AC162091 .................................................. 48
AC162064 ........................................................................................................... 50
AC162065, AC244022 ........................................................................................ 52
AC162067, AC162074 ........................................................................................ 55
AC162078 ........................................................................................................... 58
AC162088, AC162094 ........................................................................................ 61
PIC18FXXXX
DS50001292W-page 4 2006-2015 Microchip Technology Inc.
AC244026, AC244027 ........................................................................................ 64
AC244033, AC244034 ........................................................................................ 67
AC244035, AC244036 ........................................................................................ 69
AC244043, AC244044 ........................................................................................ 71
AC244046, AC244047 ........................................................................................ 73
AC244048 ........................................................................................................... 75
AC244049, AC244050 ........................................................................................ 77
AC244053, AC244054 ........................................................................................ 79
AC244060 ........................................................................................................... 81
Appendix A. Debug Header Target Footprints
A.1 Introduction .................................................................................................. 83
A.2 DIP Device Footprints .................................................................................. 83
A.3 TQFP/PLCC Device Footprints .................................................................... 83
Appendix B. Debug Header Connections
B.1 Introduction .................................................................................................. 87
B.2 6-Pin Modular Connector ............................................................................. 87
B.3 8-Pin SIL Connector ..................................................................................... 88
B.4 6-Pin SIL Connector ..................................................................................... 89
B.5 SIL Optional Connection .............................................................................. 90
B.6 Modular-to-SIL Adapter ................................................................................ 90
B.7 Ordering Information .................................................................................... 91
Appendix C: Revision History .....................................................................................93
Index .............................................................................................................................95
Worldwide Sales and Service .....................................................................................98
Q MICRDCHIP
2006-2015 Microchip Technology Inc. DS50001292W-page 5
PEP and Debug Header
Specification
Chapter 1. PEP and Debug Header Overview
This chapter contains the following:
• What is a Processor Extension Pak (PEP)?
• What is a Debug Header?
• Why Do I Need a Header to Debug?
• Debug Details
• Compare Debug Header and Device Features
• Support Information
• Debug Header Hardware Setup
• Debug Header Setup for MPLAB X IDE
• Additional Information
1.1 WHAT IS A PROCESSOR EXTENSION PAK (PEP)?
A Processor Extension Pak contains a debug header, adapter board, and stand-offs. A
PEP is what you purchase when you want a debug header.
1.2 WHAT IS A DEBUG HEADER?
A debug header is a circuit board that allows an emulator or debugger to debug code
for a specific device. A special version of the device (-ICE/-ICD) with on-board debug
circuitry is located on the header. Connectors on the side of the header allow it to con-
nect directly or through an adapter to the debug tool. Connectors on the bottom of the
header allow it to connect directly or through a transition socket to a target board.
NOTICE TO CUSTOMERS
All documentation becomes dated, and this manual is no exception. Microchip tools and
documentation are constantly evolving to meet customer needs, so some actual dialogs
and/or tool descriptions may differ from those in this document. Please refer to our web site
(www.microchip.com) to obtain the latest documentation available.
Documents are identified with a “DS” number. This number is located on the bottom of each
page, in front of the page number. The numbering convention for the DS number is
“DSXXXXXA”, where “XXXXX” is the document number and “A” is the revision level of the
document.
For the most up-to-date information on development tools, see the MPLAB X IDE online Help
(Help menu).
19 \CDMCLR
PEP and Debug Header Specification
DS50001292W-page 6 2006-2015 Microchip Technology Inc.
1.3 WHY DO I NEED A HEADER TO DEBUG?
Some PIC® microcontrollers (MCUs), particularly low-pin-count devices (with 20 pins
or less), generally must use a header for debugging. This is done to free up I/O lines
for your application and to make production parts more affordable. Optional headers
are also available for high-pin-count devices (with 64 pins or higher).
Debugging requires a two-line connection (plus VDD, VSS and VPP) to communicate
with the device. In a high-pin-count device, losing a few I/O lines is generally not a prob-
lem for most designs. But in a low-pin-count device, it can be a critical problem. Imagine
having to do an 8-pin design where there are only 5 I/Os, having used up 2 I/Os just for
debugging!
Headers are also used to save you money. In high-pin-count devices, adding debug-
ging to the silicon can generally be done at little or no cost since the silicon is already
fairly large. However, low-pin-count devices are low cost specifically because they use
very little silicon. So, adding debugging circuitry on-board these parts would add signif-
icant cost since it would raise the amount of silicon used by a considerable percentage.
The header places the cost for debugging up front and frees your production parts from
the extra cost of an unused debug module.
Microchip also makes optional debug modules, usually for high-pin-count devices. The
module is optional because you can still do basic debugging without a header, but if
you use one, you get back I/O lines, and may also gain additional debugging features.
Only certain devices can use an optional header, so see Chapter 3. “Optional Debug
Headers”.
Microchip lists what header must be ordered to work with your device, if one is required.
Simply consult Chapter 2. “Required Debug Headers”.
Note that in all cases, devices can be programmed “in circuit” (called ICSP™) with very
few exceptions. Even devices without an internal debug feature can still be pro-
grammed by connecting the programming/debugging tool to the in-circuit programming
lines. These devices simply cannot perform debugging without a header.
FIGURE 1-1: PRODUCTION DEVICE VS. HEADER DEVICE
ENABLE
ICDMCLR
V
DD
ICDCLK
ICDDATA
Vss
ICD NC
1
2
3
4
5
6
7
20
19
18
17
16
15
14
JP1
2
1
3
V
DD
To Tool Connector
8
9
10 11
12
13
V
DD
Vss
1
2
3
4
5
6
7
14
13
12
11
10
9
8
Device on Debug Header
Production Device
R L EEEEEEEEEE m
PEP and Debug Header Overview
2006-2015 Microchip Technology Inc. DS50001292W-page 7
1.4 DEBUG DETAILS
Next generation in-circuit emulators (such as the MPLAB® REAL ICE™ in-circuit
emulator) and in-circuit debuggers work with devices that have on-chip debug circuitry.
Sometimes the actual production device will have this circuitry and sometimes a
special version of this device is required or available for code debugging. This special
version of the chip, with the suffix -ICE or -ICD, is mounted on a debug header
(Figure 1-2).
FIGURE 1-2: DEBUG OPTIONS
Note: -ICE/-ICD devices are only used on the debug header; they are not sold
separately.
Production Device
On-Board Debug Circuitry
Debug
Circuitry
Production Device
On-Board Debug Circuitry
Vdd
MCLR/Vpp
Vss
Rx0/CLK
Rx1/DAT
Debug
Circuitry
No debug capability.
Header required for debug.
Debug capability available.
However, header can provide
dedicated resources for debug.
VDD
VPP
VSS
CLK
DAT
Rx0
Rx1
Debug
Memory
MCLR
-ICE/-ICD Device
with On-board Debug Circuitry,
Dedicated Debug Pins and (sometimes)
Dedicated Debug Memory
Debug Header
with additional
circuitry to support debug
functions.
J1 S1
ON
TP1
TP2
TP3
-ICE/
-ICD
Device
without with
PEP and Debug Header Specification
DS50001292W-page 8 2006-2015 Microchip Technology Inc.
To determine which device resources must be dedicated to debugging for either a
device with on-board debug capability or the special -ICE/-ICD device, see the
“Resources used by ...” section of the in-circuit emulator or in-circuit debugger online
Help file.
Then, depending on the debug tool, different features of the special -ICE/-ICD device
may be available. A summary is provided below. To determine actual features, see the
debug header documentation for a specific device.
TABLE 1-1: DEVICE FEATURES SUMMARY
Debug Tool -ICE -ICD
In-Circuit Emulators Basic Emulator Functions Basic Debug Functions
In-Circuit Debuggers Basic Debug Functions
Q MIEHDCHIF Development Tool Selector 7 PIC16F1939 Beam 5 m: m. mmm s helm m p. Inn-nus Select mam ““ “‘7 momma: . mome momnw momrsns mm a mam may“. wemmm may: Aczunaé 0mm» momrsns momrszs momrszv mm mm, Debug rumm: chmrst mm...) W smp momma momm mm m SW NW T‘ “e Emak nn mm mmnm True momrsvc pm mm, W New“ 3 vgmemm HWbrgzkpnlMs? momrse W... mm” WWW 3 Datarmemaryhvnalwmms 3 momrem WW mm W Wm mm m. momma Pass mm, "“9 Pin: cnumsr Tum Homren momrem momreza momrem 5123232 '3 wua won 3 In em» Demmgzv mum mm mum ramnna‘) momma momma momma mm ; 1mm Denna run-m: mmmm war mm True WDT mmnv- True “mam M, "mm ”mm“ 1 Dalarmzmury mnknmnls 3 mum“ Pym mommy sw hlukpmm: unmm Fgmwemnw swnreaknmnls Unnmnaa mum“ > Pass canker Inn EESSKCWMAEYOCNE m T mommy Ersakmshckovnmmfiw was me we N we ”mm 5.01, mm w, my watch hue “mm” pg," mm, “w MW“; 3 anwemnw HWbreaKDnlnts] mcmrosn mcmrm momma mom meme 0 mm mm mg mm m mvzuuum Hm,- Acums ‘upmnawy mclfir’ru mcmrm mcmnm MW mum Denna Failures- mcmrm m mm ‘ lea W, Pgmmemnw Hw bmzkpmms 3 chImnA :V ”H“ " K” 5“ Emaknnslatkmmam Yme _ \eaxmslzckovemnwfiuo momrm WW mm W W W mm". Yme memé 5m mm W smp mm nus Nolan: 7 W3 ”WW ”WWW 3 Datawemnry nmwmm 3 momm WWW.” Em“ om mm mm mompm PM WWW SW WWW “mm Pgmmemnw sw mawm; Unhmned musm Pass mm M? szcnumsrfiue mmsnn mctsné: V Acmwnnhvtzunfls uma ‘om Mnumi vauuusy may: mum dim-anew
PEP and Debug Header Overview
2006-2015 Microchip Technology Inc. DS50001292W-page 9
1.5 COMPARE DEBUG HEADER AND DEVICE FEATURES
For some devices that have on-board debug capability, the optional header provides
more debug features than the device itself. To determine if your device and optional
header differ in their debug features, go to the Development Tool Selector (DTS) to look
for your device:
1. In a web browser, go to : http://www.microchip.com/dtsapp/
2. Select your device from the “Select Product” list. Or, type the name of your device
into the "Search" box and click Search. The name will appear at the top of the
“Select Product” list, where you can select it.
3. Click on the tab “Emulators & Debuggers” to see debug features.
FIGURE 1-3: DTS DEVICE INFORMATION
PEP and Debug Header Specification
DS50001292W-page 10 2006-2015 Microchip Technology Inc.
1.6 SUPPORT INFORMATION
Debug headers require specific debug tools to operate with MPLAB X IDE. Acquire
these before purchasing a debug header in a Processor Extension Pak (PEP). Avail-
able PEPs are listed in Chapter 2. “Required Debug Headers” and Chapter 3. “Optional
Debug Headers”.
To continue setting up emulation header hardware, see Section 1.7 “Debug Header
Hardware Setup”.
Contact Customer Support for issues with emulation headers.
1.6.1 Tools Support
Debug headers are supported on the following tools:
• PICkit™ 3 in-circuit debugger
• MPLAB® ICD 3 in-circuit debugger
• MPLAB® REAL ICE® in-circuit emulator
1.6.2 Customer Support
Users of Microchip products can receive assistance through several channels:
• Distributor or Representative
• Local Sales Office
• Field Application Engineer (FAE)
• Technical Support
Technical support is available through the web site at: http://support.microchip.com
Documentation errors or comments may be sent to: docerrors@microchip.com.
PEP and Debug Header Overview
2006-2015 Microchip Technology Inc. DS50001292W-page 11
1.7 DEBUG HEADER HARDWARE SETUP
To set up your header, perform the following steps:
1. Check the debug header for any stickers and the header box for any paper
inserts that may specify special operating instructions (Figure 1-4). Follow these
instructions before doing anything else.
FIGURE 1-4: SPECIAL HEADER INSTRUCTIONS
2. Set any jumpers or switches on the header to determine device functionality or
selection, as specified for that header. See the sections “Optional Debug Head-
ers” or “Required Debug Headers” for information on how to set up individual
headers.
3. Connect the header to your desired debug tool by consulting the tool
documentation for connection options. An example connection is shown in
Figure 1-5.
The special -ICE/-ICD device is mounted on the top of a header and its signals
are routed to the emulator or debugger connector. These special device versions
are labeled with the appropriate suffix (e.g., Device-ICE).
FIGURE 1-5: CONNECT HEADER TO DEBUG TOOL
4. Connect the header to the target board. On the bottom of the header is a socket
that is used to connect to the target board. The header can be connected to the
target board as follows:
a) PDIP header socket to PDIP target socket with a stand-off (male-to-male)
connector
b) Header socket to plug on the target board
c) Header socket to target socket with a transition socket (see the Transition
Socket Specification, DS51194)
An example connection is shown in Figure 1-6.
Debug Header (Top)
CAUTION
CAUTION
Debug Header (Top)
Device-ICE
Debug Tool Module
(Top)
To PC and
MPLAB® IDE
00000000
PEP and Debug Header Specification
DS50001292W-page 12 2006-2015 Microchip Technology Inc.
The header socket will have the same pin count as your selected device. The
-ICE/-ICD device on the top of the header usually has a larger pin count because
it has additional pins that are dedicated to debug.
FIGURE 1-6: CONNECT HEADER TO TARGET
5. If using a debug tool that can power the target, power that tool now.
6. Power the target, if needed.
Power In
Target Board (Top)
Target Socket
Stand-off Connector
Debug Header (Bottom)
Header Socket
File>New Pro '60! Debug>Debug Pmlect
PEP and Debug Header Overview
2006-2015 Microchip Technology Inc. DS50001292W-page 13
1.8 DEBUG HEADER SETUP FOR MPLAB X IDE
Follow these instructions to use the debug header:
1. Set up the debug header as specified in Section 1.7 “Debug Header Hardware
Setup”.
2. Begin creating a project for a device supported by your debug header using the
Projects wizard (File>New Project). See MPLAB X IDE documentation for more
on Projects.
3. In one step of the wizard you will have an opportunity to specify the debug header
product number (AC######).
4. In another step you will specify the hardware (debug) tool to which your header
is attached.
5. Once the wizard is complete, write code for your project.
6. Select Debug>Debug Project to run and debug your code.
Note: A debug header can only be used to debug (Debug menu), not to program
(Run menu). See Section 1.9.1 “Programming Details”.
PEP and Debug Header Specification
DS50001292W-page 14 2006-2015 Microchip Technology Inc.
1.9 ADDITIONAL INFORMATION
The following additional information is useful when using a Debug Header from a
Processor Extension Pak.
1.9.1 Programming Details
The debug header is designed to be used with the in-circuit emulator or the in-circuit
debugger selected as a debugger, not a programmer, in MPLAB X IDE. Any program-
ming of the special -ICE/-ICD device on the header is for debug purposes and includes
the debug executive. See your related debug tool documentation for details on using it
as a debugger.
To program production (non-special) devices with your debug tool, use the Universal
Programming Module (AC162049) or design a modular interface connector on the
target. See the appropriate specification for connections. For the most up-to-date
device programming specifications, see the Microchip website (www.microchip.com).
Also, production devices may be programmed with the following tools:
• MPLAB PM3 device programmer
• PICkit 3 development programmer
• MPLAB ICD 3 in-circuit debugger (select as a programmer)
• MPLAB REAL ICE in-circuit emulator (select as a programmer)
1.9.2 Calibration Bits
The calibration bits for the band gap and internal oscillator are always preserved to their
factory settings.
1.9.3 Performance Issues
PIC MCUs do not support partial program memory erase. Therefore, users may expe-
rience slower performance than with other devices.
Also, see either the in-circuit emulator or the in-circuit debugger Help file for information
on specific device limitations that may affect performance.
Q MICRDCHIP
2006-2015 Microchip Technology Inc. DS50001292W-page 15
PEP and Debug Header
Specification
Chapter 2. Required Debug Headers
INTRODUCTION
Some devices have no built-in debug circuitry. Therefore, special -ICE/-ICD versions of
these devices are required for debug tool operation.
Currently available debug headers and their associated -ICE/-ICD devices are shown
below, sorted by supported device.
TABLE 1: REQUIRED DEBUG HEADERS BY DEVICE
Device Supported
by Debug Header Pin Count PEP* Part
Number
-ICE/-ICD Device on
Debug Header VDD Max
PIC10F200/2/4/6 8/14 AC162059 PIC16F505-ICD 5.5V
PIC10F220/2 8/14 AC162070 PIC16F506-ICD 5.5V
PIC10F320/322 6/8 AC244045 PIC10F320-ICE 5.5V
PIC10LF320/322 6/8 AC244045 PIC10F320-ICE 3.6V
PIC12F508/509 8/14 AC162059 PIC16F505-ICD 5.5V
PIC12F510 8/14 AC162070 PIC16F506-ICD 5.5V
PIC12F519 8/14 AC162096 PIC16F526-ICD 5.5V
PIC12F609/HV609 28 AC162083 PIC16F616-ICD 5.5V
PIC12F615/HV615 28 AC162083 PIC16F616-ICD 5.5V
PIC12F617 28 AC162083 PIC16F616-ICD 5.5V
PIC12F629 8 AC162050 PIC12F675-ICD 5.5V
PIC12F635 14 AC162057 PIC16F636-ICD 5.5V
PIC12F675 8 AC162050 PIC12F675-ICD 5.5V
PIC12F683 8 AC162058 PIC12F683-ICD 5.5V
PIC12F1501(1)8AC244051 PIC16F1509-ICE 5.5V
PIC12LF1501(1)8AC244052 PIC16LF1509-ICE 3.6V
PIC16F505 8/14 AC162059 PIC16F505-ICD 5.5V
PIC16F506 8/14 AC162070 PIC16F506-ICD 5.5V
PIC16F526 8/14 AC162096 PIC16F526-ICD 5.5V
PIC16F527 20 AC244061 PIC16F527-ICD 5.5V
PIC16F570 28 AC244062 PIC16F570-ICD 5.5V
PIC16F610/HV610 14/16 AC162083 PIC16F616-ICD 5.5V
PIC16F616/HV616 14/16 AC162083 PIC16F616-ICD 5.5V
PIC16F627A/628A 18 AC162053 PIC16F648A-ICD 5.5V
PIC16F630 14 AC162052 PIC16F676-ICD 5.5V
PIC16F631 20 AC162061 PIC16F690-ICD 5.5V
PIC16F636 14 AC162057 PIC16F636-ICD 5.5V
PIC16F639(3)20 AC162066 PIC16F636-ICD 5.5V
* PEP = Processor Extension Pak.
Note 1: Header optional for other devices, but required for this device.
Note 2: VDDCORE Max
Note 3: Dual die
PEP and Debug Header Specification
DS50001292W-page 16 2006-2015 Microchip Technology Inc.
AC162050, AC162058
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting various -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For these headers, device peripherals need to be selected by setting jumper J1 to the
appropriate position. For AC162050, this will have the effect of selecting the device.
PIC16F648A 18 AC162053 PIC16F648A-ICD 5.5V
PIC16F676 14 AC162052 PIC16F676-ICD 5.5V
PIC16F677 20 AC162061 PIC16F690-ICD 5.5V
PIC16F684 14 AC162055 PIC16F684-ICD 5.5V
PIC16F685/687 20 AC162061 PIC16F690-ICD 5.5V
PIC16F688 14 AC162056 PIC16F688-ICD 5.5V
PIC16F689/690 20 AC162061 PIC16F690-ICD 5.5V
PIC16F716 18 AC162054 PIC16F716-ICD 5.5V
PIC16F785/HV785 20 AC162060 PIC16F785-ICD 5.5V
PIC16F1503(1)
PIC16F1507(1)
14
20
AC244051 PIC16F1509-ICE 5.5V
PIC16LF1503(1)
PIC16LF1507(1)
14
20
AC244052 PIC16LF1509-ICE 3.6V
PIC18F13K50
PIC18F14K50
20 AC244023 PIC18F14K50-ICE 5.5V
PIC18LF13K50
PIC18LF14K50
20 AC244024 PIC18LF14K50-ICE 3.6V,
2.75V(2)
PIC24F04KA200(1)
PIC24F04KA201(1)
14
20
AC244028 PIC24F16KA102-ICE 3.6V
TABLE 1: REQUIRED DEBUG HEADERS BY DEVICE (CON’T)
Device Supported
by Debug Header Pin Count PEP* Part
Number
-ICE/-ICD Device on
Debug Header VDD Max
* PEP = Processor Extension Pak.
Note 1: Header optional for other devices, but required for this device.
Note 2: VDDCORE Max
Note 3: Dual die
AC Number -ICE/-ICD Device Board Assembly Number
AC162050 PIC12F675-ICD 02-01662
AC162058 PIC12F683-ICD
AC Number Jumper J1 Function Device Selected
AC162050 2-3 A/D Disabled PIC12F629
1-2 A/D Enabled PIC12F675
AC162058 1-2 A/D Enabled PIC12F683
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 17
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-1: DIMENSIONS – AC162050, AC162058
Side
0.165 Typical
0.062 Typical
Dimensions are in inches
1.275
0.700
1.000
0.525
Target Pin 1 is located on
bottom side of header.
Top
0.560
Typical
J1
J2
P1
1
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
PEP and Debug Header Specification
DS50001292W-page 18 2006-2015 Microchip Technology Inc.
AC162052, AC162055, AC162056, AC162057
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting various -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For these headers, device peripherals need to be selected by setting jumper J1 to the
appropriate position. For AC162052 and AC162057, this will have the effect of
selecting the device.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC162052 PIC16F676-ICD 02-01686
AC162055 PIC16F684-ICD
AC162056 PIC16F688-ICD
AC162057 PIC16F636-ICD
AC Number Jumper J1 Function Device Selected
AC162052 2-3 A/D Disabled PIC16F630
1-2 A/D Enabled PIC16F676
AC162055 Don’t care N/A PIC16F684
AC162056 Don’t care N/A PIC16F688
AC162057 2-3 PORTC, Comparator 2 Disabled PIC12F635
1-2 PORTC, Comparator 2 Enabled PIC16F636
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 19
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-2: DIMENSIONS – AC162052, AC162055, AC162056, AC162057
Dimensions are in inches
1.275
0.700
1.300
0.825
Target Pin 1 is located on
bottom side of header.
Top
Side
0.165 Typical
0.062 Typical
0.560
Typical
J1
J2
P1
1
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
PEP and Debug Header Specification
DS50001292W-page 20 2006-2015 Microchip Technology Inc.
AC162053, AC162054
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation – AC162053
For these headers, there are no jumpers/switches. The device with the most program
memory is always selected.
If PIC16F627A or PIC16F628A devices are selected for development in MPLAB X IDE,
the warning “Invalid target device ID” may be received in the build window. Ignore this
warning. The reason for the warning is that the PIC16F648A-ICD device supports
PIC16F648A, PIC16F627A and PIC16F628A, but only reports the device ID for the
PIC16F648A.
Header Setup and Operation – AC162054
This header supports one device (PIC16F716) so there are no jumpers or switches.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC162053 PIC16F648A-ICD 02-01695
AC162054 PIC16F716-ICD
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 21
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-3: DIMENSIONS – AC162053, AC162054
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
2.350
Top
0.150
0.150
0.750
J1
P1
1
Side
0.165 Typical
0.062 Typical
0.560
Typical
-ICE
Device
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
PEP and Debug Header Specification
DS50001292W-page 22 2006-2015 Microchip Technology Inc.
AC162059, AC162070, AC162096
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
The -ICD devices on these headers are specifically designed to select a device without
the use of additional jumpers or switches.
These headers support 8- and 14-pin devices (see Figure 2-4.) For the AC162059 and
AC162070, there is an 8-pin and a 14-pin connector. For the AC162096, there is only
a 14-pin connector. (The 8-pin connector is not populated.) Use the 14-pin connector
for 8-pin devices, but make sure device pin 1 is placed at the 14-pin connector pin 1.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC162059 PIC16F505-ICD 02-01803
AC162070 PIC16F506-ICD
AC162096 PIC16F526-ICD
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 23
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-4: DIMENSIONS – AC162059, AC162070, AC162096
Side
0.165 Typical
0.062 Typical
0.560
Typical
14-Pin Target Pin is located
on bottom side of header.
2.250
0.450
0.225
0.750
1.200
8-Pin Target Pin 1 is located
on bottom side of header.
Dimensions are in inches
Top
J1
U1
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
PEP and Debug Header Specification
DS50001292W-page 24 2006-2015 Microchip Technology Inc.
AC162060
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
For the PIC16F785 20-pin header, connect the jumper J2 to enable the shunt regulator.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC162060 PIC16F785-ICD 02-01820
Device Device Type Jumper J2 Function
PIC16F785 F 1-2 Disable shunt regulator
PIC16HV785 HV 2-3 Enable shunt regulator
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 25
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-5: DIMENSIONS – AC162060
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
2.250
Top
0.225
0.325
0.750
Side
0.165 Typical
0.062 Typical
0.560
Typical
J1 J2
U1
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
PEP and Debug Header Specification
DS50001292W-page 26 2006-2015 Microchip Technology Inc.
AC162061
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
For the PIC16F690 20-pin header, you will need to set the S1 switches (Figure 2-6) to
enable peripherals and choose devices (Table 2).
FIGURE 2-6: S1 SWITCH HARDWARE
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC162061 PIC16F690-ICD 02-01835
TABLE 2: S1 SWITCH DEVICE SELECTION
Device
Switches
1
ECCP
2
SSP
3
USART
4
4k PFM
5
ADC
PIC16F631 00 0 0*0
PIC16F677 01 00** 1
PIC16F685 10 0 11
PIC16F687 01 10** 1
PIC16F689 01 1 11
PIC16F690 11 1 11
Legend: 1 = Enabled 0 = Disabled * = 1k PFM ** = 2k PFM
Switch configuration at left
shows all peripherals disabled,
which is the setting to select the
PIC16F631 device.
ON DIP
12345
ENABLE
ADC
4KPFM
USART
SSP
ECCP
J1
S1
S1
ON
12345
678910
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 27
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-7: DIMENSIONS – AC162061
Side
0.165 Typical
0.062 Typical
0.560
Typical
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
Top
1.650
0.625
1.450
0.475
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
PEP and Debug Header Specification
DS50001292W-page 28 2006-2015 Microchip Technology Inc.
AC162066
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
For the PIC16F639 20-pin header, connect the jumper J3 as specified below.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC162066 PIC16F636-ICD 02-01832
Tool Jumper J3 Function
N/A 1-2 Run/program as production device
In-circuit debuggers,
next generation in-circuit emulators
2-3 Run/program as debug device
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 29
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-8: DIMENSIONS – AC162066
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
2.325
Top
0.275
0.950
0.850
Side
0.165 Typical
0.062 Typical
0.560
Typical
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
POTENTIAL ISSUES
PEP and Debug Header Specification
DS50001292W-page 30 2006-2015 Microchip Technology Inc.
AC162083
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
Test points are available on this header to check the following: Ground (TP1), VDD
(TP2), ICD Clock (TP3), ICD Data (TP4) and ICD MCLR/VPP (TP5).
Also, see the AC162083 Insert (DS51693).
POTENTIAL ISSUES
HV device selected instead of F device
If you inadvertently select a shunt regulator (HV) device and attempt to use it in a target
board designed for a non-shunt regulator (F) device, the shunt may draw excessive
current due to the lack of current-limiting circuitry on the target board and damage the
device mounted on the header.
F device selected instead of HV device
If you inadvertently select a non-shunt regulator (F) device and attempt to use it in a
target board designed for a shunt regulator (HV) device, the device may draw exces-
sive current due to the higher voltage used on a target board designed for HV devices
and damage the device mounted on the header.
AC Number -ICE/-ICD Device Board Assembly Number
AC162083 PIC16F616-ICD 02-01976
CAUTION
Header damage.
Incorrect rotary switch (Figure 2-9) settings can irreparably
damage the header. Ensure rotary switch settings are cor-
rect (Table 3) before powering or connecting the header. Do
not change the rotary switch setting while the header is
powered or connected to a debug tool. Do not power shunt
regulator (HV) devices from the debug tool.
TABLE 3: ROTARY SWITCH SETTINGS
Switch Position Device Switch Position Device
0PIC12HV609 8PIC12F609
1PIC12HV615 9PIC12F615
2 Reserved HV A PIC12F617
3PIC16HV610 BPIC16F610
4PIC16HV616 CPIC16F616
5 Reserved HV D Reserved F
6 Reserved HV E Reserved F
7 Reserved HV F Reserved F
DETERMINING DAMAGE
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 31
HV devices cannot be powered from debug tool
Do not select in MPLAB X IDE to power the target (debug header) from the debug tool
(if it supports powering the target) when using shunt regulator (HV) devices since this
will also cause the shunt to draw excessive current.
DETERMINING DAMAGE
A damaged header will cause MPLAB X IDE to report a device ID of 0. However, there
are other issues that can cause the device ID to report as 0. Consult your debug tool
documentation on troubleshooting to identify the problem. If you believe you have a
damaged header, contact Microchip technical support at http://support.microchip.com.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-9: DIMENSIONS – AC162083
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
2.450
Top
0.600
0.650
1.600
Side
0.165 Typical
0.062 Typical
0.560
Typical
Rotary
Switch
Use for both 14- and
8-pin device alignment.
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
PEP and Debug Header Specification
DS50001292W-page 32 2006-2015 Microchip Technology Inc.
AC244023, AC244024
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For these headers, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244023 PIC18F14K50-ICE 02-02031
AC244024 PIC18LF14K50-ICE
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 33
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-10: DIMENSIONS – AC244023, AC224024
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
Top
1.800
0.150 1.150
0.425
Side
0.165 Typical
0.062
Typical
0.260
Typical
8-pin SIL Connector
(0.100 pin spacing)
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
02702107
PEP and Debug Header Specification
DS50001292W-page 34 2006-2015 Microchip Technology Inc.
AC244028
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
For this header, set up jumpers J2 and J3 as specified below.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244028 PIC24F16KA102-ICE 02-02107
Jumper Setting Function
J2 Open Disable weak ICE/MCLR pull-up resistor
Short Enable weak ICE/MCLR pull-up resistor
J3 Open Disable power LED indicator
Short Enable power LED indicator
f f
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 35
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-11: DIMENSIONS - AC244028
Dimensions are in inches
Top
Side
0.062 Typical
0.165 Typical
0.165 Typical
0.380 Typical
2.370
0.280
1.860
1.945
1.400
0.855
20-Pin Target Pin 1 is located
on bottom side of header.
28-Pin Target Pin 1 is located
on bottom side of header.
14-Pin Target Pin 1 is located
on bottom side of header.
Optional SPI trace
2-Pin right angle header
to be installed here.
(Digi-Key P/N A32702-02-ND)
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
02702255
PEP and Debug Header Specification
DS50001292W-page 36 2006-2015 Microchip Technology Inc.
AC244045
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
Because the -ICE chip is based on the PIC10F320 device, the ICE device memory will
be greater than the actual chip for the PIC10F322 device.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244045 PIC10F320-ICE 02-02255
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 37
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-12: DIMENSIONS - AC244045
Dimensions are in inches
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
Target Pin 1 is located
on bottom side of header.
0.410 Typical
0.062 Typical
0.165 Typical0.165 Typical
1.800
0.540
0.300 0.350
1.150
-ICE
Device
02702208
PEP and Debug Header Specification
DS50001292W-page 38 2006-2015 Microchip Technology Inc.
AC244051, AC244052, AC244061
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For these headers, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
These headers support 8-, 14- and 20-pin devices. For 8- and 14-pin devices, make
sure device pin 1 is placed at the 20-pin connector pin 1.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244051 PIC16F1509-ICE 02-02208
AC244052 PIC16LF1509-ICE
AC244061 PIC16F527-ICD
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 39
Header Dimensions
The figure below lists the dimensions for the debug headers. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-13: DIMENSIONS - AC244051, AC244052, AC244061
02710229
PEP and Debug Header Specification
DS50001292W-page 40 2006-2015 Microchip Technology Inc.
AC244062
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For these headers, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244062 PIC16F570-ICD 02-10229
J1 ”a Maui II I u:- D! at ”"”””'U1 IIIIIIIIIIIIII? |__vk 1p Assemmy N- l2-1l22!
Required Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 41
Header Dimensions
The figure below lists the dimensions for the debug headers. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 2-14: DIMENSIONS - AC244062
PEP and Debug Header Specification
DS50001292W-page 42 2006-2015 Microchip Technology Inc.
NOTES:
Q MICRDCHIP 8m U)
2006-2015 Microchip Technology Inc. DS50001292W-page 43
PEP and Debug Header
Specification
Chapter 3. Optional Debug Headers
INTRODUCTION
Devices that have built-in debug circuitry do not require a header to use debug tools.
However, some pins and memory must be used to support the debug function. Special
-ICE/-ICD versions offering additional pins, memory and emulator functions can be
used to provide superior emulating/debugging capabilities.
Currently available debug headers and their associated -ICE/-ICD devices are shown
below, sorted by supported device.
TABLE 1: OPTIONAL DEBUG HEADERS - PIC12/16 DEVICES
Device Supported by
Debug Header
Pin
Count
PEP* Part
Number
-ICE/-ICD Device on
Debug Header VDD Max
PIC12F752 8 AC244049 PIC12F752-ICE 5.5V
PIC12HV752 8AC244050 PIC12HV752-ICE 5.5V
PIC16F722
PIC16F723
PIC16F724
PIC16F726
PIC16F727
28
28
40/44
28
40/44
AC244026 PIC16F727-ICE 5.5V
PIC16LF722
PIC16LF723
PIC16LF724
PIC16LF726
PIC16LF727
28
28
40/44
28
40/44
AC244027 PIC16LF727-ICE 3.6V
PIC16F753
PIC16HV753
14/16
14/16
AC244060 PIC16F753-ICE 5.5V
PIC16F1454
PIC16F1455
PIC16F1458
PIC16F1459
14/16
14/16
20
20
AC244053 PIC16F1459-ICE 5.5V
PIC16LF1454
PIC16LF1455
PIC16LF1458
PIC16LF1459
14/16
14/16
20
20
AC244054 PIC16LF1459-ICE 3.6V
PIC16F1508(1)
PIC16F1509(1)20 AC244051 PIC16F1509-ICE 5.5V
PIC16LF1508(1)
PIC16LF1509(1)20 AC244052 PIC16LF1509-ICE 3.6V
* PEP = Processor Extension Pak.
Note 1: Header required for other devices, but optional for this device.
Note 2: VDDCORE Max
PEP and Debug Header Specification
DS50001292W-page 44 2006-2015 Microchip Technology Inc.
PIC12F1822
PIC12F1840
PIC16F1823
PIC16F1824
PIC16F1825
PIC16F1829
8
8
14/16
14/16
14/16
20
AC244043 PIC16F1829-ICE 5.5V
PIC12LF1822
PIC12LF1840
PIC16LF1823
PIC16LF1824
PIC16LF1825
PIC16LF1829
8
8
14/16
14/16
14/16
20
AC244044 PIC16LF1829-ICE 3.6V
PIC16F1826
PIC16F1827
PIC16F1847
18/20/28 AC244046 PIC16F1847-ICE 5.5V
PIC16LF1826
PIC16LF1827
PIC16LF1847
18/20/28 AC244047 PIC16LF1847-ICE 3.6V
PIC16LF1902
PIC16LF1903
PIC16LF1904
PIC16LF1906
PIC16LF1907
28
28
40/44
28
40/44
AC224048 PIC16LF1907-ICE 3.6V
PIC16F1933
PIC16F1934
PIC16F1936
PIC16F1937
PIC16F1938
PIC16F1939
28
40/44
28
40/44
28
40/44
AC244035 PIC16F1939-ICE 5.5V
PIC16LF1933
PIC16LF1934
PIC16LF1936
PIC16LF1937
PIC16LF1938
PIC16LF1939
28
40/44
28
40/44
28
40/44
AC244036 PIC16LF1939-ICE 3.6V,
2.75V(2)
TABLE 1: OPTIONAL DEBUG HEADERS - PIC12/16 DEVICES (CON’T)
Device Supported by
Debug Header
Pin
Count
PEP* Part
Number
-ICE/-ICD Device on
Debug Header VDD Max
* PEP = Processor Extension Pak.
Note 1: Header required for other devices, but optional for this device.
Note 2: VDDCORE Max
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 45
TABLE 2: OPTIONAL DEBUG HEADERS - PIC18 DEVICE
Device Supported by
Debug Header
Pin
Count
PEP* Part
Number
-ICE/-ICD Device on
Debug Header VDD Max
PIC18F1230/1330 28 AC162078 PIC18F1330-ICD 5.5V
PIC18F13K22
PIC18F14K22
20 AC244033 PIC18F14K22-ICE 5.5V
PIC18LF13K22
PIC18LF14K22
20 AC244034 PIC18LF14K22-ICE 3.6V
2.75V(2)
PIC18F24J10
PIC18F25J10
28 AC162067 PIC18F45J10-ICE 3.6V
PIC18LF24J10
PIC18LF25J10
3.6V
2.75V(2)
PIC18F44J10
PIC18F45J10
40 3.6V
PIC18LF44J10
PIC18LF45J10
3.6V
2.75V(2)
PIC18F44J10
PIC18F45J10
44 AC162074 PIC18F45J10-ICE 3.6V
PIC18LF44J10
PIC18LF45J10
3.6V
2.75V(2)
PIC18F63J11
PIC18F63J90
PIC18F64J11
PIC18F64J16
PIC18F64J90
PIC18F64J95
PIC18F65J11
PIC18F65J90
64 AC162079 PIC18F85J90-ICE 3.6V
PIC18F83J11
PIC18F83J90
PIC18F84J11
PIC18F84J16
PIC18F84J90
PIC18F84J95
PIC18F85J11
PIC18F85J90
80
PIC18F65J10
PIC18F65J15
PIC18F66J10
PIC18F66J15
PIC18F67J10
64 AC162062 PIC18F87J10-ICE 3.6V
PIC18F85J10
PIC18F85J15
PIC18F86J10
PIC18F86J15
PIC18F87J10
80
* PEP = Processor Extension Pak.
Note 1: Header required for other devices, but optional for this device.
Note 2: VDDCORE Max
PEP and Debug Header Specification
DS50001292W-page 46 2006-2015 Microchip Technology Inc.
PIC18F65J16
PIC18F66J11
PIC18F66J16
PIC18F67J11
64 AC162091 PIC18F87J11-ICE 3.6V
PIC18F85J16
PIC18F86J11
PIC18F86J16
PIC18F87J11
80
PIC18F65J50
PIC18F65J55
PIC18F66J50
PIC18F66J55
PIC18F67J50
64 AC162087 PIC18F87J50-ICE 3.6V
PIC18F85J50
PIC18F85J55
PIC18F86J50
PIC18F86J55
PIC18F87J50
80
PIC18F66J60
PIC18F66J65
PIC18F67J60
64 AC162064 PIC18F97J60-ICE 3.6V
PIC18F86J60
PIC18F86J65
PIC18F87J60
80
PIC18F96J60
PIC18F96J65
PIC18F97J60
100
TABLE 2: OPTIONAL DEBUG HEADERS - PIC18 DEVICE (CON’T)
Device Supported by
Debug Header
Pin
Count
PEP* Part
Number
-ICE/-ICD Device on
Debug Header VDD Max
* PEP = Processor Extension Pak.
Note 1: Header required for other devices, but optional for this device.
Note 2: VDDCORE Max
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 47
TABLE 3: OPTIONAL DEBUG HEADERS - PIC24 DEVICE
Device Supported by
Debug Header
Pin
Count
PEP* Part
Number
-ICE/-ICD Device on
Debug Header VDD Max
PIC24F08KA101(1)
PIC24F08KA102(1)
PIC24F16KA101(1)
PIC24F16KA102(1)
20
20/28
20
20/28
AC244028 PIC24F16KA102-ICE 3.6V
PIC24FJ16GA002
PIC24FJ32GA002
PIC24FJ48GA002
PIC24FJ64GA002
28 AC162088 PIC24FJ64GA004-ICE 3.6V
PIC24FJ16GA004
PIC24FJ32GA004
PIC24FJ48GA004
PIC24FJ64GA004
44 AC162094
PIC24FJ64GA006
PIC24FJ64GA008
PIC24FJ64GA010
64
80
100
AC162065
or
AC244022
PIC24FJ128GA010-ICE 3.6V
PIC24FJ96GA006
PIC24FJ96GA008
PIC24FJ96GA010
64
80
100
PIC24FJ128GA006
PIC24FJ128GA008
PIC24FJ128GA010
64
80
100
* PEP = Processor Extension Pak.
Note 1: Header required for other devices, but optional for this device.
Note 2: VDDCORE Max
P‘C18F87JWOVICE 02701830
PEP and Debug Header Specification
DS50001292W-page 48 2006-2015 Microchip Technology Inc.
AC162062, AC162079, AC162087, AC162091
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation – AC162062
For this header, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Test points are available on this header to check the following: VDD, VDDCORE and
ground.
The PICDEM™ HPC Explorer Board is 5V, whereas the ICD device on the header is
3.6V max. Therefore, modification to the demo board is necessary before the header
can be used.
1. Switch S3 should be set to ICE.
2. Jumper J2 must be connected as shown in Figure 3-1 to modify the operating volt-
age. See demo board documentation for more information.
FIGURE 3-1: DEMO BOARD J2 CONNECTIONS
Header Setup and Operation – AC162079, AC162087, AC162091
For these headers, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Test points are available on this header to check the following: VDD, VDDCORE and
ground.
AC Number -ICE/-ICD Device Board Assembly Number
AC162062 PIC18F87J10-ICE 02-01830
AC162079 PIC18F85J90-ICE
AC162087 PIC18F87J50-ICE
AC162091 PIC18F87J11-ICE
CAUTION
Header damage.
This header cannot be plugged directly into the PICDEM™ HPC
Explorer Board! Device damage will result.
J2
pin1
VINADJ+5V
RFor V = 3.3V:
R = 1.18 k (1%)
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 49
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-2: DIMENSIONS – AC162062, AC162079, AC162087, AC162091
-ICE
Device
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
1.800
Top
0.320
0.420
1.080 0.980
2.325
Side
0.062 Typical
0.560
Typical
0.335 Typical
0.050
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
PEP and Debug Header Specification
DS50001292W-page 50 2006-2015 Microchip Technology Inc.
AC162064
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
For this header, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Test points are available on this header to check the following: VDD, VDDCORE and
ground.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC162064 PIC18F97J60-ICE 02-01853
4"?
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 51
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.

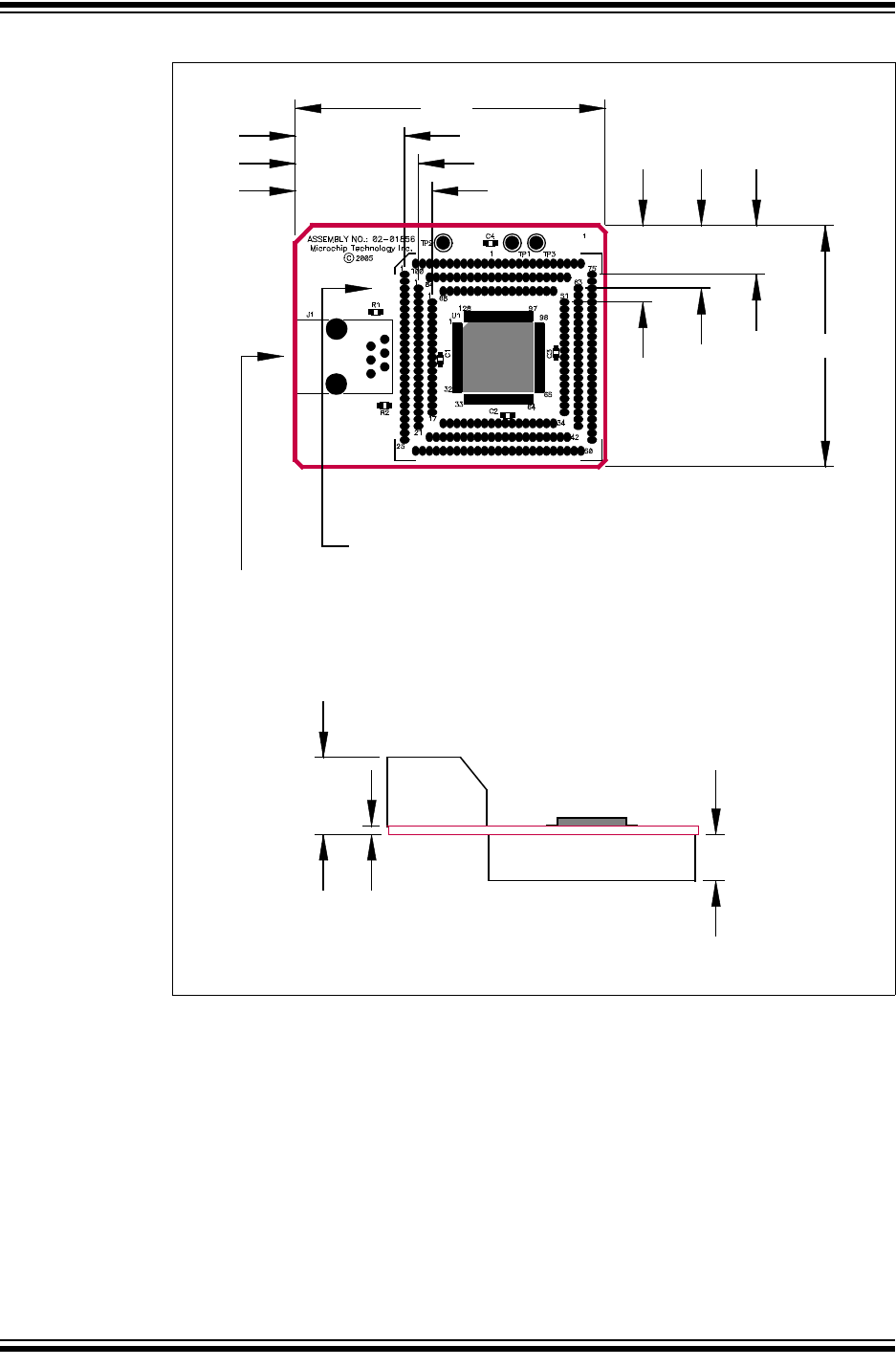

FIGURE 3-3: DIMENSIONS – AC162064
-ICE
Device
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
2.250
Top
0.795
0.895
0.995
1.750
0.355
0.455
0.555
Side
0.062 Typical
0.560
Typical
0.335 Typical
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
PEP and Debug Header Specification
DS50001292W-page 52 2006-2015 Microchip Technology Inc.
AC162065, AC244022
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For this header, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Test points are available on this header to check the following: VDD, VDDCORE and
ground.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
Header Dimensions
The following figures list the dimensions for the debug headers. Dimensions are design
values in inches.
For this device family, header AC162065 will be sold until depleted. Then, only header
AC244022 will remain as a Performance Pak.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
AC Number -ICE/-ICD Device Board Assembly Number
AC162065 PIC24FJ128GA010-ICE 02-01856
AC244022 02-01985
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 53
FIGURE 3-4: DIMENSIONS – AC162065
-ICE
Device
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
2.250
0.795
0.895
0.995
1.750
0.355
0.455
0.555
Top
Side
0.062 Typical
0.560
Typical
0.335 Typical
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
PEP and Debug Header Specification
DS50001292W-page 54 2006-2015 Microchip Technology Inc.
FIGURE 3-5: DIMENSIONS – AC244022
-ICE
Device
Dimensions are in inches
2.200
0.695
0.795
0.895
Top
Side
0.260
Typical
0.335 Typical
0.620
Typical
1.850
0.325
0.425
0.525
Target Pin 1 is located on
bottom side of header.
8-pin SIL Connector
(0.100 pin spacing)
See Appendix B. “Debug Header
Connections” for details.
P‘C18LFXXJ10 Disab‘e vo‘lage regu‘alor“
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 55
AC162067, AC162074
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For these headers, connect jumpers J2 and J3 to select between the LF and F versions
of devices.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
Header Dimensions
The figures below list the dimensions for the debug headers. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
AC Number -ICE/-ICD Device Board Assembly Number
AC162067 PIC18F45J10-ICE 02-01854
AC162074 02-01929
Device Device Type Jumper J2 Jumper J3 Function
PIC18LFXXJ10 LF 1-2 1-2 Disable voltage regulator*
PIC18FXXJ10 F 2-3 2-3 Enable voltage regulator
* VDDCORE must be supplied externally.
PEP and Debug Header Specification
DS50001292W-page 56 2006-2015 Microchip Technology Inc.
FIGURE 3-6: DIMENSIONS (28/40-PIN) – AC162067
Side
0.062 Typical
0.560
Typical
0.165 Typical
40-Pin Target Pin 1 is located
on bottom side of header.
Dimensions are in inches
Top
28-Pin Target Pin 1 is located
on bottom side of header.
0.700 0.850
1.800
0.500
0.200
2.300
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 57
FIGURE 3-7: DIMENSIONS (44-PIN) – AC162074
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
Top
Side
0.062 Typical
0.560
Typical
0.335 Typical
0.850
1.800
1.350
0.925
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
ICE
Device
CUSTOMER TARGET BOARD PICDEM MC/MC LV MOTOR CONTROL DEMO BOARDS
PEP and Debug Header Specification
DS50001292W-page 58 2006-2015 Microchip Technology Inc.
AC162078
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
This debug header can be used with the following targets:
• Customer Target Board for PIC18F1230/1330 devices
The target board should have an 18-pin DIP socket to connect to the 18-pin DIP
socket on the debug header.
• PICDEM MC motor control demo board
Use the 28-pin DIP socket on both boards to mount the debug header onto the
PICDEM MC board.
• PICDEM MC LV motor control demo board
Use the 28-pin DIP socket on both boards to mount the debug header onto the
PICDEM MC LV board.
The following sections detail the configuration of the jumpers on the debug header for
use with the above mentioned boards.
CUSTOMER TARGET BOARD
The default configuration is to remove all jumpers.
S1 is not populated and should not be used.
After the debug header is set up, do the following:
1. Connect the header to the target board.
2. Power the target board. You should see the red LED on the debug header turn
on.
3. Connect the debug tool to the debug header.
4. Use MPLAB X IDE and the debug tool to develop your application.
PICDEM MC/MC LV MOTOR CONTROL DEMO BOARDS
To run a BLDC motor on the PICDEM MC board or PICDEM MC LV board using the
supplied firmware, use the following jumper setup:
S1 is not populated and should not be used.
AC Number -ICE/-ICD Device Board Assembly Number
AC162078 PIC18F1330-ICD 02-01896
Jumper Jumper Setting Jumper Jumper Setting
J1 2-3 JP1 Open
J2 2-3
J3 2-3 JP2 Open
J5 2-3
J6 1-2 JP3 Open
J7 1-2
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 59
After the debug header is set up, perform the following steps:
1. Connect the header to the PICDEM MC/MC LV target board.
2. Power the target board. You should see the red LED on the debug header turn
on.
3. Connect the debug tool to the debug header.
4. Program the part with the demo code.
5. Run the program.
6. Press and release switch S2 on the target board to toggle the direction of the
motor’s rotation.
7. Press and release switch S1 on the target board to toggle between running and
stopping the motor.
8. If the motor stops while reversing from a high speed, there could be an
overcurrent condition detected by the system. Reset the system to run the
program again.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
PEP and Debug Header Specification
DS50001292W-page 60 2006-2015 Microchip Technology Inc.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-8: DIMENSIONS – AC162078
M
18-Pin Target Pin 1 is located
on bottom side of header
Dimensions are in inches
Top
28-Pin Target Pin 1 is located
on bottom side of header
Side
0.062 Typical
0.560
Typical
0.165 Typical
2.300
0.950
0.410
0.300
0.150
2.050
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE Device
Disab‘e vo‘lage regulalor
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 61
AC162088, AC162094
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
Both 28-pin and 44-pin device headers have jumpers related to the enabling or dis-
abling of the on-chip 2.5 volt voltage regulator. Please see the section entitled “On-Chip
Voltage Regulator” in the dsPIC33F Family Reference Manual (DS70165) for more
details.
Test points are available on this header to check the following:
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
whether a device on a header has limitations, see your hardware tool documentation.
Header Dimensions
The following figures list the dimensions for the debug headers. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
AC Number -ICE/-ICD Device Board Assembly Number
AC162088 PIC24FJ64GA004-ICE 02-01979
AC162094 02-01982
Jumper J2 Function
1-2 Disable voltage regulator
2-3 Enable voltage regulator
No connection DISVREG controlled by target
Test Point Color Signal Test Point Color Signal
TP1 Black Ground TP5 White DISVREG
TP2 Red VDD TP6 White PGC
TP3 Black AVSS TP7 White PGD
TP4 Red AVDD TP8 Yellow ICRST
PEP and Debug Header Specification
DS50001292W-page 62 2006-2015 Microchip Technology Inc.
FIGURE 3-9: DIMENSIONS (28 PIN) – AC162088
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
2.450
Top
0.175
1.600
0.700
Side
0.062 Typical
0.560
Typical
0.165 Typical
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
-ICE
Device
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 63
FIGURE 3-10: DIMENSIONS (44 PIN) – AC162094
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
2.400
Top
0.400
1.600
0.550
Side
0.062 Typical
0.560
Typical
0.335 Typical
-ICE
6-pin Modular Connector
See Appendix B. “Debug Header
Connections” for details.
Device
ACZ44026 HEADER
PEP and Debug Header Specification
DS50001292W-page 64 2006-2015 Microchip Technology Inc.
AC244026, AC244027
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
This Processor Extension Pak provides extra debugging capability that is not available
on the production devices, including the following:
• 3 Address/Data breakpoints (1 Address only breakpoint on production devices)
• Data capture (Real Time Data Streaming)
• No user Flash resources needed for debugging
• No user RAM resources needed for debugging
• No user pins required
This header has jumpers available for MCLR pull-up and power LED control.
AC244026 HEADER
Additionally, this header has jumpers related to the LDO voltage regulator. Depending
on the device pin used for this function, you would use either J4 (RA0), J5 (RA5) or J6
(RA6) for Vcap selection. For details on the voltage regulator, see the
PIC16F72X/PIC16LF72X Data Sheet (DS41341).
AC Number -ICE/-ICD Device Board Assembly Number
AC244026 PIC16F727-ICE 02-02105
AC244027 PIC16LF727-ICE
Jumper Setting Function
J2 Open Disable weak ICE MCLR pull-up resistor.
Short Enable weak ICE MCLR pull-up resistor. This option keeps the target
program running even after the tool has been disconnected from the
header, i.e., the pin will not float high.
J3 Open Disable power LED indicator. This option saves power.
Short Enable power LED indicator.
Jumper Setting Function
J4,
J5,
or J6
Open Use only target capacitance for Vcap. This is the standard configuration.
Short Use both on-board and target capacitance for Vcap.
This option is to provide extra margin for the voltage regulator stabil-
ity/regulation in cases where there is a long lead length between the
emulation header Vcap pin and the target Vcap pin. (As examples, when
using long-pin DIP transition sockets or certain QFN transition sockets.)
ACZ44027 HEADER
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 65
Test points are available on this header to check the following:
AC244027 HEADER
Test points are available on this header to check the following:
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
Header Dimensions
The following figure lists the dimensions for the debug headers. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
Test Point Signal Test Point Signal Pin Jumper
TP1 Vss TP6 Vcap RA0 J4
TP2 VDD TP7 Vcap RA5 J5
TP3 ICD Enable TP8 Vcap RA6 J6
TP4 VDD
TP5 Vss
Test Point Signal
TP1 Vss
TP2 VDD
TP3 ICD Enable
TP4 VDD
TP5 Vss
PEP and Debug Header Specification
DS50001292W-page 66 2006-2015 Microchip Technology Inc.
FIGURE 3-11: DIMENSIONS – AC244026, AC244027
Side
0.062 Typical
Top
0.335 Typical
0.380 Typical
0.165 Typical
0.710
0.710
2.575
0.345
0.840
0.650
0.800
0.445
0.145
2.190
QFN
44-Pin TQFP Target Pin 1 is located
on bottom side of header.
44-Pin QFN Target Pin 1 is located
on bottom side of header.
28-Pin DIP Target Pin 1 is located
on bottom side of header.
40-Pin DIP Target Pin 1 is located
on bottom side of header.
28
40
Mount for optional
right angle socket.
Dimensions are in inches
TQFP
ICE Device
6-pin SIL Connector
(0.100 pin spacing)
See Appendix B. “Debug Header
Connections” for details.
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 67
AC244033, AC244034
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For this header, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244033 PIC18F14K22-ICE 02-02031
AC244034 PIC18LF14K22-ICE
PEP and Debug Header Specification
DS50001292W-page 68 2006-2015 Microchip Technology Inc.
Header Dimensions
The figure below lists the dimensions for the debug headers. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-12: DIMENSIONS (20 PIN) – AC244033, AC244034
Side
0.062
Typical
0.165 Typical
0.182
Typical
Target Pin 1 is located on
bottom side of header.
Dimensions are in inches
Top
1.800
1.150
0.150
0.425
-ICE Device
6-pin SIL Connector
(0.100 pin spacing)
See Appendix B. “Debug Header
Connections” for details.
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 69
AC244035, AC244036
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For this header, set up the jumpers as described below.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244035 PIC16F1939-ICE 02-02105
AC244036 PIC16LF1939-ICE
Jumper Setting Function
J2 Open Disable weak ICE/MCLR pull-up resistor
Short Enable weak ICE/MCLR pull-up resistor
J3 Open Disable power LED indicator
Short Enable power LED indicator
J4 Open Use only target capacitance for VCAP (on RA0 pin)
Short Use both on-board and target capacitance for VCAP (on RA0 pin)
J5 Open Use only target capacitance for VCAP (on RA5 pin)
Short Use both on-board and target capacitance for VCAP (on RA5 pin)
J6 Open Use only target capacitance for VCAP (on RA6 pin)
Short Use both on-board and target capacitance for VCAP (on RA6 pin)
Ml L «
PEP and Debug Header Specification
DS50001292W-page 70 2006-2015 Microchip Technology Inc.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-13: DIMENSIONS - AC244035, AC244036
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 71
AC244043, AC244044
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For this header, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244043 PIC16F1829-ICE 02-02208
AC244044 PIC16LF1829-ICE
PEP and Debug Header Specification
DS50001292W-page 72 2006-2015 Microchip Technology Inc.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-14: DIMENSIONS - AC244043, AC244044
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 73
AC244046, AC244047
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For this header, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244046 PIC16F1847-ICE 02-02258
AC244047 PIC16LF1847-ICE
F
PEP and Debug Header Specification
DS50001292W-page 74 2006-2015 Microchip Technology Inc.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-15: DIMENSIONS - AC244046, AC244047
P‘C16LF1907VICE 02702105
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 75
AC244048
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
For these headers, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
Header Dimensions
The following figure lists the dimensions for the debug headers. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
AC Number -ICE/-ICD Device Board Assembly Number
AC244048 PIC16LF1907-ICE 02-02105
my“ ====== :0: 3%”: Ufl'f U ¢ Lm
PEP and Debug Header Specification
DS50001292W-page 76 2006-2015 Microchip Technology Inc.
FIGURE 3-16: DIMENSIONS - AC244048
Side
0.062 Typical
Top
0.335 Typical
0.380 Typical
0.165 Typical
0.710
0.710
2.575
0.345
0.840
0.650
0.800
0.445
0.145
2.190
QFN
44-Pin TQFP Target Pin 1 is located
on bottom side of header.
44-Pin QFN Target Pin 1 is located
on bottom side of header.
28-Pin DIP Target Pin 1 is located
on bottom side of header.
40-Pin DIP Target Pin 1 is located
on bottom side of header.
28
40
Mount for optional
right angle socket.
Dimensions are in inches
TQFP
-ICE Device
6-pin SIL Connector
(0.100 pin spacing)
See Appendix B. “Debug Header
Connections” for details.
P‘C12F7524CE 02702300
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 77
AC244049, AC244050
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For these headers, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244049 PIC12F752-ICE 02-02300
AC244050 PIC12HV752-ICE
PEP and Debug Header Specification
DS50001292W-page 78 2006-2015 Microchip Technology Inc.
Header Dimensions
The figure below lists the dimensions for the debug headers. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-17: DIMENSIONS - AC244049, AC244050
P‘C16F14594CE 02702031
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 79
AC244053, AC244054
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify these headers,
use the following information.
Header Setup and Operation
For this header, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244053 PIC16F1459-ICE 02-02031
AC244054 PIC16LF1459-ICE
PEP and Debug Header Specification
DS50001292W-page 80 2006-2015 Microchip Technology Inc.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-18: DIMENSIONS – AC244053, AC224054
Target Pin 1 Located on
Bottom side of Header
Dimensions are in inches
Top
1.800
0.150 1.150
0.425
Side
0.165 Typical
0.062
Typical
0.260
Typical
8-pin SIL Connector
(0.100 pin spacing)
See Appendix B. “Debug Header
Connections” for details.
ICE
Device
P‘C16F7534CE 02710153
Optional Debug Headers
2006-2015 Microchip Technology Inc. DS50001292W-page 81
AC244060
Header Identification
The AC number is used for ordering the Processor Extension Pak, which contains the
debug header. However, this number is not on the header, as the board may be used
for multiple headers by inserting different -ICE/-ICD devices. To identify this header,
use the following information.
Header Setup and Operation
For this header, there are no jumpers/switches. MPLAB X IDE will use its selected
device to choose the correct device to emulate.
Header Limitations
Sometimes a header device (-ICE/-ICD) has operational issues or errata. To determine
if a device on a header has limitations, see your hardware tool documentation.
AC Number -ICE/-ICD Device Board Assembly Number
AC244060 PIC16F753-ICE 02-10153
PEP and Debug Header Specification
DS50001292W-page 82 2006-2015 Microchip Technology Inc.
Header Dimensions
The figure below lists the dimensions for the debug header. Dimensions are design
values in inches.
If the length and/or width of the debug header is too large a footprint for the target
board, consider using stand-offs, transition sockets or other extenders in the header
connection socket to raise the header above the target.
FIGURE 3-19: DIMENSIONS – AC244060
Dimensions are in inches
6-pin SIL Connector
(0.100 pin spacing)
See Appendix B. “Debug
Header Connections” for
details.
14-Pin DIP Target Pin 1 is located
on bottom side of header.
0.400
0.385
1.300
1.700
0.610
0.110
Top
Side
0.062 Typical Board Thickness
0.165 Typical
0.330 Typical
0.140
6‘ MICRDCHIP *‘F 0 ; oucooccuuoouar + oo:ooccoccocaoa:oo/;0T arPin 0.300 147Pin 0.300 187Pin 0.300 207Pin 0.300 287Pin 0.300 407Pin 0.600
2006-2015 Microchip Technology Inc. DS50001292W-page 83
PEP and Debug Header
Specification
Appendix A. Debug Header Target Footprints
A.1 INTRODUCTION
To connect a debug header directly to a target board (without the use of a transition
socket) the following information will be helpful.
• DIP Device Footprints
• TQFP/PLCC Device Footprints
A.2 DIP DEVICE FOOTPRINTS
The DIP device adapter footprint shown below will accept adapter plugs like Samtec
series APA plugs. These plugs can be soldered in place during development/emulation
and eliminate the need for other sockets.
FIGURE A-20: DIP FOOTPRINT
A.3 TQFP/PLCC DEVICE FOOTPRINTS
TQFP/PLCC device adapter footprints shown will accept board stackers like Samtec
series DWM 0.050 Pitch Stackers. These stackers can be soldered in place during
development/emulation and eliminate the need for other sockets.
FIGURE A-21: SINGLE-ROW TQFP/PLCC FOOTPRINT
0.100
C
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
Drawing of DIP is 40-pin.
DIP C
8-Pin 0.300
14-Pin 0.300
18-Pin 0.300
20-Pin 0.300
28-Pin 0.300
40-Pin 0.600
0.028 DIA.
PLATED-THRU
HOLES
0.050
0.800
0.800 UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
Drawing of device is 44-pin TQFP/PLCC.
0.028 DIA
PLATED-THRU
HOLES
mam—T L fl DafT$?DDDTTQ$TDD W 60 SM \ DDDDDDDDDDDDDDDDD D D D D a D Dim Diiifl Diffs g, D / D g D/)E E D 37/0 D\E D/ D D \D 9 43 D D D D D\ D D /D ::j‘”D D”i:: D D D D 9‘ D D )D D 7|] g, D D 47D Dgigiifl D a Difl D D D D DDDDDDDDDDDDDDDDD \‘y E \‘ ‘ w ’ ‘ H ‘ \ w \ J ‘ DDDDDDDDDDDDDDDD
PEP and Debug Header Specification
DS50001292W-page 84 2006-2015 Microchip Technology Inc.
FIGURE A-22: DOUBLE AND TRIPLE-ROW TQFP/PLCC FOOTPRINT
Header pin-out matches the PLCC package. PLCC will map to TQFP as follows:
• Header to 44-pin TQFP – one-to-one mapping.
• Header to 64-pin TQFP – see Figure A-23 for mapping.
• Header to 80-pin TQFP – see Figure A-24 for mapping.
• Header to 100-pin TQFP – one-to-one mapping.
FIGURE A-23: HEADER TO 64-PIN TQFP
0.050
1.160
1.160
0.960
0.960
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
Drawing of device is 64/68-pin,
80/84-pin and 100-pin
0.028 DIA
PLATED-THRU
HOLES
1.360
1.360
68 52
1
17
9
60
NC
NC
1
16
NC = No Connection
51
35
43
NC
48
33
64 49
18 3426
17 32
NC
DDDDDDDDDDDDDDDDDDDD \ r ‘W \ \ \ l ‘ 74 ~ \ \ DDDDDDDDDDDDDDDDDDDDD \ \ x DDDDDDDDDDDDDDDDDDDDD \\ \ \ v / I] I] I] I] I] I] I] I] I] I] I] I] I] I] I] I] I] I] I] I] DDDDDDDDDDDDDDDDDDDD DDDDDDDDDDDDDDDDDDDD DDDDDDDDDDDDDDDDDDDDD “ 32w“ \ ‘x x w \ DDDDDDDDDDDDDDDDDDDD
Debug Header Target Footprints
2006-2015 Microchip Technology Inc. DS50001292W-page 85
FIGURE A-24: HEADER TO 80-PIN TQFP
84 64
22 42
1
21
63
43
80 61
11 53
32
74
NC
21 40
NC
60
41
NC NC
1
20
NC = No Connection
PEP and Debug Header Specification
DS50001292W-page 86 2006-2015 Microchip Technology Inc.
NOTES:
Q MICRDCHIP IIIIIH Q U D _ |||||| _
2006-2015 Microchip Technology Inc. DS50001292W-page 87
PEP and Debug Header
Specification
Appendix B. Debug Header Connections
B.1 INTRODUCTION
The following types of debug header are described here. Information on connecting
development tools to the headers is presented here, as well.
• 6-Pin Modular Connector
•8-Pin SIL Connector
•6-Pin SIL Connector
•SIL Optional Connection
•Modular-to-SIL Adapter
•Ordering Information
B.2 6-PIN MODULAR CONNECTOR
Debug headers with 6-pin modular (RJ-11/ICSP) connectors can connect directly to the
following tools:
• MPLAB REAL ICE in-circuit emulator (Standard Driver Board)
• MPLAB ICD 3
FIGURE B-1: MODULAR CONNECTION
Header
Connector
From
Header
Connector
Too l
From
Too l
TOP
SIDE
J1
TOP
SIDE
22::
PEP and Debug Header Specification
DS50001292W-page 88 2006-2015 Microchip Technology Inc.
B.3 8-PIN SIL CONNECTOR
Debug headers with 8-pin Single In-Line (SIL) connectors are compatible with the tools
listed below.
PICkit 3 Programmer/Debug Express
The 6-pin socket of the PICkit 3 may be connected to the 8 header pins by removing
the two DAT and CLK pins. However, this may compromise future use of these
pins/functions with other tools.
FIGURE B-2: 8-PIN SIL CONNECTION TO A PICKIT
MPLAB ICD 3 In-Circuit Debugger
The 6-pin modular cable attached to the MPLAB ICD 3 may be connected to the 8
header pins through the Modular-to-SIL Adapter.
MPLAB REAL ICE In-Circuit Emulator
The 6-pin modular cable attached to the Standard Driver Board may be connected to
the 8 header pins through the Modular-to-SIL Adapter. No SPI trace is available with
this connection because of the loss of the DAT and CLK pins.
The 8-pin socket of the High Speed Driver Board or optional Isolation Unit may be con-
nected directly to the 8 header pins. Be sure to line up pin 1 on the board with pin 1 on
the header.
FIGURE B-3: 8-PIN SIL CONNECTION TO AN EMULATOR
PICkit 3
PICkit
TOP
1
Header
Connector
TOP
1
DAT
CLK
Remove
MPLAB REAL ICE in-circuit emulator
High-Speed Receiver Board or
TOP
Header
Connector
optional Isolation Unit
TOP
11
J1
DAT
CLK
J3 J2
NW NW
Debug Header Connections
2006-2015 Microchip Technology Inc. DS50001292W-page 89
B.4 6-PIN SIL CONNECTOR
Debug headers with 6-pin SIL connectors are compatible with the tools listed below.
PICkit 3 Programmer/Debug Express
The 6-pin socket of the PICkit 3 may be directly connected to the 6 header pins. Be
sure to line up pin 1 on the PICkit with pin 1 on the header.
FIGURE B-4: 6-PIN SIL CONNECTION TO A PICKIT
MPLAB ICD 3 In-Circuit Debugger
The 6-pin modular cable attached to the MPLAB ICD 3 may be connected to the 6
header pins through the Modular-to-SIL Adapter.
MPLAB REAL ICE In-Circuit Emulator
The 6-pin modular cable attached to the Standard Driver Board may be connected to
the 6 header pins through the Modular-to-SIL Adapter. No SPI trace is available with
this connection because of the loss of the DAT and CLK pins.
The 8-pin socket of the High Speed Driver Board or optional Isolation Unit may be con-
nected directly to the 6 header pins. Be sure to line up pin 1 on the board with pin 1 on
the header.
FIGURE B-5: 6-PIN SIL CONNECTION TO AN EMULATOR
Note: No SPI trace is possible in this case because of the loss of DAT and CLK
pins. However, if the device supports SPI, two additional header pins can
be attached to add this functionality.
PICkit 3
PICkit
TOP
Header
Connector
TOP
1
1
1
J1
DAT
CLK
J3 J2
TOP
Header
Connector
MPLAB REAL ICE in-circuit emulator
High-Speed Receiver Board or
optional Isolation Unit
TOP
1
Optional SPI trace
2-Pin right angle header
can be installed here.
(Digi-Key P/N A32702-02-ND)
mnflflflflflflflu loooooco ”filllllllJ
PEP and Debug Header Specification
DS50001292W-page 90 2006-2015 Microchip Technology Inc.
B.5 SIL OPTIONAL CONNECTION
Debug headers with 6- and 8-pin SIL connectors have an additional unpopulated con-
nector available for customer use. This connector has the same pinout as the SIL
connector. Solder wires to access individual pins or attach an entire vertical connector.
FIGURE B-6: SIL OPTIONAL CONNECTION
B.6 MODULAR-TO-SIL ADAPTER
To adapt a 6-pin modular connector to an 8-pin SIL (Single In-Line) connector, you can
use this adapter. You can also use this adapter for a 6-pin modular connector to an
6-pin SIL connector. In either case, line up pin 1 of J1 with pin 1 of the 6- or 8-pin
header connector.
FIGURE B-7: MODULAR-TO-SIL ADAPTER CONNECTION
SIL Connector Optional Connector
Modular Connector SIL Connector
ICRST
VDD
ICDT
ICCK
NC
1
2
3
4
5
6
J2 J1
1
2
3
4
5
6
7
8
ICDT
ICCK
TP1 USD0
TP2 USCK
6- or 8-Pin
Header
Connector
From
Tool
TOP
1
1
J1
J2
TOP
TOP
NC
ICRST
VDD
Debug Header Connections
2006-2015 Microchip Technology Inc. DS50001292W-page 91
B.7 ORDERING INFORMATION
To order the development tools and other hardware shown here, please refer to the
table below.
TABLE B-1: MICROCHIP HARDWARE ORDERING NUMBERS
Hardware Order #
MPLAB REAL ICE in-circuit emulator (Standard Communication) DV244005
MPLAB REAL ICE in-circuit emulator (High-Speed Communication) - Performance Pak AC244002
MPLAB REAL ICE Isolation Unit (works with High-Speed Communication) AC244005
MPLAB ICD 3 DV164035
PICkit 3 Debug Express DV164131
Modular-to-SIL Adapter AC164110
PEP and Debug Header Specification
DS50001292W-page 92 2006-2015 Microchip Technology Inc.
NOTES:
2006-2015 Microchip Technology Inc. DS50001292W-page 93
PEP and Debug Header Specification
APPENDIX C: REVISION HISTORY
C.1 Revision N (February 2006)
• Added Appendix A: Revision History
• Updated document to reflect support of addi-
tional tools
• Additional minor corrections throughout doc-
ument text
C.2 Revision P (September 2007)
• Updated document to reflect support of addi-
tional tools
• Additional minor corrections throughout doc-
ument text
C.3 Revision Q (December 2008)
• Added limitations to header setup sections
as needed.
• Changed “ICD Headers” and “ICE Headers”
to “Required Headers” and “Optional Head-
ers” and move sections as necessary.
• Rearranged sections to organize by header
(AC) number.
C.4 Revision R (April 2009)
• Added board dimensions
• Removed header pinouts
• Added board identification info
• Added “why use a header” section
• Added footprint appendix
• Changed MPLAB ICD 2 and MPLAB ICD 3
references to generic debug tool
• Added MPLAB REAL ICE in-circuit emulator
and MPLAB ICD 3 as programmers
C.5 Revision S (July 2010)
• Added AC244028
• Added Header Connections chapter
• Added AC244033, AC244034
• Moved limitations to common Limitations file
and added small section referencing Help
files
• Added PIC12F617 to AC162083
C.6 Revision T (February 2012)
• Added AC244043 and AC244044 and asso-
ciated devices
• Removed Header Setup and Operation for
AC244045
C.7 Revision U (June 2012)
• Name changed from “Debug Header Specifi-
cation” to “Processor Extension Pak &
Header Specification”.
• “Processor Extension Pak and Header
Defined” section added.
• “MPLAB IDE and MPLAB X IDE Use with
Headers” section added.
C.8 Revision V (September 2015)
• Removed references to MPLAB IDE v8 and
tools supported only on that IDE. Also
removed references to PICkit 2.
• Numbering added to chapters.
• Chapter 1. “PEP and Debug Header Over-
view” - reorganized for better information
flow.
• Chapter 2. “Required Debug Headers” -
Added AC244061, AC244062.
• Chapter 3. “Optional Debug Headers” -
Added AC244049, AC244059, AC244060.
C.9 Revision W (November 2015)
Chapter 1. “PEP and Debug Header Overview” -
corrected typo in Section 1.3, and added 2 links.
PEP and Debug Header Specification
DS50001292W-page 94 2006-2015 Microchip Technology Inc.
NOTES:
Q MICRDCHIP
2006-2015 Microchip Technology Inc. DS50001292W-page 95
PEP AND DEBUG HEADER
SPECIFICATION
Index
Numerics
6-Pin Modular Connector ......................................... 87
6-Pin SIL Connector................................................. 89
8-Pin SIL Connector................................................. 88
A
AC162050 ................................................................ 16
AC162052 ................................................................ 18
AC162053 ................................................................ 20
AC162054 ................................................................ 20
AC162055 ................................................................ 18
AC162056 ................................................................ 18
AC162057 ................................................................ 18
AC162058 ................................................................ 16
AC162059 ................................................................ 22
AC162060 ................................................................ 24
AC162061 ................................................................ 26
AC162062 ................................................................ 48
AC162064 ................................................................ 50
AC162065 ................................................................ 52
AC162066 ................................................................ 28
AC162067 ................................................................ 55
AC162070 ................................................................ 22
AC162074 ................................................................ 55
AC162078 ................................................................ 58
AC162079 ................................................................ 48
AC162083 ................................................................ 30
AC162087 ................................................................ 48
AC162088 ................................................................ 61
AC162091 ................................................................ 48
AC162094 ................................................................ 61
AC162096 ................................................................ 22
AC244022 ................................................................ 52
AC244023 ................................................................ 32
AC244024 ................................................................ 32
AC244026 ................................................................ 64
AC244027 ................................................................ 64
AC244028 ................................................................ 34
AC244033 ................................................................ 67
AC244034 ................................................................ 67
AC244035 ................................................................ 69
AC244036 ................................................................ 69
AC244043 ................................................................ 71
AC244044 ................................................................ 71
AC244045 ................................................................ 36
AC244046 ................................................................ 73
AC244047 ................................................................ 73
AC244048 ................................................................ 75
AC244049 ................................................................ 77
AC244050 ................................................................ 77
AC244051 ................................................................ 38
AC244052 ................................................................ 38
AC244053 ................................................................ 79
AC244054 ................................................................ 79
AC244060 ................................................................ 81
AC244061 ................................................................ 38
AC244062 ................................................................ 40
Additional Information .............................................. 14
C
Calibration Bits ......................................................... 14
J
Jumper Settings16, 18, 24, 28, 34, 48, 55, 58, 61, 64, 69
M
Modular Connector................................................... 87
Modular-to-SIL Adapter............................................ 90
O
Ordering Hardware................................................... 91
P
Performance............................................................. 14
PIC10F200 ............................................................... 15
PIC10F202 ............................................................... 15
PIC10F204 ............................................................... 15
PIC10F206 ............................................................... 15
PIC10F220 ............................................................... 15
PIC10F222 ............................................................... 15
PIC10F320 ............................................................... 15
PIC10F322 ............................................................... 15
PIC10LF320 ............................................................. 15
PIC10LF322 ............................................................. 15
PIC12F1501 ............................................................. 15
PIC12F1822 ............................................................. 44
PIC12F1840 ............................................................. 44
PIC12F508 ............................................................... 15
PIC12F509 ............................................................... 15
PIC12F510 ............................................................... 15
PIC12F519 ............................................................... 15
PIC12F609 ......................................................... 15, 30
PIC12F615 ......................................................... 15, 30
PIC12F617 ......................................................... 15, 30
PIC12F629 ......................................................... 15, 16
PIC12F635 ......................................................... 15, 18
PIC12F675 ......................................................... 15, 16
PIC12F683 ......................................................... 15, 16
PIC12F752 ............................................................... 43
PIC12HV609 ...................................................... 15, 30
PIC12HV615 ...................................................... 15, 30
PIC12HV752 ............................................................ 43
PIC12LF1501 ........................................................... 15
PIC12LF1822 ........................................................... 44
PIC12LF1840 ........................................................... 44
PEP and Debug Header Specification
DS50001292W-page 96 2006-2015 Microchip Technology Inc.
PIC16F1454 ............................................................. 43
PIC16F1455 ............................................................. 43
PIC16F1458 ............................................................. 43
PIC16F1459 ............................................................. 43
PIC16F1503 ............................................................. 16
PIC16F1507 ............................................................. 16
PIC16F1508 ............................................................. 43
PIC16F1509 ............................................................. 43
PIC16F1823 ............................................................. 44
PIC16F1824 ............................................................. 44
PIC16F1825 ............................................................. 44
PIC16F1826 ............................................................. 44
PIC16F1827 ............................................................. 44
PIC16F1829 ............................................................. 44
PIC16F1847 ............................................................. 44
PIC16F1933 ............................................................. 44
PIC16F1934 ............................................................. 44
PIC16F1936 ............................................................. 44
PIC16F1937 ............................................................. 44
PIC16F1938 ............................................................. 44
PIC16F1939 ............................................................. 44
PIC16F505 ............................................................... 15
PIC16F506 ............................................................... 15
PIC16F526 ............................................................... 15
PIC16F527 ............................................................... 15
PIC16F570 ............................................................... 15
PIC16F610 ......................................................... 15, 30
PIC16F616 ......................................................... 15, 30
PIC16F627A....................................................... 15, 20
PIC16F628A....................................................... 15, 20
PIC16F630 ......................................................... 15, 18
PIC16F631 ......................................................... 15, 26
PIC16F636 ......................................................... 15, 18
PIC16F639 ......................................................... 15, 28
PIC16F648A....................................................... 16, 20
PIC16F676 ......................................................... 16, 18
PIC16F677 ......................................................... 16, 26
PIC16F684 ......................................................... 16, 18
PIC16F685 ......................................................... 16, 26
PIC16F687 ......................................................... 16, 26
PIC16F688 ......................................................... 16, 18
PIC16F689 ......................................................... 16, 26
PIC16F690 ......................................................... 16, 26
PIC16F716 ......................................................... 16, 20
PIC16F722 ............................................................... 43
PIC16F723 ............................................................... 43
PIC16F724 ............................................................... 43
PIC16F726 ............................................................... 43
PIC16F727 ............................................................... 43
PIC16F785 ......................................................... 16, 24
PIC16HV610 ...................................................... 15, 30
PIC16HV616 ...................................................... 15, 30
PIC16HV785 ...................................................... 16, 24
PIC16LF1454 ........................................................... 43
PIC16LF1455 ........................................................... 43
PIC16LF1458 ........................................................... 43
PIC16LF1459 ........................................................... 43
PIC16LF1503 ........................................................... 16
PIC16LF1507 ........................................................... 16
PIC16LF1508 ........................................................... 43
PIC16LF1509 ........................................................... 43
PIC16LF1823 ........................................................... 44
PIC16LF1824 ........................................................... 44
PIC16LF1825 ........................................................... 44
PIC16LF1826 ........................................................... 44
PIC16LF1827 ........................................................... 44
PIC16LF1829 ........................................................... 44
PIC16LF1847 ........................................................... 44
PIC16LF1902 ........................................................... 44
PIC16LF1903 ........................................................... 44
PIC16LF1904 ........................................................... 44
PIC16LF1906 ........................................................... 44
PIC16LF1907 ........................................................... 44
PIC16LF1933 ........................................................... 44
PIC16LF1934 ........................................................... 44
PIC16LF1936 ........................................................... 44
PIC16LF1937 ........................................................... 44
PIC16LF1938 ........................................................... 44
PIC16LF1939 ........................................................... 44
PIC16LF722 ............................................................. 43
PIC16LF723 ............................................................. 43
PIC16LF724 ............................................................. 43
PIC16LF726 ............................................................. 43
PIC16LF727 ............................................................. 43
PIC18F1230 ....................................................... 45, 58
PIC18F1330 ....................................................... 45, 58
PIC18F13K22........................................................... 45
PIC18F13K50........................................................... 16
PIC18F14K22........................................................... 45
PIC18F14K50........................................................... 16
PIC18F24J10 ........................................................... 45
PIC18F25J10 ..................................................... 45, 55
PIC18F44J10 ........................................................... 45
PIC18F45J10 ..................................................... 45, 55
PIC18F63J11 ........................................................... 45
PIC18F63J90 ........................................................... 45
PIC18F64J11 ........................................................... 45
PIC18F64J16 ........................................................... 45
PIC18F64J90 ........................................................... 45
PIC18F64J95 ........................................................... 45
PIC18F65J10 ........................................................... 45
PIC18F65J11 ........................................................... 45
PIC18F65J15 ........................................................... 45
PIC18F65J16 ........................................................... 46
PIC18F65J50 ........................................................... 46
PIC18F65J55 ........................................................... 46
PIC18F65J90 ........................................................... 45
PIC18F66J10 ........................................................... 45
PIC18F66J11 ........................................................... 46
PIC18F66J15 ........................................................... 45
PIC18F66J16 ........................................................... 46
PIC18F66J50 ........................................................... 46
PIC18F66J55 ........................................................... 46
PIC18F66J60 ........................................................... 46
PIC18F66J65 ........................................................... 46
PIC18F67J10 ........................................................... 45
PIC18F67J11 ........................................................... 46
PIC18F67J50 ........................................................... 46
PIC18F67J60 ........................................................... 46
PIC18F83J11 ........................................................... 45
Index
2006-2015 Microchip Technology Inc. DS50001292W-page 97
PIC18F83J90 ........................................................... 45
PIC18F84J11 ........................................................... 45
PIC18F84J16 ........................................................... 45
PIC18F84J90 ........................................................... 45
PIC18F84J95 ........................................................... 45
PIC18F85J10 ........................................................... 45
PIC18F85J11 ........................................................... 45
PIC18F85J15 ........................................................... 45
PIC18F85J16 ........................................................... 46
PIC18F85J50 ........................................................... 46
PIC18F85J55 ........................................................... 46
PIC18F85J90 ........................................................... 45
PIC18F86J10 ........................................................... 45
PIC18F86J11 ........................................................... 46
PIC18F86J15 ........................................................... 45
PIC18F86J16 ........................................................... 46
PIC18F86J50 ........................................................... 46
PIC18F86J55 ........................................................... 46
PIC18F86J60 ........................................................... 46
PIC18F86J65 ........................................................... 46
PIC18F87J10 ........................................................... 45
PIC18F87J11 ........................................................... 46
PIC18F87J50 ........................................................... 46
PIC18F87J60 ........................................................... 46
PIC18F96J60 ........................................................... 46
PIC18F96J65 ........................................................... 46
PIC18F97J60 ........................................................... 46
PIC18LF13K22 ........................................................ 45
PIC18LF13K50 ........................................................ 16
PIC18LF14K22 ........................................................ 45
PIC18LF14K50 ........................................................ 16
PIC18LF24J10 ......................................................... 45
PIC18LF25J10 ....................................................45, 55
PIC18LF44J10 ......................................................... 45
PIC18LF45J10 ....................................................45, 55
PIC24F04KA200 ...................................................... 16
PIC24F04KA201 ...................................................... 16
PIC24F08KA101 ...................................................... 47
PIC24F08KA102 ...................................................... 47
PIC24F16KA101 ...................................................... 47
PIC24F16KA102 ...................................................... 47
PIC24FJ128GA006.................................................. 47
PIC24FJ128GA008.................................................. 47
PIC24FJ128GA010.................................................. 47
PIC24FJ16GA002.................................................... 47
PIC24FJ16GA004.................................................... 47
PIC24FJ32GA002.................................................... 47
PIC24FJ32GA004.................................................... 47
PIC24FJ48GA002.................................................... 47
PIC24FJ48GA004.................................................... 47
PIC24FJ64GA002.................................................... 47
PIC24FJ64GA004.................................................... 47
PIC24FJ64GA006.................................................... 47
PIC24FJ64GA008.................................................... 47
PIC24FJ64GA010.................................................... 47
PIC24FJ96GA006.................................................... 47
PIC24FJ96GA008.................................................... 47
PIC24FJ96GA010.................................................... 47
PICDEM HPC Explorer Board.................................. 48
Pin Count ................................................ 15, 43, 45, 47
S
SIL Connector, 6 Pin ................................................ 89
SIL Connector, 8 Pin ................................................ 88
Switch Settings......................................................... 26
Switch Settings, Rotary ............................................ 30
T
Transition Socket ..................................................... 11
V
Vdd Max ..................................................15, 43, 45, 47
Vddcore Max ...........................................15, 43, 45, 47
6‘ MICROCHIP AMERICAS ASIA/PACIFIC ASIA/PACIFIC EUROPE
DS50001292W-page 98 2006-2015 Microchip Technology Inc.
AMERICAS
Corporate Office
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 480-792-7200
Fax: 480-792-7277
Technical Support:
http://www.microchip.com/
support
Web Address:
www.microchip.com
Atlanta
Duluth, GA
Tel: 678-957-9614
Fax: 678-957-1455
Austin, TX
Tel: 512-257-3370
Boston
Westborough, MA
Tel: 774-760-0087
Fax: 774-760-0088
Chicago
Itasca, IL
Tel: 630-285-0071
Fax: 630-285-0075
Cleveland
Independence, OH
Tel: 216-447-0464
Fax: 216-447-0643
Dallas
Addison, TX
Tel: 972-818-7423
Fax: 972-818-2924
Detroit
Novi, MI
Tel: 248-848-4000
Houston, TX
Tel: 281-894-5983
Indianapolis
Noblesville, IN
Tel: 317-773-8323
Fax: 317-773-5453
Los Angeles
Mission Viejo, CA
Tel: 949-462-9523
Fax: 949-462-9608
New York, NY
Tel: 631-435-6000
San Jose, CA
Tel: 408-735-9110
Canada - Toronto
Tel: 905-673-0699
Fax: 905-673-6509
ASIA/PACIFIC
Asia Pacific Office
Suites 3707-14, 37th Floor
Tower 6, The Gateway
Harbour City, Kowloon
Hong Kong
Tel: 852-2943-5100
Fax: 852-2401-3431
Australia - Sydney
Tel: 61-2-9868-6733
Fax: 61-2-9868-6755
China - Beijing
Tel: 86-10-8569-7000
Fax: 86-10-8528-2104
China - Chengdu
Tel: 86-28-8665-5511
Fax: 86-28-8665-7889
China - Chongqing
Tel: 86-23-8980-9588
Fax: 86-23-8980-9500
China - Dongguan
Tel: 86-769-8702-9880
China - Hangzhou
Tel: 86-571-8792-8115
Fax: 86-571-8792-8116
China - Hong Kong SAR
Tel: 852-2943-5100
Fax: 852-2401-3431
China - Nanjing
Tel: 86-25-8473-2460
Fax: 86-25-8473-2470
China - Qingdao
Tel: 86-532-8502-7355
Fax: 86-532-8502-7205
China - Shanghai
Tel: 86-21-5407-5533
Fax: 86-21-5407-5066
China - Shenyang
Tel: 86-24-2334-2829
Fax: 86-24-2334-2393
China - Shenzhen
Tel: 86-755-8864-2200
Fax: 86-755-8203-1760
China - Wuhan
Tel: 86-27-5980-5300
Fax: 86-27-5980-5118
China - Xian
Tel: 86-29-8833-7252
Fax: 86-29-8833-7256
ASIA/PACIFIC
China - Xiamen
Tel: 86-592-2388138
Fax: 86-592-2388130
China - Zhuhai
Tel: 86-756-3210040
Fax: 86-756-3210049
India - Bangalore
Tel: 91-80-3090-4444
Fax: 91-80-3090-4123
India - New Delhi
Tel: 91-11-4160-8631
Fax: 91-11-4160-8632
India - Pune
Tel: 91-20-3019-1500
Japan - Osaka
Tel: 81-6-6152-7160
Fax: 81-6-6152-9310
Japan - Tokyo
Tel: 81-3-6880- 3770
Fax: 81-3-6880-3771
Korea - Daegu
Tel: 82-53-744-4301
Fax: 82-53-744-4302
Korea - Seoul
Tel: 82-2-554-7200
Fax: 82-2-558-5932 or
82-2-558-5934
Malaysia - Kuala Lumpur
Tel: 60-3-6201-9857
Fax: 60-3-6201-9859
Malaysia - Penang
Tel: 60-4-227-8870
Fax: 60-4-227-4068
Philippines - Manila
Tel: 63-2-634-9065
Fax: 63-2-634-9069
Singapore
Tel: 65-6334-8870
Fax: 65-6334-8850
Taiwan - Hsin Chu
Tel: 886-3-5778-366
Fax: 886-3-5770-955
Taiwan - Kaohsiung
Tel: 886-7-213-7828
Taiwan - Taipei
Tel: 886-2-2508-8600
Fax: 886-2-2508-0102
Thailand - Bangkok
Tel: 66-2-694-1351
Fax: 66-2-694-1350
EUROPE
Austria - Wels
Tel: 43-7242-2244-39
Fax: 43-7242-2244-393
Denmark - Copenhagen
Tel: 45-4450-2828
Fax: 45-4485-2829
France - Paris
Tel: 33-1-69-53-63-20
Fax: 33-1-69-30-90-79
Germany - Dusseldorf
Tel: 49-2129-3766400
Germany - Karlsruhe
Tel: 49-721-625370
Germany - Munich
Tel: 49-89-627-144-0
Fax: 49-89-627-144-44
Italy - Milan
Tel: 39-0331-742611
Fax: 39-0331-466781
Italy - Venice
Tel: 39-049-7625286
Netherlands - Drunen
Tel: 31-416-690399
Fax: 31-416-690340
Poland - Warsaw
Tel: 48-22-3325737
Spain - Madrid
Tel: 34-91-708-08-90
Fax: 34-91-708-08-91
Sweden - Stockholm
Tel: 46-8-5090-4654
UK - Wokingham
Tel: 44-118-921-5800
Fax: 44-118-921-5820
Worldwide Sales and Service
07/14/15

Products related to this Datasheet

PROGRAMMER MCU PICKIT 4
