LM9830 Datasheet by Texas Instruments

LM9830

LM9830 36-Bit Color Document Scanner

Literature Number: SNOS444B

1http://www.national.com

General Description

The LM9830 is a complete document scanner system on a sin-

gle IC. The LM9830 provides all the functions (CCD control, illu-

mination control, analog front end, pixel processing function

image data buffer/SRAM controller, microstepping motor control-

ler, and EPP parallel port interface) necessary to create a high

performance color scanner. The LM9830 scans images in 36 bit

color, and has output data formats for 36 bits, 30 bits, and 24

bits.

The only additional active components required are an external

SRAM for data buffering and power transistors for the stepper

motor. Parallel port pass-through requires two additional

TTL/CMOS logic ICs.

Applications

• Color Flatbed Document Scanners

• Color Sheetfed Document Scanners

Features

• Scans at up to 6Mpixels/s (2M RGB pixels/sec).

• Digital Pixel Processing provides 300, 200, 150, 100, 75, and

50 dpi horizontal resolution from 300dpi sensor, and 600, 400,

300, 200, 150, 100, 75, and 50 dpi horizontal resolution from

a 600dpi sensor.

• Provides 50-600dpi vertical resolution in 1 dpi increments.

• Pixel rate error correction for gain (shading) and offset errors.

• Output formats include 12 bit linear, 10 bit linear with shading

and offset, or 8 bit gamma corrected, all with 12 bit accuracy.

• Multiple CCD clocking rates allows matching of CCD clock to

scan resolution and pixel depth for maximum scan speed.

• Stepper motor control tightly coupled with buffer management

to maximize data transfer efficiency.

• PWM stepper motor current control allows microstepping for

the price of fullstepping.

• Supports 64k, 128k, or 256k x8 external SRAMs.

• Parallel Port interface supports EPP, PS2 (bidirectional), or

SPP (nibble) modes of operation.

• Pixel depths of 1, 2, or 4 bits are packed into bytes for faster

scans of line art and low pixel depth images.

• Supports 1 and 3 channel CIS and CCD devices.

• 3 (R, G, and B) user-programmable gamma correction tables.

• Able to transmit an arbitrary range of pixels to speed up

scanning of smaller items (business cards, etc.) by zooming

in on a subset of CCD pixels.

• Compatible with a wide range of color linear CCDs and

Contact Image Sensors (CIS)

• Internal bandgap voltage reference.

• 100 pin TQFP package

Key Specifications

• Analog to Digital Converter Resolution 12 Bits

• Maximum Pixel Conversion Rate 6MHz

• A4 Color 150dpi scan (typical, EPP Interface) <10 seconds

• A4 Color 300dpi scan (typical, EPP Interface) <40 seconds

• A4 Color 600dpi scan (typical, EPP Interface) <160 seconds

• Supply Voltage +5V±10%

• Power Dissipation (typical) 350mW

LM9830 36-Bit Color Document Scanner

Scanner Block Diagram

Buffer

Computer To

Printer

DB25

CCD/CIS

Illumination

+24V

Stepper

Motor

1-3

2-6

9 28

Power

Transistors

SRAM

LM9830VJD

Ordering Information

Commercial (0°C ≤ TA ≤ +70°C) Package

LM9830VJD VJD100A 100 Pin Thin Quad Flatpac

LM9830VJDX VJD100A 100 Pin Thin Quad Flatpac, Tape & Reel

November 1998

LM9830 36-Bit Color Document Scanner

TRI-STATE® is a registered trademark of National Semiconductor Corporation.

9! 2|

2http://www.national.com

Electrical Characteristics

The following specifications apply for AGND=DGND=DGNDI/O=DGNDSRAM=0V, VA=VD=VDI/O=VSRAM=+5.0VDC,

fCRYSTAL IN= 50MHz. Boldface limits apply for TA=TJ=TMIN to TMAX; all other limits TA=TJ=25°C. (Notes 7, 8, & 12)

Symbol Parameter Conditions Typical

(Note 9)

Limits

(Note 10)

Units

(Limits)

CCD/CIS Source Requirements for Full Specified Accuracy and Dynamic Range

(

Note 12

)

VOS PEAK

Sensor’s Maximum Output Signal

Amplitude before LM9830 Analog Front

End Saturation

Gain = 0.933

Gain = 3.0

Gain = 9.0

2.1

0.65

0.21

Full Channel Characteristics

Resolution with No Missing Codes 12 bits (min)

INL Integral Non-Linearity Error (Note 11) -1.1

+4.6

-7

+10

LSB (min)

LSB (max)

DNL Differential Non-Linearity -0.5

+0.7

-0.9

+2.0

LSB (min)

LSB (max)

CAnalog Channel Gain Constant

(ADC Codes/V)

Includes voltage reference

variation, gain setting = 1 2048 1863

2129

LSB (min)

LSB (max)

VOS1 Pre-Boost Analog Channel Offset Error,

CCD Mode 4-21

+34

mV (min)

mV (max)

VOS1 Pre-Boost Analog Channel Offset Error,

CIS Mode 12 -15

+38

mV (min)

mV (max)

VOS2 Pre-PGA Analog Channel Offset Error -30 -58

mV (min)

mV (max)

VOS3 Post-PGA Analog Channel Offset Error -21 -59

+14

mV (min)

mV (max)

Coarse Color Balance PGA Characteristics (Configuration Registers 3B, 3C, and 3D)

Monotonicity 5bits (min)

G0 (Minimum PGA Gain) PGA Setting = 0 0.93 .90

.96

V/V (min)

V/V (max)

G31 (Maximum PGA Gain) PGA Setting = 31 3.05 2.98

3.15

V/V (min)

V/V (max)

x3 Boost Gain x3 Boost Setting On

(bit B5 of Gain Register is set) 2.99 2.86

3.08

V/V (min)

V/V (max)

Gain Error at any gain (Note 13) ±0.2 ±1.6 % (max)

Positive Supply Voltage (V+=VA=VD=VDI/O=VSRAM)

With Respect to

GND=AGND=DGND=DGNDI/O=DGNDSRAM 6.5V

Voltage On Any Input or Output Pin -0.3V to V++0.3V

Input Current at any pin (Note 3) ±25mA

Package Input Current (Note 3) ±50mA

Package Dissipation at TA = 25°C (Note 4)

ESD Susceptibility (Note 5)

Human Body Model 1000V

Soldering Information

Infrared, 10 seconds (Note 6) 235°C

Storage Temperature -65°C to +150°

Operating Temperature Range TMIN≤TA≤TMAX

LM9830VJD 0°C≤TA≤+70°C

VA Supply Voltage +4.5V to +5.5V

VD Supply Voltage +4.5V to +5.5V

VDI/O Supply Voltage +4.5V to +5.5V

|VA-VD|, |VA-VDI/O|, |VA-VSRAM|, |VD-VDI/O|,

|VD-VSRAM|, |VDI/O-VSRAM|, ≤ 100mV

Input Voltage Range -0.05V to V+ + 0.05V

Absolute Maximum Ratings (Notes 1 & 2) Operating Ratings (Notes 1 & 2)

3http://www.national.com

Static Offset DAC Characteristics (Configuration Registers 38, 39, and 3A)

Monotonicity 6bits (min)

Offset DAC LSB size PGA gain = 1 9.3 5.8

12.7

mV (min)

mV (max)

Offset DAC Adjustment Range PGA gain = 1 ±290 ±270 mV (min)

Analog Input Characteristics

Average OSR, OSG, OSB Input Current CDS Enabled, OS = 3.5VDC ±80 nA

OSR, OSG, OSB Input Current CDS Disabled, OS = 3.5VDC ±24 ±30 µA (max)

Internal Voltage Reference Characteristics

VBANDGAP Voltage Reference Output Voltage 1.2 V

VREF LO Negative Reference Output Voltage VREF MID-1.0 V

VREF MID Midpoint Reference Output Voltage VA/2.0 V

VREF HI Positive Reference Output Voltage VREF MID+1.0 V

DC and Logic Electrical Characteristics

The following specifications apply for AGND=DGND=DGNDI/O=DGNDSRAM=0V, VA=VD=VDI/O=VSRAM=+5.0VDC,

fCRYSTAL IN= 50MHz. Boldface limits apply for TA=TJ=TMIN to TMAX; all other limits TA=TJ=25°C. (Notes 7 & 8)

Symbol Parameter Conditions Typical

(Note 9)

Limits

(Note 10)

Units

(Limits)

Digital Input Characteristics for DB0-DB7, D0-D7, STROBE, AUTOFEED, INIT, SELECT IN, PSENSE#1, PSENSE#2, MISC I/O

#1, MISC I/O #2, CMODE

VIN(1) Logical “1” Input Voltage VDI/O=5.5V 2.0 V (min)

VIN(0) Logical “0” Input Voltage VDI/O=4.5V 0.8 V (max)

IIN Input Leakage Current ±500 nA

CIN Input Capacitance 5 pF

Digital Output Characteristics for DB0-DB7, A0-A17, RD, WR (SRAM Interface)

VOUT(1) Logical “1” Output Voltage VDI/O=4.5V, IOUT=-4mA 2.4 V (min)

VOUT(0) Logical “0” Output Voltage VDI/O=5.5V, IOUT=8mA 0.4 V (max)

Digital Output Characteristics for D0-D7, ERROR, ACK, BUSY, PE, SELECT (Parallel Port Interface)

VOUT(1) Logical “1” Output Voltage VDI/O=4.5V, IOUT=-4mA 2.4 V (min)

VOUT(0) Logical “0” Output Voltage VDI/O=5.5V, IOUT=14mA 0.4 V (max)

Digital Output Characteristics for MISC I/O #1, MISC I/O #2, A, B, A, B, TR1, TR2, ø1, ø2, RS, CP1, CP2, TRISTATE, LATCH,

LAMPR, LAMPG, LAMPB

VOUT(1) Logical “1” Output Voltage VDI/O=4.5V, IOUT=-4mA 2.4 V (min)

VOUT(0) Logical “0” Output Voltage VDI/O=5.5V, IOUT=8mA 0.4 V (max)

Electrical Characteristics (Continued)

The following specifications apply for AGND=DGND=DGNDI/O=DGNDSRAM=0V, VA=VD=VDI/O=VSRAM=+5.0VDC,

fCRYSTAL IN= 50MHz. Boldface limits apply for TA=TJ=TMIN to TMAX; all other limits TA=TJ=25°C. (Notes 7, 8, & 12)

Symbol Parameter Conditions Typical

(Note 9)

Limits

(Note 10)

Units

(Limits)

4http://www.national.com

CRYSTAL IN, CRYSTAL OUT Characteristics

XTALOUT DC CRYSTAL OUT Bias Level (Offset) 0.8 V

XTALOUT AC CRYSTAL OUT Amplitude fCRYSTAL = 50MHz 0.8 VP-P

Power Supply Characteristics

IAAnalog Supply Current

(VA pins)

Operating

Standby

0.75

0.95

mA (max)

ID I/O Digital I/O Supply Current

(VD I/O, VD, and VSRAM pins)

Operating

Standby

6.5

mA (max)

AC Electrical Characteristics

The following specifications apply for AGND=DGND=DGNDI/O=DGNDSRAM=0V, VA=VD=VDI/O=VSRAM=+5.0VDC,

fCRYSTAL IN= 50MHz, MCLK DIVIDER = 1.0 (unless otherwise noted), fMCLK = fCRYSTAL IN/MCLK DIVIDER, fADC CLK = fMCLK/8,

CL (databus loading) = 20pF/pin. Boldface limits apply for TA=TJ=TMIN to TMAX; all other limits TA=TJ=25°C. (Notes 7 & 8)

Symbol Parameter Conditions Typical

(Note 9)

Limits

(Note 10)

Units

(Limits)

Parallel Port Address Write (Figure 1)

tSETUP1 D0-D7 (Address) valid to SELECT IN

falling -60 -10 ns (min)

tSETUP2 STROBE falling edge to SELECT IN

falling -15 -10 ns (min)

tSI-B1 SELECT IN falling to BUSY rising 25 40 ns (max)

tB-SI BUSY rising to SELECT IN rising 0 20 ns (min)

tHOLD1 SELECT IN rising to STROBE rising -45 -15 ns (min)

tSI-B2 SELECT IN rising to BUSY falling 33 50 ns (max)

tHOLD2 D0-D7 (Address) hold time after

BUSY falling -10 0ns (min)

Parallel Port Data Write (Figure 2)

tSETUP1 D0-D7 valid or STROBE falling to

SELECT IN falling -60 -10 ns (min)

tSETUP2 STROBE falling to AUTOFEED falling -25 -10 ns (min)

tAF-B1 AUTOFEED falling to BUSY rising 34 50 ns (max)

tB-AF1BUSY rising to AUTOFEED rising 0 20 ns (min)

tHOLD1 AUTOFEED rising to STROBE rising -40 -10 ns (min)

tAF-B2 AUTOFEED rising to BUSY falling All Except Dataport

Dataport

1.5 tADC CLK

3 tADC CLK

ns (max)

tHOLD2 D0-D7 valid after BUSY falling -10 0ns (min)

DC and Logic Electrical Characteristics

The following specifications apply for AGND=DGND=DGNDI/O=DGNDSRAM=0V, VA=VD=VDI/O=VSRAM=+5.0VDC,

fCRYSTAL IN= 50MHz. Boldface limits apply for TA=TJ=TMIN to TMAX; all other limits TA=TJ=25°C. (Notes 7 & 8)

Symbol Parameter Conditions Typical

(Note 9)

Limits

(Note 10)

Units

(Limits)

5http://www.national.com

Parallel Port 8 Bit Data Read (Figure 3)

tAF-B3 AUTOFEED falling to BUSY rising All Except Dataport

Dataport

1.5 tADC CLK

3 tADC CLK

ns (max)

tEPP ACCESS D0-D7 valid before BUSY rising (Note 14) 7 -5 ns (min)

tB-AF2BUSY rising to AUTOFEED rising 1 10 ns (min)

tEPP HOLD AUTOFEED rising to D0-D7 Tri-State 20 10

ns (min)

ns (max)

tAF-B4 AUTOFEED rising to BUSY falling 3 tMCLK 4 tMCLK ns (max)

Nibble Data Read (Figure 4)

tAF-B3 AUTOFEED falling to BUSY rising All Except Dataport

Dataport

1.5 tADC CLK

3 tADC CLK

ns (max)

tNIB ACCESS1 D4-D7 valid before BUSY rising 2 -20 ns (min)

tB-AF2BUSY rising to AUTOFEED rising 1 10 ns (min)

tNIB ACCESS2 D0-D3 valid after AUTOFEED rising 5 15 ns (max)

tAF-B4 AUTOFEED rising edge to BUSY

falling 3 tMCLK 4 tMCLK ns (max)

Microprocessor Mode (Figures 5, 6, and 7)

tALE SETUP D0-D7 (Address) valid before ALE

falling 06ns (min)

tALE HOLD D0-D7 (Address) valid after ALE

falling 28ns (min)

tALE ALE high time 2 8ns (min)

tALE-R/W ALE falling to CS/RD/WR falling (next

operation) 16 ns (min)

tWR SETUP D0-D7 valid before WR rising 0 6ns (min)

tWR HOLD D0-D7 valid after WR rising 2 10 ns (min)

tWR WR pulse width 3 10 ns (min)

tRD ACCESS RD low to D0-D7 valid 22 31 ns (max)

tRD TRI-STATE RD high to D0-D7 Tri-State 20 28 ns (max)

AC Electrical Characteristics

The following specifications apply for AGND=DGND=DGNDI/O=DGNDSRAM=0V, VA=VD=VDI/O=VSRAM=+5.0VDC,

fCRYSTAL IN= 50MHz, MCLK DIVIDER = 1.0 (unless otherwise noted), fMCLK = fCRYSTAL IN/MCLK DIVIDER, fADC CLK = fMCLK/8,

CL (databus loading) = 20pF/pin. Boldface limits apply for TA=TJ=TMIN to TMAX; all other limits TA=TJ=25°C. (Notes 7 & 8)

Symbol Parameter Conditions Typical

(Note 9)

Limits

(Note 10)

Units

(Limits)

6http://www.national.com

Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is functional,

but do not guarantee specific performance limits. For guaranteed specifications and test conditions, see the Electrical Characteristics. The guaranteed specifications apply

only for the test conditions listed. Some performance characteristics may degrade when the device is not operated under the listed test conditions.

Note 2: All voltages are measured with respect to GND=AGND=DGND=DGNDI/O=DGNDSRAM=0V, unless otherwise specified.

Note 3: When the input voltage (VIN) at any pin exceeds the power supplies (VIN<GND or VIN>VA or VD), the current at that pin should be limited to 25mA. The 50mA max-

imum package input current rating limits the number of pins that can simultaneously safely exceed the power supplies with an input current of 25mA to two.

Note 4: The maximum power dissipation must be derated at elevated temperatures and is dictated by TJmax, ΘJA and the ambient temperature, TA. The maximum allow-

able power dissipation at any temperature is PD = (TJmax - TA) / ΘJA. TJmax = 150°C for this device. The typical thermal resistance (ΘJA) of this part when board mounted

is 53°C/W.

Note 5: Human body model, 100pF capacitor discharged through a 1.5kΩ resistor.

Note 6: See AN450 “Surface Mounting Methods and Their Effect on Product Reliability” or the section titled “Surface Mount” found in any National Semiconductor Linear

Data Book for other methods of soldering surface mount devices.

Note 7: Two diodes clamp the OS analog inputs to AGND and VA as shown below. This input protection, in combination with the external clamp capacitor and the output

impedance of the sensor, prevents damage to the LM9830 from transients during power-up.

Note 8: For best performance, it is required that all supply pins be powered from the same power supply with separate bypass capacitors at each supply pin.

Note 9: Typicals are at TJ=TA=25°C, fCRYSTAL IN = 50MHz, and represent most likely parametric norm.

Note 10: Tested limits are guaranteed to National's AOQL (Average Outgoing Quality Level).

Note 11: Integral linearity error is defined as the deviation of the analog value, expressed in LSBs, from the straight line that best fits the actual transfer function of the ADC.

Note 12: VREF is defined as the CCD OS voltage for the reference period following the reset feedthrough pulse. VWHITE is defined as the peak CCD pixel output voltage for

a white (full scale) image with respect to the reference level, VREF . VRFT is defined as the peak positive deviation above VREF of the reset feedthrough pulse. The maximum

correctable range of pixel-to-pixel VWHITE variation is defined as the maximum variation in VWHITE (due to PRNU, light source intensity variation, optics, etc.) that the

SRAM Write Timing (Figure 8) - Typical Values Represent Worst Case Timing for Different MCLK Frequencies

tWR F ADDR

SETUP Address valid to WR falling 0.5 tMCLK

- 7ns 3ns (min)

tWR R ADDR

SETUP Address valid to WR rising 1.5 tMCLK

- 9ns 21 ns (min)

tWR DATA SETUP DB0-DB7 valid to WR rising 1 tMCLK

- 9ns 11 ns (min)

tWR WR pulse width 1 tMCLK

- 5ns 15 ns (min)

tWR ADDR HOLD WR rising to Address data change 0.33 tMCLK

- 4ns 2ns (min)

tWR DATA HOLD WR rising to DB0-DB7 data Tri-State 1 4ns (max)

SRAM Read Timing (Figure 9) - Typical Values Represent Worst Case Timing for Different MCLK Frequencies

tRD SETUP Address valid to DB0-DB7 data valid

4 slot mode 2 tMCLK - 12ns

28 ns (max)

8 slot mode

(fMCLK = 25MHz) 1 tMCLK - 12ns

AC Electrical Characteristics

The following specifications apply for AGND=DGND=DGNDI/O=DGNDSRAM=0V, VA=VD=VDI/O=VSRAM=+5.0VDC,

fCRYSTAL IN= 50MHz, MCLK DIVIDER = 1.0 (unless otherwise noted), fMCLK = fCRYSTAL IN/MCLK DIVIDER, fADC CLK = fMCLK/8,

CL (databus loading) = 20pF/pin. Boldface limits apply for TA=TJ=TMIN to TMAX; all other limits TA=TJ=25°C. (Notes 7 & 8)

Symbol Parameter Conditions Typical

(Note 9)

Limits

(Note 10)

Units

(Limits)

OS Input

AGND

To Internal

Circuitry

7http://www.national.com

LM9830 can correct for using its internal PGA.

Note 13: PGA Gain Error is the maximum difference between the measured gain for any PGA code and the ideal gain calculated by using the formula

where .

Note 14: Interaction with an actual parallel port load (CLOAD > 200pF) can increase data settling time by as much as 100ns if the parallel port databus is precharged high.

For this reason, it is recommended that the parallel port be driven to 0x00h by the PC when not in the reverse transfer phase. When reading coefficient data from register 6

(register 3 = 00000XX1 binary), the EPP handshaking generated by the host PC may be faster than the data can settle. For this reason it is recommended that software

handshaking (“PS2” mode) be used when verifying coefficient data.

VWHITE

VREF

VRFT

CCD Output Signal

GainPGA V

----



 G0XPGA code

---------------------------+=XG

31 G0

–()

------=

++ + we e + + 7+ + «er» ++ + we e + +,+ ,+ «er» rl ++ ++ «*+ + e at ++ + «7, ‘7, e +

8http://www.national.com

Timing Diagrams

STROBE

BUSY

Address

D0 - D7

Figure 1: Parallel Port Address Write

SELECT IN

tSETUP1

tSETUP2

AUTOFEED tSI-B1

tB-SI

tHOLD1

tHOLD2

tSI-B2

STROBE

BUSY

Data

D0 - D7

Figure 2: Parallel Port Data Write

SELECT IN

tSETUP1

tSETUP2

AUTOFEED

tB-AF1

tHOLD2

tHOLD1

tAF-B1 tAF-B2

STROBE

BUSY

Data

D0 - D7

Figure 3: Parallel Port 8 Bit Data Read

SELECT IN

tEPP ACCESS

AUTOFEED

tAF-B3

tB-AF2

tEPP HOLD

tAF-B4

STROBE

BUSY

Figure 4: Parallel Port Nibble Data Read

SELECT IN

tNIB ACCESS1

AUTOFEED

tAF-B3

tB-AF2

tNIB ACCESS2

ERROR (D0, D4)

SELECT (D1, D5)

PE (D2, D6)

ACK (D3, D7)

D7-D4 D3-D0

tAF-B4

ﬁznrﬂ' 7

9http://www.national.com

Figure 5: µP Mode Address Latch

CS (INIT)

RD (AUTOFEED)

Address

D0 - D7

WR (STROBE)

ALE (SELECTIN)

tALE SETUP

tALE

tALE HOLD

Data

Figure 6: µP Mode Write

CS (INIT)

RD (AUTOFEED)

D0 - D7

WR (STROBE)

ALE (SELECTIN)

tWR SETUP

tWR HOLD

tWR NOTE: CS and WR are ORed together.

tWR SETUP and tWR HOLD refer to the first rising edge

of CS or WR, whichever goes high first.

Data

Figure 7: µP Mode Read

CS (INIT)

RD (AUTOFEED)

D0 - D7

WR (STROBE)

ALE (SELECTIN)tRD ACCESS tRD TRI-STATE

NOTE: CS and RD are ORed together.

tRD ACCESS begins when both CS and WR go low.

tRD TRI-STATE begins when either CS or WR go hig

Figure 8: SRAM Write

Address

Data

tWR DATA HOLD

A0-A17

DB0-DB7

tWR ADDR HOLD

tWR DATA SETUP

tWR

tWR R ADDR SETUP

tWR F ADDR SETUP

ure 9: SRAM Read

Address

Data

A0-A17

DB0-DB7

Address

Data

Note: RD will stay low during consecutive read operations.

0.5MCLK 0.5MCLK

tRD SETUP

10 http://www.national.com

Connection Diagram

100999897969594939291908988878685848382818079787776

VD I/O

DGNDI/O

A10

A11

A12

A13

A14

A15

VD I/O

DGNDI/O

A16

A17

DB0

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DGND

STROBE

AUTOFEED

ERROR

INIT

SELECT IN

VD I/O

DGNDI/O

ACK

26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

CLK_SEL

DGNDI/O

VD I/O

CMODE

LAMPB

LAMPG

LAMPR

MISC I/O #2

MISC I/O #1

PSENSE #2

PSENSE #1

DGNDSRAM

VSRAM

CRYSTAL OUT

CRYSTAL IN

LATCH

TRISTATE

SELECT

BUSY

CP2

CP1

ø2

ø1

TR2

TR1

AGND

OSB

VREF HI SENSE

VREF HI FORCE

OSG

VREF MID SENSE

VREF MID FORCE

OSR

VREF LO SENSE

VREF LO FORCE

VBANDGAP

AGND

SENSEGND

SENSEB

SENSEA

TEST

LM9830VJD

11 http://www.national.com

Pin Descriptions

CCD Driver Signals

ø1 Digital Output. CCD/CIS clock signal, phase

ø2 Digital Output. CCD clock signal, phase 2.

RS Digital Output. Reset pulse for the CCD.

CP1 Digital Output. Clamp pulse for the CCD.

CP2 Digital Output. Clamp pulse for the CCD.

TR1, TR2 Digital Outputs. Transfer pulses for the

CCD(CIS).

Analog I/O

OSR, OSG,

OSB

Analog Inputs. These inputs (for Red, Green,

and Blue) should be tied to the sensor’s out-

put signal through DC blocking capacitors.

VREF LO FORCE,

VREF LO SENSE

Analog Output/Input. Connect VREF LO OUT to

VREF LO IN and bypass to AGND with a 0.05µF

monolithic capacitor.

VREF MID FORCE,

VREF MID SENSE

Analog Output/Input. Connect VREF MID OUT

to VREF MID IN and bypass to AGND with a

0.05µF monolithic capacitor.

VREF HI FORCE,

VREF HI SENSE

Analog Output/Input. Connect VREF HI OUT to

VREF HI IN and bypass to AGND with a 0.05µF

monolithic capacitor.

VBANDGAP Analog Output. Bypass to AGND with a

0.05µF monolithic capacitor.

General Digital I/O

CRYSTAL IN Digital Input. This is the 50MHz (typical) mas-

ter system clock.

CRYSTAL OUT Digital Output. Used with CRYSTAL IN and an

external crystal to form a crystal oscillator.

CLK_SEL Digital Input. Should be tied to DGND for

operation with an external crystal. To use an

external TTL or CMOS clock source, tie

CLK_SEL to VD I/O and drive the clock into the

CRYSTAL OUT pin.

PC I/O

D0 (LSB) -D7

(MSB)

Digital Inputs/Outputs. This is the 8 bit data

path between the LM9830 and the host com-

puter.

STROBE Digital Input. WR signal in µP Mode.

AUTOFEED Digital Input. RD signal in µP Mode.

SELECTIN Digital Input. ALE signal in µP Mode.

INIT Digital Input. CS signal in µP Mode.

ACK Digital Output.

BUSY Digital Output.

PE Digital Output.

SELECT Digital Output.

ERROR Digital Output.

Printer Passthrough

TRISTATE Digital Output. Low when in printer

passthrough mode, high when the LM9830 is

active. Low when no power is applied to the

LM9830.

LATCH Digital Output. High when in printer

passthrough mode, low when the LM9830 is

active. Tri-state when no power is applied to

the LM9830.

Stepper Motor I/O

A, B, A, B Digital Outputs. Pulses to stepper motor.

SENSEA,

SENSEB

Analog Inputs. Current sensing for PWM

winding current control.

SENSEGND Analog Input. Ground sense input for PWM

winding current control.

Scanner Support I/O

PSense #1,

PSense #2

Digital Inputs. Programmable, used for sens-

ing paper, front panel switches, etc.

Misc I/O #1,

Misc I/O #2

Digital Inputs/Outputs. Programmable, used

for front panel switches, status LEDs, etc.

LAMPR,

LAMPG, LAMPB

Digital Outputs. Used to control R, G, and B

LEDs of single output CIS, as well as bright-

ness of CCFL.

External RAM I/O

DB0 (LSB) -

DB7 (MSB)

Digital Inputs/Outputs. This is the 8 bit data

path between the external RAM and the

LM9830.

A0-A17 Digital Outputs. Address pins for up to 256k

bytes external RAM.

RD Digital Output. Read signal to external RAM.

WR Digital Output. Write signal to external RAM.

Communication Mode

CMODE Digital Input. Tie to DGND to operate in paral-

lel port mode, or to VD I/O to operate in micro-

processor compatible mode.

Test

TEST Analog Output. This pin can be used to view

the Sample Signal, Sample Reference, and

Clamp Signals.

Analog Power Supplies

VAThis is the positive supply pin for the analog

supply. It should be connected to a voltage

source of +5V and bypassed to AGND with a

0.1µF monolithic capacitor in parallel with a

10µF tantalum capacitor.

AGND This is the ground return for the analog sup-

ply.

12 http://www.national.com

Digital Power Supplies

VDThis is the positive supply pin for the

LM9830’s digital circuitry. It should be con-

nected to a voltage source of +5V and

bypassed to DGND with a 0.1µF monolithic

capacitor.

DGND This is the ground return for VD.

VD I/O This is the positive supply pin for the

LM9830’s external I/O. It should be connected

to a +5V voltage source and bypassed to the

closest DGNDI/O pin with a 0.1µF monolithic

capacitor.

DGNDI/O This is the ground return for VD I/O.

VSRAM This is the positive supply pin for the

LM9830’s internal SRAM sense amplifiers

and crystal oscillator. It should be connected

to a +5V voltage source and bypassed to

DGNDSRAM

with a 0.1µF monolithic capacitor.

DGNDSRAM This is the ground return for VD SRAM.

Other

NC Do Not Connect. This pin should be left float-

ing.

13 http://www.national.com

LM9830 Register Listing

(Registers in bold boxes are reset to that value on power-up. All register addresses are in hexadecimal. All other numbers

are decimal unless otherwise noted.)

Address Function D

0Value

IMAGE BUFFER (READ ONLY)

00 Pixel (Image) Data nnnnnnnnOne byte of image data.

STATUS REGISTERS (READ ONLY)

01 Image Data Available In Buffer nnnnnnnn

n kbytes of image data available

(always read this register twice to make sure its value

was not changing while it was being read)

Paper Sensor #1 State

If this input is edge sensitive, reading this

Status Register will clear it.

0False

1True

Paper Sensor #2 State

If this input is edge sensitive, reading this

Status Register will clear it.

0False

1True

Misc I/O #1 State

If this input is edge sensitive, reading this

Status Register will clear it.

0False

1True

Misc I/O #2 State

If this input is edge sensitive, reading this

Status Register will clear it.

0False

1True

Pause

This bit indicates whether or not the scanner

is currently paused due to a buffer full

condition.

0Normal State

1The scanner entered the pause/reverse cycle during

the processing of this line.

Powerdrop

This bit is used to detect if the power supply

has dipped below 3V since the last time this

clears this bit.

0False: Power has not dipped below 3V since the last

time this register was read

1Tr u e: Pow e r

has

dipped below 3V since the last time

the register was read

DATAPORT REGISTERS

DataPort Target 0 Gamma Lookup Table

1 Offset/Gain Coefficient Data (external SRAM)

DataPort Target Color (Note: If using 1

Channel Mode A, the color for the gamma

table is selected by register 26, bits 3 and 4,

not this register)

00 Red

01 Green

10 Blue

11 N/A

04 DataPort Address - MSB

aaaaa

Address of location to be read/written to.

a = 0 to 1023 for gamma tables,

0 to 2729 for Offset/Gain Coefficient Data (300dpi),

0 to 5459 for Offset/Gain Coefficient Data (600dpi).

Addresses greater than these are illegal.

Bit D5 of register 4 indicates whether next operation

will be a Read (D5=1) or a Write (D5=0)

05 DataPort Address - LSB aaaaaaaa

06 DataPort nnnnnnnn

Data to be read from or written to the address of the

currently selected Dataport Target. The DataPort

Address is automatically incremented whenever one

(Gamma) or two (Offset/Gain Coefficient Data) bytes

are read from or written to this register.

000001

14 http://www.national.com

COMMAND REGISTER

Command Register

This register is used to start and end a scan.

It is also used to home the sensor in a

flatbed scanner or eject the image in a

sheetfed scanner.

Idle - Stops motor (A, B, A, B = 0),

completes current line of data (if scanning).

Note: CCD/CIS clocks continue clocking.

High Speed Forward - Moves motor forward at a

speed determined by the Fast Feed Step Size

(registers 48 and 49).

High Speed Reverse - Moves motor backward at a

speed determined by the Fast Feed Step Size

(registers 48 and 49).

11Start Scan - Resets the LM9830’s data pointers and

starts an image scan.

Standby

When this bit is set the crystal oscillator

continues to run but all internal clock signals

are frozen. The analog circuitry is turned off

to reduce power consumption.

0 Operating

1 Low Power Standby Mode

Reset (Host must write a 1 then a 0 to enter

and exit the reset state)

0 Normal Operation

1 Resets the LM9830

MASTER CLOCK DIVIDER

MCLK Divider

This register sets the master clock frequency

for the entire scanner.

fMCLK = fCRYSTAL/MCLK_Divider

fADC = fMCLK/8

000000÷1.0

000001÷1.5

000110÷4

aaaaaa÷ ((aaaaaa/2)+1)

111110÷32.0

111111÷32.5

HORIZONTAL RESOLUTION AND DATAMODE SETTINGS

Horizontal DPI Divider

This register determines the horizontal

resolution of the scan.

Scan resolution = Optical resolution divided

by the Horizontal_DPI_Divider.

000÷1

001÷1.5

010÷2

011÷3

100÷4

101÷6

110÷8

111÷12

Pixel Packing

This register determines how many bits in

each byte of data are transmitted to the host

when DataMode = 0

0 0 1 bit/pixel (1 bit grayscale/3 bit color)

0 1 2 bits/pixel (2 bit grayscale/6 bit color)

1 0 4 bits/pixel (4 bit grayscale/12 bit color)

1 1 8 bits/pixel (8 bit grayscale/24 bit color)

DataMode

When DataMode = 0, the pixel data is fully

processed, going through the Offset,

Shading, Horizontal DPI Adjust, Gamma,

and Pixel Packing blocks.

When DataMode = 1, 10 bit data is extracted

following the Horizontal DPI Adjust stage.

Gamma and any other post processing must

be done by the host.

When DataMode = 1, Horizontal DPI Adjust

= 0, and the Offset and Gain coefficients are

set to 0, the 12 bit data straight from the

ADC is transmitted. Offset, Shading,

Gamma and any other post processing must

be done by the host.

01, 2, 4, or 8 bit image data,

as determined by the Pixel Size setting.

10 bit image data - sent in 2 bytes:

X X X X 9 8 7 6- 5 4 3 2 1 0 X X

12 bit image data - sent in 2 bytes:

X X X X 11 10 9 8 - 7 6 5 4 3 2 1 0,

Horizontal DPI Divider = 0.

Address Function D

0Value

15 http://www.national.com

RESERVED

0A Reserved 00000000Write 00 to this register

SENSOR CONFIGURATION

Input Signal Polarity 0 Negative (CCD Sensor)

1 Positive (CIS Sensor)

CDS On/Off 0 CDS Off

1 CDS On

Standard/Even Odd Sensor 0 Standard (1 pixels per Ø period)

1 Even/Odd (2 pixels per Ø period)

Sensor Resolution

(used only for SRAM coefficient allocation)

0 300 dpi (pixels < 2731)

1 600 dpi (2730 < pixels < 5461)

Line Skipping Color Phase Delay

Part of the “n out of m” function, consisting of

registers 0B (bits 4-7) 44, 45 (bit 5), and 5A.

n n n n n lines, n = 0-15

SENSOR CONTROL SETTINGS

Ø1 Polarity 0Positive

1 Negative

Ø2 Polarity 0Positive

1 Negative

RS Polarity 0Positive

1 Negative

CP1 Polarity 0Positive

1 Negative

CP2 Polarity 0Positive

1 Negative

TR1 Polarity 0Positive

1 Negative

TR2 Polarity 0Positive

1 Negative

Ø1 Active/Off 0 Off

1Active

Ø2 Active/Off 0 Off

1Active

RS Active/Off 0 Off

1Active

CP1 Active/Off 0 Off

1Active

CP2 Active/Off 0 Off

1Active

TR1 Active/Off 0 Off

1Active

TR2 Active/Off 0 Off

1Active

Number of TR Pulses 01 TR Pulse

12 TR Pulses

0E TR Pulse Duration nnnnn+1 pixel periods (1-16)

TR-Ø1 Guardband Duration n n n n n pixel periods (0-15)

0F Optical Black Clamp Start nnnnn

pixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

10 Optical Black Clamp End nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

11 Reset Pulse Start nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

12 Reset Pulse Stop nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

13 CP1 Pulse Start nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

14 CP1 Pulse Stop nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

15 CP2 Pulse Start nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

16 CP2 Pulse Stop nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

17 Reference Sample Position nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

18 Signal Sample Position nnnnnpixel rate: n=0-23, line rate: n=0-7 MCLKs from Ø1 edge

Address Function D

0Value

16 http://www.national.com

CIS TR1 Timing Mode

0 0 Off - use standard CCD Timing

CIS TR1 Timing Mode 1:

TR1 pulse = exactly one Ø clock,

starting at rising edge of Ø1

CIS TR1 Timing Mode 2:

TR1 pulse = exactly one Ø clock,

TR1 centered around Ø1 high.

11N/A

Fake Optical Black Pixels

(for Dyna-type CIS sensors)

0 Off: Normal operation

1On: RS pulse held high during entire Optical Black

period

RESERVED

1A Reserved 00000000Write 00 to this register

1B Reserved 00000000Write 00 to this register

SENSOR PIXEL CONFIGURATION

1C Optical Black Pixels Start nnnnnnnnn pixels (0 - 255)

1D Optical Black Pixels End nnnnnnnnn pixels (0 - 255)

1E Active Pixels Start - MSB nnnnnnn pixels (10 - 16383)

This is where image data starts coming out of the

sensor, and determines the pixel where offset and

shading correction begins (pixel 0 in the DataPort)

1F Active Pixels Start - LSB nnnnnnnn

20 Line End - MSB nnnnnnn pixels (0 - 16383)

This selects the pixel count at which the current line is

ended and the next line begins. This determines the

integration time of one line.

21 Line End - LSB nnnnnnnn

PIXEL DATA RANGE TO PROCESS

22 Data Pixels Start - MSB nnnnnnn pixels (

Active Pixels Start - 16383)

This selects the start of the range of pixels transmitted

to the PC. This value must be >= Active Pixels Start

23 Data Pixels Start - LSB nnnnnnnn

24 Data Pixels End - MSB nnnnnnn pixels (

Data Pixels Start - [Line End - 20])

This selects the end of the range of pixels transmitted

to the PC. This value must be <= [Line End - 20]

25 Data Pixels End - LSB nnnnnnnn

Address Function D

0Value

17 http://www.national.com

COLOR MODE SETTINGS

AFE Operation

3 Channel or 1 Channel

0003 Channel Pixel Rate Color

0013 Channel Line Rate Color

1001 Channel Mode A (1 Channel Grayscale)

1011 Channel Mode B (1 Channel Line Rate Color)

1 Channel Mode A Channel Color

(1 Channel Mode B always uses the

Blue Channel)

00 Red

01 Green

10 Blue

11 N/A

TRRED (=TR1) position

(3 Channel Line Rate Mode only)

0 1st TR pulse position (inside Ø1 high)

1 2nd TR pulse position (inside Ø1 low)

TRGREEN (=TR2) position

(3 Channel Line Rate Mode only)

0 1st TR pulse position (inside Ø1 high)

1 2nd TR pulse position (inside Ø1 low)

TRBLUE (=CP2) position

(3 Channel Line Rate Mode only)

0 1st TR pulse position (inside Ø1 high)

1 2nd TR pulse position (inside Ø1 low)

Integration Time Adjust

(TRRED drop rate)

(3 Channel Line Rate Mode only)

0 0 Do not drop any TRRED pulses

01Drop 1 TR

RED pulse (double integration time)

10Drop 2 TR

RED pulses (triple integration time)

11N/A

Integration Time Adjust

(TRGREEN drop rate)

(3 Channel Line Rate Mode only)

0 0 Do not drop any TRGREEN pulses

0 1 Drop 1 TRGREEN pulse (double integration time)

1 0 Drop 2 TRGREEN pulses (triple integration time)

11 N/A

Integration Time Adjust

(TRBLUE drop rate)

(3 Channel Line Rate Mode only)

0 0 Do not drop any TRBLUE pulses

0 1 Drop 1 TRBLUE pulse (double integration time)

1 0 Drop 2 TRBLUE pulses (triple integration time)

11 N/A

RESERVED

28 Reserved 00000000Write 00 to this register

Address Function D

0Value

18 http://www.national.com

ILLUMINATION SETTINGS

Illumination Mode

Controls the function of the 3 LAMP outputs,

LAMPR, LAMPG, and LAMPB

Mode 0 is the Off/Reset state.

Mode 1 is typically used for CCFL lamps.

Mode 2 is for color scanning with tri-color

LEDs.

Mode 3 is for grayscale scanning with tri-

color LEDs.

00LAMPR = LAMPG = LAMPB = 0V

(Power-On/Reset Default)

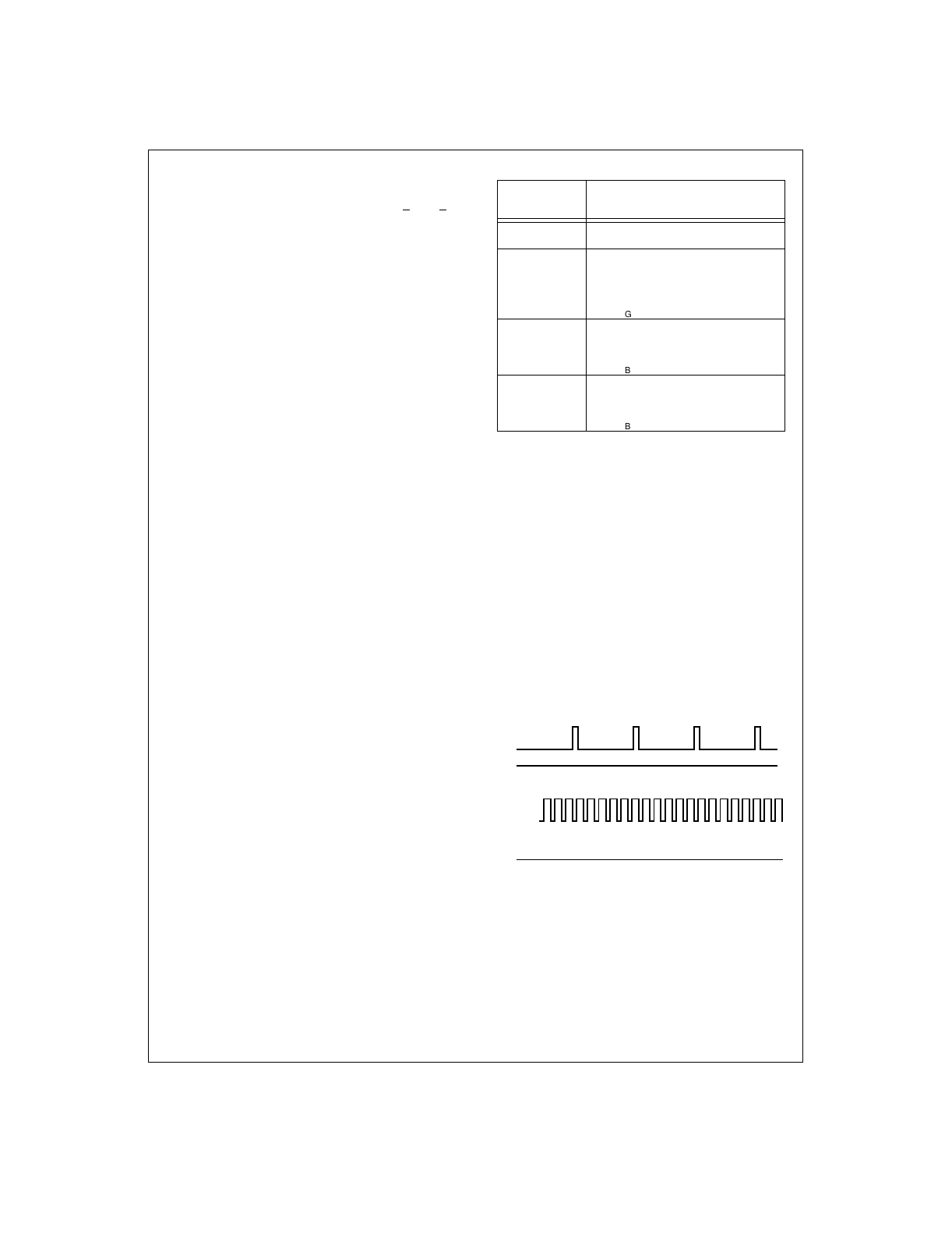

Illumination Mode 1 - LAMPR and LAMPB turn on

every line, with their on and off points controlled by

the Pixel Counter settings. LAMPG Output is

continuous PWM pulse stream. (Figure 28)

LAMPR and/or LAMPB may be set to stay on or off at

all times by setting the LAMP Off or LAMP On settings

(registers 2C-37) greater than the Line End value

(registers 20 and 21).

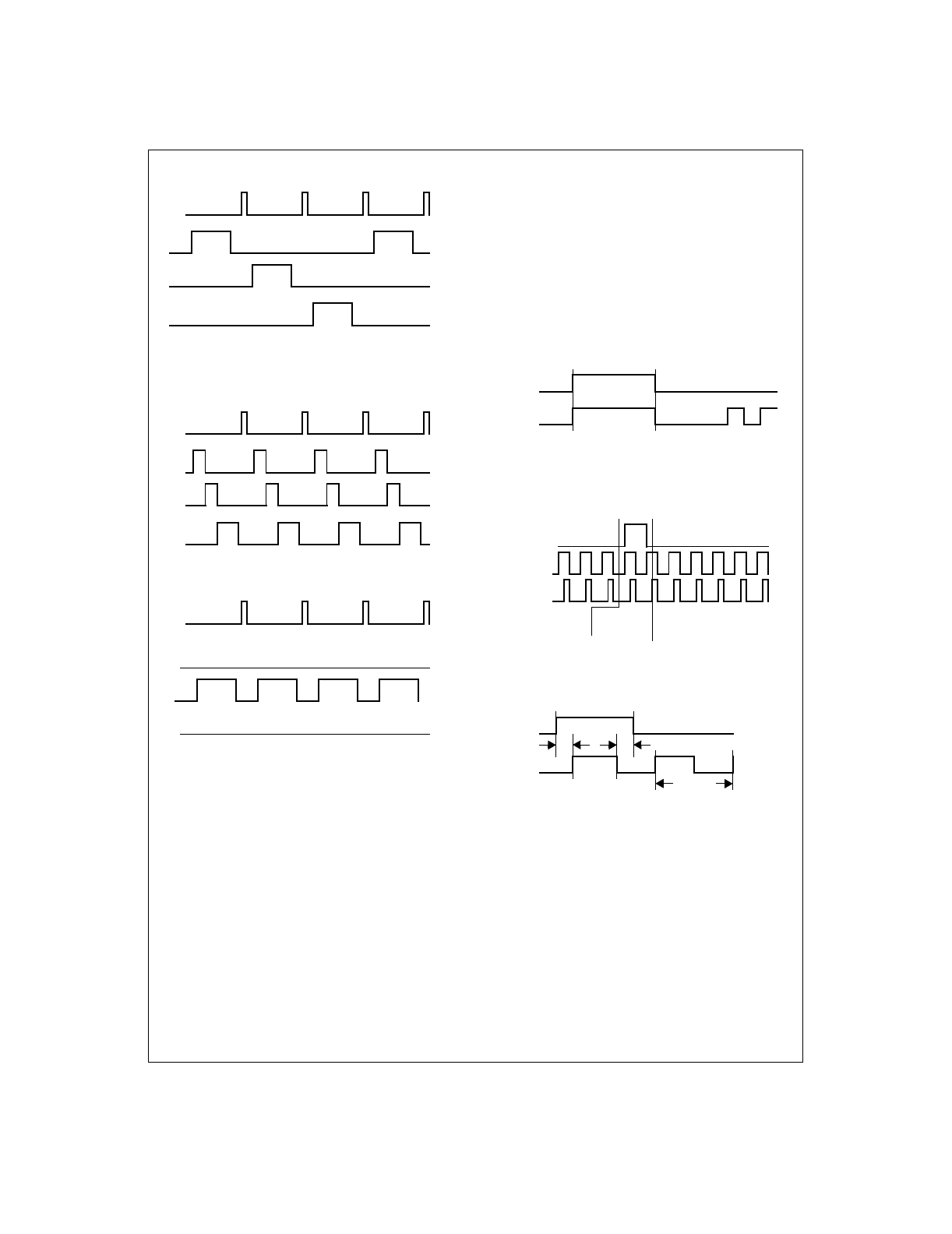

Illumination Mode 2 - LAMPR, LAMPG, LAMPB turn

on sequentially at the line rate, with their on and off

points controlled by Pixel Counter settings. (Figure

29)

Illumination Mode 3 - LAMPR, LAMPG, LAMPB turn

on every line, with their on and off points controlled by

the Pixel Counter settings. (Figures 30 and 31)

2A LAMPG PWM - MSB

(Illumination Mode 1) nnnnLAMPG output is a PWM pulse stream. Duty cycle is

n/4095. Clock for counter is CRYSTAL IN, giving max

output frequency of 12.2kHz for fCRYSTAL IN = 50MHz.2B LAMPG PWM - LSB (Illumination Mode 1) nnnnnnnn

2C LAMPR On - MSB nnnnnnn pixels (1 - 16384)

This selects the pixel count at which the LAMPR

output goes high (if programmed)

2D LAMPR On - LSB nnnnnnnn

2E LAMPR Off - MSB nnnnnnn pixels (1 - 16384)

This selects the pixel count at which the LAMPR

output goes low (if programmed)

2F LAMPR Off - LSB nnnnnnnn

30 LAMPG On - MSB nnnnnnn pixels (1 - 16384)

This selects the pixel count at which the LAMPG

output goes high (if programmed)

31 LAMPG On - LSB nnnnnnnn

32 LAMPG Off - MSB nnnnnnn pixels (1 - 16384)

This selects the pixel count at which the LAMPG

output goes low (if programmed)

33 LAMPG Off - LSB nnnnnnnn

34 LAMPB On - MSB nnnnnnn pixels (1 - 16384)

This selects the pixel count at which the LAMPB

output goes high (if programmed)

35 LAMPB On - LSB nnnnnnnn

36 LAMPB Off - MSB nnnnnnn pixels (1 - 16384)

This selects the pixel count at which the LAMPB

output goes low (if programmed)

37 LAMPB Off - LSB nnnnnnnn

STATIC OFFSET AND GAIN SETTINGS FOR ANALOG FRONT END

38 Static Offset (Red) 0nnnnnOffset = +n*9.3mV, n = 0 to 31

1nnnnnOffset = -n*9.3mV, n = 0 to 31

39 Static Offset (Green) 0nnnnnOffset = +n*9.3mV, n = 0 to 31

1nnnnnOffset = -n*9.3mV, n = 0 to 31

3A Static Offset (Blue) 0nnnnnOffset = +n*9.3mV, n = 0 to 31

1nnnnnOffset = -n*9.3mV, n = 0 to 31

3B Static Gain (Red) 0nnnnnGain = 0.93 + 0.067*n (V/V), n = 0 to 31

1nnnnnGain = 3(0.93 + 0.067*n) (V/V), n = 0 to 31

3C Static Gain (Green) 0nnnnnGain = 0.93 + 0.067*n (V/V), n = 0 to 31

1nnnnnGain = 3(0.93 + 0.067*n) (V/V), n = 0 to 31

3D Static Gain (Blue) 0nnnnnGain = 0.93 + 0.067*n (V/V), n = 0 to 31

1nnnnnGain = 3(0.93 + 0.067*n) (V/V), n = 0 to 31

Address Function D

0Value

19 http://www.national.com

DIGITAL PIXEL RATE OFFSET AND GAIN SETTINGS

Multiplier Gain Range

Smaller gain ranges provide finer control.

Larger gain ranges correct for larger shading

errors.

0 0 1.5:1 (33%)

0 1 2.0:1 (50%)

1 0 3.0:1 (66%)

1 1 Bypass Multiplier

Offset/Gain data format 0 6 bits offset/10 bits gain

1 8 bits offset/8 bits gain

Multiplier Coefficient Source 0 Configuration Register 3F (Fixed)

1 External SRAM

Offset Coefficient Source 0 Configuration Register 40 and 41 (Fixed)

1 External SRAM

3F Fixed Offset Coefficient nnnnnnnnFixed Offset to use for calibration - 2MSBs are

assumed to be 0 if using 6 bit offset format

40 Fixed Multiplier Coefficient - MSB n n Fixed Gain to use for calibration - 2LSBs are assumed

to be 0 if using 8 bit gain format41 Fixed Multiplier Coefficient - LSB nnnnnnnn

PARALLEL PORT SETTINGS

Communication Mode

(for reading data from any of the LM9830’s

registers)

Note: This register must be set

appropriately before data can be read

from the LM9830!

0 8 bit Bidirectional/EPP

1 4 bit Nibble

Parallel Port Output Driver Current

(IOL and IOH can be used to calculate rise

and fall times into the load capacitance:

rise/fall time approximately equals 5V*C/i)

00 I

OL = 5mA, IOH = -6mA

01 I

OL = 7mA, IOH = -9mA

10 I

OL = 9mA, IOH = -12mA

11 I

OL = 15mA, IOH = -21mA

EXTERNAL SRAM SETTINGS

External SRAM Size

0 0 64 kbytes (not recommended for 600dpi scanners)

0 1 128 kbytes

1 0 256 kbytes

11N/A

SRAM Interface Output Driver Current

(IOL and IOH can be used to calculate rise

and fall times into the load capacitance:

rise/fall time approximately equals 5V*C/i)

00 I

OL = 3.5mA, IOH = -4mA

01 I

OL = 6mA, IOH = -7.5mA

10 I

OL = 12mA, IOH = -17mA

11 I

OL = 21mA, IOH = -32mA

SRAM Bandwidth (8 Bit Data Mode)

8 slot mode should always be used to

maximize performance. If the external

SRAM is to slow to meet the tRD SETUP

requirement, the slower 4 SRAM

accesses/ADC clock mode may be used.

0 4 SRAM accesses/ADC clock

18 SRAM accesses/ADC clock

(fMCLK must be 25MHz or lower)

Scanning Duplex (10/12 bit Data Mode)

Full Duplex mode should always be used to

maximize scan speed. If the external SRAM

is to slow to meet the tRD SETUP requirement,

the slower Half Duplex mode may be used.

0Full Duplex- Can transmit data while scanning

(fMCLK must be 25MHz or lower)

1Half Duplex - Can only transmit data when buffer is full

or scan has been stopped

Address Function D

0Value

20 http://www.national.com

STEPPER MOTOR CONTROL SETTINGS 1

n (Line Skipping)

Part of the “n out of m” function, consisting of

registers 0B (bits 4-7) 44, 45 (bit 5), and 5A.

tttttttt

n lines saved in SRAM for every m lines (register 5A)

scanned, function bypassed if register value = 0.

n (lines saved per m lines scanned) = 256 - t

t = 256 - n

If t = 0 then function is bypassed

Full/Microstepping 0 Full Step Mode

1 MicroStepping Mode

Current Sensing Phases

= 0 for fullstepping

= 1 for microstepping

01 Phase - No microstepping, just kickstart/stop

functions

1 2 Phases - necessary for microstepping

Stepper Motor Phase A Polarity 0Positive (A/B/A/B Output high = winding energized)

1Negative (A/B/A/B output low = winding energized)

Stepper Motor Phase B Polarity 0Positive (A/B/A/B Output high = winding energized)

1Negative (A/B/A/B output low = winding energized)

A, B, A, and B stepper motor status 0A, B, A, and B output pins in Tri-State

1A, B, A, and B output pins active

Line Skipping Phase

Part of the “n out of m” function, consisting of

registers 0B (bits 4-7) 44, 45 (bit 5), and 5A.

0 Red sensor data arrives before Green sensor

1 Blue sensor data arrives before Green sensor

46 Scanning Step Size - MSB nnnnnnThe step size of one microstep while scanning, in

units of pixel periods (minimum 2).47 Scanning Step Size - LSB nnnnnnnn

48 Fast Feed Step Size - MSB nnnnnnThe step size of one microstep while fast feeding, in

units of pixel periods (minimum 2).49 Fast Feed Step Size - LSB nnnnnnnn

4A Fullsteps to Skip at Start of Scan - MSB nnnnnnWhen scan starts, paper is fed forward n full steps (0 -

16383) at highest speed. For “zooming” in flatbeds4B Fullsteps to Skip at Start of Scan - LSB nnnnnnnn

4C Fullsteps to Scan after Paper Sensor #2

trips -MSB nnnnnnAdds a delay of n (0-16383) full steps between when

Paper Sensor #2 trips and when the scanning bit is

reset, terminating the scan/motor movement.4D Fullsteps to Scan after Paper Sensor #2

trips -LSB nnnnnnnn

4E Pause scanning, stop/reverse motor nnnnnnnnPause scan when buffer is n kbytes full

4F Resume scanning, start motor nnnnnnnnResume scan when buffer is n kbytes full

50 Full steps to reverse when buffer is full nnnnnnn (0-63) full steps (0 = do not reverse)

Acceleration Profile (stopped) n n n (0-3) full step time units pause while stopped

Acceleration Profile (25%) n n n (0-3) full steps at 25% speed

Acceleration Profile (50%) n n n (0-3) full steps at 50% speed

52 Default Phase Difference - MSB nnnnnnnnUsed to calculate when motor resumes after reversing

and stopping. 1 < n < 6553553 Default Phase Difference - LSB nnnnnnnn

Lines to Process After Pause Scan Signal nnnn (0-7) lines. This only applies if the motor doesn’t

reverse (reverse steps = 0).

Lines to Discard after Resume Scan

Signal nnn

n (0-7) lines. This only applies if the motor doesn’t

reverse (reverse steps = 0).

Should be set to same value as bits 0-2.

55 Kickstart Steps (fullstepping mode) nnnMotor gets maximum current for first n (0-7) full steps

Hold Current Timeout nnnnn Full step time units (1-31), 0 = no hold current

56 Stepper Motor PWM Frequency nnnnnnnn=CRYSTAL IN/(4*n) (0 < n < 256)

=CRYSTAL IN/(4*256) (n = 0)

57 Stepper Motor PWM Set Duty Cycle nnnnnn= n/64 (default = 0)

Address Function D

0Value

21 http://www.national.com

PAPER SENSOR SETTINGS

Paper Sensor #1 Polarity 0 A low input on Paper Sensor #1 is True

1 A high input on Paper Sensor #1 is True

Paper Sensor #1: Level/Edge sensitive

Level sensitive: Paper Sensor #1 State bit (in Status

Tru e.

Edge sensitive: Paper Sensor #1 State bit (in Status

True since the last time the Status Register was read.

Paper Sensor #1: Stop Scan

0Transitions on Paper Sensor #1 will not clear the

scanning bit.

1A False - to - True transition on Paper Sensor #1 will

clear the Command Register and stop the scan.

Paper Sensor #2 Polarity 0 A low input on Paper Sensor #2 is True

1 A high input on Paper Sensor #2 is True

Paper Sensor #2: Level/Edge sensitive

Level sensitive: Paper Sensor #2 State bit (in Status

Tru e.

Edge sensitive: Paper Sensor #2 State bit (in Status

True since the last time the Status Register was read.

Paper Sensor #2: Stop Scan

0Transitions on Paper Sensor #2 will not clear the

scanning bit.

A False - to - True transition on Paper Sensor #2 will

clear the Command Register and stop the scan (after

the number of lines specified in the Fullsteps to Scan

after Paper Sensor #2 trips register).

MISC I/O PIN SETTINGS

Misc I/O #1: Input or Output 0 The Misc I/O #1 pin is configured as an input.

1 The Misc I/O #1 pin is configured as an output.

Misc I/O #1: Polarity

(if configured as an input)

0 A low input on Misc I/O #1 is True

1 A high input on Misc I/O #1 is True

Misc I/O #1: Level/Edge sensitive

(if configured as an input)

0Level sensitive: Misc I/O #1 State bit (in Status

Edge sensitive: Misc I/O #1 State bit (in Status

since the last time the Status Register was read.

Misc I/O #1: Output State

(if configured as an output)

0The output of the Misc I/O #1 pin will be a logic low

(0V).

1The output of the Misc I/O #1 pin will be a logic high

(5V).

Misc I/O #2: Input or Output 0 The Misc I/O #2 pin is configured as an input.

1 The Misc I/O #2 pin is configured as an output.

Misc I/O #2: Polarity

(if configured as an input)

0 A low input on Misc I/O #2 is True

1 A high input on Misc I/O #2 is True

Misc I/O #2: Level/Edge sensitive

(if configured as an input)

0Level sensitive: Misc I/O #2 State bit (in Status

Edge sensitive: Misc I/O #2 State bit (in Status

since the last time the Status Register was read.

Misc I/O #2: Output State

(if configured as an output)

0The output of the Misc I/O #2 pin will be a logic low

(0V).

1The output of the Misc I/O #2 pin will be a logic high

(5V).

STEPPER MOTOR CONTROL SETTINGS 2

m (Line Skipping)

Part of the “n out of m” function, consisting of

registers 0B (bits 4-7) 44, 45 (bit 5), and 5A.

mmmmmmmm

n lines (register 44) saved in SRAM for every m lines

scanned. m = 1 to 255.

If m = 0 then function is bypassed

Address Function D

0Value

22 http://www.national.com

TEST MODE SETTINGS

5B Reserved 00000000Write 00 to this register

5C ADC Output Code - MSB nnnnUsed to force the input to the Offset Subtractor

to a known value for digital tests5D ADC Output Code - LSB nnnnnnnn

Reserved 00000000Write 00 to this register for normal operation, modify

bits 5 and 7 as shown below for test modes

Offset Subtractor Input Select 0 The ADC is input to Offset Subtractor

1 Registers 5C and 5D are input to Offset Subtractor

CDS Signal 0 Normal Operation

1 CDS signal is output on TEST pin

5F-6F Reserved 00000000Write 00 to these registers

70 Parallel Port Noise Filter 01110000Write 70 to this register

71-7F Reserved 00000000Write 00 to these registers

Address Function D

0Value

23 http://www.national.com

Applications Information

1.0 THEORY OF OPERATION

1.1 Overview

A scanner is composed of many different but tightly intercon-

nected blocks (the analog front end and ADC, sensor clock gen-

eration, stepper motor control, data buffering, parallel port I/O,

and others).

1.2 Signal Processing Overview

1.3 Scanner Support Functions Overview

2.0 Signal Processing Operation

2.1 ADC

The ADC is a 6MHz 12 bit pipelined architecture.

2.2 Pixel Rate Offset Correction Block

Two bytes are used to store the pixel rate offset and gain coeffi-

cients for each pixel. For CCDs, the split is usually 6 bits for offset

and 10 bits for gain. For some CIS sensors with unusually large

offsets, the offset correction range may be increased by changing

the split to 8 bits for offset and 8 bits for gain. This split is deter-

mined by a bit in the configuration register.

A digital subtractor subtracts the 6 (or 8) bit offset word (corre-

sponding to that pixel’s offset error) from each pixel. The LSB of

the offset word is the same size as the 10 bit LSB of the ADC (the

two smallest 12 bit ADC output bits, D1 and D0, are not used with

the offset subtractor). The coefficients are stored in the external

RAM and accessed at the pixel rate.

The subtractor saturates at 0, i.e. if the coefficient to be sub-

tracted is greater than the ADC output code, the result is an out-

put of 0.

2.3 Pixel Rate Gain Correction Block

This is a digital multiplier that multiplies the output word from the

subtractor by a 10 (or 8) bit digital correction coefficient corre-

sponding to that pixel’s gain error. The coefficients are stored in

the external RAM and accessed at the pixel rate. When in 8 bit

mode, the 8 bits correspond to the top 8 MSBs of the 10 bit digital

correction coefficient word. The 10 bit LSBs of the input word are

padded with 0s in 8 bit mode.

The multiplier saturates at 1023, i.e. if the result of the multiplica-

tion is greater than 1023, the multiplier output is 1023.

2.4 Pixel Processing Block

2.4.1 Pixel Processing In 8/24 Bit Mode

In the 8 and 10 bit output modes (for 24 and 30 bit color scans),

this stage is where the optical resolution of the sensor is digitally

reduced.

To maximize scanning speed and image quality at the popular

resolutions of 400, 300, 200, 150, 100, 75, and 50 dpi, the resolu-

tion can be reduced inside the scanner, prior to the gamma cor-

rection stage. (Resolution in the vertical direction is controlled by

the stepper motor speed.) This is done by averaging adjacent pix-

els. For example, to get 100 dpi from a 300dpi optical sensor, you

would average 3 300dpi pixels:

The number of pixels out of the Pixel Processing block is equal to

the integer portion of the number of pixels in to the Pixel Process-

ing block divided by the “Divide By” setting, from the table shown

in Figure 11.

If there are not enough pixels at the end of a line to form a com-

plete pixel, the last pixel will be eliminated. For example, if a line

is 35 pixels wide and the Horizontal DPI setting is set to divide by

6, then the output of the Pixel Processing block will be 5 pixels

(the integer portion of 35/6). The last 5 pixels will be discarded,

since 6 pixels would be required to form a new pixel in this mode.

Figure 10: Analog Front End (AFE) Model

VDAC

DAC

Offset

GPGA

12 Bit

ADC

VOS3

VOS2

ΣDOUT

VOS1

VIN Σ

Boost

1V/V or

3V/V

PGA

0.93V/V to

3V/V

DOUT = (((VIN + VOS1)GB + VDAC + VOS2)GPGA + VOS1)C

simplified, with all offsets = 0, this is:

DOUT = (VINGB + VDAC)GPGAC

C is a constant that combines the gain error through the AFE, reference voltage variance, and analog voltage

to digital code conversion into one constant. Ideally, C = 2048 codes/V (4096codes/2V). Manufacturing toler-

ances widen the range of C. See Electrical Specifications

pixel100dpi

pn-2 pn-1 pn

--------------------------------------------=

PixelsOUT INT PixelsIN

Divide By

-------------------------





24 http://www.national.com

This equation also applies to the divide by 1.5 function.

The output of this stage is sent through the gamma and pixel

packing stages, resulting in output data formatted as shown in

Figure 15.

2.4.2 Pixel Processing 10/30 Bit Mode

Scanning in 10 bit mode (30 bit color) supports the Horizontal

DPI Divider function as well as the pixel rate shading and offset

functions. The output data is formatted as shown in Figure 12

(X=mask out in software).

The software on the host PC must perform any gamma correction

desired.

There are two variations on the 10 and 12 bit output modes: Full

Duplex and Half Duplex, determined by bit 5 of Configuration

tions per pixel: offset data read, gain data read, pixel MSB write,

pixel LSB write, pixel MSB read, pixel LSB read). Since there are

8 MCLKs per pixel, the writes take 2 MCLK periods and the reads

take 1 MCLK period. This mode is preferred because it permits

faster scanning, but it requires fast SRAM access.

The Half Duplex mode accommodates slower SRAM. In Half

Duplex mode, the data in the SRAM can not be read by the host

PC until the buffer is full. Therefore there are two phases to scan-

ning data in the Half Duplex mode. The first is writing pixel data to

SRAM using 4 operations/pixel (offset data read, gain data read,

pixel MSB write, pixel LSB write). In this mode the read and write

cycles will all be 2 MCLKs long. The second phase is reading the

contents of the SRAM and sending them to the host PC. This

read operation uses 2 MCLK read cycles/byte.

2.4.3 Pixel Processing: 12/36 Bit Mode

Scanning in 12 bit mode (36 bit color) can only be done at the

optical resolution of the sensor, and the shading and offset func-

tions can not be used. The Horizontal DPI Divider function must

be set to 1 (register 09, bits 0-2 = 0) to get 12 bit data. The shad-

ing and offset functions must also be disabled (registers 3E, 3F,

40, and 41 all set to 0). The 10 bit pixel output from the multiplier

is combined with the 2 12 bit LSBs from the ADC to recreate the

12 bit pixel. The output data is formatted as shown in Figure 13

(X=mask out in software).

The software on the host PC must perform all offset and shading

correction, horizontal resolution adjustment, and gamma correc-

tion.

The 12 bit mode uses the same Full or Half Duplex options

described in 2.4.2 Pixel Processing 10/30 Bit Mode

2.5 Gamma Correction Tables

There are 3 gamma lookup tables for R, G, and B. The input to

the table is the 10 bit pixel data coming from the previous stage

(2.4 Pixel Processing Block). The output is the 8 bit gamma cor-

rected pixel data. The tables are therefore 1K bytes x 8 bits in

size. Each gamma table (red, green, and blue) can be loaded with

any arbitrary user-defined transfer curve.

The gamma tables are loaded through the dataport (see 5.1 The

DataPort: Reading and Writing to Gamma, Offset, and Gain

Memory). In most LM9830 modes, the DataPort selects which

color (Red, Green or Blue) gamma table will be read from or writ-

ten to. In 1 Channel Mode A, the only gamma table that can be

accessed is the gamma table for the 1 Channel Mode A color

selected by bits 3 and 4 of register 26.

2.6 Pixel Packing/Thresholding Block

Some scans require only one bit per pixel (“line art” mode), others

may need only 2 or 4 bits/pixel. To increase scanning speed for

lower pixel depths, the LM9830 packs the desired MSBs of multi-

ple pixels together, increasing the transmission speed to the host

by a factor of 2, 4, or 8. Figure 15 shows how the pixels are

packed together for 8, 4, 2, and 1 bit pixel depths. In Figure 15,

“b” indicates the bit position (b7 = the most significant and b0 =

Divide

DPI

(600 DPI sensor)

DPI

(300 DPI sensor)

1 600 300

1.5 400 200

2 300 150

3 200 100

4 150 75

6 100 50

875 37.5

12 50 25

Figure 11: Decreasing Horizontal Resolution

76543210 Order

XXXX9876 First Byte

543210XX Second Byte

Figure 12: 10 Bit Mode Pixel Data Format

76543210 Order

XXXX111098 First Byte

76543210 Second Byte

Figure 13: 12 Bit Mode Pixel Data Format

Pixel

Depth 76543210

8b7 p

0b6 p0b5 p0b4 p0b3 p0b2 p0b1 p0b0 p0

4b7 p

0b6 p0b5 p0b4 p0b7 p1b6 p1b5 p1b4 p1

2b7 p

0b6 p0b7 p1b6 p1b7 p2b6 p2b7 p3b6 p3

1b7 p

0b7 p1 b7 p2b7 p3b7 p4b7 p5b7 p6b7 p7

Figure 15: Packing Multiple Pixels Into One Byte

10MSBs of 12 bit Output

8 Bit Pixel Out

255

01023

Figure 14: Gamma Table

25 http://www.national.com

the least significant bit) of the original 8 bit pixel data, and pn indi-

cates the original pixel sequence, i.e p0, p1, p2, p3...

If there are not enough unpacked pixels at the end of a line to

complete the packed byte for transmission, that final byte is not

sent.

The gamma table in 2.5 Gamma Correction Tables allows the

user to set the threshold of each transition for various line art or

reduced pixel depth modes.

2.7 Line Buffer

The line buffer uses the external SRAM to store the pixel data at

the fixed rate and send it back to the PC at an asynchronous,

unpredictable, and non-constant rate.

This buffer is tightly coupled to the stepper motor (3.0 Stepper

Motor Controller), and is responsible for stopping the motor

before the buffer overflows and starting the motor again as the

buffer nears empty.

If the scanner is generating pixel data faster than the PC can

acquire it, the line buffer will start to fill up. As the buffer nears

100% full, the scan must be paused before it starts acquiring a

line it cannot store because of lack of RAM. This Pause Thresh-

old limit (register 4E) is programmable in 1 kbyte increments

between 0 and 255 kbytes but should be no higher than 100% of

the buffer RAM size minus 1 line of data (for single output CCDs

and CIS) or 3 lines of data (for triple output CCDs and CIS).

When this point is reached the buffer sends a command to the

stepper motor controller to stop scanning. The remainder of the

line being processed will continue being processed and be sent

to the buffer. If the Lines To Process After Pause Scan Signal reg-

ister (register 54) is greater than 0, then room for these additional

lines need to be added into the Pause Threshold value calcula-

tion.

After a pause, the buffer will now transmit data to the PC until it

hits the Resume Threshold limit (register 4F), which is also pro-

grammable in 1 kbyte increments between 0 and 256kbytes.

When the Resume Threshold is reached, the Line Buffer sends

the motor controller a command to resume.

Note that the scanner software on the host PC is responsible for

ensuring that the Pause Threshold value is low enough to ensure

that any data that comes after a pause request (the rest of the

current line and any subsequent lines if register 54 bits 0-2 are

greater than 0) will fit into the SRAM buffer size, which is equal to

SRAM size - COEFFICIENT size.

The pause condition is reached when the number of bytes in the

buffer is equal to the value in register 4E * 1024. The scan will

resume when the number of bytes in the buffer is equal to (the

value in register 4F * 1024 + 1023).

Since the external SRAM also contains the pixel gain and offset

data (see 2.2 Pixel Rate Offset Correction Block and 2.3 Pixel

Rate Gain Correction Block), the buffer is as large as the SRAM

size minus the coefficient storage. Supported SRAM sizes are

64kbyte, 128kbyte, and 256kbyte. Coefficient data always takes

up a total of 16kbytes for 300dpi sensors and 32kbytes for 600dpi

sensors.

3.0 Stepper Motor Controller

The stepper motor controller sends a series of pulses to the step-

per motor to move the paper past the sensor (sheetfed) or the

sensor past the paper (flatbed). The speed at which the paper

moves relative to the sensor, combined with the integration time

of the image sensor, determines the effective vertical resolution

(Lines Per Inch, or LPI).

The stepper motor is moved forwards and backwards by two sig-

nals, A and B, 90° out of phase with each other. The phase for the

forward direction is set in Configuration Register 45.

The A and B signals are either squarewaves (in Full Step Mode,

Figure 16), or a staircase approximation of a sine wave (in

Microstep mode, Figures 18 and 19).

The LM9830 always counts stepper motor steps in units of

microsteps. A full step is equal to four microsteps. Even when the

LM9830 is in Full Step Mode, it is counting in microsteps, and will

increment the stepper motor (generating a full step) every four

microsteps.

The microstep Step Size is defined in units of time. These units of

time are pixel periods, as defined in the horizontal pixel counter.

In the 3 channel pixel rate input mode, the pixel period is the

fADC/3 (= fMCLK/24). In the 3 channel line rate and 1 channel

modes, the pixel period is equal to fADC/3 (= fMCLK/24). The Step

Size is stored in the Scanning Step Size configuration register

as a 14 bit value. During normal operation, the stepper motor is

advanced 1 microstep every Step Size pixel periods. The LPI can

be calculated as follows:

Where C = the number of full steps required to move the image

one inch, pixels/line is the number of pixel periods it takes to scan

one horizontal line (equivalent to the value stored in the Line End

registers), and StepSize is the number of pixel periods/microstep

Whenever the stepper motor has been moving and then comes to

a stop, the LM9830 waits for the time specified in the Hold Cur-

rent Timeout register and then de-asserts the A, B, A, and B out-

puts to cut power to the motor. When the stepper motor is not

scanning or fast-feeding (Command = 00), A, B, A, and B are de-

asserted in all stepper modes.

There are two modes of stepper motor operation: fullstepping and

microstepping.

3.1 Full Step Mode

In Full Step Mode the output is a pulse stream, as shown in Fig-

ure 16. The amplitude of the pulses is controlled by the output of

Figure 16: Stepper Motor Waveform - Full Stepping

1 full step = 4

microsteps

LPI 4CStepSize

pixels/line

--------------------------=

26 http://www.national.com

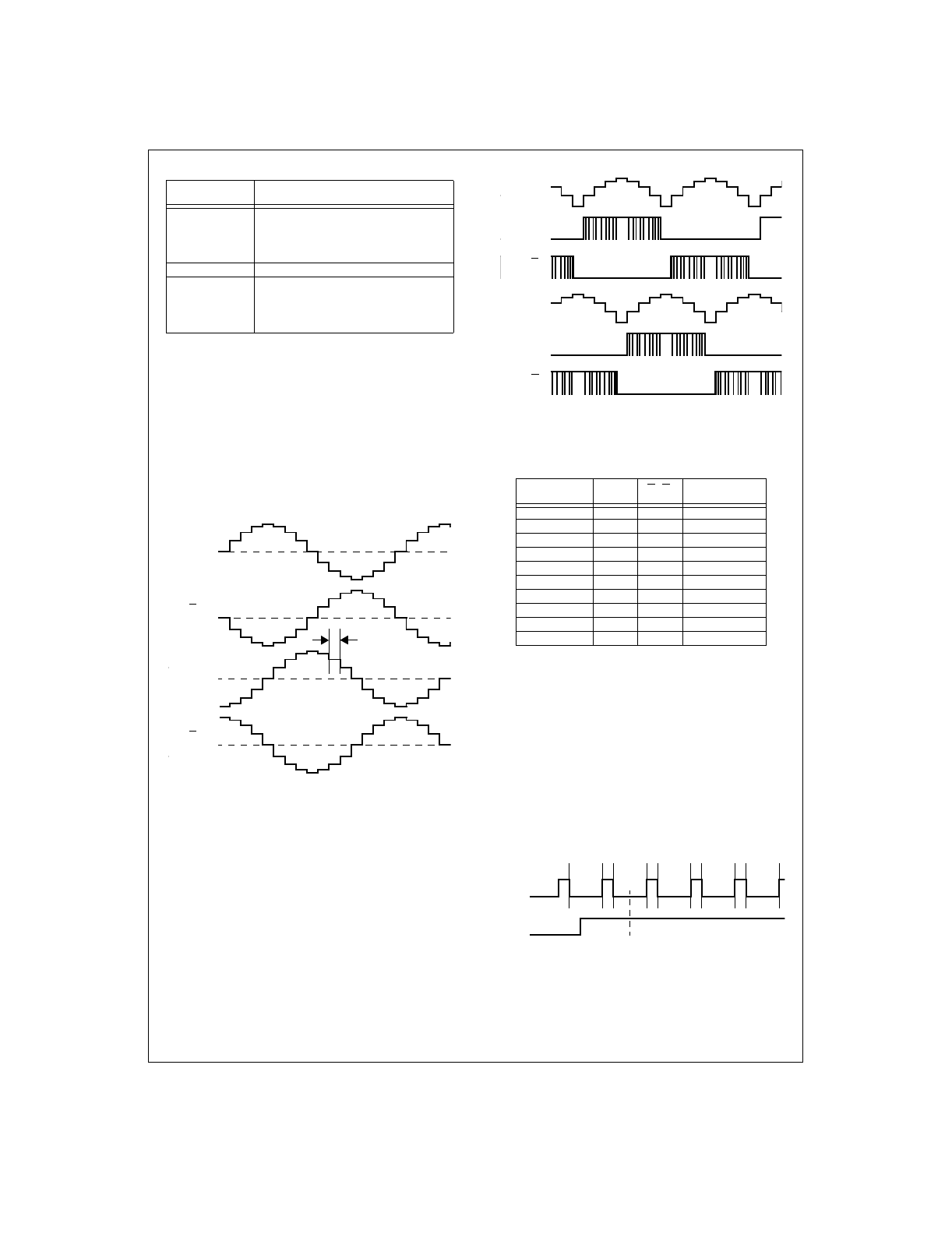

the 2 bit DAC, shown in Figure 17.

3.2 MicroStep Mode

Microstepping is a technique of driving the stepper motor with a

staircase approximation of a sine wave, as shown in Figure 18.

This technique maximizes the torque of a given motor, resulting in

a higher maximum speed. In addition, it increases the resolution

of the stepper motor. If a stepper motor moves 3.6° per full step,

microstepping can create positions inside the 3.6°: 1.8°, 0.9°, or

0.45°, for example. This increases the maximum vertical resolu-

tion of the scanner. Microstepping also results in quieter motor

movement.

The amplitude of the microstepped sine wave is controlled by the

output of the stepper motor DAC (Figure 19). The current in the

stepper motor winding is measured as a voltage across the sense

resistor, and the transistor drive signals are pulse width modu-

lated (PWM) to force the average current through the winding

equal to VDAC/RSENSE. Register 56 controls the frequency of the

PWM, and Register 57 controls the minimum time the driver is on

every period. Register 57 should be set as short as possible, the

driver only needs to be on long enough to mask any transient

noise generated by the driver transistor turning on.

Figure 20 shows the LM9830’s DAC voltages. The peak current

through the stepper motor winding will be 0.5V/RSENSE. The table

index is incremented every microstep (StepSize pixel periods).

3.3 Pause Behavior - Non-Reversing Mode

When the Full Steps to Reverse When Buffer is Full register is

0, the stepper motor simply stops moving when the Pause signal

is received, as shown in Figure 21. The line of data currently

being processed (section “a” in Figure 21) will continue to be pro-

cessed and stored in SRAM. Additional lines may be digitized and

stored as well, depending on the number programmed in the

Lines to Process After Pause Scan Signal register (Figure 22).

This value is different for different scanner designs and should be

empirically set to the value that minimizes the spacial distortion

created by the motor slowing down and stopping.

Scan Mode DAC Voltage

Starting from

a dead stop

0.5V for number of steps specified in

Kickstart Steps register (0-7). If

current - movement begins at 0.35V.

Scanning 0.35V

Stopped

0.125V for number of steps specified

in Hold Current Timeout register

(0 - 31), 0V after time out. If register

is 0 there is no hold current.

Figure 17: Full Step Current Control

Figure 18: Bipolar Microstepping Waveform

1 microstep

Table Code A (B) A (B) DAC Voltage

000N/A

1100.191V

2100.353V

3100.462V

4100.500V

-0 0 0 N/A

-1 0 1 0.191V

-2 0 1 0.353V

-3 0 1 0.462V

-4 0 1 0.500V

Figure 20: Microstepping Current Control

Figure 19: Stepper Motor Waveform - LM9830 Signals

DAC A

DAC B

Figure 21: Stepper Motor Stopping

MicroStep

Pulse

Pause

Scanning

Signal

abcd

27 http://www.national.com

When the Resume Scan signal is received, the stepper motor

controller waits the appropriate number of pixel periods after the

next TR pulse and then starts stepping again at the normal rate.

The first new line transmitted is determined by the Lines to Dis-

card After Resume Scan Signal register. The discard value

must be the same as the value in the Lines to Process After

Pause Scan Signal register.

3.4 Pause Behavior - Reversing Mode

If the Full Steps to Reverse When Buffer is Full register is >0,

then the Reversing Mode is enabled.

The Reversing Mode eliminates spacial distortion due to the

pausing of a scan. When the Pause Scan signal is received, the

line currently being processed is completed and stored in RAM

(line “b” in Figure 25). When the scan resumes, ideally the

LM9830 would send out lines “c” and after under the exact same

speed and positional conditions the scanner was in before the

scan stopped (as indicated by the dotted line in Figure 25).

When the Pause Scan signal is received, the LM9830 sends out

the remainder of the line currently being read from the CCD (line

b), and stores the offset (in pixel periods) between the last TR

pulse and the last step. It then stops, reverses, stops, and waits

for the Resume Scan signal. Once Resume Scan is asserted, the

motor controller waits for the previously stored number of pixels

periods, then starts moving forward again, maintaining the same

phase relationship between the TR pulse and the stepper motor

control signals. The result is as if the stepper motor had never

paused.

Stopping, reversing, and resuming forward motion all follow the

curve programmed in the Acceleration Profile configuration reg-

ister. There are 3 segments (Stopped, 25%, and 50%), and the

number in each register indicates the number of full steps to stay

at that acceleration. A value of 0 indicates that that segment is to

be skipped. For example, a value of 0 in all three registers would

mean that the motor would instantly reverse when the buffer is

full, then instantly stop after going back the specified number of

lines.

This acceleration profile is used any time the motor is started,

stopped, or reversed.

The acceleration profile for stopping, reversing, stopping, and

going forward again is this:

• Full speed forward (1 step = #pixels in Scanning Step Size

• 50% speed forward for z steps (1 step = 2* #pixels in Scanning

Step Size register)

• 25% speed forward for y steps (1 step = 4*#pixels in Scanning

Step Size register)

• Stopped for x microsteps (= #pixels in Scanning Step Size reg-

ister).

• 25% speed backward for y steps (1 step = 4*#pixels in Scan-

ning Step Size register)

• 50% speed backward for z steps (1 step = 2* #pixels in Scan-

ning Step Size register)

• Full speed backward (1 step = #pixels in Scanning Step Size

• 50% speed backward for z steps (1 step = 2* #pixels in Scan-

ning Step Size register)

• 25% speed backward for y steps (1 step = 4*#pixels in Scan-

ning Step Size register)

Value Additional Lines to Store in SRAM

00(a only)

1 1 (a and b)

2 2 (a, b and c)

... ...

Figure 22: Lines to Process after Pause Scan Signal Register

Value First Line to Transmit After Pause

... ...

Figure 23: Lines to Discard After Resume Scan Signal

Figure 24: Stepper Motor Resuming

MicroStep

Pulse Resume

Scanning

Signal

abcd

Speed

Stop

(x = 0 to 3)

x = number of full step clocks to wait

before reversing motor.

25%

(y = 0 to 3)

y = number of full steps at 25% of final

speed. Full step period = 4 full step

clocks.

50%

(z = 0 to 3)

z = number of full steps at 50% of final

speed. Full step period = 4 full step

clocks.

Figure 26: Acceleration Profile Settings

Figure 25: Reversing - The Goal

MicroStep

Pulse

Pause

Scanning

Signal

abcd

MicroStep Pulse

(if motor had not

paused)

28 http://www.national.com

• Paused until a Resume Scan signal is received. During the hold

current timeout period, the DAC output is held at 0.125V (the

hold current) for FullStep mode, or the DAC outputs are held as

they were prior to stopping for the microstep mode. After the

hold current timeout period, output drivers A, B, A, and B are

deasserted.

• Wait for Resume Scan signal

• Wait for correct number of pixel periods to resynchronize step-

per motor with sensor timing.

• 25% speed forward for y steps (1 step = 4*#pixels in Scanning

Step Size register)

• 50% speed forward for z steps (1 step = 2* #pixels in Scanning

Step Size register).

• Full speed forward (1 step = #pixels in Scanning Step Size

image that they would have been had scanner not stopped.

The Lines to Process After Pause Scan Signal/Lines to Dis-

card After Resume Scan Signal register is not used in reversing

mode.

3.5 Fast Feed Step Size Register

When the motor is being moved quickly (Paper Feed to

End/Paper Feed to Beginning command or Steps to Skip at

Start of Scan register), the microstep period comes from this

For all other motor movement, the step size is given in the Scan-

ning Step Size register.

3.6 Stepper Motor Current Control Using PWM

There is an option to use Pulse Width Modulation of the current in

the stepper motor to increase high speed torque, optimize effi-

ciency, and allow use of a lower current, less expensive motor.

Precisely controlling the current in the motor provides several

benefits. In Full Step Mode, the motor can start moving faster and

overcome inertia by increasing the current to the motor to 100%

when it is starting from a dead stop. After a programmable num-

ber of steps, the inertia is overcome and the current can be

reduced to 66% to reduce heat in the stepper motor (allowing a

less expensive motor to be used). When stopping the stepper

motor, the current is increased to 100% for a short time to over-

come the forward momentum, then the motor is held in position

with a low-level standby current of 30-40%. If the motor is motion-

less for more than the Hold Current Timeout period, the current

goes to 0%.

In microstepping mode, the PWM is used to approximate a sine

wave as shown in Figure 18.

The current control is accomplished by measuring the average

motor winding current through a sense resistor to ground, com-

paring it to a reference voltage, and PWMing the motor driver

transistor to force the current to be equal to the reference current.

See the Stepper Motor Current Controller Block Diagram at

the end of this document.

4.0 Scanner Support Functions

4.1 Illumination Control Block

Scanner systems require an illumination source to supply the

light to the image being scanned. This source may be white (typi-

cally a fluorescent lamp), or red, green, and/or blue LEDs. There

are four illumination modes in the LM9830:

In Illumination Mode 1, the lamp connected to the LAMPR pin is

controlled by the LAMPR On/Off settings in the configuration reg-

ister. The LAMPB output (if used) is controlled the same way. If

the lamp is supposed to be on all the time, then the On setting

should be set to a number between 0 and the value in the Line

End register, and the Off register should be set to a number

greater than the value in the Line End register. Conversely, if the

lamp is supposed to be off all the time, then the On setting should

be set to a number greater than the value in the Line End register,

and the Off register should be set to a number between 0 and the

value in the Line End register. The LAMPG output is a Pulse-

Width-Modulated pulse stream whose duty cycle is controlled by

the value in the PWM register (0-4095). The duty cycle is there-

fore equal to the register value/4096. The PWM counter is

clocked with the CRYSTAL IN frequency so the output frequency

is CRYSTAL IN/4096 (12.2kHz with a 50MHz clock). This PWM

output can be used to control the brightness of a fluorescent

lamp.

In Illumination Mode 2 (which is typically used in conjunction with

1 Channel Mode B), the LAMPR, LAMPG, and LAMPB outputs

are cycled through sequentially, one line at a time. An internal

color counter keeps track of the color of the line to be integrated,

and takes that color’s LAMP output high when the pixel counter

reaches the value stored in that color’s LAMP On register (Con-

figuration Registers 2C-37). If the On value is greater than the

value in the Line End register, then that lamp never turns on. That

color’s LAMP output goes low when the pixel counter reaches

that color’s Off value. If the Off value is greater than the value in

the Line End register, then the pixel counter will never reach the

Off value and the lamp will always stay on. Illumination Mode 2

Illumination

Mode Description

0LAMPR, LAMPG, LAMPB outputs = 0.

This is the power-on default.

Scanning with white light:

LAMPR and LAMPB controlled by

LAMP On/Off pointers in horizontal

pixel counter (as in Mode 3),

LAMPG is a PWM pulse stream

Scanning with 3 LEDs in color:

LAMPR turns on for Red lines

LAMPG turns on for Green lines

LAMPB turns on for Blue lines

Scanning with 3 LEDs in gray:

LAMPR turns on for all lines

LAMPG turns on for all lines

LAMPB turns on for all lines

Figure 27: Illumination Modes

Figure 28: Illumination Mode 1

LAMPG

LAMPR (LAMPR On < Line End, LAMPR Off > Line End)

LAMPB (LAMPB On > Line End, LAMPB Off < Line End)

29 http://www.national.com

timing is shown in Figure 29, and in slightly more detail in Figure

41.

Illumination Mode 3 is similar to Illumination Mode 2, except that

the LAMP outputs for all three colors are turned on and off every

line. Illumination Mode 3 timing is shown in Figures 30 and 31.

These modes are in operation whenever the chip is powered on

and not in standby mode. For example, the LAMP outputs in Fig-

ures 29 and 30 keep pulsing whether the LM9830 is in the Idle,

Paper Feed, or Scanning states. This eliminates light amplitude

variations due to the lamp/LEDs warm-up characteristics. Since

the LAMP pulses are synchronized to the TR pulse, which is

determined by the horizontal pixel counter, this means that the

pixel counter is constantly running, and any new scans can only

be started by waiting for the next new line (the next Red line in the

case of Illumination Mode 2).

4.2 CCD/CIS Control Block

This function generates the clock signals necessary to control a

CCD or CIS sensor. The LM9830 features:

• Independent control over the polarity (inverting or noninverting)

of the input stage to accommodate CIS or CDS signals.

• Ability to turn off CDS. When CDS is on, traditional CDS is per-

formed. When CDS is off, the signal is sampled at the Sample

Signal point, but the internal reference is used for the Sample

Reference voltage (not a point on the input signal itself).

• The CP1 output supplies the CP pulse needed on some popu-

lar Toshiba CCDs. This looks and acts just like another, inde-

pendent RS pulse.

• A CP2 output is another independent pixel rate pulse that (if

needed) can be programmed to supply an additional clock.

• CCD clock signals RS, CP1, CP2 are reset when Line Ends

• The internal Clamp signal is reset with Optical Black Pixels End.

• TR1 and TR2 pulse widths are always the same width, as deter-

mined by Register 0E.

• The TR-Ø1 guardband may be equal to 0, causing TR and Ø1

to go high simultaneously and low simultaneously (Figure 32).

This is a requirement of some Canon CIS sensors.

• CIS TR1 Timing Mode 1. In this mode the TR1 pulse is exactly

one Ø clock long, occurring on the rising edge of Ø1. The TR1

pulse width and guardband settings are ignored. For Dyna CIS.

• CIS TR1 Timing Mode 2. In this mode the TR pulse is again

equal to 1 Ø period, but now it is centered around Ø1. The TR

pulse width and guardband settings are ignored. For Canon

CIS.

• To prevent sensor saturation, the LM9830 is always clocking the

CCD/CIS, except when it is in Reset or Standby (Register 7 bit

2 or 3 = 1).

• There is a bit for Fake Optical Black Pixels (register 19, bit 2).

This is used with Dyna CIS sensors. In this mode, the RS out-

put pulses once inside the TR1 pulse, then is held high until the

end of the optical black pixels. The TR1 pulse is extended until

Figure 29: Illumination Mode 2

LAMPG

LAMPB

LAMPR

Figure 30: Illumination Mode 3 (grayscale)

LAMPG

LAMPB

LAMPR

Figure 31: Illumination Mode 3 (green only)

LAMPG

LAMPR (LAMPR On > Line End, LAMPR Off < Line End

LAMPB (LAMPB On > Line End, LAMPB Off < Line End

TR Pulse same as first clock pulse

ø1

Figure 32: TR-Ø1Guardband Can Be Equal To 0

Figure 33: CIS TR1 Timing Mode 1

Dummy

Pixels

TR1

Ø1

Transfer

Phase

Line

ø1 inside TR1 pulse

TR1

ø1

tø1/4

tø1/4tø1/4

tø1

Figure 34: CIS TR1 Timing Mode 2

30 http://www.national.com

the trailing edge of the first RS pulse. This mode works for TR1

only, under all TR1 settings (normal and CIS TR1 Timing

modes 1 and 2).

4.3 AFE Operation

The LM9830 supports the following operation modes, controlled

by registers 26 and 27:

• 3 Channel Pixel Rate Mode. In this mode all three channels are

converted with the multiplexer in front of the ADC switching at

the ADC conversion rate, producing interleaved RGB data that

is transferred to RAM. The ADC runs at MCLK/8, each chan-

nel’s pixel rate is MCLK/24. Each color has its own offset and

gain coefficients. This mode typically uses Illumination Mode 1.

• 3 Channel LIne Rate Mode. In this mode all three channels are

converted with the multiplexer in front of the ADC switching at

the line rate, producing a line of Red data, followed by a line of

Green data, followed by a line of Blue data, etc. that is trans-

ferred to RAM. The selected channel and the ADC both run at

MCLK/8. Each color has its own offset and gain coefficients.

This mode typically uses Illumination Mode 1.

In the 3 Channel Line Rate Mode three TR pulses are generated.

TRRED is the TR1 output, TRGREEN is the TR2 output, and

TRBLUE is the CP2 output. In this mode TR pulses for a particular

color can be “skipped”, increasing the integration time for that

color. In the example shown in Figure 38, the red channel sees 2

times the integration time of the green channel, and the blue

channel sees 3 times the integration time of the green channel.

Each channel can be independently programmed to drop 0, 1, or

2 TR pulses.

Each color’s TR pulse can be programmed to occur in position 1

(inside Ø1 high) or position 2 (inside Ø1 low), as shown in Figure

39.

• 1 Channel Mode. In this mode only one of the three channels is

being converted. That channel and the ADC are clocked at

MCLK/8. The channel is chosen in the configuration register.

There are two variations of 1 Channel Mode:

• 1 Channel Mode A: Uses the selected channel’s offset and gain

coefficients for all lines. This mode typically uses Illumination

Mode 3.

Figure 35: Fake Optical Black Pixels

Trailing edge of

first RS pulse End of Optical

Black Pixels

TR1

Red Channel

Figure 36: 3 Channel Pixel Rate Mode

Green Channel

Blue Channel

ADC

ADC Out LIne 1: RGBRGBRGBRGBRGB...

ADC Out LIne 2: RGBRGBRGBRGBRGB...

ADC Out LIne 3: RGBRGBRGBRGBRGB...

ADC Out LIne 4: RGBRGBRGBRGBRGB...

Pixel-Rate

Multiplexing

Red Channel

Figure 37: 3 Channel Line Rate Mode

Green Channel

Blue Channel

ADC

ADC Out LIne 1: RRRRRRRRRRRRRRR...

ADC Out LIne 2: GGGGGGGGGGGGGG...

ADC Out LIne 3: BBBBBBBBBBBBBBBBB...

ADC Out LIne 4: RRRRRRRRRRRRRRR...

Line-Rate

Multiplexing

Figure 38: 3 Channel Line Rate TR Pulse Timing

TRRED

TRGREEN

TRBLUE

Multiplexer

Channel Red Green Blue Red Green

tINT (RED)

tINT (GREEN)

tINT (BLUE)

TRRED

TRGREEN

TRBLUE

Ø1

12 12

Figure 39: 3 Channel Line Rate Mode with 2 TR

Pulse Positions

31 http://www.national.com

• 1 Channel Mode B: This mode uses a sensor tied to the Blue

OS input only. Illumination is switched in RGBRGB pattern at

the line rate. Each color has own digital offset and gain coeffi-

cients as well as static Gain and Offset data. Note that there is

a one line delay between when a line is exposed to a color and

when pixels of that color are clocked out of the sensor. For

example, the Green LEDs should be on while you are clocking

out Red pixels. This mode typically uses Illumination Mode 2.

4.4 External SRAM Interface

The external 8 bit SRAM is used for line buffering and coefficient

data. For 300 dpi, 16kbytes (2729 pixels * 16 bits/pixel * 3 colors

= 16kbytes) are used for offset and gain coefficients. For 600 dpi,

32Kbytes (5460 pixels * 16 bits/pixel * 3 colors = 32kbytes) are

used for offset and gain coefficients. The rest is used for the cir-

cular image data buffer.

The LM9830 supports three SRAM sizes: 64K, 128K, and 256K.

The 64K mode uses addresses A0-A15. To allow two 32k x 8

SRAMs to function as one 64k x 8 SRAM, address bit A16 is the

inverse of address bit A15. This allows A15 and A16 to be used

as CS pins for the two 32k x 8 SRAMs. The 64K mode is only rec-

ommended for use with 300dpi optical sensors. 64K (32K coeffi-

cients/32K image data buffer) is not enough SRAM for 600dpi

sensors.

The 128K mode uses addresses A0-A16. To allow two 64k x 8

SRAMs to function as one 128k x 8 SRAM, address bit A17 is the

inverse of address bit A16. This allows A16 and A17 to be used

as CS pins for the two 64k x 8 SRAMs.

The 256K mode uses addresses A0-A17.

There are 4 SRAM access modes: 8 bit/4 slot, 8bit/8 slot, 12 bit/4

slot (half duplex 12 bit), 12 bit/8 slot (full duplex 12 bit). The 4 slot

modes are lower bandwidth and can be used with slower SRAM,

while the 8 slot modes provide higher system performance.

Figure 42 indicates the relative bandwidth used in each mode.

The ADC and the first stage of the digital processing block always

run at the pixel rate, which is 1/8 of the MCLK frequency. The off-

set correction data and the gain correction coefficient data must

be provided at the pixel rate.

In the 8 bit/4 slot mode, each 8 bit correction data RAM access

takes 2 MCLKs. The 8 bit write from the pixel processing block

takes 2 MCLKs. 8 bit reads from SRAM to the host also take 2

MCLKs. Note that in this mode, the maximum rate pixel data can

be stored in SRAM is also the maximum rate pixel data can be

read and transmitted to the host. In configurations where the host

I/O can not constantly receive data at the pixel rate, the SRAM

buffer may fill up even if the host is capable of burst reads at rates

much greater than the pixel rate.

To reduce or eliminate buffer full conditions, there is a higher

bandwidth 8 bit/8 slot mode where all RAM read accesses take 1

MCLK cycle. In this mode there are 4 slots where data can be

read and sent to the host, allowing the buffer to be emptied up to

4 times faster than it is being filled. Combined with an intelligent

scanner driver routine, this mode will reduce or eliminate the

number of times a scanner has to stop during a scan.

This mode

is only guaranteed to work when the MCLK frequency is 25MHz

or lower

To calibrate the scanner, or to actually scan an image and send

the raw 12 bit data back to the PC, additional modes are required

to transmit the 12 bit pixel data through the 8 bit interface. The 12

bit/4 slot (or half duplex) mode does this by storing the 12 bit data

as a high byte (the 4 MSBs of the 12 bit word) and a low byte (the

8 LSBs of the 12 bit word). The timing is similar to the 8 bit/4 slot

scenario, except that the slot normally allocated to sending data

to the host is now given to writing the second half of the 12 bit

word to SRAM.

In this mode you can not transmit data to the host

while scanning

. To read the data out of RAM, you must either

write to the command register to stop scanning (this is typically

how it would be done during calibration), or wait until the buffer

fills up (how it would typically be done during a raw 12 bit image

Figure 40: 1 Channel Mode A

G LED

B LED

R LED

COEF.

DATA SC SC SC

SC = selected channel (=green in this example)

Figure 41: 1 Channel Mode B

G LED

B LED

R LED

COEF.

DATA R G B

Figure 42: SRAM Access Modes

MCLK

123 5678148

8 bit/

4slot

8 bit/

8slot

12 bit/ 4slot

(Scanning)

12 bit/

8slot

R1: Offset Coefficient read

R2: Gain Coefficient read

R3: 8 bit pixel data read (to host)

R4: 12 bit pixel data read, MSB (to host)

R5: 12 bit pixel data read, LSB (to host)

W1: 8 bit Pixel Data Write

W2: 12 bit pixel data write, MSB

W3: 12 bit pixel data write, LSB

R1 R2 W1 R3

R1 R2 W1R3 R3 R3

R1 R2 W2 W3

R1 R2 R4 R5W2 W3

12 bit/ 4slot

(Reading) R1 R2 R4 R5

32 http://www.national.com

scan).

To improve the performance of this mode, there is also a 12 bit/8

slot (full duplex) mode available. In this mode coefficient reads

take 1 MCLK each (a total of 2 MCLKs). The high and low bytes

of the 12 bit word are each read from RAM and transmitted to the

host in 1 MCLK cycle. To slightly reduce the speed requirements

of SRAM, the high and low byte writes to RAM are given 2

MCLKs each. This allows the host to read pixel data from the

SRAM while scanning, dramatically reducing the time required to

scan versus using the half duplex mode.

To minimize EMI and on-chip noise, the SRAM output drivers (A0-

A17, DB0-DB7, and RD and WR) have four output current set-

tings, 0-3. The output current level is set by bits 2 and 3 of Config-

uration Register 43.

4.5 Misc. I/O

These four pins are used for paper sensing, LED displays, user

start buttons, etc.

Two pins are dedicated inputs: Paper Sensor #1 and Paper Sen-

sor #2. The other two pins, Misc I/O #1 and Misc I/O #2, can be

configured as inputs or outputs.

The state of each pin, True or False (1 or 0), is reflected in the

Status Register.

These are the configurable aspects of these I/O pins:

• The polarity of the input. If this bit is set to a 1 (Active High), a

high level on that input pin will produce a True reading (1) in the

Status Register. If this bit is set to a 0 (Active Low), a low level

on that input pin will produce a True reading (1) in the Status

• Level or Edge Sensitive. If this bit is set to 0 (Level Sensitive),

the Status Register will reflect the current state at that sensor

input pin. If this bit is set to 1 (Edge Sensitive), the Status Reg-

ister for that input will be True (1) if there were any False to True

transitions at that sensor input pin since the last time the Status

of all the edge sensitive inputs to False (0).

• Paper Sensor #1 can be programmed to stop the scan (by

clearing the Scanning bit) when its state (as reflected in the

Status Register) changes from False to True. This is useful in

flatbeds to prevent the motor from trying to step past the limits

of travel of the system. In sheetfed systems, Paper Sensor #1

can be used to detect whether or not the user has inserted a

document to be scanned.

• Paper Sensor #2 can be programmed to stop the scan (by

clearing the Scanning bit) and change its bit in the Status Reg-

ister to True a programmable number of lines after its input pin

changes state from False to True. In sheetfed scanners this is

useful if the paper sensor is located

before

the scanner array,

where the sensor will change states before all of the paper has

been scanned. For flatbed scanners this sensor can be used to

detect the home position.

• The Misc I/O 1 and Misc I/O 2 pins can have their outputs set to

+5V or 0V by writing a 1 or a 0 to the appropriate register.

4.6 The Brains

This is the master control section that keeps track of the position

of the CCD pixel going through the analog front end, the color of

that line of CCDs (for single output CCD illumination control), the

stepper motor, and all other system coordination.

5.0 Communicating with the LM9830

Everything on the LM9830 (configuration registers, image data,

coefficient data, and gamma tables) is accessed through the

Configuration Register. Configuration Register I/O is done

through two steps. The first step is to write the address (0 through

7F) of the configuration register to be read from or written to. The

second access is the data operation (a read or a write) for that

address. The address only needs to be written once. After an

address is written, any number of reads and/or writes may be

made to that address.

Registers 0, 1, and 2 are read-only registers. Writing to these

addresses may affect various counters inside the LM9830 and

should therefore be avoided. All of the remaining configuration

registers can be read from and written to using this protocol.

5.1 The DataPort: Reading and Writing to Gamma, Offset,

and Gain Memory

Because the gamma table and the shading and offset correction

blocks of RAM are very large, the LM9830 uses an indexed

method of reading and writing them, called the DataPort. Four

addresses in the Configuration Register are used to implement

this mode, as shown in Figure 44.

Current

Setting

IOL

(mA)

IOH

(mA)

tF (ns)

20pF

tR (ns)

20pF

0 3.5 -4 29 25

1 6 -7.5 17 13

212-178 6

321-325 3

229,376

16384

49152

64K SRAM, 300 DPI

Coefficients

Line Buffer

32768

256K SRAM, 600 DPI

Coefficients

Line Buffer

32768

98304

128K SRAM, 600 DPI

Coefficients

Line Buffer

Figure 43: Typical Memory Maps for External SRAM

Configuration

Address

Name Bits

DataPort

Target/

Color

b3- b0

DataPort

Address

(MSB)

b12 - b8

Figure 44: DataPort

33 http://www.national.com

The DataPort allows the user to select a memory block (gamma,

gain coefficient, or offset coefficient) and color (red, green, or

blue) to be read from or written to, by writing to Configuration

The starting address of that block (usually 0) is written into the

DataPort Address register (at Configuration Register Addresses 4

and 5). Bit D5 of register 4 should also be set to a 0 or a 1 to indi-

cate whether the DataPort will be read from (D5 = 1) or written to

(D5 = 0) in subsequent operations. This is required so the

LM9830 can prefetch the data for faster access. The DataPort

Address is automatically incremented after every byte of Gamma

data read/written, or every 2 bytes of Offset/Shading data

read/written (since an Offset/Shading word is 2 bytes wide).

Once the memory block, color, and starting address is written, a

series of reads or writes to the DataPort will read from or fill up

that selected memory block at maximum speed.

Registers 4 and 5 should always be (re)written to after register 3

has been changed.

5.1.1 DataPort Type and Color

These 3 bits determine which memory block (gamma or gain/off-

set coefficients, Figure 45) and which color of that memory block

(red, green, or blue, Figure 46) is to be read from or written to.

There is one exception to this: when operating the LM9830 in 1

Channel Mode A, the color is determined by the contents of Reg-

ister 26, bits 3 and 4.

5.1.2 DataPort Address

This 13 bit register (at Configuration Register addresses 4 and 5)

determines what the starting address is for the read/write opera-

tion.

This address is automatically incremented after each

read/write operation to the actual DataPort.

For the gamma table

the range is 0 to 1023. For the Gain and Offset Coefficients this

range is 0 (corresponding the first valid pixel as programmed in

the Valid Pixels Start register) to 2729 (the maximum number of

image pixels for a 300dpi sensor) or 5460 (the maximum number

of image pixels for a 600dpi sensor). If reads or writes continue

past 1023, 2729, or 5460, the DataPort address counter wraps

back around to 0 and continues counting. Note that for Gain and

Offset Coefficients it takes 2 read/write operations to increment

the address counter, because Gain and Offset Coefficients are

stored as a 2 byte word.

5.1.3 DataPort

This 8 bit register (at Configuration Register address 6) is where

the data is sequentially read from or written to. Gamma data is 8

bits wide. Since offset data may be 6 or 8 bits wide and gain cor-

rection data may be 10 or 8 bits wide, these bytes need to be

combined before they are transmitted. For a 6/10 offset/gain bit

split, the format is shown in Figure 47:

The first byte = Offset * 4 + INT(Gain/256), and

The second byte = Gain AND 255.

An 8/8 offset/gain split is more obvious:

If the offset/gain split is changed from 8/8 to 6/10, or from 6/10 to

8/8, the offset and gain coefficients must be re-calculated and

resent to the LM9830.

In Gamma mode, the DataPort address counter is automatically

incremented after a byte is read from or written to register 6. In

Gain/Offset mode, the DataPort address counter is automatically

incremented after two bytes are read from or written to register 6.

Reading and writing the DataPort should only be done when the

LM9830 is not scanning.

6.0 The Parallel Port Interface

The primary interface of the LM9830 is a PC compatible parallel

port interface. This communication mode is selected by tying the

CMODE pin to DGND. There are two operational parallel port

modes for reading data: Nibble Mode (for compatibility with the

maximum number of existing PCs) and EPP (for maximum speed

on newer machines). In addition, the LM9830 supports a printer

passthrough function that allows an LM9830-based scanner to be

inserted between a PC and a printer.

6.1 The Parallel Port Pins

The parallel port on a standard PC has a total of 17 I/O lines: 8

DataPort

Address

(LSB)

b7 - b0

6 DataPort b7 - b0

76543210 Type

-------0 Gamma

-------1Offset & Gain

Figure 45: DataPort Target Pointer

76543210 Color

-----00- Red

-----01- Green

-----10- Blue

-----11- Undefined

Figure 46: DataPort Color Pointer

Configuration

Address

Name Bits

Figure 44: DataPort

76543210 Type

O5 O4 O3 O2 O1 O0 G9 G8 First Byte

G7 G6 G5 G4 G3 G2 G1 G0 Second Byte

Figure 47: DataPort Target Pointer (6/10 split)

76543210 Type

O7 O6 O5 O4 O3 O2 O1 O0 First Byte

G7 G6 G5 G4 G3 G2 G1 G0 Second Byte

Figure 48: DataPort Target Pointer (8/8 split)

ummm ul

34 http://www.national.com

data lines and 9 signaling lines. Additionally, the parallel port

passthrough function requires another set of the 9 control signals.

The LM9830 databus and control signals are tied to the PC’s par-

allel port. To support a parallel port passthrough function, the

LM9830’s control outputs are tri-stated to allow the printer to

communicate with the PC when in passthrough mode. When the

LM9830 is active, the printer is disabled by tri-stating all control

I/O between the printer and the LM9830/PC control bus. A more

detailed description of the parallel port passthrough function is

provided on the full page drawing labelled Printer Passthrough

Block Diagram near the end of this document.

To minimize EMI and on-chip noise, the Parallel Port output driv-

ers (D0-D7 and the 9 control/status output signals) have four out-

put current settings, 0-3. The output current level is set by bits 1

and 2 of Configuration Register 42.

For maximum compatibility and reliability, the “3” setting is recom-

mended. “0” - “2” can be used to reduce EMI and on-chip noise if

the final system (customer’s PC and associated peripherals and

cables) can tolerate it.

6.2 Finding the LM9830

The LM9830 powers up in the Transparent mode. In order to com-

municate with the LM9830, the host must send a specific

sequence of data on the databus without changing any of the 4

control signal lines. The LM9830 looks for the sequence 99 66

CC 33 on D0-D7.

Each state (99, 66, CC, and 33) must be held for a minimum of 4

MCLK cycles. After a power on reset status, the MCLK divider is

set to divide-by 4. This means that each state must be held for 16

CRYSTAL IN cycles. For a 50MHz external clock, this means that

each state must be held for a minimum of 16*20ns = 320ns. If the

MCLK divider is programmed to a different value and the LM9830

goes transparent, the minimum time required to wake up the

LM9830 will change. The equation for the length of time each

state must be held is:

t = 4(tCLK_IN)(MCLK_DIVIDER)

The assumption is that this sequence will not occur at random

without any of the 4 control pins violating their static requirement

(STROBE high, the other three static).

When in the transparent mode with a clock applied, the LM9830

constantly monitors the databus for a transition to 99. If 99 is

detected, the LM9830 looks for 66. If 66 is detected, the LM9830

looks for CC. If CC is detected, the LM9830 looks for 33.

If 33 is detected, the LM9830 exits transparent mode.

When the LM9830 exits the Transparent mode it takes the

TRISTATE pin high to disconnect the printer control signals to the

PC, and the LATCH signal low to latch and hold the current state

of the four control signals going to the printer. The 5 control lines

going back to the host change to their deasserted states:

ERROR = high

ACK = high

BUSY = low

PE = low

SELECT = low

At this point the LM9830 software driver can attempt to write to

and read from the configuration register to confirm the pres-

ence/non-presence of the LM9830. Please note that register 42

must be written correctly to allow the LM9830 to respond in the

desired communication mode (8 bit or nibble).

6.3 Selecting EPP or Nibble Mode I/O

Now that the LM9830 has been detected, the Host can start talk-

ing to it. The host PC always writes to the LM9830 using 8 bit

words. For reading data, the LM9830 can communicate in either

8 bit (Bidirectional or EPP) or 4 bit (Nibble) modes, as determined

by the state of register 42, bit 0. This bit has no power-on default

and must be set to a 0 or a 1 before data can be read from the

LM9830.

6.4 Returning to Transparency Mode Without LM9830 Reset

The host can return the LM9830 to Transparency Mode by taking

the INIT pin low and then high again. Approximately 2 - 3 MCLKs

after the rising edge of INIT, the LATCH pin will go high, the

TRISTATE pin will go low, and the LM9830 will tristate its D0-D7

and control line outputs. This will make the LM9830 transparent,

but will not change its operation state. If it was scanning, idling, or

fast feeding, the LM9830 will continue scanning, idling, or fast

Name Direction LM9830

Default

Parallel Port Databus

D0-D7 From (To) PC TriState

PC Control Signals

STROBE From PC Input

AUTOFEED From PC Input

INIT From PC Input

SELECT IN From PC Input

ACK To PC High

BUSY To PC Low

PE To PC Low

SELECT To PC Low

ERROR To PC High

Printer Passthrough Signals

TRISTATE To External Buffer Low

LATCH To External Latch Low

Figure 49: Printer Port Pin Description

Current

Setting

IOL

(mA)

IOH

(mA)

tF (ns)

200pF

tR (ns)

200pF

05-6200167

17-9143111

29-1211183

3 15 -21 67 48

Figure 50: Printer Passthrough Overview

Buffer

Computer To

Printer

DB25

9 28

LM9830

DatabusControl

Signals Passthrough

Control

Signals

35 http://www.national.com

feeding.

6.5 Returning to Transparency Mode with LM9830 Reset

The host can return the LM9830 to Transparency Mode and reset

the LM9830 by taking the INIT, AUTOFEED, SELECT_IN, and

STROBE pins low and then high again. Approximately 2 - 3

MCLKs after the rising edge of INIT, the LATCH pin will go high,

the TRISTATE pin will go low, and the LM9830 will tristate its D0-

D7 and control line outputs. This will reset the LM9830 as well as

make it transparent.

6.6 Writing to the Configuration Register (Parallel Port)

The timing for writing to the LM9830 (sending data from the PC to

the LM9830) is shown in Figure 53. This is EPP timing, and it is

used for all parallel port Writes, even when in Nibble Mode (Nib-

ble Mode is only used to send data from the peripheral to the

host).

The write consists of two cycles, an address write cycle that tells

the LM9830 which address is going to be written to, and a data

write cycle that transmits the data to be stored in that address.

The handshaking is as follows:

• The host takes STROBE low, indicating that the next operation

is a write.

• The host puts data on D0-D7.

• The host takes SELECT IN low to indicate that the data is valid.

• The LM9830 latches the data and indicates that the data has

been latched by taking BUSY high.

• The host responds and brings SELECT IN and STROBE high.

• The LM9830 responds to the rising edge of SELECT IN by tak-

ing BUSY low.

This completes the address write cycle. The LM9830 is now pre-

pared for a byte write to the location contained in the address

byte. The handshaking for the data write is basically identical,

except AUTOFEED is used to latch the data instead of SELECT.

To write large quantities of data to a particular address, the

address only has to be written once. All data write operations will

write to the last address written. This is useful for writing DataPort

(register 06) data.

6.7 Reading From The Configuration Register (Parallel Port)

The procedure for reading the configuration register is different

for the EPP and Nibble Modes.

6.7.1 EPP Mode Configuration Register Read

An EPP read is shown in Figure 54. The handshaking for the

address write cycle of a read is identical to the address cycle for a

write. The data read cycle is as follows:

• The host maintains STROBE high, indicating that the next oper-

ation is a read.

• The host tristates D0-D7

• The host takes AUTOFEED low to request data from the

LM9830.

• The LM9830 places the data on the bus.

• The LM9830 takes BUSY high to indicate the data is valid.

• The host latches the data and responds by taking AUTOFEED

high.

• The LM9830 tristates the bus.

• The LM9830 takes BUSY low to indicate the cycle is complete

and it is ready for another cycle.

To read large quantities of data from a particular address, the

address only has to be written once. All data read operations will

read from the last address written. This is useful for reading pixel

(register 00) and DataPort (register 06) data.

6.7.2 Nibble Mode Configuration Register Read

This is not the traditional application of “Nibble Mode”, it is more

efficient and lower cost variation. The first half of the cycle is an

EPP address write, followed by a Nibble Mode read. Also, BUSY

is used for handshaking and ACK for a databit, eliminating the

problems caused by the hardware inversion of BUSY on the PC,

as well as allowing BUSY to perform roughly the same function it

does in EPP mode.

STROBE

AUTOFEED

INIT

Figure 51: LM9830 Transparent without Reset

SELECT IN

STROBE

AUTOFEED

INIT

Figure 52: LM9830 Transparent with Reset

SELECT IN

STROBE

AUTOFEED

BUSY

Addr

D0 - D7

Figure 53: Writing to the Configuration Register

8-Bit Data

SELECT IN

8-Bit Data

STROBE

AUTOFEED

BUSY

Addr

D0 - D7

Figure 54: Reading from the Configuration Register (EPP)

SELECT IN

36 http://www.national.com

An EPP read is shown in Figure 55. The handshaking for the

address cycle of a read is identical to the address cycle for a

write. The data cycle is as follows:

• The host takes STROBE high, indicating that the next operation

is a read.

• The host tristates D0-D7

• The host takes AUTOFEED low to request the first nibble from

the LM9830.

• The LM9830 places the first nibble on the ERROR, SELECT,

PE, and ACK pins.

• The LM9830 takes BUSY high to indicate the nibble is valid.

• The host latches the nibble on or after the rising edge of BUSY.

•The host takes AUTOFEED

high to request the second nibble

from the LM9830.

• The LM9830 places the second nibble on the ERROR,

SELECT, PE, and ACK pins.

• The LM9830 takes BUSY low to indicate the nibble is valid.

• The host latches the nibble on or after the falling edge of BUSY.

Additional nibble reads will read from the last latched address

(useful for reading pixel data or the DataPort).

7.0 The Microprocessor Compatible Interface

In this interface the part is written to like a standard µP peripheral,

with RD (AUTOFEED), WR (STROBE), CS (INIT), ALE (SELEC-

TIN), and an 8 bit databus (D0-D7). This interface would be used

in a system where another interface (perhaps SCSI or FireWire)

was desired. Using the LM9830 in this application in a DMA

mode is relatively easy and efficient, because large blocks of

image data can easily be read through a series of RDs.

To enter the µP interface mode, the CMODE pin should be tied to

VD.

7.1 Writing to the Configuration Register (µP Mode)

The Configuration Register address is latched on the falling edge

of ALE. Data is written to that address on the rising edge of WR.

7.2 Reading From The Configuration Register (µP Mode)

The address is latched as in the previous example. For all modes

except DataPort operations, the LM9830 transmits the data at

that address on the following read. Additional nibble reads will

read from the last latched address (useful for reading pixel data).

7.3 Writing Data to the DataPort (µP Mode)

The DataPort is used to write the gamma table and the off-

set/gain coefficients to the LM9830 in a continuous stream. First,

write to register 3 to set what the data is (gamma or offset/gain)

and what color (red, green, or blue) the data is for. Then write to

registers 4 and 5 to set the initial address (usually 0), and the

R/W mode (W in this example). To write data to the DataPort,

send the Data address (6) to the DataPort followed by a serial

stream of data as shown in Figure 58. The DataPort Address

stored in registers 4 and 5 will be automatically incremented after

every write (if writing gamma data) or every second write (if writ-

ing offset/gain coefficient words).

7.4 Reading Data from the DataPort (µP Mode)

The gamma table and offset/gain coefficients can also be read

STROBE

AUTOFEED

BUSY

Addr

D0 - D7

Figure 55: Reading from the Configuration Register

(Nibble Mode)

SELECT IN

ERROR (D0, D4)

SELECT (D1, D5)

PE (D2, D6)

ACK (D3, D7)

D7-D4 D3-D0 CS (INIT)

RD (AUTO-

FEED)

Addr

D0 - D7 8-Bit Data

(STROBE)

ALE

(SELECTIN)

Figure 56: Writing to the Configuration Register (µP)

CS (INIT)

RD (AUTO-

FEED)

Addr

D0 - D7 8-Bit Data

(STROBE)

ALE

(SELECTIN)

Figure 57: Reading from the Configuration Register

(µP mode, except DataPort)

Figure 58: Writing to the Configuration Register (µP)

Datan

CS (INIT)

6D0 - D7

(STROBE)

ALE

(SELECTIN)

(

AUTOFEED)

Datan+1 Datan+2

37 http://www.national.com

from the LM9830 in a continuous stream. First, write to register 3

to set what the data is (gamma or offset/gain) and what color

(red, green, or blue) the data is for. Then write to registers 4 and 5

to set the initial address (usually 0), and the R/W mode (R in this

case). To read data from the DataPort, the DataPort address (6)

needs to be inserted before every read to prefetch the data from

the external SRAM. The timing is shown in Figure 59. Note that

this applies

only

to offset and gain coefficient reads; the gamma

table may be read with or without the additional address writes.

The DataPort Address stored in registers 4 and 5 will be automat-

ically incremented after every read (if reading gamma data) or

every second read (if reading offset/gain coefficient words).

8.0 Scanning

8.1 Start Scanning - Initiating an Image Scan

An image scan is started by setting the Scanning bit in the Con-

figuration Register. The LM9830 will move the paper forward the

number of steps specified in the Stepper Motor Configuration reg-

ister and begin scanning. Scanning ends when the host writes a

new command to the command register (Idle, Paper Feed to Start

or Paper Feed to End) or when Paper Sensor #1 or Paper Sensor

#2 changes state (if programmed to do so).

The line buffer is reset when the Scanning bit is SET, not when it

is cleared. The host can continue to read stored data out of the

line buffer after a scan has stopped.

The LM9830 pixel data is read from configuration register

address 00. To read pixel data, the host should latch address 00

into the LM9830’s address pointer. Subsequent reads from the

host will read the next byte of pixel data stored in the line buffer.

Here are examples of two consecutive image data reads in the

three possible interface modes:

Image data can flow as fast as possible from the LM9830 to the

host, but can be interrupted at any time (by latching a different

address) to read the LM9830’s status registers, abort the scan,

etc.

If for some reason you want to pause the scan for some length of

time and resume later, do NOT reset the Scanning bits (return to

Idle). Simply stop reading pixel data. When the buffer fills up, the

LM9830 will automatically stop scanning and turn off power to the

stepper motor (when the delay goes beyond the time specified in

the Hold Current Timeout register).

The last byte of every line is the status byte (register 02). If the

line just transmitted was the beginning of a stepper motor pause

or reverse cycle, the Pause bit is set. For scanners unable to

reverse, this feature potentially allows the software to correct

images distorted by motor starting/stopping.

8.2 Reconstructing the Image Data Received By the PC

When reconstructing an image from the stream of data received

from the LM9830, it is useful to know the format of the data. The

LM9830 does not perform deinterleaving on the pixel data, it

comes out exactly as the sensor sends it. Deinterleaving and

other processing must be performed on the host PC.

For a single output CCD/CIS that outputs one line of data with

colors alternating at the line rate, the output format is:

R1, R2, R3, R4,..., Rn-2, Rn-1, Rn (line m)

G1, G2, G3, G4,..., Gn-2, Gn-1, Gn (line m + 1)

B1, B2, B3, B4,..., Bn-2, Bn-1, Bn (line m + 2)

For a triple output CCD/CIS that outputs 3 lines of data (each x

pixels apart in the vertical direction) with colors alternating at the

Datan

CS (INIT)

6D0 - D7

Figure 59: Reading Gain and Offset Coefficients

through the DataPort (µP mode)

(STROBE)

ALE

(SELECTIN)

(AUTOFEED)

Datan+1

6 6

Pixel n+1

STROBE

AUTOFEED

BUSY

Pixel n

D0 - D7

Figure 60: Reading Pixel Data (EPP)

SELECT IN

STROBE

AUTOFEED

BUSY

D0 - D7

Figure 61: Reading Pixel Data (Nibble Mode)

SELECT IN

ERROR (D0, D4)

SELECT (D1, D5)

PE (D2, D6)

ACK (D3, D7)

D7-D4 D3-D0D7-D4 D3-D0

NIBBLE

CS (INIT)

RD (AUTO-

FEED)

Pixel n

D0 - D7

Figure 62: Reading Pixel Data (µP)

Pixel n+1

(STROBE)

ALE

(SELECTIN)

38 http://www.national.com

line rate, the output would be:

R1, G1, B1, R2, G2, B2,..., Rn-1, Gn-1, Bn-1, Rn, Gn, Bn

with the Red data representing line m, the Green data represent-

ing line m-x, and the Blue data representing line m-2x.

The length of a line of image data sent to the PC depends on sev-

eral factors:

• The number of physical pixels in the sensor, equal to (1 + Valid

Pixel End - Valid Pixel Start), which we will call Valid Pixels,

• The horizontal resolution set in the configuration register,

• The pixel depth (1, 2, 4, or 8 bits), and

When scanning with the horizontal resolution equal to the optical

resolution (300dpi or 600dpi) at an 8 bit pixel depth, the number

of bytes in a line is equal to the number of Valid Pixels (or three

times the number of Valid Pixels, if R, G, and B are interleaved).

If the horizontal resolution is set to a number below the optical

resolution, the number of bytes in a line is equal to:

If the pixel depth is reduced from 8 to 4, 2, or 1 bits, the bytes per

line will also decrease:

since multiple pixels are being packed into one byte. For a 4 bit

pixel, there are 2 pixels/byte, for a 2 bit pixel, there are 4 pix-

els/byte, and for a 1 bit pixel, there are 8 pixels/byte.

The scanner software on the host must strip the status byte from

the end of each line before reconstructing the image.

8.2.1 Reconstructing 12 bit Image Data Received By the PC

The 12 bit Data Mode is a special one for the LM9830. In the 12

bit Data Mode the horizontal resolution is always equal to the

optical resolution, the gamma correction is bypassed, and the

Pixel Packing stage is bypassed.

Each pixel is stored in the SRAM and transmitted to the PC in two

bytes, a high byte containing the 4 bit MSB of the pixel (format 0 0

0 0 B11 B10 B9 B8), and a low byte containing the 8 bit LSB.

This mode is used to acquire 12 bit data for accurate gain and off-

set calibration, and for applications requiring maximum resolution

data without gamma correction.

8.3 High Speed Forward

When register 07 is set to a 1, the LM9830 moves the motor for-

ward at maximum speed (determined by the fast feed stepsize,

registers 48 and 49) until either one of the Paper Sensor inputs

becomes True (if that sensor has been properly programmed to

interrupt scanner movement). Paper Sensor #2 can be used to

cause a delayed stop. If the FullSteps to Scan after Paper Sen-

sor #2 trips register is greater than 0, motor movement will con-

tinue for the programmed number of full steps. This can be used

to eject paper in sheetfed scanners.

8.4 High Speed Reverse

When register 07 is set to a 2, the LM9830 moves the motor

backwards at maximum speed (determined by the fast feed step-

size, registers 48 and 49) until either one of the Paper Sensor

inputs becomes True (if that sensor has been properly pro-

grammed to interrupt scanner movement). The FullSteps to

Scan after Paper Sensor #2 trips register is not used in the

High Speed Reverse mode. This function is generally used to

home the sensor in flatbed scanning applications.

8.5 Short Example of a Scan

• PC sends Daisy Chain Protocol Sequence to take the LM9830

out of Transparent mode.

• The LM9830 responds and shuts off printer

• PC writes to Configuration Register establishing EPP or Nibble

Mode for sending data from the LM9830 to PC

• PC configures the LM9830 by writing to the configuration regis-

ters

• If no calibration data for the scanner is found in the PC, or if the

user has requested a new calibration, the PC has the LM9830

scan a calibration image, then calculates the calibration coeffi-

cients for the scanner.

• PC transmits the calibration information to the LM9830 (this

step can be skipped if power to the LM9830 has been main-

tained since the last time the calibration data was sent).

• If a sheetfed, the PC now polls the LM9830 status registers to

see if there is any paper inserted. If a flatbed, it moves the scan

head to the home position.

• The PC sets the Scanning bit in the Configuration Register.

• The PC sends a series of reads to the LM9830 (Figures 60-62)

and gets a byte of pixel data for each read. The PC should be

keeping track of exactly how many bytes there will be in an

image and simply receive data until then, but the capability

exists for it to read from any Configuration Register at this time,

including the status bits for the 4 multipurpose inputs (paper

sensors, user buttons, etc.) and the number of image data bytes

available in the buffer. The PC can also write to any register,

including the register containing the Scanning bit. If this bit is

cleared, the scan is aborted.

• PC reads data until scan is complete or aborted.

• PC writes to Configuration Register and clears Scanning bit.

• If this is a flatbed scanner, the PC should now send a “return to

start of page” command. For a sheetfeeder, it can send a “fast

forward to end of page” command if needed.

• Turn off the lights, complete any other shutdown activities.

• PC sends command to put the LM9830 back in Transparent

mode.

9.0 Master Clock Source

The timing for the entire chip comes from the CRYSTAL OUT pin.

This clock is immediately divided down by the MCLK divider (reg-

ister 08), and the divided output is MCLK (Master CLOCK). The

MCLK divider range is from 1.0 to 32.5 in steps of 0.5. A configu-

ration register code of 0 divides the clock by 1.0, while a code of

63 divides the clock by 32.5. With a 48MHz crystal, this provides

an MCLCK range of 1.48MHz to 48MHz and a corresponding

ADC conversion rate of 184kHz to 6.00MHz. This divider can be

used to closely match the output data rate to the PC’s input data

rate, minimizing scan time.

MCLK is used to clock the vast majority of the LM9830’s circuits.

CRYSTAL OUT is used in a few subsections where the highest

possible clock speed is required (such as the PWM pulse genera-

Bytes/Line Valid PixelsHorizontal Resolution

Optical Resolution

-----------------------------------------------------

Bytes/Line Valid PixelsBits/Pixel

----------------------- Horizontal Resolution

Optical Resolution

-----------------------------------------------------

39 http://www.national.com

tor for the light source and the stepper motors).

To use the LM9830’s crystal oscillator feature, tie CLK_SEL (pin

71) to DGNDI/O. Figure 63 shows the recommended loading cir-

cuit and values for the 48MHz oscillator. The total capacitance on

the CRYSTAL IN node (including PCB capacitance and C1)

should be less than or equal to 10pF.

To drive the LM9830 with an external clock, tie CLK_SEL (pin 71)

to VD I/O, tie CRYSTAL_IN to DGNDI/O, and drive the TTL or

CMOS-level clock signal into CRYSTAL_OUT (pin 58).

10.0 Power-On/Reset

When the LM9830 is powered up, a power-on reset signal will

force the RESET and the STANDBY bits high. These bits can

also be controlled through the configuration register.

When the RESET bit is high, the following applies:

The LM9830 enters Transparent mode if using parallel port inter-

face (CMODE = 0).

All state machines are reset. Reset does not affect the values in

the configuration registers (except for those indicated with black

boxes in the Configuration Register table), or the contents of the

gamma RAM or external SRAM.

The STANDBY bit is set by the power on reset signal or by writing

to bit 2 of configuration register 07.

11.0 Standby Mode Conditions

The STANDBY bit is set on power-on.

When the STANDBY bit is high, the following applies:

External I/O (whether in Parallel Port or Microprocessor mode)

continues to function (in order to enter and exit Standby Mode).

All stepper motor outputs are tri-stated.

The 50MHz oscillator continues to run, but MCLK is turned off

inside the LM9830.

Analog blocks are turned off to minimize power consumption.

12.0 Misc. Questions and Answers

Q Where is calibration done?

A Calibration is done on the host computer.

Q Does the LM9830 support 400dpi sensors?

A Yes. Use the 600dpi mode, and understand that the available

horizontal resolutions will be 400, 267, 200, 133, 100, 67, 50,

and 33.

13.0 General Notes and Troubleshooting Tips

If the LM9830 is reset during a scan (Command register > 0), the

gamma table data may be corrupted. Always stop scanning (by

setting Command register to 0) and wait 10 ms before resetting

the LM9830.

Some of the CCD signals (RS, CP1, and CP2) can have a small

pulse when line_end occurs. Line_end resets these signals and

depending on how they are programmed to go on and off,

line_end can chop off the signal before its programmed off time.

If printer power is off, the printer may short the parallel databus to

ground, causing scanner data to be forced to all zeros.

In full duplex modes, the host must read exactly (full - empty)

kbytes from buffer - too few and the LM9830 won’t resume scan-

ning, too many and the LM9830 will output garbage. The full

duplex is mode is not recommended.

The PAUSE bit in the status byte transmitted at the end of a line

represents whether or not a PAUSE REQUEST is currently pend-

ing. This status byte is assembled at the “Line End” point in time

for the line of pixel data just stored in RAM. This signal changes

back to 0 when a RESUME REQUEST is made by the Brain.

(The signal is actually a PAUSE/RESUME REQUEST.)

The PAUSE bit in the status byte at address 02 in the configura-

tion register represents whether or not a PAUSE has actually

occurred.

Registers 4 and 5 only autowrap to 0 from their highest possible

legal address. If an address higher than the highest address is

written, it will continue to increment (not wrap to 0), and unknown

operation may occur. This can not happen unless the host writes

an illegal address to the dataport.

The absolute distance between reference sample and signal

sample must be 2 MCLKs or greater.

The range of values for the Optical Black (registers 0F and 10),

Reset Pulse (11 and 12), CP1 pulse (13 and 14), CP2 pulse (15

and 16), Reference Sample (17), and Signal Sample (18) settings

depend on the rate of the pixel data coming from the sensor.

twice in succession to make sure you don’t get erroneous data.

Always make sure line length (data pixels end - data pixels start)

is >= the horizontal divider. For example, if you are dividing by 12,

the line length must be >=12.

The Line End (registers 20 and 21) setting must be programmed

as follows relative to the Data Pixels End (registers 24 and 25)

setting:

Line End must be >= Data Pixels End + 20

The Data Pixels Start (registers 22 and 23) setting must be >=the

Active Pixels Start (registers 1E and 1F) setting.

The MCLK frequency is 25MHz maximum for 12 bit full duplex

mode or 8 bit/8 slot mode.

Data reads in 12 bit half duplex mode can not be done while

scanning.

Figure 63: Crystal Oscillator Circuit

100ΩLM9830

CRYSTAL

OUT (58)

5pF 15pF

300pF

1.2µH

LM9830

CRYSTAL

IN (57)

48MHz 3RD

Overtone Crystal

Ecliptek

EC-T-48.000M

C1 C2

Mode Pixel Rate Registers 0F to 18

Range

Pixel Rate Modes MCLK/24 0 - 23

Line Rate Modes MCLK/8 0 - 7

40 http://www.national.com

The correct Default Phase Difference (registers 52 and 53) must

be set for a scan to restart properly following a pause in the scan-

ning. See the LM9830 software for information on setting the

DPD register.

Attempting to read out the last pixels transferred into the SRAM

may cause the parallel port line buffer to underrun. Always make

sure there is at least 1K in buffer (register 01 >= 2) before reading

image data.

The number of fullsteps skipped at the start of a scan may be one

less than the Fullsteps to Skip at Start of Scan (registers 4A and

4B) setting.

The Scanning Step Size (registers 46 and 47) and Fast Feed

Step Size (registers 48 and 49) settings must be > 2.

When reverse is enabled, the LM9830 always stops on Red (line

rate color). When reverse is disabled, it will stop on any color.

The value in CR01 is reset by “start of scan reset” sos_reset.

sos_reset is asserted near the first line-end after a scan com-

mand is written (CR07=03). So if there is a residual value in

CR01, it will remain there for up to one line after a scan command

is written. CR07=08 (between scans) will reset CR01.

Some counters (register 01, notably), are not reset by the start of

a new scan until the first line has been scanned. For this reason

the chip should be briefly reset (register 07 = 08h) prior to a scan.

Make sure register 42 is set to the proper value (4 bit nibble or 8

bit bidirectional) for your PC’s parallel port mode before attempt-

ing to read data from the LM9830.

BUSY may go high by itself for the first few pixels after a scan is

started. After starting a scan, wait several ms before talking to the

LM9830.

When in 1 channel Mode A, the Dataport Target Color (reg03b1-

2) value is ignored for gamma reads and writes. The 1 Channel

Mode A Channel Color register (reg26b3-4) selects the gamma

table to be used when in 1 Channel Mode A. This only applies to

the gamma table. Register 3 is used to select the color for

gain/offset coefficient data.

Gamma and gain/offset coefficient data should be written with

coefficient data when scanning (register 7 = 3).

Sensor (Offset and Gain) Address Counter

10 bits

10b x 10b

Pixel-Rate

Gain

Multiplier

12-Bit

ADC

Pixel-Rate

Offset

Subtraction 10

Pixel Processing

(DPI adjust),

10 Bit Data Mode

Gamma

Correction

Lookup

Table

Pixel

Processing

(Packing)

8 8

(External

RAM

Databus)

Stepper

Motor

Current

Controller

Buffer In Address Counter

Buffer Out Address Counter

External

RAM

Address

Multiplexer

External

RAM

Address

Bus

External

RAM

Databus

Offset Latch Gain Latch

10 or 86 or 8

EPP/

Nibble Mode

Interface

8Parallel

Port

Databus

9PC

Parallel

Port

Control

2Printer

Passthrough

Control

Configuration

Line Buffer Controller Pause Scanning (Near Overflow)

Resume Scanning (Near Underflow)

Increment

Increment Buffer In Address Counter

Power

Transistors

2Current

Feedback

2Oneshot

Time Constant

Increment Buffer Out Address Counter

CRYSTAL INCRYSTAL OUT

8*fADC

(50MHz

max)

System Clock

Generation

CR = Configured by bits in the Configuration Register

CR CR

The Brains

Pixel Counter, Stepper Counter, Lamp Counter,

Command Interpreter

AFE Synchronization

New Line

(TR pulse)

Pause

2Misc. I/O #1, #2

3LAMPR, LAMPG, LAMPB

Lamp Control

Te s t

External RAM RD

External RAM WR

Stepper

Motor

Controller

Inhibit

(Unused/Old

Pixels)

A, B

states

A, B

current

12 bit Data/

Normal Mode

Select

2PSense #1, #2

Test Modes

CMODE

Digital Processing Block Diagram

i +9 +9 +9

-1

Coarse Color

Balance PGAs

DACR

Offset

OSR

RED OS

from CCD CDS

OSG

GREEN OS

from CCD CDS

OSB

BLUE OS

from CCD CDS

x0.93

to x3

DACG

Offset

DACB

Offset

12-Bit

ADC

2.5V

x1or x3

Static

Offset

DACs

VREF LO FORCE

VREF LO SENSE

VREF MID FORCE

VREF MID SENSE

VREF HI FORCE

VREF HI SENSE

-1

ø1

ø2

CP1

TR1

TR2

Internal

Bandgap

Reference

VBANDGAP

CP2

x1or x3

Gain

Boost

Analog Front End Block Diagram

x0.93

to x3

x0.93

to x3

W+AN

+24V

–Reset

Phase A

Invert

Set-Dominant

S/R Flipflop

+24V

Stepper

Phase A

Stepper

Phase A

Stepper

Phase B

Stepper

Phase B

DAC code for

phase A 3

SENSE1

SENSE2

HIGH CURRENT

GND SENSE

1Ω

DAC A:

0.125V,

0.191V,

0.353V,

0.462V,

0.500V

Comparators need no hysteresis. SR flipflops are set periodi-

cally by pulse from PWM Generator. Flipflops can only be reset

after SR goes low when Reset (comparator output) is high

(VSENSE > VDAC).

Reset is level sensitive, not edge sensitive.

÷4

÷1 to 256

÷64

PWM

Generator

0/64 to

63/64

high time

–Reset

Set-Dominant

S/R Flipflop

DAC A:

0.125V,

0.191V,

0.353V,

0.462V,

0.500V

Set

CRYSTAL IN

(50MHz)

Optional zener speeds

up motor current

decay when transistor

is off. VZ ~ 24V

DAC code for

phase B

Phase B

Invert

TriState Stepper

Motor Outputs

LM9830

Stepper Motor Current Controller Block Diagram

74HCT373

Computer To

Printer

DB25

LM9830

DatabusControl Signals

Printer Passthrough Block Diagram

TRISTATE LATCH

BIAS

VPASSTHROUGH

Notes:

VPASSTHROUGH is generated by rectifying the control outputs from the PC and printer parallel ports. If needed, the 8 bit data lines

may be rectified as well to provide additional current.

If the LM9830’s TRISTATE output is not forced to ground when the LM9830 power is off, then it needs a pulldown resistor to

ground.

The 74HCT373 needs to pass 4 lines from the PC to the printer, the 74HCT244 controls 5 lines from the printer to the PC. The

latch is needed to hold the 4 inputs to the printer in the state they were in before the LM9830 left the transparent mode. It is possi-

ble that a simple tristate buffer (74HCT244) could be used instead of the latch, with pullups/pulldowns defining the signals sent to

the printer when the LM9830 is active. It is also possible that one signal (probably INIT) could always be simultaneously connected

to the printer port and the LM9830, allowing just one 74HCT244 to implement the printer passthrough function.

The final recommended schematic for this mode is an applications issue and will be determined after testing with final silicon.

The design requirements are:

Scanner Active PassThrough LM9830 Power Off

TRISTATE +5V 0V 0V (through pulldown, if necessary)

LATCH 0V 5V 5V (through pullup) (latches previous states)

D0-D7 LM9830 sends/receives Tristate Tristate

STROBE, AUTOFEED, Inputs to LM9830 Tristate Tristate

SELECT IN, INIT

ACK, BUSY, PE, LM9830 Outputs Tristate Tristate

SELECT, ERROR

74HCT244

+5V from Scanner Power Supply

ye o I 0.2 w mo w u annuzuw IHHIIHIIIIIIIIIIII mm jlﬁiﬁzlto DSIYP . ’\_/stt mm A mom ‘ no vs°m>mnaovmu H a) n“ m m as mu m na- 0 in a 25 as: mm} 711 mo, fae- will \ 005 M \smwb m»: a son ‘sU i a. o :a «w DEYAIL A

45 http://www.national.com

Physical Dimensions (millimeters)

100-Pin Thin Plastic Quad FlatPac (JEDEC) (TQFP)

NS Package Number VJD100A

Order Number LM9830VJD

LIFE SUPPORT POLICY

NATIONAL'S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT

DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL

SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or systems which,

(a) are intended for surgical implant into the body, or (b) support

or sustain life, and whose failure to perform, when properly used

in accordance with instructions for use provided in the labeling,

can be reasonably expected to result in a significant injury to the

user.

2. A critical component is any component of a life support device

or system whose failure to perform can be reasonably expected

to cause the failure of the life support device or system, or to

affect its safety or effectiveness.

National Semiconductor

Corporation

1111 West Bardin Road

Arlington, TX 76017

Tel: 1(800) 272-9959

Fax: 1(800) 737-7018

National Semiconductor Europe

Fax: a49 (0) 180-530 85 86

Email: europe.support @ nsc.com

Deutsch Tel: + 49 (0) 180-530 85 85

English Tel: + 49 (0) 180-532 78 32

Francais Tel: + 49 (0) 180-532 93 58

Italiano Tel: + 49 (0) 180-534 16 80

National Semiconductor Hong

Kong

13th Floor, Straight Block,

Ocean Centre, 5 Canton Rd.

Tsimshatsui, Kowloon

Hong Kong

Tel: (852) 2737-1600

Fax: (852) 2736-9960

National Semiconductor

Ltd. Japan Ltd.

Tel: 81-043-299-2308

Fax: 81-043-299-2408

http://www.national.com

National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,

and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should

obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are

sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard

warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where

mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and

applications using TI components. To minimize the risks associated with customer products and applications, customers should provide

adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,

or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information

published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a

warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual

property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied

by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive

business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional

restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all

express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not

responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably

be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing

such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products

and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be

provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in

such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are

specifically designated by TI as military-grade or "enhanced plastic."Only products designated by TI as military-grade meet military

specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at

the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are

designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated

products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Audio www.ti.com/audio Communications and Telecom www.ti.com/communications

Amplifiers amplifier.ti.com Computers and Peripherals www.ti.com/computers

Data Converters dataconverter.ti.com Consumer Electronics www.ti.com/consumer-apps

DLP®Products www.dlp.com Energy and Lighting www.ti.com/energy

DSP dsp.ti.com Industrial www.ti.com/industrial

Clocks and Timers www.ti.com/clocks Medical www.ti.com/medical

Interface interface.ti.com Security www.ti.com/security

Logic logic.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense

Power Mgmt power.ti.com Transportation and Automotive www.ti.com/automotive

Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video

RFID www.ti-rfid.com

OMAP Mobile Processors www.ti.com/omap

Wireless Connectivity www.ti.com/wirelessconnectivity

TI E2E Community Home Page e2e.ti.com

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Products related to this Datasheet

IC COLOR DOC SCANNER 100TQFP

LM9830VJD/NOPB

IC COLOR DOC SCANNER 100TQFP

LM9830VJD
