Solid State RF Powered Oven Solutions

In 1970s, the RF heating brought convenient cooking experience, by using electromagnetic radiation in microwave spectrum, consumers can reheat leftovers, defrost frozen foods, etc.

Solid State RF Powered Oven solutions from Infineon

With the latest solid state RF powered oven solution from Infineon, consumers will reach a higher level experience of cooking, families can enjoy the more precise cooking, improved food quality, greater consistency in quality of cooking, selective heating, and versatile and complex cooking combinations.

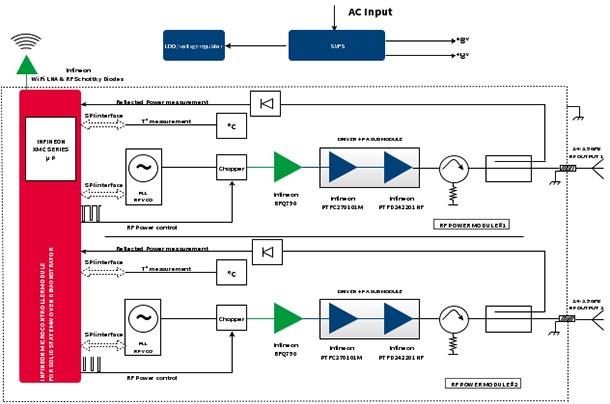

Using the latest LDMOS, manufacturers can use one or several these 250 W units to build a microwave oven with the desired power level. The RF power transistors and architectures will provide a full range of power control, phase shifting, and frequency adjustment allowing microwaves to cook complex combinations. Also, the safety improved due to 30 V operational voltage will replace the magnetron’s 4 kV power supply, and the product lifetime is significantly greater.

Aligning with home appliance moving trend, the solution has the reliable WIFI interface, with the sensitivity, strong signal capability and interference immunity, users can enjoy the cooking experience and can share the experience in Cloud community.

Infineon offers a comprehensive portfolio to address a broad range.

• RF.P.A
• SMPS
• Program Control
• Communication

RF.P.A

Main Components	Infineon Relevant Products
Power Amplifier	Pre-driver: BFQ790
	Driver: PTFC270101M
	Final: PTFD242201NF

Sub Application	Recommendation	Key Benefits
RF Power	Power Amplifier: BFQ790	Silicon Germanium (SiGe) technology, highly linear output stages
	LDMOS Driver: PTFC270101M	Operating from 900 MHz to 2700 MHz, excellent gain, efficiency and linearity performance
	LDMOS: PTFD242201NF	Thermally-Enhanced High Power RF LDMOS FET, high reliability and consistency

SMPS

Infineon high efficiency and cost effective switching power solution will enhance the microwave oven performance:

Main Components	Infineon Relevant Products
High Voltage MOSFETs	600 V CoolMOS™ P6 - IPW60R070P6/IPW60R099P6
High Voltage Rectifier	650 V Rapid 2 Diode - IDP15E65D2 650 V SiC Diode Gen5 - IDH08G65C5
Low Voltage MOSFET	80 V OptiMOS™ 5 -
PWM IC	PFC/LLC/CoolSETTM IC - ICE3PCS01G/ICE1HS01G1

Related Product Highlight

• CoolMOS™ P6 – High voltage power MOSFET family for superior efficiency and ease of use
• Rapid 2 Diode – Optimized hyperfast diode for high speed switching applications with high efficiency
• SiC Diode Gen5 – Cost optimization for higher efficiency SMPS
• 80 V OptiMOS™ 5 – For best-in-class price/performance
• CoolSET™ - For extremely low standby power and very accurate max power control

Resources

• OptiMOS™ and StrongIRFET™ Low and Medium Voltage Power MOSFETs
• CoolMOS™ High Voltage Power MOSFETs

XMC™ Microcontrollers

Infineon’s XMC™ 32-bit industrial microcontroller portfolio is designed for system cost and efficiency for demanding industrial applications. It comes with the most advanced peripheral set in the industry.

All XMC4000 devices are powered by ARM® Cortex™-M4 with a built-in DSP instruction set. The XMC4500 series provides 512 kB to 1 MB flash, 128 kB to 160 kB RAM, additional CAN nodes (up to 3), SDIO/SD/MMC interface as well as external memory interface (EBU) to directly interface with memories, LCDs and proprietary systems such as FPGAs or ASIC.

Main Components	Infineon Relevant Products
Microcontroller	XMC4500



XMC4000 Family Key Features

	Ta = 125°C	125°C ambient temperature for highest robustness in harsh environments.
Timers ADC Position I/F		A comprehensive set of most flexible Timers/PWMs, fast and accurate ADCs and position interfaces in combination with a programmable hardware interconnect matrix enable deterministic behavior and full application control.
150ps		150ps high-resolution PWM and smart analog comparator to achieve the highest energy efficiency class for digital power conversion.
∆∑ Demodulator		Delta Sigma demodulator with integrated filters for cost- and size-efficient galvanic isolated current measurement.

Communication

Main Components	Infineon Relevant Products
Wireless Communication	LNA: BGx740
	TVS: ESD0P2RF
	RF Switch: BGS12xx6

Sub Application	Recommendation	Key Benefits
WiFi	5G Band LNA: BFP840ESD	Best-in-class noise figure (0.95 dB), high transition, highest gain (18 dB)
	2.3 - 3.5 GHz LNA: BFP842ESD	High linearity, high transition frequency, high robustness
