Slide5

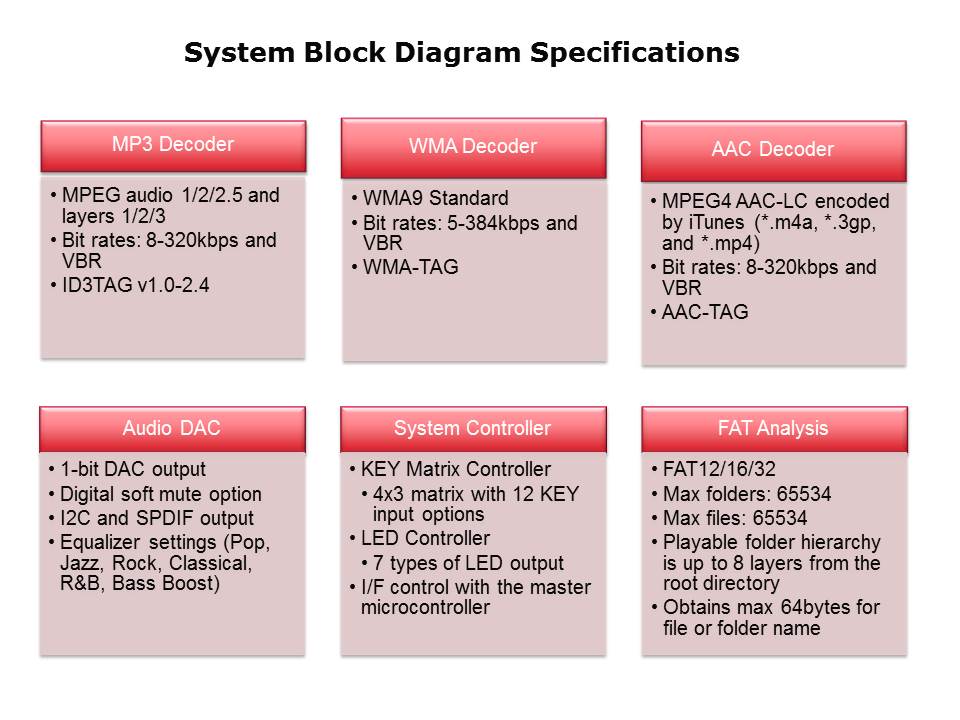

The above feature blocks are all integrated into the BU94xxx series as an all-in-one chip solution. Along with audio decoding, a 1-bit DAC and a system controller complete with key matrix controller and LED controller are included. Up to 12 individual keys and 7 types of LEDs can be controlled. FAT 12, 16, and 32 file types are supported.
