KEMET Flex Crack Mitigation

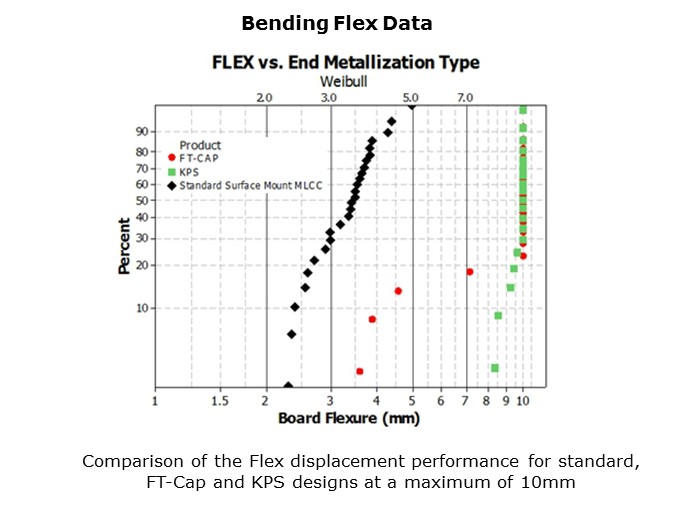

The Weibull chart shown on this slide illustrates the flex performance of a standard MLCC (illustrated in black data points) as compared to KEMET’s flexible termination (in red data points) and KPS technologies (in green data points). As can be seen, both mitigation technologies significantly improve flex performance and offer up to 10mm of flex performance. As illustrated, a small portion of the population in the flexible termination category exhibits failures between 3.5mm and 10mm (tail). KPS technology offers superior flex performance over both standard and flexible termination technologies with a smaller tail and tighter distribution within the 8mm to 10mm range.
