Silicon Carbide CoolSiC™ MOSFET
Infineon Technologies' silicon carbide CoolSiC MOSFET solutions for an energy-smart world

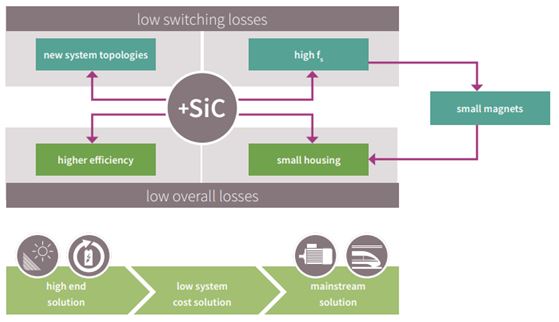

Infineon provides a range of EiceDRIVER™ driver IC products suitable for use with its CoolSiC MOSFETs, which opens new degrees of freedom for designers to harness never-before-seen levels of efficiency and system flexibility. Together, CoolSiC MOSFETs and EiceDRIVER gate-driver ICs take full advantage of the superior characteristics of silicon carbide (SiC) technology. Silicon carbide CoolSiC MOSFET solutions are the next essential step towards an energy-smart world. CoolSiC MOSFET first products are targeted for photovoltaic inverters, battery charging, and energy storage.
Infineon has gone into volume production with its portfolio of 1200 V CoolSiC MOSFETs. This portfolio includes:
- IMW120R045M1 CoolSiC 1200 V, 45 mΩ SiC MOSFET in a TO247-3 package
- IMZ120R045M1 CoolSiC 1200 V, 45 mΩ SiC MOSFET in a TO247-4 package
Features
- Highest efficiency for reduced cooling effort
- Longer lifetime and higher reliability
- Higher frequency operation
- Reduction in system cost
- Increased power density
- Reduced system complexity
- Ease of design and implementation
- CoolSiC MOSFETs and EiceDRIVER gate-driver ICs give designers:
- Greater scope to lower system cost
- Reduced operating expenses
- Reduced total cost of ownership
- Devise new solutions for an energy-smart world
Applications
- Photovoltaic inverters (PV)
- Energy storage/battery charging
- Uninterruptible power supplies (UPS)
- Switch mode power supplies (SMPS)
- Industrial drives
- Medical
Resources
Silicon Carbide CoolSiC™ MOSFET
| Afbeelding | Onderdeelnr. fabrikant | Beschrijving | Stroom - continue ontlading (Id) bij 25°C | Available Quantity | Prijs | Details weergeven | |
|---|---|---|---|---|---|---|---|
 |  | IMZ120R045M1XKSA1 | SICFET N-CH 1200V 52A TO247-4 | 52 A (Tc) | 115 - Immediate | $12.30 | Details weergeven |
|  | IMW120R045M1XKSA1 | SICFET N-CH 1.2KV 52A TO247-3 | 52 A (Tc) | 283 - Immediate | $11.56 | Details weergeven |
Evaluation Board
| Afbeelding | Onderdeelnr. fabrikant | Beschrijving | Available Quantity | Prijs | Details weergeven | |
|---|---|---|---|---|---|---|
|  | EVAL1EDC20H12AHSIC | EVAL BD 1EDC20H12AH IMZ120R045M1 | 0 - Immediate | $117.95 | Details weergeven |
Drivers
| Afbeelding | Onderdeelnr. fabrikant | Beschrijving | Available Quantity | Prijs | Details weergeven | |
|---|---|---|---|---|---|---|
|  | 1ED020I12F2XUMA1 | DGT ISO 4.5KV 1CH GT DVR DSO16 | 3600 - Immediate | $3.58 | Details weergeven |
|  | 2ED020I12F2XUMA1 | IC GATE DRVR HALF-BRIDG DSO36-58 | 2833 - Immediate | $5.36 | Details weergeven |
|  | 1EDU20I12SVXUMA1 | DIGITAL ISO 5KV 1CH GATE DVR | 1000 - Immediate | $6.49 | Details weergeven |
|  | 1EDC20H12AHXUMA1 | DGT ISO 2.5KV 1CH GT DVR DSO8-59 | 0 - Immediate | $2.32 | Details weergeven |
|  | 1EDI20I12MFXUMA1 | DIGITAL ISO 1CH GATE DVR DSO8-51 | 3558 - Immediate | $1.36 | Details weergeven |
| | 1EDC60H12AHXUMA1 | DGT ISO 2.5KV 1CH GT DVR DSO8-59 | 4375 - Immediate | $2.65 | Details weergeven |
| | 1EDC20I12MHXUMA1 | DGT ISO 2.5KV 1CH GT DVR DSO8-59 | 576 - Immediate | $2.52 | Details weergeven |
Published: 2019-09-24
