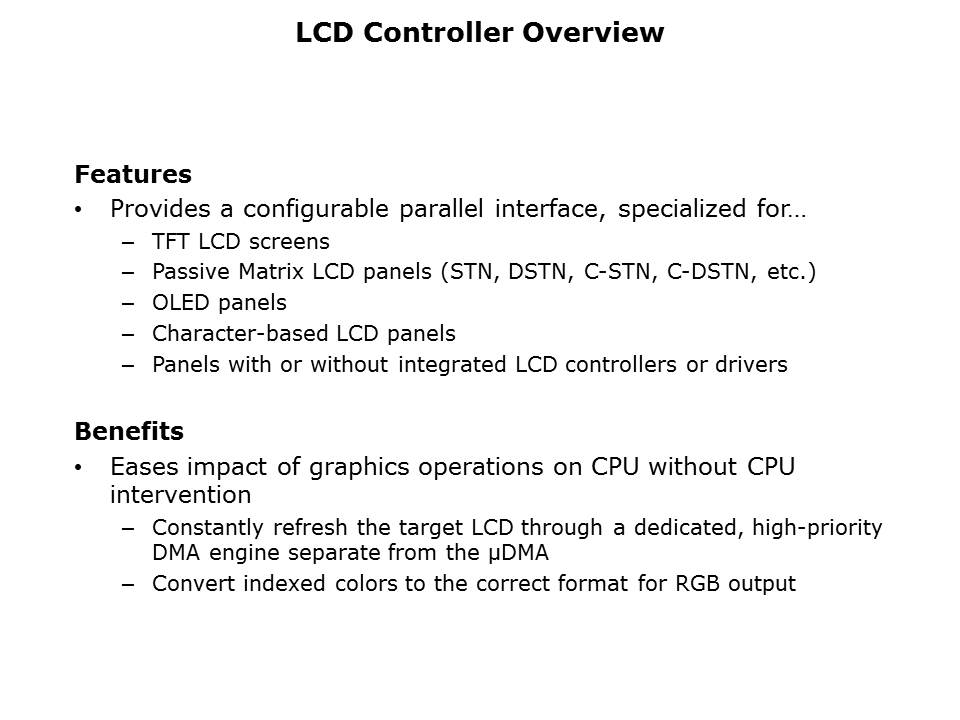

TM4C129x LCD Controller Slide 3

The LCD controller on the TM4C129x devices provides a configurable parallel interface to connect a wide number of displays with the purpose to make it easier for the MCU to move image data from the display buffer to an LCD screen while getting the timings and formatting correct. Some key benefits of using the LCD controller are that the target LCD screen can be constantly refreshed through a dedicated LCD DMA engine and the indexed colors can be converted to the correct format for RGB output without processor’s intervention.
