TM4C129x LCD Controller Slide 6

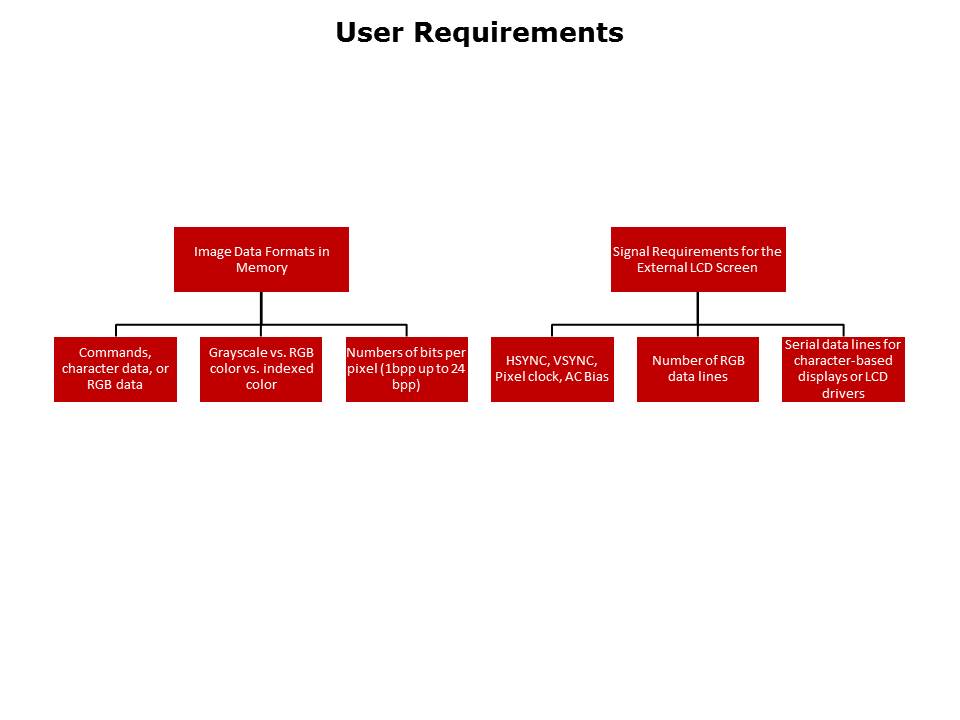

Customers will be required to configure several parameters such as the image data formats in the memory, and signal requirements for the particular LCD screen being used. These parameters along with several others can be provided through configuration registers in the LCD controller, and are supported through TivaWare API functions and structures to make the configuration easier.
